纺织学报 ›› 2019, Vol. 40 ›› Issue (07): 133-137.doi: 10.13475/j.fzxb.20180603805

• 服装工程 • 上一篇    下一篇

文胸钢圈对乳房竖直位移的影响

陈晓娜1,2, 王二会3

  1. 1. 上海工程技术大学 服装学院, 上海 201620
    2. 同济大学 上海国际设计创新研究院, 上海 200080
    3. 东华大学 服装与艺术设计学院, 上海 200051
  • 收稿日期:2018-06-11 修回日期:2019-04-15 出版日期:2019-07-15 发布日期:2019-07-25
  • 作者简介:陈晓娜(1984-),女,讲师,博士。主要研究方向为服装工效学和运动服装功能评价。E-mail: chenxn@sues.edu.cn
  • 基金资助:
    国家自然科学基金资助项目(11802171);上海高校青年教师培养资助计划项目(ZZGCD15112);上海市设计学IV类高峰学科资助项目(DB18207)

Influence of bra underwire on vertical breast displacement

CHEN Xiaona1,2, WANG Erhui3

  1. 1. Fashion College, Shanghai University of Engineering Science, Shanghai 201620, China
    2. Shanghai Institute of Design and Innovation, Tongji University, Shanghai 200080, China
    3. College of Fashion and Design, Donghua University, Shanghai 200051, China
  • Received:2018-06-11 Revised:2019-04-15 Online:2019-07-15 Published:2019-07-25

摘要:

为研究钢圈是否能有效提高文胸对运动时女性乳房竖直位移的控制作用,使用三维运动捕捉系统(NDI Optotrak Certus)采集了9名C罩杯女性分别穿着有钢圈文胸和无钢圈文胸时以3种速度(5,7.5,10 km/h)在跑步机上运动时的乳房竖直位移数据;同时,使用视觉模拟评分表测量实验对象在每个状态下的主观乳房位移及乳房位移引起的不舒适感。结果表明:加钢圈可显著提高文胸对C罩杯女性在跑步机上运动时乳房竖直位移的控制作用;加钢圈可降低实验对象因乳房位移引起的不舒适感;有钢圈文胸相对于无钢圈文胸对乳房竖直位移控制效果随运动速度增加而增强。

关键词: 乳房位移, 文胸钢圈, 运动状态, 三维运动捕捉

Abstract:

In order to study whether adding underwire can effectively improve limitation of bra on women's vertical breast displacement during exercise, three dimensional motion capture system (NDI Optotrak Certus) was employed to collect the vertical breast displacement of 9 participants with the breast size of C cup, when they were wearing bras with and without underwire, exercising on the treadmill at three gait speeds (5, 7.5, 10 km/h). Meanwhile, visual analogue scale (VAS) was adopted to measure participants' perceived breast displacement and discomfort resulted from breast displacement in each motion state. The results show that adding underwire can effectively increase bra function on limiting vertical breast displacement of women with C cup size breasts when they are exercising on the treadmill. Similarly, adding underwire has a significant effect on reducing participants' perceived breast displacement and discomfort related to breast displacement. The control effect of underwire on vertical breast displacement increases with the acceleration of gait speed.

Key words: breast displacement, bra underwire, motion state, three-dimensional motion capture

中图分类号:

  • TS941.17

表1

实验对象文胸号型及胸部尺寸"

实验对象
编号
文胸号型 胸部尺寸/cm
上胸围 胸围 下胸围
1# 85C 92.0 90.0 77.0
2# 85C 97.0 98.0 83.0
3# 85C 92.0 91.0 78.0
4# 75C 82.0 85.0 72.0
5# 75C 84.5 83.5 71.5
6# 75C 85.0 84.5 73.0
7# 75C 83.0 87.0 72.0
8# 75C 85.0 86.0 73.0
9# 75C 83.0 83.5 74.5
平均值 87.1 87.6 76.0

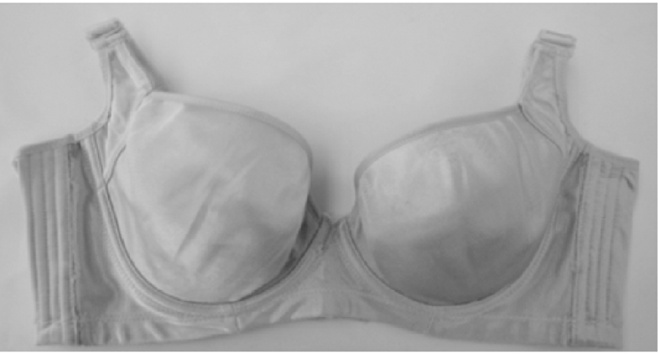

图1

实验文胸照片"

图2

三维运动捕捉系统"

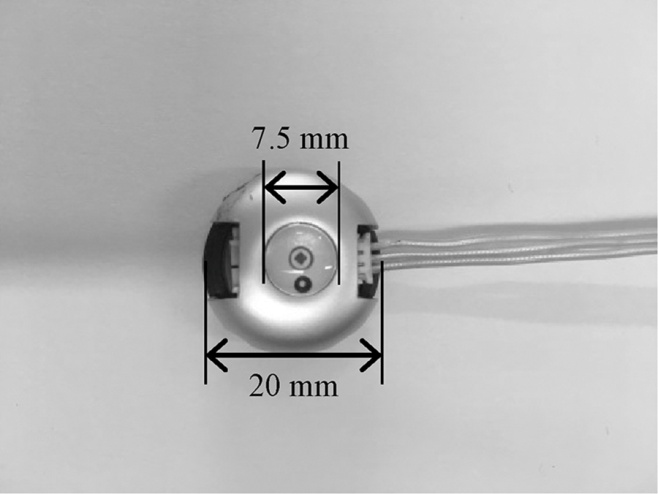

图3

位移传感器"

图4

实验测量点"

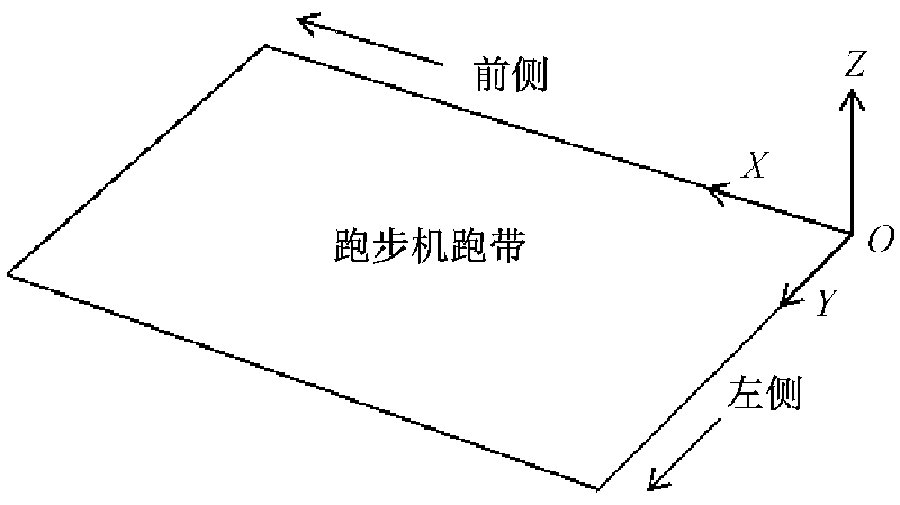

图5

坐标轴标定"

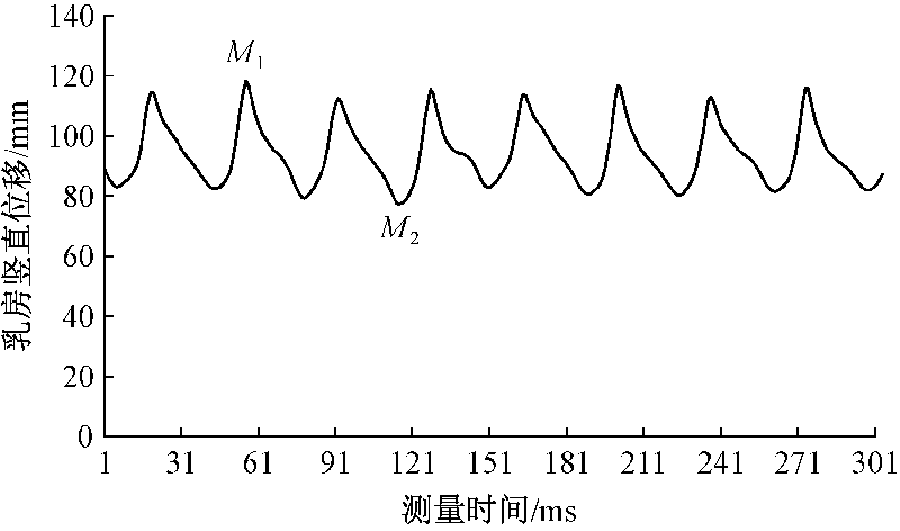

图6

1个步态周期内乳房相对位移计算示意图"

表2

每种运动状态下穿着不同类型文胸时的乳房竖直位移显著性差异检验P值"

运动速度/(km·h-1) P
5.0 0.001*
7.5 0.000*
10.0 0.000*

表3

2种文胸的主观乳房位移,乳房位移引起的不舒适感及运动强度显著性差异检验P值"

变量 P
乳房位移 0.007*
乳房位移引起的不舒适感 0.025*
运动强度 1.000
[1] 李上校, 任景萍, 闫颖 , 等. 行走过程中文胸对乳房运动学参数的影响[J]. 北京体育大学学报, 2014,37(7):75-79.
LI Shangxiao, REN Jingping, YAN Ying , et al. The influence of bra on breast's kinematics parameters during walking[J]. Journal of Beijing Sport University, 2014,37(7):75-79.
[2] GEFEN A, DILMONEY B . Mechanics of the normal woman's breast[J]. Technology and Health Care, 2007,15(4):259-271.
pmid: 17673835
[3] PAGE K A, STEELE J R . Breast motion and sports brassiere design[J]. Sports Medicine, 1999,27(4):205-211.
doi: 10.2165/00007256-199927040-00001 pmid: 10367331
[4] 陈晓娜, 王建萍 . 文胸结构设计及其影响因素[J]. 纺织学报, 2012,33(8):155-160.
CHEN Xiaona, WANG Jiangping . Bra pattern making and its affecting factors[J]. Journal of Textile Research, 2012,33(8):155-160.
[5] 王方圆, 陈晓娜, 王建萍 . 胸部位移与文胸舒适性关系初探[J]. 纺织学报, 2013,34(1):106-109.
WANG Fangyuan, CHEN Xiaona, WANG Jianping . Preliminary study of effect of breast displacement on bra comfort[J]. Journal of Textile Research, 2013,34(1):106-109.
[6] 王丽卓, 陈东生 . 女性文胸服装压感舒适性的研究[J]. 纺织学报, 2008,29(4):134-138.
WANG Lizhuo, CHEN Dongsheng . Study of pressure comfort of brassiere[J]. Journal of Textile Research, 2008,29(4):134-138.
doi: 10.1177/004051755902900204
[7] 陈霞 . 塑型文胸的结构设计[J]. 纺织学报, 2008,29(1):94-97.
CHEN Xia . Structure design of shaping bra[J]. Journal of Textile Research, 2008,29(1):94-97.
[8] COLTMAN C E, MCGHEE D E, STEELE J R . Bra strap orientations and designs to minimize bra strap discomfort and pressure during sport and exercise in
women with large breasts [J]. Sports Medicine, 2015,1(1):2-8.
[9] 陈晓娜, 龙玉廷 . 运动文胸肩带参数对胸部位移与压力的影响[J]. 针织工业, 2018(2):54-58.
CHEN Xiaona, LONG Yuting . Effect of sports bra shoulder strap parameters on breast displacement and pressure[J]. Knitting Industries, 2018(2):54-58.
[10] 常丽霞, 张欣 . 运动胸衣研究现状[J]. 针织工业, 2005(11):27-30.
CHANG Lixia, ZHANG Xin . Research status of sports bra[J]. Knitting Industries, 2005(11):27-30.
[11] RISIUS D, MILLIGAN A, BERNS J , et al. Understanding key performance indicators for breast support: an analysis of breast support effects on biomechanical, physiological and subjective measures during running[J]. Journal of Sports Sciences, 2016,35(9):1-10.
[12] SCURR J C, WHITE J L, HEDGER W . Supported and unsupported breast displacement in three dimensions across treadmill activity levels[J]. Journal of Sports Sciences, 2011,29(1):55-61.
doi: 10.1080/02640414.2010.521944 pmid: 21077006
[13] 于莉君, 陈晓娜 . 运动文胸下围围度对胸部位移的影响[J]. 时尚设计与工程, 2017(5):30-35.
YU Lijun, CHEN Xiaona . Effect of the sports bra circumference on the breast displacement[J]. Fashion Design and Engineering, 2017(5):30-35.
[14] LORENTZEN D, LAWSON L . Selected sports bras: a biomechanical analysis of breast motion while jogging[J]. Physician & Sportsmedicine, 1987,15(5):128-139.
doi: 10.1080/00913847.1987.11709355 pmid: 27463876
[15] MCGHEE D E, STEELE J R . Optimising breast support in female patients through correct bra fit: a cross-section study[J]. Journal of Science & Medicine in Sport, 2010,13(6):568-572.
doi: 10.1016/j.jsams.2010.03.003 pmid: 20451452
