基于可调张力装置的芳纶织物交织阻力研究

doi:10.13475/j.fzxb.20200303806

纺织学报 ›› 2021, Vol. 42 ›› Issue (01): 67-72.doi: 10.13475/j.fzxb.20200303806

基于可调张力装置的芳纶织物交织阻力研究

陈洁如¹, 邱诗苑¹, 杨青青¹, 周熠¹^,²()

1.武汉纺织大学纺织科学与工程学院, 湖北武汉 430200
2.武汉纺织大学纺织纤维及制品教育部重点实验室, 湖北武汉 430200

收稿日期:2020-03-16 修回日期:2020-09-30 出版日期:2021-01-15 发布日期:2021-01-21
通讯作者: 周熠
作者简介:陈洁如(1985—),女,硕士生。主要研究方向为弹道防护材料及其力学分析。
基金资助:
国家自然科学基金青年科学基金项目(11502179);湖北省教育厅科学研究计划项目(D20171602)

Research on inter-yarn friction of aramid fabric based on adjustable tension device

CHEN Jieru¹, QIU Shiyuan¹, YANG Qingqing¹, ZHOU Yi¹^,²()

1. College of Textile Science and Engineering, Wuhan Textile University, Wuhan, Hubei 430200, China
2. Key Laboratory of Textile Fiber & Product, Ministry of Education, Wuhan Textile University, Wuhan, Hubei 430200, China

Received:2020-03-16 Revised:2020-09-30 Online:2021-01-15 Published:2021-01-21
Contact: ZHOU Yi

摘要/Abstract

摘要：

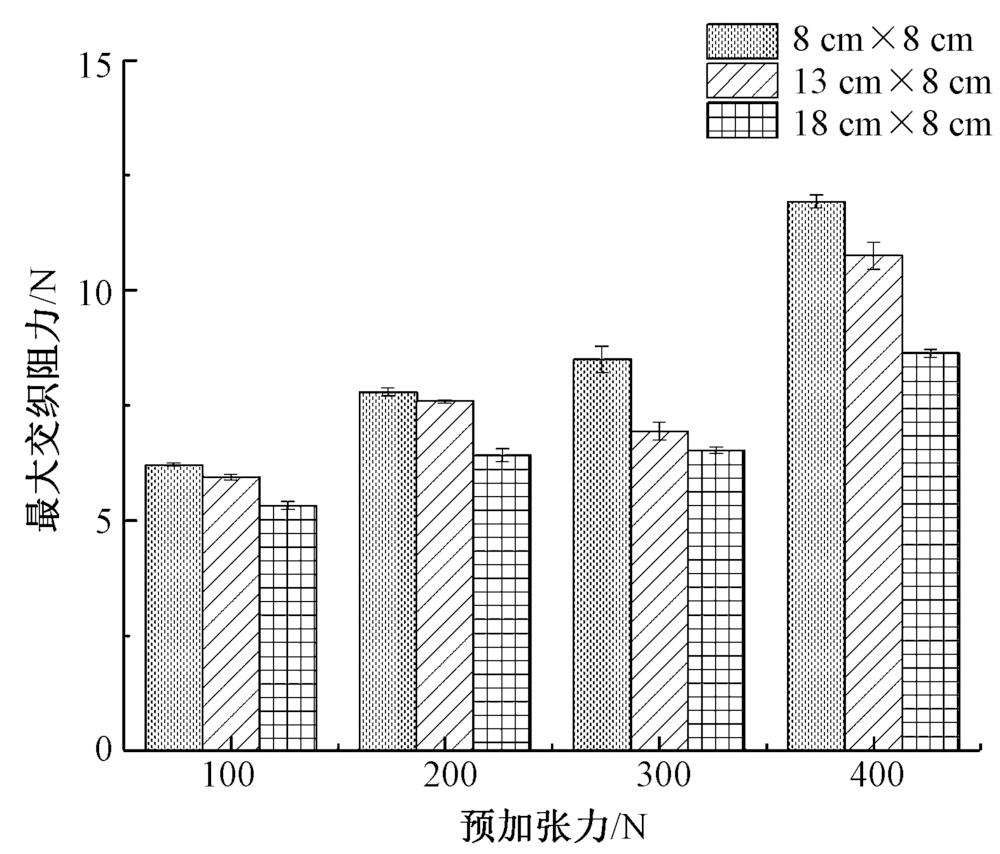

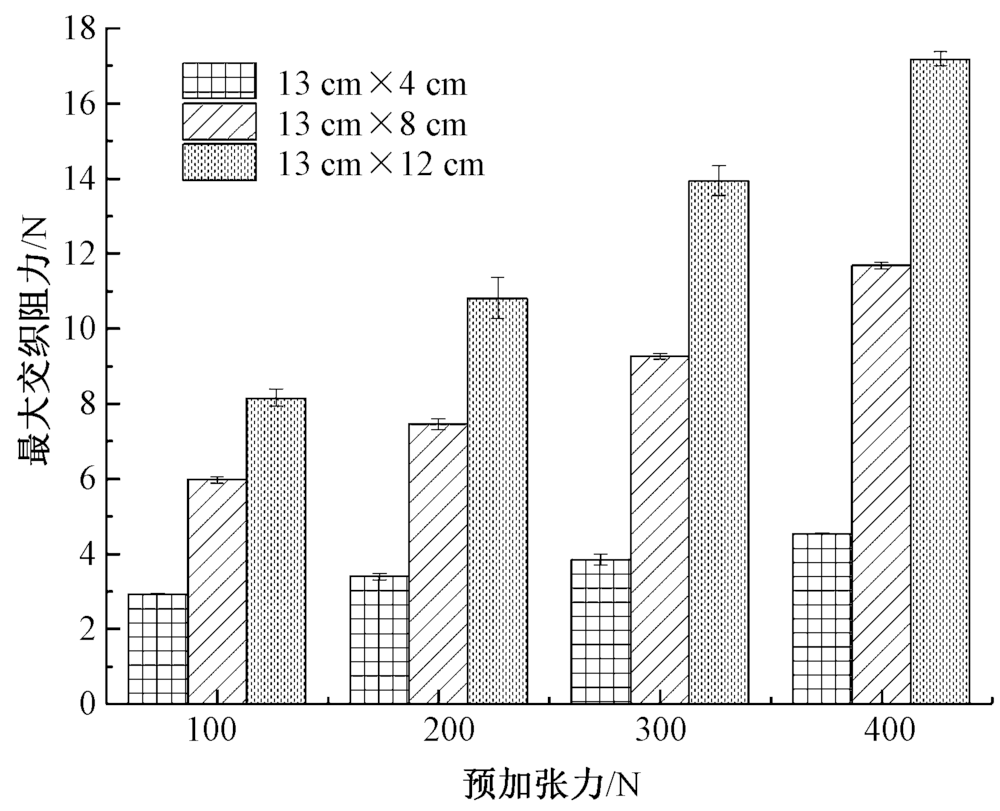

为更加真实地模拟芳纶织物在受到冲击时产生的交织阻力变化情况,通过构建一个半经验模型来预测对于不同规格、不同预加张力情况下纱线交织阻力的数值,并设计了可调预加张力的纱线抽拔实验用夹具,分别以织物的经向宽度、纬向宽度和预加张力为变量对纱线进行抽拔实验。实验结果表明:对织物施加横向预加张力与纱线抽拔时的交织阻力呈正相关,预加张力逐渐增大时,织物纬向宽度对交织阻力的影响逐渐增强;反之,交织阻力随着织物的经向宽度的增加会逐渐减小,而相较于经向宽度的影响,织物预加张力对于交织阻力的影响显得更为突出。

关键词: 预加张力, 织物交织阻力, 单纱抽拔, 半经验模型公式, 芳纶织物, 防弹衣

Abstract:

In order to simulate the inter-yarn friction in aramid fabrics under impact loading and to construct a model for predicting the inter-yarn friction under different fabric specifications and pre-tension levels, a fixture with adjustable transverse pre-tension for yarn-pulling experiment was created. The yarn pulling-out experiments were carried out using different widths of warp yarns or weft yarns and pre-tension as variables. The test results show that there is a positive correlation between the transverse pre-tension applied to the fabric and the inter-yarn friction. When the pre-tension increases, the influence of the warp width of the fabric on the inter-yarn friction increases gradually, and the inter-yarn resistance gradually decrease as sample warp width increases. The effect of pre-tension on inter-yarn friction is more prominent than that of the sample warp width.

Key words: pre-tension, inter-yarn friction, single yarn-pulling, semi-empirical model formula, aramid fabric, bulletproof vest

中图分类号:

TB334

陈洁如, 邱诗苑, 杨青青, 周熠. 基于可调张力装置的芳纶织物交织阻力研究[J]. 纺织学报, 2021, 42(01): 67-72.

CHEN Jieru, QIU Shiyuan, YANG Qingqing, ZHOU Yi. Research on inter-yarn friction of aramid fabric based on adjustable tension device[J]. Journal of Textile Research, 2021, 42(01): 67-72.

图/表 10

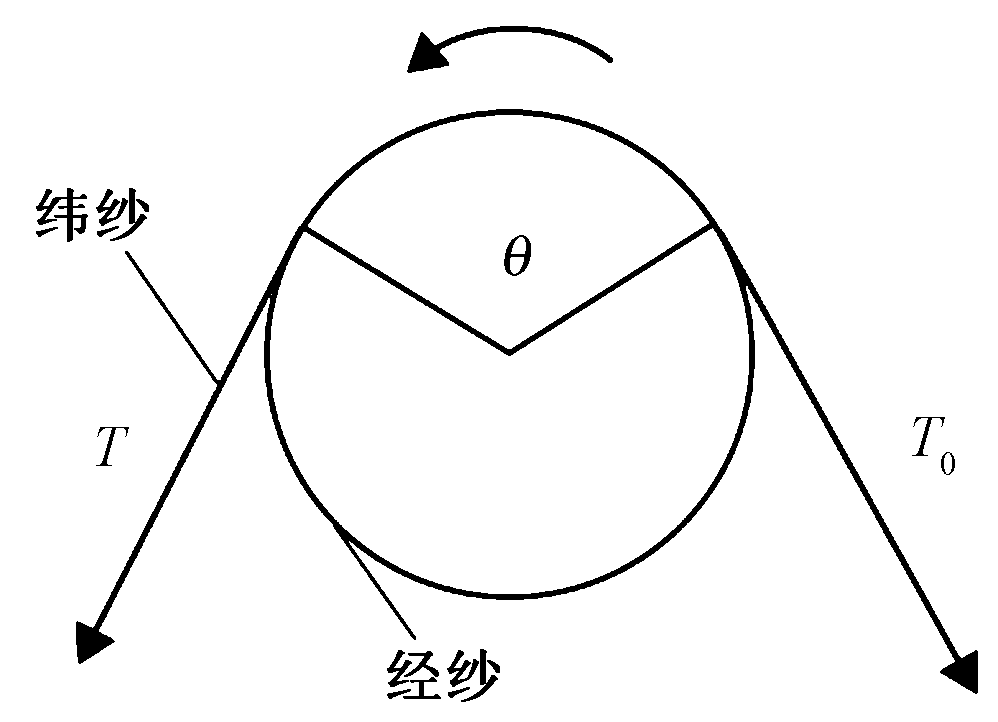

图1

图2

表1

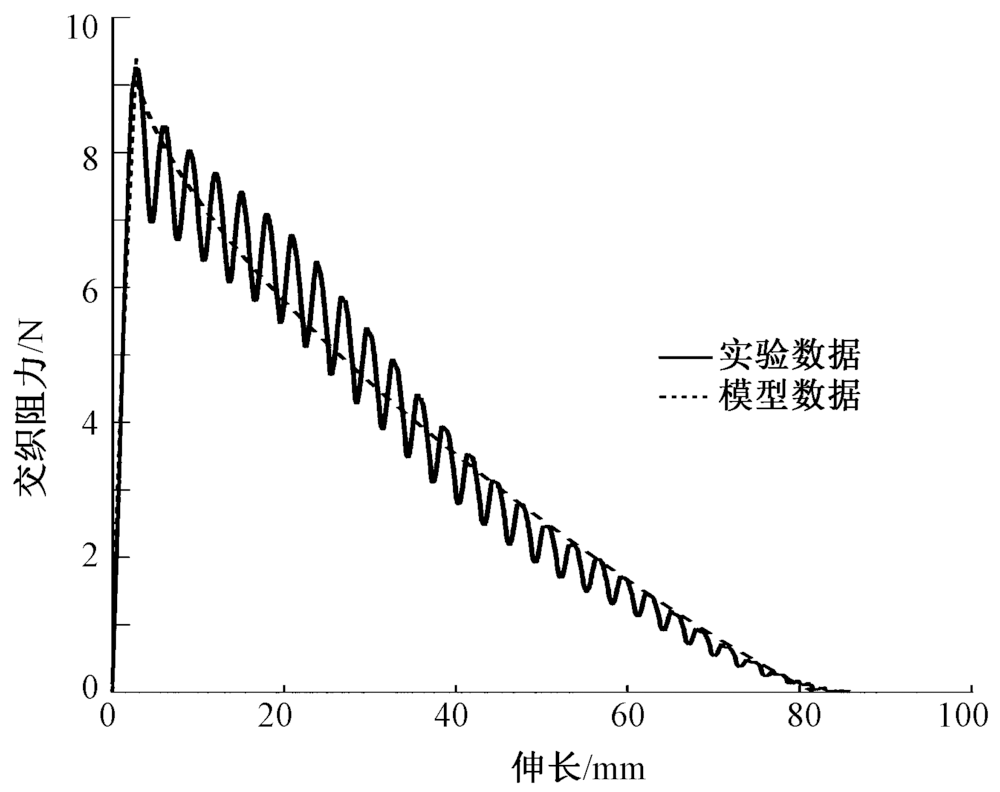

图3

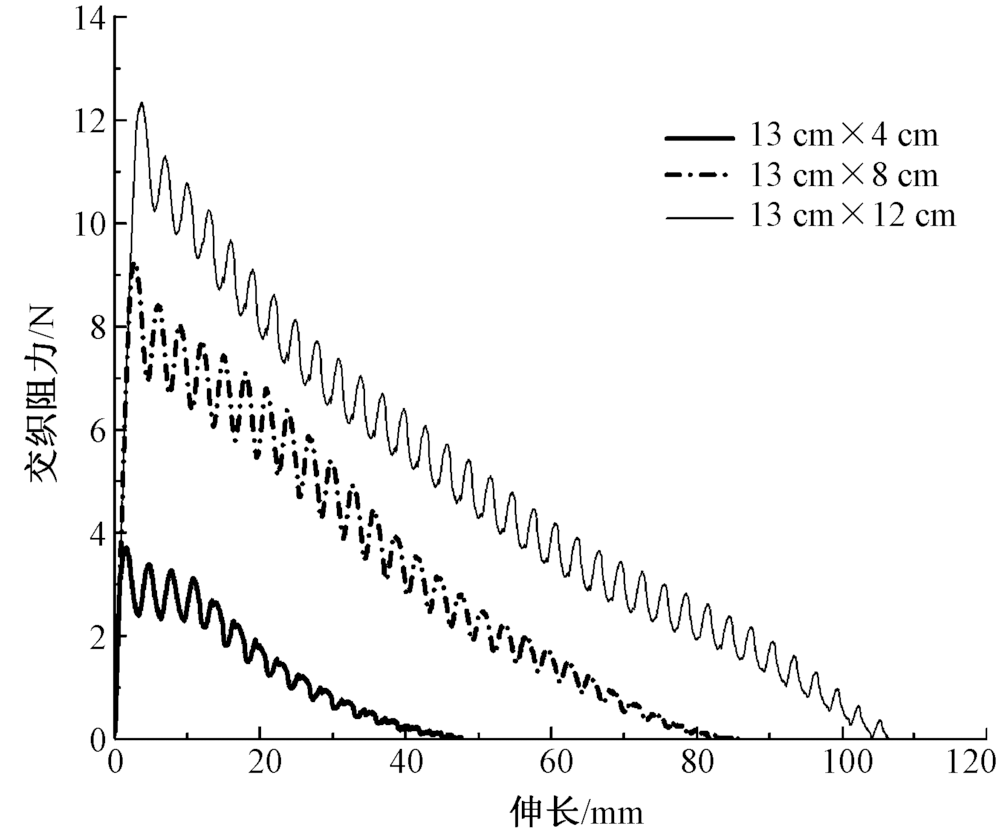

图4

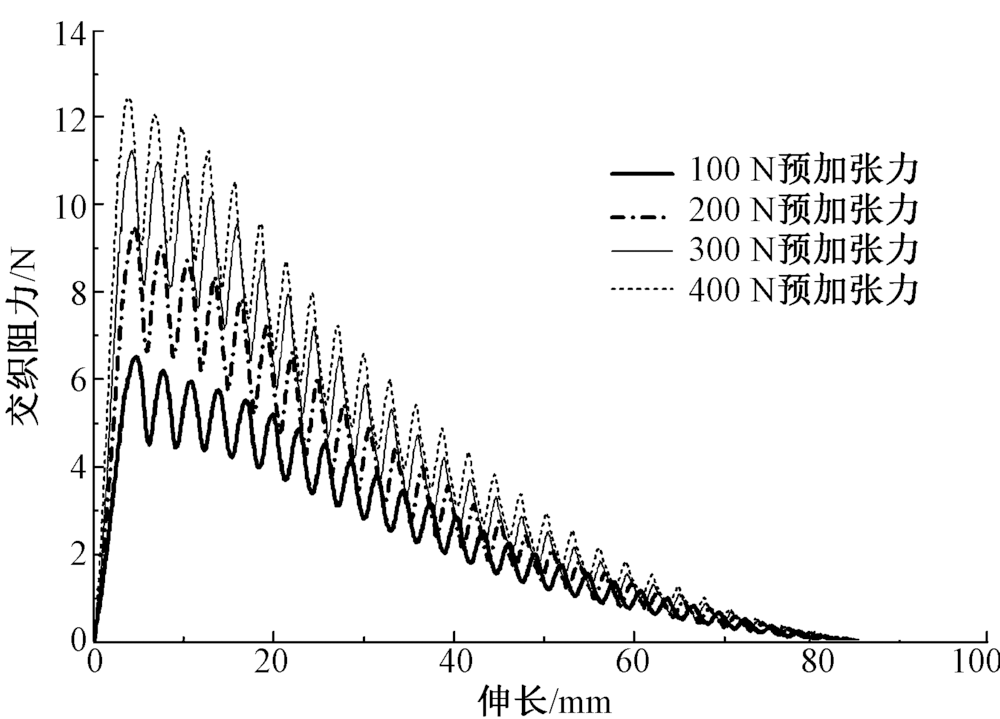

图5

图6

图7

图8

图9

参考文献 10

[1]	BAZHENOV S. Dissipation of energy by bulletproof aramid fabric[J]. Journal of Material Science, 1997,32:4167-4173.
[2]	NILAKANTAN G, MERRILL R L, KEEFE M, et al. Experimental investigation of the role of frictional yarn pull-out and windowing on the probabilistic impact response of Kevlar fabrics[J]. Composites Part B, 2015,68:215-229.
[3]	周熠, 张尚勇, 龚小舟, 等. 摩擦对平纹织物防弹性能影响的研究进展[J]. 纺织学报, 2016,37(8):160-164.
	ZHOU Yi, ZHANG Shangyong, GONG Xiaozhou, et al. Research progress on the effect of friction on the bulletproof performance of plain weave fabrics[J]. Journal of Textile Research, 2016,37(8):160-164.
[4]	KIRKWOOD K M, WETZEL E D, KIRKWOOD J E, et al. Yarn pull-out as a mechanism for dissipating ballistic impact energy in Kevlar KM-2 fabric: part 2: prediction of ballistic performance[J]. Textile Research Journal, 2004,74(10):920-928.
[5]	ZHOU Yi, MUHAMMAD A, GONG Xiaozhou, et al. An overview on yarn pull-out behaviour of woven fabrics[J]. Textile Research Journal, 2019,89(2):223-234.
[6]	ZHU D, SORANAKOM C, MOBASHER B, et al. Experimental study and modeling of single yarn pull-out behavior of Kevlar 49 fabric[J]. Composites Part A: Applied Science and Manufacturing, 2011,42(7):868-879.
[7]	BILISIK K, YOLACAN G. Single and multiple yarn pull-out on e-glass woven fabric structures[J]. Textile Research Journal, 2011,81(19):2043-2055.
[8]	王江洪, 苏辉, 孙波, 等. 螺栓-法兰连接系统的应力松弛[J]. 汽轮机技术, 2000,42(1):24-26.
	WANG Jianghong, SU Hui, SUN Bo, et al. Stress relaxation of the bolt and flange connecting system[J]. Steam Turbine Technology, 2000,42(1):24-26.
[9]	HOWELL H G, MIESZKIS K W, TABOR D. Friction in textiles[J]. Nature, 1959,1765(184):47.
[10]	KHAN Monir, MUHAMMAD Ali, 方小银, 等. 纱罗组织对芳纶织物交织阻力的影响[J]. 纺织学报, 2018,39(11):38-44.
	KHAN Monir, MUHAMMAD Ali, FANG Xiaoyin, et al. Influence of leno structure on yarn gripping behaviour of aramid plain weave[J]. Journal of Textile Research, 2018,39(11):38-44.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

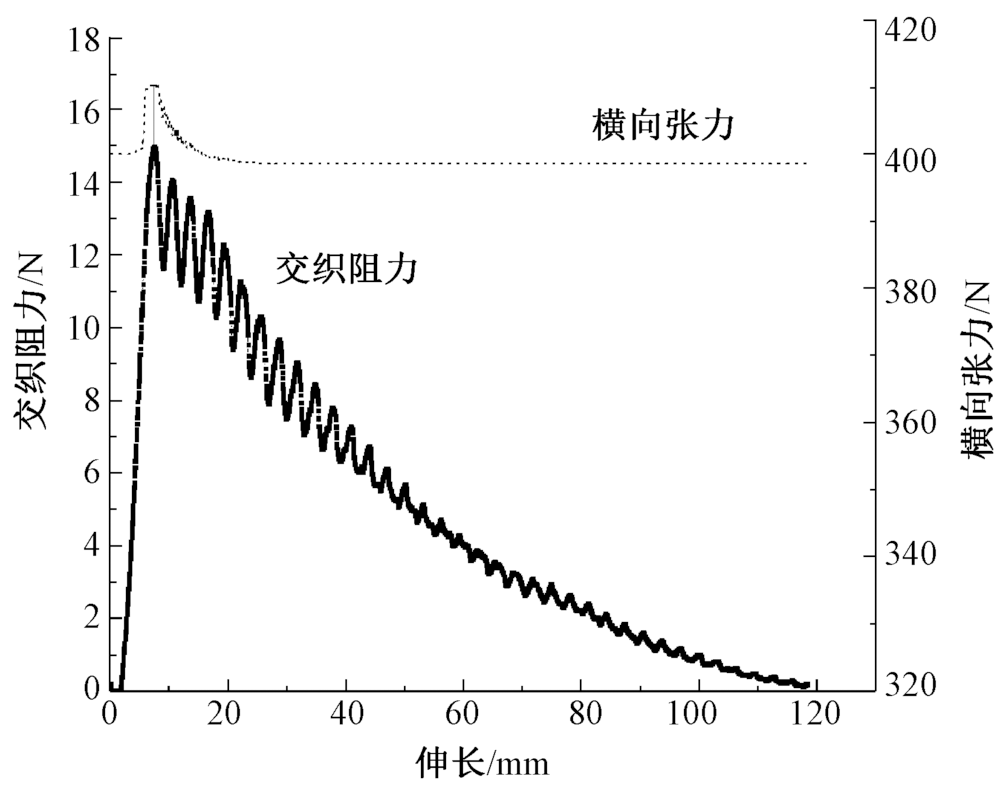

预加张力/N	交织阻力/N		差值(最终值- 初始值)/N
预加张力/N	最大值	最小值	差值(最终值- 初始值)/N
100	102.9	99.8	-0.2
200	208.3	198.4	-1.6
300	308.6	298.3	-1.7
400	410.5	398.6	-1.4
