Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (02): 105-113.doi: 10.13475/j.fzxb.20181101509

• Textile Engineering • Previous Articles     Next Articles

Using fuzzy comprehensive evaluation method to classify fabrics for coolness level

CHU Xinxin1, XIAO Hong2(), FAN Jie1

  1. 1. School of Textile Science and Engineering, Tianjin Polytechnic University, Tianjin 300387, China
    2. The Institute of Quartermaster Engineering and Technology, System Engineering Research Institute, Academy of Military Sciences PLA China, Beijing 100010, China
  • Received:2018-11-05 Revised:2018-11-13 Online:2019-02-15 Published:2019-02-01
  • Contact: XIAO Hong E-mail:76echo@vip.sina.com

RichHTML

11

PDF (PC)

185

Abstract:

The self-developed heat flow coolness tester was adopted to test the transient heat flux density maximum and the quilibrium heat flux density of fifty-seven fabrics. Using the above test values, the contact feeling of the fabric was evaluated from both subjective and objective aspects. For objective evaluation, the cooling evaluation index of fabrics was divided into five categories based on They were marked as A,B,C,D and E, the coolness was weakened in turn. The fuzzy comprehensive evaluation method was used to classify the transient and steady heat flux values obtained by the test, and obtained the range of transient and steady heat flux values corresponding to different coolness levels. For subjective evaluation, the tester directly touched the fabric to evaluate and analyzed the cool feeling of the fabric subjectively, and obtained the coolness level of the fabric. Subjective and objective evaluation of fabrics has a strong consistency in the contact cooling results, the cooling grade of textile fabrics is accurately divided, which can promote the specification of the cool textile market.

Key words: cool feeling of fabric, coolness level, fuzzy comprehensive evaluation method, membership function, subjective evaluation

CLC Number:

  • TS103.6

Tab.1

Sample size and heat flux value"

编号 组织 成分 面密度/(g·m-2) 厚度/mm qmax/(W·m-2) qbal/(W·m-2)
1# 罗纹 聚烯烃、涤纶 351.1 1.85 337.6 37.9
2# 罗纹 聚烯烃、涤纶 360.0 2.21 326.9 34.6
3# 纬平针 聚烯烃、锦纶 180.0 0.53 389.1 27.8
4# 小提花 聚烯烃、锦纶 230.0 0.72 366.7 27.3
5# 双反面 锦纶、粘胶 180.0 0.50 321.0 26.4
6# 纬平针 锦纶、涤纶 200.0 0.48 340.6 26.4
7# 纬平针 锦纶、涤纶、粘胶 180.0 0.66 315.9 26.1
8# 纬平针 锦纶、涤纶 180.0 0.47 307.7 25.3
9# 3　　1 斜纹 聚烯烃、棉 197.1 0.51 390.7 56.1
10# 平纹 聚烯烃、涤纶、棉 240.2 0.58 391.6 55.7
11# 斜纹 聚烯烃、棉 206.7 0.64 346.7 45.9
12# 斜纹 聚烯烃、棉 212.8 0.65 328.6 44.7
13# 斜纹 聚烯烃、棉 210.1 0.65 295.7 42.7
14# 斜纹 聚烯烃、棉 144.5 0.37 332.4 43.7
15# 斜纹 聚烯烃、棉 142.7 0.41 303.8 41.4
16# 平纹 聚烯烃、涤纶、棉 146.0 0.45 312.2 40.9
17# 平纹 聚烯烃、涤纶、棉 137.8 0.39 301.3 38.2
18# 斜纹 聚烯烃、棉 143.5 0.43 289.1 37.8
19# 双层 聚烯烃、棉 638.1 1.92 414.7 70.3
20# 双层 聚烯烃、棉 370.8 1.47 323.3 65.3
21# 提花 聚烯烃 491.1 1.27 495.5 82.6
22# 平纹 聚烯烃、棉 508.0 1.46 393.1 79.9
23# 单层 聚烯烃、棉 516.1 1.10 486.3 79.1
24# 平纹 聚烯烃、棉 596.0 2.14 379.0 77.6
25# 提花 聚烯烃 454.1 1.40 430.6 77.1
26# 平纹 聚烯烃、涤纶、棉 349.8 1.05 437.0 68.0
27# 平纹 聚烯烃、棉 417.1 1.21 396.7 67.7
28# 平纹 聚烯烃、涤纶、棉 351.2 1.11 405.1 61.0
29# 菱形 聚烯烃 511.6 1.15 482.3 69.5
30# 平纹 聚烯烃、棉 283.0 0.94 364.8 64.7
31# 平纹 聚烯烃、棉 315.5 1.32 353.8 62.8
32# 3　　1 斜纹 聚烯烃、棉 247.8 0.62 391.9 59.3
33# 平纹 聚烯烃、棉 225.8 0.83 355.9 59.3
34# — 竹块 4 210.5 6.44 357.1 56.9
35# — 竹条 1 709.4 4.31 372.6 33.0
36# — 藤条 570.6 0.56 340.1 25.5
37# 平纹 聚烯烃、棉 502.9 0.88 388.6 29.2
38# 斜纹 棉 183.9 0.61 290.3 27.3
39# 斜纹 棉 118.5 0.26 298.1 26.7
40# 3　　1 斜纹 涤纶、棉 252.9 0.53 291.8 26.6
41# 平纹 涤纶、棉 152.8 0.30 299.4 25.8
42# 平纹 涤纶、棉 132.1 0.22 296.5 25.5
43# 平纹 麻、涤纶、棉 151.1 0.30 263.1 25.2
44# 斜纹 涤纶 229.7 0.5 286.8 25.1
45# 平纹 锦纶 59.4 0.11 264.2 24.6
46# 平纹 锦纶 79.7 0.14 253.0 23.2
47# 平纹 涤纶、棉 67.3 0.11 241.3 23.2
48# 小元宝针 涤纶 322.4 3.04 145.9 23.6
49# 小元宝针 涤纶 275.1 4.28 119.8 23.6
50# 小元宝针 涤纶 149.9 1.79 130.0 22.3
51# 小元宝针 腈纶、涤纶、棉 278.9 2.81 147.1 22.0
52# 罗纹 镀银纤维 180.6 0.71 299.5 26.9
53# 平纹 铜纤维 81.6 0.11 256.0 25.8
54# 平纹 银纤维、棉 72.8 0.18 249.1 24.2
55# 网眼 银纤维 26.9 0.18 202.0 23.1
56# 双罗纹 涤纶、毛、腈纶 284.0 1.12 273.5 27.6
57# 起绒 毛、涤纶 326.9 1.72 246.2 26.8

Tab.2

Coolness classification"

凉感等级 qmax感觉 qbal感觉
A 很凉 很凉
B 凉爽 凉爽
C 较凉 较凉
D 一般 一般
E 不凉 不凉

Tab.3

qmax subordinate classification result"

试样编号 qmax/(W·m-2) Rv1 Rv2 Rv3 Rv4 Rv5 隶属等级 凉感等级
21# 495.5 0 0 0 0.10 0.90 五级 A
23# 486.3 0 0 0 0.11 0.89 五级 A
29# 482.3 0 0 0 0.12 0.88 五级 A
26# 437.0 0 0 0 0.20 0.80 五级 A
25# 430.6 0 0 0 0.22 0.78 五级 A
19# 414.7 0 0 0 0.31 0.69 五级 A
28# 405.1 0 0 0 0.42 0.58 五级 A
27# 396.7 0 0 0 0.57 0.93 五级 A
22# 393.1 0 0 0 0.64 0.86 五级 A
32# 391.9 0 0 0 0.66 0.84 五级 A
10# 391.6 0 0 0 0.67 0.83 五级 A
9# 390.7 0 0 0 0.69 0.81 五级 A
3# 389.1 0 0 0 0.72 0.78 五级 A
37# 388.6 0 0 0 0.73 0.77 五级 A
24# 379.0 0 0 0 0.92 0.58 四级 B
35# 372.6 0 0 0.05 0.95 0 四级 B
4# 366.7 0 0 0.17 0.83 0 四级 B
30# 364.8 0 0 0.20 0.80 0 四级 B
34# 357.1 0 0 0.36 0.64 0 四级 B
33# 355.9 0 0 0.38 0.62 0 四级 B
31# 353.8 0 0 0.42 0.58 0 四级 B
11# 346.7 0 0 0.57 0.43 0 三级 C
6# 340.6 0 0 0.69 0.31 0 三级 C
36# 340.1 0 0 0.70 0.30 0 三级 C
1# 337.6 0 0 0.75 0.25 0 三级 C
14# 332.4 0 0 0.85 0.15 0 三级 C
12# 328.6 0 0 0.93 0.07 0 三级 C
2# 326.9 0 0 0.96 0.04 0 三级 C
20# 323.3 0 0.03 0.97 0 0 三级 C
5# 321.0 0 0.08 0.92 0 0 三级 C
7# 315.9 0 0.18 0.82 0 0 三级 C
16# 312.2 0 0.26 0.74 0 0 三级 C
8# 307.7 0 0.35 0.65 0 0 三级 C
15# 303.8 0 0.42 0.58 0 0 三级 C
17# 301.3 0 0.47 0.53 0 0 三级 C
52# 299.5 0 0.51 0.49 0 0 二级 D
41# 299.4 0 0.51 0.49 0 0 二级 D
39# 298.1 0 0.54 0.46 0 0 二级 D
42# 296.5 0 0.57 0.43 0 0 二级 D
13# 295.7 0 0.59 0.41 0 0 二级 D
40# 291.8 0 0.66 0.34 0 0 二级 D
38# 290.3 0 0.69 0.31 0 0 二级 D
18# 289.1 0 0.72 0.28 0 0 二级 D
44# 286.8 0 0.76 0.24 0 0 二级 D
56# 273.5 0.03 0.97 0 0 0 二级 D
45# 264.2 0.22 0.78 0 0 0 二级 D
43# 263.1 0.24 0.76 0 0 0 二级 D
53# 256.0 0.38 0.62 0 0 0 二级 D
46# 253.0 0.44 0.56 0 0 0 二级 D
54# 249.2 0.52 0.48 0 0 0 一级 E
57# 246.2 0.57 0.43 0 0 0 一级 E
47# 241.3 0.63 0.37 0 0 0 一级 E
55# 202.0 0.83 0.17 0 0 0 一级 E
51# 147.1 0.90 0.10 0 0 0 一级 E
48# 145.9 0.90 0.10 0 0 0 一级 E
50# 130.0 0.91 0.09 0 0 0 一级 E
49# 119.8 0.92 0.08 0 0 0 一级 E

Tab.4

qbalsubordinate classification result"

试样编号 qbal/(W·m-2) Rv1 Rv2 Rv3 Rv4 Rv5 隶属等级 凉感等级
21# 82.6 0 0 0 0.11 0.89 五级 A
22# 79.9 0 0 0 0.13 0.87 五级 A
23# 79.1 0 0 0 0.13 0.87 五级 A
24# 77.6 0 0 0 0.14 0.86 五级 A
25# 77.1 0 0 0 0.15 0.85 五级 A
19# 70.3 0 0 0 0.24 0.76 五级 A
29# 69.5 0 0 0 0.26 0.74 五级 A
26# 68.0 0 0 0 0.31 0.69 五级 A
27# 67.7 0 0 0 0.32 0.68 五级 A
20# 65.3 0 0 0 0.47 0.53 五级 A
30# 64.7 0 0 0 0.53 0.97 五级 A
31# 62.8 0 0 0 0.72 0.78 五级 A
28# 61.0 0 0 0 0.90 0.60 四级 B
32# 59.3 0 0 0.07 0.93 0 四级 B
33# 59.3 0 0 0.07 0.93 0 四级 B
34# 56.9 0 0 0.31 0.69 0 四级 B
9# 56.1 0 0 0.39 0.61 0 四级 B
10# 55.7 0 0 0.43 0.57 0 四级 B
11# 45.9 0 0 0.96 0.04 0 三级 C
12# 44.7 0 0.01 0.99 0 0 三级 C
43# 43.7 0 0.06 0.94 0 0 三级 C
13# 42.7 0 0.12 0.89 0 0 三级 C
15# 41.4 0 0.18 0.82 0 0 三级 C
16# 40.9 0 0.21 0.80 0 0 三级 C
17# 38.2 0 0.34 0.66 0 0 三级 C
1# 37.9 0 0.36 0.65 0 0 三级 C
3# 37.8 0 0.36 0.64 0 0 三级 C
2# 34.6 0 0.54 0.46 0 0 二级 D
35# 33.0 0 0.7 0.3 0 0 二级 D
37# 29.2 0.08 0.92 0 0 0 二级 D
3# 27.8 0.22 0.78 0 0 0 二级 D
56# 27.6 0.24 0.76 0 0 0 二级 D
4# 27.3 0.27 0.73 0 0 0 二级 D
38# 27.3 0.27 0.73 0 0 0 二级 D
52# 26.9 0.31 0.69 0 0 0 二级 D
57# 26.8 0.32 0.68 0 0 0 二级 D
39# 26.7 0.33 0.67 0 0 0 二级 D
40# 26.6 0.34 0.66 0 0 0 二级 D
6# 26.4 0.36 0.64 0 0 0 二级 D
5# 26.4 0.36 0.64 0 0 0 二级 D
7# 26.1 0.39 0.61 0 0 0 二级 D
41# 25.8 0.42 0.58 0 0 0 二级 D
53# 25.8 0.42 0.58 0 0 0 二级 D
42# 25.5 0.45 0.55 0 0 0 二级 D
36# 25.5 0.45 0.55 0 0 0 二级 D
8# 25.3 0.47 0.53 0 0 0 二级 D
43# 25.2 0.48 0.52 0 0 0 二级 D
44# 25.1 0.49 0.51 0 0 0 二级 D
45# 24.6 0.54 0.46 0 0 0 一级 E
54# 24.2 0.57 0.43 0 0 0 一级 E
48# 23.6 0.61 0.39 0 0 0 一级 E
49# 23.6 0.61 0.39 0 0 0 一级 E
46# 23.2 0.63 0.37 0 0 0 一级 E
47# 23.2 0.63 0.37 0 0 0 一级 E
55# 23.1 0.64 0.36 0 0 0 一级 E
50# 22.3 0.68 0.32 0 0 0 一级 E
51# 22.0 0.69 0.31 0 0 0 一级 E

Tab.5

Cool classification"

凉感等级 qmax/(W·m-2) qbal/(W·m-2)
A ≥380 ≥65
B 350~380 55~65
C 300~350 35~55
D 250~300 25~35
E ≤250 ≤25

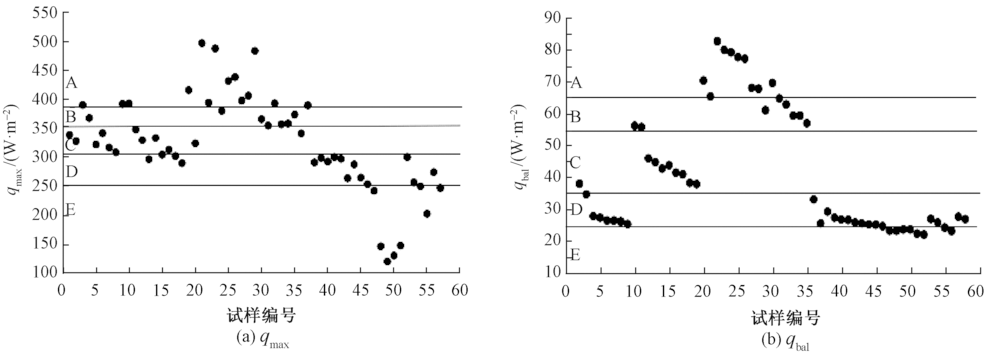

Fig.1

Grades results of qmax and qbal of samples"

Tab.6

Comparison of objective evaluation and subjective evaluation of fabric coolness"

试样编号 主观评价 客观评价 试样编号 主观评价 客观评价 试样编号 主观评价 客观评价
1# A C 20 B C 39 D D
2# B C 21 A A 40 D D
3# B A 22 A A 41 D D
4# B B 23 A A 42 D D
5# C C 24 B B 43 D D
6# C C 25 A A 44 D D
7# C C 26 A A 45 D D
8# C C 27 A A 46 D D
9# B A 28 B A 47 D E
10# A A 29 A A 48 E E
11# C C 30 B B 49 E E
12# C C 31 B B 50 E E
13# C D 32 B A 51 E E
14# C C 33 B B 52 D D
15# C C 34 B B 53 D D
16# C C 35 B B 54 D E
17# C C 36 C C 55 E E
18# C D 37 C A 56 D D
19# A A 38 D D 57 E E
