Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (8): 136-140.doi: 10.13475/j.fzxb.20180700205

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Equivalent luminance of children nocturnal safety garments

YAN Yanhong1,2(), WANG Laili2, GU Bingfei2

  1. 1. Zhejiang Textile and Clothing Technology Co., Ltd., Hangzhou, Zhejiang 310009, China
    2. School of Fashion Design & Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China;
  • Received:2018-07-02 Revised:2019-05-09 Online:2019-08-15 Published:2019-08-16

RichHTML

3

PDF (PC)

99

Abstract:

In order to evaluate the visibility of children nocturnal safety garments with warning and reminding functions, four children nocturnal safety garments were made of colored luminous fiber and luminous fabrics. By measuring the emission spectrum and the afterglow decay, the equivalent luminance of samples were calculated with the view field of 2°and 10°. Then, the relationship between the equivalent luminance of samples and the measured luminance of samples was studied. The results show that the value of the equivalent luminance of samples are greater than that of the measured luminance. The visual efficiency of the stripe fabric sample is the highest, followed by embroidered garment sample and flannelette fabric sample, and the visual efficiency of samples made of multicolor luminous fiber is better than those made of monochrome luminous fiber. The attenuation trend of equivalent luminance of samples is similar to that of measured luminance of samples. The value of equivalent luminance decreases gradually with time until it tends to be stable and has no significant change in a certain time (about 800 s).

Key words: luminous fiber, safety garment, equivalent luminance, visual efficiency

CLC Number:

  • TS151

Tab.1

Experimental sample"

样品名称 夜光原料 绣织方法
白色绣花 白色缝纫线 平针绣
蓝白绣花 白色、蓝色缝纫线 平针绣
蓝白条纹 蓝白条纹夜光绒布 贴布绣
白色绒布 白色夜光绒布 贴布绣

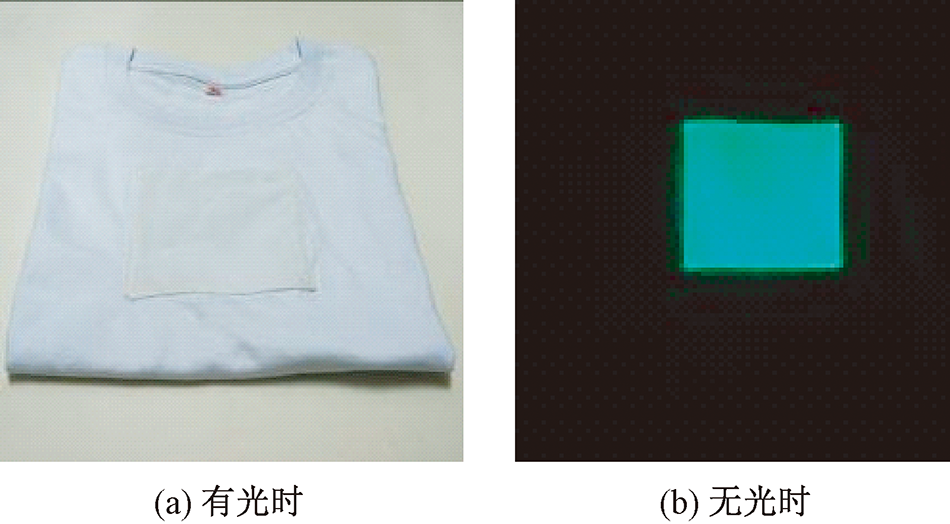

Fig.1

T-shirt with white embroidery pattern. (a) With light; (b) Without light"

Fig.2

T-shirt with white-blue embroidery pattern. (a) With light; (b) Without light"

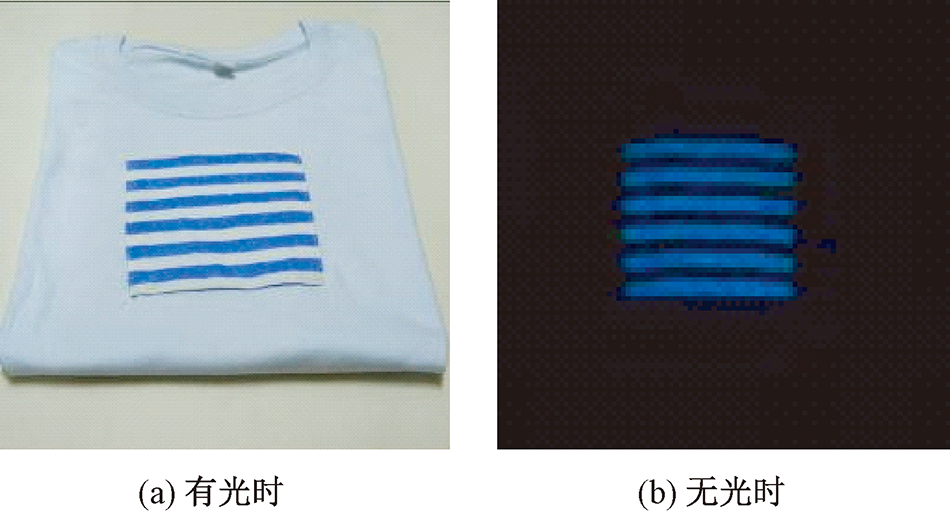

Fig.3

T-shirt with white-blue stripes. (a) With light; (b) Without light"

Fig.4

T-shirt with white flannel. (a) With light; (b) Without light"

Fig.5

Emission spectra of 4 kinds of samples"

Tab.2

Color chromaticity coordinates of samples"

样品名称 2°视场色品坐标 10°视场色品坐标
x2 y2 x10 y10
白色绣花 0.160 223 0.116 914 0.159 376 0.135 725
蓝白绣花 0.151 727 0.085 899 0.149 652 0.108 402
蓝白条纹 0.147 774 0.038 771 0.142 709 0.066 962
白色绒布 0.164 501 0.142 882 0.164 533 0.161 288

Fig.6

Decay curves of samples"

Tab.3

Values of E/L of luminous samples"

样品名称 E2/L E10/L
白色绣花 1.547 138 1.510 684
蓝白绣花 1.616 943 1.573 429
蓝白条纹 1.717 796 1.661 306
白色绒布 1.491 401 1.455 881

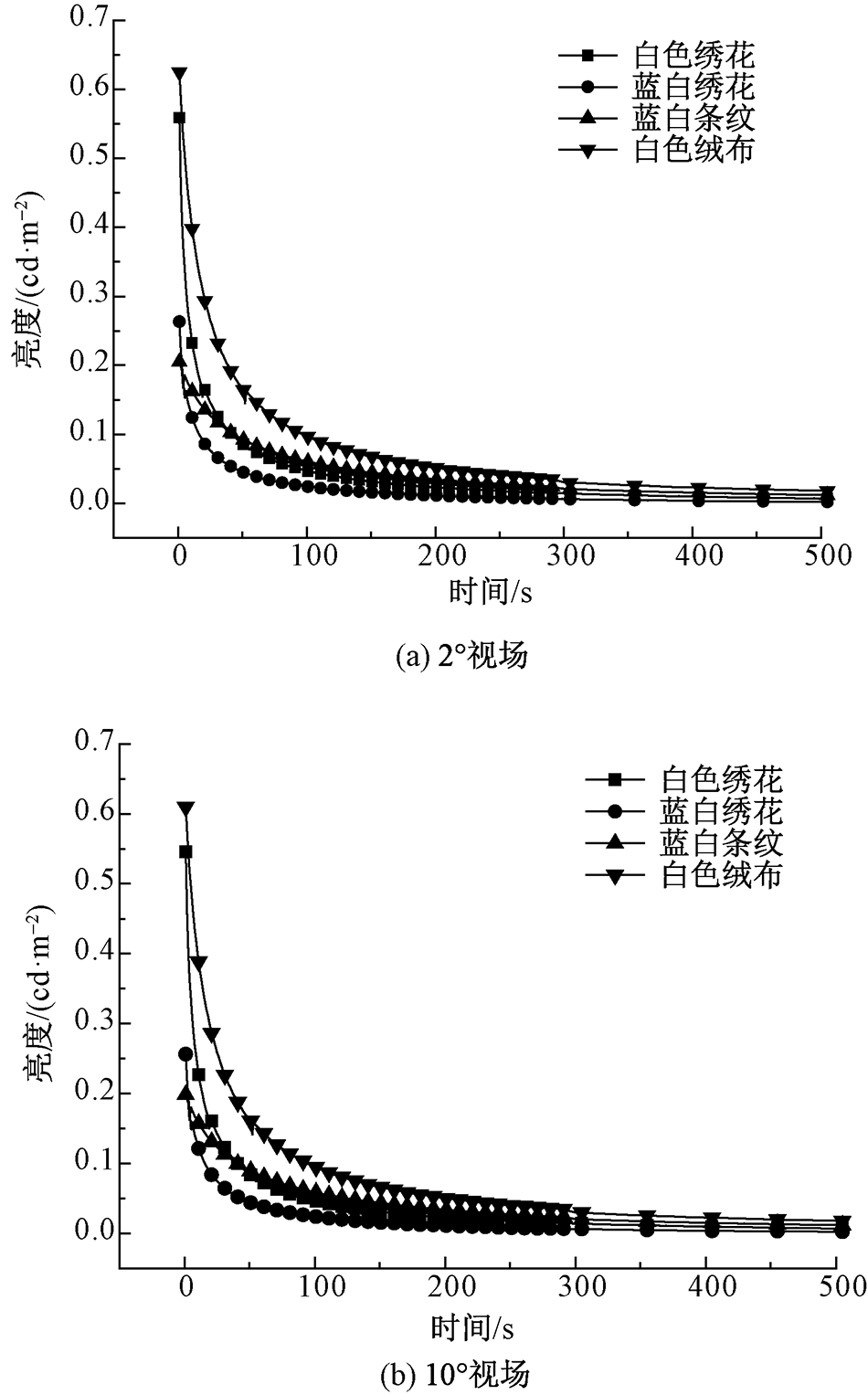

Fig.7

Equivalent luminance curves of samples. (a) With field of view 2°;(b) With field of view 10°"

[1] 沈雷, 洪文进, 唐颖 . 基于绿色时代下的新型安全性服装设计[J]. 上海纺织科技, 2013,41(6):48-50.
SHEN Lei, HONG Wenjin, TANG Ying . New safety clothing design under green era[J]. Shanghai Textile Science & Technology, 2013,41(6):48-50.
[2] 沈雷, 洪文进 . 安全服装设计研究现状和发展趋势[J]. 丝绸, 2014,51(1):45-48.
SHEN Lei, HONG Wenjin . Research status and development trend of safety clothing design[J]. Journal of Silk, 2014,51(1):45-48.
[3] 葛明桥, 汤国良, 虞国炜 . 彩色与彩色光稀土发光纤维及其制造方法: 200810019749.5[P]. 2008-08-27.
GE Mingqiao, TANG Guoliang, YU Guowei . Rare earth luminous fiber with colorful light and the manufacturing method of the luminous fiber: 200810019749.5[P]. 2008-08-27.
[4] YAN Yanhong, GE Mingqiao, LI Yonggui , et al. Morphology and spectral characteristics of a luminous fiber containing a rare-earth strontium aluminate[J]. Textile Research Journal, 2012,82(17):1819-1826.
doi: 10.1177/0040517511431319
[5] 陈莉, 葛明桥, 吴敏 . 夜光割圈绒的研究开发[J]. 上海纺织科技, 2010,38(2):33-34.
CHEN Li, GE Mingqiao, WU Min . The research and development of noctiluca plush[J]. Shanghai Textile Science & Technology, 2010,38(2):33-34.
[6] ZHANG Jishu, GE Mingqiao . Effect of polymer matrix on the spectral characteristics of spectrum-fingerprint anti-counterfeiting fiber[J]. The Journal of The Textile Institute, 2012,103(2):193-199.
doi: 10.1080/00405000.2011.562664
[7] 李婧, 朱亚楠, 陈志 . 等绣花商标用夜光纤维的光效对比分析[J]. 纺织学报, 2015,36(1):77-81.
LI Jing, ZHU Yanan, CHEN Zhi . Comparative analysis on lighting efficiency of luminous fibers for embroidery trademark[J]. Journal of Textile Research, 2015,36(1):77-81.
[8] 郭雪峰, 葛明桥 . 光照激发对夜光纤维余辉和热释光特性的影响[J]. 纺织学报, 2013,34(3):9-14.
GUO Xuefeng, GE Mingqiao . Influence of light excitation on afterglow and thermoluminescence characteristics of luminous fiber[J]. Journal of Textile Research, 2013,34(3):9-14.
[9] ZHU Yanan, GE Mingqiao . Study on the emission properties of Sr2MgSi2O7: Eu,Dy for luminous fiber application[J]. J Mater Sci(Mater Electron), 2014,25(12):5512-5517.
[10] YAN Yanhong, ZHU Yanan, GUO Xuefeng , et al. The effects of inorganic pigments on the luminescent properties of colored luminous fiber[J]. Textile Research Journal, 2014,84(8):785-792.
doi: 10.1177/0040517513507361
[11] 闫彦红, 葛明桥 . 彩色夜光纤维颜色及光色性能[J]. 纺织学报, 2014,35(4):12-16.
YAN Yanhong, GE Mingqiao . Study on color and emissive color of colored luminous fiber[J]. Journal of Textile Research, 2014,35(4):12-16.
[12] BODMANN H W . Elements of photometry,brightness and visibility[J]. Lighting Research and Technology, 1992,24(1):29-42.
doi: 10.1177/096032719202400104
[13] 朱亚楠, 吴敏, 葛明桥 , 等. 夜光涂层织物发光性能[J]. 印染, 2011,37(5):13-15.
ZHU Yanan, WU Min, GE Mingqiao , et al. Luminous property of the coatings[J]. China Dyeing & Finishing, 2011,37(5):13-15.
