Design of garment geometric space based on changes of human body surface

LIU Tong()

  1. Department of Garment, Chengdu Textile College, Chengdu, Sichuan 611731, China
  • Received:2018-12-05 Revised:2019-06-27 Online:2019-11-15 Published:2019-11-26

RichHTML

5

PDF (PC)

399

Abstract:

In order to broaden the innovative thinking of women's clothing design in space modeling, the change of clothing space was taken as an entry point and examples were combined to decompose the body surface with the geometric structure clothing of a specific shape and find the structural connection between the two in the relationship between plane and three-dimensional space. The concept of geometric space design of clothing was proposed. According to the results of style modeling and structure analysis, through the different changes in the composition elements in the geometric plane pattern, the secondary composition of the clothing space was formed, and the design rules of the human body and clothing in the formation of different spatial relationships were studied. Three kinds of geometric space design methods were summarized, and the three-dimensional composition was combined with the planar pattern technology to meet the personalized needs of clothing through the application of specific styles.

Key words: garment design, human body surface, plane pattern, geometric space, modeling design

CLC Number:

  • TS941.2

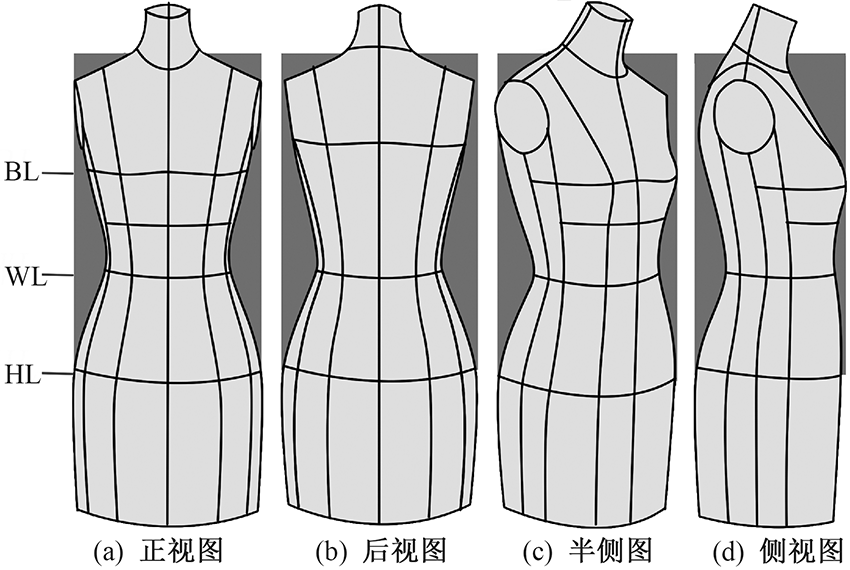

Fig.1

Structure decomposition diagram of body surface. (a) Front view; (b) Back view; (c) Half side view;(d) Side view"

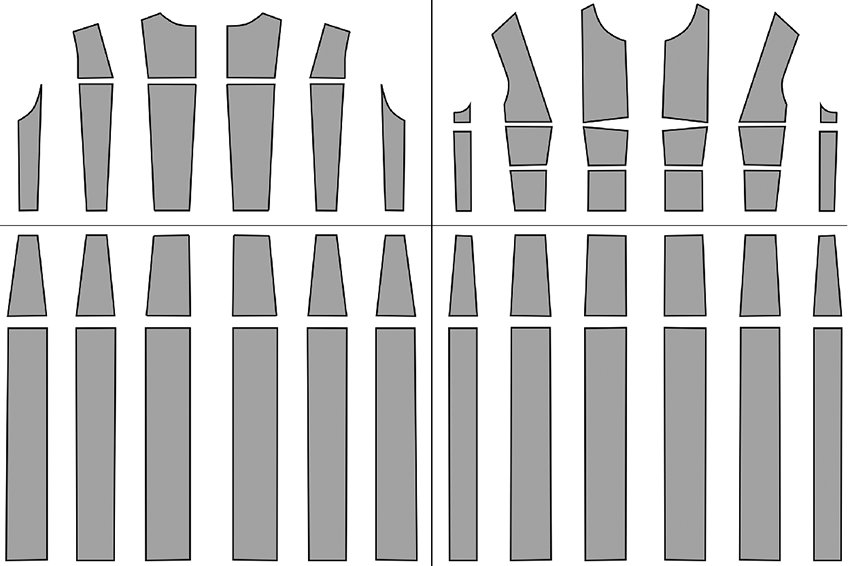

Fig.2

Geometric plane spreading picture"

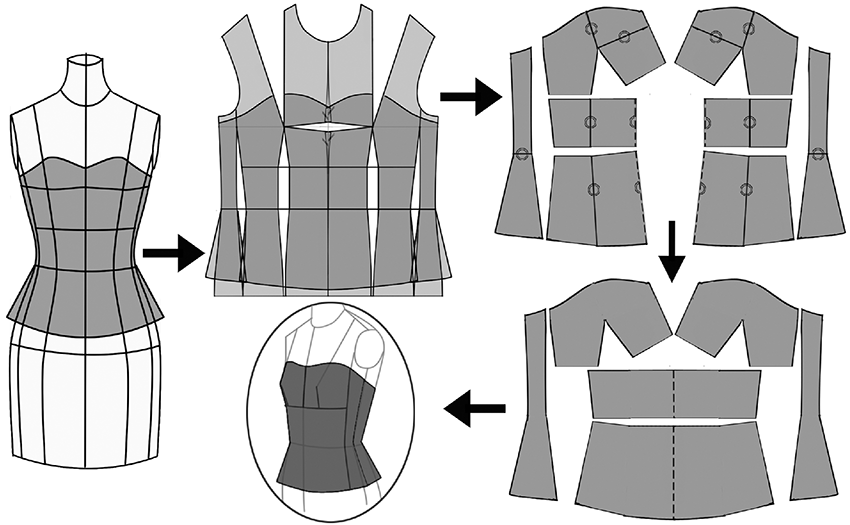

Fig.3

Secondary composition of plane to space"

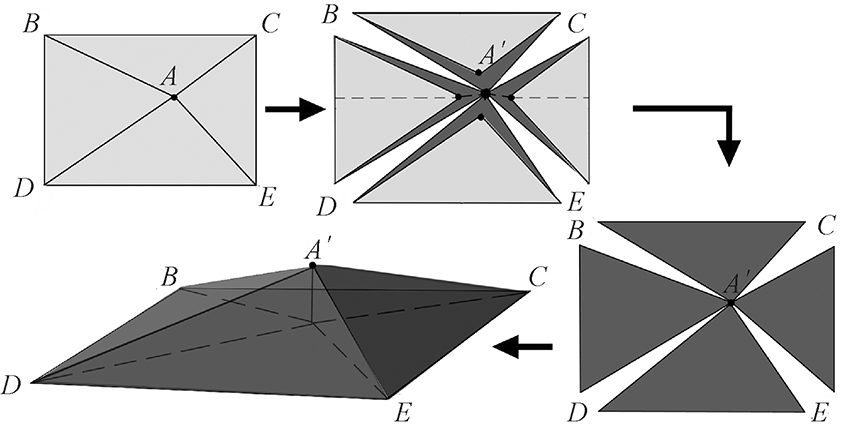

Fig.4

Spatial composition of points"

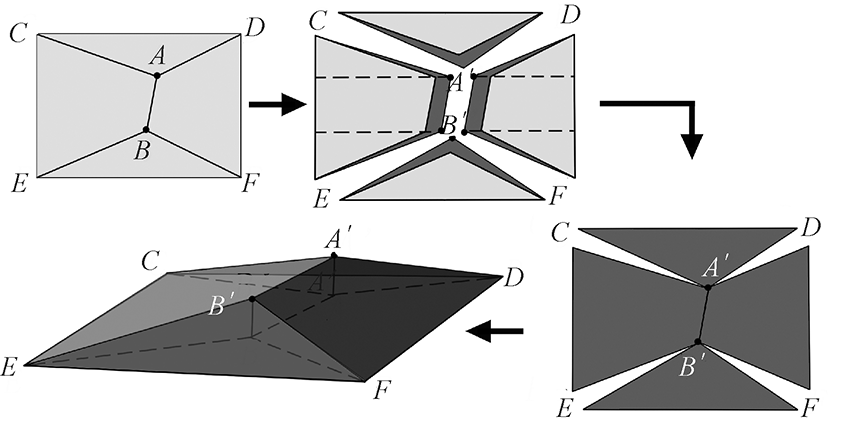

Fig.5

Spatial composition of line"

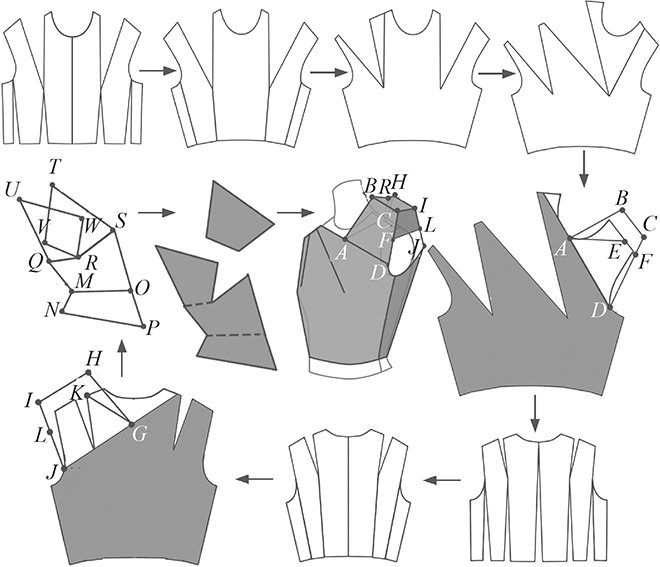

Fig.6

Spatial composition of surface"

Fig.7

Alien space conversion"

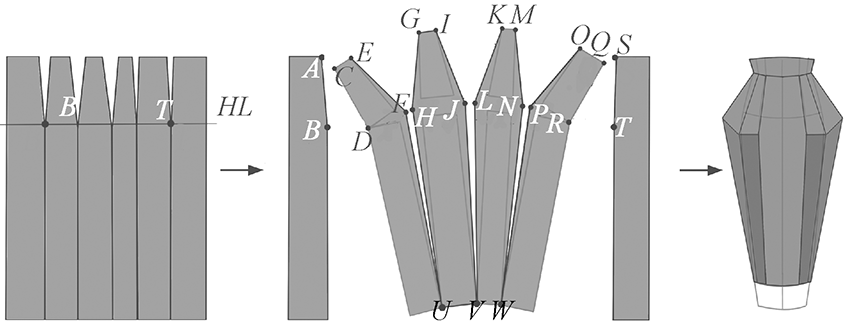

Fig.8

Enhanced convex space"

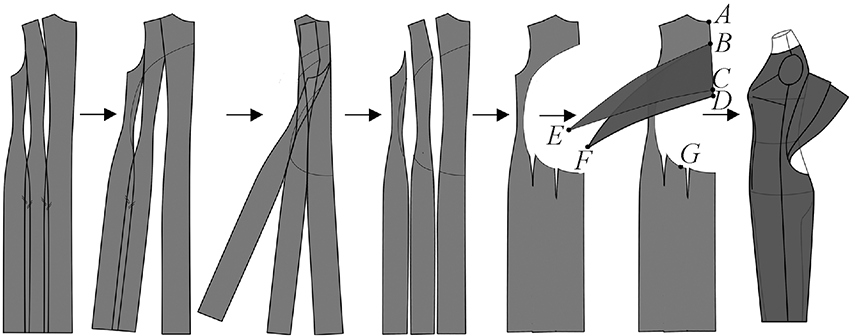

Fig.9

Outer space extension of opening"
