纺织学报 ›› 2019, Vol. 40 ›› Issue (05): 36-40.doi: 10.13475/j.fzxb.20180301506

• 纺织工程 • 上一篇    下一篇

组合全显色提花织物的纹理设计原理与方法

张爱丹(), 周赳

  1. 浙江理工大学 材料与纺织学院、 丝绸学院, 浙江 杭州 310018
  • 收稿日期:2018-03-05 修回日期:2019-02-01 出版日期:2019-05-15 发布日期:2019-05-21
  • 作者简介:张爱丹(1979—),女,副教授,博士。主要研究方向为纺织品设计。E-mail:zad. andan@163.com

Design principle and method of texture effect in jacquard fabric based on full-color compound structure

ZHANG Aidan(), ZHOU Jiu

  1. Silk Institute, College of Materials and Textiles, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2018-03-05 Revised:2019-02-01 Online:2019-05-15 Published:2019-05-21

摘要:

为使组合全显色提花织物兼具色彩仿真和触觉肌理效果,提出一种与组合全显色组织结构相匹配的纹理组织设计方法。以蜂巢和透孔2种具有不同纹理效应的联合组织为基础组织,进行3种不同方向的组织循环递增设计,并在高密度设计条件下进行织物样品的织造。对织物纹理效应进行比较分析表明,组织循环数的递增加强设计有效强化了蜂巢组织织物的凹凸效应与透孔组织织物的纹理效果。应用该设计方法的实例表明,递增加强设计方法不仅解决了组合全显色组织与纹理组织的交织平衡问题,同时也满足了组合全显色提花织物对不同渐变层次的凹凸、纹理效应的设计需求。

关键词: 提花织物, 组合全显色结构, 纹理组织, 肌理效果

Abstract:

In order to endue the jacquard fabric based on full-color compound structure with outstand texture effect, two types of combination weaves including honeycomb and mock leno were employed as basic weaves to create series of derivative weaves by increasing the repeat number in three different directions, and thus fabric samples were produced under the condition of high density. By means of the comparative analysis on fabric texture effect, it is shown that the increasing of the weave repeat number can strengthen the emboss texture effect of fabric samples using honeycomb weaves and visual texture effect of mock leno. Application design case further evidences that the proposed design method solves the problem of interwoven balance between the full-color compound structure and the texture weaves, and creates different gradient levels of fabric texture weaves for the jacquard fabric, and it provides inspiring references for the creative design of jacquard fabrics based on full-color compound structure with abundant fabric texture effect.

Key words: jacquard fabric, full-color compound structure, texture weave, texture effect

中图分类号:

  • TS941.26

图1

3种组织循环数递增设计方向"

图2

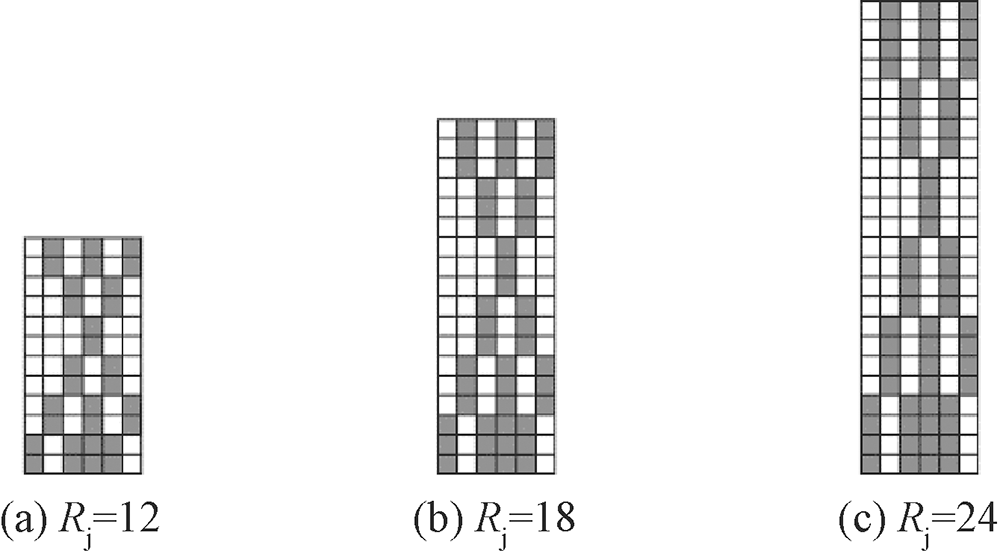

纬向递增设计(Rj=6)"

图3

经向递增设计(Rw=6)"

图4

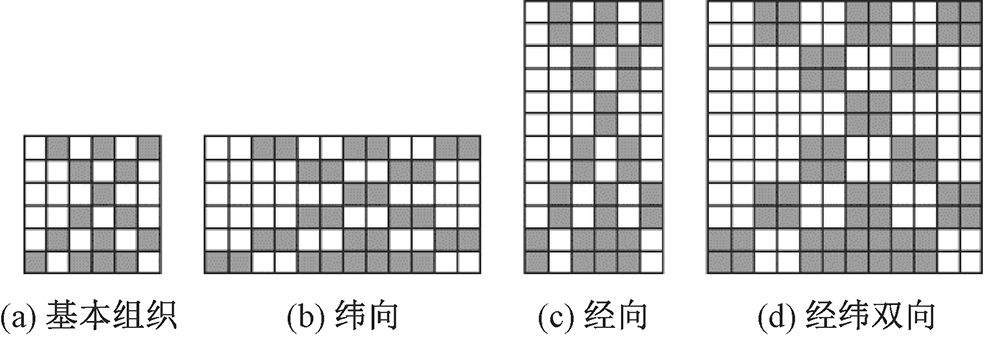

经纬双向递增设计"

图5

5种基本纹理组织"

表1

纬向组织循环数递增设计"

基础
组织编号
不同递增倍数下组织循环数(经向×纬向)
0 2 3 4 8
F1 6×6 12×6 24×6
F2 12×12 24×12 32×12 48×12
F3 16×16 32×16 48×16
T1 6×8 12×8 24×8 48×8
T2 16×16 32×16 48×16

图6

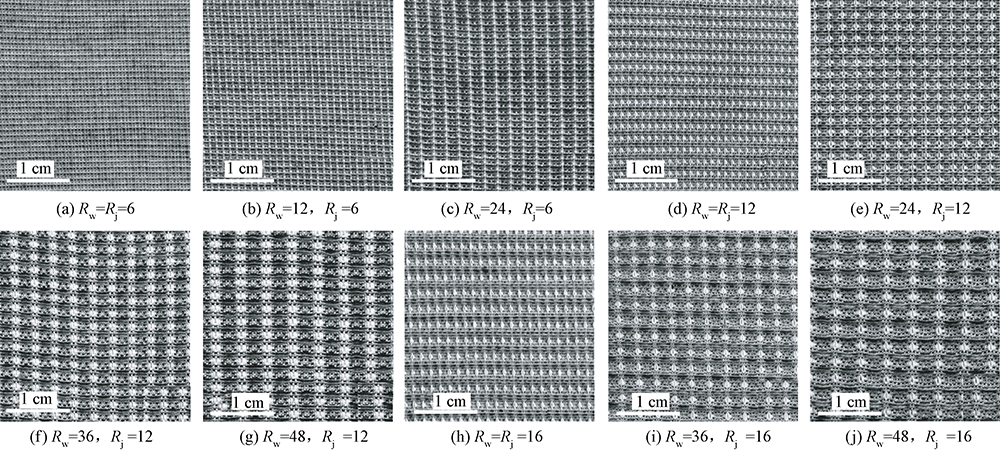

基于蜂巢组织的织物样品"

图7

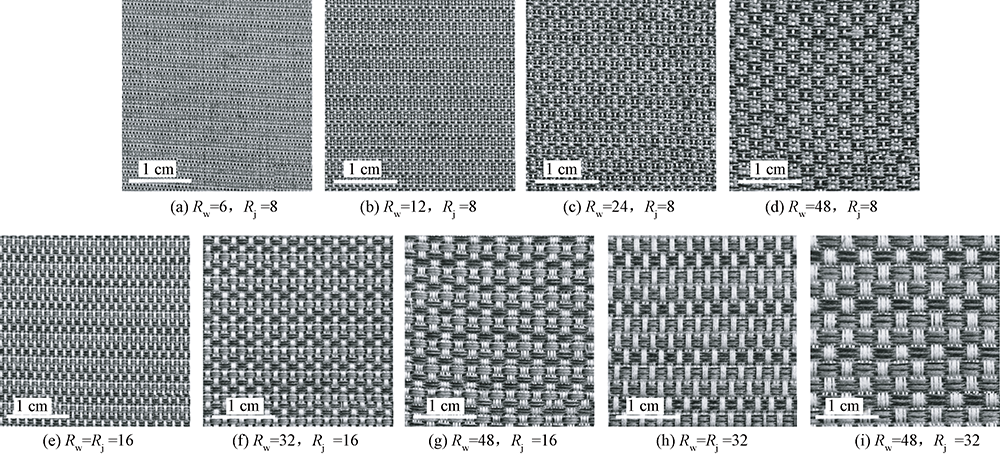

基于透孔组织的织物样品"

图8

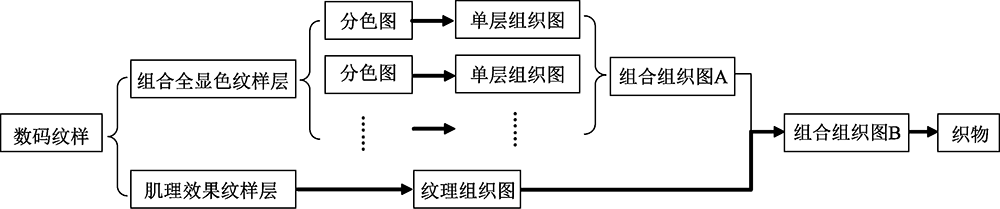

设计流程示意图"

图9

3种透孔纹理组织"

图10

提花织物效果"

[1] NG Frankie, ZHOU Jiu. Innovative layered-combination mode for digital jacquard fabric design[J]. Textile Research Journal, 2009,79(8):737-743.
[2] 周赳, 屠永坚. 有彩数码提花织物结构设计的实践与分析[J]. 纺织学报, 2008,29(4):54-57.
ZHOU Jiu, TU Yongjian. Practice and analysis of structural design for colorful digital jacquard fabric[J]. Journal of Textile Research, 2008,29(4):54-57.
[3] 荆妙蕾. 凹凸组织织物的花型设计及应用[J]. 毛纺科技, 2005,33(7):32-34.
JING Miaolei. Pattern design and application of cloky weave fabric[J]. Wool Textile Journal, 2005,33(7):32-34.
[4] 曲微微. 论提花面料的触觉肌理设计[J]. 山东纺织科技, 2010,51(4):30-32.
QU Weiwei. Discussing texture effect design in jacquard fabrics[J]. Shandong Textile Science and Technology, 2010,51(4):31-32.
[5] HALACELI Havva. Relief effects of woven elastic fabrics in view of crafted surfaces[J]. Procedia-Social and Behavioral Sciences, 2012,51:348-352.
[6] 苑国祥, 姜绶祥, 纽德华, 等. 激光处理在服装设计中的应用[J]. 纺织学报, 2011,32(10):98-103.
YUAN Guoxiang, JIANG Shouxiang, NEWTON Edward, et al. Laser surface treatment for fashion design[J]. Journal of Textile Research, 2011,32(10):98-103.
[7] 顾平. 织物的凹凸浮雕效应及其组织设计[J]. 四川丝绸, 2008 (1):13-15.
GU Ping. Embossing effect of fabric based on weave structure design[J]. Sichuan Silk, 2008 (1):13-15.
[8] 许雅婷. 基于组合全显色结构的纹理效果数码提花织物设计研究与实践[D]. 杭州: 浙江理工大学, 2014: 19-29.
XU Yating. Design research and practice on texture effect digital jacquard fabric based on compound full-color struc-ture [D]. Hangzhou: Zhejiang Sci-Tech University, 2014: 19-29.
[9] 罗秉芬. 基于提花纹理的织印一体面料设计研究与实践[D]. 杭州:浙江理工大学, 2017: 25.
LUO Bingfen. Design research and practice on integration fabric of jacquard and printing based on jacquard texture [D]. Hangzhou: Zhejiang Sci-Tech University, 2017: 25.
[10] 许雅婷, 周赳. 基于全显色结构的提花纹理设计研究与实践[J]. 丝绸, 2014,35(5):49-53.
XU Yating, ZHOU Jiu. Design study and practice of jacquard fabric texture based on full-coloring struc-ture[J]. Journal of Silk, 2014,35(5):49-53.
[11] 彭稀, 周赳. 基于蜂巢和全显色组织的肌理效果提花织物设计[J]. 丝绸, 2018 (5):73-77.
PENG Xi, ZHOU Jiu. Jacquard fabric design with texture effect based on honeycomb and full coloring weaves[J]. Journal of Silk, 2018 (5):73-77.
[12] ZHANG Aidan, ZHOU Jiu. Color rendering in single-layer jacquard fabrics using sateen shaded weave databases based on three transition directions[J]. Text Res J, 2018,88(11):1290-1298.
