实验参数对高性能石英纤维摩擦性能的影响

焦亚男1,2, 杨志1,2, 张世浩1,2

  1. 1. 天津工业大学 纺织科学与工程学院, 天津 300387
    2. 天津工业大学 先进纺织复合材料教育部重点实验室, 天津 300387
  • 收稿日期:2018-08-13 修回日期:2019-03-08 出版日期:2019-07-15 发布日期:2019-07-25
  • 作者简介:焦亚男(1971-),女,研究员,硕士。主要研究方向为三维纺织复合材料增强体的结构与性能。E-mail: jiaoyn@tjpu.edu.cn。
  • 基金资助:
    天津市高等学校创新团队项目(TD13-5043)

Influence of experimental parameters on friction properties of high performance quartz fibers

JIAO Ya'nan1,2, YANG Zhi1,2, ZHANG Shihao1,2

  1. 1. School of Textile Science and Engineering, Tianjin Polytechnic University, Tianjin 300387, China
    2. Key Laboratory of Advanced Textile Composites (Ministry of Education), Tianjin Polytechnic University, Tianjin 300387, China;
  • Received:2018-08-13 Revised:2019-03-08 Online:2019-07-15 Published:2019-07-25

RichHTML

1

PDF (PC)

69

摘要：

针对立体织物织造过程中高强高模纤维束间相互摩擦而导致织物性能下降的问题,以石英纤维为例,设计了一种用于测试纤维束间摩擦性能的摩擦磨损试验机夹具,使纤维束或单根纤维能够以相互正交或一定角度相接触,在纤维尺度上研究了摩擦角度、摩擦频率和法向载荷对纤维束间摩擦性能的影响。结果表明:3种实验参数对纤维束表面的磨损程度不同;摩擦角度为70°时的摩擦因数是90°时的1.2倍,即摩擦角度越小,磨损程度越大;在一定范围内,摩擦频率和法向载荷对摩擦因数没有影响;在立体织物织造过程中,应尽可能减少纤维束间倾斜接触,从而降低织物性能下降,还可在一定范围内提高织造频率和法向载荷,提高生产效率。

关键词: 立体织物, 高性能石英纤维, 摩擦角度, 摩擦频率, 摩擦性能

Abstract:

In order to solve the problem that the friction between high strength and high modulus tows of three-dimensional fabrics in weaving process reduces the properties of fabrics, taking quartz fiber as an example, a fixture for friction and wear testing machine for testing the friction between tows was designed. With this machine, the tows or single fibers could be in contact with each other at vertical or certain angles. The influence of friction angle, friction frequency and load on the frictional properties of tows on fiber scale was studied. The results show that the three experimental parameters have different degrees of friction and wear on the surface of the tows. The friction coefficient at a friction angle of 70° is 1.2 times of that at 90°, and the smaller the friction angle, the greater the wear degree. Friction frequency and load have no effect on friction coefficient within a certain range. In the weaving process of 3-D fabrics, the inclined contact between the tows should be reduced as much as possible to decrease the fabric performance degradation, and the weaving frequency and load can be increased within a certain range to improve the production efficiency.

Key words: three-dimensional fabric, high performance quartz fiber, friction angle, friction frequency, friction property

中图分类号:

  • TS105.1

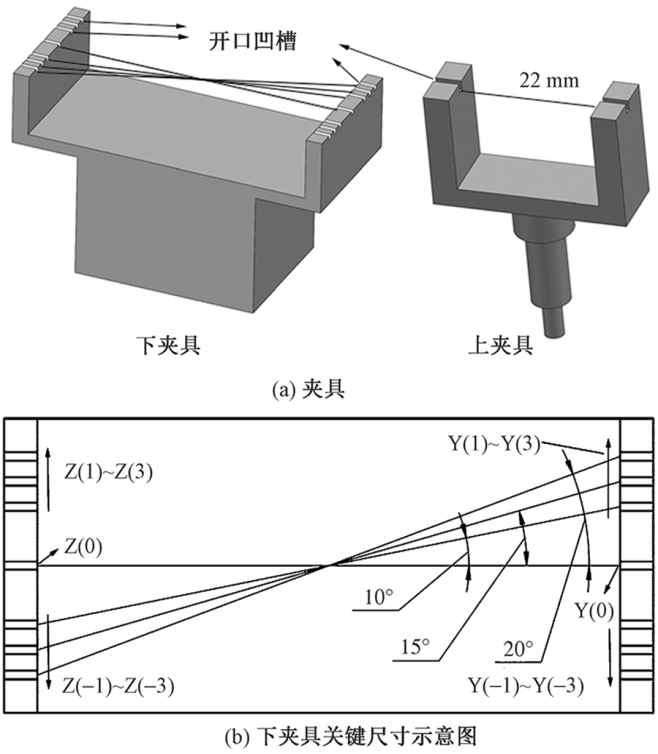

图1

自制夹具外形尺寸图"

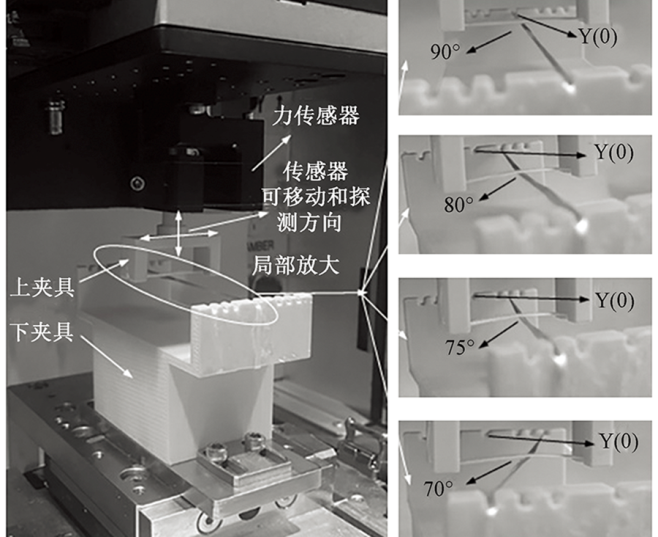

图2

夹具上机状态"

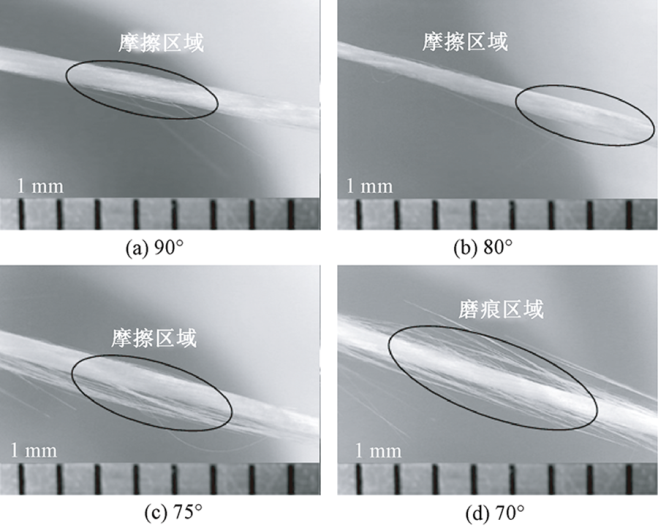

图3

不同摩擦角度下石英纤维的磨损图"

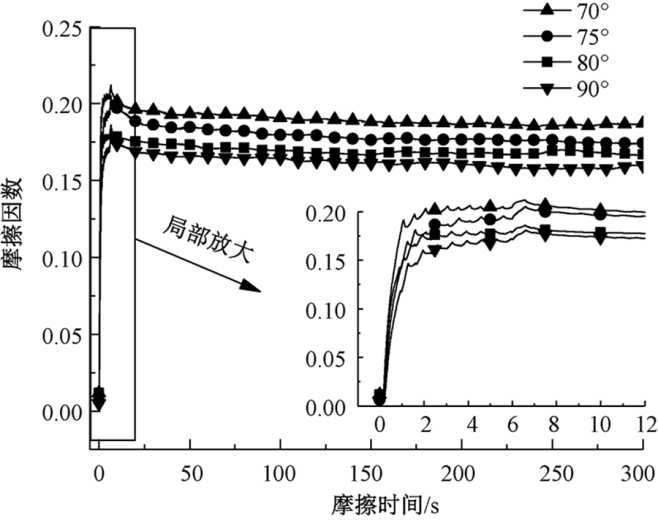

图4

不同摩擦角度下石英纤维的摩擦因数"

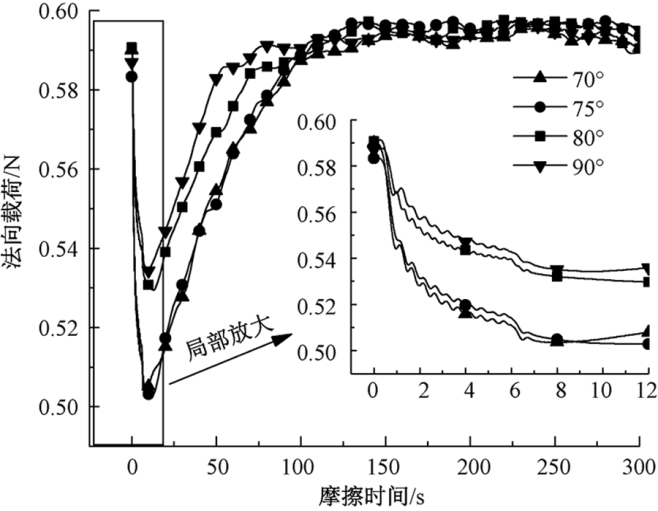

图5

不同摩擦角度下纤维束之间的法向载荷"

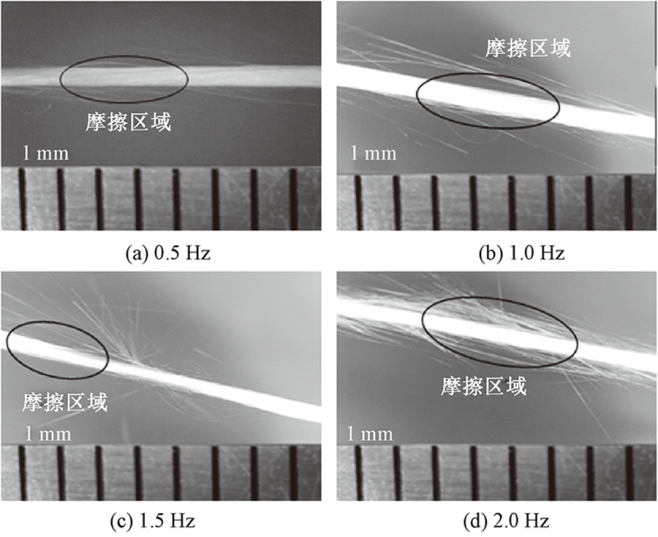

图6

不同摩擦频率下石英纤维磨损图"

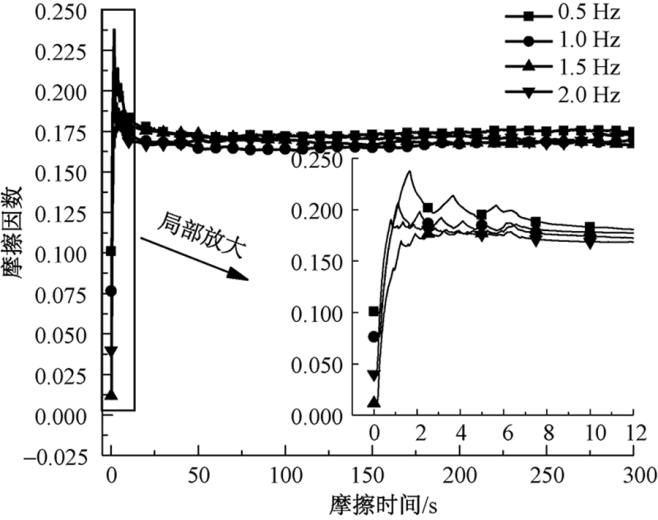

图7

不同摩擦频率下石英纤维的摩擦因数"

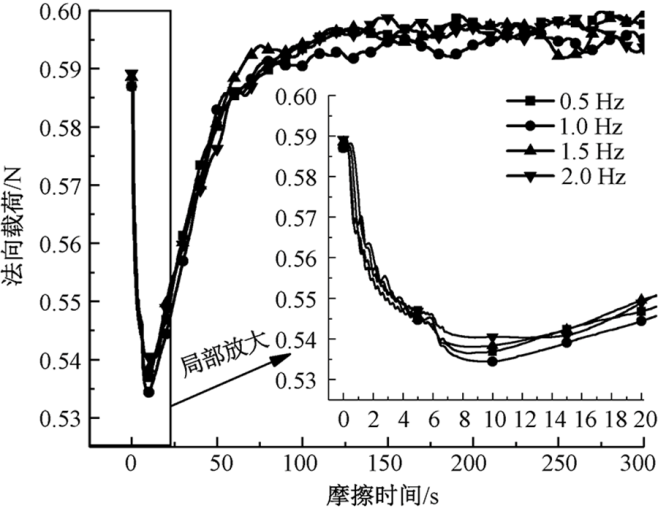

图8

不同摩擦频率下纤维束间的法向载荷"

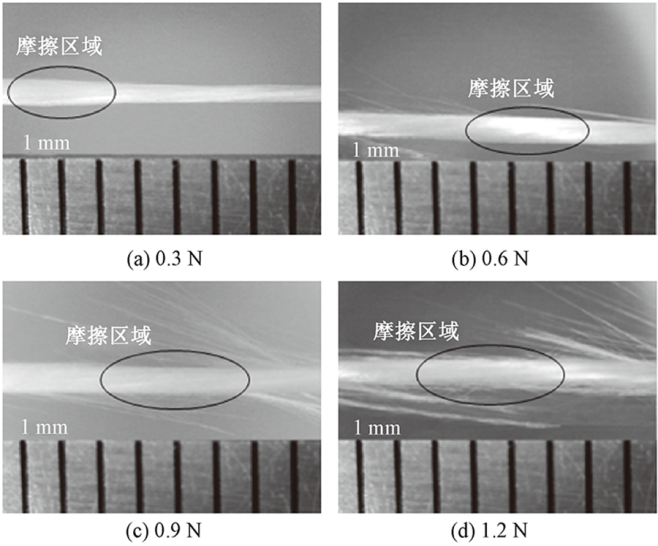

图9

不同法向载荷下石英纤维磨损图"

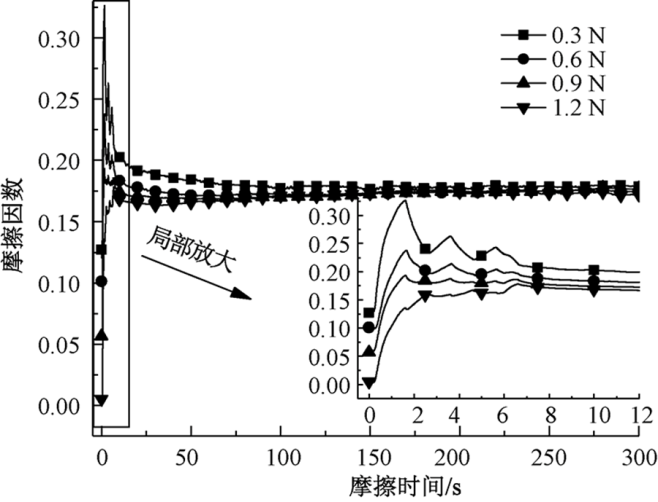

图10

不同法向载荷下石英纤维的摩擦因数"

[1] LEE L, RUDOV-CLARK S, MOURITZ A P , et al. Effect of weaving damage on the tensile properties of three-dimensional woven composites[J]. Composite Structures, 2002,57:405-413.
[2] RUDOV-CLARK S, MOURITZ A, LEE L , et al. Fiber damage in the manufacture of advanced three-dimensional oven composites[J]. Composites Part A: Applied Science and Mannfacturing, 2003,34:963-970.
[3] HUFFINGTON J D, STOUT H P . The friction of fibre assemblies[J]. Wear, 1960,3:26-42.
[4] NIKONOVA E A, PAKSHVER A B . The friction properties of textile yarns[J]. Fibre Chemistry, 1973,4:657-660.
[5] LEECH C M . The modelling of friction in polymer fibre ropes[J]. International Journal of Mechanical Sciences, 2002,44:621-643.
[6] HOWELL H G, MAZUR J . Amonton's law and fibre friction[J]. Journal of The Textile Institute Transactions, 1953,44(2):59-69.
[7] MERCER E H, MAKINSON K R . The frictional properties of wool and other textile fibres[J]. Journal of The Textile Institute Transactions, 1947,38(5):T227-T240.
[8] YUKSEKKAYA M E . More about fibre friction and its measurements[J]. Textile Progress, 2009,41(3):141-93.
[9] HOWELL H G, MIESZKIS K W, TABOR D . Friction in textiles[J]. Butterworts Scientific Publications, 1959,47(1):1765.
[10] LINDBERG J, GRALEN N . Measurement of friction between single fibers: II: frictional properties of wool fibers measured by the fiber-twist method[J]. Textile Research Journal, 1948,18(5):287-301.
[11] GAO X, WANG L, HAO X . An improved Capstan equation including power-law friction and bending rigidity for high performance yarn[J]. Mechanism and Machine Theory, 2015,90:84-94.
[12] CORNELISSEN B, RIETMAN B, AKKERMAN R . Frictional behavior of high performance fibrous tows: friction experiments[J]. Composites Part A: Applied Science and Mannfacturing, 2013,44:95-104.
[13] CORNELISSEN B, MATTHIJN B, BERT R , et al. Frictional behavior of carbon fiber tows: a contact mechanics model of tow-tow friction[J]. Textile Research Journal, 2014,84(14):1476-1488.
[14] ALLAOUI S, HIVET G, WENDLING A , et al. Influence of the dry woven fabrics meso-structure on fabric/fabric contact behavior[J]. Journal of Composite Materials, 2012,46(6):627-639.
[15] MONTERO L, ALLOUI S, HIVET G . Characterisation of the mesoscopic and macroscopic friction behaviours of glass plain weave reinforcement[J]. Composites Part A: Applied Science and Mannfacturing, 2017,95:257-266.
[16] MICHEL T, MARIE-ANGE B . Experimental simulation of friction and wear of carbon yarns during the weaving process[J]. Composites: Part A, 2016,80:228-236.
[17] DANIEL M M, OLGA S, MICHAEL P F . Friction of carbon fibre tows[J]. Composites Part A: Applied Science and Mannfacturing, 2017,93:185-198.
[18] MICHAEL T, MARIE-ANGE B, DOMINIQUE P . Friction of carbon tows and fine single fibres[J]. Composites Part A: Applied Science and Mannfacturing, 2017,98:116-123.
