基于三维测量数据的个性化女装原型样板生成

doi:10.13475/j.fzxb.20180908607

摘要/Abstract

摘要：

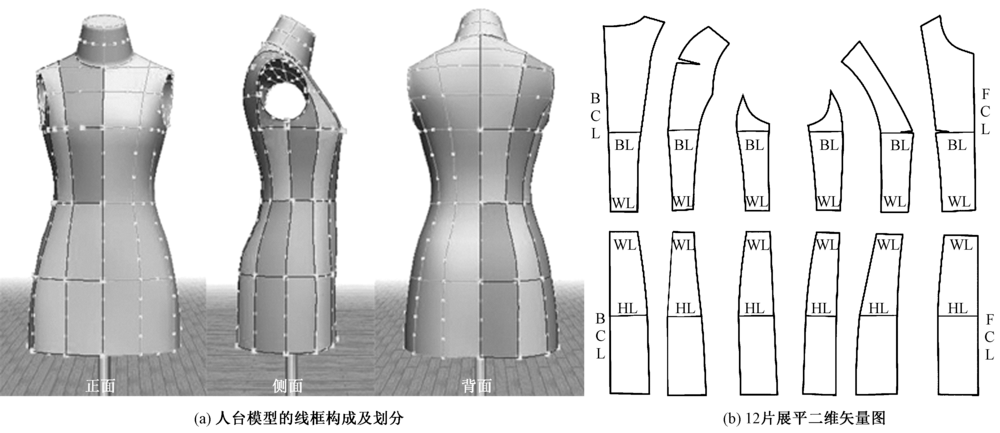

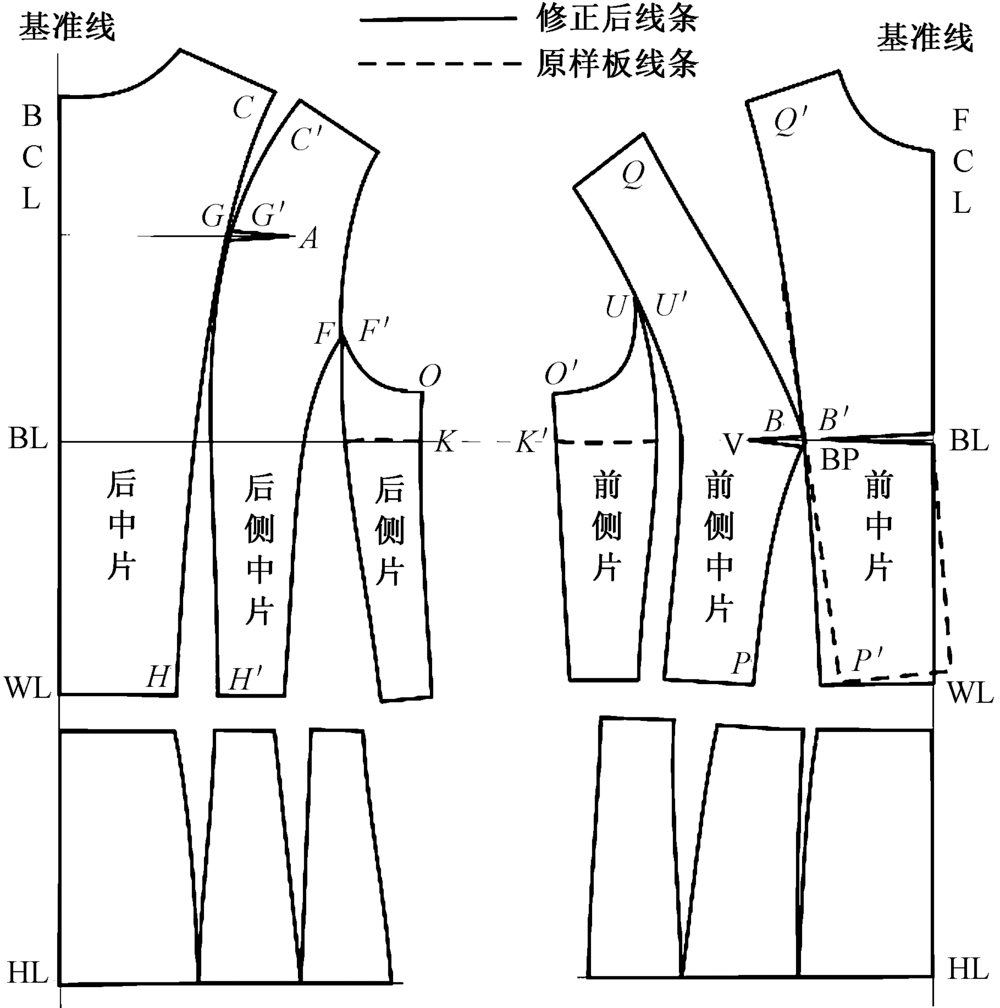

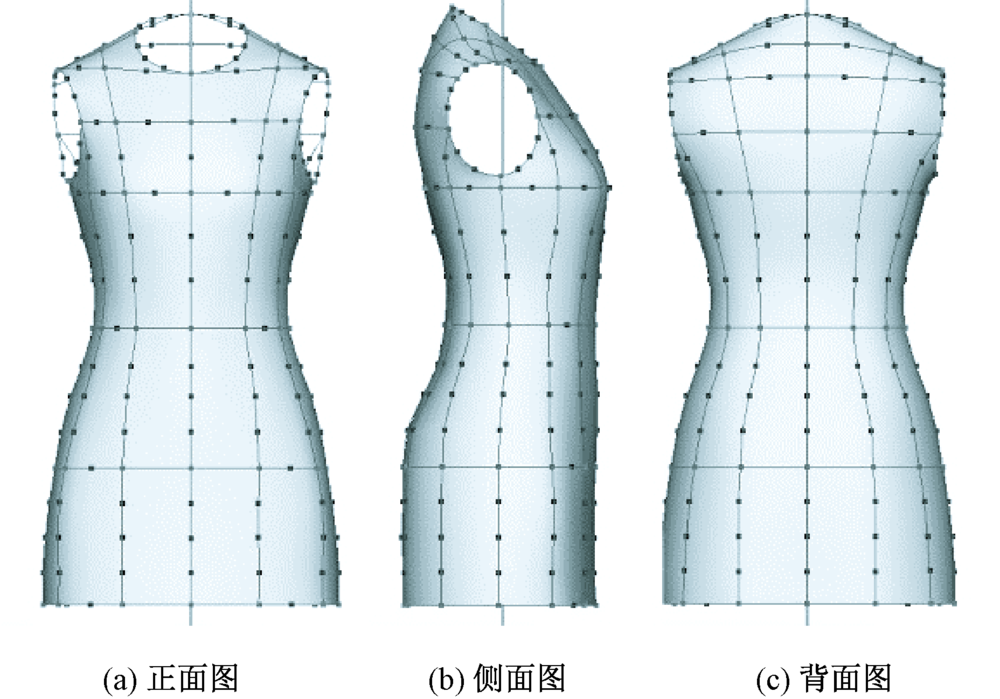

为解决个性化的服装样板生成技术中合体性的问题,提出了一种基于三维测量数据的个性化女上装原型样板的生成方法。首先,随机选取1名青年女性进行三维人体扫描,根据人体特征点将三维扫描模型于东丽Creacompo Ⅱ Torso系统中数字人台进行拟合,以得到个性化的数字人台模型。采用该软件对个性化数字人台模型的特征线进行分割和展平,得到二维展平矢量图,并根据二维矢量展平图建立了原型样板的变化规则。最后将原型样衣进行试穿实验,生成的个性化原型能够良好地展现实验对象的躯干形态,验证了样板生成规则的可行性和合体性,为个性化女装样板生成提供了一种新的途径,丰富了三维人体模型的二维原型生成的理论和实践。

关键词: 个性化, 女装原型, 三维人体模型, 数字人台, 曲面展平

Abstract:

In order to solve the problem of fitness in personalized pattern technology, a new method to generate personalized female's prototype based on three-dimensional measurement was proposed. Firstly, a female with standard stature was randomly selected and the body size was scanned. Then, the three-dimensional body model was fitted with digital mannequin based on the rule of the body feature points to obtain the personalized digital mannequin. The digital mannequin was from Creacompo Ⅱ Torso in TORAY software system. Next, the TORAY software was adopted to divide and flatten the digital human mannequin referring to the feature lines and the flattening vector graph was obtained later. Finally the rules of the personalized female prototype was established according to two-dimensional flattening vector graphs. The personalized prototype was tested well display and verified the feasibility of this prototype generation method. This study provides an effective measure for the generation of personalized female's pattern, which also enrich the theory of the two-dimensional prototype generation from three-dimensional human model.

Key words: personaliztion, female prototype, 3-D human model, digital mannequin, surface flattening

中图分类号:

TS941.2

王朝晖, 吴雨曦, 杨敏. 基于三维测量数据的个性化女装原型样板生成[J]. 纺织学报, 2019, 40(09): 143-149.

WANG Zhaohui, WU Yuxi, YANG Min. Development of personalized female prototype based on three-dimensional measurement data[J]. Journal of Textile Research, 2019, 40(09): 143-149.

图/表 11

图1

表1

表2

图2

图3

表3

图4

图5

图6

图7

表4

参考文献 16

[1]	YANG Y C, ZHANG W Y. Prototype garment pattern flattening based on individual 3D virtual dummy[J]. International Journal of Clothing Science and Technology, 2007,19(15):334-348. doi: 10.1108/09556220710819528
[2]	MENG Y M, MOK P Y, JIN X G. Computer aided clothing pattern design with 3D editing and pattern alteration[J]. Science Direct, 2012,44(8):721-734.
[3]	BARTLE A, SHEFFER A, KIM V G, et al. Physics-driven pattern adjustment for direct 3D garment editing[J]. ACM Transation Graphics, 2016,35(4):1-11.
[4]	CICHOCKA A, BRUNIAUX P, FRYDRYCH I. 3D garment modelling: conception of its structure in 3D[J]. Fibers Textiles in Eastern Europen, 2016,24(118):121-128.
[5]	HONG Y, ZENG X Y, BRUNIA P, et al. Interactive virtual try-on based three-dimensional garment block design for disabled people of scoliosis type[J]. Textile Research Journal, 2017,87(10):1261-1274. doi: 10.1177/0040517516651105
[6]	WANG W K, ZHANG H, PARK H, et al. Reducing control points in lofted B-spline surface interpolation using common knot vector determination[J]. Computer Aided Design, 2008,40:999-1008. doi: 10.1016/j.cad.2008.08.001
[7]	HAN H, NAM Y, HWANG SHIN S J. Algorithms of the automatic landmark identification for various torso shapes[J]. International Journal of Clothing Science and Technology, 2010,22(5):343-357. doi: 10.1108/09556221011071811
[8]	LEVY B, PETITJEAN S, RAY N, et al. Least square conformal maps for automatic texture atlas gener-ation[J]. ACM Transactions on Graphics, 2002,21:362-371. doi: 10.1145/566654.566590
[9]	FLOATER M S. Mean value coordinates[J]. Computer Aided Geometric Design, 2003,20(1):19-27. doi: 10.1016/S0167-8396(03)00002-5
[10]	TANG K, CHEN M. Quasi-developable mesh surface interpolation via mesh deformation[J]. IEEE Transactions on Visualization and Computer Graphics, 2009,15(3):518-528. doi: 10.1109/TVCG.2008.192 pmid: 19282556
[11]	KENNETH R. Developable surfaces from arbitrary sketched boundaries[C]//SHEFFER A, WITHER J, CANI M P, et al. 5th Eurographics Symposium on Geometry Processing. Barcelona: Eurographics Association, 2007: 163-172.
[12]	ZHUAN M L, ZHANG X F. A novel apparel surface flattening algorithm[J]. International Journal of Clothing Science and Tehnology, 2013,25(4):300-316.
[13]	HUANG H Q, MORK P Y. Pattern generation: from parameterizing human bodies to fit feature-aligned and flattenable 3D garment[J]. Computers in Industry, 2012 63(9):680-691. doi: 10.1016/j.compind.2012.04.001
[14]	三吉满智子. 服装造型学·理论篇[M]. 郑嵘,张浩,韩洁羽,译.. 北京: 中国纺织出版社, 2006: 4.
	MIYOSHI Machiko. Theory of Clothing Modeling [M]. ZHENG Rong, ZHANG Hao, HAN Jieyu, Translating. Beijing: China Textile Press, 2006: 4.
[15]	张文斌, 张渭源. 中国服装原型:东华原型结构设计原理和技术[J]. 东华大学学报(自然科学版), 2002,28(3):44-49.
	ZHANG Wenbin, ZHANG Weiyuan. Chinese basic block: structure designing principle and technical of donghua Basic block[J]. Journal of Donghua University(Natural Science Edition), 2002,28(3):44-49.
[16]	马飞. 基于曲面展平技术的女装结构设计方法研究[D]. 西安:西安工程大学, 2014: 34.
	MA Fei. Research on the method of suit-dress design based on surface flattening[D]. Xi'an: Xi'an Polytechnic University, 2014: 34.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

部位	处理前尺寸/cm	处理后尺寸/cm	实际尺寸/cm	处理前相对误差/%	处理后相对误差/%
胸围	85.16	85.85	86.50	1.55	0.08
腰围	66.40	67.22	67.40	1.49	0.27
臀围	93.68	94.46	94.40	0.76	0.07
背长	39.79	39.37	39.50	0.74	0.34
腰围高	98.49	98.12	97.60	0.91	0.53
身高	163.50	166.09	165.20	1.03	0. 54

部位	特征点数	特征点
头部	1	头顶点
颈部	4	喉结点、颈椎点、左颈点、右颈点
肩部	5	左肩中央点、右肩中央点、左肩点、右肩点、颈窝点
手臂	4	左肘外侧点、右肘外侧点、左腕关节外点、右腕关节外点
臂根部	6	左前方手臂肩点与前腋点连线中点、右前方手臂肩点与前腋点连线中点、左后方手臂肩点与后腋点连线中点、右后方手臂肩点与后腋点连线中点、左腋点、右腋点
胸部	5	中央前方胸围点、中央后方胸围点、左BP点、右BP、中央前方下方胸围点
腰部	6	中央前腰点、中央后腰点、左侧腰身点、右侧腰身点、肚脐点、腹部突出点
臀部	5	臀部突出点(左或右)、左侧缝线与臀围线交点、右侧缝线与臀围线交点、会阴点
大腿	2	左大腿中央点、右大腿中央点
膝盖	5	左膝内侧点、右膝内侧点、左膝中央点、右膝中央点、左膝关节外侧点、
小腿	2	左下腿中央点、右下腿中央点
脚部	2	左外踝点、右外踝点

部位	人体尺寸/ cm	人台尺寸/ cm	绝对误差/ cm	相对误差/ %
前长	42.3	42.3	0.0	0.00
背长	39.5	40.1	0.5	1.24
颈围	43.8	43.5	0.3	0.69
胸围	86.5	86.9	0.4	0.46
背宽	36.0	35.8	0.2	0.56
腰围	67.4	68.0	0.6	0.89
臀围	94.4	94.0	0.4	0.42

部位	人体尺寸/ cm	样衣尺寸/ cm	松量/ cm
衣长	58.8	58.8	0.0
颈围	43.8	43.8	0.0
胸围	86.5	92.5	6.0
背长	39.5	40.0	0.5
腰围	67.4	67.8	0.4
臀围	94.4	96.0	1.6
