纺织学报 ›› 2020, Vol. 41 ›› Issue (01): 190-196.doi: 10.13475/j.fzxb.20190101407

• 综合述评 • 上一篇

被服系统热舒适性研究进展

刘玉萍1, 卢业虎1,2(), 王来力2

  1. 1.苏州大学 纺织与服装工程学院, 江苏 苏州 215006
    2.浙江理工大学 浙江省服装工程技术研究中心, 浙江 杭州 310018
  • 收稿日期:2019-01-08 修回日期:2019-06-28 出版日期:2020-01-15 发布日期:2020-01-14
  • 通讯作者: 卢业虎
  • 作者简介:刘玉萍(1993—),女,硕士生。主要研究方向为被服系统舒适性评价。
  • 基金资助:
    苏州市重点产业技术创新专项资助项目(SYG201812);浙江省服装工程技术研究中心开放基金项目(2018FZKF03)

Research progress on thermal comfort of bedding system

LIU Yuping1, LU Yehu1,2(), WANG Laili2

  1. 1. College of Textile and Clothing Engineering, Soochow University, Suzhou, Jiangsu 215006, China
    2. Clothing Engineering Research Center of Zhejiang Province, Zhejiang Sci-Tech University,Hangzhou, Zhejiang 310018, China
  • Received:2019-01-08 Revised:2019-06-28 Online:2020-01-15 Published:2020-01-14
  • Contact: LU Yehu

RichHTML

22

PDF (Mobile)

160

摘要：

被服系统作为调节人体睡眠舒适性必不可少的产品,比室内环境对睡眠热舒适性的影响更大。为合理评价被服系统的热舒适性能,通过回顾国内外相关研究,从实验研究和舒适性模型研究的角度总结睡眠热舒适性研究中常用的评价方法;基于“人体—被服—环境”系统热湿交换理论,从被服系统热阻、湿阻、被内微气候等被服因素,人体热生理、性别和工作状态差异性等人体因素,环境温度、湿度、风速等环境因素3个角度分析了各类因素对睡眠热舒适性的具体影响;剖析当前研究中的不足和缺陷,展望被服系统睡眠热舒适性的研究趋势。提出建立普遍适用的“人体—被服—环境”系统舒适性模型,以提高对睡眠热舒适性评价的准确性。

关键词: 被服系统, 睡眠, 热舒适, 评价方法

Abstract:

As a necessary part during sleeping, the bedding system has more pronounced effect on sleeping thermal comfort than the indoor environment. To properly evaluate the sleeping thermal comfort of the bedding system, commonly used evaluation methods were reviewed in terms of experimental research and numerical modeling studies worldwide. Based on the heat and moisture exchange theory of human-bedding system-environment system, various influencing factors for sleeping thermal comfort were analyzed in three aspects, i.e. bedding system factors such as thermal resistance, evaporative resistance and bedding microclimate, human body factors such as thermal physiological differences in gender and working status. Environmental factors such as environmental temperature, humidity and speed of wind were also investigated for their effects on the sleeping thermal comfort. The drawbacks of current studies were pointed out and the development trends of sleeping thermal comfort of bedding systems were predicted. A comprehensive ″human-bedding system-environment″ thermal comfort model was proposed to improve the accuracy of sleeping thermal comfort evaluation.

Key words: bedding system, sleep, thermal comfort, evaluation method

中图分类号:

  • TS941.75

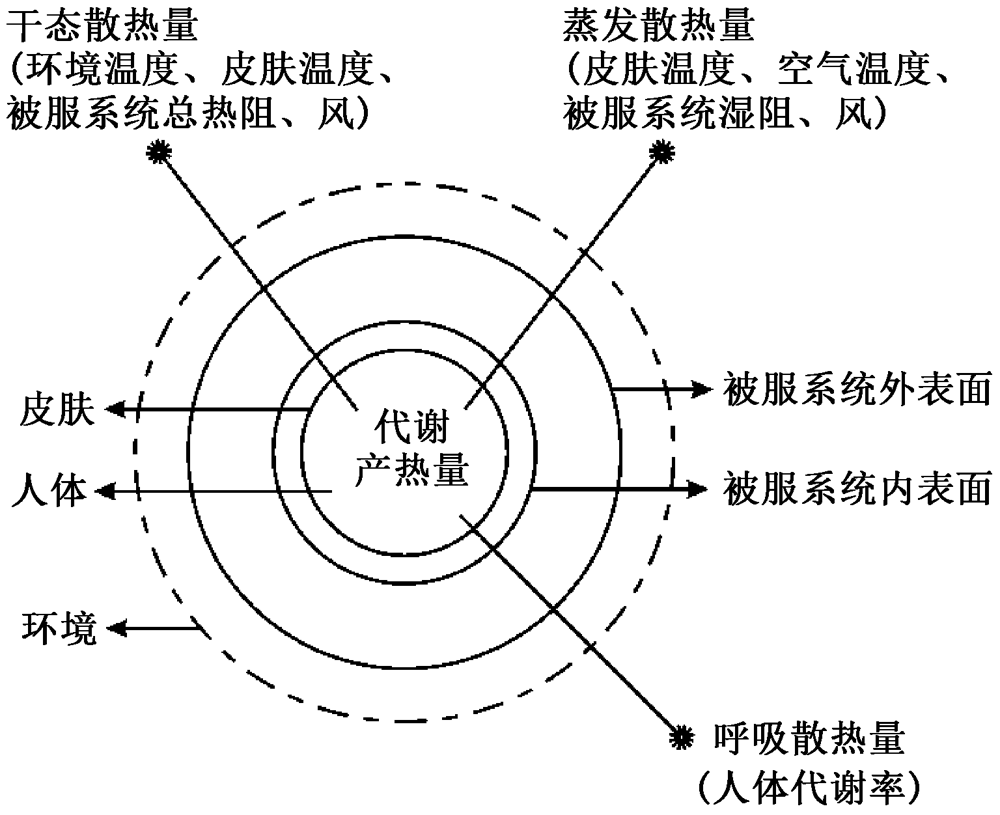

图1

人体的热平衡示意图"

表1

亚热带地区常见被服系统热阻"

床垫种类 被子 被子主要成分 被子面料的面密度/(kg·m-2) 厚度/mm 睡衣种类 身体覆盖率/% 总热阻/clo
无 — — — 无 23.3 0.90
棕梆床垫 毯子 棉 0.330 8 3.03 半袖 67.0 1.64
薄被子 涤纶 0.561 2 15.23 半袖 94.1 3.26
薄被子 涤纶 0.561 2 15.23 长袖 94.1 3.32
无 — — — 无 23.3 0.98
普通床垫 毯子 棉 0.330 8 3.03 半袖 67.0 1.80
薄被子 涤纶 0.561 2 15.23 长袖 94.1 4.56
厚被子 涤纶 0.839 0 23.17 长袖 100.0 4.89
[1] CHILCOTT L A, SHAPIRO C M. The socioeconomic impact of insomnia[J]. Pharmaco Economics, 1996,10(1):1-14.
[2] 张景行. 探讨深慢波睡眠机制的重要意义[J]. 中国中医基础医学杂志, 2001,7(8):66-69.
ZHANG Jingxing. Significance of deep slow wave sleep mechanism[J]. Chinese Journal of Basic Medicine in Traditional Chinese Medicine, 2001,7(8):66-69.
[3] MAQUET P, LAUREYS S, PEIGNEUX P, et al. Experience-dependent changes in cerebral activation during human REM sleep[J]. Nature Neuroscience, 2000,3(8):831-836.
pmid: 10903578
[4] LIN Zhongping, DENG Shiming. A study on the thermal comfort in sleeping environments in the subtropics-developing a thermal comfort model for sleeping environments[J]. Building & Environment, 2008,43(1):70-81.
[5] 张宇峰. 热环境对睡眠的影响[J]. 暖通空调, 2016,46(6):55-64.
ZHANG Yufeng. Effects of thermal environment on sleep[J]. Heating Ventilating & Air Conditioning, 2016,46(6):55-64.
[6] PARMEGGIANI P L. Thermoregulation and sleep[J]. Front Biosci, 2003,8:557-567
[7] MUZET A, LIBERT J P, CANDAS V. Ambient temperature and human sleep[J]. Experientia, 1984,40(5):425-429.
doi: 10.1007/BF01952376 pmid: 6723903
[8] LAN Li, PAN Li, LIAN Zhiwei, et al. Experimental study on thermal comfort of sleeping people at different air temperatures[J]. Building and Environment, 2014,73:24-31.
doi: 10.1016/j.buildenv.2013.11.024
[9] PAN Li, LIAN Zhiwei, LAN Li. Investigation of sleep quality under different temperatures based on subjective and physiological measurements[J]. HVAC&R Research, 2012,18(5):1030-1043.
[10] LIU Weiwei, LIAN Zhiwei, LIU Yuanmou. Heart rate variability at different thermal comfort levels[J]. European Journal of Applied Physiology, 2008,103(3):361-366.
pmid: 18351379
[11] KRAÄUCHI K, CAJOCHEN C, WERTH E, et al. Functional link between distal vasodilation and sleep-onset latency[J]. American Journal of Physiology-Regulatory, Integrative and Comparative Physiology, 2000,278(3):R741-748.
doi: 10.1152/ajpregu.2000.278.3.R741 pmid: 10712296
[12] KRÄUCHI K, CAJOCHEN C, WERTH E, et al. Warm feet promote the rapid onset of sleep[J]. Nature, 1999,401(6748):36-37.
doi: 10.1038/43366 pmid: 10485703
[13] HASKELL E H, PALCA J W, WALKER J M, et al. Metabolism and thermoregulation during stages of sleep in humans exposed to heat and cold[J]. Journal of Applied Physiology, 1981,51(4):948-954.
doi: 10.1152/jappl.1981.51.4.948 pmid: 7298439
[14] LIU Weiwei, LIAN Zhiwei, DENG Qihong, et al. Evaluation of calculation methods of mean skin temperature for use in thermal comfort study[J]. Building and Environment, 2011,46(2):478-488.
doi: 10.1016/j.buildenv.2010.08.011
[15] SU Lumei, XU Min. Sleep comfort analysis using a part-based mixture model with nighttime infrared video[J]. Neurocomputing, 2017,259:66-75.
doi: 10.1016/j.neucom.2016.08.128
[16] WU J, YUAN H, LI X. A novel method for comfort assessment in a supine sleep position using three-dimensional scanning technology[J]. International Journal of Industrial Ergonomics, 2018,67:104-113.
doi: 10.1016/j.ergon.2018.05.012
[17] BUYSSE D J, REYNOLDS III C F, BUYSSE T H, et al. The Pittsburgh sleep quality index: a new instrument for psychiatric practice and research[J]. Psychiatry Research, 1989,28(2):193-213
doi: 10.1016/0165-1781(89)90047-4 pmid: 2748771
[18] 郑棒, 李曼, 王凯路, 等. 匹兹堡睡眠质量指数在某高校医学生中的信度与效度评价[J]. 北京大学学报 (医学版), 2016,48(3):424-428.
ZHENG Bang, LI Man, WANG Kailu, et al. Analysis of the reliability and validity of the Chinese version of Pittsburgh sleep quality index among medical college students[J]. Journal of Peking University (Health Sciences), 2016,48(3):424-428.
[19] 路桃影, 李艳, 夏萍, 等. 匹兹堡睡眠质量指数的信度及效度分析[J]. 重庆医学, 2014(3):260-263.
LU Taoying, LI Yan, XIA Ping, et al. Analysis on reliability and validity of the Pittsburgh sleep quality index[J]. Chongqing Medical Journal, 2014(3):260-263.
[20] SONG Cong, LIU Yanfeng, LIU Jiaping. The sleeping thermal comfort model based on local thermal requirements in winter[J]. Energy and Buildings, 2018,173:163-175.
doi: 10.1016/j.enbuild.2018.05.034
[21] PAN Dongmei, CHAN Mingwei, DENG Shiming, et al. A four-node thermoregulation model for predicting the thermal physiological responses of a sleeping person[J]. Building and Environment, 2012,52:88-97.
doi: 10.1016/j.buildenv.2011.12.020
[22] LIN Zhongping, DENG Shiming. A study on the thermal comfort in sleeping environments in the ten: measuring the total insulation values for the bedding systems commonly used in the subtropics[J]. Building and Environment, 2008,43:905-916.
doi: 10.1016/j.buildenv.2007.01.027
[23] MCCULLOUGH E A, ZBIKOWSKI P J, JONES B W. Measurement and prediction of the insulation provided by bedding systems[J]. ASHRAE transactions, 1987,93:1055-1068.
[24] 张华玲, 姚大军, 洪诗尧. 低气压环境被服系统总热阻计算模型[J]. 土木建筑与环境工程, 2017(4):10-14.
ZHANG Hualing, YAO Dajun, HONG Shiyao. Calculation model of total thermal resistance of bedding and clothing system in low pressure environments[J]. Journal of Civil, Architectural & Environmental Engineering, 2017(4):10-14.
[25] BISCHOF W, MADSEN T L, CLAUSEN J, et al. Sleep and the temperature field of the bed[J]. Journal of Thermal Biology, 1993,18(5/6):393-398.
doi: 10.1016/0306-4565(93)90064-Z
[26] TSUZUKI K, OKAMOTO-MIZUNO K, MIZUNO K. Effects of humid heat exposure on sleep, thermoregulation, melatonin, and microclimate[J]. Journal of Thermal Biology, 2004,29(1):31-36.
doi: 10.1016/j.jtherbio.2003.10.003
[27] WANG Yingying, LIU Yanfeng, SONG Cong, et al. Appropriate indoor operative temperature and bedding micro climate temperature that satisfies the requirements of sleep thermal comfort[J]. Building and Environment, 2015,92:20-29.
doi: 10.1016/j.buildenv.2015.04.015
[28] LIU Yanfeng, SONG Cong, WANG Yingying, et al. Experimental study and evaluation of the thermal environment for sleeping[J]. Building and Environment, 2014,82:546-555.
doi: 10.1016/j.buildenv.2014.09.024
[29] SONG Cong, LIU Yanfegn, ZHOU Xiaojun, et al. Investigation of human thermal comfort in sleeping environments based on the effects of bed climate[J]. Procedia Engineering, 2015,121:1126-1132.
doi: 10.1016/j.proeng.2015.09.118
[30] 李净, 刘艳峰, 宋聪, 等. 西北民居冬季睡眠被褥微气候研究[J]. 建筑科学, 2016,32(2):65-69.
LI Jing, LIU Yanfeng, SONG Cong, et al. Winter bedding microclimate in rural houses in northwest China[J]. Building Science, 2016,32(2):65-69.
[31] OKAMOTO-MIZUNO K, TSUZUKI K, OHSHIRO Y, et al. Effects of an electric blanket on sleep stages and body temperature in young men[J]. Ergonomics, 2005,48(7):749-757.
doi: 10.1080/00140130500120874 pmid: 16076735
[32] PAN Li, LIAN Zhiwei, LAN Li. Investigation of gender differences in sleeping comfort at different environmental temperatures[J]. Indoor and Built Environment, 2012,21(6):811-820.
doi: 10.1177/1420326X11425967
[33] LAN Li, LIAN Zhiwei. Ten questions concerning thermal environment and sleep quality[J]. Building and Environment, 2016,99:252-259.
doi: 10.1016/j.buildenv.2016.01.017
[34] HASKELL E H, PALCA J W, WALKER J M, et al. The effects of high and low ambient temperatures on human sleep stages[J]. Electroencephalography and Clinical Neurophysiology, 1981,51(5):494-501.
doi: 10.1016/0013-4694(81)90226-1 pmid: 6165549
[35] SONG Cong, LIU Yanfeng, ZHOU Xiaojun, et al. Investigation of human thermal comfort in sleeping environments based on the effects of bed climate[J]. Procedia Engineering, 2015,121:1126-1132.
doi: 10.1016/j.proeng.2015.09.118
[36] TSUZUKI K, OKAMOTO-MIZUNO K, MIZUNO K. The effects of low air temperatures on thermoregulation and sleep of young men while sleeping using bedding[J]. Buildings, 2018,8(6):76.
doi: 10.3390/buildings8060076
[37] LAN Li, LIAN Zhiwei, LIN Y B. Comfortably cool bedroom environment during the initial phase of the sleeping period delays the onset of sleep in summer[J]. Building and Environment, 2016,103:36-43.
doi: 10.1016/j.buildenv.2016.03.030
[38] OKAMOTO-MIZUNO K, MIZUNO K. Effects of thermal environment on sleep and circadian rhythm[J]. Journal of Physiological Anthropology, 2013,31(1):14.
doi: 10.1186/1880-6805-31-14
[39] OKAMOTO-MIZUNO K, TSUZUKI K, MIZUNO K, et al. Effects of partial humid heat exposure during different segments of sleep on human sleep stages and body temperature[J]. Physiology & Behavior, 2005,83(5):759-765.
doi: 10.1016/j.physbeh.2004.09.009 pmid: 15639161
[40] OKAMOTO-MIZUNO K, TSUZUKI K, MIZUNO K, et al. Effects of low ambient temperature on heart rate variability during sleep in humans[J]. European Journal of Applied Physiology, 2009,105(2):191-197.
doi: 10.1007/s00421-008-0889-1 pmid: 19015871
[41] LAN L, LIAN Z, ZHOU X. Effects of moderate air temperature fluctuation on sleep quality and thermal comfort in healthy people[C]// Proceedings of the 13th international conference on indoor air quality and climate. Hong Kong:Curran Associates, Inc, 2014:617-618.
[42] TOGO F, AIZAWA S, ARAI J I, et al. Influence on human sleep patterns of lowering and delaying the minimum core body temperature by slow changes in the thermal environment[J]. Sleep, 2007,30(6):797-802.
pmid: 17580602
[43] OKAMOTO-MIZUNO K, MIZUNO K, MICHIE S, et al. Effects of humid heat exposure on human sleep stages and body temperature[J]. Sleep, 1999,22(6):767-773.
pmid: 10505822
[44] TSUZUKI K, OKAMOTO-MIZUNO K, MIZUNO K, et al. Effects of airflow on body temperatures and sleep stages in a warm humid climate[J]. International Journal of Biometeorology, 2008,52(4):261-270.
doi: 10.1007/s00484-007-0120-9 pmid: 17899214
[45] LAN Li, LIAN Zhiwei, ZHOU X, et al. Pilot study on the application of bedside personalized ventilation to sleeping people[J]. Building and Environment, 2013,67:160-166.
doi: 10.1016/j.buildenv.2013.05.018
[46] URLAUB S, GRÜN G, FOLDBJERG P, et al. The influence of the indoor environment on sleep quality[C]// Aealthy buildings Europe. Eindhoven: International Society of Indoor, Air Quality and Climate, 2015:1-6.
