纺织学报 ›› 2020, Vol. 41 ›› Issue (04): 181-187.doi: 10.13475/j.fzxb.20190304807

• 综合述评 • 上一篇    下一篇

基于光子晶体的结构色织物研究进展

陈佳颖1, 辛斌杰1, 辛三法1, 杜卫平1,2, 许颖琦1, 高伟洪1()

  1. 1.上海工程技术大学 纺织服装学院, 上海 201620
    2.上海纺织(控股)集团公司, 上海 200336
  • 收稿日期:2019-03-18 修回日期:2019-12-29 出版日期:2020-04-15 发布日期:2020-04-27
  • 通讯作者: 高伟洪
  • 作者简介:陈佳颖(1995—),女,硕士生。主要研究方向为光子晶体结构色。
  • 基金资助:
    国家自然科学基金资助项目(51803117);上海高校青年东方学者岗位计划资助项目(QD2018040)

Research progress in structurally colored fabrics using photonic crystals

CHEN Jiaying1, XIN Binjie1, XIN Sanfa1, DU Weiping1,2, XU Yingqi1, GAO Weihong1()

  1. 1. School of Textiles and Fashion, Shanghai University of Engineering Science, Shanghai 201620, China
    2. Shanghai Textile (Group) Corporation, Shanghai 200336, China
  • Received:2019-03-18 Revised:2019-12-29 Online:2020-04-15 Published:2020-04-27
  • Contact: GAO Weihong

摘要:

针对传统印染行业污染高、能耗高的问题,综述了一种绿色环保的纺织着色印染方式,即结构生色的织物着色方法;分析了其光子晶体结构的生色原理,并将采用光子晶体结构的色织物制备方法总结为一步法和二步法。一步法为直接在织物表面涂覆结构色材料,其中重力沉降法和垂直沉积法制备方法简单,静电自组装法结构色织物的厚度可控,喷墨打印法可实现织物的局部精准着色,雾化沉积法适用于不规则织物表面的印染,磁控溅射法适用于各种材料织物的染色;二步法为从结构色纤维、纱线到织物的制备方法,制备步骤复杂,但制备织物的力学性能较一步法好,印染织物后其色牢度优。最后总结了结构色织物在发展中存在的问题。

关键词: 光子晶体, 蛋白石, 结构色, 结构色织物, 非角度依赖

Abstract:

Aiming at high pollution and high energy consumption in traditional printing and dyeing industry, this paper reviewed a new green and environmentally friendly method, i.e. the structurally coloration method. Chromogenic principle of the photonic crystal structure was introduced and the preparation of structured color fabrics based on photonic crystal was systematically reviewed, including the one-step method (photonic crystal was directly coated on fabrics) and the two-step method (fiber to fabric). The literature shows that the gravity sedimentation and the vertical deposition were simple and the thickness of the structurally colored film obtained by electrostatic self-assembled could be controlled. Inkjet printing was found able to achieve precise printing on fabrics. Atomization deposition might be applied to irregular surfaces, and magnetron sputtering could be wildly used in fabrics of various materials. Structurally colored fabrics prepared by the two-step process were firm in color but complicated in fabrication. Future work in developing structurally colored fabrics was discussed.

Key words: photonic crystal, opals, structural color, structurally colored fabric, angle-independent

中图分类号:

  • TS193.5

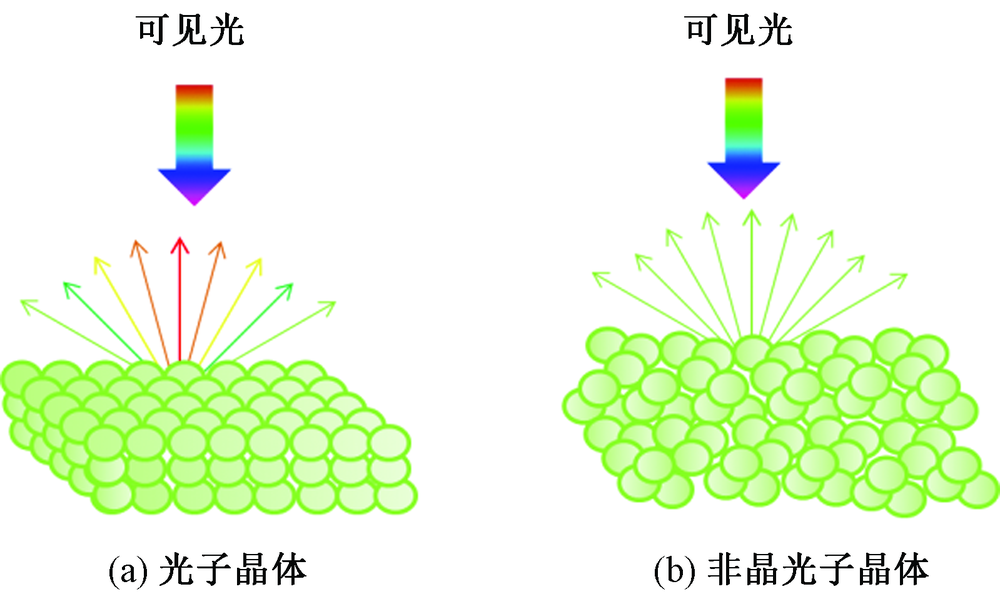

图1

光子晶体和非晶光子晶体结构生色原理"

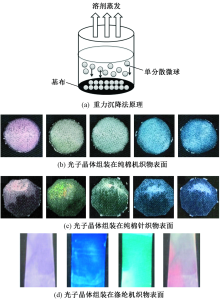

图2

重力沉降法原理及其染色织物"

图3

垂直自组装原理及其染色织物"

图4

静电自组装原理及其染色织物"

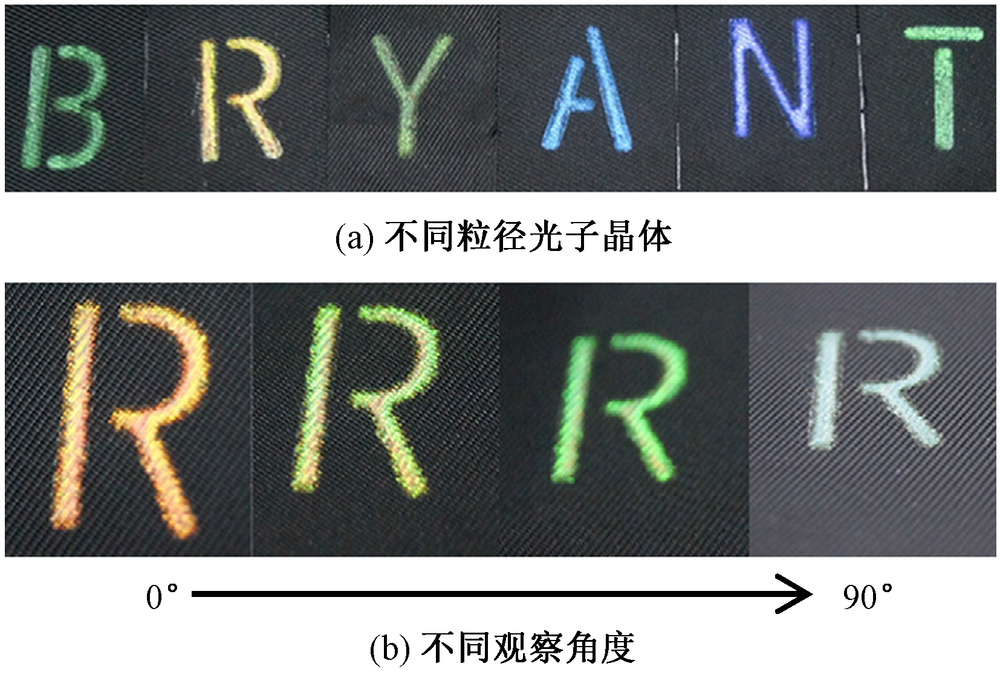

图5

喷墨打印结构色织物"

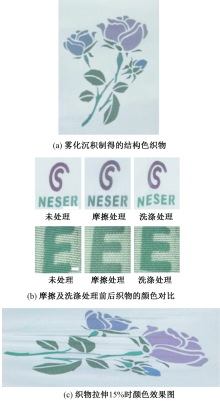

图6

雾化沉积结构色织物及不同处理后织物效果图"

图7

磁控溅射法制备的结构色织物"

图8

纯胶体颗粒组成的结构色纺织品形貌"

[1] 张骜, 袁伟, 周宁, 等. 结构生色及其染整应用前景[J]. 印染, 2012,38(13):44-47.
ZHANG Ao, YUAN Wei, ZHOU Ning, et al. Structural color and its application prospect in dyeing and finishing industry[J]. China Dyeing & Finishing, 2012,38(13):44-47.
[2] 郭彦丽, 刘建才, 王艳红, 等. 结构色纤维的研究进展[J]. 印染, 2016,42(14):47-50.
GUO Yanli, LIU Jiancai, WANG Yanhong, et al. Advances in structurally-colored fibers[J]. China Dyeing & Finishing, 2016,42(14):47-50.
[3] 田桓荣, 刘建勇. 结构生色纺织品的研究进展[J]. 针织工业, 2019(1):30-35.
TIAN Huanrong, LIU Jianyong. Research progress in structural chromogenic textiles[J]. Knitting Industries, 2019(1):30-35.
[4] JOHN Sajeev. Strong localization of photons in certain disordered dielectric superlattices[J]. Physical Review Letters, 1987,58(23):2486-2489.
doi: 10.1103/PhysRevLett.58.2486 pmid: 10034761
[5] YABLONOVITCH Eli. Inhibited spontaneous emission in solid-state physics and electronics[J]. Physical Review Letters, 1987,58(20):2059-2062.
[6] 张克勤, 袁伟, 张骜. 光子晶体的结构色[J]. 功能材料信息, 2010,7(5):39-44.
ZHANG Keqin, YUAN Wei, ZHANG Ao. Structural color of photonic crystal[J]. Functional Materials Information, 2010,7(5):39-44.
[7] 宋清海, 徐雷. 光子晶体的原理与应用[J]. 物理实验, 2004,24(6):3-7.
SONG Qinghai, XU Lei. Theory and application of photonic crystal[J]. Physics Experimentation, 2004,24(6):3-7.
[8] GE Dengteng, YANG Lili, WU Gaoxiang, et al. Angle-independent colors from spray coated quasi-amorphous arrays of nanoparticles: combination of constructive interference and rayleigh scattering[J]. Journal of Materials Chemistry C, 2014,2(22):4395-4400.
[9] 李苗苗, 吕全乾, 张连斌, 等. 无角度依赖性的响应性光子晶体研究进展[J]. 功能高分子学报, 2018,31(6):513-529.
LI Miaomiao, LÜ Quanqian, ZHANG Lianbin, et al. Recent progress on angle-independent responsive photonic crystals[J]. Journal of Functional Polymers, 2018,31(6):513-529.
[10] ZHOU Lan, WU Yujiang, LIU Guojin, et al. Fabrication of high-quality silica photonic crystals on polyester fabrics by gravitational sedimentation self-assembly[J]. Coloration Technology, 2015,131(6):413-423.
[11] GAO Weihong, RIGOUT Muriel, OWENS Huw. The structural coloration of textile materials using self-assembled silica nanoparticles[J]. Journal of Nanoparticle Research, 2017,19(9):303.
[12] GAO Weihong, RIGOUT Muriel, OWENS Huw. Facile control of silica nanoparticles using a novel solvent varying method for the fabrication of artificial opal photonic crystals[J]. Journal of Nanoparticle Research, 2016,18(12):387.
[13] GAO Weihong, RIGOUT Muriel, OWENS Huw. Optical properties of cotton and nylon fabrics coated with silica photonic crystals[J]. Optical Materials Express, 2017,7(2):341-353.
[14] 张慧. 单分散SiO2胶体颗粒在织物表面的色泽呈现[D]. 上海:东华大学, 2017: 44-47.
ZHANG Hui. Structural color appearance on the fabric by monodisperse colloidal SiO2 spheres[D]. Shanghai: Donghua University, 2017: 44-47.
[15] 刘国金. 纺织基材上纳米微球自组装仿生光子晶体结构生色研究[D]. 杭州:浙江理工大学, 2017: 10-11.
LIU Guojin. Study on the structural coloration of biomimetic photonic crystals on textile substrates by self-assembly of nanospheres[D]. Hangzhou: Zhejiang Sci-Tech University, 2017: 10-11.
[16] LIU Guojin, ZHOU Lan, FAN Qinguo, et al. The vertical deposition self-assembly process and the formation mechanism of poly(styrene-co-methacrylic acid) photonic crystals on polyester fabrics[J]. Journal of Materials Science, 2016,51(6):2859-2868.
[17] 周岚, 丁姣, 吴玉江, 等. SiO2胶体微球在真丝织物上的垂直沉积自组装研究[J]. 丝绸, 2016,53(5):1-5.
ZHOU Lan, DING Jiao, WU Yujiang, et al. Study on the formation of SiO2 colloidal microspheres on silk fabric by vertical deposition self-assembly[J]. Journal of Silk, 2016,53(5):1-5.
[18] 喻平, 欧红叶. 垂直沉积法自组装胶体光子晶体的研究进展[J]. 重庆师范大学学报(自然科学版), 2008(4):74-78,85.
YU Ping, OU Hongye. The progress in fabrication of self-assembled colloidal photonic crystal via vertical deposition technique[J]. Journal of Chongqing Normal University(Natural Science Edition), 2008(4):74-78,85.
[19] LIU Guojin, ZHOU Lan, WU Yujiang, et al. The fabrication of full color P(St-MAA) photonic crystal structure on polyester fabrics by vertical deposition self-assembly[J]. Journal of Applied Polymer Science, 2015,132(13):41750-41759.
[20] 张慧, 刘晓艳. 光子晶体在织物表面的色泽呈现[J]. 纺织学报, 2017,38(8):91-95.
ZHANG Hui, LIU Xiaoyan. Color development of photonic crystals on fabric surface[J]. Journal of Textile Research, 2017,38(8):91-95.
[21] ZHANG Yun, ZHUANG Guangqing, JIA Yanrong, et al. Structural coloration of polyester fabrics with electrostatic self-assembly of (SiO2/PEI)n[J]. Textile Research Journal, 2014,85(8):785-794.
[22] 郭开银. 活性染料数码喷墨印花技术的研究[D]. 苏州:苏州大学, 2014: 1-7.
GUO Kaiyin. Study on digital ink-jet printing technology of reactive dyes[D]. Suzhou: Soochow University, 2014: 1-7.
[23] 陈洋. 活性染料/胶体微球复合型墨水的制备及其在纺织品结构生色中的应用[D]. 杭州: 浙江理工大学, 2018: 2-9.
CHEN Yang. The preparation of reactive dyes/microspheres composite ink and its structural coloration applications on textiles[D]. Hangzhou: Zhejiang Sci-Tech University, 2018: 2-9.
[24] LIU Guojin, ZHOU Lan, ZHANG Guoqing, et al. Fabrication of patterned photonic crystals with brilliant structural colors on fabric substrates using ink-jet printing technology[J]. Materials & Design, 2017,114:10-17.
[25] 刘国金, 蒋少宸, 周俭, 等. 基材的浸润性能对喷印光子晶体结构色的影响[J]. 浙江理工大学学报(自然科学版), 2018,39(6):659-665.
LIU Guojin, JIANG Shaochen, ZHOU Jian, et al. The effect of wettability of substrates on structural color of photonic crystals by inkjet printing[J]. Journal of Zhejiang Sci-Tech University(Natural Sciences Edition), 2018,39(6):659-665.
[26] 李慧, 陈洋, 刘国金, 等. 一氯均三嗪活性染料/纳米微球复合型结构色墨水的制备及应用[J]. 丝绸, 2018,55(12):43-49.
LI Hui, CHEN Yang, LIU Guojin, et al. Preparation of composite ink of reactive dyes/colloidal microspheres and its application[J]. Journal of Silk, 2018,55(12):43-49.
[27] YAVUZ G, FELGUEIRAS P H, RIBEIRO A I, et al. Dyed poly(styrene-methyl methacrylate-acrylic acid) photonic nanocrystals for enhanced sructural color[J]. ACS Applied Materials & Interfaces, 2018,10(27):23285-23294.
pmid: 29924594
[28] LI Qingsong, ZHANG Yafeng, SHI Lei, et al. Additive mixing and conformal coating of noniridescent structural colors with robust mechanical properties fabricated by atomization deposition[J]. ACS Nano, 2018,12(4):3095-3102.
doi: 10.1021/acsnano.7b08259 pmid: 29438609
[29] FENG Jinchun, HUANG Songhe, SU Min. Analysis and achievement of the leak detection of high vacuum system on magnetron sputtering equipment[J]. Applied Mechanics & Materials, 2011,142:71-74.
[30] JIA Yanrong, ZHANG Yun, ZHOU Qiubao, et al. Structural colors of the SiO2/polyethyleneimine thin films on poly(ethylene terephthalate) substrates[J]. Thin Solid Films, 2014,569(3):10-16.
[31] 叶丽华, 杜文琴. 结构色织物的光学性能[J]. 纺织学报, 2016,37(8):83-88.
YE Lihua, DU Wenqin. Optical properties of fabric with multiple structural colors[J]. Journal of Textile Research, 2016,37(8):83-88.
[32] YUAN Xiaohong, YE Yuanjing, LIAN Min, et al. Structural coloration of polyester fabrics coated with Al/TiO2 composite films and their anti-ultraviolet proper-ties[J]. Materials, 2018,11(6):1011.
[33] FINLAYSON C E, GODDARD C, PAPACHRISTODOULOU E, et al. Ordering in stretch-tunable polymeric opal fibers[J]. Optics Express, 2011,19(4):3144-3154.
pmid: 21369136
[34] ZHANG Jing, HE Sisi, LIU Lianmei, et al. The continuous fabrication of mechanochromic fibers[J]. Journal of Materials Chemistry C, 2016,4(11):2127-2133
[35] YUAN Wei, ZHOU Ning, SHI Lei, et al. Structural coloration of colloidal fiber by photonic band gap and resonant mie scattering[J]. ACS Applied Materials & Interfaces, 2015,7(25):14064-14071.
doi: 10.1021/acsami.5b03289 pmid: 26066732
