段染纱横编袜子花纹形成方法

doi:10.13475/j.fzxb.20190902206

纺织学报 ›› 2020, Vol. 41 ›› Issue (10): 52-57.doi: 10.13475/j.fzxb.20190902206

段染纱横编袜子花纹形成方法

徐艳华(), 袁新林

常州大学美术与设计学院, 江苏常州 213164

收稿日期:2019-09-04 修回日期:2020-07-11 出版日期:2020-10-15 发布日期:2020-10-27
作者简介:徐艳华(1973—),女,教授,博士。主要研究方向为针织技术及针织服装设计。E-mail:xyh@mail.dhu.edu.cn。
基金资助:
教育部人文社会科学研究项目(18YJA760068);江苏省教育科学“十三五”规划课题(D/2018/01/78);江苏省社会科学基金项目(17YSD001);常州大学校基金资助项目(ZMF16020064);常州大学校基金资助项目(ZMF16020065)

Pattern forming method of flat-knitted socks with section-dyed yarn

XU Yanhua(), YUAN Xinlin

School of Arts and Design, Changzhou University, Changzhou, Jiangsu 213164, China

Received:2019-09-04 Revised:2020-07-11 Online:2020-10-15 Published:2020-10-27

摘要/Abstract

摘要：

为给段染纱横编袜子的花纹设计提供理论参考,分析了筒形织物的横机圆周编织方式,以及段染纱在筒形织物中色段的分布规律,并用圆柱螺旋线来模拟其分布规律。借助MatLab模拟出既定段染纱筒形织物的花纹,模拟花纹与织物实样花纹有良好的一致性,同时给出段染纱横编袜子花纹形成的几种方法。研究结果表明:段染纱的色段分布规律结合筒形织物的圆周编织方式,可形成多样的花纹,花纹形状可由圆筒一周的用纱长度与色段循环长度的比例关系确定;用MatLab圆柱螺旋线程序可方便地模拟出花纹;生产中可通过改变线圈长度设计横编袜子花纹,也可根据设计的花纹选择段染纱。

关键词: 段染纱, 横编袜子, 筒形织物, 花纹, 花纹模拟

Abstract:

In order to provide theoretical reference for the pattern design of flat-knitted socks using section-dyed yarn, the distribution regularities of a section-dyed yarn in the tubular fabric produced using the circular knitting was described. It is indicated that the distribution regularity is imitated by the cylindrical helix. A MatLab procedure was used to simulate the pattern of the tubular fabric made from the section-dyed yarn, and it is shown that the simulated patterns have a good agreement with the real tubular fabric patterns. Based on the achievement, several pattern forming methods based on the use of flat knitting machines were proposed and used for creating patterns for flat-knitted socks. The results show that various patterns could be formed when the distribution regularity of the section-dyed yarn is combined with the circular knitting method of the tubular fabric. The pattern shape could be determined by the proportional relationship between the length of yarn used in a circular course and color segment cycle. The patterns of the tubular fabric could be simulated adopting cylindrical helix using MatLab. The pattern of the flat-knitted socks is obtained by changing the stitch length and by selecting the section-dyed yarn.

Key words: section-dyed yarn, flat-knitted sock, tubular fabric, pattern, pattern simulation

中图分类号:

TS184.6

徐艳华, 袁新林. 段染纱横编袜子花纹形成方法[J]. 纺织学报, 2020, 41(10): 52-57.

XU Yanhua, YUAN Xinlin. Pattern forming method of flat-knitted socks with section-dyed yarn[J]. Journal of Textile Research, 2020, 41(10): 52-57.

图/表 13

图1

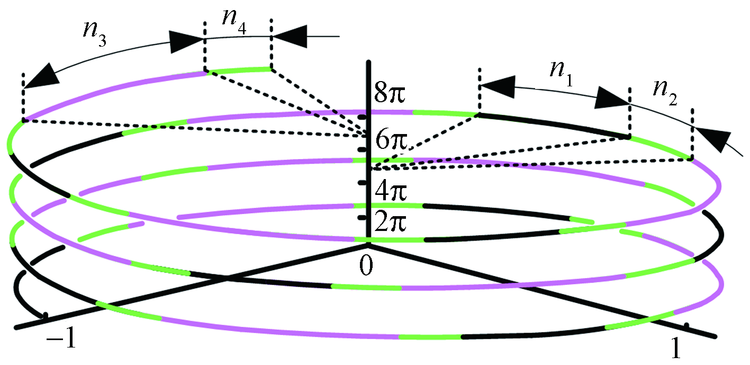

图2

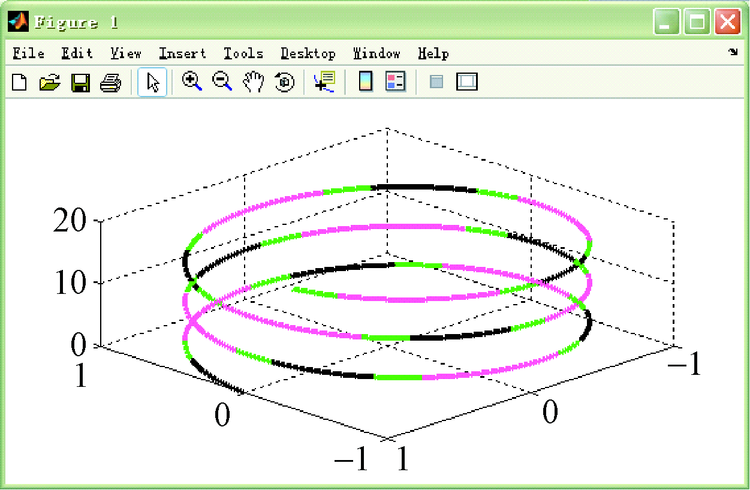

图3

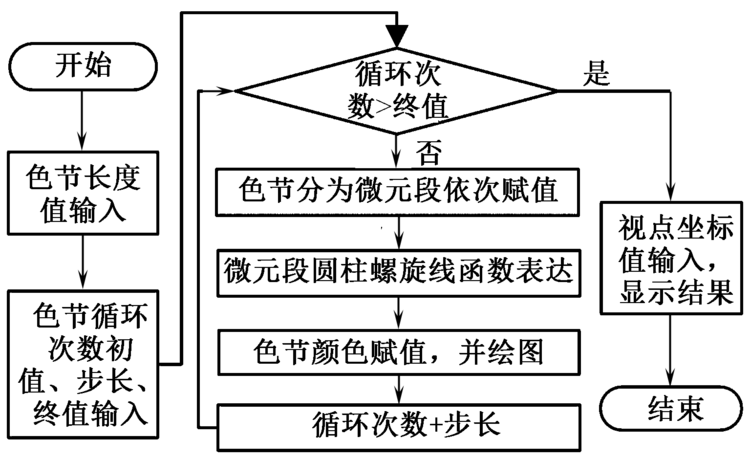

图4

表1

图5

表2

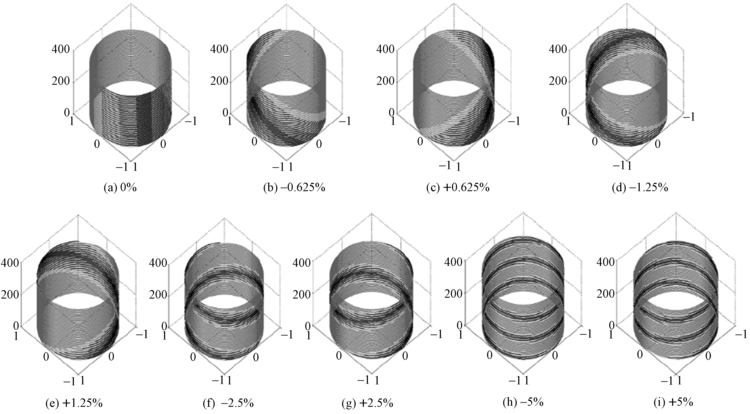

图6

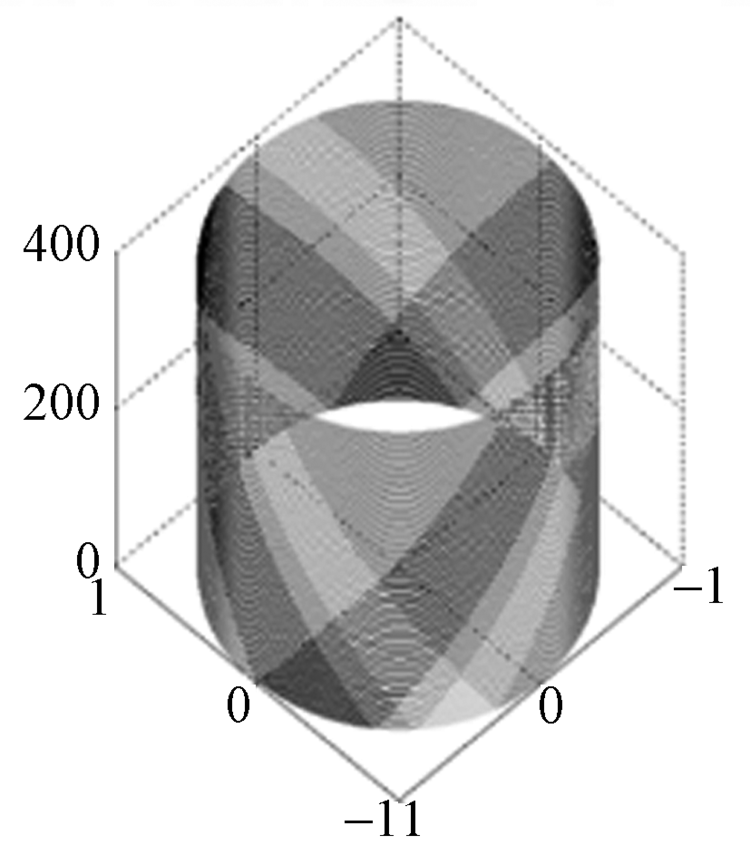

图7

表3

图8

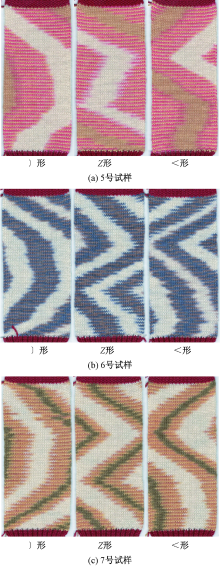

图9

图10

参考文献 12

[1]	陈晓英, 刘建铅. 袜品设计中图案的应用及装饰形式探析[J]. 山东纺织经济, 2012,181(3):68-70.
	CHEN Xiaoying, LIU Jianqian. Analysis on the application and decorative forms of patterns in hosiery design[J]. Shandong Textile Economy, 2012,181(3):68-70.
[2]	滕兆媛. 女式休闲棉袜几何图案的设计部位研究[J]. 针织工业, 2011(11):53-55.
	TENG Zhaoyuan. Study of the design area of geometrical patterns on the ladies' casual cotton socks[J]. Knitting Industries, 2011(11):53-55.
[3]	张洁. 袜品设计在服装搭配中的应用研究[J]. 针织工业, 2012(2):58-61.
	ZHANG Jie. Application research of hosiery design in clothing matching[J]. Knitting Industries, 2012(2):58-61.
[4]	徐艳华, 袁新林, 秦婉瑜. 提花袜的设计与生产工艺实践[J]. 针织工业, 2013(9):1-4.
5	XU Yanhua, YUAN Xinlin, QIN Wanyu. Design and knitting process of jacquard hose[J]. Knitting Industries, 2013(9):1-4.
[5]	王盼, 吴志明. 横编全成形袜子工艺设计与编织原理[J]. 纺织学报, 2019,40(7):44-50.
	WANG Pan, WU Zhiming. Process design and knitting principle of whole socks on flat knitting machine[J]. Journal of Textile Research, 2019,40(7):44-50.
[6]	唐昱, 何叶丽. 多色纱段染进展[J]. 印染, 2015(15):55-56.
	TANG Yu, HE Yeli. Development on space dyeing of multi-color yarn[J]. China Dyeing & Finishing, 2015(15):55-56.
[7]	吴鹏, 胡少华. 段染纱在纬编针织服装设计中的应用[J]. 针织工业, 2015(3):61-63.
	WU Peng, HU Shaohua. Application of section dyed yarn in weft knitwear design[J]. Knitting Industries, 2015(3):61-63.
[8]	袁新林, 徐艳华. 段染纱横编织物花纹预测[J]. 纺织学报, 2017,38(10):44-48.
	YUAN Xinlin, XU Yanhua. Pattern prediction of flat-knitted fabric with section dyed yarn[J]. Journal of Textile Research, 2017,38(10):44-48. doi: 10.1177/004051756803800106
[9]	李变变, 史晶晶, 胡佳超, 等. 段彩纱针织物图案形成机理研究[J]. 丝绸, 2013,50(5):10-12, 17.
	LI Bianbian, SHI Jingjing, HU Jiachao, et al. Research on pattern formation mechanism of segment color yarn knitted fabrics[J]. Journal of Silk, 2013,50(5):10-12, 17.
[10]	史晶晶, 陈伟雄, 易洪雷, 等. 双色段彩纱针织物图案的形成机制[J]. 纺织学报, 2015,36(9):34-37.
	SHI Jingjing, CHEN Weixiong, YI Honglei, et al. Pattern mechanism of double color segment-color yarn knitting fabric[J]. Journal of Textile Research, 2015,36(9):34-37.
[11]	周立亚, 钟丽婷, 陈梦琴, 等. 段染纱的特点及其横编针织物的外观效果[J]. 纺织导报, 2019(2):74-76.
	ZHOU Liya, ZHONG Liting, CHEN Mengqin, et al. The features of section-dyed yarns and the appearance effect of its flat-knitted fabrics flat-knitted fabrics[J]. China Textile Leader, 2019(2):74-76.
[12]	陈勇铭, 谢梅娣. 基于OpenGL针织袜品三维仿真系统的研究[J]. 针织工业, 2013(9):12-15.
	CHEN Yongming, XIE Meidi. Study on 3D simulation system of knitted socks based on openGL[J]. Knitting Industries, 2013(9):12-15.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

编号	颜色顺序	色段数	循环长度/mm	平均长度/mm
1	黄红蓝绿	5	1 780
2	黄橙棕	13	1 792	1 787.5
3	白棕紫	10	1 788
4	绿黄红蓝	11	1 790

颜色	色段排列顺序	色度长度/mm
紫	1	570
黑	2(8)	190
紫	3(6)	60
绿	4(7)	120
紫	5	478

试样编号	颜色排序	色段数	循环长度/mm
5	白黄橙红	5	1 752
6	白棕紫	10	1 748
7	白黄棕橙	9	1 756
