基于Web的少梳经编色织物仿真与虚拟展示

doi:10.13475/j.fzxb.20201000807

纺织学报 ›› 2021, Vol. 42 ›› Issue (02): 87-92.doi: 10.13475/j.fzxb.20201000807

基于Web的少梳经编色织物仿真与虚拟展示

刘海桑, 蒋高明(), 董智佳

江南大学教育部针织技术工程研究中心, 江苏无锡 214122

收稿日期:2020-10-06 修回日期:2020-11-03 出版日期:2021-02-15 发布日期:2021-02-23
通讯作者: 蒋高明
作者简介:刘海桑(1995—),女,博士生。主要研究方向为针织物计算机辅助设计。
基金资助:
国家自然科学基金项目(61902150);泰山产业领军人才项目(tscy20180224);江苏省研究生科研与实践创新计划项目(KYCX20_1789)

Simulation and virtual display for few-guide bar yarn dyed fabric based Web

LIU Haisang, JIANG Gaoming(), DONG Zhijia

Engineering Research Center for Knitting Technology, Ministry of Education,Jiangnan University, Wuxi, Jiangsu 214122, China

Received:2020-10-06 Revised:2020-11-03 Online:2021-02-15 Published:2021-02-23
Contact: JIANG Gaoming

摘要/Abstract

摘要：

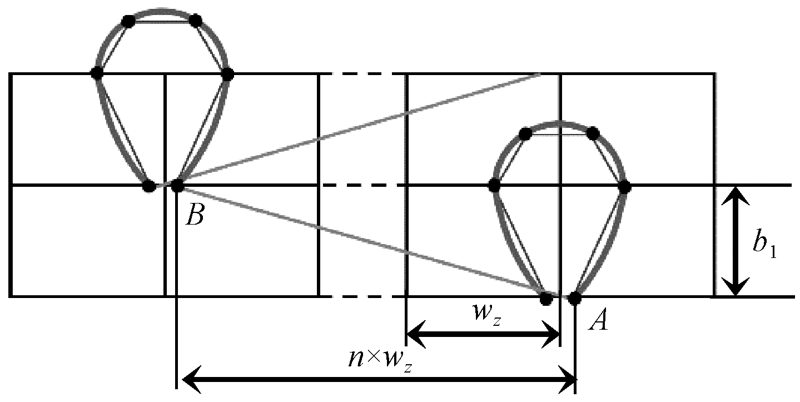

为实现少梳经编色织物的仿真与服装的虚拟展示,便于分析少梳经编织物的编织原理和结构特点,通过测量与分析实际线圈尺寸建立经编线圈几何模型,根据每把梳栉垫纱数码的规律,建立了单根纱线的线圈坐标数学矩阵与坐标平移矩阵,利用矩阵运算得到少梳经编色织物线圈的坐标。采用Web中的双缓存技术分别绘制每把梳栉的线圈和延展线,并进行叠加组合实现仿真;然后利用截图手段获得花型纹理单元,并基于纹理映射技术实现服装的虚拟展示;最后通过与实际织物对比仿真结果进行检验。结果表明,该方法能够准确模拟少梳经编色织物的尺寸与花型,实现可视化设计与展示。

关键词: 少梳经编色织物, 经编线圈几何模型, 服装虚拟展示, 针织物仿真

Abstract:

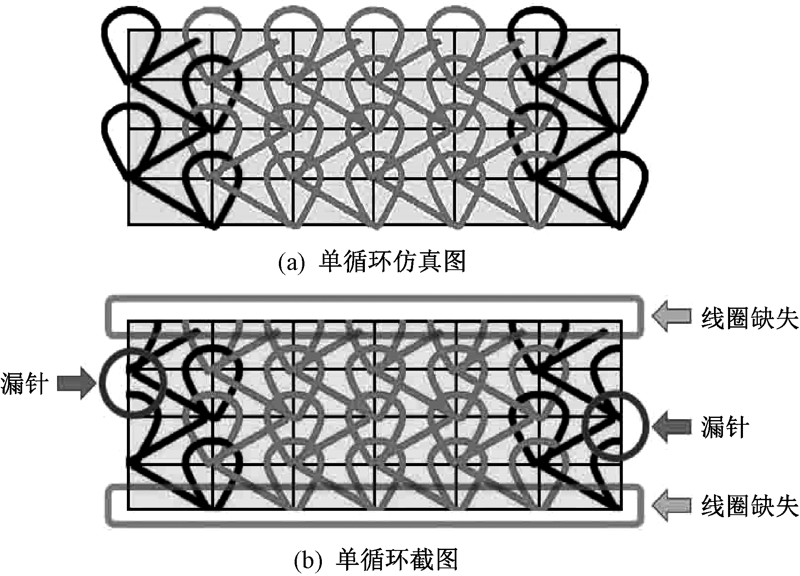

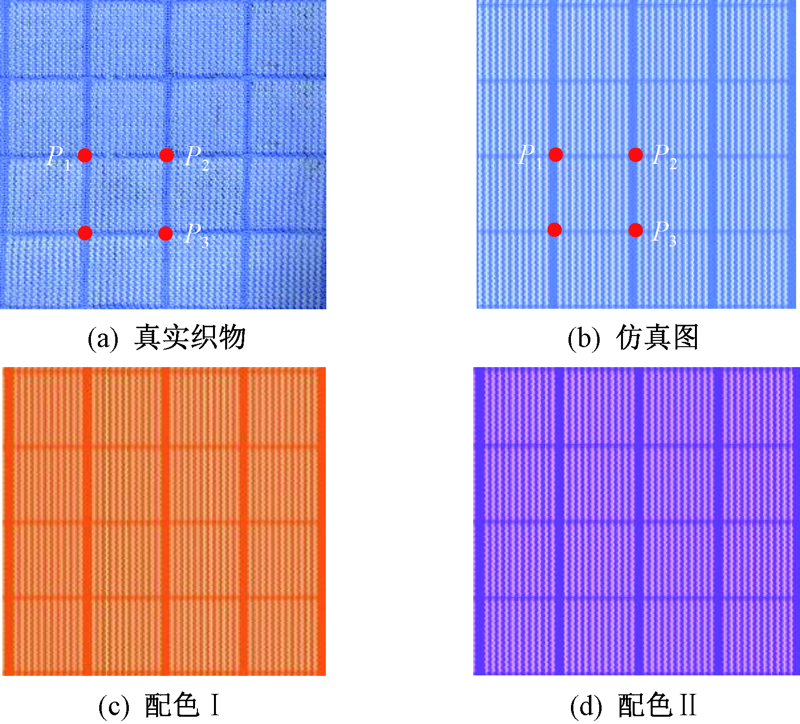

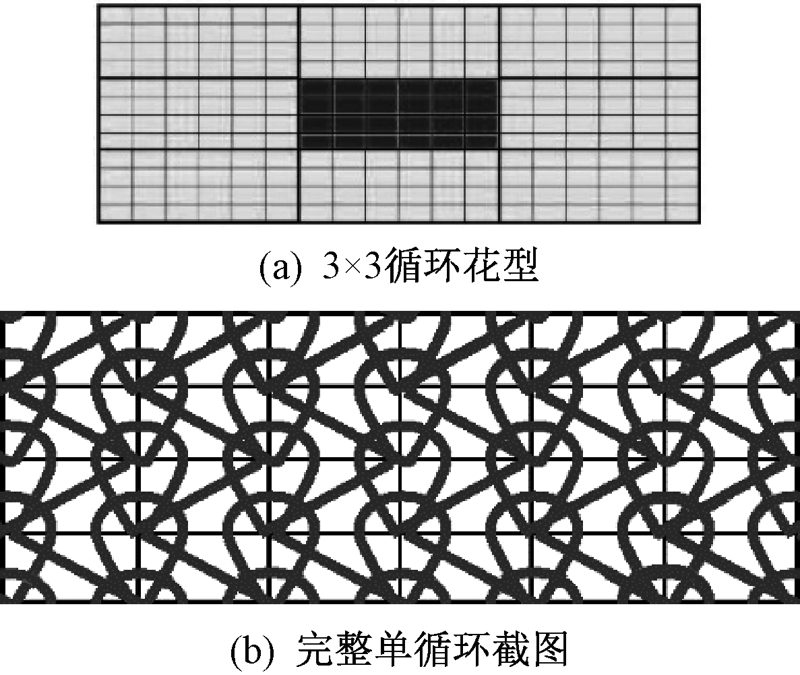

In order to simulate and virtually display the few-guide bar yarn dyed fabrics, and analyze the knitting principle and the structure characteristics, based on the measurement and analysis of the actual stitch size, geometric models for stitches were established. Matrices for coordinates of stitches and transformation were adopted to obtain the stitch coordinates of the whole fabric according to the chain notation. Double buffer technology in the Web software was used to store the canvases with stitches and underlaps, which were superimposed together to implement the simulation. The pattern texture was captured as a screenshot, which was displayed on garment models by texture mapping. The simulated results were validated by comparing bitmaps of the real fabrics and the simulated ones. This research indicates that the method adopted is able to precisely simulate the pattern and size to achieve the visual design and display.

Key words: few-guide bar yarn dyed fabric, geometric models for stitches, garment virtual display, knitted fabric simulation

中图分类号:

TS186.1

刘海桑, 蒋高明, 董智佳. 基于Web的少梳经编色织物仿真与虚拟展示[J]. 纺织学报, 2021, 42(02): 87-92.

LIU Haisang, JIANG Gaoming, DONG Zhijia. Simulation and virtual display for few-guide bar yarn dyed fabric based Web[J]. Journal of Textile Research, 2021, 42(02): 87-92.
