纺织学报 ›› 2021, Vol. 42 ›› Issue (08): 144-148.doi: 10.13475/j.fzxb.20201004505

• 服装工程 • 上一篇    下一篇

老年行动模拟服在步态稳定性研究中的应用

田苗1,2, 雷烨1, 王云仪1,2, 李俊1,2(), 张向辉1,2

  1. 1.东华大学 服装与艺术设计学院, 上海 200051
    2.东华大学 现代服装设计与技术教育部重点实验室, 上海 200051
  • 收稿日期:2020-10-22 修回日期:2021-04-09 出版日期:2021-08-15 发布日期:2021-08-24
  • 通讯作者: 李俊
  • 作者简介:田苗(1989—),女,讲师,博士。主要研究方向为功能服装数值模拟和人体工效学。
  • 基金资助:
    上海市教育委员会、上海市教育发展基金会“晨光计划”项目(18CG76);中央高校基本科研业务费专项基金资助项目(2232021G-08);上海市设计学Ⅳ类高峰学科资助项目(DA19202)

Application of age simulation suit for research on gait stability

TIAN Miao1,2, LEI Ye1, WANG Yunyi1,2, LI Jun1,2(), ZHANG Xianghui1,2

  1. 1. College of Fashion and Design, Donghua University, Shanghai 200051, China
    2. Key Laboratory of Clothing Design and Technology, Ministry of Education, Donghua University, Shanghai 200051, China
  • Received:2020-10-22 Revised:2021-04-09 Published:2021-08-15 Online:2021-08-24
  • Contact: LI Jun

摘要:

老年行动模拟服是医护人员和设计师在教学中培养学生对老年人共情能力的常用装置,为定量分析其在步态稳定性研究中对老年人平衡能力的模拟效果,选定14名年轻女性和7名老年女性作为受试者,利用足底压力步态分析系统采集年轻人、穿着模拟服的年轻人和老年受试者的姿势平衡数据和步态数据。分别利用配对样本T检验和独立样本T检验分析年轻受试者穿着模拟服前后以及老年受试者的平衡能力。结果表明:老年行动模拟服可模拟人体运动和感知系统的衰退,降低人体的姿势平衡和步态稳定性;穿着老年模拟服的年轻人可模拟老年人的姿势平衡保持能力,反映步行期间的平衡表现。

关键词: 老年行动模拟服, 步态稳定性, 姿势平衡, 生物力学, 老年人

Abstract:

The age simulation suit is a common device for medical staff and designers to foster students' ability of empathy for old adults in teaching. To analyze quantitatively its simulation effects of balance ability for old adults in the studies on gait stability, fourteen younger and seven older females were recruited. A plantar pressure and gait analysis system was applied to obtain the posture balance and gait data of younger adults, younger adults with the age simulation suit and older adults. The paired sample T-test and the independent sample T-test were carried out to analyze the balance behavior of younger participants with and without the age simulation suit and older participants. Results indicate that the age simulation suit is able to simulate the decline in human motion and perception system, which reduce the postural balance and gait stability of the human body. Younger adults with the age simulation suit can simulate the postural balance performance, and reflect the balance behavior of older adults during walking.

Key words: age simulation suit, gait stability, postural balance, biomechanics, older adult

中图分类号:

  • TS941.73

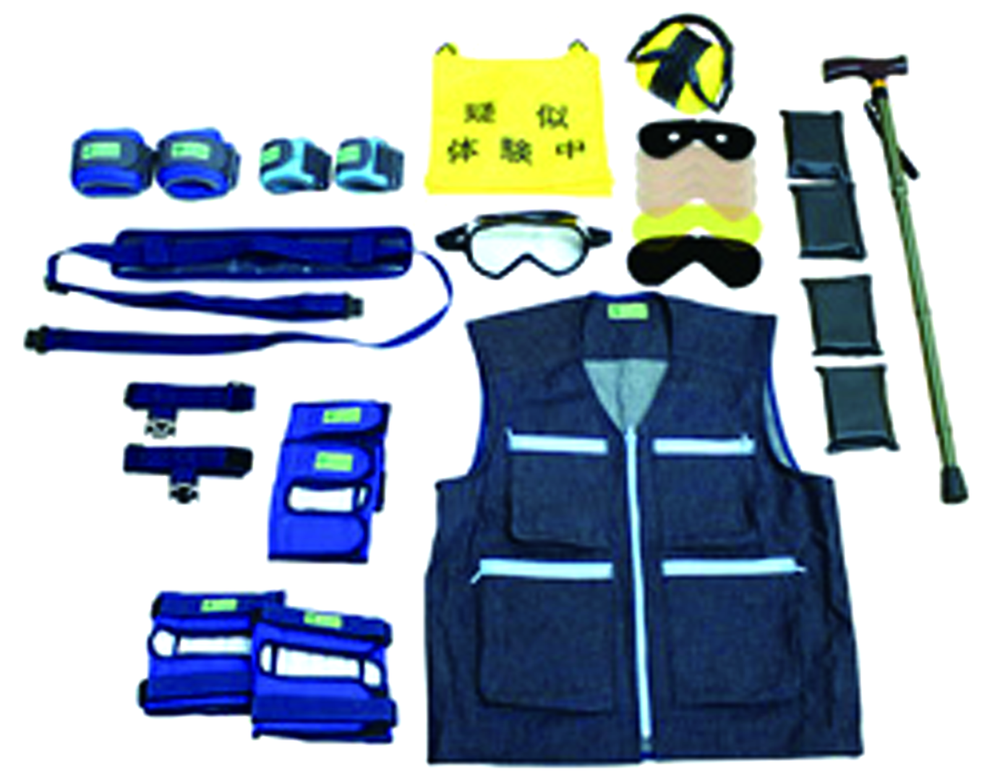

图1

老年行动模拟服"

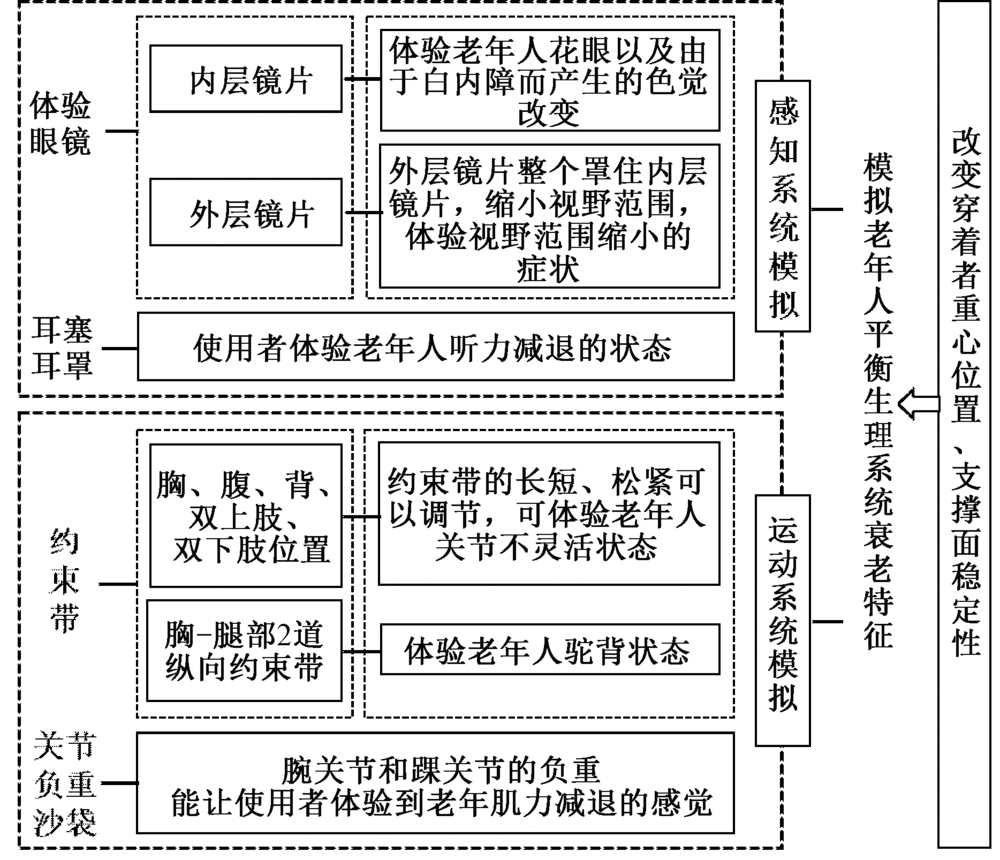

图2

老年行动模拟装置功能实现原理"

图3

受试者"

表1

姿势平衡测试"

姿势
编号
姿势名称 测试姿势 起主要作用的
平衡系统
睁眼
双足站立
受试者双脚站立,内侧平行并相距30 cm,双手叉腰,双眼平视前方,持续45 s 感知系统
闭眼
双足站立
受试者姿势同①,闭眼,持续45 s 感知系统
(除视觉)
睁眼
单足站立
受试者右脚站立,左脚置于测力台上方约20 cm,双手叉腰,双眼平视前方,持续45 s 运动系统
闭眼
单足站立
受试者姿势同③,闭眼,持续45 s 运动系统
(除视觉)

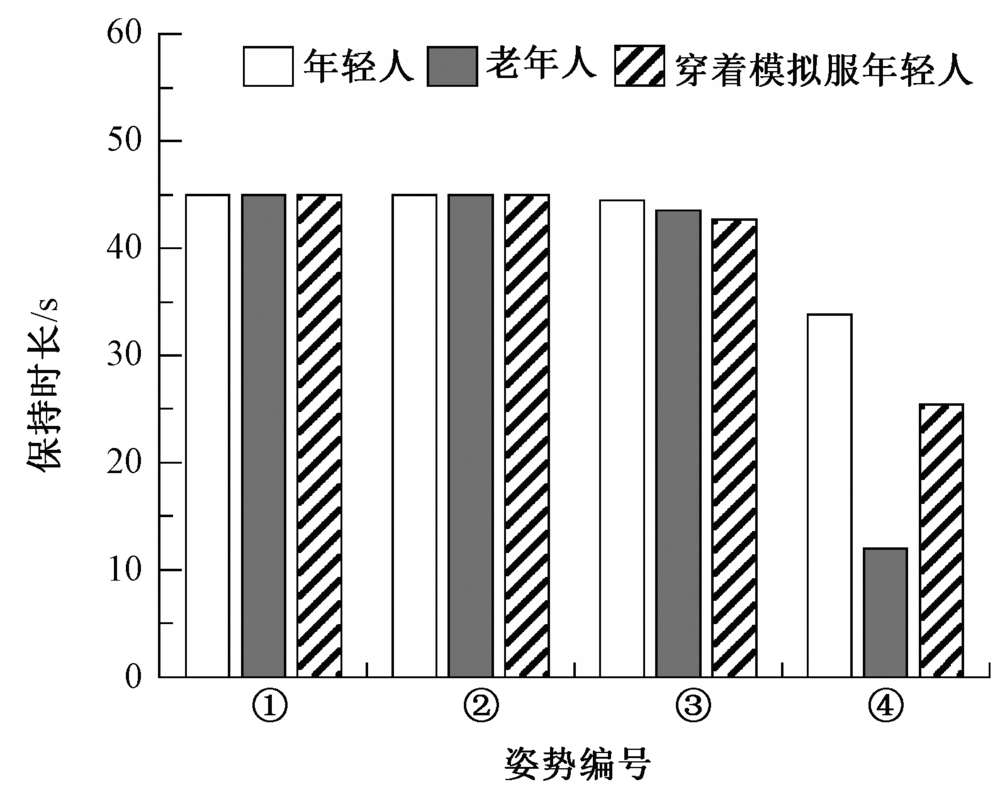

图4

站立保持时长"

表2

睁眼双足站立COP参数"

受试者 95%置信椭
圆区域/mm2
COP路径长
度/mm
COP平均速度/
(mm·s-1)
年轻人 167 288 10
穿着模拟服年轻人 223 463 16
老年人 228 376 12
配对T检验(P) 0.069 0.070 0.068
独立样本T检验(P) 0.935 0.446 0.425

表3

闭眼双足站立COP参数"

受试者 95%置信椭
圆区域/mm2
COP路径长
度/mm
COP平均速度/
(mm·s-1)
年轻人 239 377 13
穿着模拟服年轻人 384 346 12
老年人 205 407 14
配对T检验(P) 0.035 0.720 0.720
独立样本T检验(P) 0.052 0.460 0.451

表4

步态时空参数"

受试者 步幅/
cm
步宽/
cm
足角/
(°)
单步时
间/s
步频/
min
双支撑
相/%
年轻人 104 10 8.14 1.03 117 24.9
穿着模拟服年轻人 108 12 9.39 1.07 113 23.0
老年人 102 8.19 11.72 0.88 137 27.2
配对T检验(P) 0.496 <0.001 0.155 0.002 0.005 <0.001
独立样本T检验(P) <0.001 <0.001 0.207 <0.001 <0.001 0.003
[1] 张凤勤, 丁娟. 着装老年模拟服体验式教学对新护士共情能力的影响[J]. 护理学杂志, 2019, 34(9):70-71.
ZHANG Fengqin, DING Juan. Effect of experiential teaching using age simulation suit on new nurses' empathy ability[J]. Journal of Nursing Science, 2019, 34(9):70-71.
[2] 陈曦, 方蕾, 郝圆圆. 共情在临床中作用的研究进展[J]. 中国现代护理杂志, 2015, 21(30):3710-3713.
CHEN Xi, FANG Lei, HAO Yuanyuan. Research progress on empathy in the clinic[J]. Chinese Journal of Modern Nursing, 2015, 21(30):3710-3713.
[3] PACALA J T, BOULT C, BLAND C, et al. Aging game improves medical students attitudes toward caring for elders[J]. Gerontology & Geriatrics Education, 1995, 15(4):45-57.
[4] 周兰兰, 施成良, 杨慧兰, 等. 中职老年护理实训模式构建的研究与实践[J]. 卫生职业教育, 2015(7):68-69.
ZHOU Lanlan, SHI Chengliang, YANG Huilan, et al. Research and practice on the construction of training mode for elderly nursing in secondary vocational school[J]. Health Vocational Education, 2015 (7):68-69.
[5] LAVALLIERE M, DAMBROSIO L, GENNIS A, et al. Walking a mile in another's shoes: the impact of wearing an age suit[J]. Gerontology & Geriatrics Education, 2017, 38(2):171-187.
[6] TIAN M, LEI Y, LI J. A triangle design framework for functional footwear for Chinese older adults[J]. Fashion Practice, 2021, 13(1):69-87.
doi: 10.1080/17569370.2021.1872898
[7] PASTALAN L, MAUTZ R. The simulation of age related sensory losses: a new approach to the study of environmental barriers[J]. Environmental Design Research, 1973, 1:383-391.
[8] 日本株式会社三和制作所. 高龄者疑似教材[EB/OL]. [2020-03-01]. https://koureisyagijitaiken.com .
Sanwa Manufacturing Co Ltd. The age suit [EB/OL]. [2020-03-01]. https://koureisyagijitaiken.com .
[9] 周颂华, 范宇, 刘英. 综合设计性实验教学方法在老年护理学教学中的应用[J]. 现代临床护理, 2015(8):71-74.
ZHOU Songhua, FAN Yu, LIU Ying. Application of comprehensive design experimental teaching method in the teaching of geriatric nursing[J]. Modern Clinical Nursing, 2015(8):71-74.
[10] KARLSSON M K, MAGNUSSON H, VON S T, et al. Prevention of falls in the elderly: a review[J]. Osteoporosis International, 2013, 24(3):747-762.
doi: 10.1007/s00198-012-2256-7
[11] TINETTI M E, SPEECHLEY M, GINTER S F. Risk factors for falls among elderly persons living in the community[J]. The New England Journal of Medicine, 1988, 319(26):1701-1707.
doi: 10.1056/NEJM198812293192604
[12] MENZ H B, AUHL M, MUNTEANU S E. Preliminary evaluation of prototype footwear and insoles to optimise balance and gait in older people[J]. BMC Geriatrics, 2017, 17(1):212-219.
doi: 10.1186/s12877-017-0613-2
[13] PRICE C, SMITH L, GRAHAM-SMITH P, et al. The effect of unstable sandals on instability in gait in healthy female subjects[J]. Gait & Posture, 2013, 38:410-415.
doi: 10.1016/j.gaitpost.2013.01.003
[14] SOBHANI S. Gait characteristics when walking with rounded soft sole shoes[J]. The Foot, 2012, 22(4):18-23.
doi: 10.1016/j.foot.2011.09.002
[15] LORD S R, WARD J A, WILLIAMS P, et al. The effects of a community exercise program on fracture risk factors in older women[J]. Osteoporosis International, 1996, 6(5):361-367.
doi: 10.1007/BF01623009
