纺织学报 ›› 2021, Vol. 42 ›› Issue (09): 156-162.doi: 10.13475/j.fzxb.20201008907

• 机械与器材 • 上一篇    下一篇

密绕线圈阵列结构对悬浮织针驱动性能的影响

李冬冬1, 张成俊1,2(), 左小艳1,2, 张弛1,2, 朱里1, 刘雅昆1

  1. 1.武汉纺织大学 机械工程与自动化学院, 湖北 武汉 430073
    2.湖北省数字化纺织装备重点实验室, 湖北 武汉 430073
  • 收稿日期:2020-10-30 修回日期:2021-06-11 出版日期:2021-09-15 发布日期:2021-09-27
  • 通讯作者: 张成俊
  • 作者简介:李冬冬(1995—),男,硕士生。主要研究方向为针织装备设计。
  • 基金资助:
    国家自然科学基金项目(51875414);湖北省自然科学基金项目(2019CFB610);湖北省教育厅科学技术研究项目(D20191701);湖北省数字化纺织装备重点实验室开放课题资助项目(DTL2019009)

Influence of densely wound coil array structure on driving performance of suspended knitting needles

LI Dongdong1, ZHANG Chengjun1,2(), ZUO Xiaoyan1,2, ZHANG Chi1,2, ZHU Li1, LIU Yakun1

  1. 1. School of Mechanical Engineering and Automation, Wuhan Textile University, Wuhan, Hubei 430073, China
    2. Hubei Key Laboratory of Digital Textile Equipment, Wuhan, Hubei 430073, China
  • Received:2020-10-30 Revised:2021-06-11 Published:2021-09-15 Online:2021-09-27
  • Contact: ZHANG Chengjun

RichHTML

3

PDF (PC)

42

摘要：

为了改善织针的驱动性能,通过对密绕线圈阵列结构分析,确定悬浮织针的驱动结构,以提高空间磁场强度和悬浮织针驱动力;并根据毕奥-萨伐尔定律,推导密绕线圈阵列结构的电磁模型,分析计算不同密绕线圈结构及阵列方式在中心轴线上任意位置的磁感应强度,以及不同气隙高度下永磁织针的电磁驱动力;利用电磁仿真软件建立密绕线圈阵列结构驱动模型,得到单一式和阵列式密绕线圈结构对永磁织针所受电磁驱动力的数值曲线。最后通过搭建密绕线圈阵列驱动实验测试平台,对比仿真和实验结果。研究表明:圆柱形密绕线圈在永磁织针驱动系统中驱动性能更佳,且单组密绕线圈产生的驱动力大于多组阵列产生的驱动力。

关键词: 悬浮驱动, 永磁织针, 密绕线圈阵列, 电磁模型, 驱动性能, 针织横机

Abstract:

In order to improve the driving performance of knitting needles, through the analysis of the densely wound coil array structure, the driving structure of the floating needle was determined, and the spatial magnetic field strength and the driving force of the floating needle were improved. According to Biot-Savart law, the electromagnetic model of the densely wound coil array structure was deduced, and the magnetic induction intensity of different densely wound coil structures and array methods at any position on the central axis was analyzed and calculated, which gain the electromagnetic field of the permanent magnet knitting needles under different air gaps and driving force. An electromagnetic simulation software was used to establish the driving model of the densely wound coil array structure, and the numerical curve of the electromagnetic driving force of the single and array type densely wound coil structure on the permanent magnetic needle were obtained. Using the constructed densely wound coil array driving experiment test platform, comparative analysis of simulation and experimental results were achieved, showing that the cylindrical densely wound coil has better driving performance in the permanent magnetic needle drive system, and the driving force generated by a single group of densely wound coils is greater than that of multiple groups.

Key words: suspended needle driven, permanent magnetic knitting needle, densely wound coil array, electromagnetic model, driving performance, flat knitting machine

中图分类号:

  • TP311

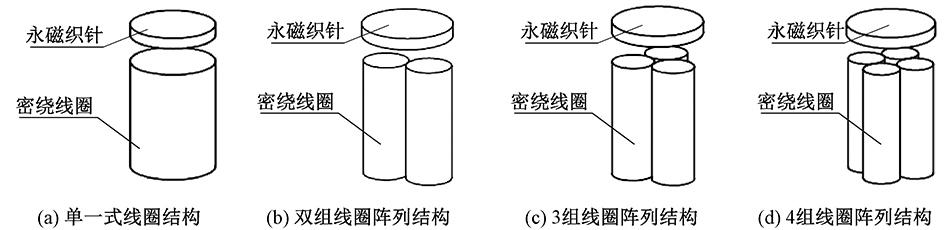

图1

圆柱形密绕线圈悬浮织针驱动结构"

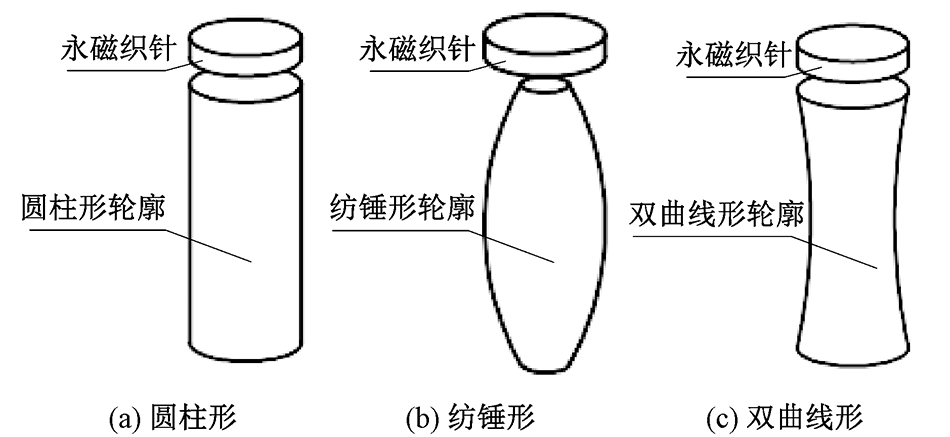

图2

不同截面形状的密绕线圈"

表1

织针驱动仿真模型参数"

类型 材料 形状 厚度/
mm		 半径/
mm		 线圈电流/
A		 磁动
势/AT
密绕
线圈		 铜 圆柱形 50 3 [0.7-1] 3 000
纺锤形 50 变化 [0.7-1] 3 000
双曲线形 50 变化 [0.7-1] 3 000
永磁 NdFe35 圆柱形 7 8 — —

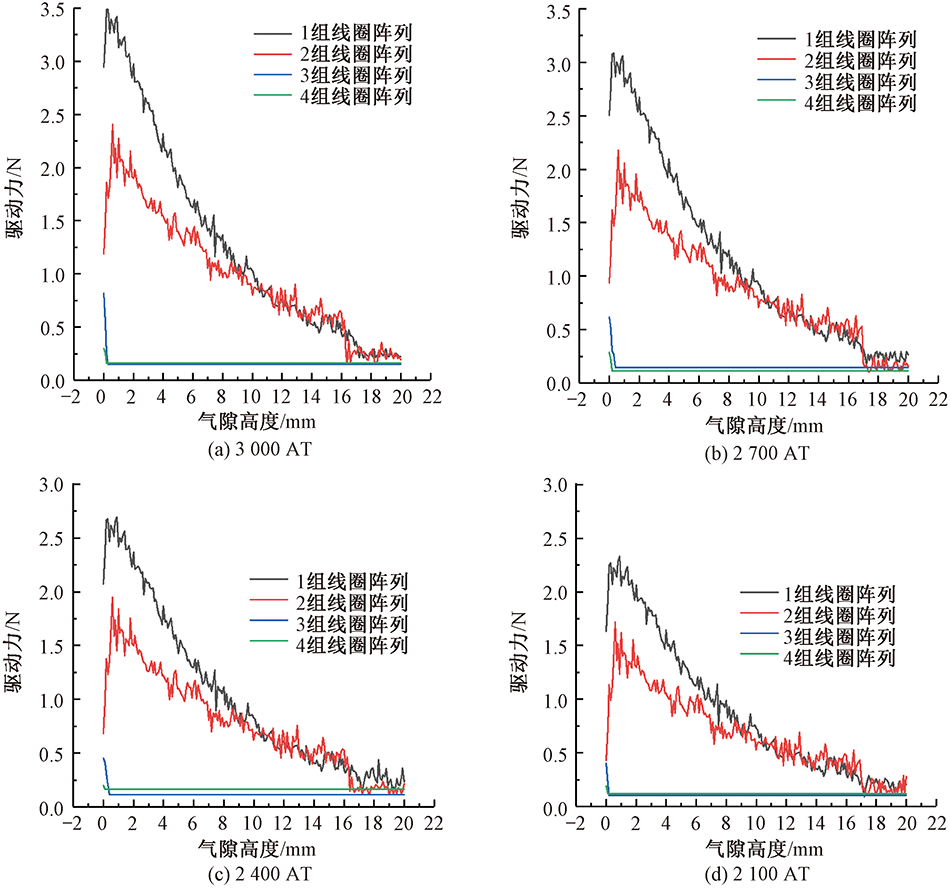

图3

圆柱形密绕线圈在不同磁动势下驱动力随气隙高度的变化关系"

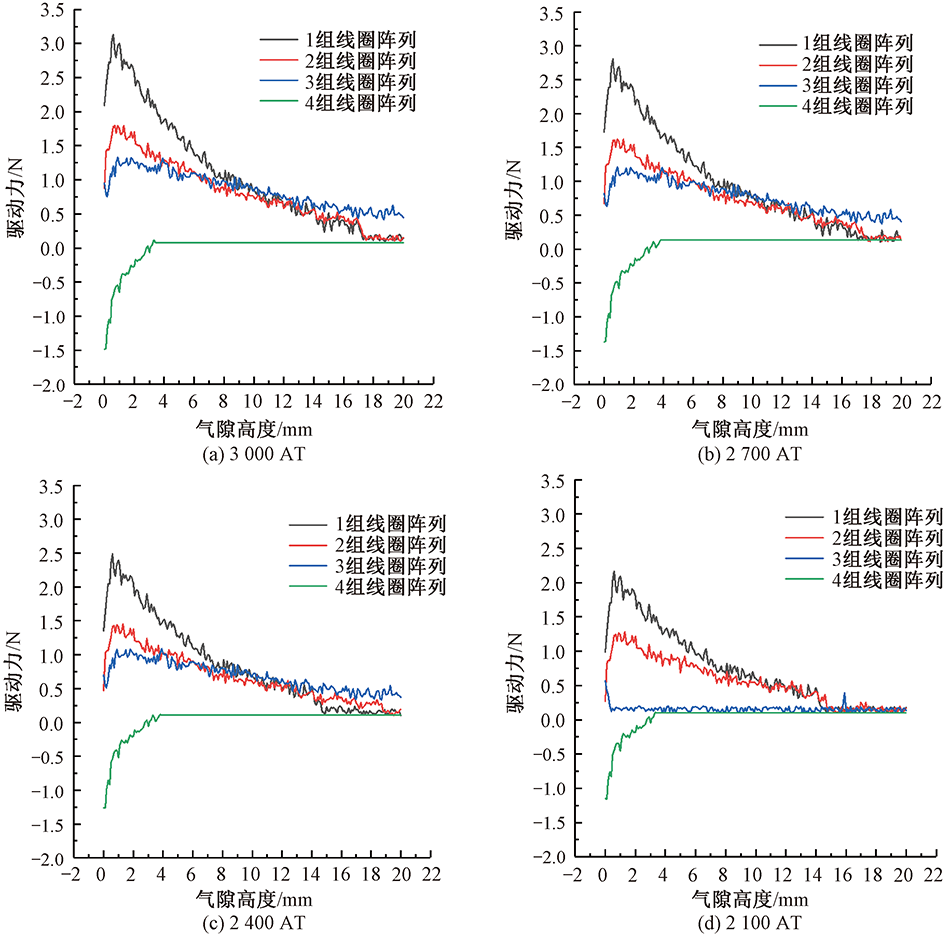

图4

双曲线密绕线圈在不同磁动势下驱动力随气隙高度的变化关系"

图5

纺锤形密绕线圈在不同安匝数下驱动力随气隙高度的变化关系图"

表2

不同截面密绕线圈的阵列结构与电磁力之间的关系"

截面形状 线圈阵列 不同磁动势下的驱动力/N
2 100 AT 2 400 AT 2 700 AT 3 000 AT
圆柱形 1组 0.120 0.135 0.140 0.140
2组 0.045 0.045 0.050 0.060
3组 0.035 0.035 0.035 0.035
4组 0.035 0.035 0.035 0.035
纺锤形 1组 0.035 0.060 0.060 0.060
2组 0.035 0.035 0.035 0.035
3组 0.035 0.035 0.050 0.050
4组 0.035 0.035 0.055 0.055
双曲线形 1组 0.035 0.035 0.042 0.042
2组 0.035 0.035 0.042 0.035
3组 0.035 0.035 0.035 0.035
4组 0.035 0.035 0.035 0.035
[1] 郑敏. 经济型电脑横机三针道选针三角结构设计[J]. 针织工业, 2016(9):30-32.
ZHENG Min. Design of three-needle needle selecting triangle structure of economical computerized flat knitting machine[J]. Knitting Industries, 2016(9):30-32.
[2] 郑敏. 电脑横机针板磨合台的设计及应用[J]. 针织工业, 2014(12):15-17.
ZHENG Min. Design and application of needle plate running-in table of computerized flat knitting machine[J]. Knitting Industries, 2014(12):15-17.
[3] 唐彪, 钱福海. 电脑横机沉降三角机构的设计[J]. 针织工业, 2012(5):22-24.
TANG Biao, QIAN Fuhai. Design of settlement triangle mechanism of computerized flat knitting machine[J]. Knitting Industries, 2012(5):22-24.
[4] 李珂, 吴志明. 基于收针工艺的全成形毛衫分割线设计原理[J]. 纺织学报, 2019, 40(6):86-91.
LI Ke, WU Zhiming. Design principle of fully-formed sweater split line based on needle retraction technology[J]. Journal of Textile Research, 2019, 40(6):86-91.
[5] 胡国军, 杨伟泉. 电脑横机纱夹装置结构优化设计[J]. 上海纺织科技, 2016, 44(2):62-64.
HU Guojun, YANG Weiquan. Optimized design of the structure of the computerized flat knitting device[J]. Shanghai Textile Science & Technology, 2016, 44(2):62-64.
[6] GRISHANOV S, CASSIDY T, SPENCER D. A model of the loop formation process on knitting machines using finite automata theory[J]. Applied Mathematical Modelling, 1997, 21(7):455-465.
doi: 10.1016/S0307-904X(97)00042-5
[7] 张成俊, 游良风, 左小艳, 等. 电脑横机织针的磁驱动设计与建模[J]. 纺织学报, 2019, 40(9):180-185.
ZHANG Chengjun, YOU Liangfeng, ZUO Xiaoyan, et al. Design and modeling of magnetic drive for computerized flat knitting needles[J]. Journal of Textile Research, 2019, 40(9):180-185.
[8] 王莉, 熊剑, 张昆仑, 等. 永磁和电磁构成的混合式悬浮系统研究[J]. 铁道学报, 2005(3):50-54.
WANG Li, XIONG Jian, ZHANG Kunlun, et al. Research on hybrid suspension system composed of permanent magnet and electromagnetic[J]. Journal of the China Railway Society, 2005(3):50-54.
[9] 明正峰, 汶涛, 雷振亚, 等. 大间隙混合悬浮系统结构设计与特性分析[J]. 西安电子科技大学学报, 2012, 39(3):1-6,13.
MING Zhengfeng, WEN Tao, LEI Zhenya, et al. Structural design and characteristic analysis of large-gap hybrid suspension system[J]. Journal of Xidian University, 2012, 39(3):1-6,13.
[10] 王念先. 大气隙混合磁悬浮轴承相关理论及设计方法的研究[D]. 武汉:武汉理工大学, 2013:7-20.
WANG Nianxian. Research on related theory and design method of atmospheric gap hybrid magnetic bearing[D]. Wuhan:Wuhan University of Technology, 2013:7-20.
[11] 吴晓光, 张弛, 徐秀升, 等. 双曲面线圈与永磁混合驱动悬浮织针样机研究[J] 针织工业, 2017(11):6-10.
WU Xiaoguang, ZHANG Chi, XU Xiusheng, et al. Research on prototype of suspended needle driven by hybrid hyperboloid coil and permanent magnet[J]. Knitting Industries, 2019, 40(9):180-185.
