功能化碳纳米管复合薄膜及其膜卷纱的电热性能

姚明远1, 刘宁娟1, 王嘉宁1, 许福军2, 刘玮1()

  1. 1.上海工程技术大学 纺织服装学院, 上海 201620
    2.东华大学 纺织学院, 上海 201620
  • 收稿日期:2021-06-23 修回日期:2021-10-13 出版日期:2022-05-15 发布日期:2022-05-30
  • 通讯作者: 刘玮
  • 作者简介:姚明远(1996—),男,硕士。主要研究方向为智能传感纺织品。

Electrothermal properties of functionalization carbon nanotube composite films and films twisted yarns

YAO Mingyuan1, LIU Ningjuan1, WANG Jianing1, XU Fujun2, LIU Wei1()

  1. 1. School of Textiles and Fashion, Shanghai University of Engineering Science, Shanghai 201620, China
    2. College of Textiles, Donghua University, Shanghai 201620, China
  • Received:2021-06-23 Revised:2021-10-13 Published:2022-05-15 Online:2022-05-30
  • Contact: LIU Wei

RichHTML

17

PDF (PC)

51

摘要：

碳纳米管(CNT)具有优异的电学性能,为了更好地将其应用于纺织品加热领域,采用加捻CNT薄膜的方法制备膜卷纱,并通过预喷涂导电聚合物聚(3,4-乙烯二氧噻吩):聚(苯乙烯磺酸盐) (PEDOT:PSS)溶液的方式进一步优化CNT膜卷纱的电热性能;随后分析PEDOT:PSS喷涂浓度对CNT薄膜及其膜卷纱的结构和导电性能的影响,以及施加不同电压条件下CNT薄膜及其膜卷纱的温度变化。结果表明:随着PEDOT:PSS质量分数从0.01%增加至1.4%,所喷涂的CNT薄膜电导率由344.2 S/cm逐渐增大至668.9 S/cm;当PEDOT:PSS质量分数为0.07%时,所制备的CNT复合膜卷纱具有优异的电热性能,当在其两端施加电压时,温度可到达214 ℃,响应时间为5 s,发热温度是其未加捻薄膜的1.6倍,具有较好的应用潜力和开发价值。

关键词: 碳纳米管薄膜, 膜卷纱, 导电聚合物聚(3, 4-乙烯二氧噻吩):聚(苯乙烯磺酸盐), 电热性能, 电热织物

Abstract:

Carbon nanotubes(CNT) have excellent electrical properties. In order to better applied it's performance to electrothermal fabric, the CNT films twisted yarn was prepared by twisting CNT film. The electrothermal properties of the yarn was further optimized by pre-spraying poly(3,4-ethylenedioxythiophene)/poly(styrenesulfonate) (PEDOT:PSS)solution. The influence of the solution concentration on the structure and conductivity of CNT film and its films twisted yarns were studied, as well as the temperature changes of CNT film and its films twisted yarns under different applied voltage. As the PEDOT:PSS mass fraction increased from 0.01% to 1.4%, the conductivity of the sprayed CNT film gradually increased from 344.2 S/cm to 668.9 S/cm. When the electric voltage was applied across it, the spinning temperature of PC films twisted yarns can reach 214 ℃ with a response time of 5 s, which is 1.6 times of its untwisted films. That's indicates the good application potential and development value of the PEDOT:PSS/CNT film twisted yarn.

Key words: carbon nanotubes film, film twisted yarns, poly(3, 4-ethylenedioxythiophene)/poly(styrenesulfonate), electrothermal property, electrothermal fabric

中图分类号:

  • TS101.3

图1

CNT薄膜及不同质量分数PEDOT:PSS喷涂后复合薄膜的FESEM照片"

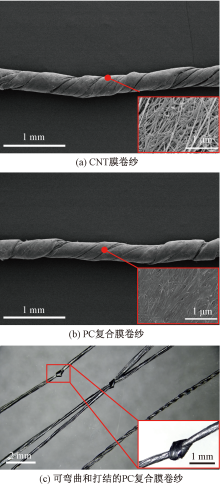

图2

CNT膜卷纱及0.07%PC膜卷纱的照片"

图3

不同质量分数薄膜以及不同捻度的0.07% PC膜卷纱的导电性能"

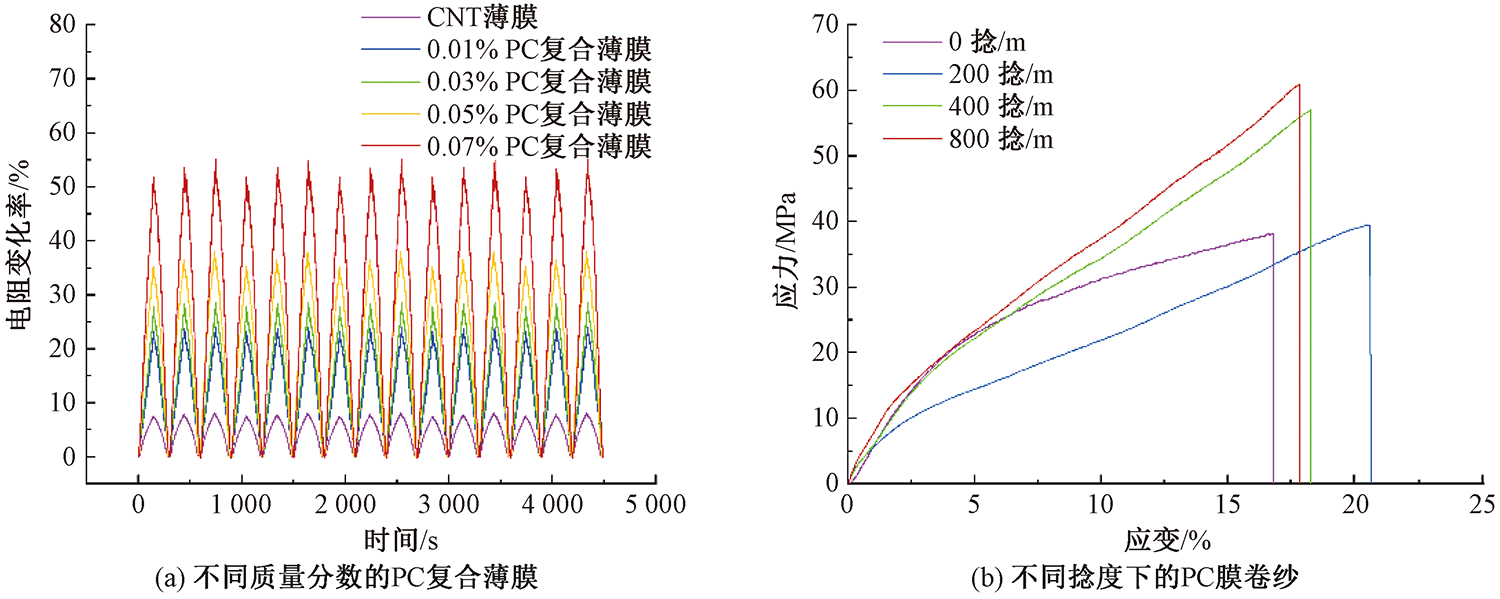

图4

PC复合薄膜在10%应变循环拉伸下的电学稳定性和膜卷纱的力学性能"

图5

CNT材料在恒定电压下的温度随时间的变化曲线"

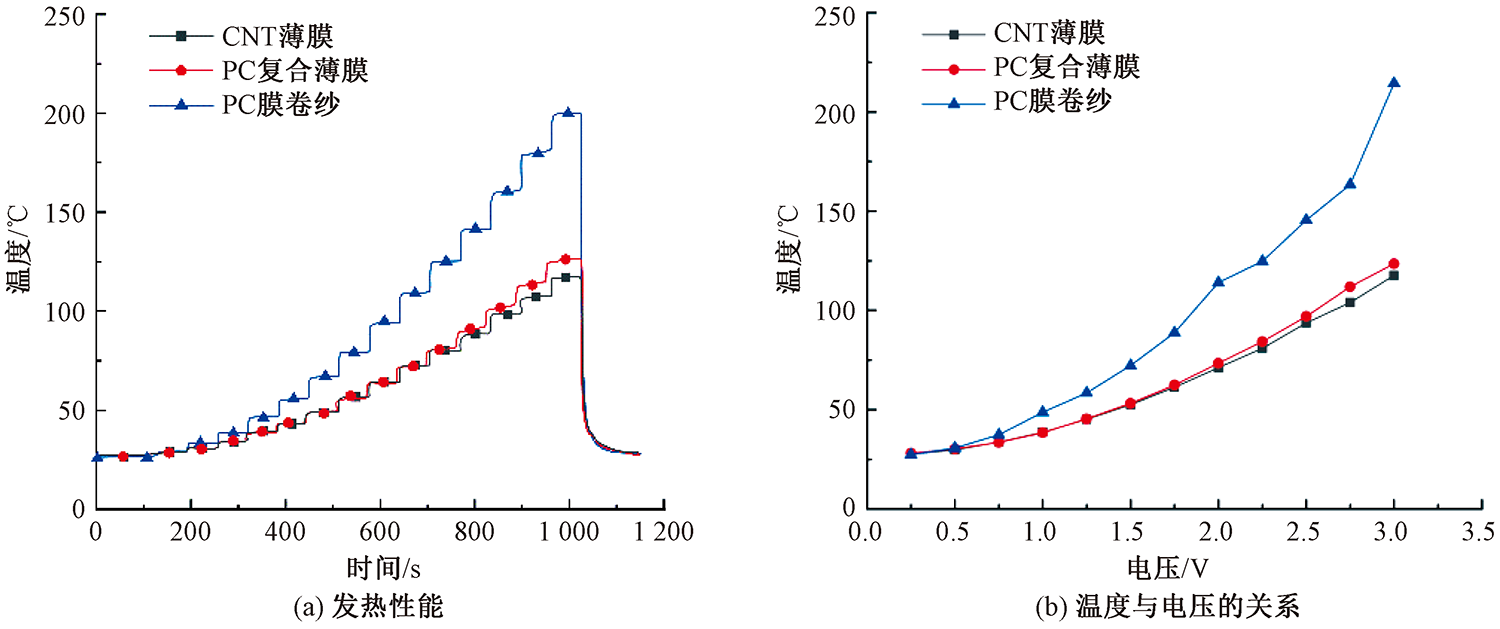

图6

CNT材料在递增变化电压下的发热性能"

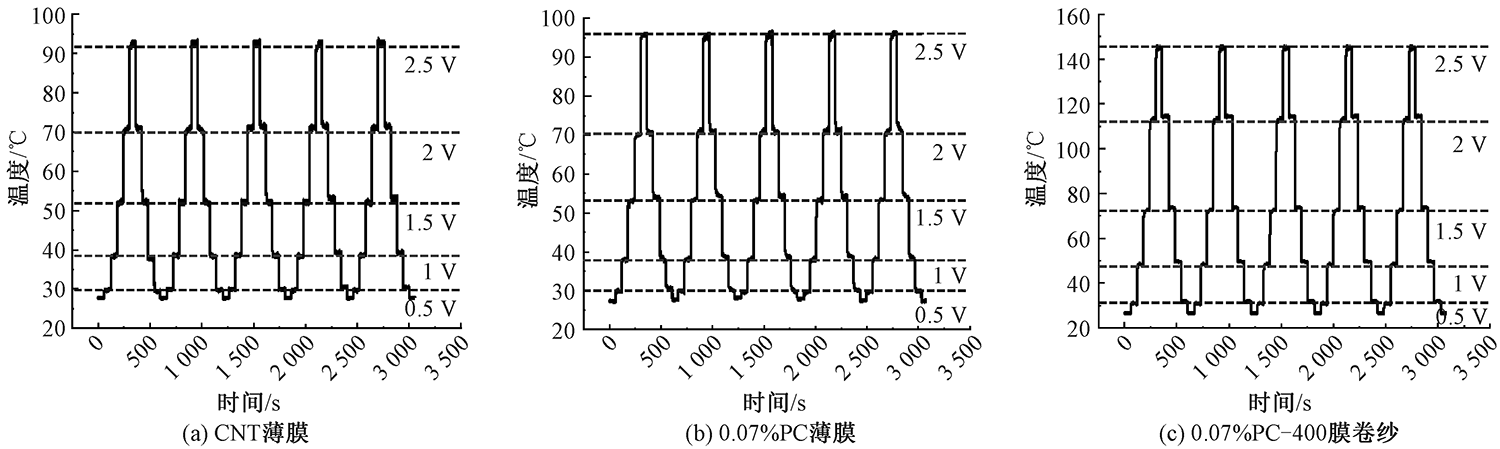

图7

CNT材料在递增/减循环变化电压下的发热性能"

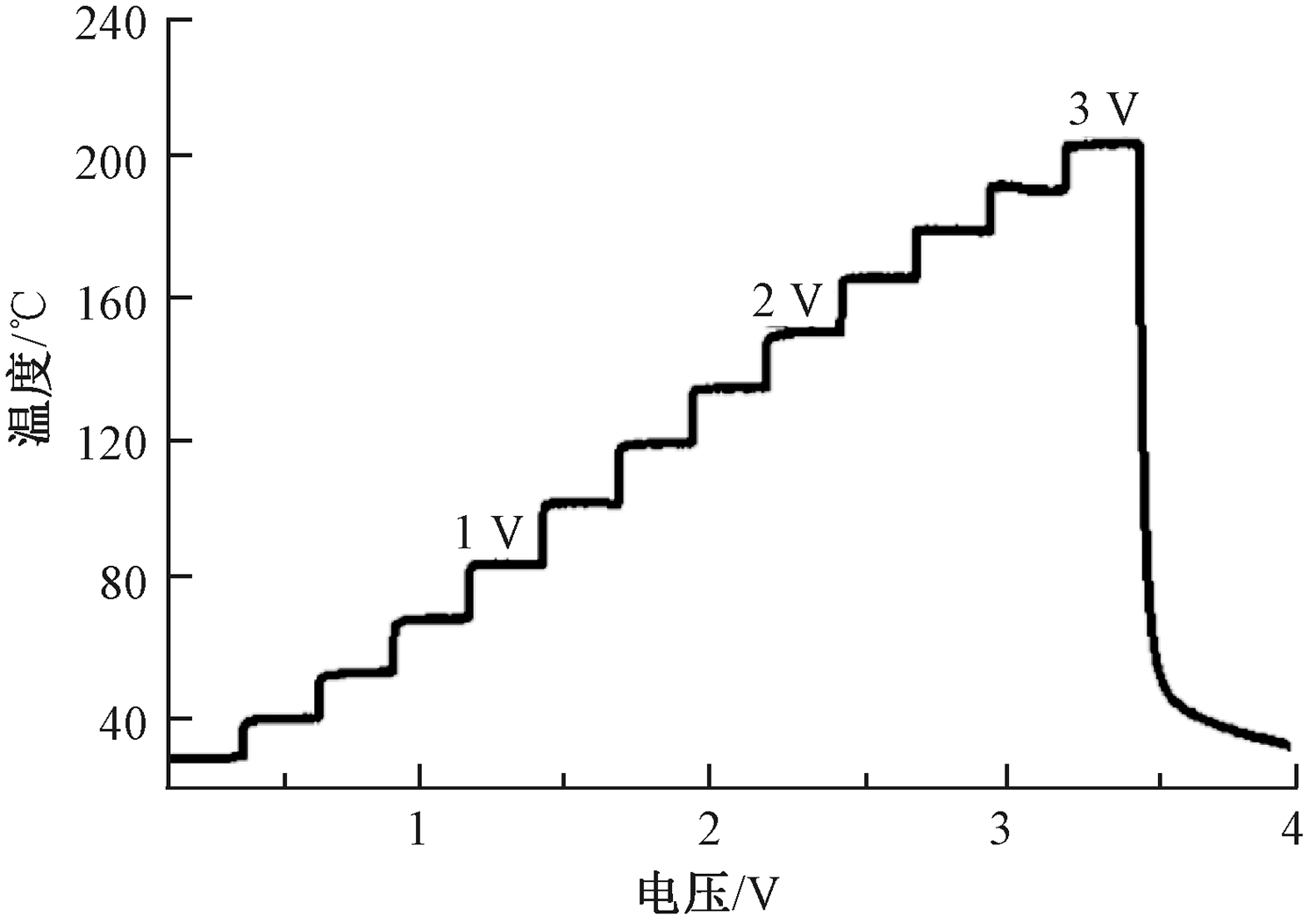

图8

电热织物通电后发热温度随电压变化曲线"

[1] 白洁. 智能纺织品的分类及其应用[J]. 毛纺科技, 2019, 47(4): 79-83.
BAI Jie. Classification and application of intelligent texti-les[J]. Wool Textile Journal, 2019, 47(4): 79-83.
[2] 李萍, 蒋晓文. 智能电加热服的研究进展[J]. 棉纺织技术, 2019, 47(9): 79-84.
LI Ping, JIANG Xiaowen. Research progress of intelligent electric heating clothing[J]. Cotton Textile Technology, 2019, 47(9): 79-84.
[3] 钱江瑞, 蔡彦, 杨允出, 等. 热疗纺织品热性能测试评价及传热机制研究进展[J]. 现代纺织技术, 2020, 28(3): 41-47.
QIAN Jiangrui, CAI Yan, YANG Yunchu, et al. Research progress on thermal performance evaluation and heat transfer mechanism of hyperthermia textiles[J]. Advanced Textile Technology, 2020, 28(3): 41-47.
[4] IM H, JANG E Y, CHOI A, et al. Enhancement of heating performance of carbon nanotube sheet with granular metal[J]. Acs Appl Mater Inter, 2012, 4(5): 2338-2342.
doi: 10.1021/am300477u
[5] SHIN K Y, HONG J Y, LEE S, et al. High electrothermal performance of expanded graphite nanoplatelet-based patch heater[J]. J Mater Chem, 2015, 22(44): 23404-23410.
doi: 10.1039/c2jm34196d
[6] WAN N, SUN L T, DING S N, et al. Synthesis of graphene-CNT hybrids via joule heating: structural characterization and electrical transport[J]. Carbon, 2013(53): 260-268.
[7] DEVOLDER M F, TAWFICK S H, BAUGHMAN R H, et al. Carbon nanotubes: present and future commercial applications[J]. Science, 2013, 339(6119): 535-539.
doi: 10.1126/science.1222453
[8] 贾可, 刘玮, 刘宁娟, 等. 碳纳米管纱线及其复合纤维与纺织品的制备研究现状[J]. 产业用纺织品, 2020, 38(9): 5-12.
JIA Ke, LIU Wei, LIU Ningjuan, et al. Research status of preparation of carbon nanotube yarn and its composite fiber and textiles[J]. Technical Textiles, 2020, 38(9): 5-12.
[9] LIU P, LIU L, JIANG K, et al. Carbon nanotube film microheater on a polyethylene terephthalate substrate and its application in thermochromic displays[J]. Small, 2011, 7(6): 732-736.
doi: 10.1002/smll.201001662
[10] LUO Jie, LU Huifen, ZHANG Qichong, et al. Flexible carbon nanotube/polyurethane electrothermal films[J]. Carbon, 2016(110): 343-349.
[11] POST E R, ORTH M, RUSSO P R, et al. E-broidery: design and fabrication of textile-based computing[J]. IBM Systems Journal, 2000, 39(3): 840-860.
doi: 10.1147/sj.393.0840
[12] LI Y, SHANG Y, HE X, et al. Overtwisted, resolvable carbon nanotube yarn entanglement as strain sensors and rotational actuators[J]. ACS Nano, 2013, 7(9): 8128-8135.
doi: 10.1021/nn403400c
[13] SHANG Y, LI Y, HE X, et al. Highly twisted double-helix carbon nanotube yarns[J]. ACS Nano, 2013, 7(2):1446-1453.
doi: 10.1021/nn305209h
[14] YAN J, JEONG Y G. Highly elastic and transparent multiwalled carbon nanotube/polydimethylsiloxane bilayer films as electric heating materials[J]. Materials & Design, 2015, 36(86): 72-9.
[1] 王璐, 韩雪, 娄琳, 何令华, 周小红. 电热防护手套研制及其在极端寒冷环境下的工效实验[J]. 纺织学报, 2021, 42(05): 150-154.
[2] 许静娴 刘莉 李俊. 镀银纱线电热针织物的开发及性能评价[J]. 纺织学报, 2016, 37(12): 24-28.
[3] 陈莉 刘皓. 可加热纬编针织物的电热性能[J]. 纺织学报, 2015, 36(04): 50-54.
