仿松球叶片结构面料的制备及其调湿性能

doi:10.13475/j.fzxb.20220802401

摘要/Abstract

摘要：

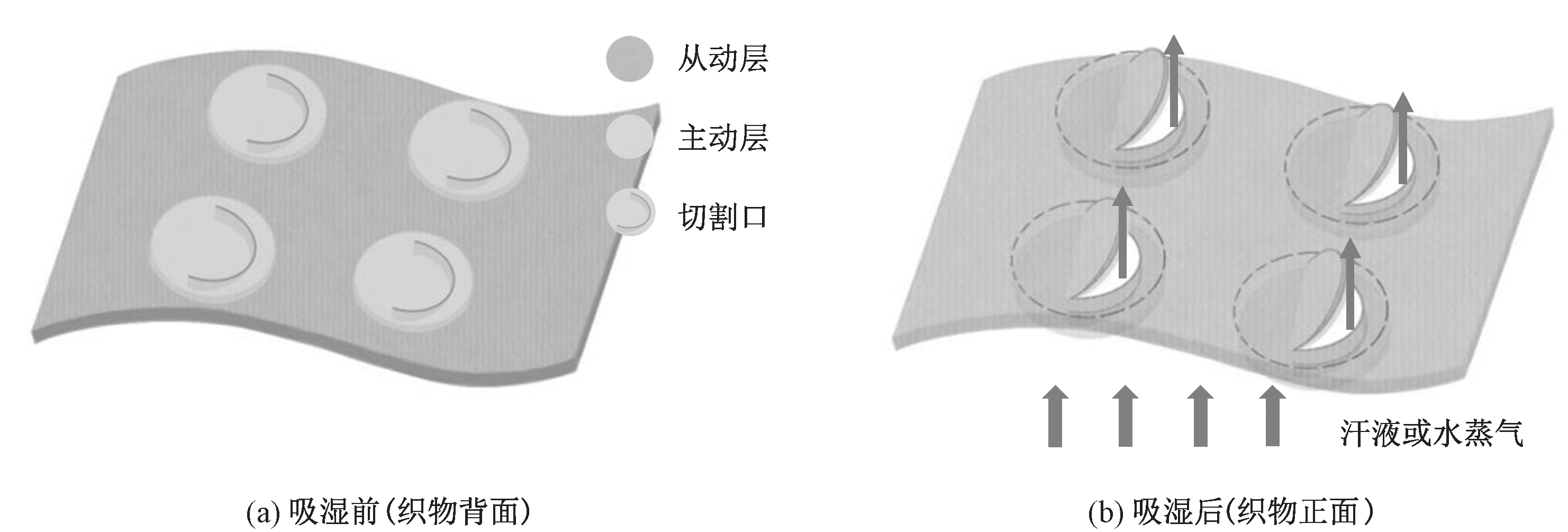

为实现面料随人体湿度变化而自动调节散湿量的功能,研究并模拟松球叶片随湿度自动张开闭合的微观结构,采用在涤纶/氨纶针织物表面涂层聚氨酯,形成吸湿伸长变化差异大的主动层与从动层结构,从而制备仿松球功能面料。研究了仿松球面料叶片纵横比、叶片方向、涂层附着率等结构参数与叶片张开时间、张开角度、张开速度和有效张开率等湿度调节相关性能之间的关系。研究发现:当仿松球叶片纵横比为65%、叶片方向为从动层面料经向、涂层附着率为66.7%时,仿松球面料的调湿性能最优,其仿松球叶片面料可根据穿着者衣下湿度的变化而自动张开闭合,快速调节湿度从而提高穿着者的舒适性。

关键词: 仿松球面料, 功能面料, 自动调湿, 面料结构, 聚氨酯涂层, 调湿性能

Abstract:

Objective In order for fabrics to automatically adjust the moisture loss according to the change of human body humidity, the microstructure of pine cone leaves, which open and close following humidity change, was studied and simulated. Polyurethane coating was used on polyester-ammonia knitted fabric to form the active layer and the driven layer with big difference in moisture absorption and elongation, so that the pine cone-like functional fabric responding to moisture was developed. Its pine cone-like leaves can automatically open and close according to the change of the wearer's body humidity, and the humidity can be quickly adjusted to improve the comfort of the wearer.

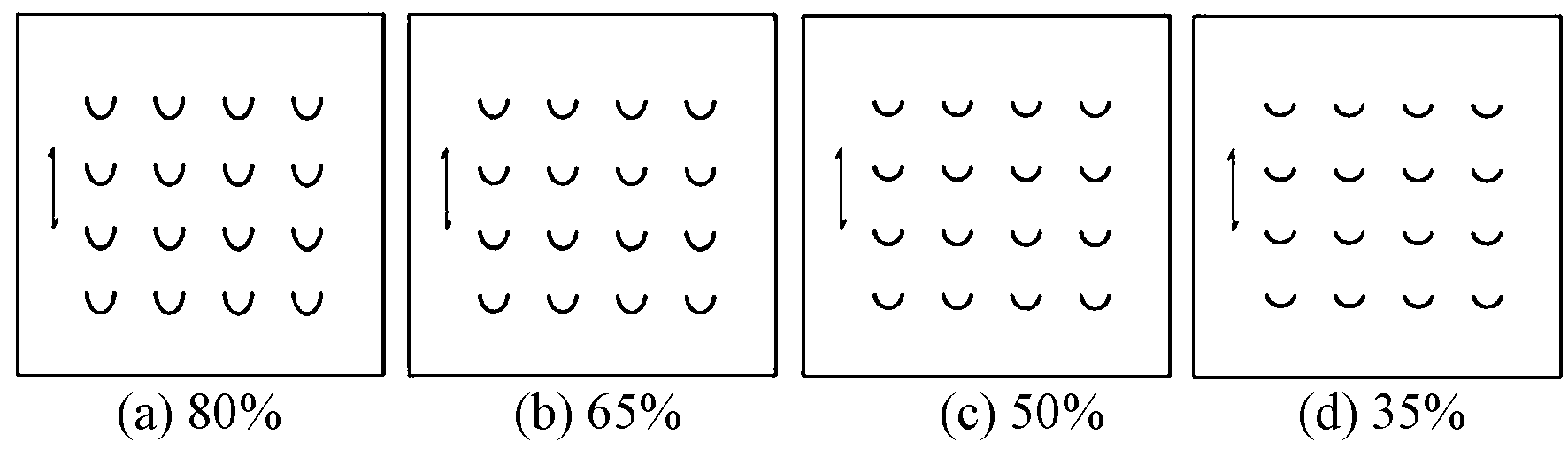

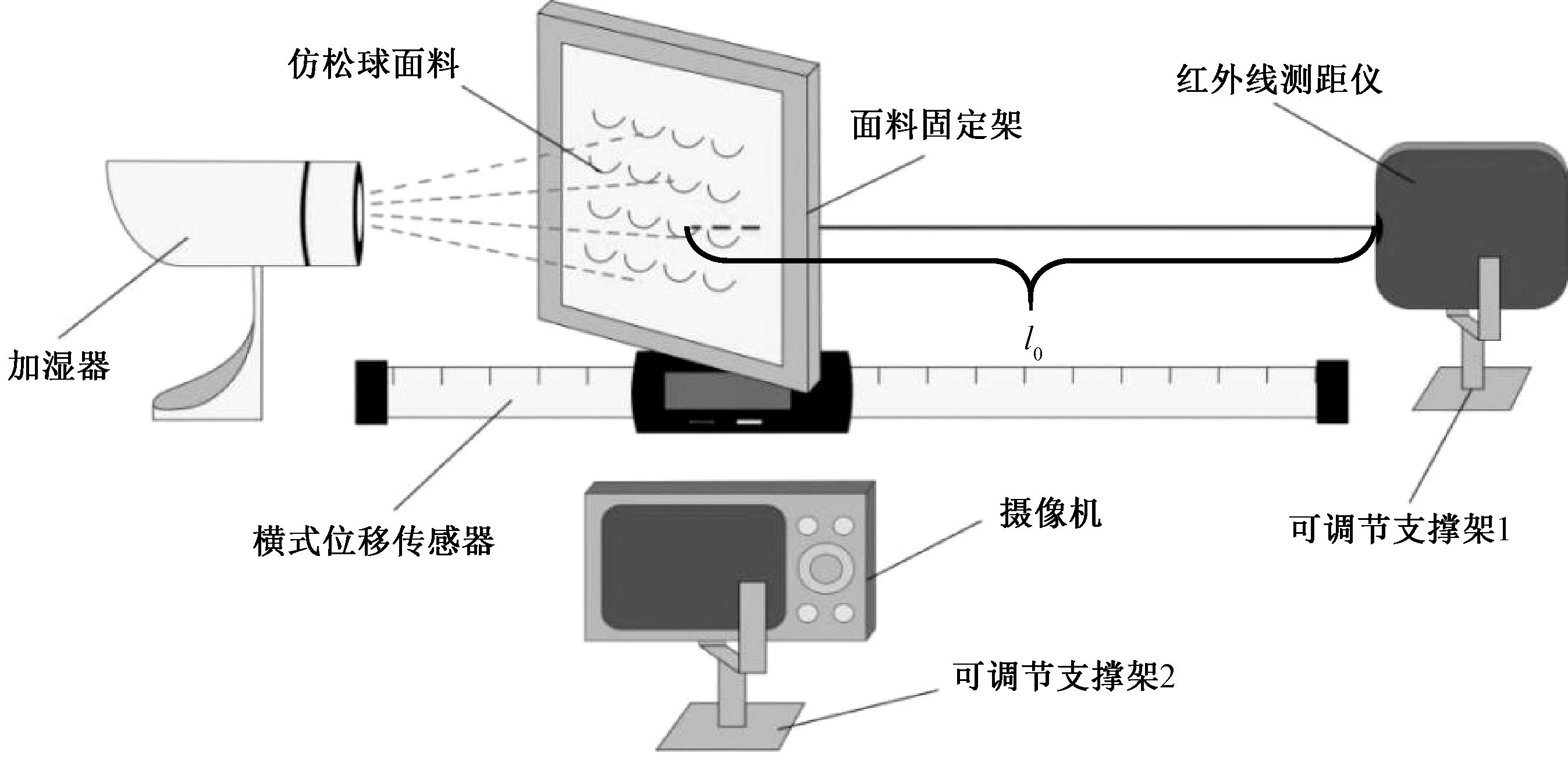

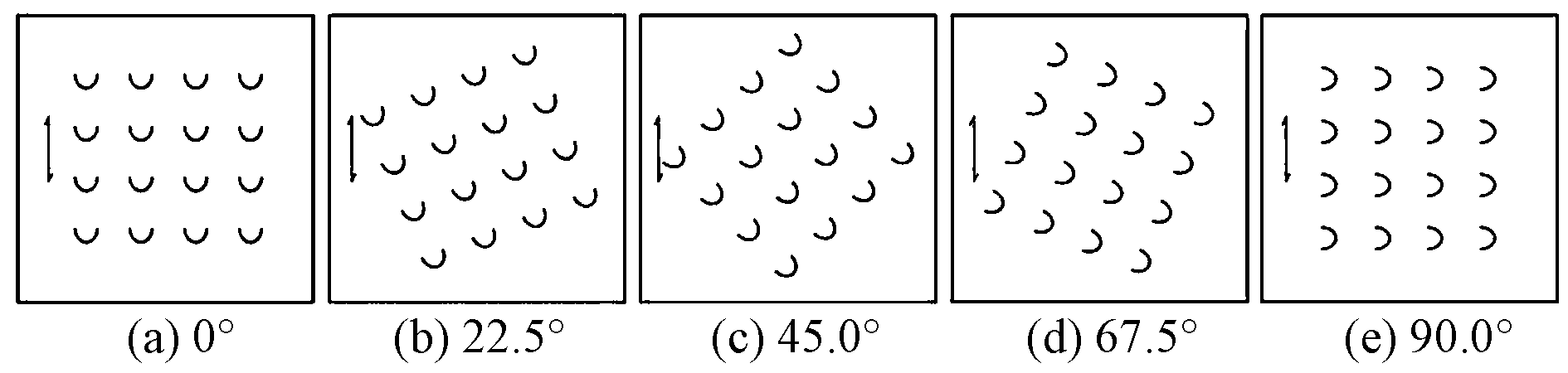

Method According to the response mechanism of pine-ball-like fabric to humidity, a self-made testing device for fabric moisture conductivity was designed, including water vapor generation, fabric moisture exchange and moisture conductivity detection. The relationship between the leaf aspect ratio (the ratio of longitudinal dimension to transverse dimension of leaf opening), leaf direction (the angle between leaf opening direction and cloth warp direction of driven layer), coating attach rate (the ratio of coating weight to cloth weight of driven layer) and moisture conductivity of leaf opening time, opening angle, opening speed and effective opening rate of pine-like fabric was studied.

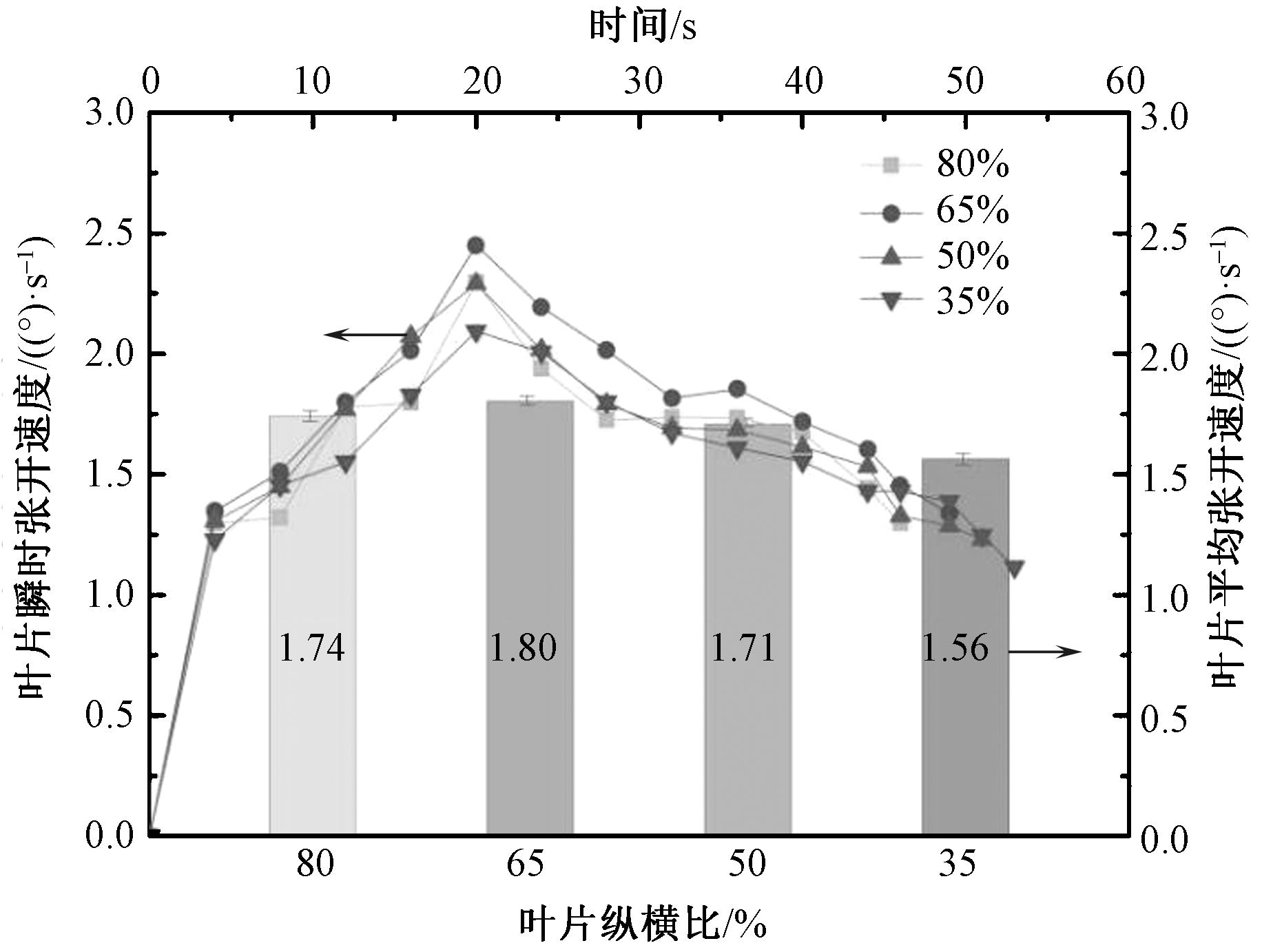

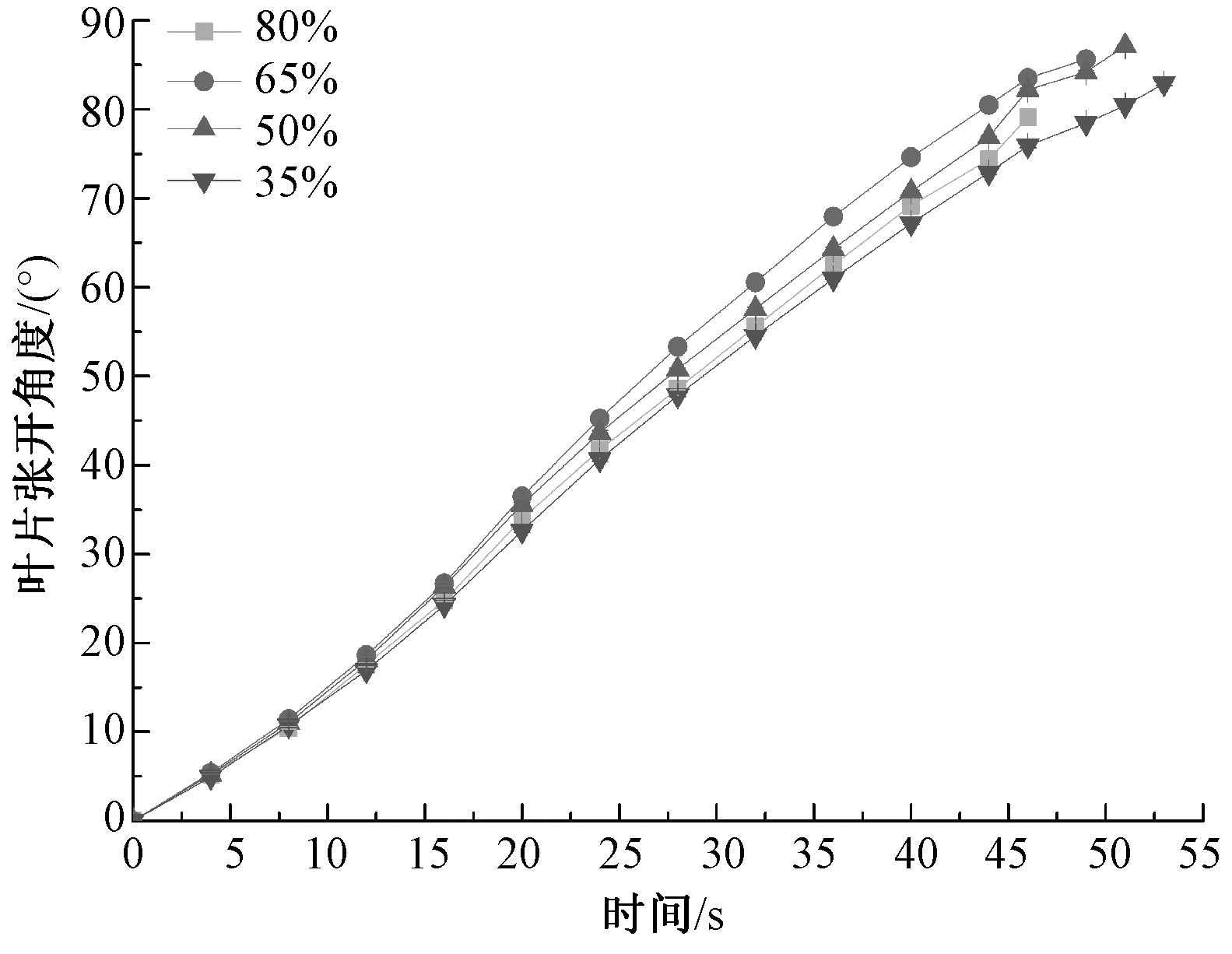

Results It was found that as the leaf aspect ratio decreased (Fig.7-9), the opening time of the leaves gradually increased, and other moisture conductivity indicators of the leaves, namely, full opening angle, opening speed and effective opening rate, increased at first and then decreased. The change of leaf aspect ratio had the greatest influence on the effective opening rate of pine cone-like leaves, fluctuating in the range of 73%-92%. When the leaf aspect ratio was 65%, all the properties were the best. With the increase of the blade direction (Fig.10-12), the moisture conductivity indicators of the pine-ball-like fabric, including opening time, opening angle, opening speed and effective opening rate, exhibited a sudden decrease. When the blade direction was 90° the pine-ball-like fabric had no obvious opening phenomenon when wet, and when the blade direction is 0° the pine-ball-like fabric was shown to achieve the best performance. With the increase of coating attach rate of pine-cone-like fabric (Fig.13-15), all properties were increased at first and then decreased except for the opening time of the leaves. The increase of coating amount had the greatest influence on the effective opening ratio of pine-cone-like fabric, which fluctuated in the range of 77%-93%. When the coating attach rate was 66.7%, the moisture conductivity of pine-cone-like fabric reached the best. When the aspect ratio of pine cone-like leaves was 65%, the direction of the leaves was the warp direction of the driven layer and the attach rate of the coating was 66.7%, the moisture conductivity of pine cone-like fabric was the best, with its opening time of 47s, opening angle of 85.59°, average opening speed of 1.82(°)/s and effective opening rate of 93%.

Conclusion According to the research on the factors affecting the moisture conductivity of pine-cone-like fabric, the change of pine-cone-like leaf direction has the greatest influence on the opening performance of the leaves. With the increase of the angle between the leaf direction and the warp direction of cloth, all the properties of pine-cone-like leaves drop rapidly until they close completely. The change of aspect ratio and coated attach rate of pine cone-like leaves had a great influence on the effective opening rate of leaves, followed by a certain influence on opening speed, but a little influence on opening time and opening angle.

Key words: pine ball-like fabric, functional fabric, automatic humidity control, polyurethane coating, double-layer fabric, humidity control performance

中图分类号:

TS941.1

胡亦雯, 唐虹, 唐天一, 魏书涛. 仿松球叶片结构面料的制备及其调湿性能[J]. 纺织学报, 2023, 44(08): 118-125.

HU Yiwen, TANG Hong, TANG Tianyi, WEI Shutao. Study on structure and humidity control performance of pine cone like fabrics[J]. Journal of Textile Research, 2023, 44(08): 118-125.

图/表 15

图1

图2

图3

图4

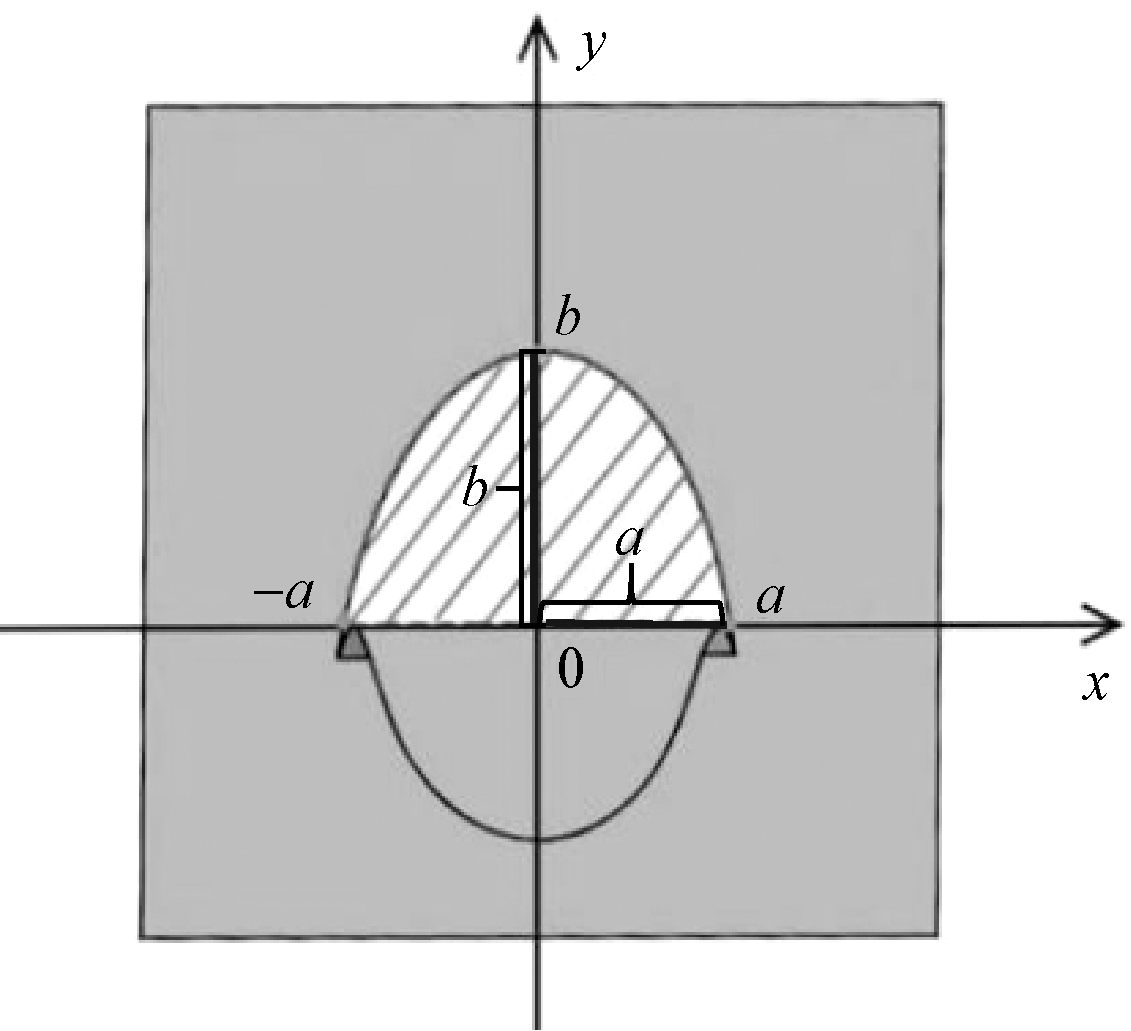

图5

图6

图7

图8

图9

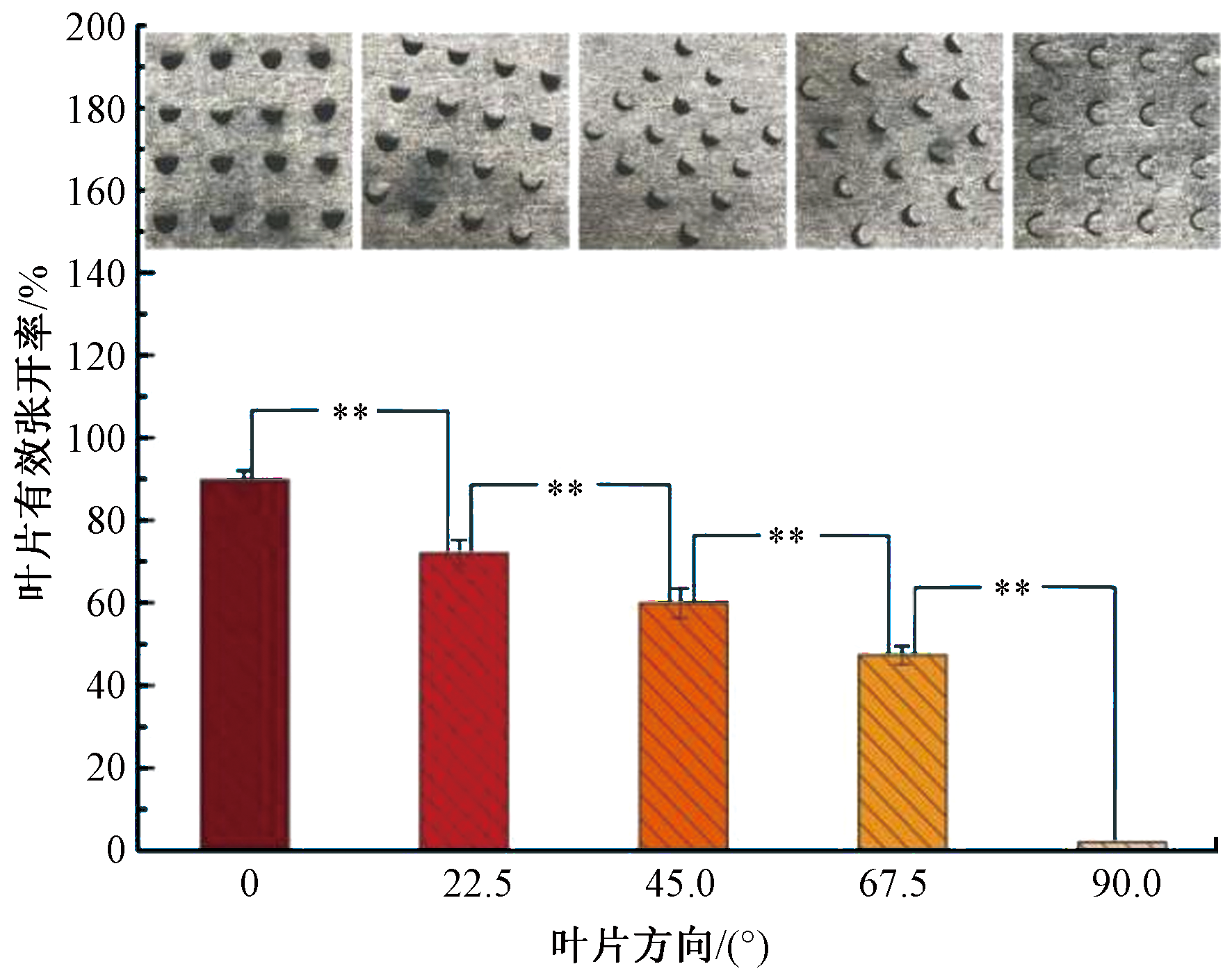

图10

图11

图12

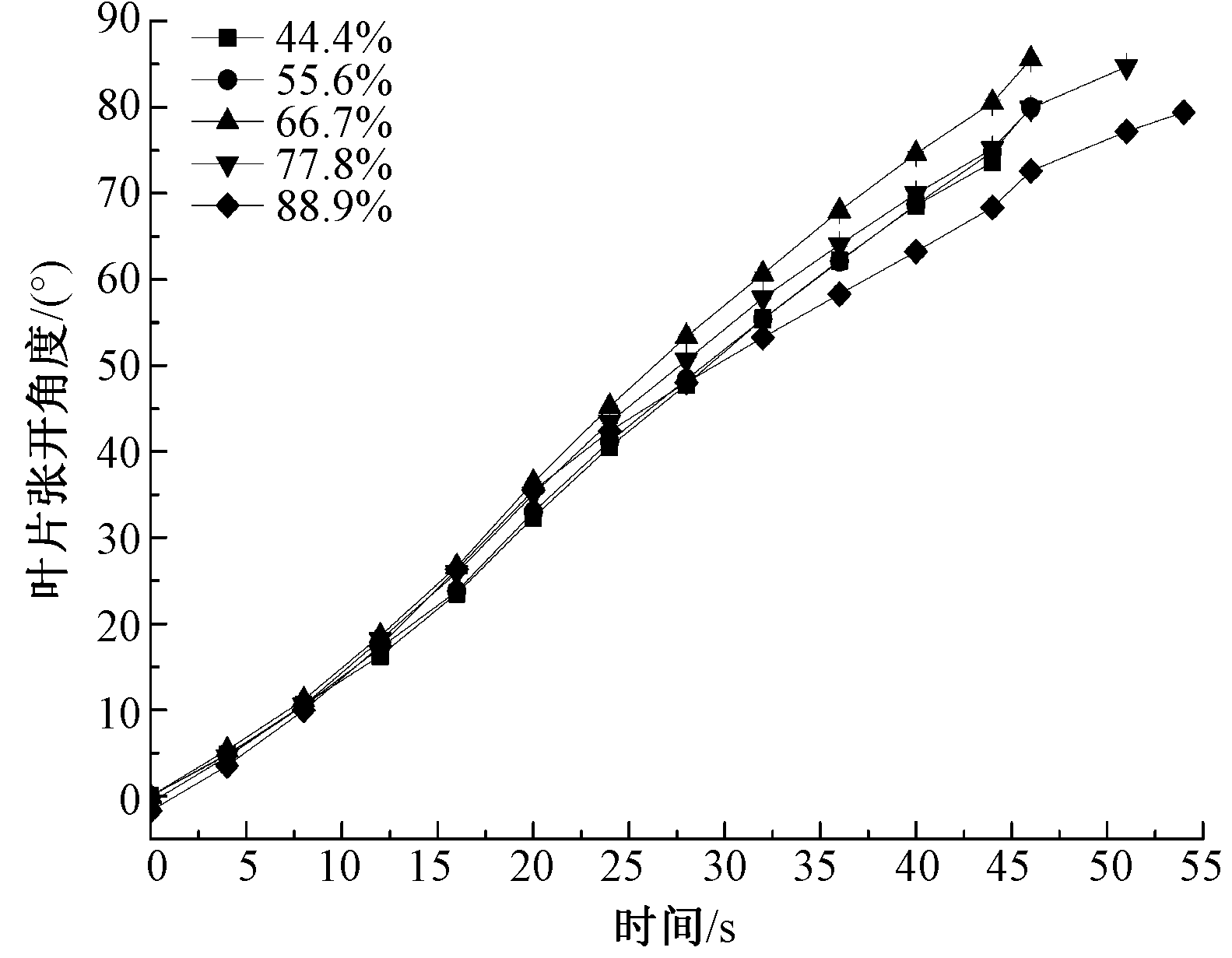

图13

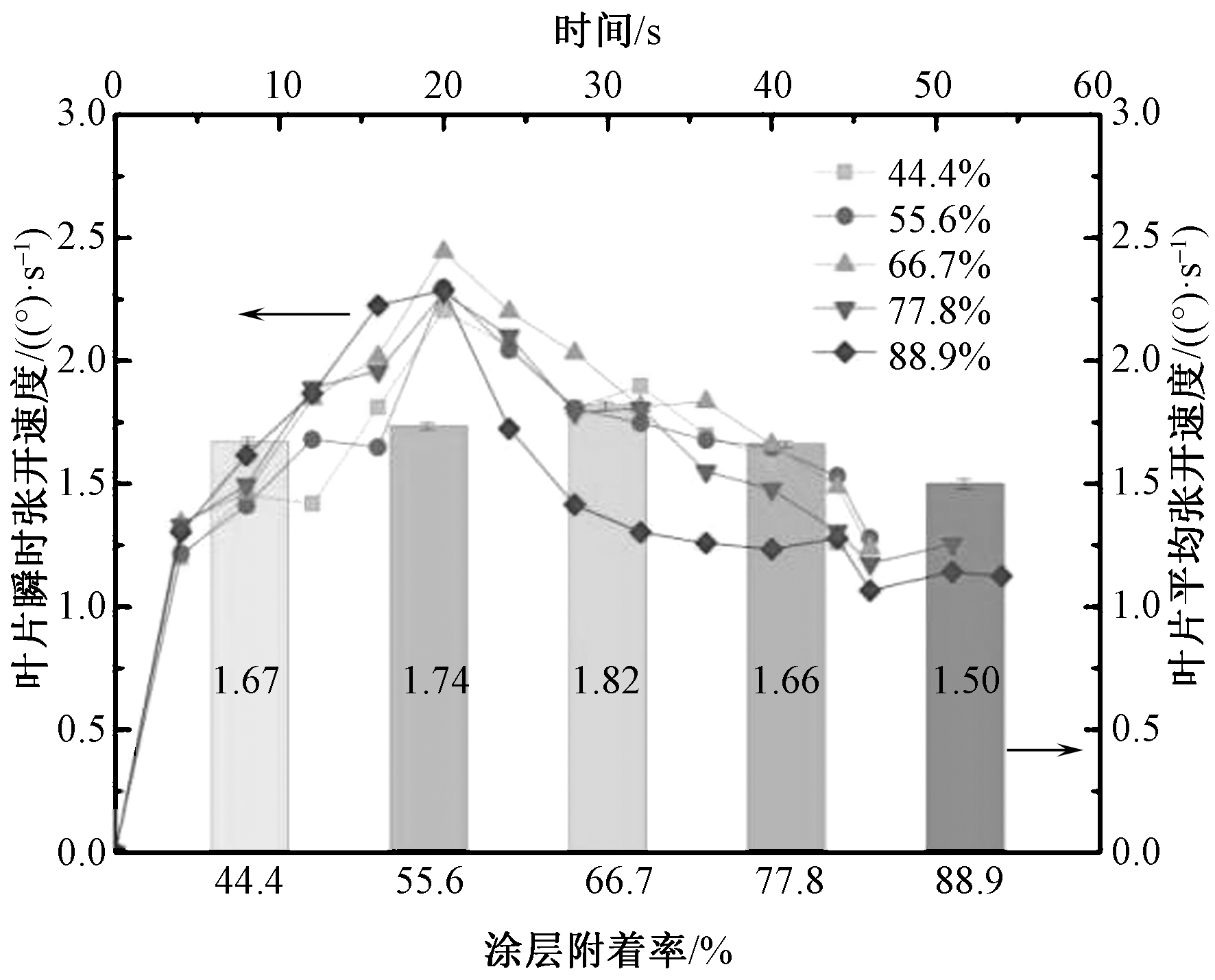

图14

图15

参考文献 25

[1]	CEVIZ N O, ENGIN A, YILMAZ A, et al. Investigating the thermal comfort properties of men's jacket as single and multiple layered material[J]. Industria Textila, 2019, 68(6):458-463. doi: 10.35530/IT
[2]	HES L, BAL K, DOLEZAL I. Principles of clothing comfort and their use in evaluation of sensorial and thermal comfort of men's casual jacket[J]. Fibers and Polymers, 2021, 22(10):2922-2928. doi: 10.1007/s12221-021-0425-z
[3]	NICOLE W. Mitigating climate impacts on athletes: sports guidelines may prevent exertional heat illness[J]. Environ Health Perspect, 2019. DOI:10.1289/EHP5833. doi: 10.1289/EHP5833
[4]	EPSTEIN Y, YANOVICH R. Heatstroke[J]. N Engl J Med, 2019, 380(25): 2449-2459. doi: 10.1056/NEJMra1810762
[5]	PENG Linghui, SU Bin, YU Aibing, et al. Review of clothing for thermal management with advanced mate-rials[J]. Cellulose, 2019, 26(11):6415-6448. doi: 10.1007/s10570-019-02534-6
[6]	SONG W, WANG F, WEI F. Hybrid cooling clothing to improve thermal comfort of office workers in a hot indoor environment[J]. Build Environ, 2016, 100:92-101. doi: 10.1016/j.buildenv.2016.02.009
[7]	WAN X, WANG F. Numerical analysis of cooling effect of hybrid cooling clothing incorporated with phase change material (PCM) packs and air ventilation fans[J]. Int J Heat Mass Transf, 2018, 126:636-648. doi: 10.1016/j.ijheatmasstransfer.2018.05.155
[8]	ZHANG Hui, LIU Xianfei, SONG Guowen, et al. Effects of microencapsulated phase change materials on the thermal behavior of multilayer thermal protective clothing[J]. Journal of The Textile Institute, 2021, 112(6):1004-1013. doi: 10.1080/00405000.2020.1832363
[9]	YUN Su, WEN Zhu, MIAO Tian, et al. Intelligent bidirectional thermal regulation of phase change material incorporated in thermal protective clothing[J]. Applied Thermal Engineering, 2020. DOI:10.1016/j.applthermaleng.2020.115340. doi: 10.1016/j.applthermaleng.2020.115340
[10]	陈佳慧, 梅涛, 赵青华, 等. 热湿舒适性智能织物的研究进展[J]. 纺织学报, 2023, 44(1): 30-37.
	CHEN Jiahui, MEI Tao, ZHAO Qinghua, et al. Research progress in smart fabrics for thermal and humidity management[J]. Journal of Textile Research, 2023, 44(1): 30-37. doi: 10.1177/004051757404400106
[11]	WANG Wen, YAO Lining, CHENG Chinyi, et al. Harnessing the hygroscopic and biofluorescent behaviors of genetically tractable microbial cells to design biohybrid wearables[J]. Science Advances, 2017. DOI:10.1126/sciadv.1601984. doi: 10.1126/sciadv.1601984
[12]	SONG K, YEOM E, SEO S, et al. Journey of water in pine cones[J]. Sci Re, 2015. DOI:10.1038/srep09963. doi: 10.1038/srep09963
[13]	QUAN Haocheng, PIROSA A, YANG Wen, et al. Hydration-induced reversible deformation of the pine cone[J]. Acta Biomaterialia, 2021. DOI:10.1016/j.actbio.2021.04.049. doi: 10.1016/j.actbio.2021.04.049
[14]	谢子文, 李家炜, 汪芬萍, 等. 有机硅改性水性聚氨酯丙烯酸酯杂化胶乳的制备及其在涂料印花中的应用[J]. 纺织学报, 2022, 43(8): 119-125.
	XIE Ziwen, LI Jiawei, WANG Fenping, et al. Preparation of polydimethylsiloxane modified waterborne polyurethane acrylate hybrid latex and its applications in pigment printing[J]. Journal of Textile Research, 2022, 43(8): 119-125.
[15]	魏书涛, 刘洋, 李松彬, 等. 一种自动张开复合材料及服装, CN112829423A[P]. 2021-10-18.
	WEI Shutao, LIU Yang, LI Songbin, et al. A self-opening composite material and garment, CN112829423A[P]. 2021-10-18.
[16]	LEGERSKA J, ONDRUOVA D, KRMELA J. Evaluation of thermal insulation properties and dynamic moisture transfer of knitted fabrics[J]. IOP Conference Series Materials Science and Engineering, 2020, 776:1-9.
[17]	ZHAI Lina, LI Jun, WANG Yunyi, et al. A new single-layered skin simulant and its comparison with the copper sensor for burn injury evaluation of thermal protective clothing[J]. Fire Safety Journal, 2021, DOI:10.1016/j.firesaf.2021.103370. doi: 10.1016/j.firesaf.2021.103370
[18]	王玥, 王春红, 徐磊, 等. 三维导湿结构环保针织面料开发与吸湿速干性能评价[J]. 纺织学报, 2022, 43(10): 58-64.
	WANG Yue, WANG Chunhong, XU Lei, etl. Development of environmentally friendly knitted fabrics with 3-D moisture conductive structure and performance evaluation on moisture absorption and quick-drying[J]. Journal of Textile Research, 2022, 43(10): 58-64.
[19]	LEI Z. Review of application of thermal manikin in evaluation on thermal and moisture comfort of clothing[J]. Journal of Engineered Fibers and Fabrics, 2019, 14(6): 4-9.
[20]	JOANNA F, AGNES P, BUENO M. Effect of garment properties on air gap thickness and the contact area distribution[J]. Textile Research Journal, 2015, 85(18): 1907-1918. doi: 10.1177/0040517514559582
[21]	马文山. 定积分和二重积分在面积计算中的应用[J]. 闽西职业技术学院学报, 2022, 24(2): 116-120.
	MA Wenshan. Application of definite integral and double integral in area calculation[J]. Journal of Minxi Vocational and Technical College, 2022, 24(2): 116-120.
[22]	MU Jiuke, WANG Gang, YAN Hongping, et al. Molecular-channel driven actuator with considerations for multiple configurations and color switching[J]. Nature Communications, 2018, 9(1): 590. doi: 10.1038/s41467-018-03032-2 pmid: 29426842
[23]	ZHONG Y, ZHANG F, WANG M, et al. Reversible humidity sensitive clothing for personal thermoregulation[J]. Scientific Reports, 2017, 7: 1-8. doi: 10.1038/s41598-016-0028-x
[24]	ZHU Zuoquan, HE Yaolong, HU Hongjiu, et al. Evolution of internal stress in heterogeneous electrode composite during the drying process[J]. Energies, 2021. DOI:10.3390/en14061683. doi: 10.3390/en14061683
[25]	ARRUDA LUISA M, MOREIRA INES P, SANIVADA USHA K, et al. Development of piezoresistive sensors based on graphene nanoplatelets screen-printed on woven and knitted fabrics: optimisation of active layer formulation and transversal/longitudinal textile direc-tion[J]. Materials, 2022. DOI:10.3390/ma15155185. doi: 10.3390/ma15155185
