Performance optimization of elastic spindle pipe based on neural network and genetic algorithm

MO Shuai1,2(), FENG Zhanyong1,2, TANG Wenjie1,2, DANG Heyu1,2, ZOU Zhenxing1,2

  1. 1. School of Mechanical Engineering, Tiangong University, Tianjin 300387, China
    2. Tianjin Key Laboratory of Advanced Mechatronics Equipment Technology, Tiangong University, Tianjin 300387, China
  • Received:2019-01-08 Revised:2020-01-12 Online:2020-04-15 Published:2020-04-27

摘要:

为得到减振弹性管对下锭胆的支承弹性和锭子高速运动下的稳定性等性能的最优匹配效率,依据减振弹性管的等效抗弯刚度及底部等效刚度系数公式,利用MatLab数值分析软件构建弹性管抗弯刚度和底部挠度数学模型。首先,结合Isight优化软件基于径向基神经网络构建其近似模型,且使精度达到可接受水平,并以模型的关键结构参数弹性模量、螺距、槽宽、壁厚为设计变量,结合遗传算法对弹性管抗弯刚度和底部挠度进行多目标优化设计,得到Pareto最优解集和Pareto前沿图,确定出减振弹性管结构工艺参数的优化方案。通过对优化数据进行分析发现,该方案在保证减振弹性管弹性的同时,其底部振幅明显减弱。

关键词: 减振弹性管, 径向基神经网络, 遗传算法, 多目标优化, 锭子

Abstract:

The aim of this research is to improve the matching efficiency of the damping elastic tube to the support elasticity of the lower spindle and the stability of the spindle at high speeds. Using the formula of the damping equivalent bending stiffness and the equivalent stiffness coefficient of the bottom of the damping elastic tube, a mathematical model of the bending stiffness and the bottom deflection of the elastic tube was established and calculated using MatLab numerical analysis software. The approximate model of the elastic tube based on radial basis function neural network was combined with Isight optimization software attempting to increase the accuracy to an acceptable level. Taking the elastic modulus, pitch, slot width and wall thickness as the design variables, the multi-objective optimization design of the bending stiffness and bottom deflection of the elastic tube was combined with the genetic algorithm to obtain the Pareto optimal solution set and Pareto front map, leading to the determination of the vibration-damping elastic tube structure. The research results show that the vibration reduction of the elastic tube resulting in improved elastic performance, with a much reduced vibration amplitude at the base of the tube.

Key words: damping elastic tube, radial based neural network, genetic algorithm, multi-objective optimization, spindle

中图分类号:

  • TP391

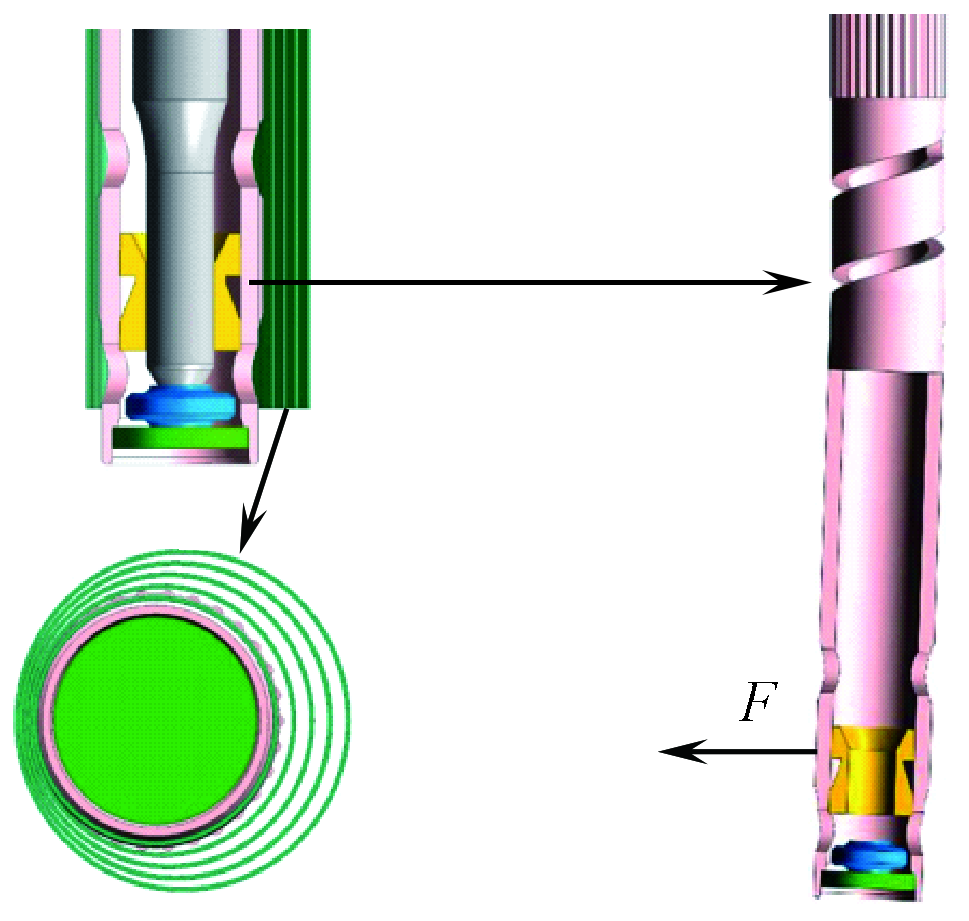

图1

弹性管实物及螺旋槽分析模型"

图2

弹性管底端振动示意图"

表1

不同卷绕比下应力系数β2值"

Φ 3.0 3.5 4.0 5.0
1.0 3.52 3.35 3.20 3.03
1.2 3.63 3.42 3.31 3.12
1.4 3.72 3.55 3.42 3.25
1.6 3.81 3.65 3.54 3.34
1.8 3.94 3.75 3.65 3.45
2.0 4.00 3.85 3.75 3.56
2.2 4.15 3.95 3.83 3.66
2.4 4.21 4.04 3.90 3.74
2.5 4.25 4.10 3.94 3.79

图3

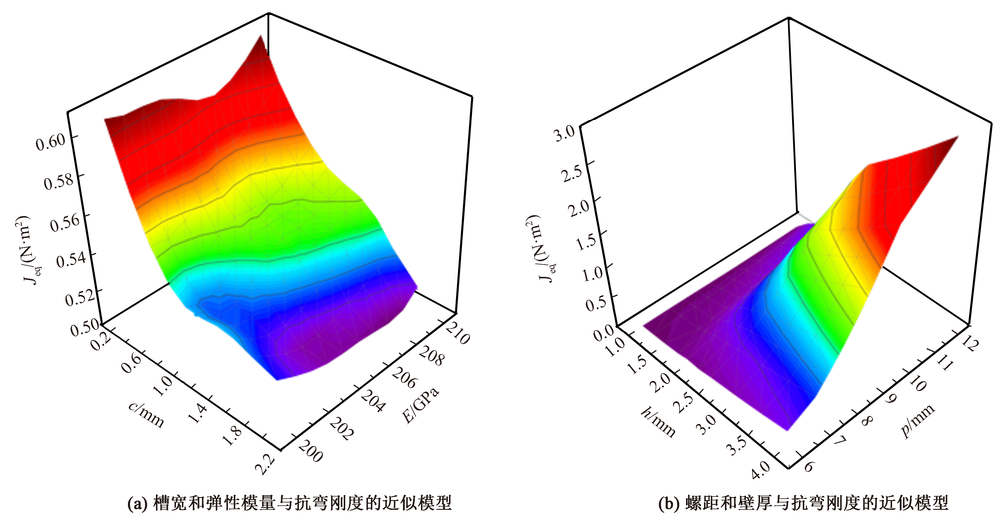

弹性管抗弯刚度径向基神经网络模型"

图4

弹性管底部振幅径向基神经网络模型"

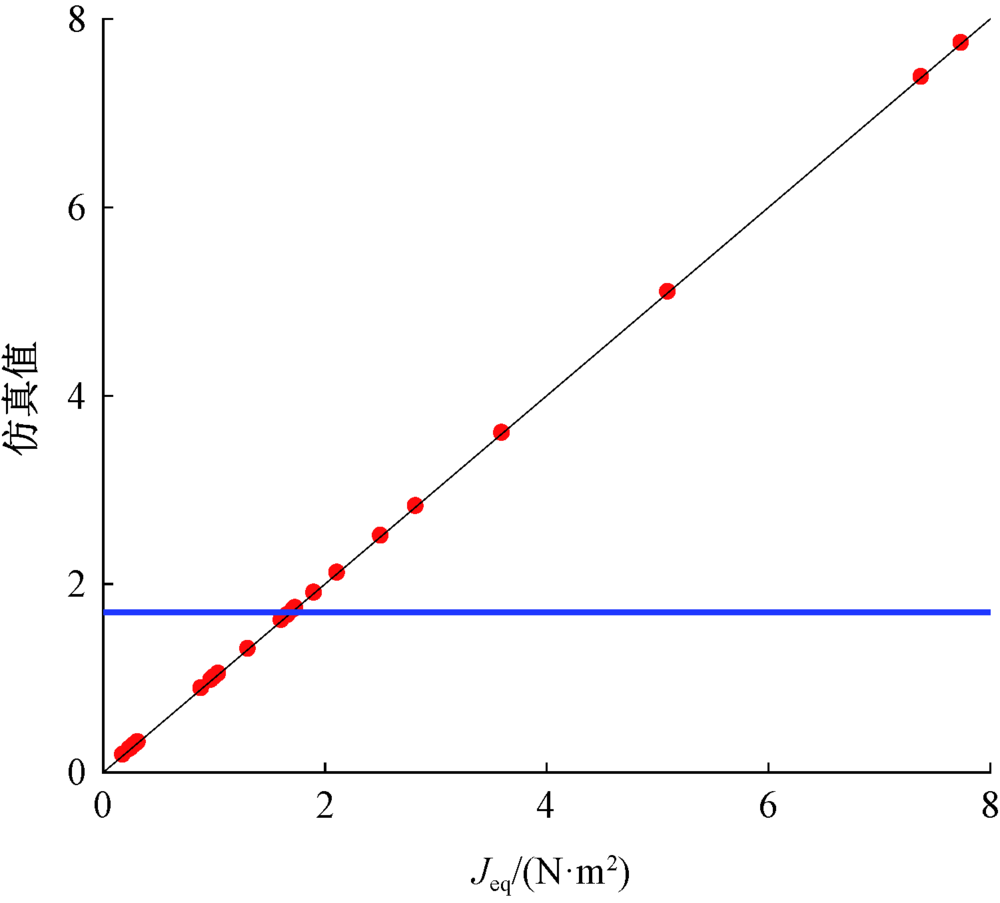

图5

刚度Jeq实际仿真值和近似模型预测值拟合对比"

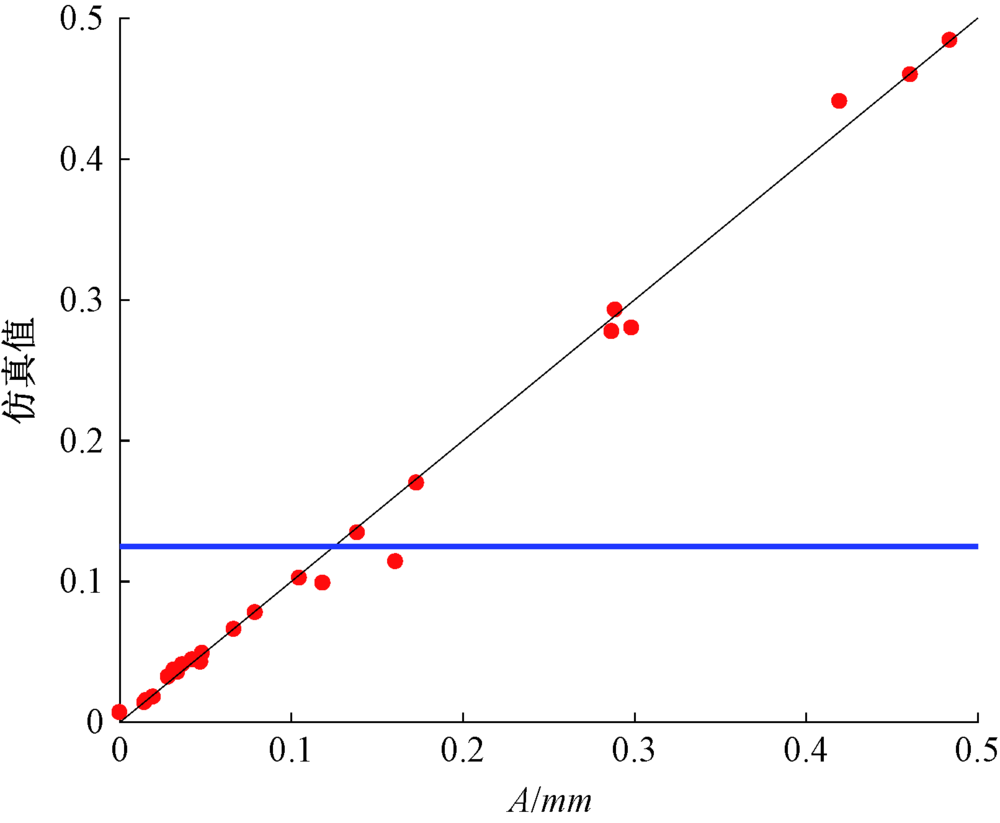

图6

振幅A实际仿真值和近似模型预测值拟合对比"

表2

平均相对误差和R2值误差检验"

目标值 平均相对误差 R2
可接受水平 0.2 0.9
抗弯刚度Jeq 1.731 6×10-4 1
底部振幅A 0.015 87 0.990 67

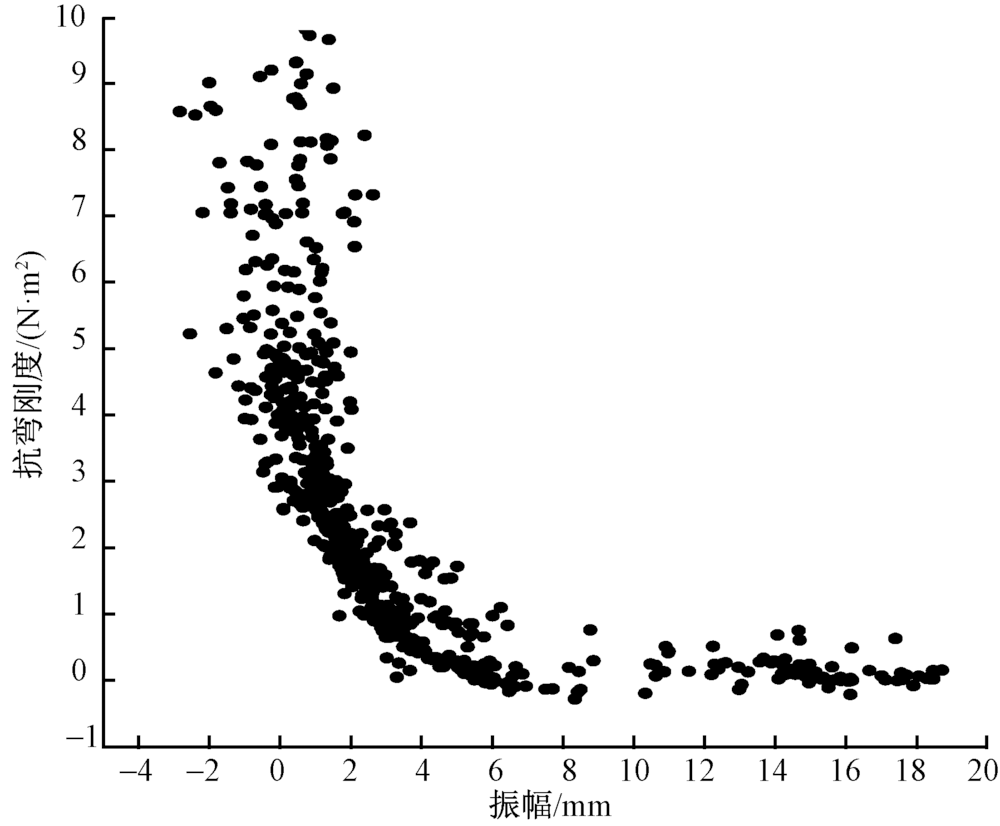

图7

抗弯刚度Jeq和底部振幅A的Pareto前沿图"

表3

优化前后弹性管工艺参数对比"

状况 设计变量 目标响应
c/mm E/GPa h/mm p/mm Jeq/(N·m2) A/mm
优化前 1.00 207.0 1.850 9.00 0.46 0.388 7
优化后 1.51 208.2 1.602 9.53 0.52 0.119 9

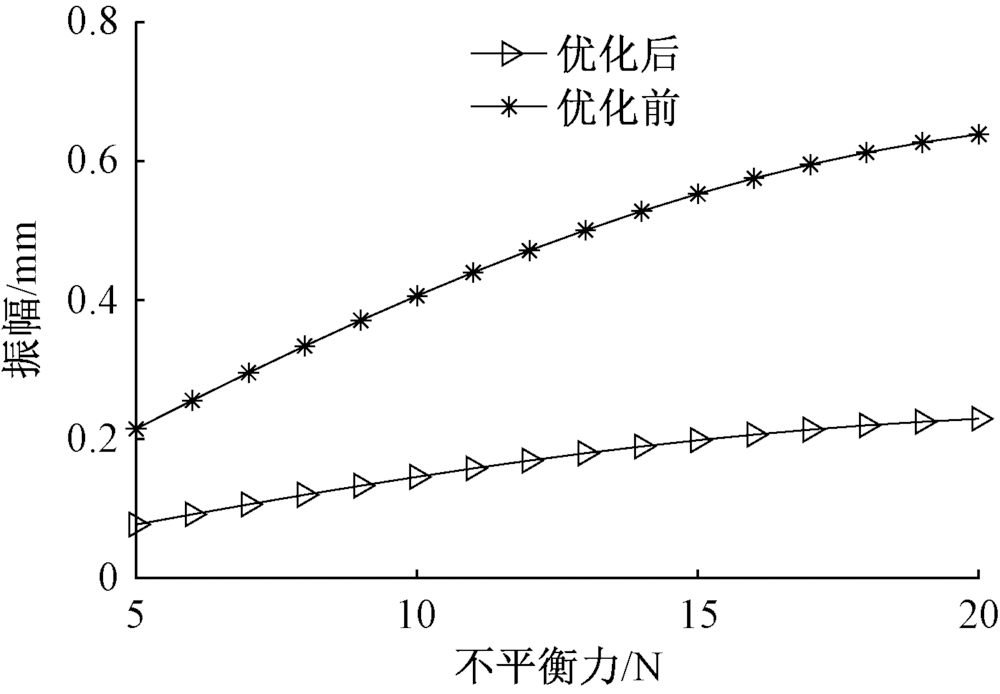

图8

弹性管优化前后底部振幅的变化"

[1] 彭超英, 陈瑞琪, 朱均, 等. 纺纱锭子的研究和发展[J]. 纺织学报, 1995,16(6):54-55.
PENG Chaoying, CHEN Ruiqi, ZHU Jun, et al. Research and development of spinning spindles[J]. Journal of Textile Research, 1995,16(6):54-55.
[2] 吴文英, 相兴利, 蔡旭初. 锭子弹性管的刚度计算及其对动态性能的影响[J]. 东华大学学报(自然科学版), 2002,28(6):80-83.
WU Wenying, XIANG Xingli, CAI Xuchu. Calculation of stiffness of spindle elastic tube and its influence on dynamic performance[J]. Journal of Donghua University(Natural Science Edition), 2002,28(6):80-83.
[3] 王志勇, 张恒才. 锭子弹性管螺旋槽弹性的探讨[J]. 纺织器材, 2004,31(6):5-6.
WANG Zhiyong, ZHANG Hengcai. Discussion on the elasticity of spiral groove of spindle elastic tube[J]. Textile Accessories, 2004,31(6):5-6.
[4] 彭来深, 黄喜芝. 锭子弹性管同轴度与制造工艺的改进[J]. 纺织器材, 2015,42(3):12-14.
PENG Laishen, HUANG Xizhi. Improvement of concentricity and manufacturing process of spindle elastic tube[J]. Textile Accessories, 2015,42(3):12-14.
[5] 郝颖, 虞爱民. 层状复合材料矩形截面圆柱螺旋弹簧自由振动特性研究[J]. 振动与冲击, 2012,31(22):105-111.
HAO Ying, YU Aimin. Study on free vibration characteristics of cylindrical coiled spring with layered composites[J]. Journal of Vibration and Shock, 2012,31(22):105-111.
[6] 马彬彬, 谭继锦, 林彧群, 等. 基于径向基函数神经网络的车门轻量化设计[J]. 汽车工程学报, 2015,5(2):136-143.
MA Binbin, TAN Jijin, LIN Yuqun, et al. Lightweight design of vehicle door based on radial basis function neural network[J]. Chinese Journal of Automotive Engineering, 2015,5(2):136-143
[7] SAFIYE Ghasemi, ALIREZA Nazemi, SOLEIMAN Hosseinpour. Nonlinear fractional optimal control problems with neural network and dynamic optimization schemes[J]. Nonlinear Dynamics, 2017,89(4):2669-2682.
[8] 杨建国, 熊经纬, 徐兰, 等. 应用混合种群遗传神经网络的精梳毛纺工艺参数反演模型[J]. 纺织学报, 2016,37(7):149-154.
YANG Jianguo, XIONG Jingwei, XU Lan, et al. Inversion model of combed wool spinning process parameters using mixed population genetic neural network[J]. Journal of Textile Research, 2016,37(7):149-154.
[9] 谷有众, 高卫东, 卢雨正, 等. 应用遗传算法优化支持向量回归机的喷气涡流纺纱线质量预测[J]. 纺织学报, 2016,37(7):142-148.
GU Youzhong, GAO Weidong, LU Yuzheng, et al. Prediction of jet vortex spinning yarn quality using support vector regression machine with genetic algo-rithm[J]. Journal of Textile Research, 2016,37(7):142-148.
[10] CHOI Y H, KIM S T, YOON K C, et al. Optimization of a high speed spinning disk spindle system for minimum RRO NRRO, and Lightweight by using[J]. Journal of Xiamen University(Natural Science), 2002(S1):90-91.
[11] AK R, LI Y, VITELLI V, et al. NSGA-II-trained neural network approach to the estimation of prediction intervals of scale deposition rate in oil & gas equipment[J]. Expert Systems with Applications, 2013,40(4):1205-1212.
[12] 张笑, 唐敦兵, 杨俊, 等. 立式振动磨关键结构参数的多目标优化设计[J]. 机械科学与技术, 2018,37(6):821-827.
ZHANG Xiao, TANG Dunbing, YANG Jun, et al. Multi-objective optimization design of key structural parameters of vertical vibration mill[J]. Mechanical Science and Technology, 2018,37(6):821-827.
