Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (01): 14-18.doi: 10.13475/j.fzxb.20180301705

• Fiber Materials • Previous Articles     Next Articles

Preparation and properties of modified polytetrafluoroethylene fiber by oxidation self-polymerization of dopamine

JIA Huiying, JIANG Zhiqing, MA Jianwei, JIANG Liang, CHEN Shaojuan()

  1. College of Textiles and Clothing, Qingdao University, Qingdao, Shandong 266071, China
  • Received:2018-03-06 Revised:2018-07-26 Online:2019-01-15 Published:2019-01-18
  • Contact: CHEN Shaojuan E-mail:qdchshj@126.com

RichHTML

12

PDF (PC)

145

Abstract:

In order to improve the surface performance in hydrophilicity of polytetrafluoroethylene fibers , dopamine was employed to modify polytetrafluoroethylene fibers by oxidation self-polymerization. The effect of different treatment time for modifying polytetrafluoroethylene fibers was analyzed. Scanning electron microscopy, atomic force microscopy, Fourier transform infrared spectrometer and water contact angle (WCA) tester were employed to analyze the surface morphology and the chemical structures of the modified polytetrafluoroethylene fibers. The binding fastness of the fibers to dopamine was analyzed by testing the elution absorbance of the modified fibers in different solutions.The results show that a dense layer of polydopamine is formed on polytetrafluoroethylene fibers with the increase in modification time, and the WCA decreases gradually from 120° to the platform of 69° when the treatment time is up to 24 h. The modified polytetrafluoroethylene fibers introduces hydrophilic groups such as —COOH and —NH2, and the hydrophilicity of the fibers are improved obviously. The binding fastness between fiber and polydopamine is stable.

Key words: polytetrafluoroethylene, dopamine, hydrophilicity, binding fastness

CLC Number:

  • TS102.6

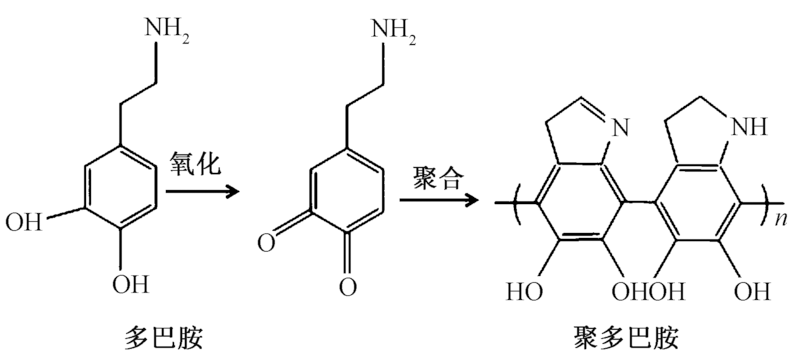

Fig.1

Flow chart of modification of PTFE with dopamine"

Fig.2

Changes of surface color of PTFE fibers after modification"

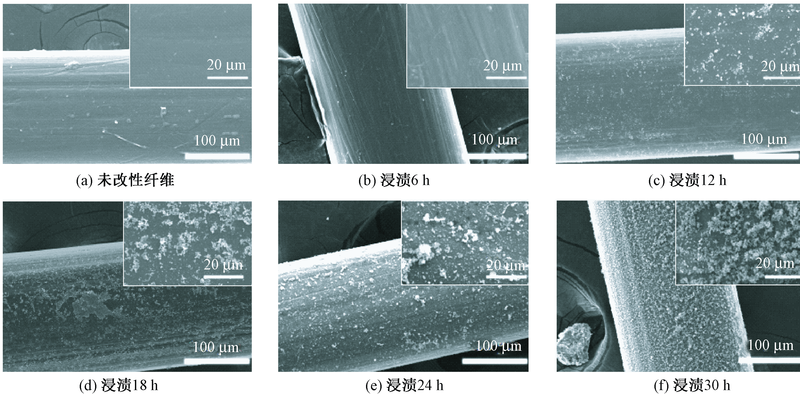

Fig.3

SEM images of PTFE fibers before and after modification. (a) Unmodified fiber; (b) Soaked for 6 h; (c) Soaked for 12 h; (d) Soaked for 18 h; (e) Soaked for 24 h; (f) Soaked for 30 h"

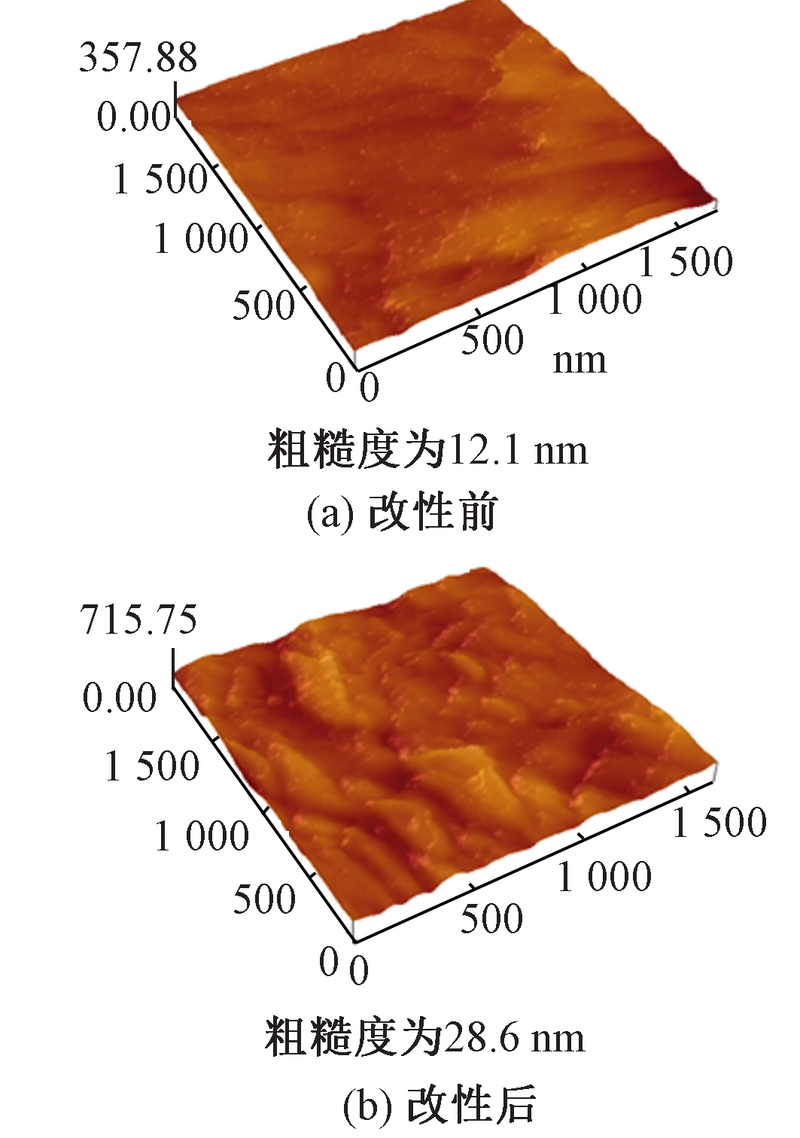

Fig.4

AFM image of PTFE fibers before (a) and after (b) modification"

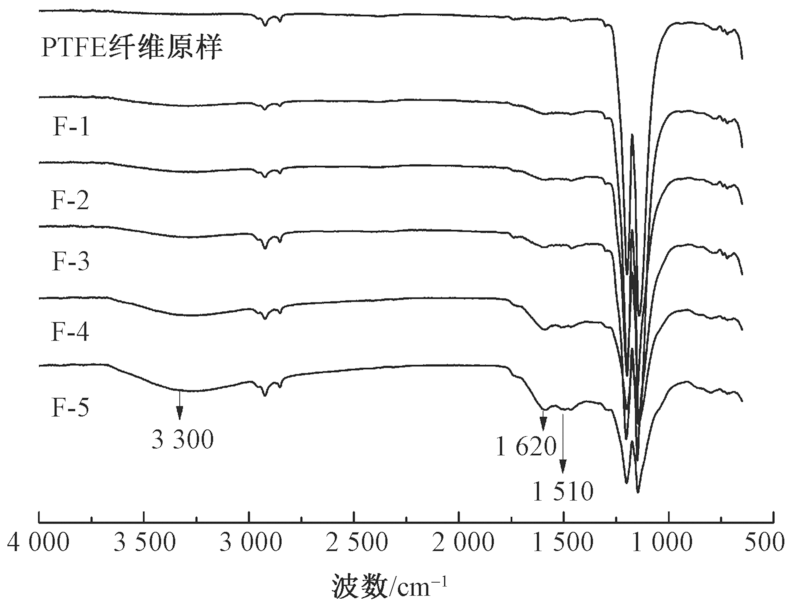

Fig.5

Infrared spectra of PTFE fiber before and after modification"

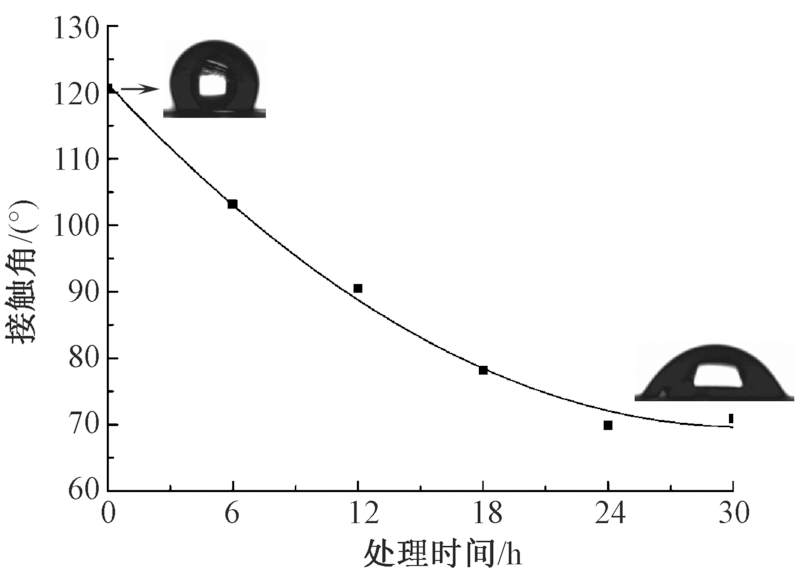

Fig.6

Changes in contact angle of fibers at different treatment times"

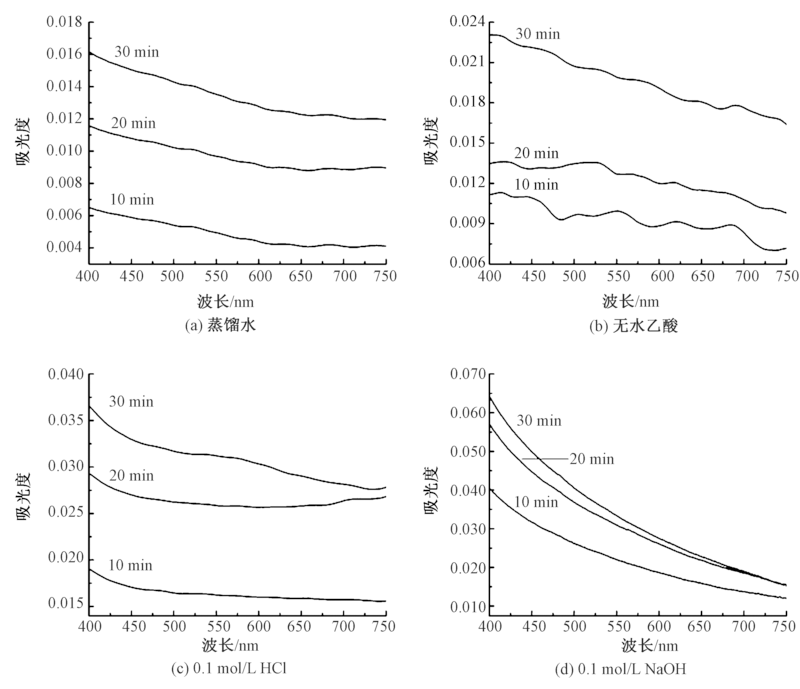

Fig.7

Absorbance of modified PTFE fiber in different liquids."

[1] WANG F, ZHU H, ZHANG H, et al. Effect of surface hydrophilic modification on the wettability, surface charge property and separation performance of PTFE membrane[J]. Journal of Water Process Engineering, 2015,8:11-18.
doi: 10.1016/j.jwpe.2015.08.004
[2] FU C, LIU S, GONG T, et al. Investigation on surface structure of potassium permanganate/nitric acid treated poly(tetrafluoroethylene)[J]. Applied Surface Science, 2014,317:771-775.
doi: 10.1016/j.apsusc.2014.08.176
[3] VESEL A, KOVAC J, ZAPLOTNIK R, et al. Modification of polytetrafluoroethylene surfaces using H2S plasma treatment[J]. Applied Surface Science, 2015,357:1325-1332.
doi: 10.1016/j.apsusc.2015.09.243
[4] STEFANO Z, RUGGERO B, DELLA P R, et al. Modification of the PTFE wettability by oxygen plasma treatments: influence of the operating parameters and investigation of the ageing behaviour[J]. Journal of Physics D: Applied Physics, 2014,47:32-37.
[5] HIDZIR N M, HILL D J T, MARTIN D, et al. Radiation-induced grafting of acrylic acid onto expanded poly(tetrafluoroethylene) membranes[J]. Polymer, 2012,53(26):6063-6071.
doi: 10.1016/j.polymer.2012.10.042
[6] JIANG J, ZHU L, ZHU L, et al. Surface characteristics of a self-polymerized dopamine coating deposited on hydrophobic polymer films[J]. Langmuir the Acs Journal of Surfaces & Colloids, 2011,27(23):14180-14187.
doi: 10.1021/la202877k pmid: 22011109
[7] LEE H, DELLATORE S M, MILLER W M, et al. Mussel-inspired surface chemistry for multifunctional coatings[J]. Science, 2007,318(5849):426-430.
pmid: 17947576
[8] YANG H C, LUO J, LV Y, et al. Surface engineering of polymer membranes via mussel-inspired chemistry[J]. Journal of Membrane Science, 2015,483(6):42-59.
doi: 10.1016/j.memsci.2015.02.027
[9] LEE H, SCHERER N F, MESSERSMITH P B. Single-molecule mechanics of mussel adhesion[J]. Proceedings of the National Academy of Sciences of the United States of America, 2006,103(35):12999-13003.
pmid: 16920796
[10] LYNGE M E, VAN d W R, POSTMA A, et al. Polydopamine: a nature-inspired polymer coating for biomedical science[J]. Nanoscale, 2011,3(12):4916-4928.
pmid: 22024699
[11] SONG H, YU H, ZHU L, et al. Durable hydrophilic surface modification for PTFE hollow fiber membranes[J]. Reactive & Functional Polymers, 2017,114:110-117.
[12] SHENG W, LI B, WANG X, et al. Brushing up from anywhere under sunlight: a universal surface-initiated polymerization from polydopamine-coated surfaces[J]. Chemical Science, 2015,6(3):2068-2073.
pmid: 28706651
[13] HONG S H, HONG S, RYOU M, et al. Sprayable ultrafast polydopamine surface modifications[J]. Advanced Materials Interfaces, 2016,3(11):1500857-1500862.
doi: 10.1002/admi.201500857
[14] SHEN B, XIONG B, WU H. Convenient surface functionalization of whole-teflon chips with polydopamine coating[J]. Biomicrofluidics, 2015,9(4):7205-7212.
[15] LIU Y, AI K, LU L. Polydopamine and its derivative materials: synjournal and promising applications in energy, environmental, and biomedical fields[J]. Chemical Reviews, 2014,114(9):5057-5115.
doi: 10.1021/cr400407a pmid: 24517847
