Journal of Textile Research ›› 2020, Vol. 41 ›› Issue (01): 145-149.doi: 10.13475/j.fzxb.20181206005

• Apparel Engineering • Previous Articles     Next Articles

Simulation optimization of one-piece flow T-shirt assembly line based on Flexsim

SONG Ying(), TIAN Hong, LI Jingyi

  1. College of Clothing and Textile, Eastern Liaoning University, Dandong, Liaoning 118003, China
  • Received:2018-12-27 Revised:2019-10-10 Online:2020-01-15 Published:2020-01-14

Abstract:

Low production balance rate was witnessed due to backlog, waiting and bottleneck in the production process of one piece flow garment assembly line. This research studies on the simulation optimization of one-piece flow T-shirt assembly line using Flexsim software. The simulation optimization model was established for T-shirt as an example using Flexsim taking the process flow into consideration. Through function analysis, it was possible to modify the operations in the operation line and run the simulation cycle test repeatedly. The establishment of the simulation optimization reduced severity of the bottle-neck problem, and the production balance rate was increased significantly from 80.4% to 95.3%. At the same time, the feasibility of Flexsim simulation in the production process for different clothing pipelines was verified to be applicable.

Key words: T-shirts, Flexsim software, one-piece flow garment assembly line, production balance rate

CLC Number:

  • TS941.717.87

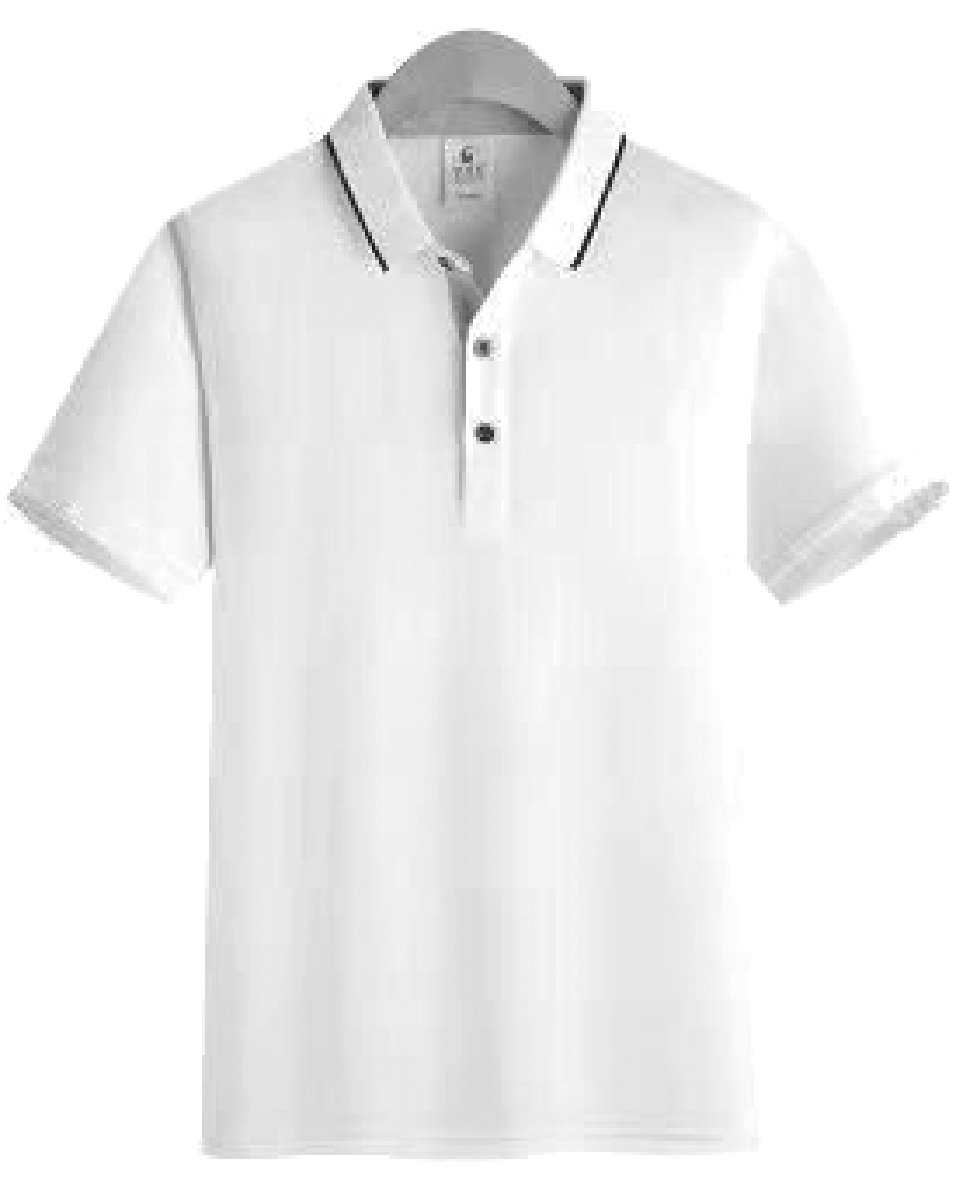

Fig.1

T-shirt style"

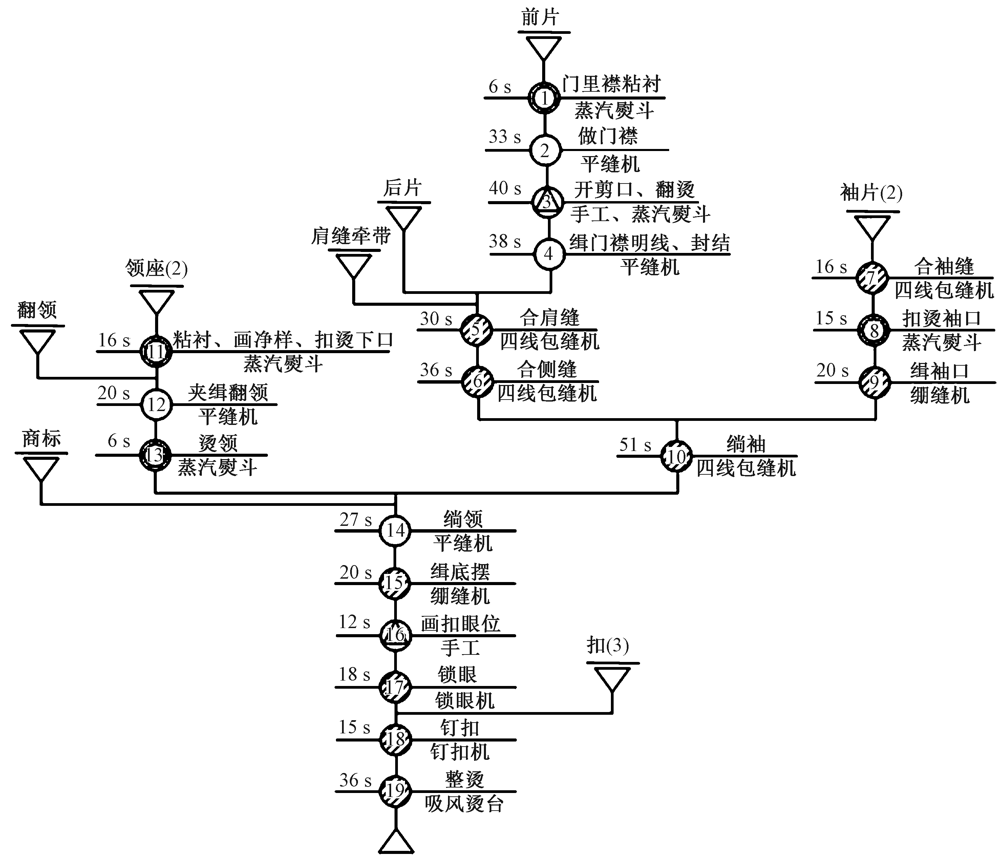

Fig.2

T-shirt process flow chart"

Tab.1

Level of T-shirt process difficulty"

难度等级 判断等级标准 工序案例 工时/s
1级 工时极少、极易操作、易教易会 门里襟粘衬 6
2级 工时适中、难度适中、比较容易操作 扣烫袖口 15
3级 工时较长、难度较大、熟练操作需要较长时间 合肩缝 40
4级 工时极长、难度极大、熟练操作需要很长时间 绱袖 51

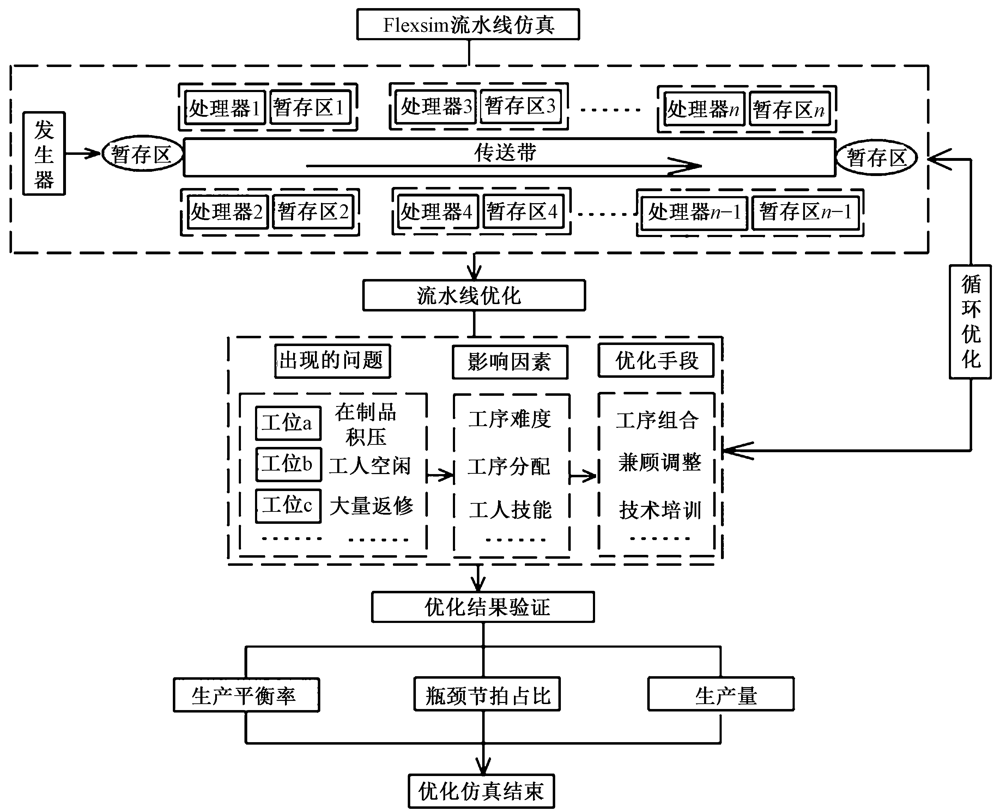

Fig.3

One-piece flow garment assembly line Flexsim model of T-shirt"

Tab.2

Process and station distribution"

工位编号 工序编号 工人数 工时/s 设备名称
1、8、11、13 1 43 蒸汽熨斗
2 1 33 平缝机
3 1 40 蒸汽熨斗
4 1 38 平缝机
5、7 1 46 四线包缝机
6 1 36 四线包缝机
9、15 1 40 绷缝机
10 1 51 四线包缝机
12、14 1 47 平缝机
16、17、18 1 45 锁眼机、钉扣机
? 19 1 36 吸风烫台
合计 11 455

Tab.3

Optimized process allocation"

工位
编号
设备名称 工时/s PL
差值/s
兼顾
工位
兼顾后与
PL差值/s
蒸汽熨斗 43 2 0
平缝机 33 -8 0
蒸汽熨斗 40 -1 0
平缝机 38 -3 0
四线包缝机 46 5 0
四线包缝机 36 -5 0
绷缝机 40 -1 0
四线包缝机 51 10 2
平缝机 47 6 2
手工、锁眼机、钉扣机 45 4 0
? 吸风烫台 36 -5 ①、⑩ 0

Tab.4

Optimized daily production"

时间/d 日产量/件 累计产量/件
1 669 669
2 669 1 338
3 670 2 008
4 669 2 677
5 669 3 346
6 669 4 015
7 669 4 684

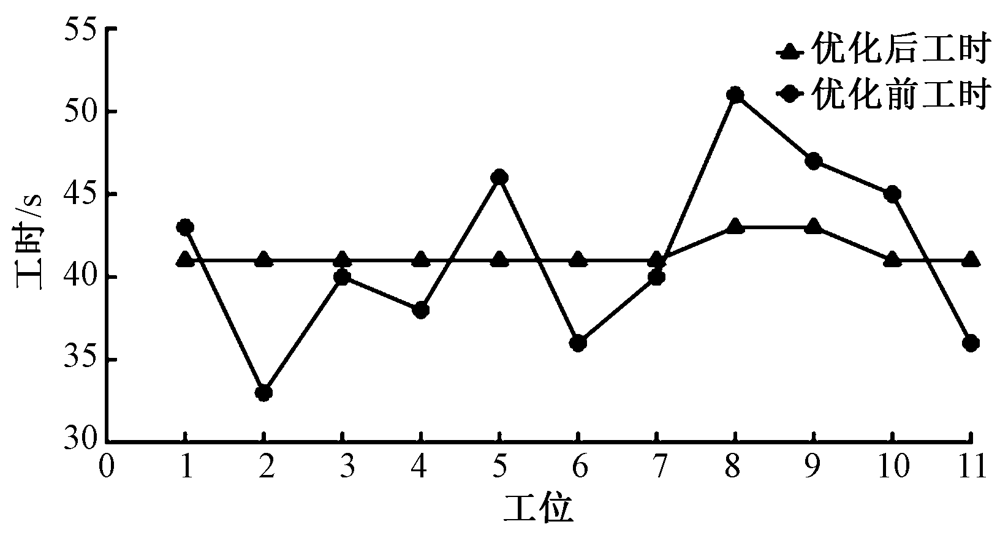

Fig.4

Comparison before and after optimization"

[1] 陈国强. 现代生活方式下女性居家针织服装设计研究[J]. 针织工业, 2014(12):51-53.
CHEN Guoqiang. Study on the design of women's home knitted garments under modern lifestyle[J]. Knitting Industies, 2014(12):51-53.
[2] 许丽丽. 内衣生产流水线编排及优化研究[D]. 苏州:苏州大学, 2015:8-10.
XU Lili. Study on the underwear production line layout and optimization[D]. Suzhou: Soochow University, 2015:8-10.
[3] 李克兢, 崔世忠. 模块化服装快速生产设计系统的开发[J]. 纺织学报, 2006,27(1):50-53.
LI Kejing, CUI Shizhong. Development of modular design and manufacture of apparel[J]. Journal of Textile Research, 2006,27(1):50-53.
[4] 韩少杰. 西服生产流水线作业平衡及数字化管理研究[D]. 上海:东华大学, 2010:24-34.
HAN Shaojie. Research on suit production lines operating balance and digital management[D]. Shanghai:Donghua University, 2010:24-34.
[5] 王东云, 刘惠琴, 胡洛燕, 等. 基于遗传算法服装缝纫调度技术的研究[J]. 纺织学报, 2003,24(5):52-54.
WANG Dongyun, LIU Huiqin, HU Luoyan, et al. Research on garment sewing scheduling technology based on genetic algorithm[J]. Journal of Textile Research, 2003,24(5):52-54.
[6] 江小云. 基于精益生产的T恤缝制流水线再造[J]. 现代丝绸科学与技术, 2010(2):19-21.
JIANG Xiaoyun. Reengineering of T-shirt sewing line based on lean production[J]. Modern Silk Science and Technology, 2010(2):19-21.
[7] 毛莉莉. 针织服装结构与工艺设计[M]. 北京: 中国纺织出版社, 2006:315.
MAO Lili. Knitted garments structure and process design[M]. Beijing: China Textile & Apparel Press, 2006:315.
[8] 宋莹. IE量化类方法下服装生产线平衡的研判[J]. 服装学报, 2017,2(3):209.
SONG Ying. IE quantitative method under clothing and to balance the production line[J]. Journal of Clothing Research, 2017,2(3):209.
[9] 宋莹, 滕洪军. 精益生产在服装流水线中的应用[J]. 天津纺织科技, 2018,56(4):22-25.
SONG Ying, TENG Hongjun. Application of lean production theory in garment pipeline modeling[J]. Tianjin Textile Science&Technology, 2018,56(4):22-25.
[10] 孙影慧, 杜劲松. 服装单件流水线的Flexsim仿真[J]. 纺织学报, 2018,39(6):155-161.
SUN Yinghui, DU Jinsong. Simulation of one-piece flow garment assembly line on Flexsim software[J]. Journal of Textile Research, 2018,39(6):155-161.
doi: 10.1177/004051756903900205
