Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (06): 158-164.doi: 10.13475/j.fzxb.20190204507

• Academic Salon Column for New Insight of Textile Science and Technology: Technology on Textiles for Safety and Protection • Previous Articles     Next Articles

Trend of research in textile-based protective materials against ballistic and stabbing

CHEN Xiaogang()

  1. School of Materials, The University of Manchester, Manchester, UK M199PL
  • Received:2019-02-25 Revised:2019-03-20 Online:2019-06-15 Published:2019-06-25

RichHTML

0

PDF (PC)

202

Abstract:

Textile-based protective materials against ballistic and stabbing impact have drawn tremendous attention due to their high performance, lightweight and wearability. This paper reviews and discusses the performance of ballistic materials in relation to the inter-yarn friction within a constituent ballistic fabric, and quasi-isotropic design and hybrid design of the ballistic panels, the use of 3-D textile structures, and the incorporation of the shear thickening fluid. High strength, high modulus and the derived high impact energy absorption of aramid fibres and ultra high molecular weight polyethylene fibres made them the main types of raw materials for the protective equipment. Woven fabrics, featured by perpendicular interlacement between warp and weft yarns, remain to be main structure used for impact protection, with much attention focusing on efficiency of fibre strength utilization and on the stress propagation between warp and weft yarns. Quasi-isotropic and hybrid designs have been proven to be effective for protection enhancement. Various types of 3-D textiles and their composites are used to improve the protection performance because of the structural integrity. Use of non-Newtonian fluid has shown to lead to improved stabbing properties.

Key words: textile based ballistic materials, inter-yarn friction, quasi-isotropic and hybrid design, 3-D textile structure, non-Newtonian fluid

CLC Number:

  • TS941

Tab.1

Major mechanical properties of fibers"

纤维类别 密度/
(g·cm-3)		 强度/
(N·tex-1)		 弹性模量/
(N·tex-1)		 伸长
率/%
Kevlar?? 29 1.44 2.0 49 3.8
Kevlar?? 49 1.44 2.1 78 2.4
Kevlar?? 149 1.44 1.7 115 1.3
Twaron?? 1.44 1.7 60 3.6
Twaron?? HM 1.44 2.1 75 2.5
Twaron?? HT 1.44 2.4 85 3.3
Dyneema?? SK60 0.97 2.8 91 3.5
Dyneema?? SK65 0.97 3.1 97 3.6
Dyneema?? SK71 0.97 3.5 122 3.7
Dyneema?? SK75 0.97 3.5 110 3.8
Dyneema?? SK76 0.97 3.7 120 3.8
Spectra?? 900 0.97 2.6 75 3.6
Spectra?? 1000 0.97 3.2 110 3.3
Spectra?? 2000 0.97 3.4 120 2.9

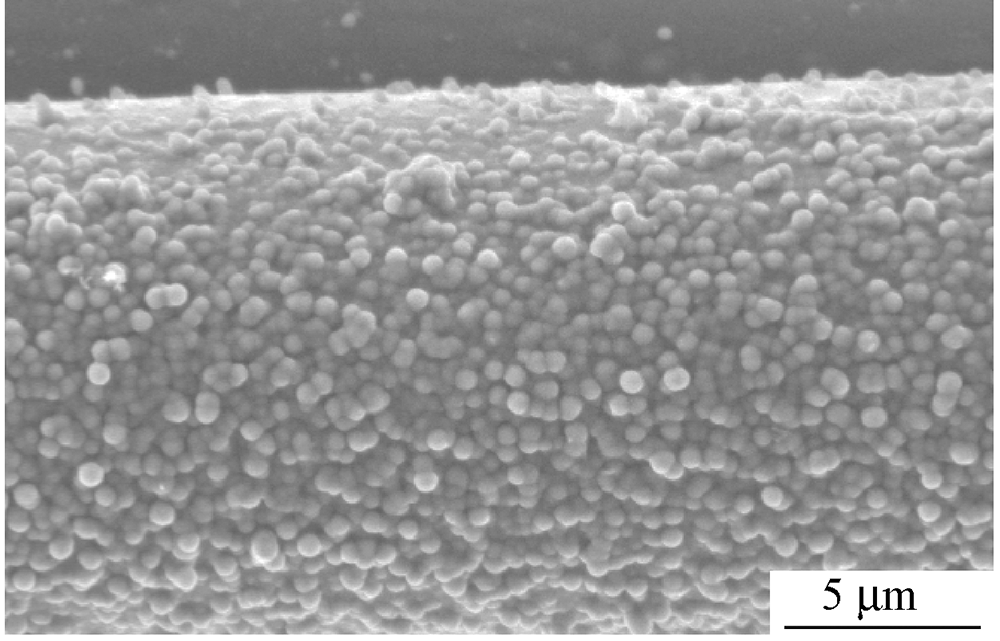

Fig.1

Aramid fibre surface treated by chemical deposition"

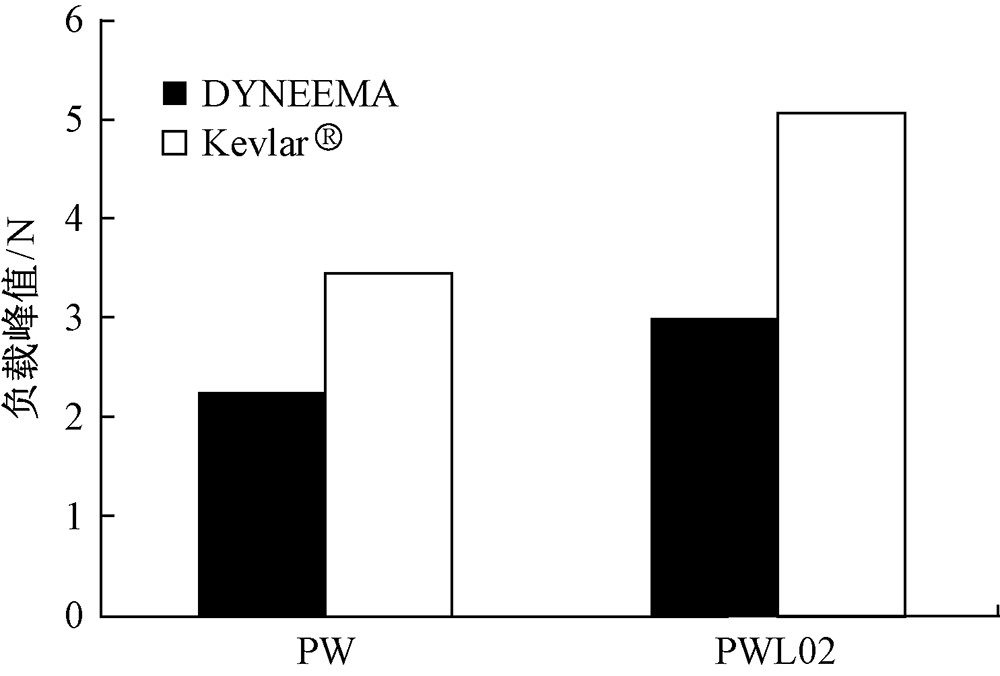

Fig.2

Influence of leno insertion on yarn pull-out force"

Fig.3

Energy adsorption of angled and aligned panels"

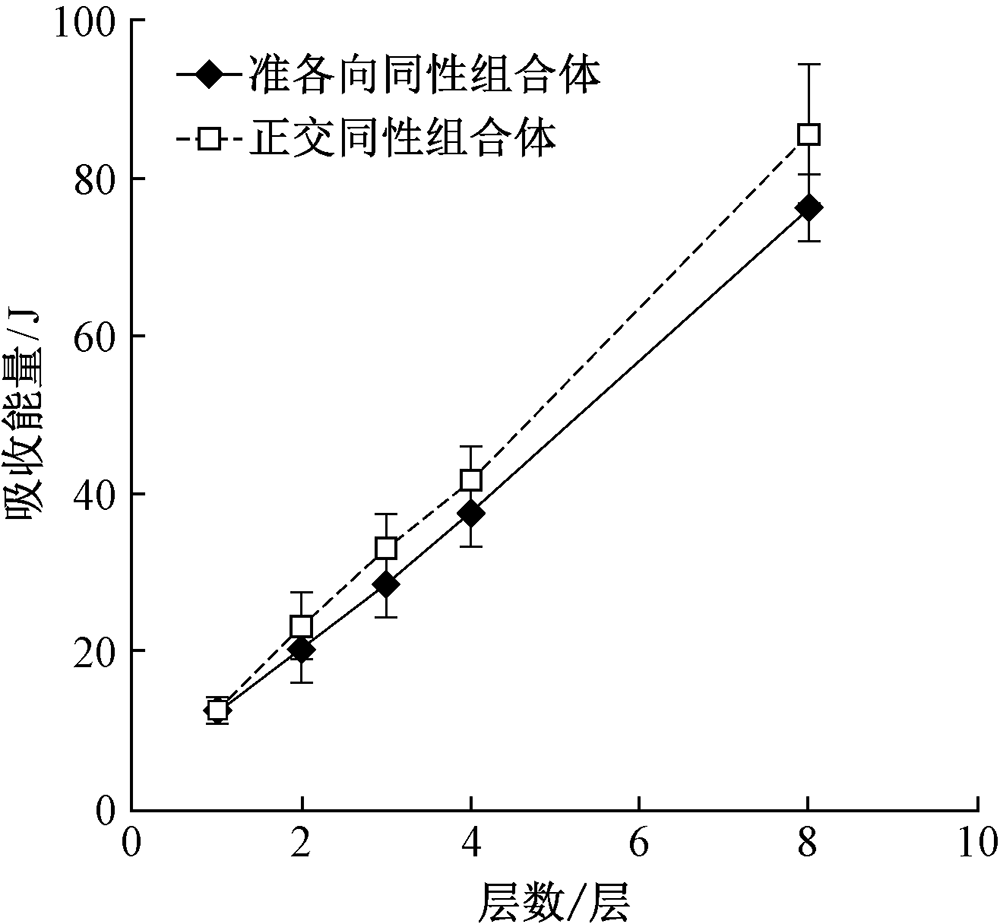

Fig.4

Advantage comparison for quasi-isotropic and orthogonal assemblies"

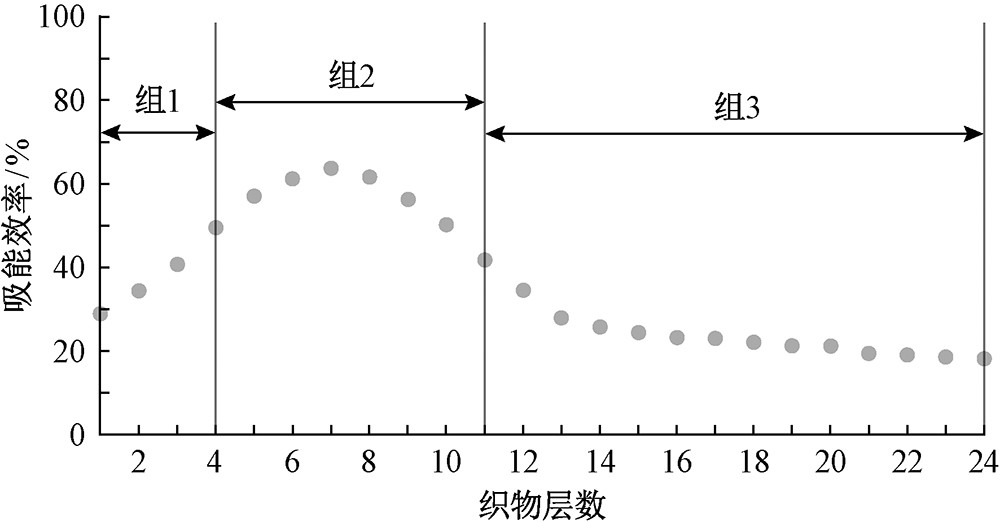

Fig.5

Energy absorption efficiency of fabric layers in a ballistic panel"

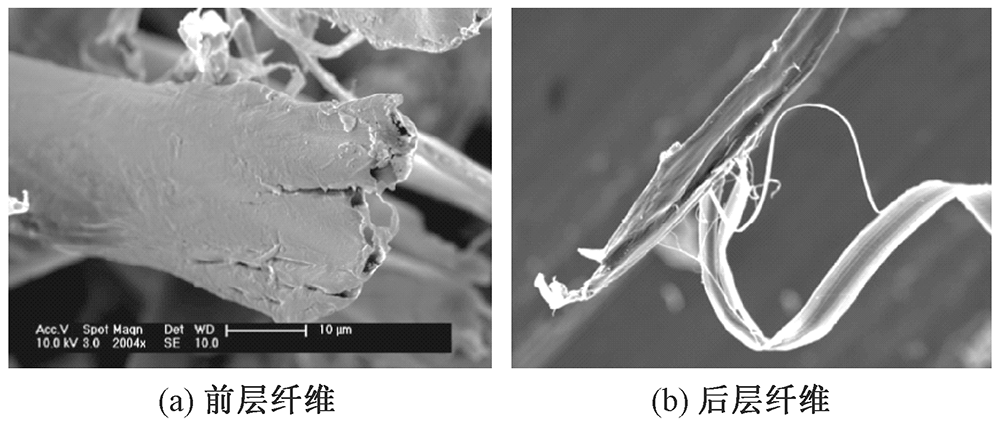

Fig.6

Failure modes of fibers in a ballistic panel. (a) Fiber from front layer;(b) Fiber from rear layer"

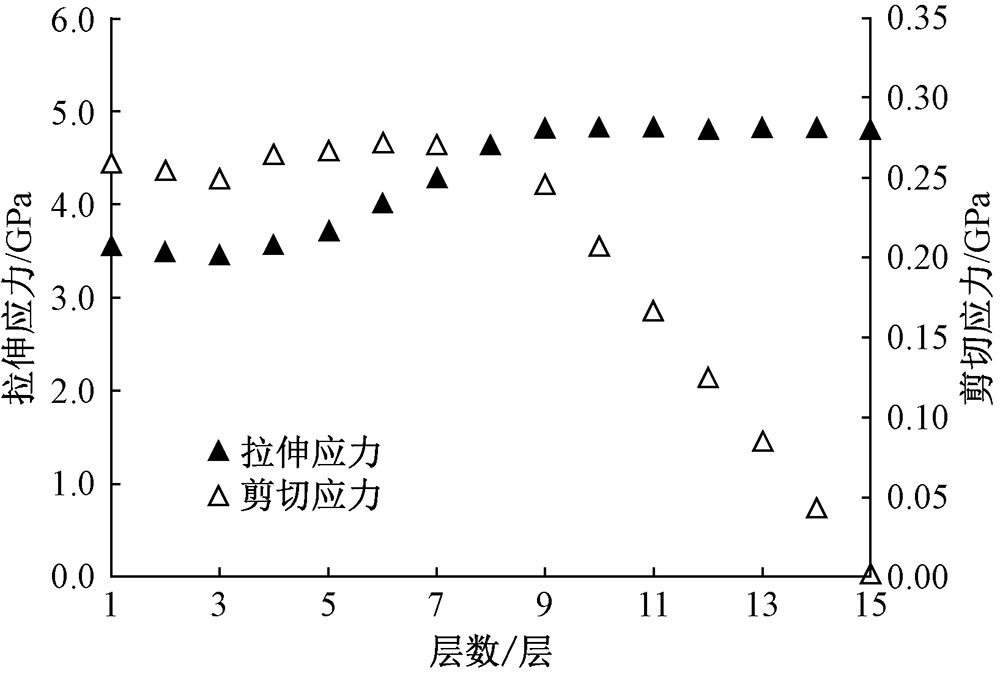

Fig.7

Stress distribution in thickness direction of a ballistic panel"

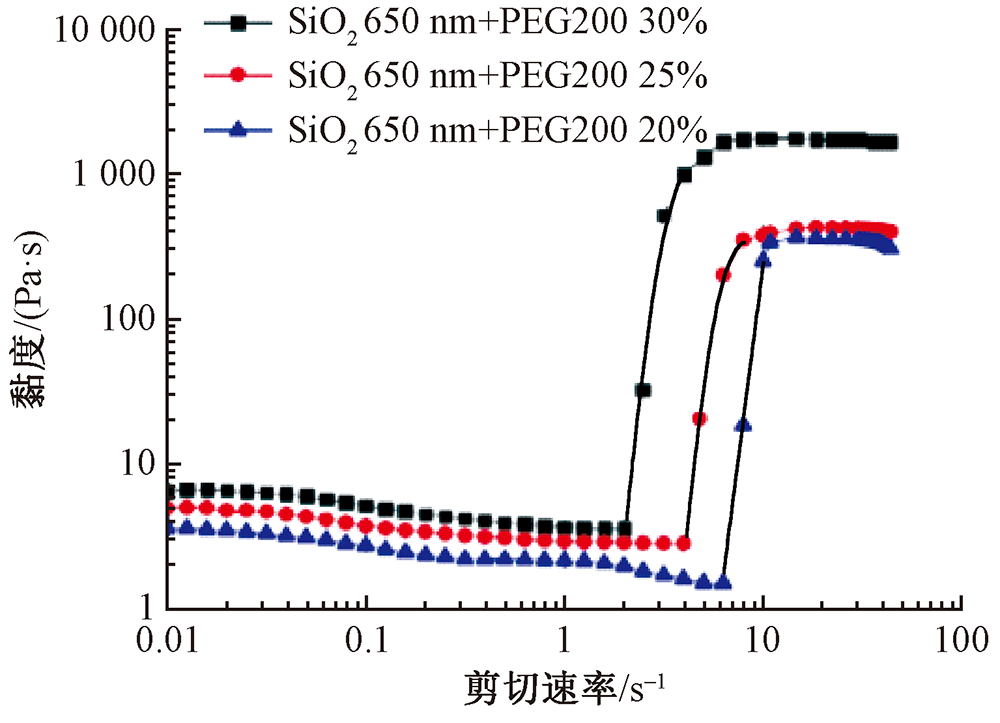

Fig.8

Shear rate and viscosity of STF"

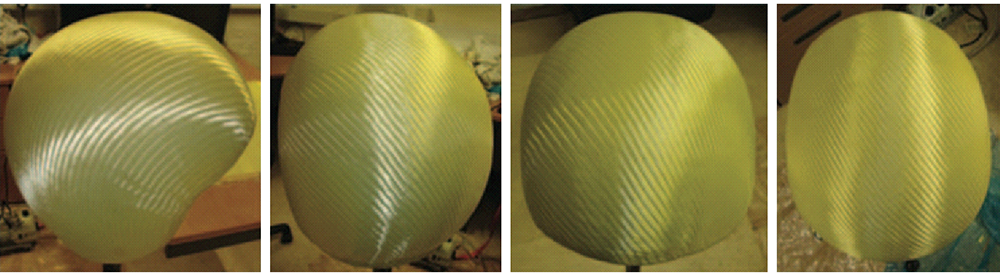

Fig.9

Continuous enhanced helmets by Air Bagging method"

[1] CHEN X, CHAUDHRY I. Ballistic Protection[C]// SCOTT R A. Textiles for Protection. Cambridge: Woodhead Publishing Ltd, 2005: 829-832.
[2] CAROTHERS J P. Body armour: a historical perspective [EB/OL]. USMC CSC 1988. https://www.globalsecurity.org/military/library/report/1988/CJ2.htm.
[3] SCOTT R A. Military Protection[M] // SCOTT R A. Textiles for Protection, Cambridge: Woodhead Publishing Ltd, 2005: 605-606.
[4] NIJ Standard-0101.06, US. Department of Justice, Office of Justice Programs [EB/OL]. (2018-12-06) [2018-12-06]. https://www.ncjrs.gov/pdffiles1/nij/223054.pdf.
[5] Home Office Body Armour Standard 2017(UK CAST publication number: 012/17). Home Office, UK [EB/OL]. [2018-12-22]. http://pod-cast.homeoffice.gov.uk.
[6] CHEN X. Advanced Fibrious Composite Materials for Ballistic Protection[M]. Amsterdam: Elsevier, 2016: 4.
[7] YAZDI M M, SHEIKHZADEH M. Personal cooling garments: a review[J]. The Journal of the Textile Institute, 2014,105:1231-1250.
[8] ROYLANCE D, WANG S. Influence of fibre properties on ballistic penetration of textile panels[J]. Fibre Science and Technology, 1981,14:183-190.
[9] WANG Y, CHEN X, YOUNG R, et al. A numerical and experimental analysis of the influence of crimp on ballistic impact response of woven fabrics[J]. Composite Structures, 2016(140):44-52.
[10] BRISCOE B J, MOTAMEDI F. The ballistic impact characteristics of aramid fabrics: the influence of interface friction[J]. Wear, 1992,158:229-247.
[11] SUN D, CHEN X. Plasma modification of Kevlar fabrics for ballistic applications[J]. Textile Research Journal, 2012,82:1928-1934.
[12] WANG Y, CHEN X, YOUNG R, et al. Finite element analysis of effect of inter-yarn friction on ballistic response of woven fabrics[J]. Composite Structures, 2016(130):8-16.
[13] ZENG Z, LIU X, CHEN X, et al. Surface modification of aramid fibres with graphene oxide for interface improvement in composites[J]. Applied Composite Materials, 2018,25:853-852.
[14] CHU Y, CHEN X, WANG Q, et al. An investigation on sol-gel treatment to aramid yarn to increase inter-yarn friction[J]. Applied Surface Science, 2014(320):710-717.
[15] ZHOU Y, CHEN X, WELLS G. Influence of yarn gripping on the ballistic performance of woven fabrics from ultra-high molecular weight polyethylene fibre[J]. Composites: part B, 2014,62:198-204.
[16] WANG N. The effect of yarn gripping on fabric ballistic performance[D]. Manchester: University of Manchester, 2017: 3-21.
[17] GOWER H L, CRONIN D S, PLUMTREE A. Ballistic impact of laminated composite panels[J]. International Journal of Impact Engineering, 2008,35:1000-1008.
[18] WANG Y, CHEN X, YOUNG R, et al. An experimental study of the effect of ply orientation on ballistic impact performance of multi-ply fabric panels[J]. Textile Research Journal, 2014,86:34-43.
[19] MIN S, CHU Y, CHEN X. Numerical study on mechanisms of angle-plied panels for ballistic protec-tion[J]. Materials and Design, 2016,90:896-905.
[20] YANG Y, CHEN X. Investigation on energy absorption efficiency of each layer in ballistic armour panel for applications in hybrid design[J]. Composite Structures, 2017 (164):1-9.
[21] CHEN X, ZHU F, WELLS G. An analytical model for ballistic impact on textile based body armour[J]. Composites Part B, 2013(45):1508-1514.
[22] ZHOU Y, CHEN X, WELLS G. Numerical and experimental investigations into ballistic performance of hybrid fabric panels[J]. Composites Part B, 2014(58):35-42.
[23] YANG Y, CHEN X. Investigation of failure modes and influence on ballistic performance of ultra-high molecular weight polyethylene (UHMWPE) uni-directional laminate for hybrid design[J]. Composite Structures, 2017(174):233-243.
[24] GU B. Modelling of 3D woven fabrics for ballistic protection[C]// CHEN X. Advanced Fibrous Composite Materials for Ballistic Protection. Amsterdam: Elsevier, 2016: 145-197.
[25] ZENG H, YUAN Z, QIU J, et al. Finite element study on the influence of structural parameters on the ballistic performance of 3D networked fabrics[J]. Applied Composite Materials, 2018,25:891-903.
[26] ARORA S, MAJUMDAR A, BUTOLA B S. Structure induced effectiveness of shear thickening fluid for modulating impact resistance of UHMWPE fabrics[J]. Composite Structures, 2019(210):41-48.
[27] XU Y, CHEN X, WANG Y, et al. Stabbing resistance of body armour panels impregnated with shear thickening fluid[J]. Composite Structures, 2017(163):465-473.
[28] BUESGEN A. Shell three-dimensional woven textiles[C]// CHEN X. Advances in 3D Textiles. Amsterdam: Elsevier, 2016: 79-98.
[29] ROEDEL C, CHEN X. Innovation and analysis of police riot helmets with continuous textile reinforcement for improved protection[J]. Journal of Information and Computing Science, 2007(2):127-136.
[30] MIN S, CHEN X, CHAI Y, et al. Effect of reinforcement continuity on the ballistic performance of composites reinforced with multiply plain weave fabrics[J]. Composites Part B, 2016(90):30-36.
[31] YANG D, CHEN X. Multi-layer pattern creation for seamless front body armour panel using angle-interlock woven fabrics[J]. Journal of Industrial Textiles, 2017(87):381-386.
[32] ZAHID B, CHEN X. Impact performance of single piece continuously textile-reinforced helmet shells[J]. Journal of Composite Materials, 2014,48:761-766.
