Journal of Textile Research ›› 2021, Vol. 42 ›› Issue (04): 162-169.doi: 10.13475/j.fzxb.20200705308

• Machinery & Accessories • Previous Articles     Next Articles

Control technology for spandex yarn delivery in weft knitting

PENG Laihu1, LUO Chang1, NIU Chong2(), LÜ Yongfa3, HU Xudong1, DAI Ning1

  1. 1. Key Laboratory of Modern Textile Machinery & Technology of Zhejiang Province, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Hangzhou Xuren Automation Co., Ltd., Hangzhou, Zhejiang 310018, China
    3. Zhejiang Rifa Textile Machinery Technology Co., Ltd., Xinchang, Zhejiang 312500, China
  • Received:2020-07-21 Revised:2020-12-11 Online:2021-04-15 Published:2021-04-20
  • Contact: NIU Chong E-mail:614519168@qq.com

RichHTML

15

PDF (PC)

199

Abstract:

The amount of spandex yarn delivery is difficult to adjust and control in weft knitting process because of its low modulus, high elasticity and high recovery rate. The fast response positive yarn feeder was used as the drive for yarn delivery. Analog control signal output was achieved using the pulse width modulation (PWM) with adjustable duty cycle. The high performance advanced RISC machines (ARM) processor was used as the control core, and the position and speed double closed loop mode was adopted. The real-time controller of the spandex yarn was designed to achieve the dynamic adjustment and constant tension delivery. The process requirements of spandex delivery were studied, and hardware design and software development of the yarn feeding controller were addressed. The synchronization scheme between the yarn dilivery controller and the whole machine control system was made. The experimental results show that the weft knitted fabrics produced with the new control scheme is even and tidy in circle, without dark stripes and with good elasticity, which verifies the feasibility of the spandex delivery control scheme.

Key words: positive yarn feeding, constant tension, spandex yarn, weft knitting, yarn dilivery control technology

CLC Number:

  • TS103.7

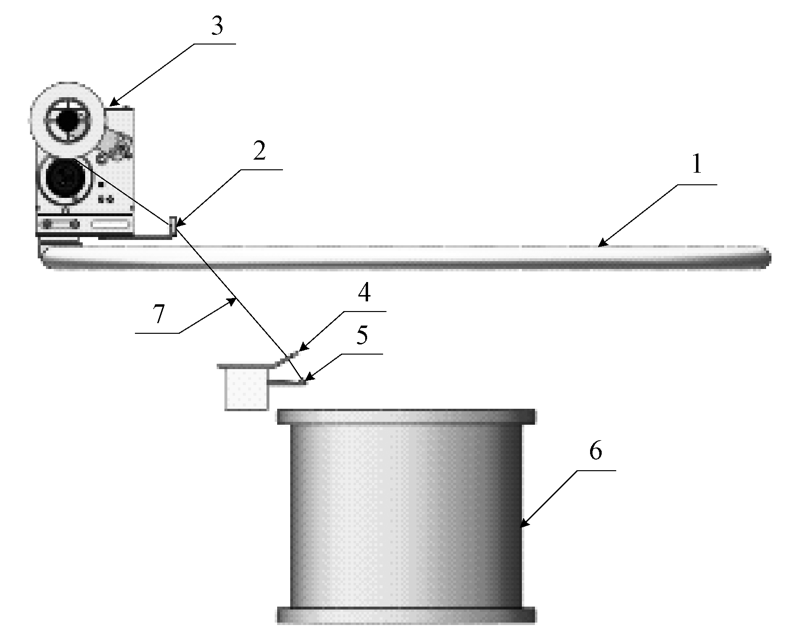

Fig.1

Spandex yarn dilivery process diagram"

Fig.2

Spandex yarn dilivery control technical solutions"

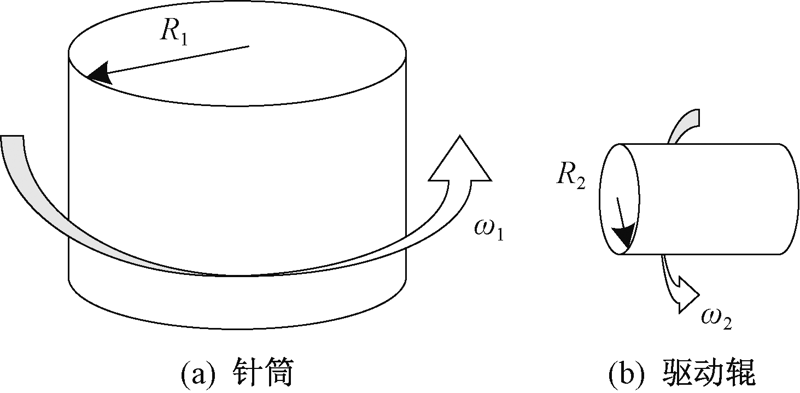

Fig.3

Syringe (a) and yarn delivery drive roller (b) schematic"

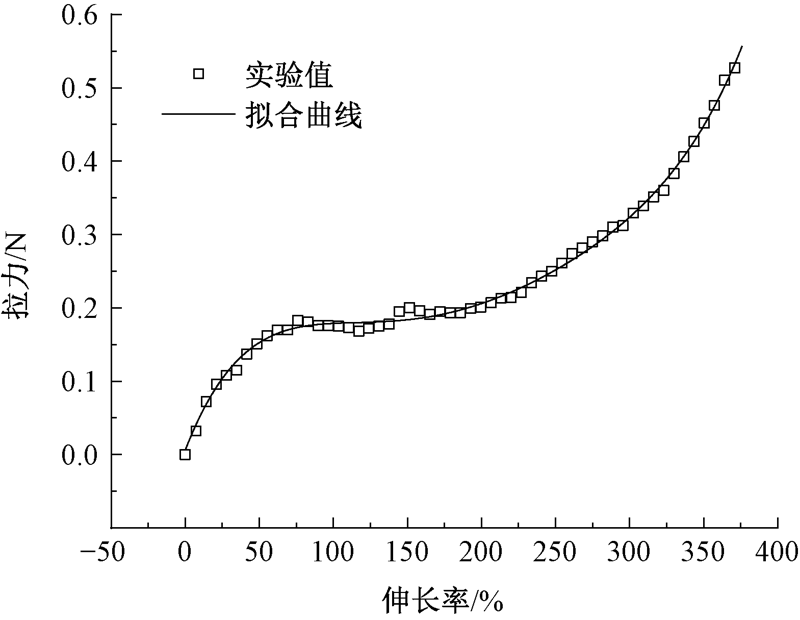

Fig.4

Stress-strain curve of spandex yarn"

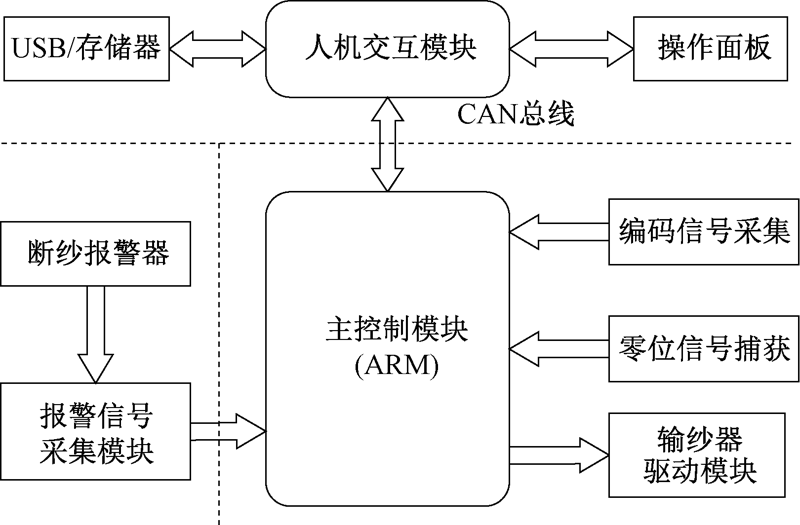

Fig.5

System hardware circuit overall block diagram"

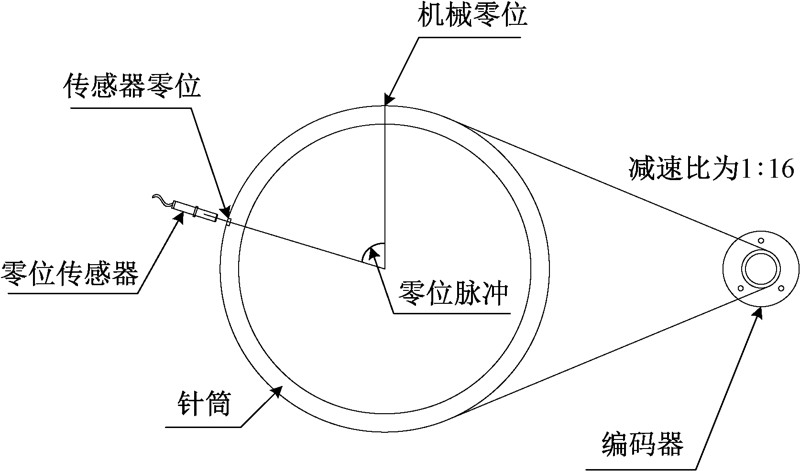

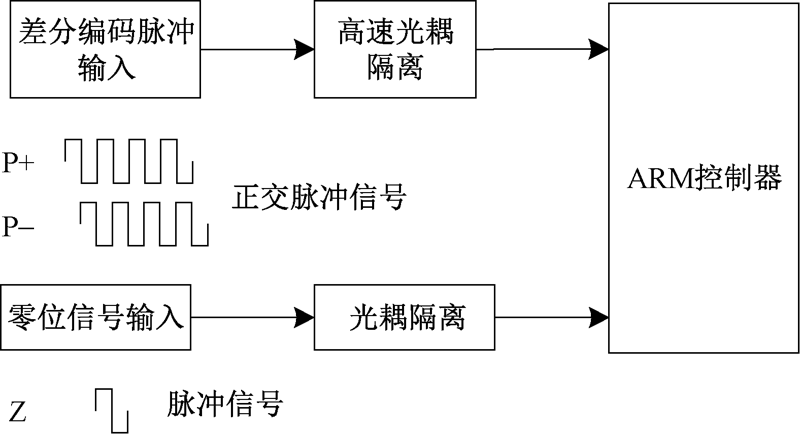

Fig.6

Schematic diagram of machine needle encode and zero signal detection"

Fig.7

Encoder and zero pulse acquisition circuit"

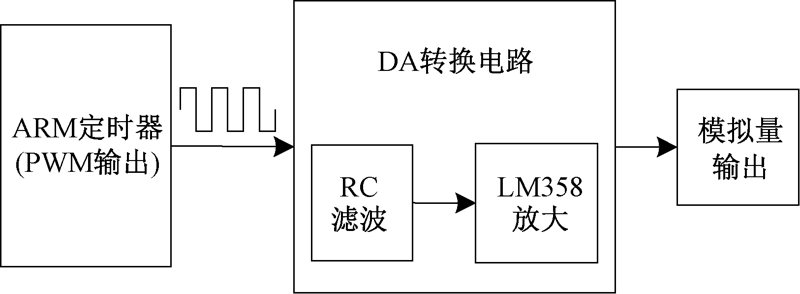

Fig.8

PWM voltage regulation output analog control signal"

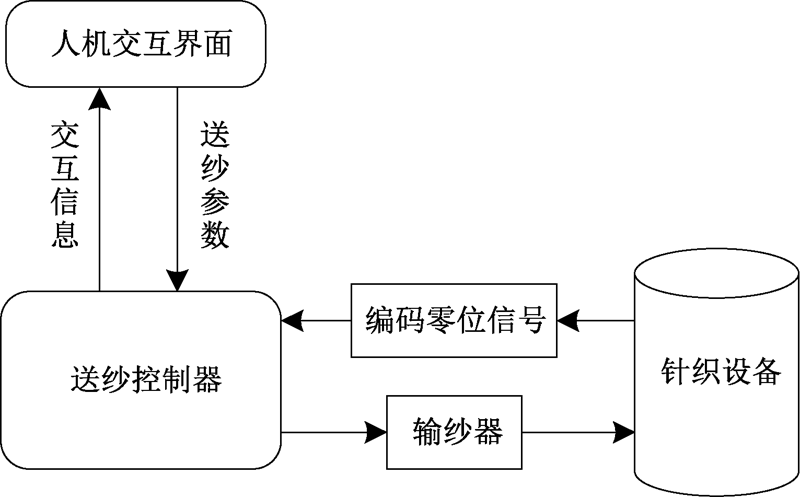

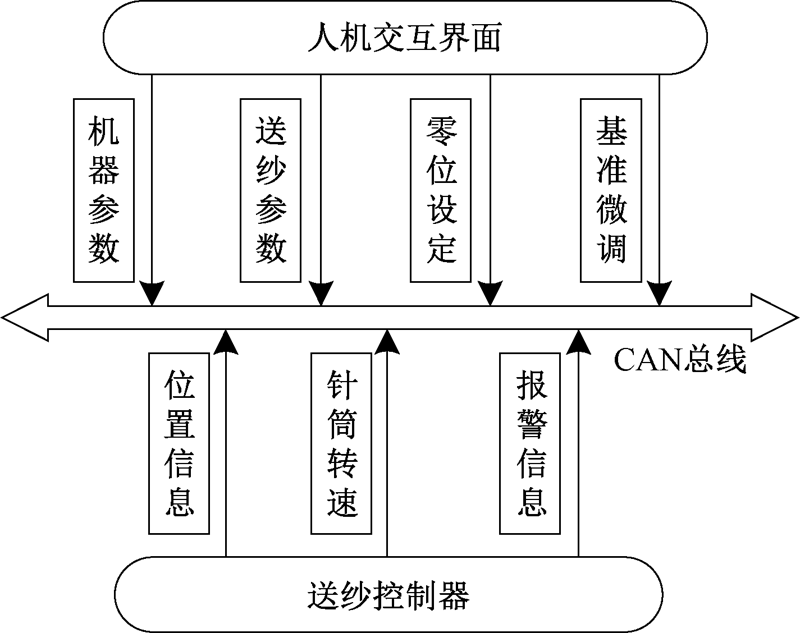

Fig.9

Schematic diagram of human-computer interaction with driver"

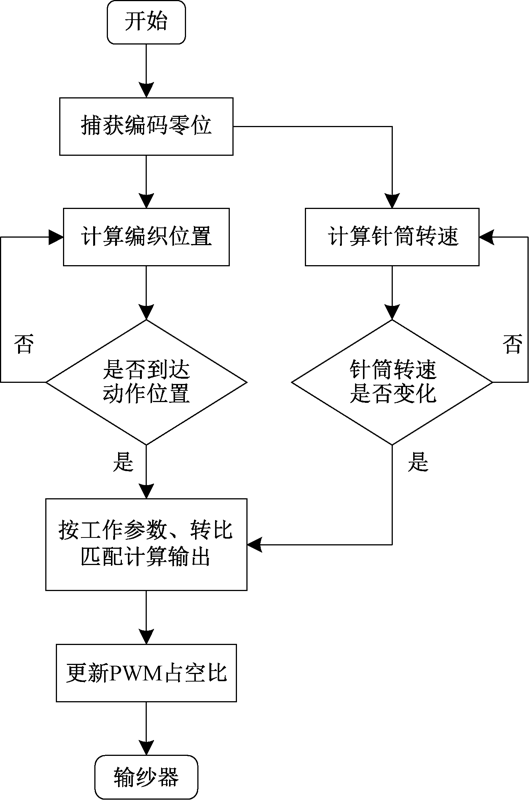

Fig.10

Spandex yarn dilivery regulation flow chart"

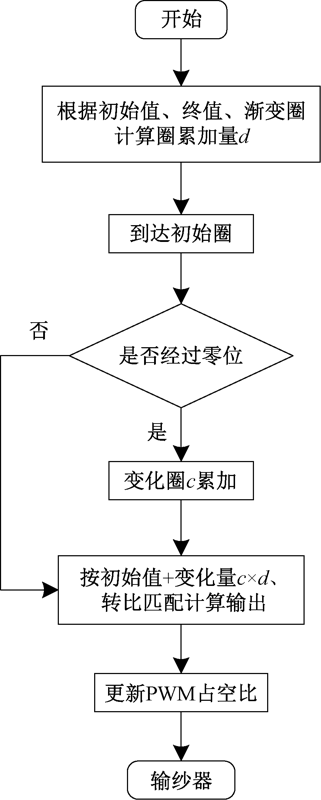

Fig.11

Spandex yarn dilivery gradient adjustment process"

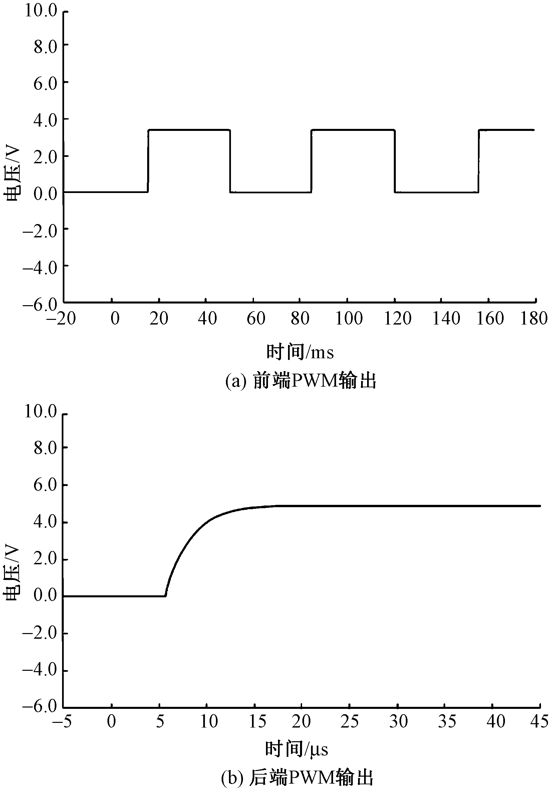

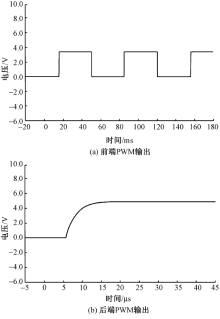

Fig.12

PWM voltage regulation output front and rear waveforms. (a) Front-end PWM output; (b) Back-end PWM output"

Fig.13

Fabric loop parameter measurement diagram. (a) Fabric front loop;(b) Fabric reverse loop"

Tab.1

Measurement data of fabric sample loop parameters"

试样编号 圈距/μm 圈高/μm 标准差/μm
1 388.36 516.04 5.01
2 385.89 523.28 4.23
3 388.31 516.07 3.81
4 385.83 513.63 5.22
5 381.01 528.11 3.25
6 388.31 525.69 5.49
7 390.65 522.45 6.02
8 393.06 511.49 4.91
9 381.00 523.76 3.89
10 388.33 519.28 5.11
[1] 刘旖娜. 氨纶和非氨纶机织物的拉伸弹性研究[D]. 杭州:浙江理工大学, 2015: 41-45.
LIU Yina. Researched on elasticity of woven fabrics with and without spandex[D]. Hangzhou: Zhejiang Sci-Tech University, 2015: 41-45.
[2] 周文胜. 动态纱线张力系统的电机控制研究[D]. 西安:西安工程大学, 2016: 15-18.
ZHOU Wensheng. The study of motor control on dynamic yarn tension system[D]. Xi'an: Xi'an Polytechnic University, 2016: 15-18.
[3] 马海鹏. 针织圆纬机自动化和信息化关键技术研究[D]. 杭州:浙江理工大学, 2017: 17-18.
MA Haipeng. Research of the key technology of the automation and information of circular knitting machine[D]. Hangzhou: Zhejiang Sci-Tech University, 2017: 17-18.
[4] CHEN G F, ZHAI L L, ZOU K, et al. Design of CAN-Bus based yarn feeding control system for carpet tufting machine[J]. Advanced Materials Research, 2012,459:275-279.
[5] KOVAR R. Intelligent yarn delivery systems in weft knitting-science direct[J]. Advances in Knitting Technology, 2011: 89-109.
[6] 包迪迪. 针织机恒张力输纱器的研究[D]. 杭州:中国计量学院, 2015: 19-20.
BAO Didi. Research of constant yarn feeder for knitting machine[D]. Hangzhou: China Jiliang University, 2015: 19-20.
[7] 余超. 针织电脑提花大圆机张力调节输纱器的研究与设计[D]. 武汉:武汉纺织大学, 2011: 10-15.
YU Chao. A study on tension-adjusting yarn feeding device of computerized jacquard circular knitting machine[D]. Wuhan: Wuhan Textile University, 2011: 10-15.
[8] 张华. 纬编针织机编织动力学分析及控制策略研究[D]. 杭州:浙江理工大学, 2013: 40-51.
ZHANG Hua. Dynamic analysis of knitting process and its control strategy study of weft knitting machine[D]. Hangzhou: Zhejiang Sci-Tech University, 2013: 40-51.
[9] 高守武. 单面氨纶针织物弹性回复率与送纱量关系的探讨[J]. 上海纺织科技, 2003,31(4):32.
GAO Shouwu. A study on the relation between the elastic recovery rate and yarn feeding of spandex single knitted fabric[J]. Shanghai Textile Science & Technology, 2013,31(4):32.
[10] 翟亚超. 无缝内衣织物拉伸与弹性回复性能研究[D]. 上海:东华大学, 2015: 20-24.
ZHAI Yachao. Investigation on tensile and elastic recovery properties of seamless underwear[D]. Shanghai: Donghua University, 2015: 20-24.
[11] 高守武, 韩光亭. 横机氨纶积极送纱技术的研究[J]. 针织工业, 2002(2):41-42.
GAO Shouwu, HAN Guangting. Research on the active yarn feeding technology of horizontal spandex[J]. Knitting Industries, 2002(2):41-42.
[12] 戴宁, 彭来湖, 胡旭东, 等. 圆纬机主动式动态送纱控制技术[J]. 纺织学报, 2018,39(9):153-159.
DAI Ning, PENG Laihu, HU Xudong, et al. Control technology for active dynamical yarn feeding for circular weft knitting machine[J]. Journal of Textile Research, 2018,39(9):153-159.
