Tensile properties of 3-D woven composites with holes

SUN Xiaolun1,2, CHEN Li1,2, ZHANG Yifan1,2(), LI Mohan1,2

  1. 1. Key Laboratory of Advanced Textile Composite Materials, Ministry of Education, Tiangong University, Tianjin 300387, China
    2. College of Textile Science and Engineering, Tiangong University, Tianjin 300387, China
  • Received:2021-05-21 Revised:2021-12-15 Online:2022-08-15 Published:2022-08-24
  • Contact: ZHANG Yifan E-mail:zhangyifan@tiangong.edu.cn

RichHTML

16

PDF (PC)

88

Abstract:

In order to investigate the effect of aperture on the tensile mechanical behavior, damage mode and failure mechanism of three-dimensional(3-D)woven composites with holes, three types of 3-D woven composite samples with different hole apertures were designed and digital image correlation system and micro-image technique were used for characterization. The results showed that the dimension of holes had little effect on the tensile modulus of 3-D woven composites, but the tensile strengths of the cross section of notched specimens with 6 mm, 10 mm and 14 mm holes decreased by 35.6％, 44.5％ and 51.8％ respectively. Their tensile strengths of the net section however were almost the same, and the average tensile strength decreased by approximately 22.4％ compared with the unnotched samples. The strain distributions of the unnotched specimen were uniform, while the strains of the notched specimens were mainly located at the left and right sides of the open holes. The fracture morphologies of the three notched samples were similar, and the main damage modes were the warp fracture along with fiber pull-out and interlaminar cracking.

Key words: three-dimensional woven composite, open hole, tensile property, aperture, stress concentration, failure mechanism

CLC Number:

  • TB332

Tab.1

Performance parameters of carbon fiber"

材料 密度/
(g·cm–3)		 线密
度/tex		 拉伸强
度/MPa		 弹性模
量/GPa		 上浆
率/％
TG800HX–12K 1.8 500 5 678 290.0 1.5
TG800HXC–6K 1.8 250 5 678 290.0 1.5
TDE–86 1.2 — 80 3.5 —

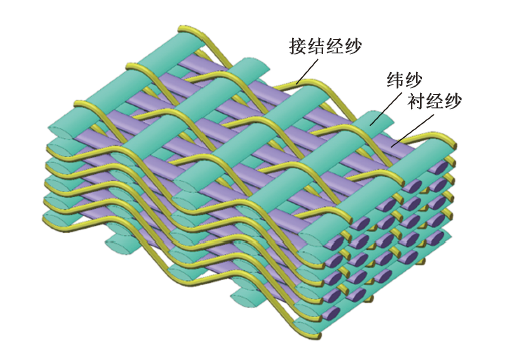

Fig.1

Sketch diagram of 3-D woven composites"

Tab.2

Parameter of woven fabrics and composites"

纱线
系统		 纱线
线密度/
tex		 织物密
度/
(根·cm–1)		 纱线
层数		 各纱线
纤维体
积含量/
％		 复合材
料厚度/
mm		 纤维
体积
含量/
％
纬纱 1 000 4 5 26.02
衬经纱 1 000 4 4 20.82 4.26 54.63
接结经纱 250 4 4 7.79

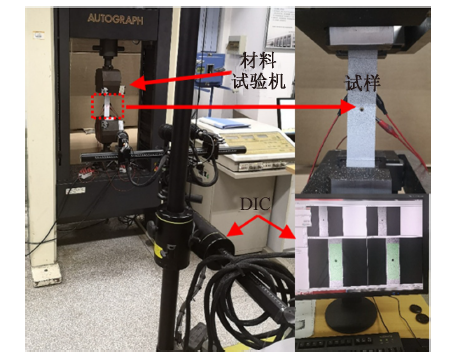

Fig.2

Tensile test process of 3-D woven composites with holes"

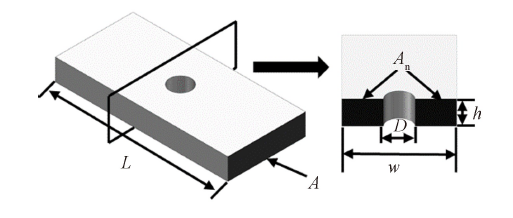

Fig.3

Cross section of open specimen"

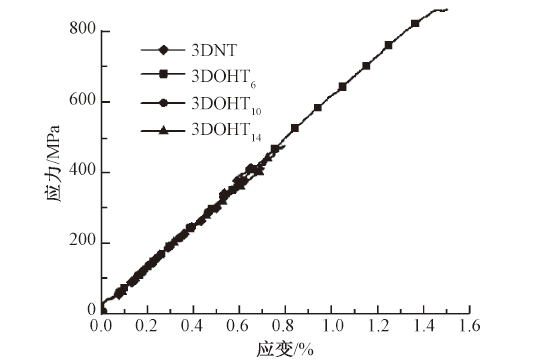

Fig.4

Stress-strain curves of tensile tests of 3-D woven composites"

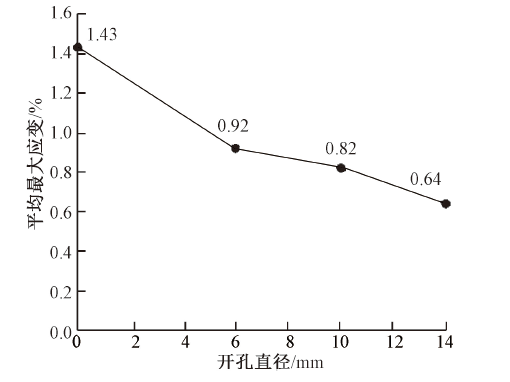

Fig.5

Maximum tensile strain of 3-D woven composites"

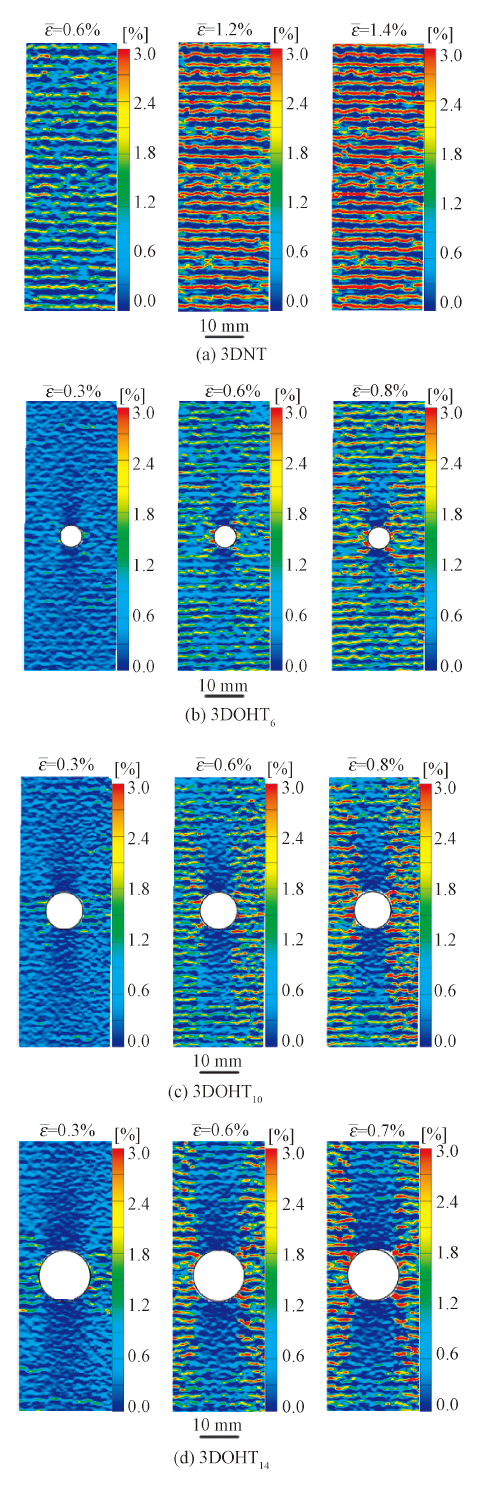

Fig.6

Tensile strain contours of 3-D woven composites"

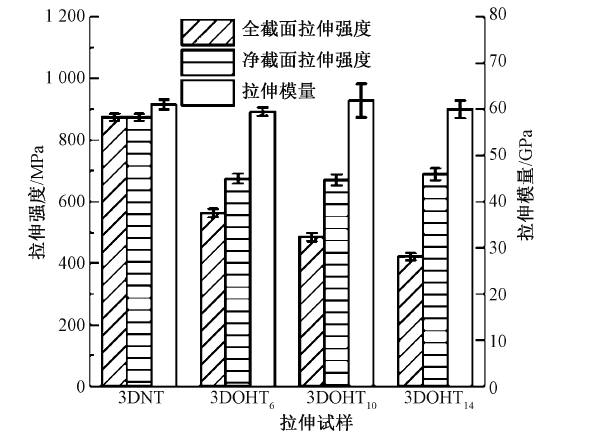

Fig.7

Tensile strength and tensile modulus of 3-D woven composites"

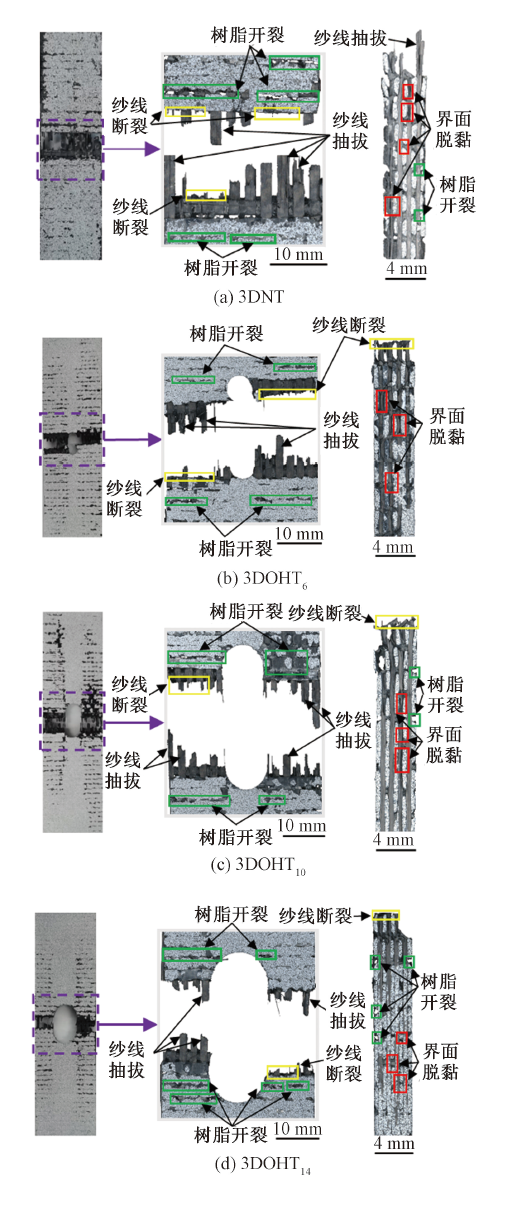

Fig.8

Fracture morphology of 3-D woven composites"

[1] 梁双强, 陈革, 周其洪. 开孔三维编织复合材料的压缩性能[J]. 纺织学报, 2020, 41(5):79-84.
LIANG Shuangqiang, CHEN Ge, ZHOU Qihong. Compression property of notched 3-D braided composites[J]. Journal of Textile Research, 2020, 41(5):79-84.
[2] 刘俊岭, 孙颖, 陈利. 含变异结构的三维机织复合材料的轴向拉伸性能[J]. 纺织学报, 2019, 40(12):162-168.
LIU Junling, SUN Ying, CHEN Li. Axial tensile properties of three-dimensional woven composites with variant structure[J]. Journal of Textile Research, 2019, 40(12):162-168.
[3] LI Zhonggui, LI Diansen, ZHU Hao, et al. Mechanical properties prediction of 3D angle-interlock woven composites by finite element modeling method[J]. Materials Today Communications, 2020. DOI: 10.1016/j.mtcomm.2019.100769.
doi: 10.1016/j.mtcomm.2019.100769
[4] GUO Qiwei, ZHANG Yifan, LI Diansen, et al. Experimental and numerical investigation of open-hole tensile properties and damage mechanisms of 3D woven composites under weft-loading[J]. Thin-Walled Structures, 2021. DOI: 10.1016/j.tws.2021.107455.
doi: 10.1016/j.tws.2021.107455
[5] ZHANG Yifan, GUO Qiwei, CHEN Xiaoming, et al. Effect of apertures on tensile property of warp-reinforce 2.5D woven composites notched plates[J]. Composite Structures, 2020. DOI: 10.1016/j.compstruct.2020.112693.
doi: 10.1016/j.compstruct.2020.112693
[6] CASTANIÉ B, CRÉZÉ S, BARRAU J J, et al. Experimental analysis of failures in filled hole compression tests of carbon/epoxy laminate[J]. Composite Structures, 2010, 92(5): 1192-1199.
doi: 10.1016/j.compstruct.2009.10.008
[7] SKET F, ENFEDAQUE A, DÍAZ LÓPEZ C, et al. X-ray computed tomography analysis of damage evolution in open hole carbon fiber-reinforced laminates subjected to in-plane shear[J]. Composites Science and Technology, 2016, 133: 40-50.
doi: 10.1016/j.compscitech.2016.06.012
[8] ALMEIDA J H S, BITTRICH L, SPICKENHEUER A. Improving the open-hole tension characteristics with variable-axial composite laminates: optimization, progressive damage modeling and experimental observations[J]. Composites Science and Technology, 2020. DOI: 10.1016/j.compscitech.2019.107889.
doi: 10.1016/j.compscitech.2019.107889
[9] 关志东, 黎增山, 刘德博, 等. 复合材料层板开孔压缩损伤分析[J]. 复合材料学报, 2012, 29(3):167-172.
GUAN Zhidong, LI Zengshan, LIU Debo, et al. Damage analysis of open-hole compression laminates[J]. Acta Materiae Compositae Sinica, 2012, 29(3): 167-172.
[10] 黎增山, 关志东, 何为, 等. 复合材料层板开孔拉伸损伤分析[J]. 复合材料学报, 2012, 29(1):169-175.
LI Zengshan, GUAN Zhidong, HE Wei, et al. Damage analysis of open-hole tension laminates[J]. Acta Materiae Compositae Sinica, 2012, 29(1): 169-175.
[11] 李汝鹏, 陈磊, 刘学术, 等. 基于渐进损伤理论的复合材料开孔拉伸失效分析[J]. 航空材料学报, 2018, 38(5): 138-146.
LI Rupeng, CHEN Lei, LIU Xueshu, et al. Progressive damage based failure analysis of open-hole composite laminates under tension[J]. Journal of Aeronautical Materials, 2018, 38(5):138-146.
[12] MA Zhaoyang, CHEN Jianlin, YANG Qingda, et al. Progressive fracture analysis of the open-hole composite laminates: experiment and simulation[J]. Composite Structures, 2021. DOI: 10.1016/j.compstruct.2021.113628.
doi: 10.1016/j.compstruct.2021.113628
[13] 王翔华, 成玲, 张一帆, 等. 三维机织复合材料板簧式起落架结构设计及其有限元分析[J]. 纺织学报, 2020, 41(3):68-77.
WANG Xianghua, CHENG Ling, ZHANG Yifan, et al. Structural design and finite element analysis of landing gear with leaf spring made of 3-D woven composite[J]. Journal of Textile Research, 2020, 41(3):68-77.
[14] LI Diansen, DUAN Hongwei, WANG Wei, et al. Strain rate and temperature effect on mechanical properties and failure of 3D needle-punched carbon/carbon composites under dynamic loading[J]. Composite Structures, 2017, 172: 229-241.
doi: 10.1016/j.compstruct.2016.11.082
[15] 檀江涛, 蒋高明, 高哲, 等. 抗低速冲击纺织复合材料头盔壳体研究进展[J]. 纺织学报, 2021, 42(8):185-193.
TAN Jiangtao, JIANG Gaoming, GAO Zhe, et al. Research progress of textile composite helmet shell against low-velocity impact[J]. Journal of Textile Research, 2021, 42(8):185-193.
[16] DAI S, CUNNINGHAM P R, MARSHALL S, et al. Open hole quasi-static and fatigue characterization of 3D woven composites[J]. Composite Structures, 2015, 131: 765-774.
doi: 10.1016/j.compstruct.2015.06.032
[17] 梁双强, 张成龙, 陈革, 等. 开孔三维编织复合材料强度预测及应力分析[J]. 西北工业大学学报, 2020, 38(4):889-896.
LIANG Shuangqiang, ZHANG Chenglong, CHEN Ge, et al. Open-hole 3D braided composites strength prediction and stress analysis[J]. Journal of Northwestern Polytechnical University, 2020, 38(4): 889-896.
doi: 10.1051/jnwpu/20203840889
[18] XU Fujun, SUN Lijun, ZHU Lvtao, et al. X-ray 3D microscopy analysis of fracture mechanisms for 3D orthogonal woven E-glass/epoxy composites with drilled and moulded-in holes[J]. Composites Part B: Engineering, 2018, 33: 193-202.
doi: 10.1016/S1359-8368(02)00009-4
[19] GUO Junhua, WEN Weidong, ZHANG Hongjian, et al. Influence of notch shape on the quasi-static tensile behavior of 2.5D woven composite structure[J]. Thin-Walled Structures, 2021. DOI: 10.1016/j.tws.2021.107944.
doi: 10.1016/j.tws.2021.107944
