Journal of Textile Research ›› 2024, Vol. 45 ›› Issue (02): 246-254.doi: 10.13475/j.fzxb.20231006201

• Machinery & Equipment • Previous Articles     Next Articles

Yarn tension signal processing method based on adaptive Loess principle

PENG Laihu1,2, HOU Liangmei1,2, QI Yubao1,2(), RU Xin1, LIU Jianting2

  1. 1. Zhejiang Key Laboratory of Modern Textile Equipment Technology, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Zhejiang Sci-Tech University, Longgang Research Institute Co., Ltd., Wenzhou, Zhejiang 325802, China
  • Received:2023-10-18 Revised:2023-11-13 Online:2024-02-15 Published:2024-03-29

Abstract:

Objective The objective of this research is to develop an adaptive Loess based data processing algorithm for mitigating noise interference in dynamic yarn tension signals. The study aims to address three types of noise, which are Singularity signal, low frequency coupling signals below 2.6 kHz, and high frequency interference signals above 2.6 kHz. By combining limit filtering, low pass filtering, and Loess smoothing techniques, the proposed algorithm seeks to achieve stability and accurate smoothing of yarn tension signals. The importance of this work lies in enhancing yarn tension stability, improving production efficiency, and preventing yarn defects, so as to provide a feasible solution for optimizing text systems and processes.

Method The research method employs an adaptive Loess data processing algorithm to address the noise interference in dynamic yarn tension signals. Three types of noise (abnormal hidden changes, low frequency coupling, and high frequency interference) are identified based on noise type, tension signal characteristics, and filtering methods. The proposed algorithm combined limit filtering, low pass filtering, and loess smoothing to achieve noise suppression and signal smoothing. An experimental platform was set up to validate the yarn tension measurement method, by comparing a yarn package, yarn feeder, tension sensor, hooks, and groove cylinder. Crochet hook mimics the work of a high-speed seamless lingerie machine with sensors for experimental data collection on yarns.

Results The method proposed in this article has achieved significant results in yarn tension measurement. The data was analyzed and the effectiveness of three different algorithms (SG, Adj, and Loess) was evaluated. The Loess algorithm was found most effective in achieving the smoothing of tension signals and the impact of response time. The effect of window width on tension signals was investigated experimentally, with a focus on the tension response time during signal processing. Window width appeared to be an important parameter in smoothing algorithms because it affects the trade-off between signal smoothness and response time. The response time of the loess algorithm increased with the increase of window width, and it was demonstrated that a wider window would lead to smoother signal, but with slower response to tension changes. By analyzing the inflection points, the optimal window width of the Loess algorithm was determined to be 120, where the signals achieved the highest smoothness while maintaining an acceptable response time.

In order to further evaluate the effectiveness of the Loess algorithm, the processed tension signal was compared with the original tension waveform. The Loess algorithm successfully filtered out noise interference while accurately representing the original tension waveform. The signal processing results were compared with the original data, and the signal to noise ratio (SNR) was calculated to evaluate the filtering effect. The adaptive Loess algorithm was proven to effectively smooth tension fluctuations, and in all three cases under consideration, the signal-to-noise ratio of yarn tension signals was improved by 25.014%, 27.661%, and 25.276%, respectively. The results showed that the Loess algorithm achieves the highest signal-to-noise ratio for all three types of tension signals, and it effectively reduces noise interference while maintaining the characteristics of the signal, providing a smoother tension waveform. Overall, the research results confirmed the practical feasibility of the proposed adaptive Loess weighted regression yarn tension optimization method. The Loess algorithm is believed to be the best choice for smoothing tension signals due to its excellent noise reduction performance and minimal impact on response time.

Conclusion Through this study, we have successfully explored the impact of yarn tension variation on textile quality and proposed a yarn tension signal optimization method based on Loess weighted regression. Experimental results demonstrate that the yarn tension signal after Loess processing outperforms other algorithms, achieving a higher signal-to-noise ratio (32.186 dB). This validates the feasibility of the method for real-time yarn tension measurement and control in practical working environments. This research holds significant practical implications for the textile industry. Accurate real-time yarn tension measurement contributes to improving textile quality stability and production efficiency. Moreover, by optimizing yarn tension signals, the negative impact of yarn tension on knitted fabric quality can be minimized, reducing the possibility of producing defective products. Future research can further apply this method to industrial knitting machines and integrate it with other advanced technologies to enhance the accuracy and stability of yarn tension measurement. Additionally, exploring deeper relationships between yarn tension signals and textile quality will help optimize production processes and elevate textile quality. In summary, this study provides an effective solution for yarn tension measurement, fostering quality control and technological advancements in the textile sector. Continuous improvement and application of this method will lead the textile industry towards higher quality and greater efficiency.

Key words: yarn tension detection, odaptive, tension fluctuation, signal optimization, interference signal processing

CLC Number:

  • TS181.9

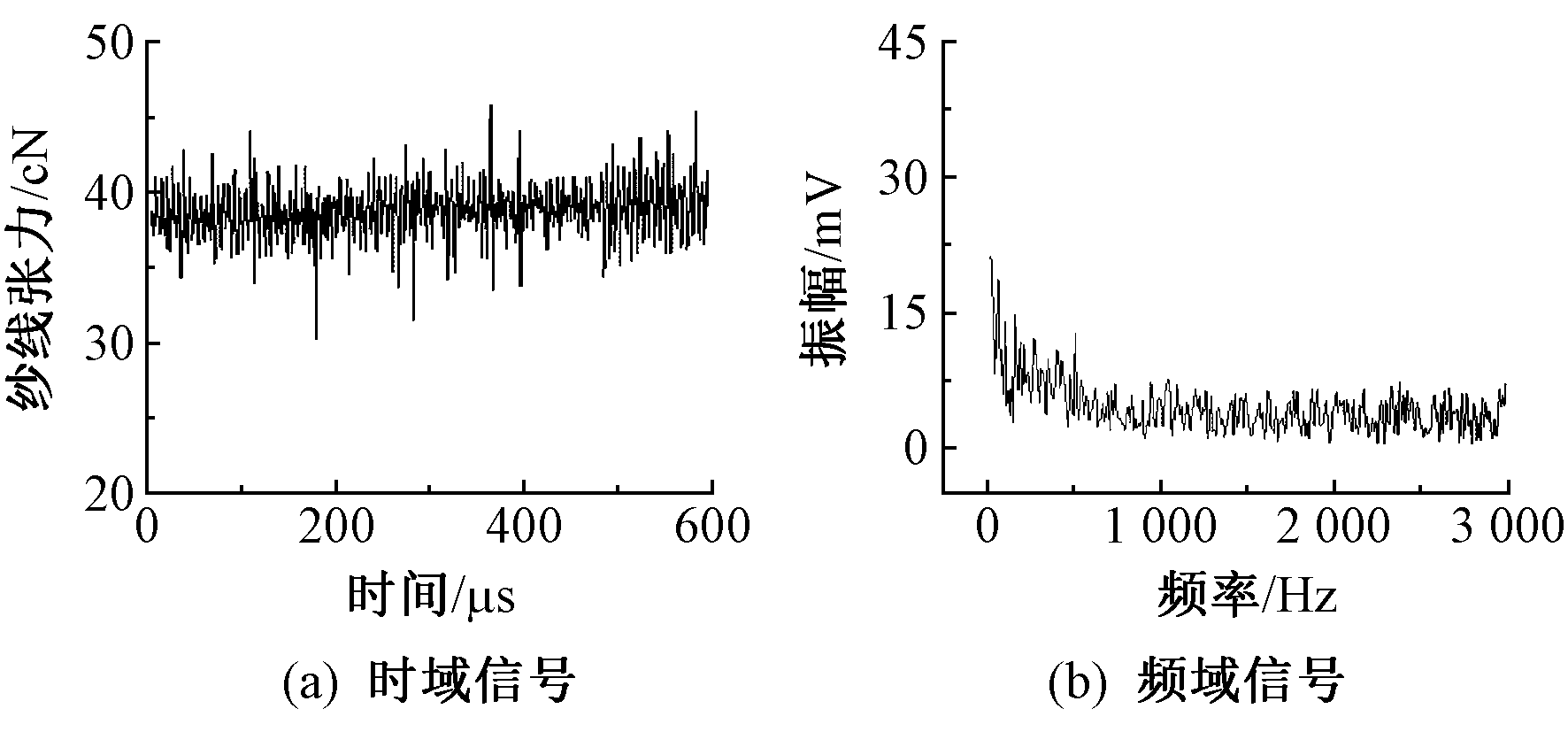

Fig. 1

Actual measurement of yarn tension in time (a) and frequency domain(b)"

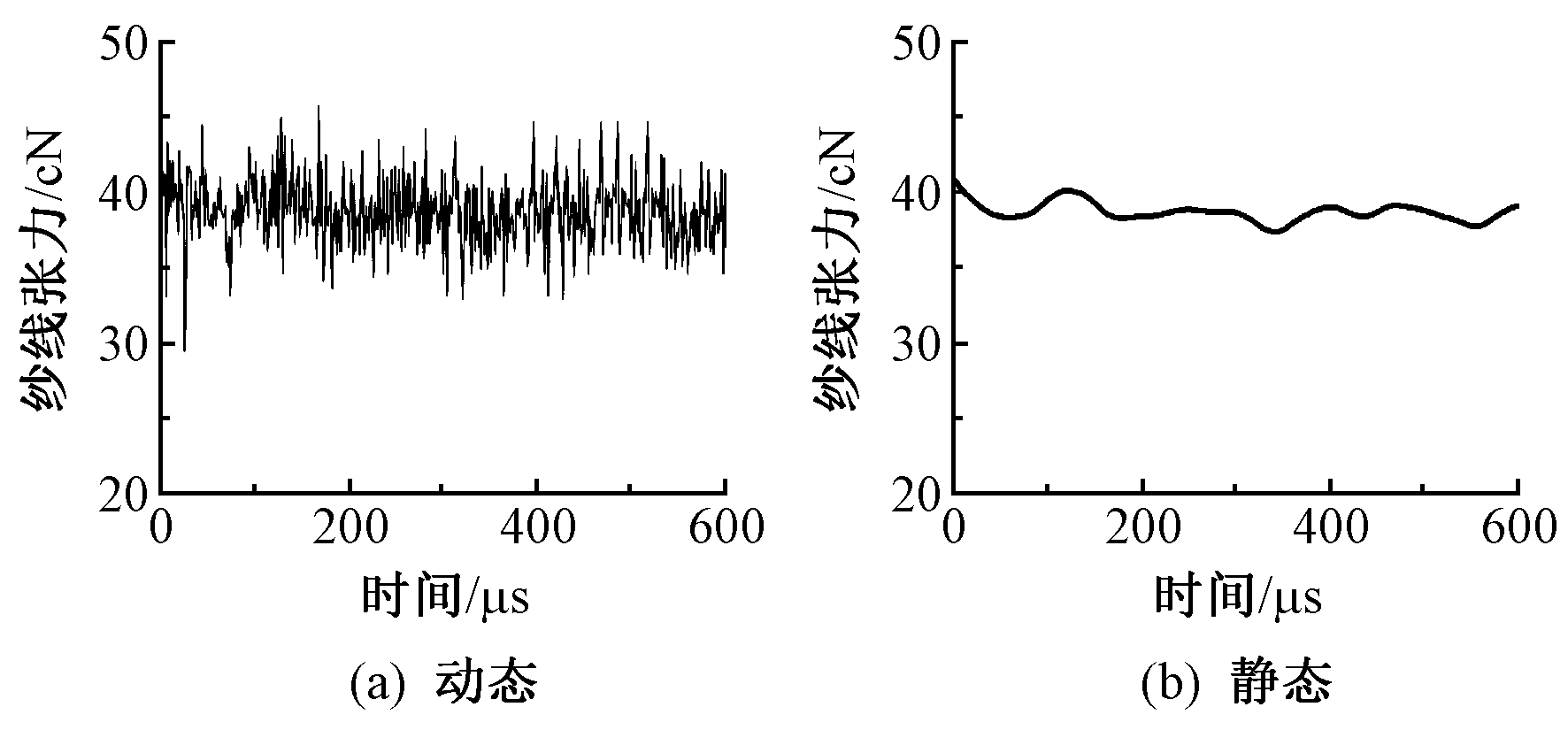

Fig. 2

38 cN tension signal waveform. (a) Dynamic yarn; (b) Static yarn"

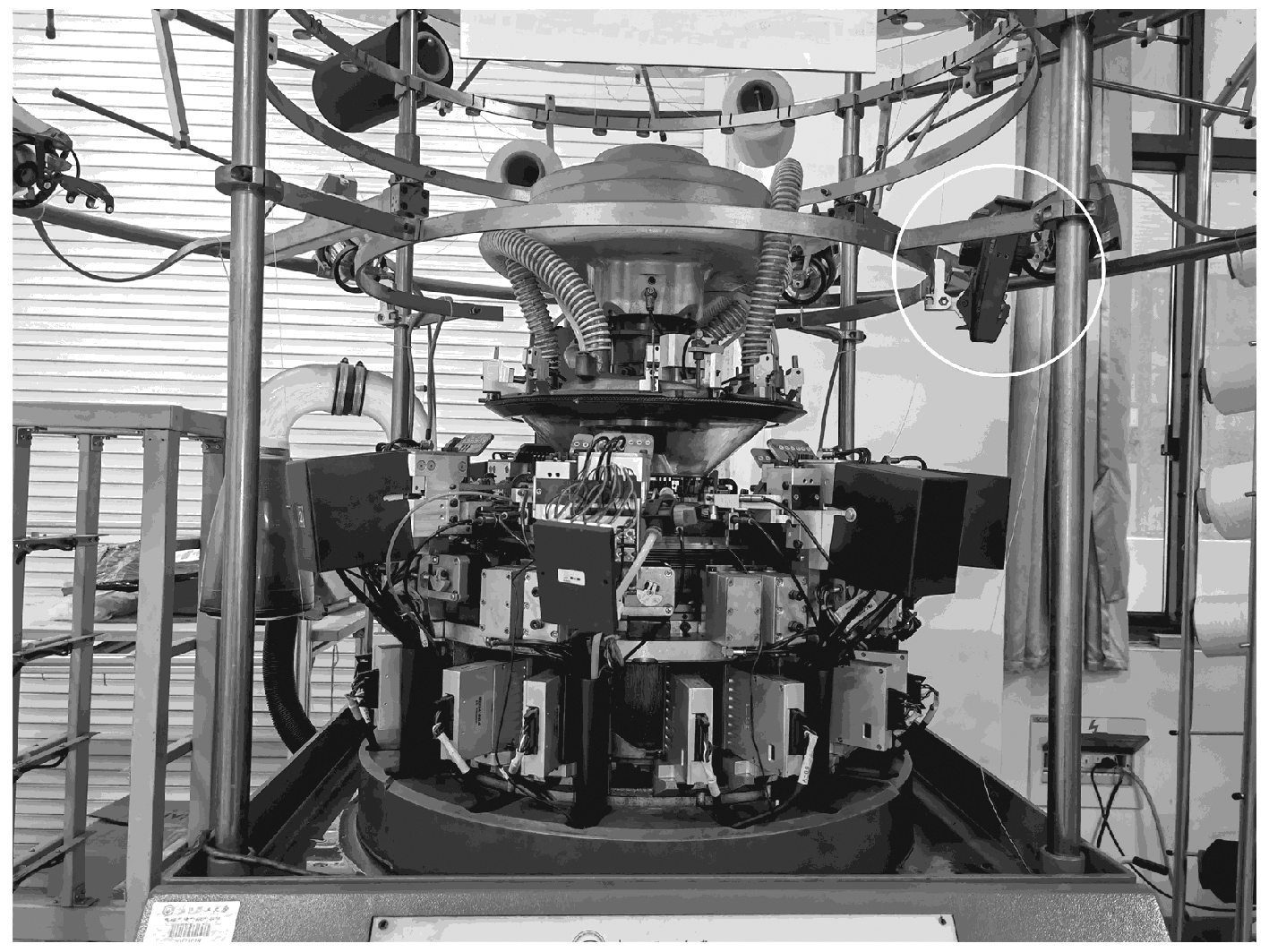

Fig. 3

Experimental platform"

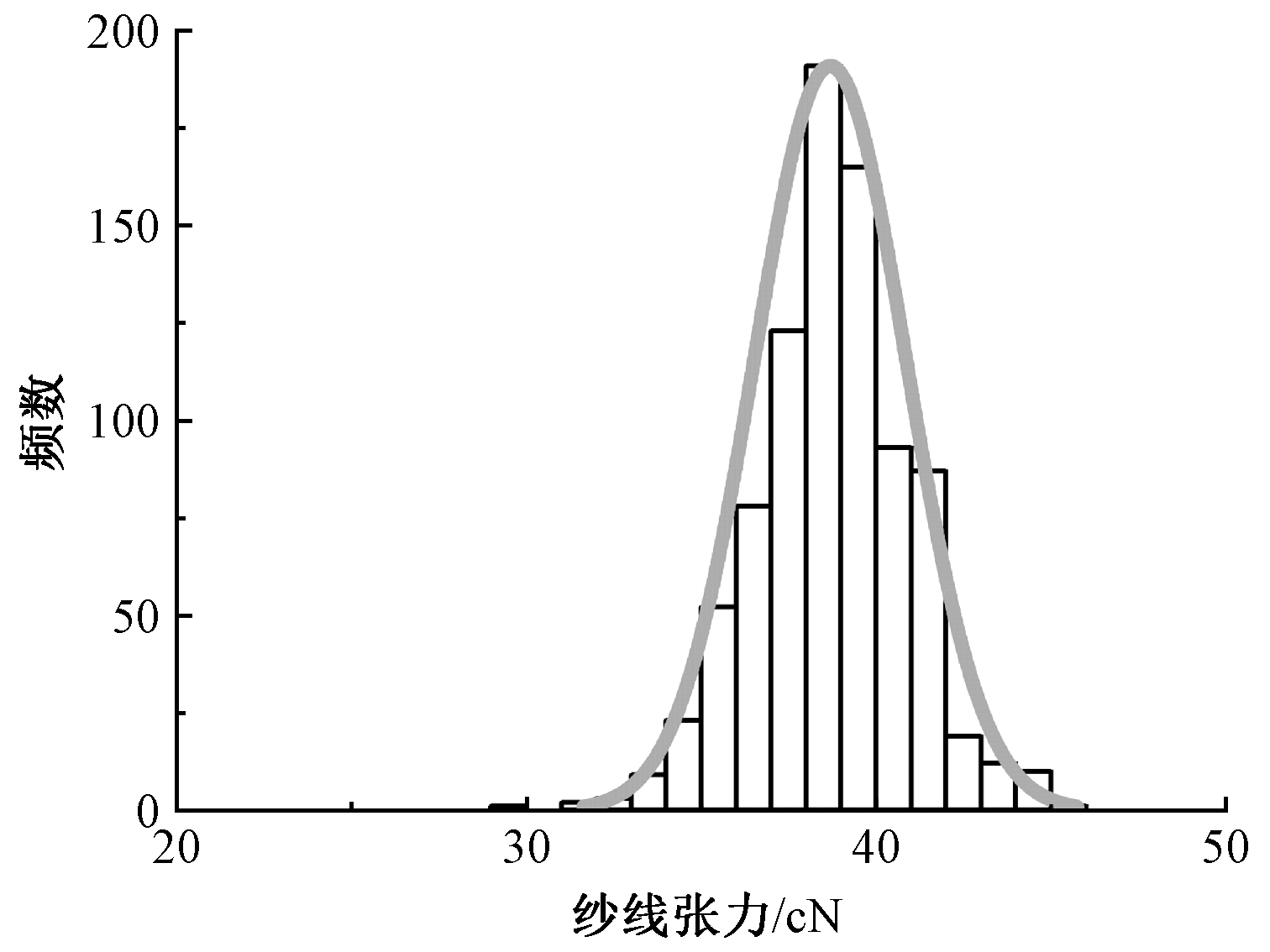

Fig. 4

Probability density plot"

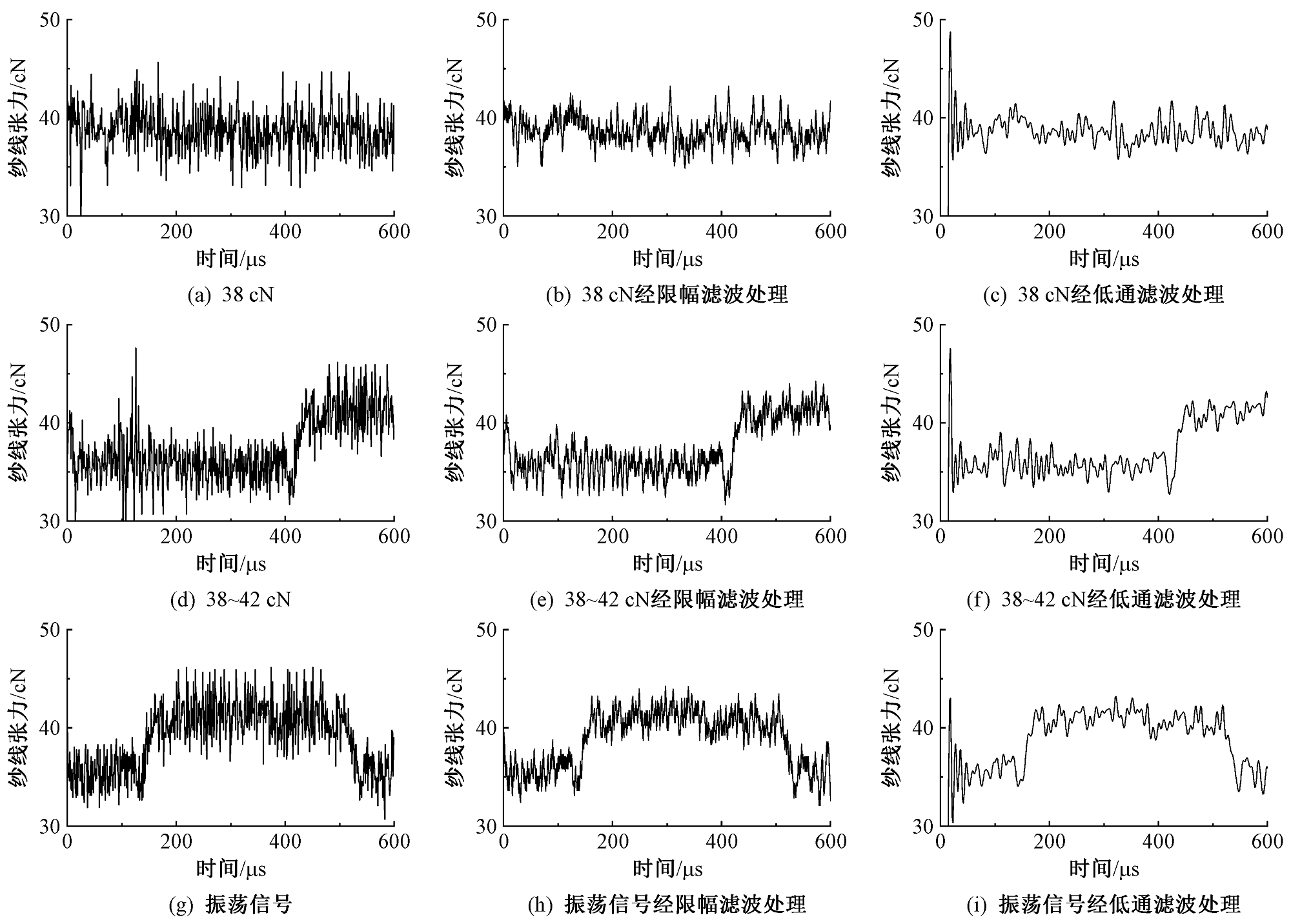

Fig. 5

Tension signal preprocessing. (a) 38 cN; (b) 38 cN signal filtered with limiting filtering; (c) 38 cN signal with low-pass filtering; (d) 38-42 cN; (e) 38-42 cN signal filtered with limiting filtering; (f) 38-42 cN signal with low-pass filtering; (g) Vibrating signal; (h) Vibrating signal filtered with limiting filtering; (i) Vibrating signal with low-pass filtering"

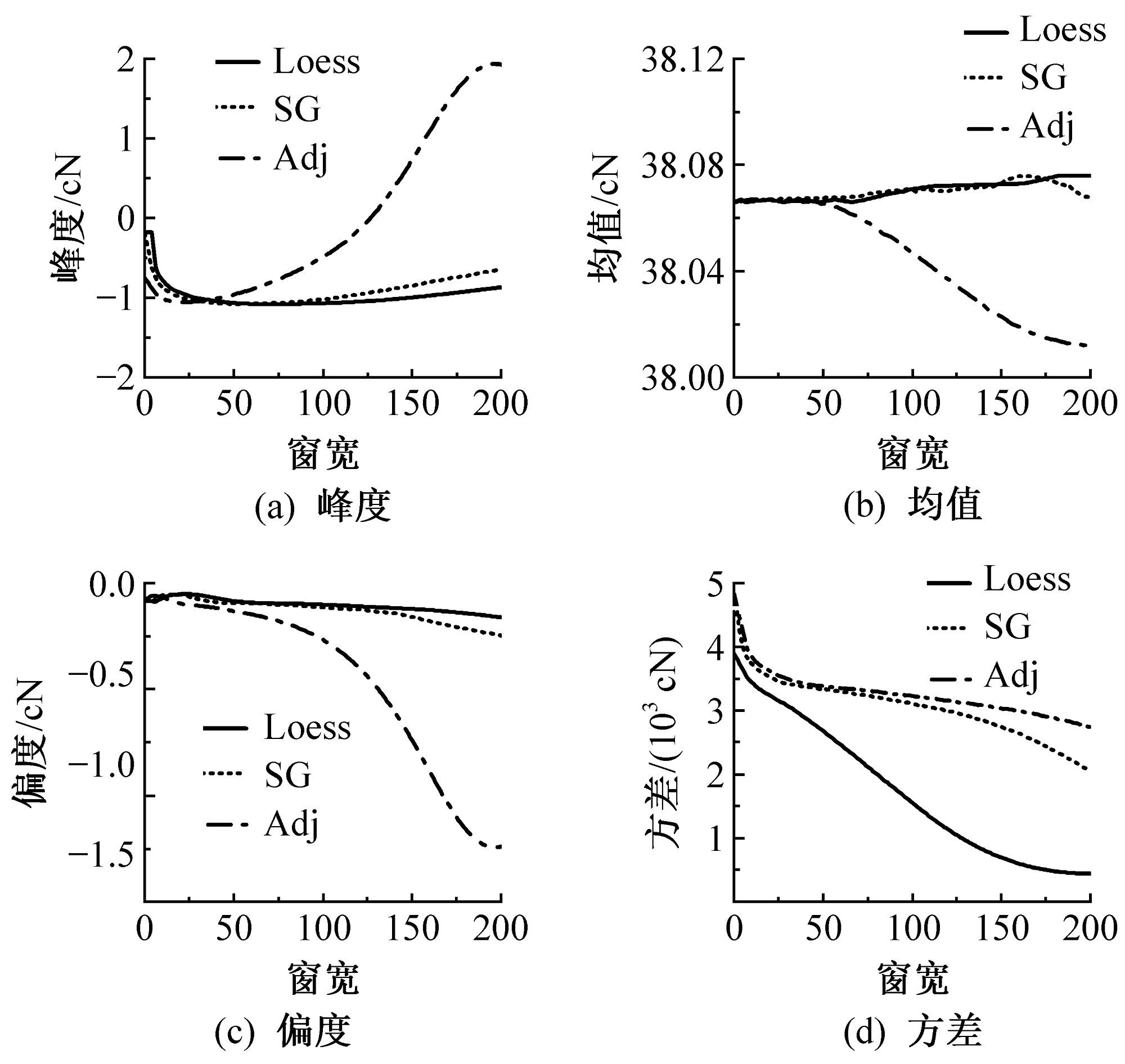

Fig. 6

Effect of window width on kurtosis (a), mean (b), skewness(c), and variance(d)"

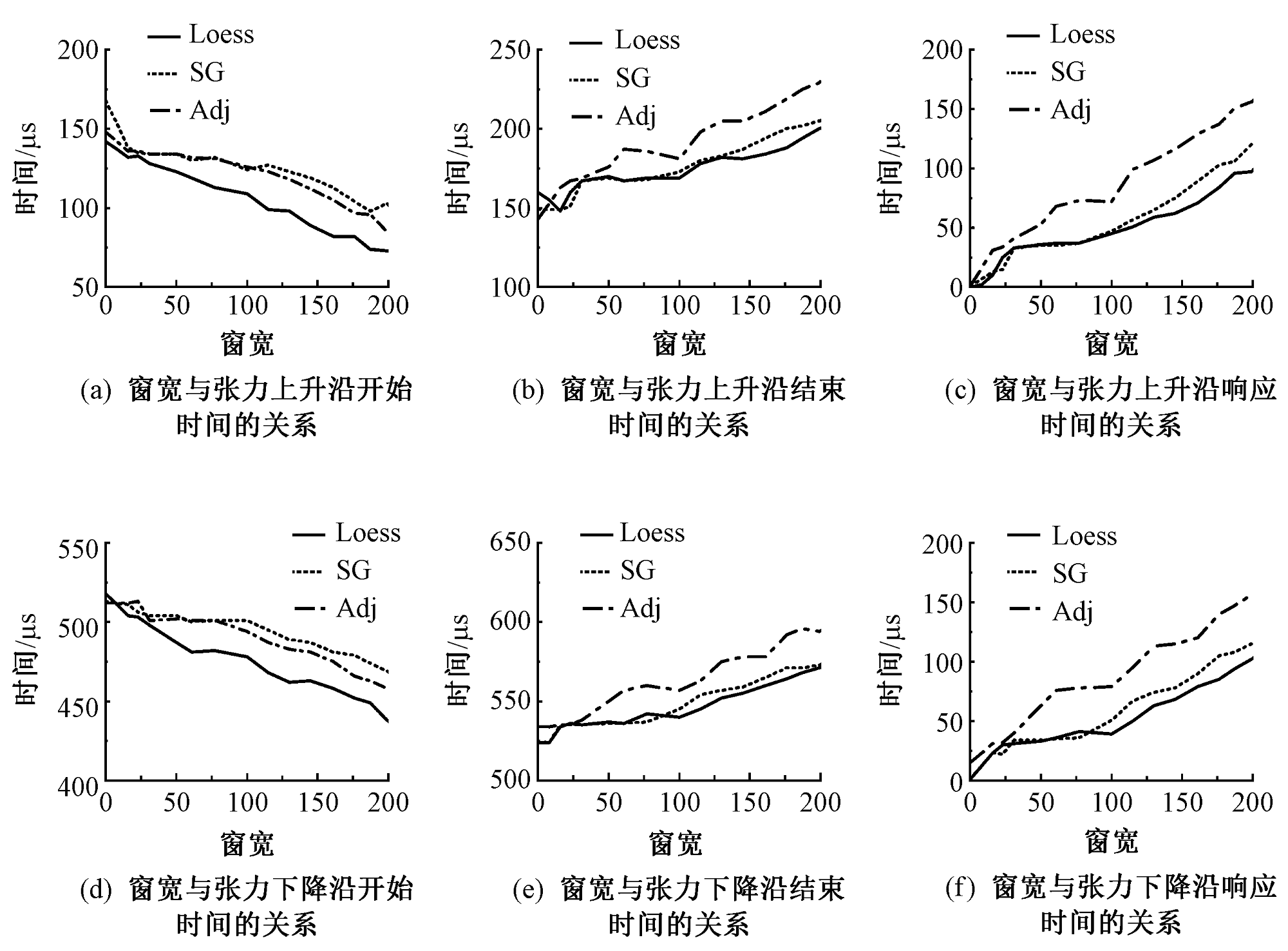

Fig. 7

Effect of window width on response time. (a) Relationship between window width and start time of tension rising edge; (b) Relationship between window width and end time of tension rising edge; (c) Relationship between window width and response time of tension rising edge; (d) Relationship between window width and start time of tension drop edge; (e) Relationship between window width and end time of tension drop edge; (f) Relationship between window width and response time of tension drop edge"

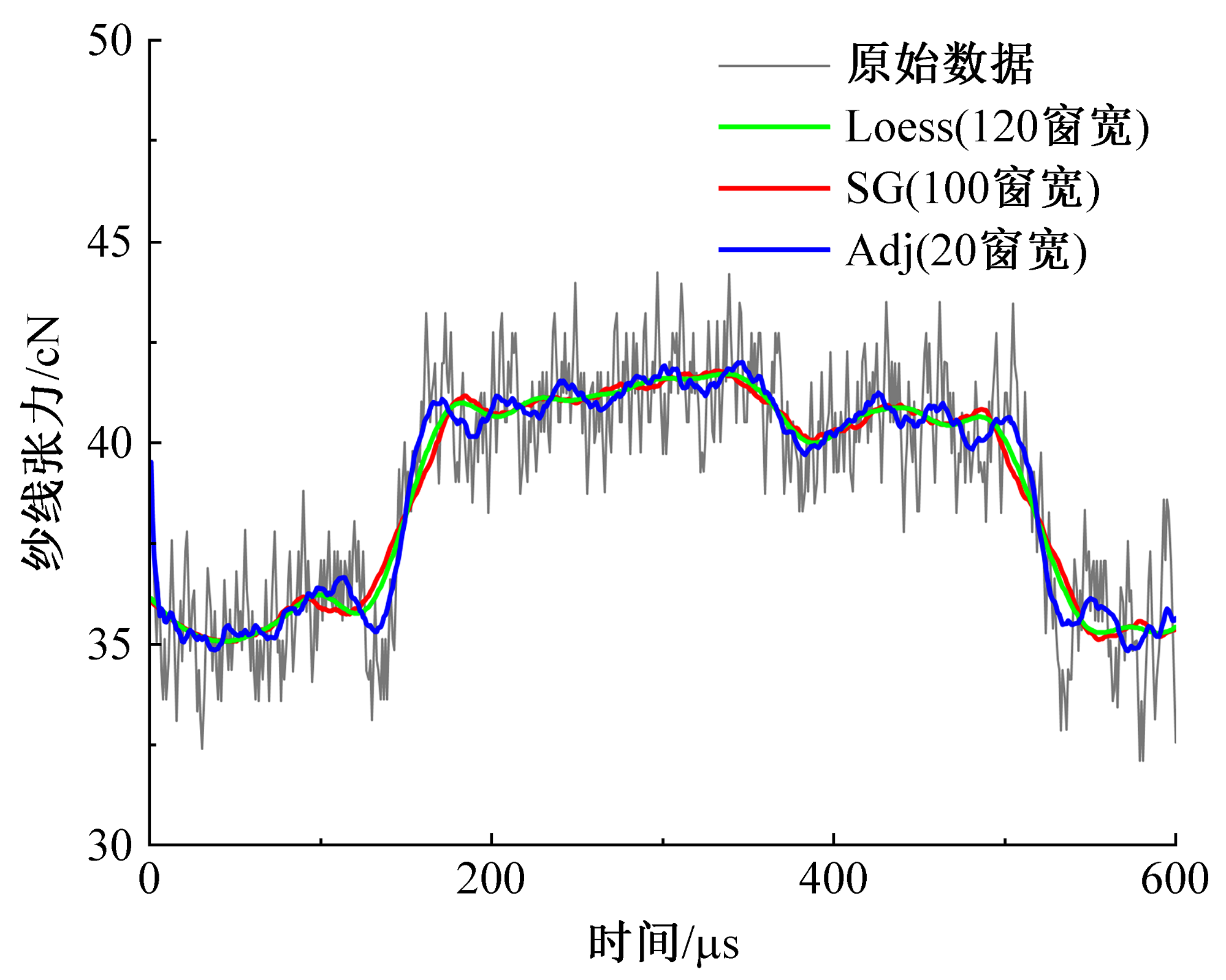

Fig. 8

Comparative analysis of three algorithms"

Tab. 1

Signal-to-noise ratio before and after processingdB"

信号种类 信噪比
原始数据 Loess SG Adj
数据1 25.185 31.485 29.937 30.485
数据2 24.999 31.914 29.501 30.671
数据3 25.692 32.186 30.257 31.902
[1] 李杨, 彭来湖, 刘建廷, 等. 基于横向振动频率的轴向运动纱线张力测量[J]. 纺织学报, 2023, 44(6): 72-77.
LI Yang, PENG Laihu, LIU Jianting, et al. Measurement of yarn tension in axial direction based ontransverse vibration frequency[J]. Journal of Textile Research, 2023, 44(1): 72-77.
[2] 沈丹峰, 付茂文, 赵刚, 等. 融合在线辨识的新型神经网络经纱张力控制[J]. 西安工程大学学报, 2022, 36(2): 16-24.
SHEN Danfeng, FU Maowen, ZHAO Gang, et al. A novel neural network warp tension control combined with online identification[J]. Journal of Xi'an Polytechnic University, 2022, 36(2): 16-24.
[3] 张东剑, 甘学辉, 杨崇倡, 等. 纺丝过程中非接触式纤维张力检测技术研究进展[J]. 纺织学报, 2022, 43(11): 188-194.
ZHANG Dongjian, GAN Xuehui, YANG Chongchang, et al. Research progress of non-contact fiber tension detection technology in spinning process[J]. Journal of Textile Research, 2022, 43(11): 188-194.
[4] 谈渊. 基于小波去噪的涤纶长丝在线张力检测研究[D]. 上海: 东华大学, 2023:78.
TAN Yuan. Research on online tension detection of polyester filament based on wavelet denoising[D]. Shanghai: Donghua University, 2023: 78.
[5] 邓敏, 高检法, 杨云冲, 等. 纱线张力测试装置的设计与数据分析[J]. 轻工科技, 2022, 38(5): 18-21.
DENG Min, GAO Jianfa, YANG Yunchong, et al. Design and data analysis of yarn tension test device[J]. Light Industry Science and Technology, 2022, 38(5): 18-21.
[6] ZHANG Dongjian, TAN Yuan, MA Qihua, et al. Real-time tension estimation in the spinning process based on the natural frequencies extraction of the Polyester Filament Yarn[J]. Measurement, 2021. doi:10.1016/j.measurement.2021.110514.
[7] MIKOLAJCZYK Z. Model of the feeding process of anisotropic warp knitted fabrics[J]. Fibres and Textiles in Eastern Europe, 2003, 11(2): 58-62.
[8] JAFARIPANAH M, AL-HASHIMI B M, WHITE N M, et al. Application of analog adaptive filters for dynamic sensor compensation[J]. IEEE Transaction On Instrumentation and Measurement, 2005, 54(1): 245-251.
doi: 10.1109/TIM.2004.839763
[9] NURWAHA Deogratias, WANG Xinhou, et al. Prediction of rotor spun yarn strength using adaptive neuro-fuzzy inference system and linear multiple regression methods[J]. Journal of Donghua University, 2008, 25(1): 48-52.
[10] MWASIAGI Josphat Igadwa, HUANG Xiubao, WANG Xinhou, et al. Performance of neural network algorithms during the prediction of yarn breaking elongation[J]. Fibers and Polymers, 2008, 9(1): 80-86.
doi: 10.1007/s12221-008-0013-5
[11] CHIU Shih Hsuan, LU Chuan Pin, et al. Noise separation of the yarn tension signal on twister using FastICA[J]. Mechanical Systems and Signal Processing, 2005, 19: 1326-1336.
doi: 10.1016/j.ymssp.2005.02.005
[12] SHENG Xiaowei, FANG Xiaoyan, XU Yang, et al. Noise source identification of the carpet tufting machinebased on the single channel blind source separation andtime-frequency signal analysis[J]. Hindawi, 2022. doi:10.1155/2022/8991787.
[13] 陈恩来. 经编纱线动态张力特性及补偿技术[J]. 中小企业管理与科技, 2020(5): 176-177.
CHEN Enlai. Characteristics and compensation technology of the dynamic tension of warp knitted yarn[J]. Management & Technology of SME, 2020(5): 176-177.
[14] 李杨, 彭来湖, 郑秋扬, 等. 基于分数阶模型的纱线蠕变性能模拟与预测[J]. 纺织学报, 2022, 43(11): 46-51.
LI Yang, PENG Laihu, ZHENG Qiuyang, et al. Simulation and prediction of yarn creep performance based on fractional model[J]. Journal of Textile Research, 2022, 43(11): 46-51.
[15] 孙帅, 缪旭红, 张琦, 等. 高速经编机上纱线张力的波动规律[J]. 纺织学报, 2020, 41(3): 51-55.
SUN Shuai, MIAO Xuhong, ZHANG Qi, et al. Yarn tension fluctuation on high-speed warp knitting ma-chine[J]. Journal of Textile Research, 2020, 41(3): 51-55.
