聚乙二醇柠檬酸酯平滑剂合成及其复配油剂性能

doi:10.13475/j.fzxb.20231203101

Abstract

Abstract:

Objective Chemical fibers need to undergo high-temperature thermal drawing and treating during post-processing, which can easily cause scattering and breakage. Oil agents can adjust friction characteristics and give fibers high-temperature smoothness during spinning processing to run smoothly and steadily for the fiber production. However, with domestically produced oil agents used at high temperatures, abnormal phenomenon such as serious coking of hot rollers and tangled (remnant) fibers would still occur. As a result, the spinning oil agents for PET industrial fibers in domestic large-scale production are independent of imports.

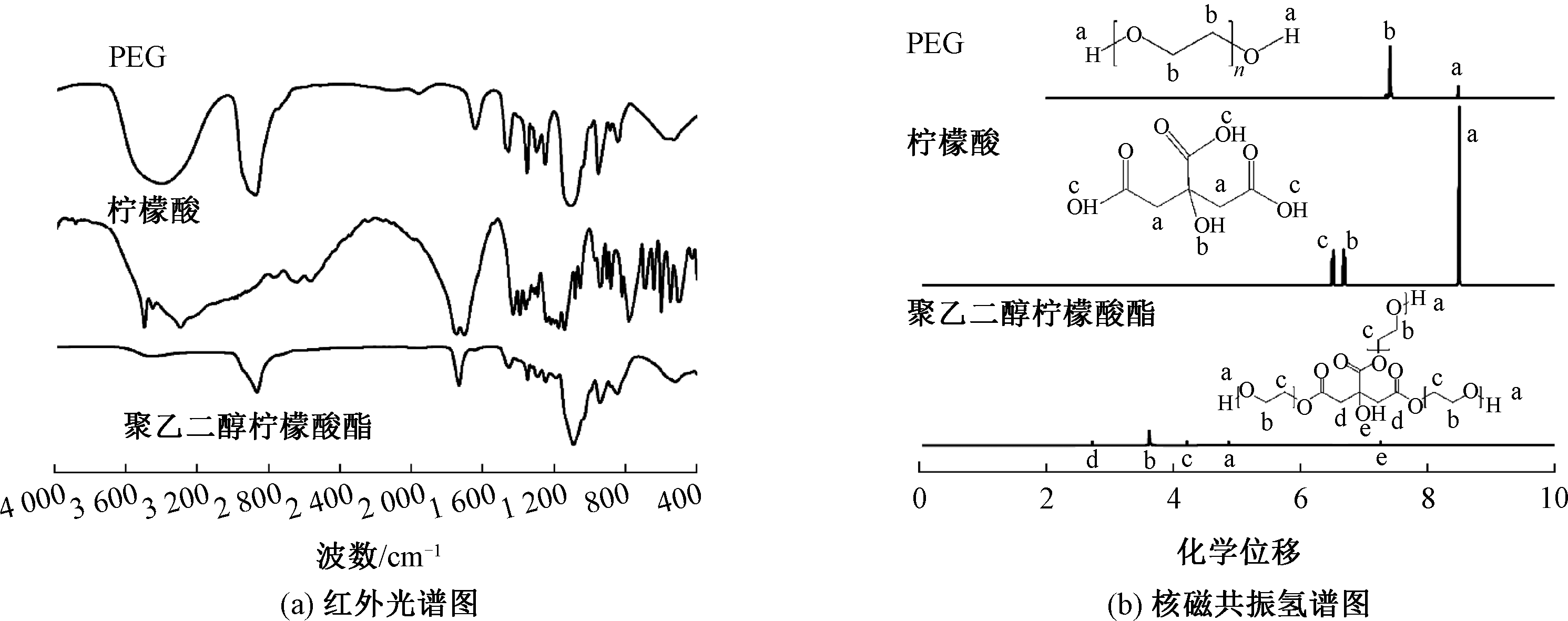

Method In view of the problems of poor heat resistance and poor high-temperature smoothness of domestic chemical fiber oils, compound design of oil components was carried out on the basis of successful synthesis of excellent smoothing agents, which was prepared from polyethylene glycol and citric acid as monomers. The smoothing agent synthesis conditions was optimized, then a heat-resistant spinning oil could be achieved with the presence of self-prepared smoothing agent, selected polyether emulsifiers and other components. The chemical structure, thermal properties and viscosity of the smoothing agent, and the smoothness, interface properties, antistatic properties and thermal stability of the oil agent were also characterized and compared with the current products.

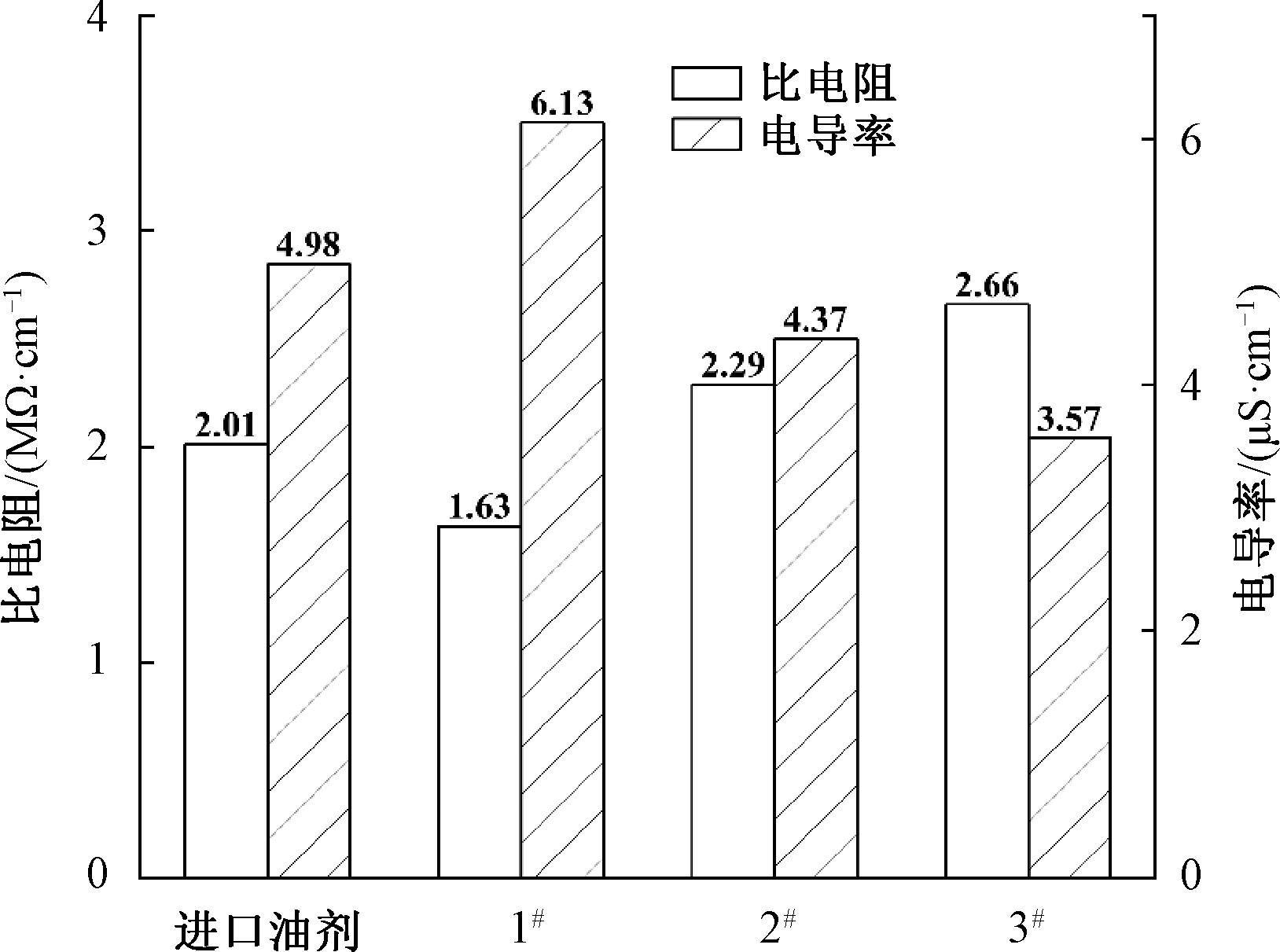

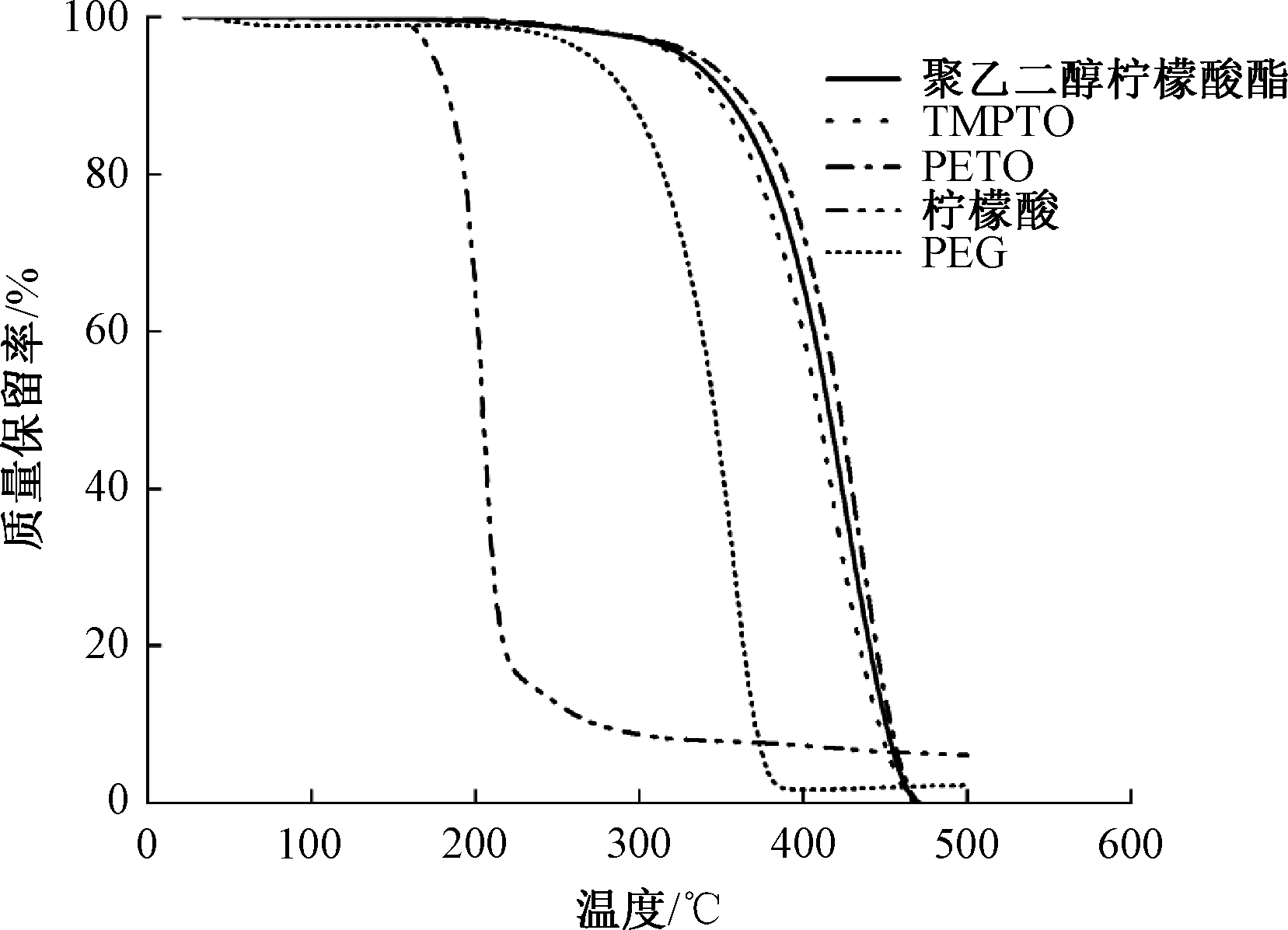

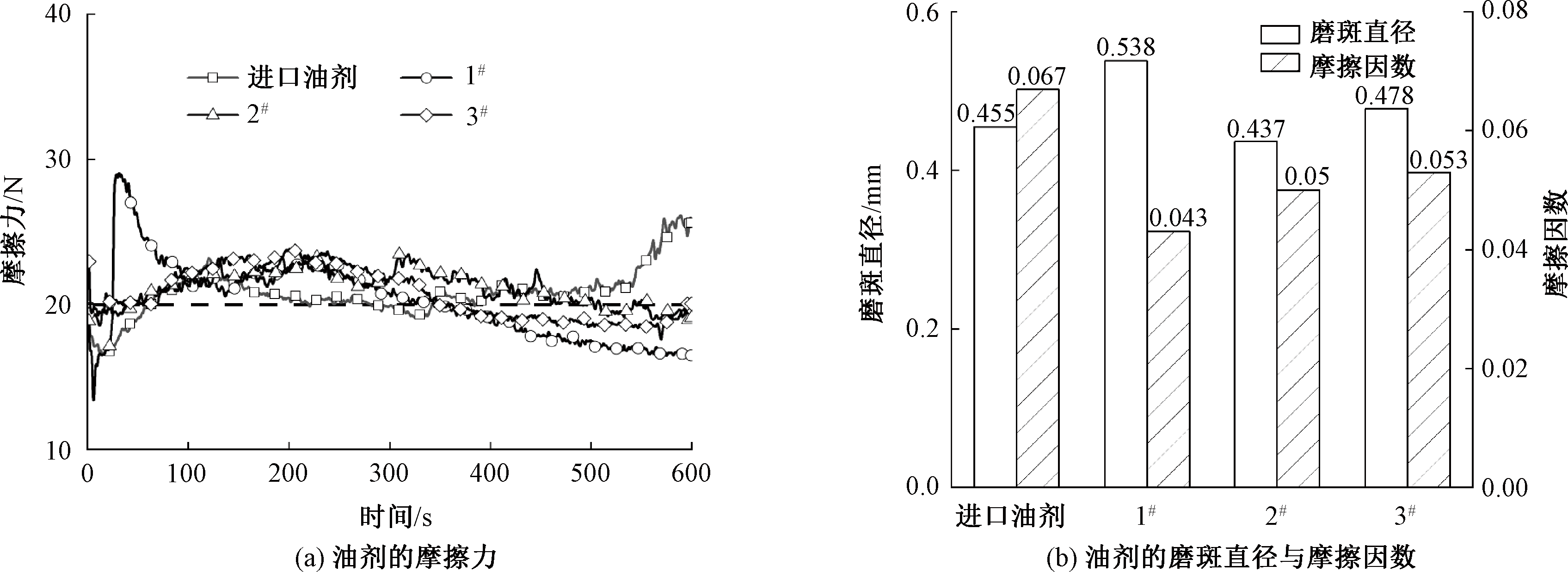

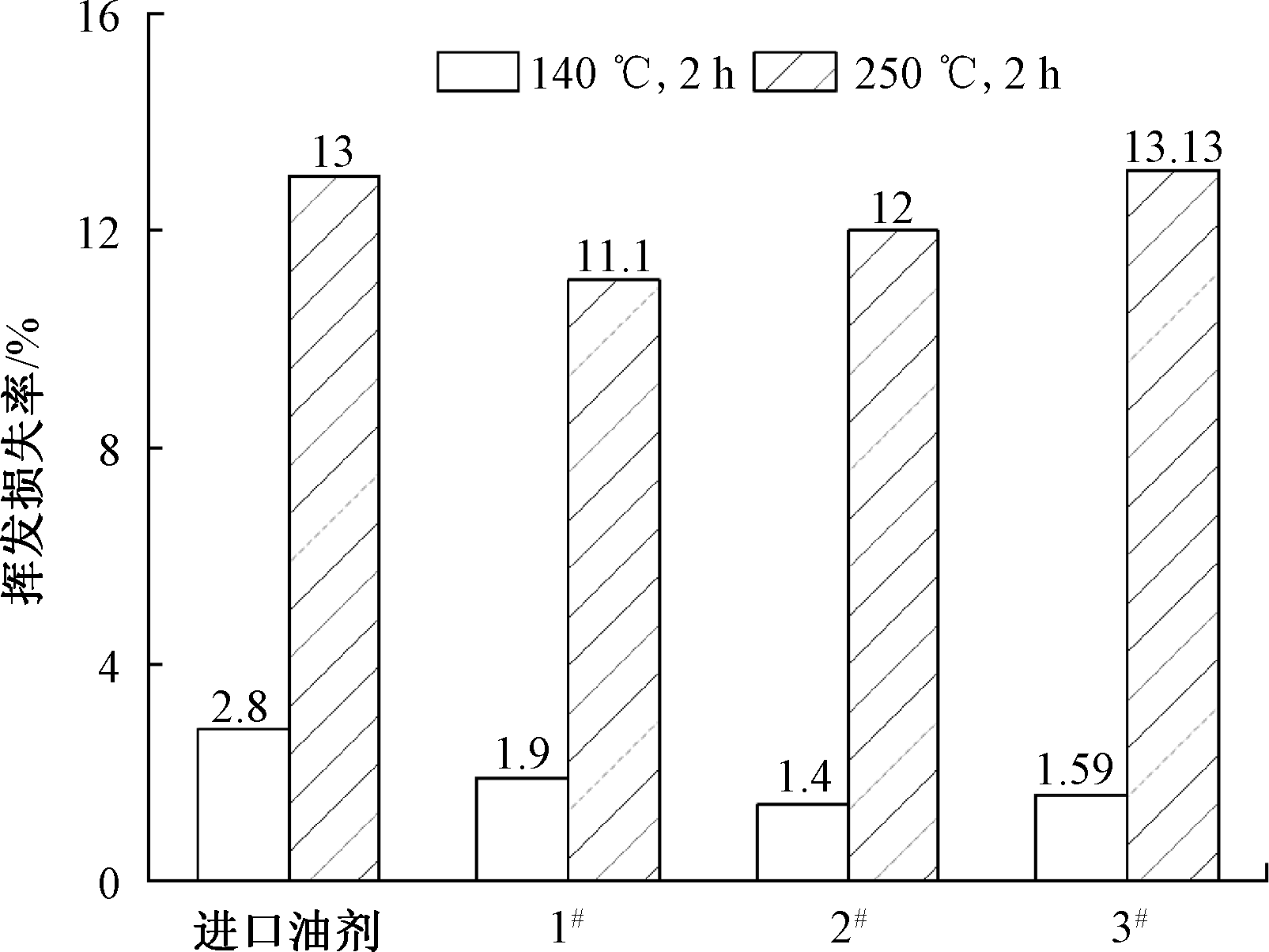

Results The optimized conditions for the synthesis of polyethylene glycol citrate as smoothing agent are considered as: the acid-to-alcohol molar ratio of 1∶2, 0.02% of catalyst, the temperature of 170 ℃ with reaction time of 1.5 h in N₂ atmosphere, and the esterification rate reaches 97%. The acid value, hydroxyl value and saponification value of the synthetic smoothing agent are 0.62 mgKOH/g, 8 mgKOH/g and 182 mgKOH/g, respectively. The high temperature viscosity and heat resistance are higher than that of common smoothing agents. The vital performance parameters of the well-designed oil agent are excellent, as the surface tension is 31.05 mN/m, the wear scar diameter is 0.538 mm, the friction coefficient is 0.043, the specific resistance is 1.63 MΩ/cm, and the conductivity reaches 6.13 μS/cm, and the friction and antistatic properties exceed the imported oils. Even more importantly, the oil smokes well and has excellent thermal stability. The respective volatilization loss rate in 2 h at 140 ℃ and 250 ℃ are only 1.4% and 12%.

Conclusion The excellent physical and chemical properties of polyethylene glycol citrate were synthesized as a smoothing agent, whose viscosity and interfacial properties were equivalent to those of imported oils. With a careful selection of emulsifier, antistatic agent and other components, the formulation of the oil agent was configured to meet the high requirements of PET industrial fiber, the friction and antistatic properties exceed the imported oil. In terms of thermal properties, the three self-prepared oil agents could be completely comparable to the same type imported oil.

Key words: polyethylene glycol citrate ester, spinning oil agent, smoothing agent, heat resistance, polyester industrial filament, chemical fiber industry

CLC Number:

TQ340.47

CHEN Shichang, YANG Dongdong, CHEN Wenxing. Synthesis of polyethylene glycol citrate ester smoothing agent and performance of compound formulation design for spinning oil agents[J].Journal of Textile Research, 2024, 45(11): 128-135.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

URL: http://www.fzxb.org.cn/EN/10.13475/j.fzxb.20231203101

http://www.fzxb.org.cn/EN/Y2024/V45/I11/128

Figures/Tables 12

Fig.1

Tab.1

Fig.2

Fig.3

Fig.4

Tab.2

Fig.5

Tab.3

Fig.6

Fig.7

Tab.4

Fig.8

References 22

[1]	解开放, 罗凤香, 包新军, 等. 高耐磨性复合涂层涤纶通丝的制备及其性能[J]. 纺织学报, 2022, 43(3): 123-131.
	XIE Kai, LUO Fengxiang, BAO Xinjun, et al. Preparation and properties of high wear-resistant composite coated polyester yarn[J]. Journal of Textile Research, 2022, 43(3): 123-131.
[2]	SAMUI B K, PRAKASAN M P, RAMESH C. Structure-property relationship of different types of polyester industrial yarns[J]. Journal of The Textile Institute, 2013, 104(1): 35-45.
[3]	周向东, 杨海涛. 丙纶FDY油剂的研制[J]. 纺织学报, 2006, 21(7): 83-85.
	ZHOU Xiangdong, YANG Haitao. Development of polypropylene FDY oil agent[J]. Journal of Textile Research, 2006, 21(7): 83-85.
[4]	张瑞波. 涤纶POY和FDY油剂开发[J]. 合成纤维工业, 2006, 29 (2): 21-23.
	ZHANG Ruibo. Development of polyester POY and FDY oil agents[J]. China Synthetic Fiber Industry, 2006, 29(2): 21-23.
[5]	蔡继权. 化纤纺丝油剂市场前景分析[J]. 化学工业, 2010, 28(11): 28-32.
	CAI Jiquan. Analysis of market prospects of chemical fiber spinning oil[J]. Chemical Industry, 2010, 28(11): 28-32.
[6]	卢书辉. 国内外纤维油剂的发展现状与趋势[J]. 合成纤维工业, 2022, 45(6): 56-59.
	LU Shuhui. Development status and trends of fiber oils at home and abroad[J]. China Synthetic Fiber Industry, 2022, 45(6): 56-59.
[7]	陶义清. 一种用于涤纶工业丝的高温油剂及其制备方法:111206427B[P].2022-09-23.
	TAO Yiqing. A high-temperature oil agent for polyester industrial yarn and its preparation method:111206427B[P].2022-09-23.
[8]	柳健, 毛金露, 彭丽, 等. 聚乙烯-聚丙烯非织造布亲水油剂的性能及其调控[J]. 纺织学报, 2019, 40(9): 114-121.
	LIU Jian, MAO Jinlu, PENG Li, et al. Performance and regulation of hydrophilic oil agent for polyethylene-polypropylene nonwoven fabrics[J]. Journal of Textile Research, 2019, 40(9): 114-121.
[9]	陶义清, 戴泽青, 丁雷, 等. 聚乙二醇200双油酸酯的合成及涤纶工业丝油剂中的应用[J]. 山东化工, 2021, 50(6): 9-11.
	TAO Yiqing, DAI Zeqing, DING Lei, et al. Synthesis of polyethylene glycol 200 dioleate and application in polyester industrial yarn finish[J]. Shandong Chemical Industry, 2021, 50(6): 9-11.
[10]	毛行功. 锦纶国产纺丝油剂性能的研究[J]. 合成纤维, 2021, 50(3): 18-21.
	MAO Xinggong. Research on the properties of domestic spinning oil for nylon[J]. Synthetic Fiber in China, 2021, 50(3): 18-21.
[11]	张丙伍, 陈星宇, 朱洁. 涤纶POY-DTY油剂的研制[J]. 润滑油, 2022, 37(1): 26-28.
	ZHANG Bingwu, CHEN Xingyu, ZHU Jie. Development of polyester POY-DTY oil agent[J]. Lubricant, 2022, 37(1): 26-28.
[12]	卢书辉. 耐候性涤纶POY油剂TF-7716NH的性能与应用研究[J]. 合成纤维工业, 2022, 45(5): 52-56.
	LU Shuhui. Research on the performance and application of weather-resistant polyester POY oil TF-7716NH[J]. China Synthetic Fiber Industry, 2022, 45(5): 52-56.
[13]	薛元, 汤成坦, 颜志勇. 工业用涤纶长丝的结构与性能[J]. 纺织学报, 2009, 30(11): 33-36.
	XUE Yuan, TANG Chengtan, YAN Zhiyong. Structure and properties of industrial polyester filament[J]. Journal of Textile Research, 2009, 30(11): 33-36.
[14]	朱建成, 沈亚芬, 朱锋, 等. 环保型涤纶POY油剂TK-3518A的性能与应用[J]. 合成纤维工业, 2021, 44(4): 85-88.
	ZHU Jiancheng, SHEN Yafen, ZHU Feng, et al. Performance and application of environmentally friendly polyester POY oil agent TK-3518A[J]. China Synthetic Fiber Industry, 2021, 44(4): 85-88.
[15]	魏俊富, 郑帼, 徐进云, 等. 超细丙纶高速纺丝油剂的研制及应用[J]. 纺织学报, 2003, 21(4): 10-12.
	WEI Junfu, ZHENG Guo, XU Jinyun, et al. Development and application of high-speed spinning oil for ultra-fine polypropylene[J]. Journal of Textile Research, 2003, 21(4): 10-12.
[16]	周存, 郑帼, 刘燕军, 等. 新型大容量涤纶短纤维油剂的研制与应用[J]. 纺织学报, 2005, 24(3): 85-88.
	ZHOU Cun, ZHENG Guo, LIU Yanjun, et al. Development and application of new large-capacity polyester staple fiber oil[J]. Journal of Textile Research, 2005, 24(3): 85-88.
[17]	徐进云, 郑帼, 刘燕军. TPA-98锦纶高速纺油剂的研制[J]. 纺织学报, 2004, 16(3): 70-72.
	XU Jinyun, ZHENG Guo, LIU Yanjun. Development of TPA-98 nylon high-speed spinning oil[J]. Journal of Textile Research, 2004, 16(3): 70-72.
[18]	郑帼, 刘燕军, 徐进云, 等. 涤纶短纤维油剂及其摩擦性能[J]. 纺织学报, 2005, 12(3): 85-87.
	ZHENG Guo, LIU Yanjun, XU Jinyun, et al. Polyester short fiber oil and its friction properties[J]. Journal of Textile Research, 2005, 12(3): 85-87.
[19]	陶义清, 丁雷, 戴泽青, 等. 涤纶工业丝油剂的研制和性能评测[J]. 精细石油化工进展, 2021, 22(5): 10-13.
	TAO Yiqing, DING Lei, DAI Zeqing, et al. Development and performance evaluation of polyester industrial yarn finish[J]. Advances in Fine Petrochemicals, 2021, 22(5): 10-13.
[20]	王迎, 王怡婷, 吴佳庆, 等. 生物基锦纶56用抗静电纺丝油剂的复配及其对短纤维可纺性的影响[J]. 纺织学报, 2021, 42(1): 84-89.
	WANG Ying, WANG Yiting, WU Jiaqing, et al. Compounding of antistatic spinning oil for bio-based nylon 56 and its effect on the spinnability of short fibers[J]. Journal of Textile Research, 2021, 42(1): 84-89.
[21]	张瑞波, 杨玉敏, 贺晓江, 等. 涤纶工业丝用油剂单体的耐热性能研究[J]. 合成纤维工业, 2010, 33(3): 39-41.
	ZHANG Ruibo, YANG Yumin, HE Xiaojiang, et al. Research on the heat resistance properties of oil monomers for polyester industrial yarns[J]. China Synthetic Fiber Industry, 2010, 33(3): 39-41.
[22]	刘鹏雷, 姜鹏飞, 刘燕军, 等. 纺丝油剂中脂肪酸酯类平滑剂的抗氧化及热稳定性[J]. 纺织学报, 2017, 38(4): 68-72.
	LIU Penglai, JIANG Pengfei, LIU Yanjun, et al. Antioxidation and thermal stability of fatty acid ester smoothing agents in spinning oils[J]. Journal of Textile Research, 2017, 38(4): 68-72.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

Comments

Recommended 0

No Suggested Reading articles found!

类别	酸值/ (mgKOH·g^-1)	羟值/ (mgKOH·g^-1)	皂化值/ (mgKOH·g^-1)
PETO	0.5	13	187
TMPTO	1	10	185
聚乙二醇柠檬酸酯	0.62	8	182

油剂类别	外观(25 ℃)	pH值	水分含量/%
进口油剂	黄色液体	8.18	1.38
1^#	黄色液体	8.05	1.00
2^#	黄色液体	7.67	1.64
3^#	黄色液体	7.89	1.57

油剂类别		润湿时间/s
进口油剂	34.36	4.5	12.9
1^#	31.05	5.1	11.2
2^#	33.37	4.3	13.4
3^#	33.25	4.3	14.5

油剂类别	高温冒烟	油剂热稳定性
进口油剂	少量蓝烟	无析出物
1^#	少量蓝烟	无析出物
2^#	少量蓝烟	无析出物
3^#	少量蓝烟	无析出物
