Journal of Textile Research ›› 2020, Vol. 41 ›› Issue (12): 21-25.doi: 10.13475/j.fzxb.20200303905

• Fiber Materials • Previous Articles     Next Articles

Study on water-initiated ring-opening polymerization technology of L-lactide

WEN Xin, ZHANG Xuzhen(), LI Yong, HUANG Wenjian, LU Chen

  1. School of Materials Science and Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2020-03-16 Revised:2020-09-09 Online:2020-12-15 Published:2020-12-23
  • Contact: ZHANG Xuzhen E-mail:donghuaihe@163.com

RichHTML

6

PDF (PC)

220

Abstract:

The presence of hydroxyl-rich water in the bulk ring-opening polymerization of L-lactide (LLA) leads to lower molecular weight of obtained poly(L-lactide) (PLLA). In order to solve this problem, several moisture controlling technologies including purification of LLA monomer, drying of refined LLA and vacuum drying in the reactor before polymerization were investigated for their effects on the molecular weight of PLLA using stannous (Ⅱ) ethylhexanoate (Sn(Oct)2) as the catalyst. Nuclear magnetic resonance spectrometer, Fourier transform infrared spectrometer, differential scanning calorimeter and thermogravimetric analysis were used to analyze the chemical structure and thermodynamic properties of PLLA. The results show that increasing purification times of LLA, extending drying time of refined LLA and extending the vacuum drying time in the reactor before polymerization all contribute to the increase of viscosity average molecular weight of PLLA. Compared with low viscosity average molecular weight PLLA, the high viscosity average molecular weight PLLA has a higher melting point of 175 ℃ and better thermal stability.

Key words: L-lactide, ring-opening polymerization, viscosity average molecular weight, initiator, thermal stability, poly(L-lactide) polymerization process

CLC Number:

  • O631.5

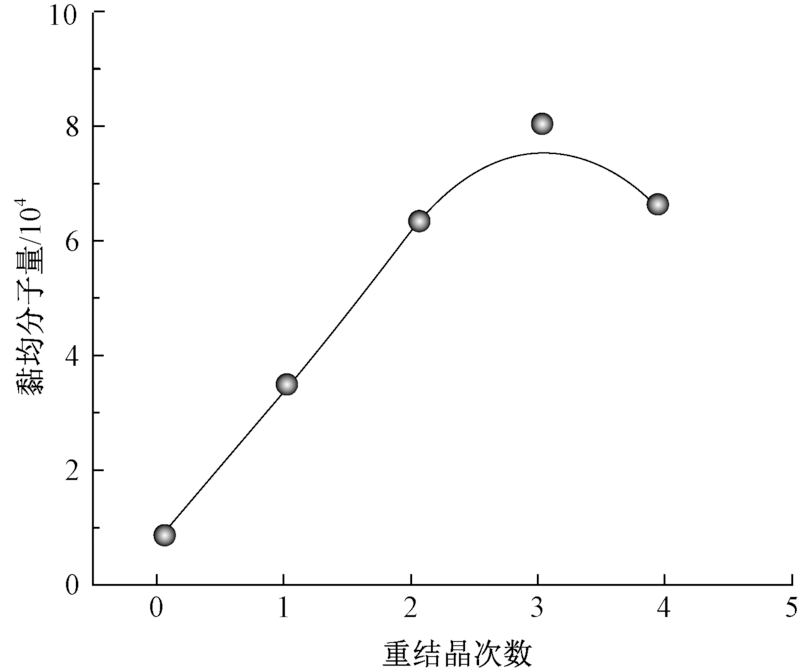

Fig.1

Effect of purification times of L-lactide on viscosity average molecular weight of PLLA"

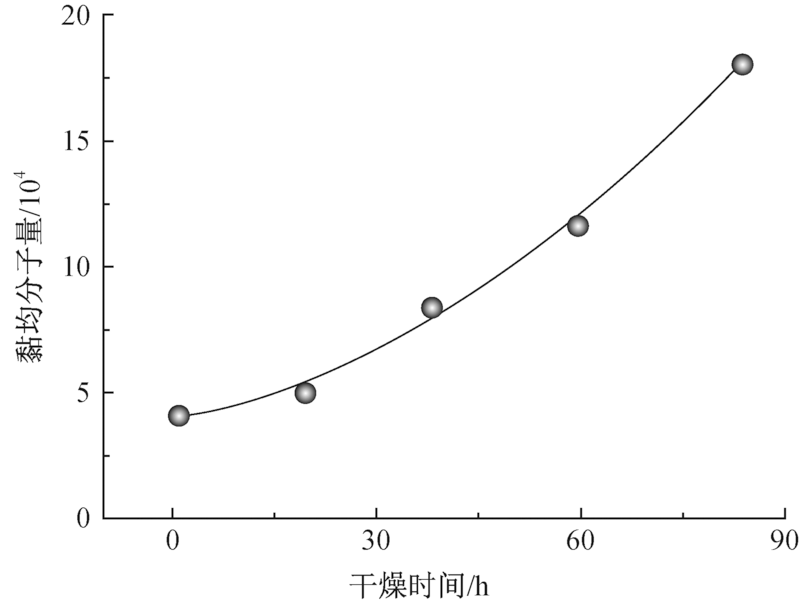

Fig.2

Effect of drying time of refined L-lactid on viscosity average molecular weight of PLLA"

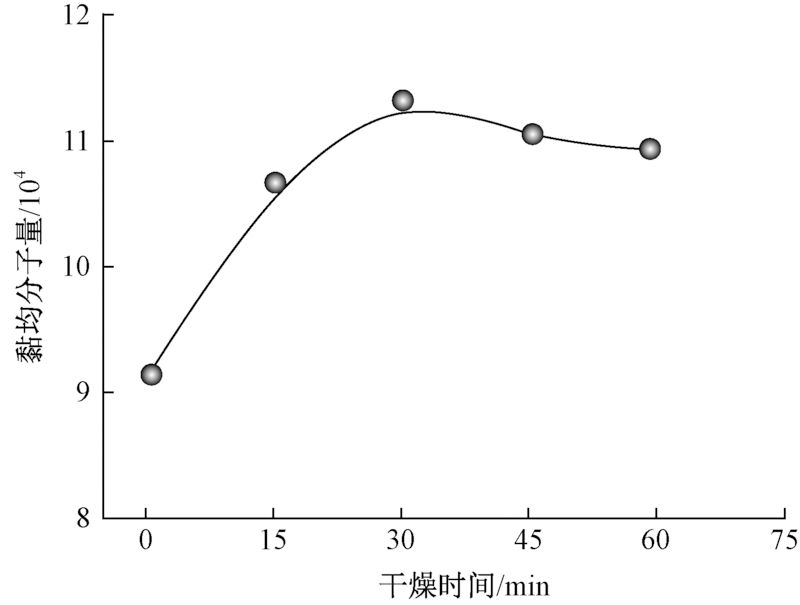

Fig.3

Effect of drying time before polymerization on viscosity average molecular weight of PLLA"

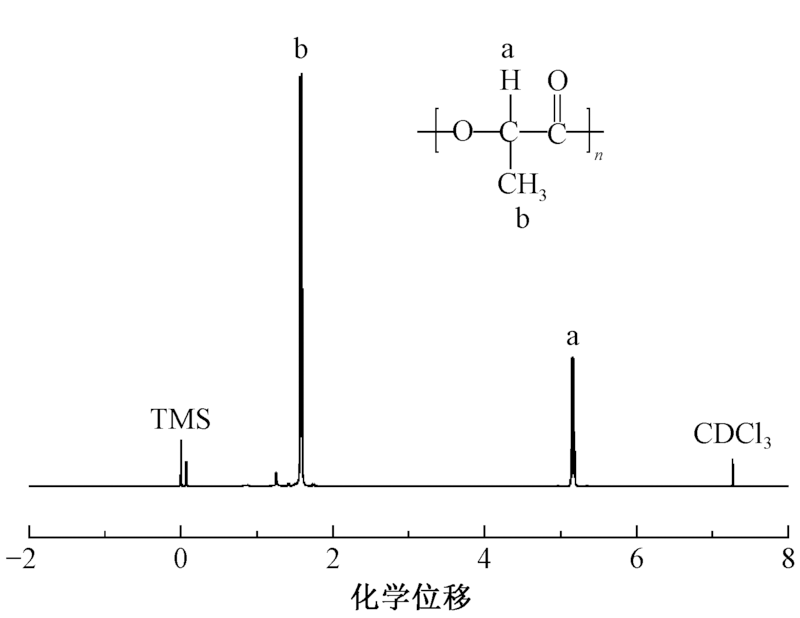

Fig.4

1H-NMR spectra of PLLA"

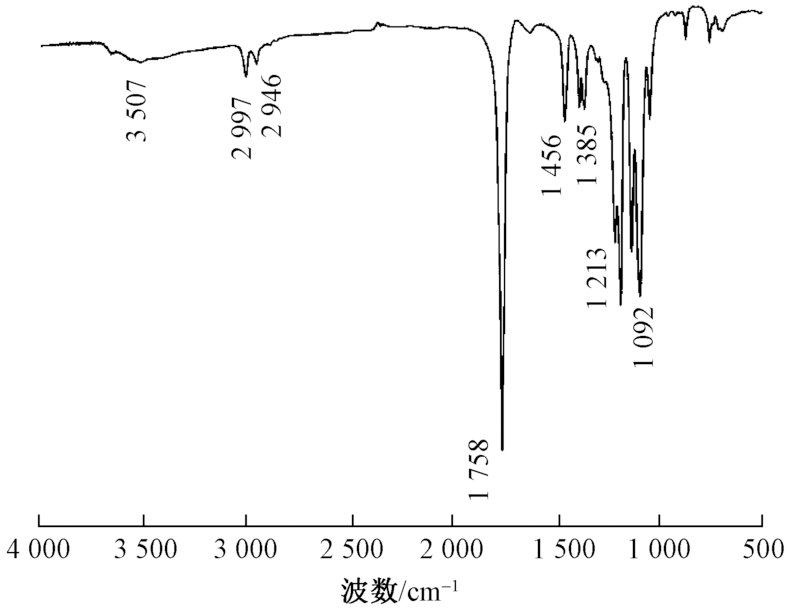

Fig.5

FT-IR spectra of PLLA"

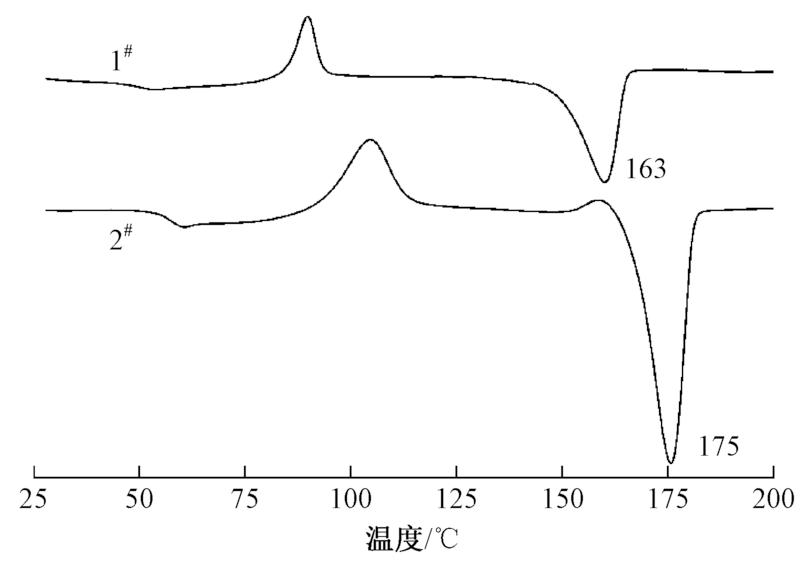

Fig.6

DSC heating curves of PLLA"

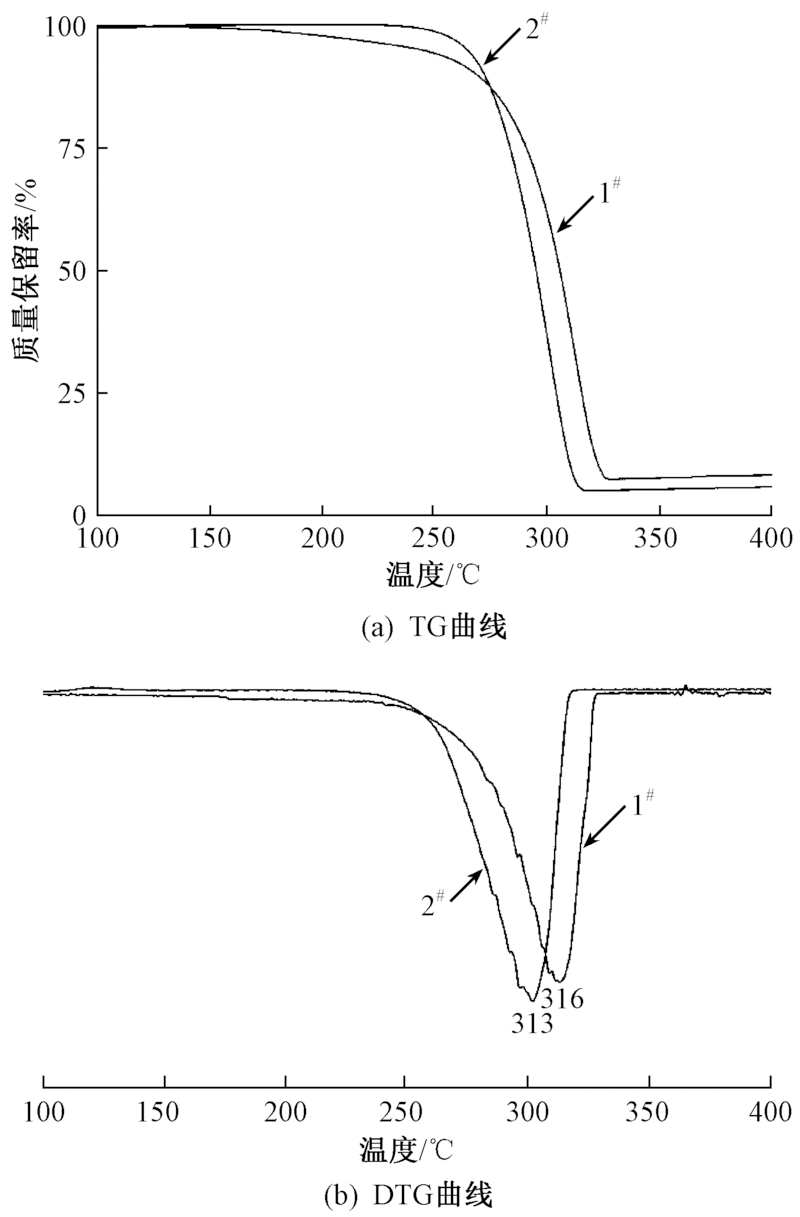

Fig.7

Thermal stability loss curves of PLLA. (a)TG curves;(b)DTG curves"

[1] 詹世平, 万泽韬, 王景昌, 等. 生物医用材料聚乳酸的合成及其改性研究进展[J]. 化工进展, 2020,39(1):199-205.
ZHAN Shiping, WAN Zetao, WANG Jingchang, et al. Research progress on synjournal and modification of biomedical material polylactic acid[J]. Chemical Industry and Engineering Progress, 2020,39(1):199-205.
[2] XIA Xuelian, LIU Wentao, WANG Lina, et al. A review of biomedical poly(lactic acid) modification research progress[J]. Polymer Bulletin, 2013,49(11):29-38.
[3] 袁鹏俊, 洪缪. “非张力环”γ-丁内酯及其衍生物开环聚合的研究进展[J]. 高分子学报, 2019,63(4):327-337.
YUAN Pengjun, HONG Miao. Research progress in ring-opening polymerization of "non-tensioned ring" γ-butyrolactone and its derivatives[J]. Acta Polymerica Sinica, 2019,63(4):327-337.
[4] 柴阳, 黄彩娟. 环境友好型生物基材料聚乳酸的合成进展[J]. 广州化学, 2019,44(2):87-93.
CHAI Yang, HUANG Caijuan. Progress in the synjournal of environment-friendly bio-based material polylactic acid[J]. Guangzhou Chemistry, 2019,44(2):87-93.
[5] BASKO Malgorzata. Activated monomer mechanism in the cationic polymerization of L,L-lactide[J]. Pure & Applied Chemistry, 2012,84(10):2081-2088.
[6] MÅLBERG Sofia, BASALP Dildare, FINNE-WISTRAND Anna, et al. Bio-safe synjournal of linear and branched PLLA[J]. Journal of Polymer Science Part A: Polymer Chemistry, 2010,48(5):1214-1219.
[7] 孙斌. 生物可降解材料-聚乳酸及其共聚物的制备与性质研究[D]. 济南:山东师范大学, 2015: 27-28.
SUN Bin. Preparation and properties of biodegradable materials-polylactic acid and copolymers[D]. Ji'nan: Shandong Normal University, 2015: 27-28.
[8] HAO Qinghui, LI Faxue, LI Qiaobo, et al. Preparation and crystallization kinetics of new structurally well-defined star-shaped biodegradable poly(L-lactide)s initiated with diverse natural sugar alcohols[J]. Biomacromolecules, 2005,6(4):2236-2247.
doi: 10.1021/bm050213m pmid: 16004468
[9] 李中会, 刘进忠, 李辰. 聚乳酸中间体D-丙交酯合成工艺研究[J]. 石化技术, 2016,23(3):29.
LI Zhonghui, LIU Jinzhong, LI Chen. Study on the synjournal process of polylactic acid intermediate D-lactide[J]. Petrochemical Technology, 2016,23(3):29.
[10] 葛海雄, 隋峥嵘, 潘孝春, 等. 聚L-丙交酯的制备及其热稳定性能的研究[J]. 北京大学学报(自然科学版), 2001,37(2):251-254.
GE Haixiong, SUI Zhengrong, PAN Xiaochun, et al. Study on the preparation and thermal stability of poly-lactide[J]. Journal of Peking University (Natural Science Edition), 2001,37(2):251-254.
[11] 董浩, 马丽霞, 吴倩倩, 等. 催化剂用量与反应时间对乙交酯-丙交酯5050共聚物微结构的影响[J]. 生物医学工程研究, 2020,39(1):84-89.
DONG Hao, MA Lixia, WU Qianqian, et al. The effect of catalyst dosage and reaction time on the microstructure of glycolide-lactide 5050 copolymer[J]. Journal of Biomedical Engineering Research, 2020,39(1):84-89.
[12] 王有男. 丙交酯交替溶剂重结晶纯化法及其对聚合的影响探索[J]. 科技传播, 2014,6(9):127-133.
WANG Younan. Purification of lactide alternate solvent recrystallization and its impact on polymerization[J]. Science and Technology Communication, 2014,6(9):127-133.
[13] 王珣, 杜锐, 彭少贤. 开环聚合法合成聚乳酸的研究[J]. 塑料, 2008,37(5):20-22.
WANG Xun, DU Rui, PENG Shaoxian. Study on synjournal of polylactic acid by ring-opening polymerization[J]. Plastics, 2008,37(5):20-22.
[14] 李霞, 刘晨光, 贺爱华. L-丙交酯的纯化研究[J]. 青岛科技大学学报(自然科学版), 2011,32(5):509-513.
LI Xia, LIU Chenguang, HE Aihua. Purification of L-lactide[J]. Journal of Qingdao University of Science and Technology (Natural Science Edition), 2011,32(5):509-513.
[15] 戈欢, 朱志国, 王锐, 等. 不同分子质量聚乳酸立体复合物的结晶性能及球晶形貌[J]. 纺织学报, 2016,37(2):27-34.
GE Huan, ZHU Zhiguo, WANG Rui, et al. Crystallization properties and spherulitic morphology of polylactic acid three-dimensional composites with different molecular weights[J]. Journal of Textile Research, 2016,37(2):27-34.
[16] 王世超, 相恒学, 费海燕, 等. 低聚物含量对聚乳酸熔纺成形工艺的影响[J]. 纺织学报, 2014,35(8):133-138.
WANG Shichao, XIANG Hengxue, FEI Haiyan, et al. The influence of oligomer content on the forming process of polylactic acid melt spinning[J]. Journal of Textile Research, 2014,35(8):133-138.
