Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (11): 113-118.doi: 10.13475/j.fzxb.20210805006

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Preparation and properties of flame retardant and superhydrophobic polyester/cotton fabrics

FANG Yinchun(), CHEN Lüxin, LI Junwei

  1. School of Textile and Garment, Anhui Polytechnic University, Wuhu, Anhui 241000, China
  • Received:2021-08-11 Revised:2022-08-24 Online:2022-11-15 Published:2022-12-26

RichHTML

12

PDF (PC)

61

Abstract:

In order to achieve the flame retardancy and super hydrophobicity for polyester/cotton fabrics simultaneously, bio-based chitosan (CS) and phytic acid (PA) were used to construct the flame retardant coating on the polyester/cotton fabric by using layer-by-layer assembly method. The fluorinated superhydrophobic finishing agent was used to treat the polyester/cotton fabrics, and limiting oxygen index (LOI), vertical burning test and water static contact angle were used to determine the flame retardancy and super hydrophobicity of treated polyester/cotton fabrics. Thermogravimetric analyzer was used to investigate the thermal stability of polyester/cotton fabrics, and scanning electron microscope (SEM) was used to view the morphology of polyester/cotton fabrics before and after treatment and their char residues after vertical burning. The results show that the LOI value of polyester/cotton fabric can reach 30.6% after flame retardant treatment by CS/PA coating, the static contact angle could reach over 150°, but the LOI would be reduced after superhydrophobic finishing. Polyester/cotton fabrics could achieve the flame retardancy and super hydrophobicity and a certain washing durability. The flame retardant and superhydrophobic treatment of polyester/cotton fabrics could improve their thermal stability at high temperature and promote the char formation. The CS/PA coating could act through intumescent flame-retardant action.

Key words: polyester/cotton fabrics, functional textiles, flame retardant treatment, super hydrophobic, phytic acid, chitosan

CLC Number:

  • TS195.2

Fig.1

SEM images of polyester/cotton fabrics before and after treatment (×1 000). (a) Untreated; (b) Flame retardant; (c) Flame retardant and superhydrophobic treatment"

Tab.1

LOI values of polyester/cotton fabrics before and after washing and their vertical burning properties"

试样 增重率/
%		 LOI值/% 垂直燃烧性能 熔滴
现象		 弯曲
长度/
mm
炭长/cm
 续燃时间/s
 阴燃时间/s
洗前 洗1次 洗2次 洗4次 洗前 洗1次 洗4次 洗前 洗1次 洗4次 洗前
 洗1次
 洗4次
未处理 — 17.2 燃尽 10.0 0 有熔滴 24.7
阻燃处理 45.0 30.6 26.3 24.6 23.1 12 16.5 燃尽 0 0 26.1 0 0 0 无熔滴 56.5
阻燃超疏水处理 45.7 29.4 26.7 26.3 25.8 14 14.5 燃尽 0 0 20.4 0 0 0 无熔滴 38.3

Fig.2

Vertical burning photographs of polyester/cotton fabrics before and after treatment.(a)Untreated;(b)Flame retardant;(c) Flame retardant and superhydrophobic treatment"

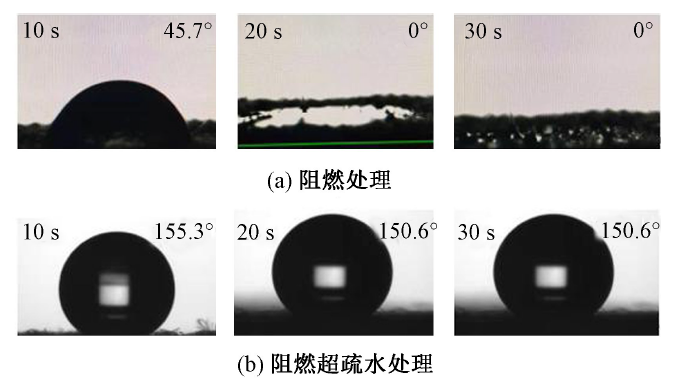

Fig.3

Static contact angle of flame retardant and superhydrophobic polyester/cotton fabrics. (a) Flame retardant treatment; (b) Flame retardant and superhydrophobic treatment"

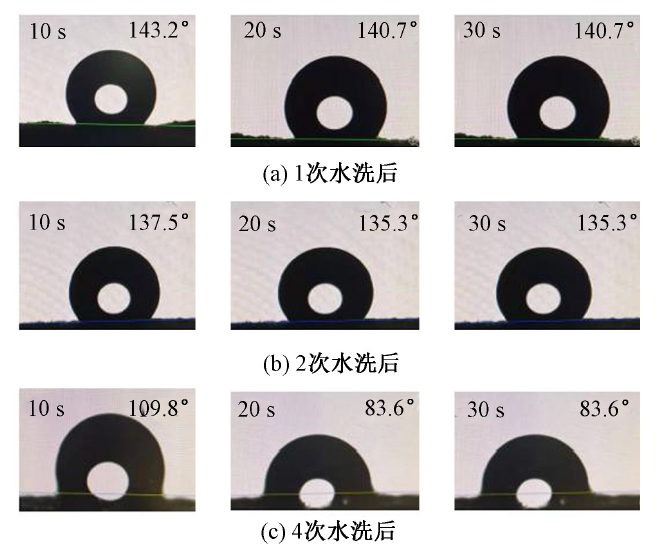

Fig.4

Static contact angle of flame retardant superhydrophobic polyester/cotton fabric after washing for different times. (a) After one time washing; (b)After two times washing; (c) After four times washing"

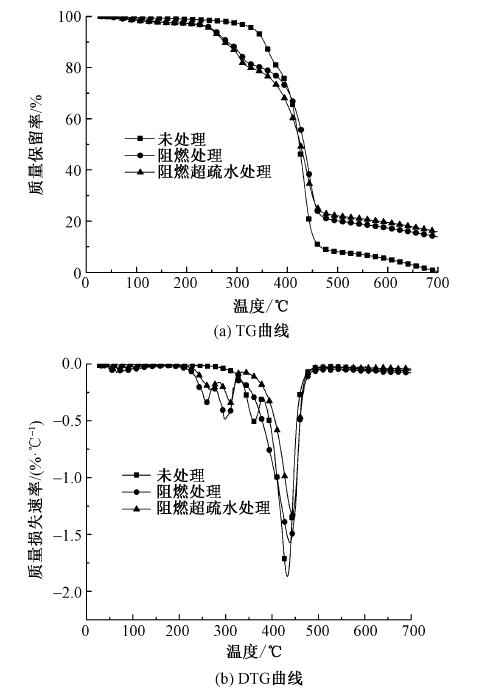

Fig.5

Thermogravimetric analysis of polyester/cotton fabrics. (a) TG curves; (b) DTG curves"

Tab.2

TG analysis data of polyester/cotton fabrics under nitrogen atmosphere"

试样 T-10%/
℃		 第1阶段 第2阶段 700 ℃残
炭率/%
T1max/
℃		 R1max/
(%·℃-1)		 T2max/
℃		 R2max/
(%·℃-1)
未处理 354 360 0.50 433 1.87 0.25
阻燃处理 281 306 0.48 439 1.57 13.7
阻燃超疏水处理 275 310 0.34 442 1.32 15.8

Fig.6

SEM images of char residues of polyester/cotton fabrics(×3 000). (a)Untreated; (b) Flame retardant; (c) Flame retardant and superhydrophobic treatment"

[1] YAN Z, LIAN J, LI M, et al. Deeper insight into hydrolysis mechanisms of polyester/cotton blended fabrics for separation by explicit solvent models[J]. International Journal of Biological Macromolecules, 2020, 154: 596-605.
doi: S0141-8130(20)31374-X pmid: 32194121
[2] LIU L, PAN Y, ZHAO Y, et al. Self-assembly of phosphonate-metal complex for superhydrophobic and durable flame-retardant polyester-cotton fabrics[J]. Cellulose, 2020, 27(10): 6011-6025.
doi: 10.1007/s10570-020-03148-z
[3] PAN Y, LIU L, WANG X, et al. Hypophosphorous acid cross-linked layer-by-layer assembly of green polyelectrolytes on polyester-cotton blend fabrics for durable flame-retardant treatment[J]. Carbohydrate Polymers, 2018, 201: 1-8.
doi: S0144-8617(18)30942-1 pmid: 30241800
[4] LEISTNER M, ABU-ODEH A A, ROHMER S C, et al. Water-based chitosan/melamine polyphosphate multilayer nanocoating that extinguishes fire on polyester-cotton fabric[J]. Carbohydrate Polymers, 2015, 130: 227-232.
doi: 10.1016/j.carbpol.2015.05.005 pmid: 26076621
[5] LIU L, PAN Y, WANG Z, et al. Layer-by-layer assembly of hypophosphorous acid-modified chitosan based coating for flame-retardant polyester-cotton blends[J]. Industrial & Engineering Chemistry Research, 2017, 56(34): 9429-9436.
doi: 10.1021/acs.iecr.7b02303
[6] LIU X, MENG X, SUN J, et al. Improving the flame retardant properties of polyester-cotton blend fabrics by introducing an intumescent coating via layer by layer assembly[J]. Journal of Applied Polymer Science, 2020, 137(41): 49253.
doi: 10.1002/app.49253
[7] FANG Y, ZHOU X, XING Z, et al. Flame retardant performance of a carbon source containing DOPO derivative in PET and epoxy[J]. Journal of Applied Polymer Science, 2017, 134(12):44639.
[8] FANG Y, ZHOU X, XING Z, et al. An effective flame retardant for poly (ethylene terephthalate) synthesized by phosphaphenanthrene and cyclotriphosphazene[J]. Journal of Applied Polymer Science, 2017, 134(35): 45246.
doi: 10.1002/app.45246
[9] 荣智, 陈启杰, 赵雅兰, 等. 生物基绿色阻燃剂的研究进展[J]. 现代化工, 2020, 40(7): 50-54.
RONG Zhi, CHEN Qijie, ZHAO Yalan, et al. Research progress in bio-based green flame retar-dants[J]. Modern Chemical Industry, 2020, 40(7): 50-54.
[10] 王华清, 闫红强. 生物基三组分自组装涂层构筑及其对苎麻织物的阻燃改性[J]. 纺织学报, 2021, 42(4): 132-138.
WANG Huaqing, YAN Hongqiang. Construction of bio-based three-component self-assembled coating for flame retardancy of ramie fabric[J]. Journal of Textile Research, 2021, 42(4): 132-138.
[11] FANG Y, SUN W, LI J, et al. Eco-friendly flame retardant and dripping-resistant of polyester/cotton blend fabrics through layer-by-layer assembly fully bio-based chitosan/phytic acid coating[J]. International Journal of Biological Macromolecules, 2021, 175: 140-146.
doi: 10.1016/j.ijbiomac.2021.02.023 pmid: 33556399
[12] LIU L, HUANG Z, PAN Y, et al. Finishing of cotton fabrics by multi-layered coatings to improve their flame retardancy and water repellency[J]. Cellulose, 2018, 25(8): 4791-4803.
doi: 10.1007/s10570-018-1866-4
[13] SURYAPRABHA T, SETHURAMAN M G. Fabrication of superhydrophobic and enhanced flame-retardant coatings over cotton fabric[J]. Cellulose, 2018, 25(5): 3151-3161.
doi: 10.1007/s10570-018-1757-8
[14] 刘龙祥. 阻燃与超疏水涤棉织物的制备及其性能研究[D]. 合肥: 中国科学技术大学, 2019:39-50.
LIU Longxiang. Study on preparation and performance of flame-retardant and superhydrophoic polyester-cotton fabric[D]. Hefei: University of Science and Technology of China, 2019:39-50.
[15] ZHANG Z, MA Z, LENG Q, et al. Eco-friendly flame retardant coating deposited on cotton fabrics from bio-based chitosan, phytic acid and divalent metal ions[J]. International Journal of Biological Macromolecules, 2019, 140: 303-310.
doi: S0141-8130(19)33223-4 pmid: 31415853
[16] FANG Y, SUN W, LIU H, et al. Construction of eco-friendly flame retardant and dripping-resistant coating on polyester fabrics[J]. Surface Engineering, 2021, 38(7): 1067-1073.
[17] 刘新华, 刘海龙, 方寅春, 等. 聚乙烯亚胺/植酸层层自组装阻燃涤/棉混纺织物制备及其性能[J]. 纺织学报, 2021, 42(11): 103-109.
LIU Xinhua, LIU Hailong, FANG Yinchun, et al. Preparation and properties of flame retardant polyester/cotton blended fabric by layer-by-layer assemblying polyethylenimine/phytic acid[J]. Journal of Textile Research, 2021, 42(11): 103-109.
