纺织学报 ›› 2019, Vol. 40 ›› Issue (07): 24-30.doi: 10.13475/j.fzxb.20180607107

• 纤维材料 • 上一篇    下一篇

家蚕丝素蛋白阳离子化及其对羊毛性状的影响

包红1,2, 徐水1,2, 张小宁1,2, 成国涛1,2, 朱勇1,2()

  1. 1. 西南大学 家蚕基因组生物学国家重点实验室, 重庆 400715
    2. 西南大学 生物技术学院, 重庆 400715
  • 收稿日期:2018-06-25 修回日期:2019-03-30 出版日期:2019-07-15 发布日期:2019-07-25
  • 通讯作者: 朱勇
  • 作者简介:包红(1991-),女,硕士生。主要研究方向为纤维材料。

Cationization of Bombyx mori silk fibroin and effect there of on wool traits

BAO Hong1,2, XU Shui1,2, ZHANG Xiaoning1,2, CHENG Guotao1,2, ZHU Yong1,2()

  1. 1. State Key Laboratory of Silkworm Genome Biology, Southwest University, Chongqing 400715, China
    2. College of Biotechnology, Southwest University, Chongqing 400715, China
  • Received:2018-06-25 Revised:2019-03-30 Online:2019-07-15 Published:2019-07-25
  • Contact: ZHU Yong

RichHTML

6

PDF (PC)

48

摘要：

为提高羊毛织物的穿着舒适性,以碳化二亚胺(EDC)为激活剂激活家蚕丝素蛋白侧链上的羧基,使其与精胺反应得到阳离子化丝素蛋白,并将其整理到羊毛上,借助扫描电子显微镜、X射线衍射仪、傅里叶红外光谱仪、差示扫描热量仪对整理后的羊毛进行分析与表征。结果表明:整理后的丝素蛋白Zeta电位由-3.58 mV上升到5.41 mV;改性羊毛鳞片层表面被丝素蛋白膜包裹,其表面形成了更多的氢键和酰胺键,晶体结构更稳定,耐热分解性能提高,但力学性能下降;不同改性程度的家蚕丝素蛋白对羊毛结构的影响无明显差异,改性处理使羊毛酸性染料上染率下降。

关键词: 家蚕丝素蛋白, 精胺, 羊毛改性, 结晶性能

Abstract:

In order to improve the wearing comfort of wool fabrics, 1-(3-dimethylaminopropyl)-3-ethylcarbodiimide hydrochloride (EDC) was used as an activator to activate carboxyl group on the silk fibroin side chain to react with spermine. The cationized silk fibroin was then arranged on the finished wool fiber. The finished wool was characterized by scanning electron microscopy, X-ray diffraction, Fourier infrared spectroscopy and differential scanning calorimetry analysis. The results show that Zeta potential of silk fibroin rises from -3.58 mV to 5.41 mV, and the modified wool fiber scale layer is coated by a silk fibroin film. The wool fiber possesses more hydrogen bonds and amide bonds, and the crystal structure of wool fiber is more stable. The heat-resistant decomposition performance of the cationized silk fibroin treated wool fibers is improved, but the mechanical properties are decreased. However, no significant difference exists in wool fiber structure with different silk fibroin solution modification. Wool fibers have a reduced dye uptake ratio for acid dyes.

Key words: Bombyx mori silk fibroin, spermine, wool modification, crystallization property

中图分类号:

  • Q518.4

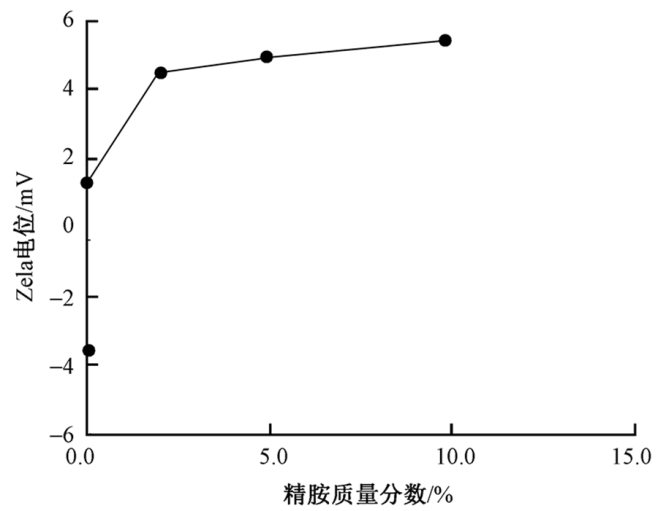

图1

不同精胺质量分数改性家蚕丝素蛋白溶液的Zeta电位"

表1

不同精胺质量分数丝改性素蛋白溶液中氨基酸含量"

氨基酸名称 精胺质量分数/%
0.0 0.1 2.0 5.0 10.0
丝氨酸 14.9 14.6 14.2 14.8 14.6
苏氨酸 1.2 1.2 1.2 1.2 1.3
甘氨酸 30.0 35.5 32.8 33.9 32.0
丙氨酸 29.5 28.7 31.9 30.6 32.5
缬氨酸 2.8 2.6 2.6 2.6 2.4
亮氨酸 0.6 0.7 0.6 0.7 0.6
酪氨酸 12.2 9.8 9.9 9.5 9.7
赖氨酸 0.5 0.6 0.5 0.6 0.5
组氨酸 0.4 0.5 0.5 0.5 0.4
精氨酸 0.5 0.5 0.5 0.5 0.5
天冬氨酸 2.2 2.6 2.2 2.6 2.1
异亮氨酸 0.7 0.8 0.8 0.8 0.7
苯丙氨酸 1.3 1.3 1.3 1.3 1.3

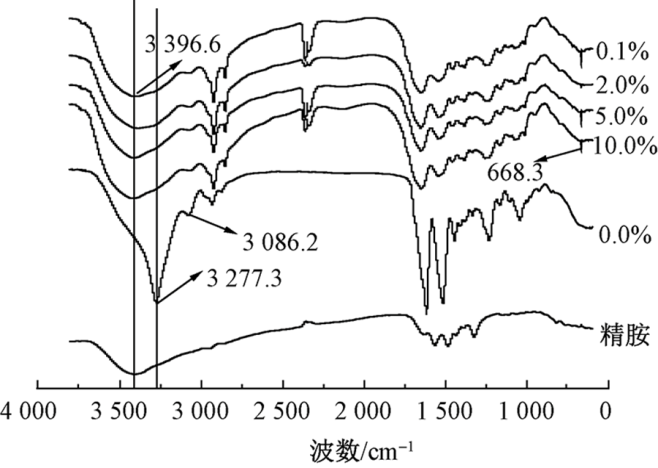

图2

改性家蚕丝素蛋白溶液的红外光谱图"

图3

原羊毛、阳离子化丝素蛋白整理后羊毛的SEM照片"

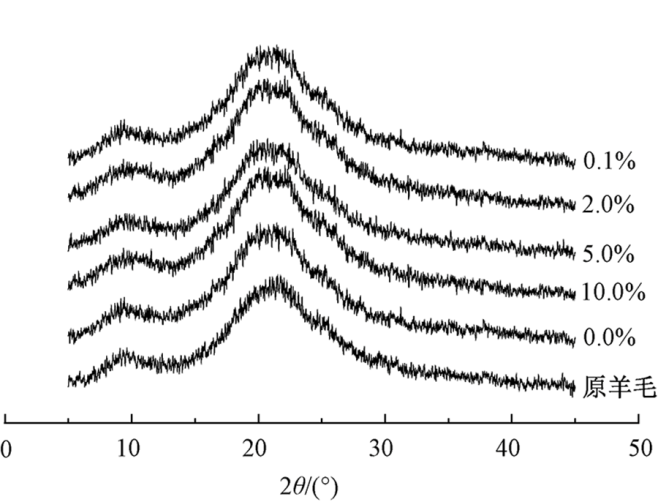

图4

不同精胺质量分数家蚕丝素蛋白改性羊毛的XRD图谱"

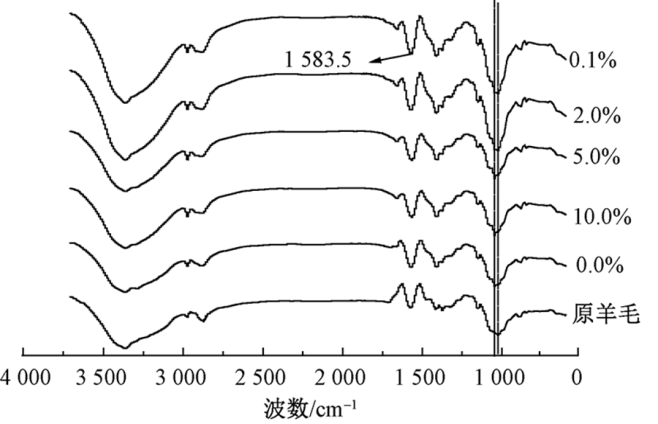

图5

不同精胺质量分数家蚕丝素蛋白改性羊毛的红外光谱图"

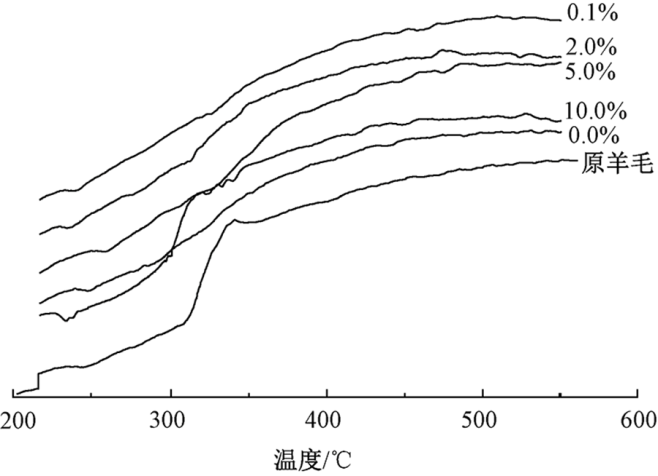

图6

不同精胺质量分数家蚕丝素蛋白改性羊毛的DSC曲线"

表2

不同精胺质量分数家蚕丝素蛋白改性羊毛纤维的力学性能"

精胺质量分数/% 断裂强力/cN 断裂伸长率/%
0.1 5.2 53.7
2.0 5.1 39.1
5.0 5.1 47.1
10.0 3.8 56.3
0.0 3.4 36.0
原羊毛 5.3 61.2

图7

原羊毛、纯丝素蛋白整理羊毛、阳离子化丝素蛋白整理羊毛染色后的扫描电镜照片"

[1] 张艳, 董照明, 席星航 , 等. 家蚕脱胶丝素的蛋白组成成分[J]. 中国农业科学, 2018,51(11):2216-2224.
ZHANG Yan, DONG Zhaoming, XI Xinghang , et al. Protein components of degumming bombys mori silk fibroin[J]. Chinese Agricultural Science, 2018,51(11):2216-2224.
[2] WANG Ping, WANG Qiang, FAN Xuerong , et al. Effects of cutinase on the enzymatic shrink-resist finishing of wool fabrics[J]. Enzyme and Microbial Technology, 2009,44(5):302-308.
doi: 10.1016/j.enzmictec.2009.01.007
[3] 刘倩, 沈建军, 陈维国 . 氨基过氧甲酸对羊毛的改性作用研究[J]. 毛纺科技, 2017,45(9):38-42.
LIU Qian, SHEN Jianjun, CHENG Weiguo . Study on the effect of modification on wool with percarbamic acid[J]. Wool Textile Journal, 2017,45(9):38-42.
[4] VEPARI C, KAPLAN D L . Silk as a biomaterial[J]. Progress in Ploymer Science, 2007,32(8):991-1007.
[5] 吴惠英, 左保齐, 刘尚楠 . 再生丝素蛋白溶液对羊毛织物的改性研究[J]. 毛纺科技, 2013,41(2):39-42.
WU Huiying, ZUO Baoqi, LIU Shangnan . Modification research of regenerated silk fibroin on woollen fabric[J]. Wool Textile Journal, 2013,41(2):39-42.
[6] 李守振, 张海泉 . 丝素蛋白剂对羊毛织物性能的影响[J]. 毛纺科技, 2010,38(2):1-4.
LI Shouzhen, ZHANG Haiquan . Influences of silk fibroin agent on wool fabric properties[J]. Wool Textile Journal, 2010,38(2):1-4.
[7] 李静 . 用精胺修饰家蚕丝素及其作为基因传递载体[D]. 苏州:苏州大学, 2015: 72-73.
LI Jing . Spermine-modified bombys mori silk fibroin as a gene delivery carrier[D]. Suzhou: Soochow University, 2015: 72-73.
[8] 徐水, 张胡静, 李雯静 , 等. 丝素/纳米SiO2凝胶共混膜的制备及性能测试[J]. 蚕业科学, 2011,37(1):82-87.
XU Shui, ZHANG Hujing, LI Wenjing , et al. Preparation and property determination of fibroin/nano-SiO2 gel blend membrane[J]. Sericulture Science, 2011,37(1):82-87.
[9] 龙梦瑶, 李健, 谢婕 , 等. 藏灵菇牦牛酸乳发酵过程中乳酸菌和酵母菌对品质的作用[J]. 食品科学, 2018,39(4):82-89.
LONG Mengyao, LI Jian, XIE Jie , et al. Effect of lactic acid bacteria and yeast on the quality of yoghurt during fermentation by tibetan kefir[J]. Food Science, 2018,39(4):82-89.
[10] 张梦, 于慧, 王旭亮 , 等. 超滤膜表面Zeta电位测试方法研究[J]. 盐业与化工, 2017,46(1):9-11.
ZHANG Meng, YU Hui, WANG Xuliang , et al. Research on zeta potential of ultrafiltration membrane[J]. Salt Industry and Chemical Industry, 2017,46(1):9-11.
[11] 扈永培 . 柞蚕丝素蛋白的阳离子化及其用作基因载体的初步研究[D]. 苏州:苏州大学, 2013: 18-19.
HU Yongpei . Study on the cationic Antheraea pernyi silk fibroin as a non-viral vector[D]. Suzhou: Soochow University, 2013: 18-19.
[12] 王雪燕, 赵澍, 李俊升 . 阳离子丝素助剂改性羊毛及改性纤维染色性能[J]. 西安工程科技学院学报, 2006,20(6):696-701.
WANG Xueyan, ZHAO Shu, LI Junsheng . Cationic silk fibroin auxiliary modified wool and dyeing properties of modified fibers[J]. Journal of Xi'an University of Engineering Science and Technology, 2006,20(6):696-701.
[13] 侯秀良, 刘启国, 王善元 . 采用WAXD、DSC技术研究山羊绒、羊毛纤维的结晶结构[J]. 东华大学学报(自然科学版), 2004,30(13):86-89.
HOU Xiuliang, LIU Qiguo, WANG Shanyuan . Crystallitic structures of cashmere and wool fibers measured by WAXD and DSC methods[J]. Journal of Donghua University(Natural Science Edition), 2004,30(13):86-89.
[14] 陈妙源 . 亚临界萃取羊毛脂技术及其对羊毛纤维性状的影响[D]. 郑州:郑州大学, 2015: 35-36.
CHEN Miaoyuan . Study on extraction lanolin form raw wool by sub-critical technology and its effect on wool fiber[D]. Zhengzhou: Zhengzhou University, 2015: 35-36.
[15] 陈莉萍, 于伟东 . 羊毛及其角朊膜显微傅立叶红外光谱对比分析[J]. 东华大学学报(自然科学版), 2006,32(4):105-109.
CHEN Liping, YU Weidong . Analysis on wool fiber and its film by FT-IR[J]. Journal of Donghua University(Natural Science Edition), 2006,32(4):105-109.
[16] SMITHA B, SRIDHAR S, KHAN A A . Chitosan-sodium alginate polyion complexes as fuel cell membranes[J]. European Polymer Journal, 2005,41(8):1859-1866.
doi: 10.1016/j.eurpolymj.2005.02.018
