接枝蚕蛹肽羧基化粘胶纤维的制备及其优化工艺

doi:10.13475/j.fzxb.20180804406

摘要/Abstract

摘要：

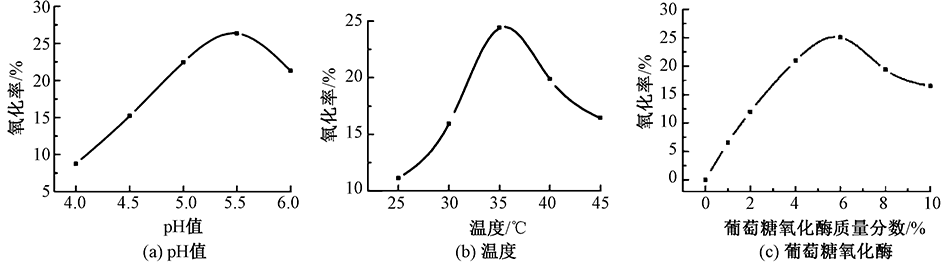

为改善粘胶纤维的亲肤性以及对离子型染料的染色性,采用葡萄糖氧化酶(GOD)氧化粘胶纤维制备羧基化粘胶纤维;再以N,N-二环己基碳二亚胺(DCC)为交联剂,接枝蚕蛹肽于羧基化粘胶纤维表面合成接枝蚕蛹肽羧基化粘胶纤维,并对其结构和性能进行表征。结果表明:接枝的蚕蛹肽位于羧基化粘胶纤维表面,由15种氨基酸组成;接枝蚕蛹肽羧基化粘胶纤维可分别用水溶性苯胺蓝、碱性品红、双缩脲等染料染色;羧基化粘胶纤维的最佳制备工艺为GOD用量为粘胶纤维质量的6%,pH值5.5,温度35 ℃;接枝蚕蛹肽羧基化粘胶纤维的最佳制备工艺为DCC用量为羧基化粘胶纤维质量的40%,交联pH值4.0,交联温度60 ℃。

关键词: 羧基化粘胶纤维, N, N-二环己基碳二亚胺, 葡萄糖氧化酶, 蚕蛹肽, 染色性能

Abstract:

In order to improve the skin affinity and dyeing property of viscose fibers, carboxyl viscose fiber was prepared by oxidation of glucose oxidase(GOD). Silkworm peptide was grafted to the viscose fiber using N,N-dicyclohexylcarbodiimide(DCC) as crosslinking agent, and the main physicochemical and dyeing properties were characterized. The results show that the grafted silkworm peptide carboxyl viscose fiber is composed of 15 kinds of amino acids. The silkworm peptide is located on the surface of carboxyl viscose fiber. The reactions of the fiber with water-soluble aniline blue, basic fuchsin and biuret all show specific dyeing. The grafted silkworm peptide carboxyl viscose fiber is successfully prepared. The optimum process for the preparation of carboxyl viscose fiber by GOD is: pH value of 5.5, the temperature of 35 ℃, the percentage of glucose oxidase in fiber mass of 6%. The optimum process of grafting the carboxyl viscose fiber with silkworm peptide is pH value of 4.0 and the temperature of 60 ℃, the dosage of DCC of 40% of fiber mass.

Key words: carboxyl viscose fiber, N, N-dicyclohexylcarbodiimide, glucose oxidase, silkworm peptide, dyeing property

中图分类号:

TS193.1

尹思力, 杨洋, 江文, 石业新, 周小华, 黄金洪. 接枝蚕蛹肽羧基化粘胶纤维的制备及其优化工艺[J]. 纺织学报, 2019, 40(8): 14-19.

YIN Sili, YANG Yang, JIANG Wen, SHI Yexin, ZHOU Xiaohua, HUANG Jinhong. Preparation and optimization of carboxyl viscose fiber grafted with silkworm chrysalis peptide[J]. Journal of Textile Research, 2019, 40(8): 14-19.

图/表 10

图1

图2

图3

图4

表1

图5

图6

图7

图8

图9

参考文献 17

[1]	EL-KHEIR Amira, EZZAT Mohamed, BASSIOUNY Fattma , et al. Development of some functional properties on viscose fabrics using nano kaolin[J]. Cellulose, 2018,25(8):4805-4818.
[2]	房迪 . 国内外产业用粘胶纤维的发展[J]. 纺织导报, 2015(8):57-59.
	FANG Di . Development of viscose fiber for industrial use at home and abroad[J]. China Textile Leader, 2015(8):57-59.
[3]	王红, 曹小红, 翁杨 . 蚕蛹蛋白粘胶长丝的理化性能与应用研究[J]. 中国纤检, 2011(5):76-79.
	WANG Hong, CAO Xiaohong, WENG Yang . Physicochemical properties and application of silkworm chrysalis protein viscose filament[J]. China Fiber Inspection, 2011(5):76-79.
[4]	TAO Yongbo, ZHANG Enjie, XIA Xiaolin , et al. Morphology and properties of cellulose/silk fibroin blend fiber prepared with 1-butyl-3-methylimidazolium chloride as solvent[J]. Cellulose, 2015,22(1):625-635.
[5]	任玉枝, 魏广信, 李木子 , 等. 玉米蛋白粘胶长丝的开发[J]. 人造纤维, 2018,48(1):9-14.
	REN Yuzhi, WEI Guangxin, LI Muzi , et al. Development of cornprotein viscose filament[J]. Artificial Fibre, 2018,48(1):9-14.
[6]	姚萍, 江文, 王江 , 等. 接枝壳寡糖抗菌粘胶纤维的制备及其抗菌性与染色效果[J]. 纺织学报, 2018,39(4):9-13.
	YAO Ping, JIANG Wen, WANG Jiang , et al. Preparation of chitosan oligosaccharide antibacterial viscose fiber and its antibacterial property and dyeing effect[J]. Journal of Textile Research, 2018,39(4):9-13.
[7]	LIU Ting, XUE Feng, DING Enyong . Cellulose nanocrystals grafted with polyacrylamide assisted by macromolecular RAFT agents[J]. Cellulose, 2016,23(6):3717-3735.
[8]	蔡忠波, 朱军军, 刘优娜 , 等. 牛奶蛋白纤维的发展与展望[J]. 中国纤检, 2015(4):82-84.
	CAI Zhongbo, ZHU Junjun, LIU Youna , et al. Development and prospect of milk protein fiber[J]. China Fiber Inspection, 2015(4):82-84.
[9]	王淑花, 戴晋明 . 羊毛蛋白改性粘胶纤维的性能[J]. 毛纺科技, 2012,40(10):1-6.
	WANG Shuhua, DAI Jinming . Properties of wool protein modified viscose fiber[J]. Wool Textile Journal, 2012,40(10):1-6.
[10]	LI G, YU Z, HAN N , et al. Preparation and properties of polyaniline/viscose fiber adducts.[J]. Polym Compos, 2017(38):782-788.
[11]	刘慧娟, 吴保平, 齐瑞岭 , 等. 蚕蛹蛋白改性粘胶织物服用性能测试与分析[J]. 棉纺织技术, 2013,41(12):5-8.
	LIU Huijuan, WU Baoping, QI Ruiling , et al. Test and analysis on the wearability of viscose fabric modified with silkworm chrysalis protein[J]. Cotton Textile Technology, 2013,41(12):5-8.
[12]	CHEN X, ZHANG M, CHEN S , et al. Peptide-modified chitosan hydrogels accelerate skin wound healing by promoting fibroblast proliferation, migration, and secretion[J]. Cell Transplant, 2017,26(8):1331-1340. doi: 10.1177/0963689717721216 pmid: 28901187
[13]	LIN R J, ZHUANG L Z, XU X Z , et al. Design of a viscose based solid amine fiber: effect of its chemical structure on adsorption properties for carbon dioxide[J]. Colloid Interface, 2013,407:425-431.
[14]	周敏 . 应用不同柱前衍生法于HPLC测定西洋参中的氨基酸[J]. 基因组学与应用生物学, 2018,37(2):524-530.
	ZHOU Min . Determination of amino acids in Panax quinquefolium by HPLC with different pre column derivatization methods[J]. Genomics and Applied Biology, 2018,37(2):524-530.
[15]	徐杰, 李伟坤, 李振球 , 等. 蚕蛹蛋白粘胶纤维中蛋白质含量的测定[J]. 丝绸, 2018,55(5):8-11.
	XU Jie, LI Weikun, LI Zhenqiu , et al. Determination of protein content in silkworm chrysalis protein viscose fiber[J]. Journal of Silk, 2018,55(5):8-11.
[16]	彭彬 . 双酶水解蚕蛹蛋白制备多肽的研究[D]. 济南:齐鲁工业大学, 2014: 2-30.
	PENG Bin . Study on the preparation of polypeptides by double enzyme hydrolysis of silkworm chrysalis protein[D]. Jinan: Qilu University of Technology, 2014: 2-30.
[17]	AL-SALAMI B . DCC promoted condensation reaction of N-phthalylamino acids with sulphanilamide[J]. Misan Journal of Acodemic Studies, 2009(15):18-25.

相关文章 15

[1]	刘芸, 修毅. 基于B / S 架构的数字人台变形NURBS 曲面模型[J]. 纺织学报, 2020, 41(10): 137-143.
[2]	王纯怡, 吴伟, 王健, 徐红, 毛志平. C.I.分散棕19 在超临界CO₂ 及水中溶解性的分子动力学模拟[J]. 纺织学报, 2020, 41(09): 95-101.
[3]	胡文, 王迪, 陈晓川, 汪军, 李勇. 锯齿轧花中含棉籽棉朵模型的构建与仿真[J]. 纺织学报, 2020, 41(09): 27-32.
[4]	李瑞卿, 王伟, 魏炳举, 周长文, 张淑桃. 应用环保型还原剂的硫化黑染色工艺[J]. 纺织学报, 2020, 41(08): 50-54.
[5]	张梦阳, 陈晓川, 汪军, 李勇. 基于ANSYS CFX 的棉纤维马克隆值的建模与仿真[J]. 纺织学报, 2020, 41(07): 29-34.
[6]	丁永生, 代亚敏, 钟毅, 徐红, 毛志平, 张琳萍, 陈支泽. 棉纱线在活性染料皮克林乳液体系中的染色动力学[J]. 纺织学报, 2020, 41(07): 101-108.
[7]	贾琳, 王西贤, 陶文娟, 张海霞, 覃小红. 聚丙烯腈抗菌复合纳米纤维膜的制备及其抗菌性能[J]. 纺织学报, 2020, 41(06): 14-20.
[8]	戴宁, 胡旭东, 彭来湖, 钟垚森. 无缝内衣机密度电动机的控制技术[J]. 纺织学报, 2020, 41(06): 161-167.
[9]	代振兴, 陈广锋, 陈革. 基于Rhino-Python 的多圈高簇绒地毯三维仿真[J]. 纺织学报, 2020, 41(06): 69-75.
[10]	张一敏, 周伟涛, 何建新, 杜姗, 陈香香, 崔世忠. 偕胺肟化SiO₂ / 聚丙烯腈复合纤维膜的制备及其性能[J]. 纺织学报, 2020, 41(05): 25-29.
[11]	刘国金, 韩朋帅, 柴丽琴, 吴钰, 李慧, 高雅芳, 周岚. 涤纶织物上自交联型P( St-NMA) 光子晶体的构筑及其结构稳固性[J]. 纺织学报, 2020, 41(05): 99-104.
[12]	王森, 陈英. 纳米TiO₂ 稳定乳液的制备及其在微胶囊制备中的应用[J]. 纺织学报, 2020, 41(05): 105-111.
[13]	隋智慧, 伞景龙, 王旭, 常江, 吴学栋, 祖彬. 纳米ZnO / 有机氟硅改性聚丙烯酸酯乳液的合成及应用[J]. 纺织学报, 2020, 41(04): 84-90.
[14]	张旭靖, 王立川, 陈雁. 服装缝制生产物料的低碳配送路径优化[J]. 纺织学报, 2020, 41(03): 143-147.
[15]	党丹旸, 崔灵燕, 王亮, 刘雍. 纤维素纳米纤维/ 纳米蒙脱土复合气凝胶制备及其结构与性能[J]. 纺织学报, 2020, 41(02): 1-6.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

氨基酸名称	蚕蛹肽中含量/%	产物中含量/%	氨基酸名称	蚕蛹肽中含量/%	产物中含量/%
天冬氨酸	4.21	8.63	酪氨酸	2.42	3.38
谷氨酸	1.88	5.52	胱氨酸	44.95	27.70
丝氨酸	3.59	2.35	甲硫氨酸	0.73	2.16
组氨酸	0.44	2.75	色氨酸	1.91	1.56
甘氨酸	13.96	17.27	异亮氨酸		2.24
精氨酸	3.07	2.96	苯丙氨酸	6.69	7.85
苏氨酸	2.37	3.61	亮氨酸	0.82	0.54
丙氨酸	6.68	11.49	赖氨酸	6.28
