基于纳滤技术的质检萃取液脱色预处理方法

doi:10.13475/j.fzxb.20180904807

摘要/Abstract

摘要：

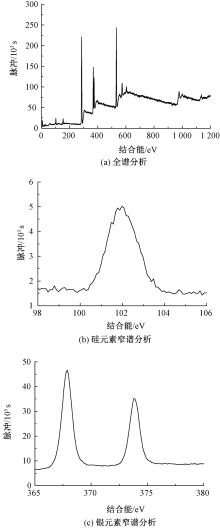

为提高纺织品及皮革甲醛检测效率和准确性,通过界面聚合法,将采用St?ber方法制备的无机颗粒与聚酰胺复合制备有机-无机杂化纳滤膜,用于纺织品和皮革萃取液脱色预处理。分别采用扫描电子显微镜、X射线光电子能谱仪和接触角仪,对颗粒形貌、纳滤膜表面元素及分离层接触角进行分析;通过纯水通量、无机盐和染料截留等对纳滤膜分离性能进行考察;并分析了纳滤脱色预处理法纺织品和皮革甲醛检测的加标回收率。结果表明:粒径分布均匀的球形二氧化硅及银离子修饰的二氧化硅颗粒成功地负载于亲水性良好的纳滤膜分离层;适量颗粒的添加有利于提高纳滤膜的纯水通量;银离子修饰的二氧化硅颗粒改善了纳滤膜对二价阳离子盐及阳离子染料的截留性能,回收率满足纺织品和皮革甲醛检测的要求。

关键词: 深色纺织品, 皮革, 甲醛检测, 脱色预处理, 纳滤, 二氧化硅

Abstract:

In order to improve the efficiency and accuracy of formaldehyde detection of textiles and leathers, based on the interfacial polymerization, polyamide and inorganic particles prepared by St?ber method was adopted to prepare organic-inorganic hybrid nanofiltration membranes for the decolorization pretreatment of textiles and leathers extract. The particle morphology, surface elements of nanofiltration membranes and contact angle of separation layer were analyzed by using scanning electron microscopy, X-ray photoelectron spectrometry and contact angle metering, respectively. The separation performance of nanofiltration membranes was investigated by pure water flux, inorganic salt and dye retention. The recoveries of formaldehyde detection in textiles and leathers by nanofiltration decoloring pretreatment were also analyzed. Results show that the silicon and silver ion modified silica with uniform particle size are successfully loaded on the nanofiltration membrane separation layer, and the separation layer has good hydrophilicity. The pure water flux of the nanofiltration membrane is improved by virtue of the addition of a moderate amount of particles. The silver ion modified silica improves the entrapment performance of nanofiltration membrane for salt with bivalent cation and cationic dye, and the recoveries meet the requirements of formaldehyde detection of textiles and leathers.

Key words: dark textile, leather, formaldehyde detection, decolorization pretreatment, nanofiltration, silica dioxide

中图分类号:

TS101.914

韩健健, 胡勇杰, 胡敏专. 基于纳滤技术的质检萃取液脱色预处理方法[J]. 纺织学报, 2019, 40(09): 136-142.

HAN Jianjian, HU Yongjie, HU Minzhuan. Decolorization pretreatment method of quality inspection extraction solution based on nanofiltration technology[J]. Journal of Textile Research, 2019, 40(09): 136-142.

图/表 9

表1

图1

图2

图3

图4

图5

表2

表3

表4

参考文献 13

[1]	陈丽华. 不同纺织品甲醛检测标准对比及检测结果回归分析[J]. 纺织学报, 2012,33(8):87-91.
	CHEN Lihua. Contrasts between different formaldehyde test standards of textiles and regression analysis of formaldehyde determination results[J]. Journal of Textile Research, 2012,33(8):87-91.
[2]	杨纯, 刘茜, 何劲松, 等. 深色甲醛萃取液的脱色方法研究[J]. 印染助剂, 2017,34(9):57-60.
	YANG Chun, LIU Qian, HE Jinsong, et al. Decolorizing method of dark formaldehyde solution[J]. Textile Auxiliaries, 2017,34(9):57-60.
[3]	黄惠玲, 王玉健, 陈晓兰, 等. 纺织品中甲醛的快速检测方法[J]. 纺织学报, 2012,33(3):98-101.
	HUANG Huiling, WANG Yujian, CHEN Xiaolan, et al. Rapid determination of formaldehyde in textiles[J]. Journal of Textile Research, 2012,33(3):98-101.
[4]	韩健健, 李琰, 林针松, 等. 深色纺织品和皮革萃取液的脱色预处理[J]. 印染, 2018,44(24):48-50.
	HAN Jianjian, LI Yan, LIN Zhensong, et al. Decolorization pretreatment of the extracted solution from dark textiles and leather[J]. China Dyeing & Finishing, 2018,44(24):48-50.
[5]	贾艳萍, 姜成, 郭泽辉, 等. 印染废水深度处理及回用研究进展[J]. 纺织学报, 2017,38(8):172-180.
	JIA Yanping, JIANG Cheng, GUO Zehui, et al. Research progress on deep treatment and recycling of dye wastewater[J]. Journal of Textile Research, 2017,38(8):172-180.
[6]	STöBER W, FINK A, BOHN E. Controlled growth of monodisperse silica spheres in the micron size range[J]. Journal of Colloid and Interface Science, 1968,26(1):62-69.
[7]	杨春霞, 邱广明, 李浩, 等. 铸膜液浓度对聚醚砜超滤膜性能的影响[J]. 内蒙古石油化工, 2011,37(9):13-14.
	YANG Chunxia, QIU Guangming, LI Hao, et al. Influence of concentration of casting solution on the performance of polyethersulfone ultrafiltration membrane[J]. Inner Mongolia Petrochemical Industry, 2011,37(9):13-14.
[8]	邢彦军, 黄文琦, 沈丽, 等. 棉织物超疏水整理的研究进展[J]. 纺织学报, 2011,32(5):141-147.
	XING Yanjun, HUANG Wenqi, SHEN Li, et al. Progress in superhydrophobic finishing of cotton fabrics[J]. Journal of Textile Research, 2011,32(5):141-147.
[9]	张琼, 刘翰霖, 李平平, 等. 聚氨酯/二氧化硅复合超细纤维膜的制备及其防水透湿性能[J]. 纺织学报, 2019,40(2):1-7.
	ZHANG Qiong, LIU Hanlin, LI Pingping, et al. Preparation and waterproof and moisture-permeable properties of electrospun polyurethane/silica composite superfine fiber membrane[J]. Journal of Textile Research, 2019,40(2):1-7.
[10]	吴敏, 程秀萍, 葛明桥. 纳米SiO₂的分散研究[J]. 纺织学报, 2006,27(4):80-82.
	WU Min, CHENG Xiuping, GE Mingqiao. Research on the dispersing method of nanometer SiO₂[J]. Journal of Textile Research, 2006,27(4):80-82.
[11]	张云波, 张珍竹, 罗耀发, 等. 气相二氧化硅改性水性聚氨酯涂层剂的制备及性能研究[J]. 纺织导报, 2013(8):66-68.
	ZHANG Yunbo, ZHANG Zhenzhu, LUO Yaofa, et al. Preparation and property study of fumed silica-containing aqueous polyurethane coating agent[J]. China Textile Leader, 2013(8):66-68.
[12]	胡勇杰. 纳米二氧化硅/聚醚共聚乙酰胺防水透气涂层织物的研制及其性能[J]. 纺织学报, 2018,39(10):104-109.
	HU Yongjie. Preparation and property of waterproof breathable nano silicon dioxide microspheres/poly-ether block amide coating fabric[J]. Journal of Textile Research, 2018,39(10):104-109.
[13]	陈静, 张杰, 金艳, 等. 纳滤和电渗析对浓海水一二价离子的分离性能[J]. 过程工程学报, 2017,17(3):491-499.
	CHEN Jing, ZHANG Jie, JIN Yan, et al. Nanofiltration and electrodialysis on separation of monovalent and divalent ions from concentrated seawater[J]. The Chinese Journal of Process Engineering, 2017,17(3):491-499.

相关文章 15

[1]	段红梅, 汪希铭, 黄子欣, 高晶, 王璐. 纤维基介孔SiO₂ 药物载体的构建及其释药性能[J]. 纺织学报, 2020, 41(07): 15-22.
[2]	陈佳颖, 田旭, 彭晶晶, 方彤, 高伟洪. 针织物表面结构色的构建[J]. 纺织学报, 2020, 41(07): 117-121.
[3]	张琼, 刘翰霖, 李平平, 李妮. 聚氨酯/二氧化硅复合超细纤维膜的制备及其防水透湿性能[J]. 纺织学报, 2019, 40(02): 1-7.
[4]	胡勇杰. 纳米二氧化硅/聚醚共聚乙酰胺防水透气涂层织物的研制及其性能[J]. 纺织学报, 2018, 39(10): 104-109.
[5]	张小林黄晨靳向煜 . 微流纺海藻酸盐基纤维敷料的制备及其性能[J]. 纺织学报, 2018, 39(05): 1-7.
[6]	杜晗笑郑振荣曹森学陈逢亮. 超疏水气凝胶涂层超高分子量聚乙烯织物的制备与表征[J]. 纺织学报, 2018, 39(04): 93-99.
[7]	李义臣刘国金邵建中周岚. 二氧化硅/聚甲基丙烯酸甲酯光子晶体在涤纶织物上的结构生色[J]. 纺织学报, 2016, 37(10): 62-67.
[8]	李月荣周岚冯新星陈建勇张建春. 纳米二氧化硅涂料印花雪地伪装织物的制备及性能表征[J]. 纺织学报, 2015, 36(06): 77-83.
[9]	孙西超李艳清詹小芳刘双双祝成炎. 剪切黏稠液体的制备及其性能[J]. 纺织学报, 2014, 35(8): 5-0.
[10]	夏鑫牛潇周惠敏魏取福. 多孔SnO2纳米纤维的制备与表征[J]. 纺织学报, 2014, 35(7): 13-0.
[11]	余琴邓炳耀刘庆生卢英俏邢剑夏前军范立元. 纳米SiO2/PTFE乳液整理对聚苯硫醚滤料性能的影响[J]. 纺织学报, 2013, 34(11): 77-0.
[12]	李献鑫孙颖陈利李嘉禄潘宁. 立体织物在二氧化硅基复合材料方面的应用前景[J]. 纺织学报, 2013, 34(1): 143-150.
[13]	王立新, 范雪荣, 孙友昌, 柴蕾. 基于纤维孔隙状况的皮革服装材料热湿舒适性的比较[J]. 纺织学报, 2012, 33(8): 97-102.
[14]	陈丽华. 不同纺织品甲醛检测标准对比及检测结果回归分析[J]. 纺织学报, 2012, 33(8): 87-91.
[15]	王立新, 范雪荣, 孙晓玮. 传统与新流行文化元素融合的皮革服装图案设计[J]. 纺织学报, 2012, 33(7): 109-113.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

染料名称	类型	分子式	摩尔质量/ (g·mol^-1)	最大吸收波长/ nm
日落黄	阴离子型	C₁₆H₁₀N₂Na₂O₇S₂	452.4	482
酸性红B	阴离子型	C₂₀H₁₂N₂Na₂O₇S₂	502.4	510
阳离子红X-GTL	阳离子型	C₂₀H₁₈ClN₅O₆S	502.0	530
罗丹明B	阳离子型	C₂₈H₃₁ClN₂O₃	479.0	560

无机盐种类	通量J/(L·m^-2·h^-1)			截留率R/%
无机盐种类	PA膜	S-PA膜	SA-PA膜	PA膜	S-PA膜	SA-PA膜
NaCl	10.85	13.06	13.25	38.3	40.6	52.5
MgCl₂	10.78	12.83	12.78	50.3	57.5	92.6
Na₂SO₄	10.75	12.81	12.98	46.2	48.7	70.2
MgSO₄	10.66	12.57	12.63	65.3	69.6	90.3

染料名称	染料质量浓度/ (mg·kg^-1)	通量J/(L·m^-2·h^-1)			截留率R/%
染料名称	染料质量浓度/ (mg·kg^-1)	PA膜	S-PA膜	SA-PA膜	PA膜	S-PA膜	SA-PA膜
	50	10.91	13.04	13.28	96.1	96.9	96.0
日落黄	100	10.85	13.06	13.25	96.9	97.2	96.1
	500	10.79	12.97	13.06	97.8	98.1	97.2
	50	10.75	12.85	12.74	97.9	98.4	97.1
酸性红B	100	10.78	12.83	12.78	98.3	98.6	97.5
	500	10.73	12.77	12.72	98.8	99.1	97.8
	50	10.78	12.81	12.95	98.0	97.9	99.5
阳离子红X-GTL	100	10.75	12.81	12.98	98.1	98.3	99.8
	500	10.77	12.78	12.93	98.3	98.5	99.8
	50	10.67	12.59	12.68	97.0	97.3	99.0
罗丹明B	100	10.66	12.57	12.63	97.2	97.9	99.3
	500	10.68	12.55	12.60	97.5	98.1	99.6

预处理用膜	加标量/ (mg·kg^-1)	回收率/%
预处理用膜	加标量/ (mg·kg^-1)	50 mg/L	100 mg/L	500 mg/L
	20	99.5	99.1	100.2
PA膜	75	100.5	102.5	98.7
	300	99.3	98.8	102.1
	20	100.2	104.9	99.8
S-PA膜	75	99.7	98.6	101.2
	300	102.1	101.1	99.5
	20	98.7	95.7	101.6
SA-PA膜	75	101.3	100.0	99.4
	300	98.9	99.6	102.3
