纺织学报 ›› 2020, Vol. 41 ›› Issue (01): 102-109.doi: 10.13475/j.fzxb.20180906408

• 染整与化学品 • 上一篇    下一篇

石墨烯基锆钛复合材料改性棉织物的制备及其远红外发射性能

易领, 张何(), 傅昕, 李雯

  1. 湖南工程学院 材料与化工学院, 湖南 湘潭 411104
  • 收稿日期:2018-09-26 修回日期:2019-10-22 出版日期:2020-01-15 发布日期:2020-01-14
  • 通讯作者: 张何
  • 作者简介:易领(1990—),女,硕士生。主要研究方向为纺织化学与染整工程。
  • 基金资助:
    国家自然科学基金资助项目(21005067);湖南省自然科学基金资助项目(2019JJ40055);湖南省教育厅资助科研项目(17A044,16B060)

Preparation and far-infrared emission performance of graphene based zirconium/titanium composites modified cotton fabrics

YI Ling, ZHANG He(), FU Xin, LI Wen

  1. College of Materials and Chemical Engineering, Hunan Institute of Engineering, Xiangtan, Hunan 411104, China
  • Received:2018-09-26 Revised:2019-10-22 Online:2020-01-15 Published:2020-01-14
  • Contact: ZHANG He

摘要:

为进一步提高石墨烯基纳米复合材料的远红外发射特性,通过一步水热法利用锆钛氧化物对氧化石墨烯进行纳米复合改性,制备了二氧化锆/二氧化钛/还原型氧化石墨烯(ZrO2/TiO2-rGO)纳米复合材料。以水溶性聚氨酯为黏合助剂将ZrO2/TiO2-rGO与纺织品相结合,制备出具有远红外发射性能的棉织物。借助扫描电子显微镜和傅里叶红外分析光谱对制备的ZrO2/TiO2-rGO复合材料表观形态和内部结构进行表征;通过远红外发射率和红外热成像技术表征了改性棉织物的远红外发射性能。结果表明:在温度为120 ℃,时间为4 h,氧化石墨烯、二氧化钛、氧氯化锆质量比为5∶3∶2的合成条件下整理棉织物时,其远红外发射率较未整理棉织物高出约2.5%;这种方法可有效减少石墨烯含量,且远红外发射性能优良。

关键词: 棉织物功能整理, 水热法, 氧化石墨烯, 锆钛氧化物, 复合材料, 水溶性聚氨酯, 远红外发射率

Abstract:

In order to further improve the far-infrared emission characteristics of graphene-based nanocomposites, zirconia/titania/reduced graphene oxide (ZrO2/TiO2-rGO) nanocomposites were prepared by one-step hydrothermal modification of graphene oxide with zirconia/titanium oxide. Cotton fabrics with far-infrared emissivity were prepared by combining ZrO2/TiO2-rGO with the textiles using water-soluble polyurethane as binder. The morphology and internal structure of ZrO2/TiO2-rGO composites were characterized by scanning electron microscopy and Fourier transform infrared spectroscopy, and the far infrared emission properties of modified cotton fabrics were characterized by far infrared emissivity and infrared thermal imaging technology. The results show that at 120 ℃ for 4 reaction hours, the far-infrared emissivity of the treated cotton fabric was about 2.5% higher than that of the untreated cotton fabric when the mass ratio of graphene oxide,titanium dioxide,zirconium oxychloride was 5∶3∶2. This method could effectively reduce the content of graphene and provide good far-infrared emission performance with low cost.

Key words: functional finishing of cotton fabric, hydrothermal, graphene oxide, zirconium/titaniumoxide, composite, water soluble polyurethane, far infrared emission rate

中图分类号:

  • TQ421.2

图1

ZrO2/TiO2-rGO复合材料制备原理图"

图2

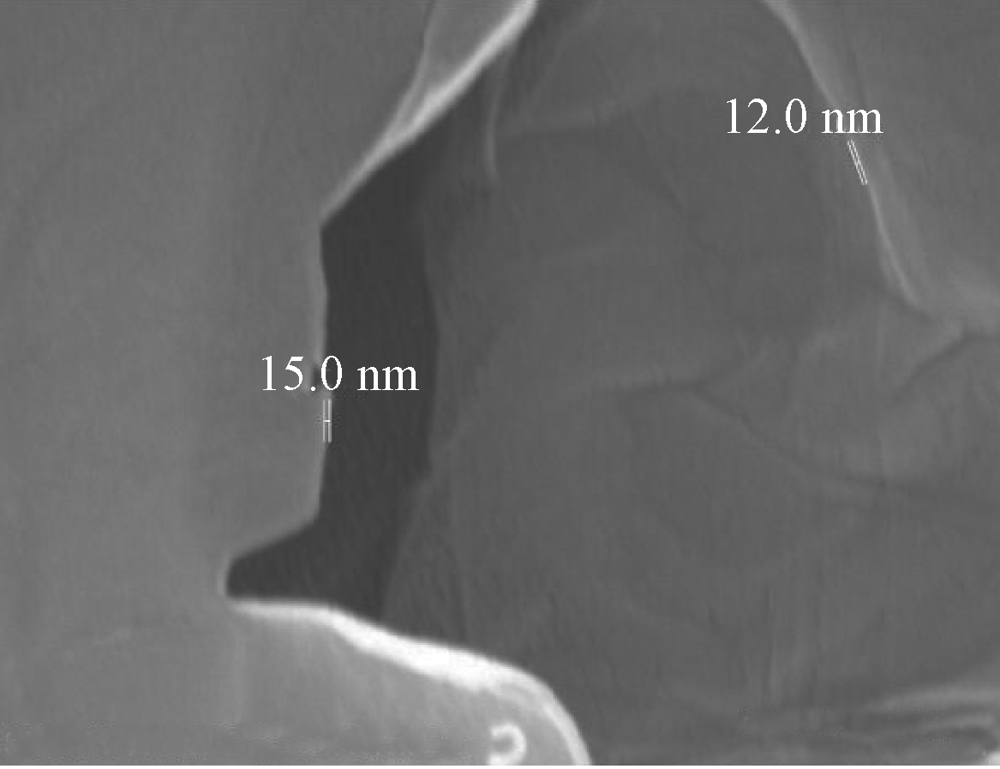

氧化石墨烯SEM照片(×10 000)"

图3

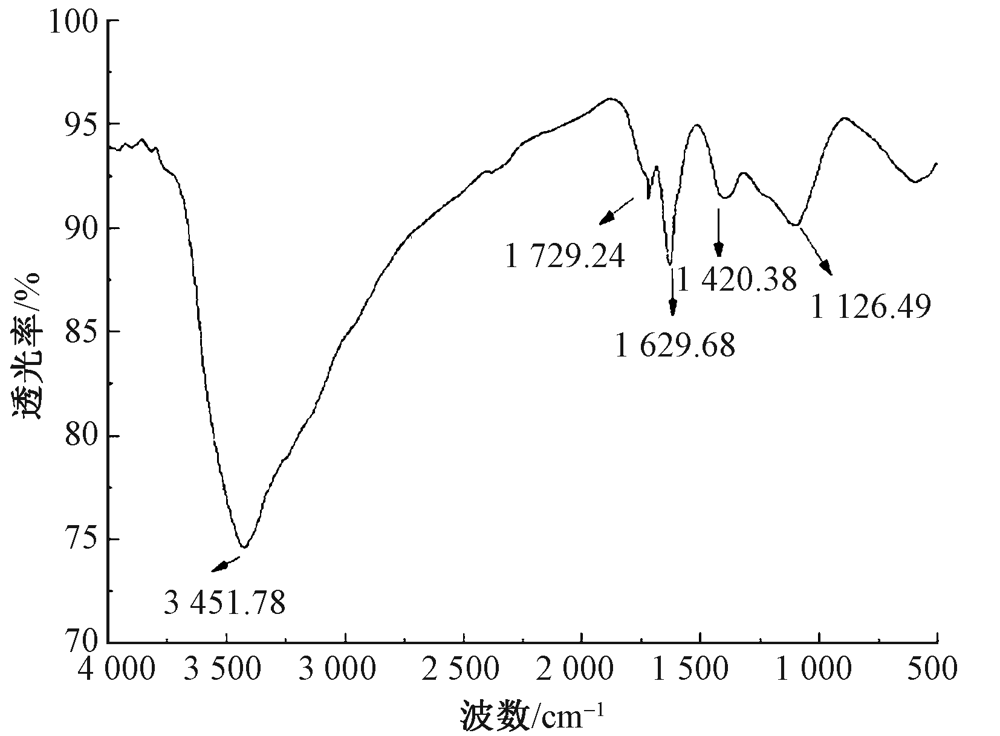

氧化石墨烯红外光谱图"

图4

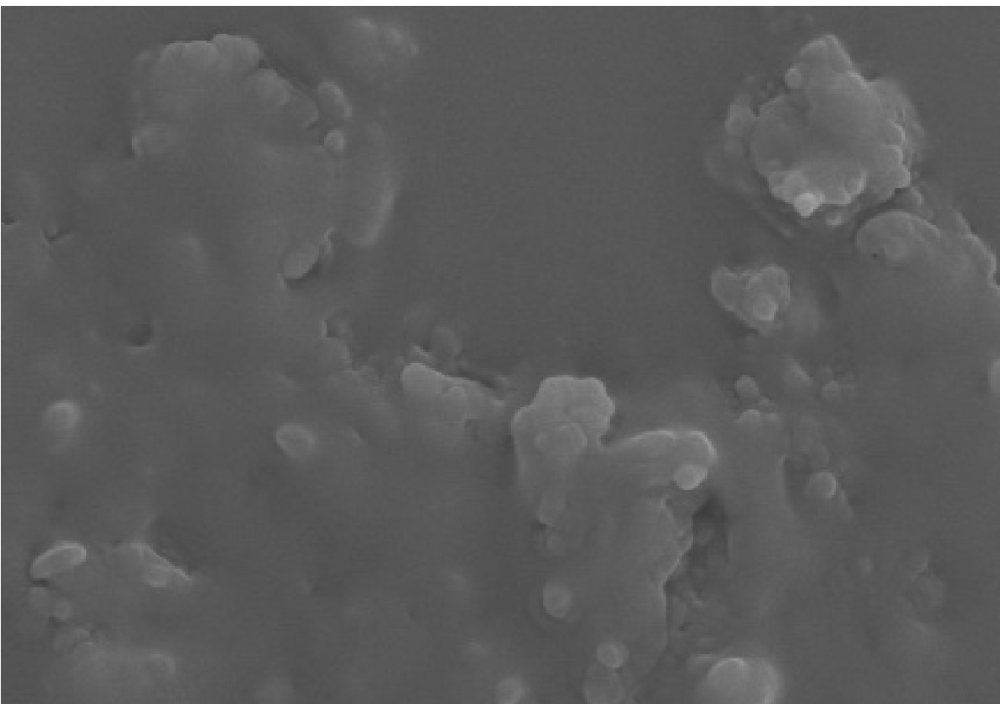

ZrO2/TiO2-rGO复合材料SEM照片(×10 000)"

图5

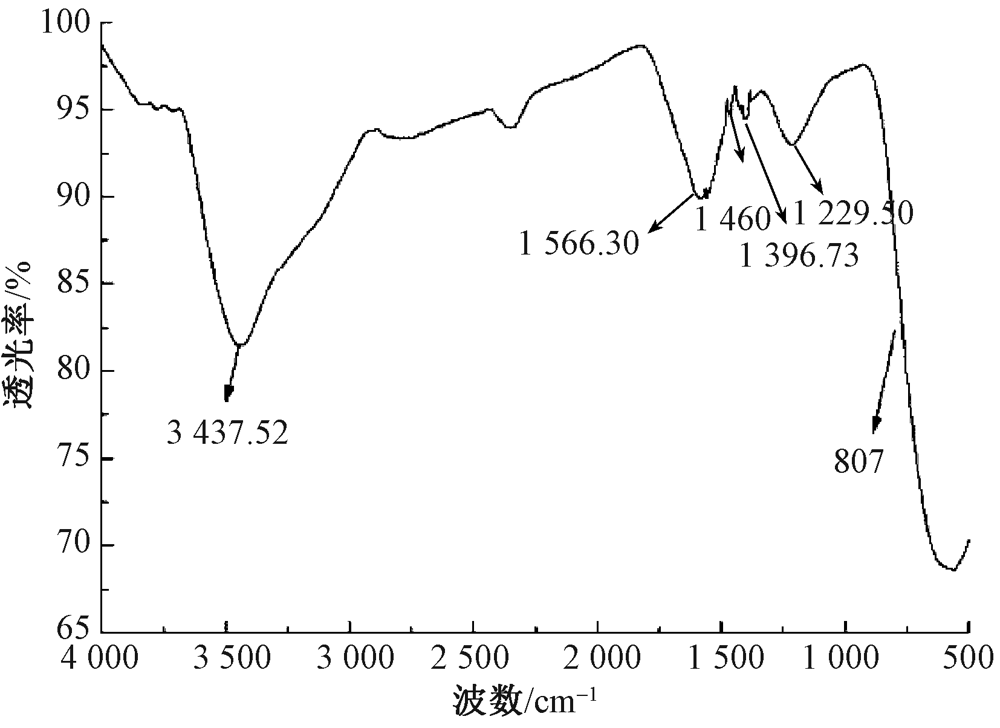

ZrO2/TiO2-rGO复合材料红外光谱图"

图6

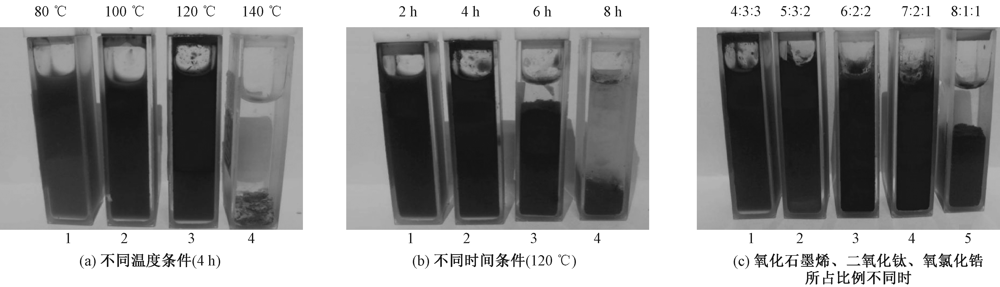

不同条件下复合材料在水中分散情况"

表1

传统远红外纺织品远红外发射效果"

样品 有效成分 有效成分
用量/%
远红外
发射率/%
丙纶远红外纤维 电气石母粒 8 82
聚酯远红外纤维 TiO2-SiO2-Cr2O3 3 85
棉远红外织物 陶瓷粉 6 86
涤纶/丙纶/锦纶远红外织物 Fe2O3、BeO、SrO、SiO2、CaO、MnO2 8 87
后整理远红外织物 六环石 5 85

表2

ZrO2/TiO2-rGO复合材料改性棉织物的远红外发射率"

样品 远红外发射率/%
未水洗 水洗10次 水洗20次
未处理织物 86.8 86.5 86.5
水性聚氨酯整理织物 86.3 86.4 86.4
ZrO2整理织物 87.7 87.1 86.2
TiO2整理织物 87.2 87.0 86.3
复合材料改性织物(4:3:3) 87.6 87.8 87.5
复合材料改性织物(5:3:2) 89.3 89.5 89.2
复合材料改性织物(6:2:2) 89.0 88.9 88.9
复合材料改性织物(7:2:1) 88.5 88.6 88.3
复合材料改性织物(8:1:1) 88.0 88.2 88.0
GO整理织物 88.2 88.1 88.1

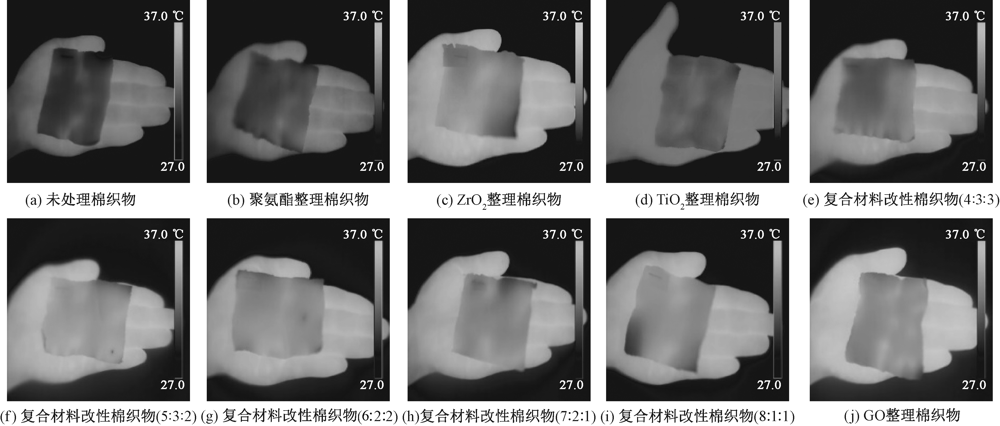

图7

未处理棉织物、改性棉织物红外热成像图"
