三维四向和五向编织复合材料冲击断裂行为的多尺度模拟

doi:10.13475/j.fzxb.20190902007

纺织学报 ›› 2020, Vol. 41 ›› Issue (10): 67-73.doi: 10.13475/j.fzxb.20190902007

三维四向和五向编织复合材料冲击断裂行为的多尺度模拟

封端佩¹^,², 商元元³, 李俊¹^,²()

1.东华大学服装与艺术设计学院, 上海 200051
2.现代服装设计与技术教育部重点实验室(东华大学),上海 200051
3.青岛科技大学高分子科学与工程学院, 山东青岛 266042

收稿日期:2019-09-05 修回日期:2020-07-07 出版日期:2020-10-15 发布日期:2020-10-27
通讯作者: 李俊
作者简介:封端佩(1996—),女,硕士生。主要研究方向为服装舒适性及产品开发。

Multi-scale simulation of impact failure behavior for 4- and 5-directional 3-D braided composites

FENG Duanpei¹^,², SHANG Yuanyuan³, LI Jun¹^,²()

1. College of Fashion and Design, Donghua University, Shanghai 200051, China
2. Key Laboratory of Clothing Design and Technology (Donghua University), Ministry of Education, Shanghai 200051, China
3. College of Polymer Science and Engineering, Qingdao University of Science & Technology, Qingdao, Shandong 266042, China

Received:2019-09-05 Revised:2020-07-07 Online:2020-10-15 Published:2020-10-27
Contact: LI Jun

摘要/Abstract

摘要：

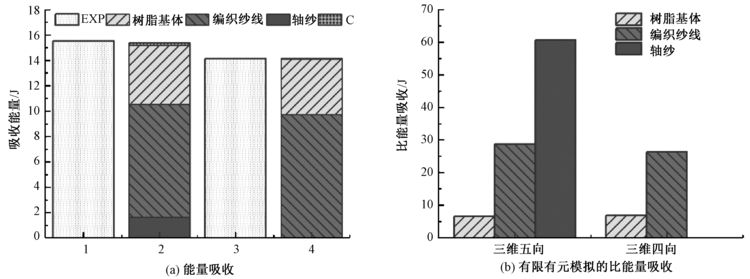

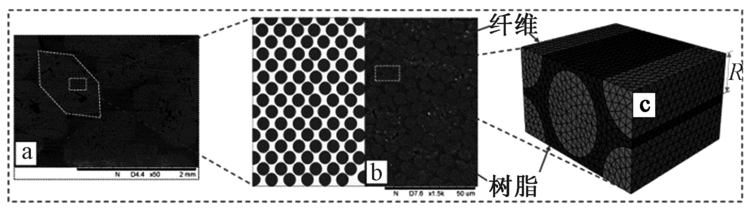

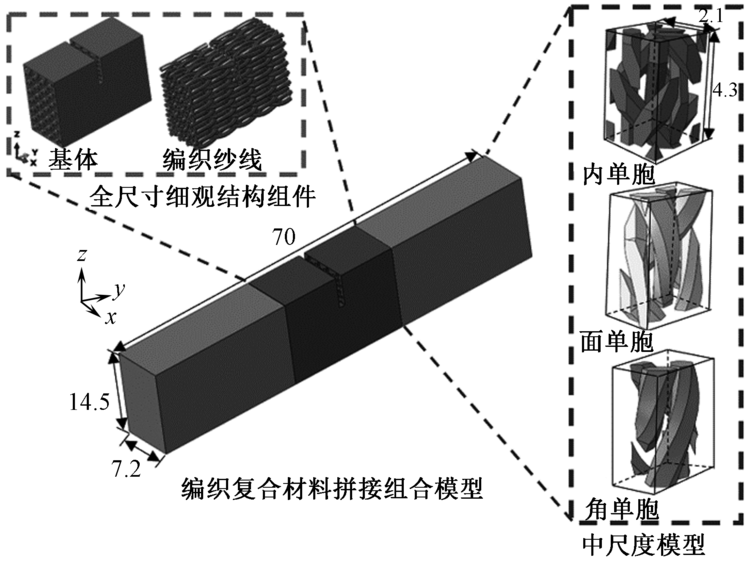

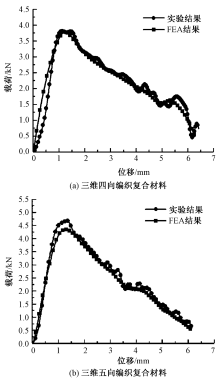

为对三维编织复合材料的结构特性进行模拟预测分析,采用一种多尺度和细观结构结合的方法,建立三维编织复合材料的等效拼接组合模型,进一步揭示编织复合材料在微观结构水平下的冲击损伤演化、裂纹扩展和能量吸收。设计制备三维四向和三维五向2种编织结构的碳/环氧树脂三维编织复合材料,根据编织参数建立等效拼接组合模型;通过落锤式冲击试验仪结合高速摄影系统记录2种编织复合材料在低速冲击下的断裂行为,与等效拼接组合模型在有限元数值模拟结果相对比,验证等效拼接组合模型的有效性。模拟结果表明,相同的体积分数下轴纱表现出最高的能量吸收,由于轴纱的存在,三维五向编织复合材料的抗裂性和裂纹扩展性优于三维四向编织复合材料。

关键词: 三维编织复合材料, 模型构建, 冲击断裂行为, 比能量吸收, 有限元分析

Abstract:

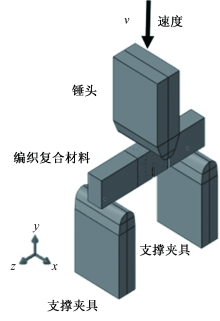

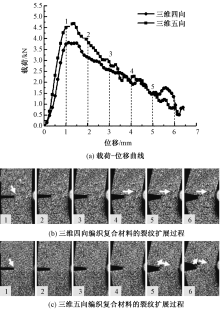

In order to simulate and predict the complex mechanical characteristics of 3-D braided composites against impact, a multi-scale meso-structure method was used to establish an equivalent combination model of 3-D braided composites to study impact behavior of braided composites. Impact damage evolution, crack propagation and energy absorption were examined numerically. 4- and 5-directional 3-D braided structures were used to prepare braided composites, and the equivalent combination model was established according to the obtained braid parameters. A drop weight impact tester equipped with a high-speed camera was used to record the fracture behavior of the 4-directional 3-D and 5-directional 3-D braided composites under low-speed impact. The 3-D braided composite equivalent combination models were validated by the fracture behavior obtained from the experiments. The simulation results show that under the same volume fraction, the axial yarn exhibits the highest energy absorption. Due to the presence of axial yarns, the 5-directional 3-D braided composites have better crack resistance and crack propagation than the 4-directional 3-D braided composites.

Key words: 3-D braided composite, model construction, impact fracture behavior, specific energy absorption, finite element analysis

中图分类号:

TB332

封端佩, 商元元, 李俊. 三维四向和五向编织复合材料冲击断裂行为的多尺度模拟[J]. 纺织学报, 2020, 41(10): 67-73.

FENG Duanpei, SHANG Yuanyuan, LI Jun. Multi-scale simulation of impact failure behavior for 4- and 5-directional 3-D braided composites[J]. Journal of Textile Research, 2020, 41(10): 67-73.

图/表 11

图1

表1

图2

图3

表2

图4

图5

图6

图7

图8

图9

参考文献 20

[1]	马丕波, 蒋高明, 高哲, 等. 纺织结构复合材料冲击拉伸研究进展[J]. 力学进展, 2013,43(3):329-357. doi: 10.6052/1000-0992-13-008
	MA Pibo, JIANG Gaoming, GAO Zhe, et al. Advances in impact tensile properties of 3-D textile structural composites[J]. Advances in Mechanics, 2013,43(3):329-357. doi: 10.6052/1000-0992-13-008
[2]	顾伯洪, 孙宝忠. 纺织结构复合材料冲击动力学[M]. 北京: 科学出版社, 2012: 1-39.
	GU Bohong, SUN Baozhong. Impact dynamics of textile structural composites [M]. Beijing: Science Press, 2012: 1-39.
[3]	刘丽敏, 孙颖, 李涛涛, 等. 芳纶/炭混编三维编织复合材料冲击后压缩性能实验研究[J]. 固体火箭技术, 2016,39(6):803-808.
	LIU Limin, SUN Ying, LI Taotao, et al. Experimental investigation on the compression properties of Kevlar/carbon hybrid 3D braided composites after impact[J]. Journal of Solid Rocket Technology, 2016,39(6):803-808.
[4]	涂莉, 孟家光. 三维纺织复合材料研究进展[J]. 上海纺织科技, 2019,47(6):4-7,24.
	TU Li, MENG Jiaguang. Research progress of three-dimensional textile composites[J]. Shanghai Textile Science and Technology, 2019,47(6):4-7,24.
[5]	宋云飞, 杜宇. 三维编织复合材料力学性能研究现状[J]. 玻璃钢/复合材料, 2017(10):104-109.
	SONG Yunfei, DU Yu. Research status of mechanical properties of 3D braided composite[J]. Fiber Reinforced Plastics/Composites, 2017(10):104-109.
[6]	张强. 三维角联锁机织复合材料低速冲击力学性能及有限元分析[D]. 上海:东华大学, 2012: 21-55.
	ZHANG Qiang. FEM stimulation of three-dimensional angel interlock woven composite under low-velocity impact[D]. Shanghai:Donghua University, 2012: 21-55.
[7]	JAJAM K C, TIPPUR H V. Quasi-static and dynamic fracture behavior of particulate polymer composites: a study of nano-vs. micro-size filler and loading-rate effects[J]. Composites Part B:Engineering, 2012,43(8):3467-3481. doi: 10.1016/j.compositesb.2012.01.042
[8]	ZHANG C, CURIEL-SOSA J L, BUI T Q. A novel interface constitutive model for prediction of stiffness and strength in 3D braided composites[J]. Composite Structures, 2017,163:32-43. doi: 10.1016/j.compstruct.2016.12.042
[9]	DONG K, ZHANG J, JIN L, et al. Multi-scale finite element analyses on the thermal conductive behaviors of 3D braided composites[J]. Composite Structures, 2016,143:9-22. doi: 10.1016/j.compstruct.2016.02.029
[10]	GE J, HE C, LIANG J, et al. A coupled elastic-plastic damage model for the mechanical behavior of three-dimensional (3D) braided composites[J]. Composites Science and Technology, 2018,157:86-98. doi: 10.1016/j.compscitech.2018.01.027
[11]	TIAN Z, YAN Y, LI J, et al. Progressive damage and failure analysis of three-dimensional braided composites subjected to biaxial tension and compression[J]. Composite Structures, 2018,185:496-507 doi: 10.1016/j.compstruct.2017.11.041
[12]	SHI B, LIU S, SIDDIQUE A, et al. Impact fracture behaviors of three-dimensional braided composite U-notch beam subjected to three-point bending[J]. International Journal of Damage Mechanics, 2018,28(3):404-26. doi: 10.1177/1056789518772619
[13]	ZHANG F, WAN Y, GU B, et al. Impact compressive behavior and failure modes of four-step three-dimensional braided composites-based meso-structure model[J]. International Journal of Damage Mechanics, 2014,24(6):805-827. doi: 10.1177/1056789514554921
[14]	PAN Z X, GU , SUN B Z. Numerical analysis of thermo-mechanical behaviors of 3-D rectangular braided composite under different temperatures[J]. Journal of the Textile Institute, 2015,106(2):173-186 doi: 10.1080/00405000.2014.906941
[15]	WU L W, ZHANG F, SUN B Z, et al. Finite element analyses on three-point low-cyclic bending fatigue of 3-D braided composite materials at microstructure level[J]. International Journal of Mechanical Sciences, 2014,84:41-53. doi: 10.1016/j.ijmecsci.2014.03.036
[16]	ZHOU H, HU D, ZHANG W, et al. The transverse impact responses of 3-D braided composite I-beam[J]. Composites Part A Applied Science and Manufactu-ring, 2017,94:158-169.
[17]	WANG C, ROY A, CHEN Z, et al. Braided textile composites for sports protection: energy absorption and delamination in impact modelling[J]. Materials & De-sign, 2017,136:258-69.
[18]	WANG R, ZHANG L, HU D, et al. Progressive damage simulation in 3D four-directional braided composites considering the jamming-action-induced yarn deformation. Composite Structure[J]. 2017,178:330-340.
[19]	殷冬冬, 车玉秋, 李妍缘. 三维编织方法现状分析[J]. 科技风, 2018(1):109.
	YIN Dongdong, CHE Yuqiu, LI Yanyuan. Analysis of the current situation of three-dimensional weaving method[J]. Technology Wind, 2018 (1):109.
[20]	李柏松, 王继辉, 邓京兰. 真空辅助RTM成型技术的研究[J]. 玻璃钢/复合材料, 2001(1):17-18,23.
	LI Bosong, WANG Jihui, DENG Jinglan. The research of vacuum assisted RTM forming technology[J]. Fiber Reinforced Plastics/Composites, 2001(1):17-18,23.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

纤维类型	结构	编织角 φ/(°)	纤维体积分数V_f/%	试样尺寸 (L×W×H)/mm
T700-12K	三维四向	25.97	36.77	70×14×7
T700-12K	三维五向	23.84	32.19	70×14×7

结构	类型	E_z/ GPa	E_y/ GPa	E_x/ GPa	ν_xx	ν_y	ν_z	G_xz/ GPa	G_yz/ GPa	G_xy/ GPa
三维四向	内单胞	24.86	4.73	4.73	0.36	0.36	0.43	8.38	8.38	5.80
	面单胞	11.94	3.90	3.94	0.44	0.37	0.39	1.74	1.94	1.32
	内单胞	34.18	4.51	4.51	0.33	0.33	0.40	6.53	6.53	3.82
三维五向	面单胞	11.60	3.58	3.67	0.43	0.36	0.38	1.76	1.66	1.25
