纺织学报 ›› 2020, Vol. 41 ›› Issue (03): 45-50.doi: 10.13475/j.fzxb.20190406506

• 纺织工程 • 上一篇    下一篇

不锈钢短纤维/棉包覆氨纶纱的弹性与电学性能

赵亚茹1,2, 肖红2,3(), 陈剑英1,2

  1. 1.东华大学 纺织学院, 上海 201620
    2.军事科学院系统工程研究院 军需工程技术研究所, 北京 100010
    3.武汉纺织大学 材料科学与工程学院, 湖北 武汉 430000
  • 收稿日期:2019-04-23 修回日期:2019-12-15 出版日期:2020-03-15 发布日期:2020-03-27
  • 通讯作者: 肖红
  • 作者简介:赵亚茹(1994—),女,硕士生。主要研究方向为弹性电磁屏蔽织物的开发及性能。
  • 基金资助:
    国家自然科学基金面上项目(51673211)

Elastic and electrical properties of stainless steel fiber/cotton blended spandex wrap yarn

ZHAO Yaru1,2, XIAO Hong2,3(), CHEN Jianying1,2

  1. 1. College of Textiles, Donghua University, Shanghai 201620, China
    2. Institute of Quartermaster Engineering & Technology, Institute of System Engineering, Academy of Military Science, Beijing 100010, China
    3. School of Materials Science and Engineering, Wuhan Textile University, Wuhan, Hubei 430000, China
  • Received:2019-04-23 Revised:2019-12-15 Online:2020-03-15 Published:2020-03-27
  • Contact: XIAO Hong

摘要:

为开发兼具弹性和导电性能的电磁功能纱线,以氨纶为芯丝、外包不锈钢短纤维/棉混纺纱,研制系列弹性不锈钢短纤维/棉包覆氨纶纱。在Instron 5566万能试验机上,结合万用表,获得弹性纱线的应力-应变、应变-电阻以及定伸长弹性回复曲线,研究纱线在不同拉伸状态下的电学性能。结果表明:不锈钢短纤维/棉包覆氨纶芯丝的纱线,存在氨纶芯丝的断裂现象,将不锈钢短纤维/棉包覆氨纶芯丝的纱线直接与氨纶丝或氨纶/棉包芯纱直接并合的方式,赋予纱线弹性;随着不锈钢短纤维含量的增加,弹性纱线的弹性伸长和回复性能都降低,塑性变形增加;随着弹性纱线应变的增加,其电阻先增加后降低。

关键词: 电磁功能纱线, 弹性回复率, 塑性变形率, 电学性能, 导电纱线

Abstract:

In order to develop electromagnetic functional yarns with both elastic and electrical properties, a series of elastic stainless steel fiber/cotton ammonia yarns were developed with spandex as the core yarn and wrapped with stainless steel fiber/cotton blended yarn. On the Instron 5566 tester, combined with a multimeter, the stress-strain, strain-resistance and elongational elastic recovery curves of the elastic yarn were obtained, and the electrical properties of the yarn under different tensile conditions were investigated. The results show that the addition of spandex yarn improves the elastic properties of stainless steel fiber/cotton blended yarn, but the spandex core yarn would fracture easily. When the content of stainless steel short fiber increases, the elastic elongation and recovery properties of elastic yarn decrease, and plastic deformation increases. The strain increases of the elastic yarn, causes the electrical resistance of the stainless steel fiber/cotton ammonia yarn to increase first and then decreases until the yarn breaks, and the maximum value of the resistance occurs when the spandex filament is straight but not elongated.

Key words: electromagnetic functional yarn, elastic recovery rate, plastic deformation rate, electrical properties, conductive yarn

中图分类号:

  • TS155.6

表1

实验样品规格"

纱线
编号
纱线组成 线密度 捻度/
(捻·m-1)
1# 不锈钢短纤维/棉(30/70)包覆氨纶 16.4 tex
2# 不锈钢短纤维/棉(20/80)包覆氨纶 16.4 tex
3# 不锈钢短纤维/棉(30/70) 16.4 tex
4# 不锈钢短纤维/棉(20/80) 16.4 tex
5# 棉/氨纶(95/5) 49.2 tex
6# 2根1#纱合股 16.4 tex×2 460
7# 2根2#纱合股 16.4 tex×2 460
8# 1#和5#合股 16.4 tex+49.2 tex 320
9# 2#和5#合股 16.4 tex+49.2 tex 320
10# 2根1#和氨纶长丝并合 16.4 tex×2+4.44 tex 550
11# 2根2#和氨纶长丝并合 16.4 tex×2+4.44 tex 550

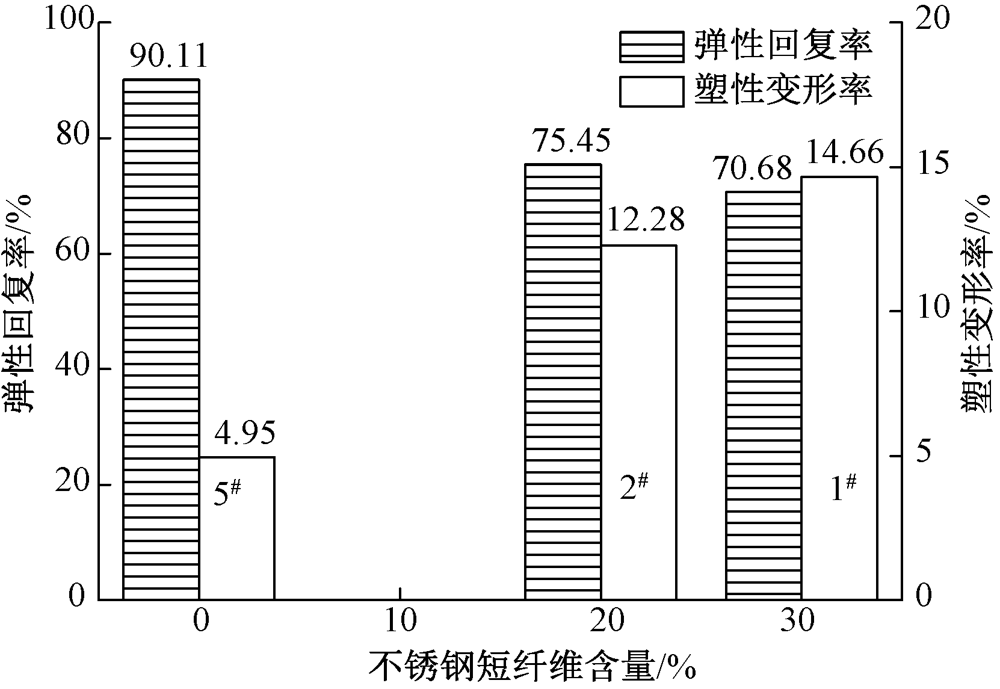

图1

不锈钢短纤维含量不同时纱线的弹性回复率和塑性变形率"

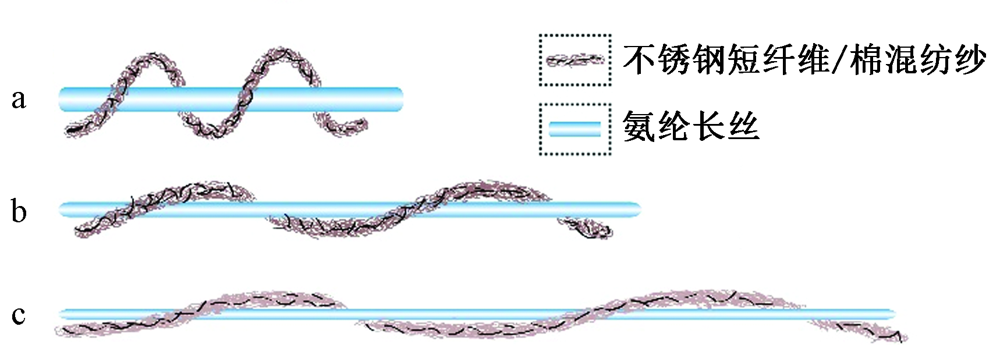

图2

弹性纱线拉伸过程中形貌变化示意图"

图3

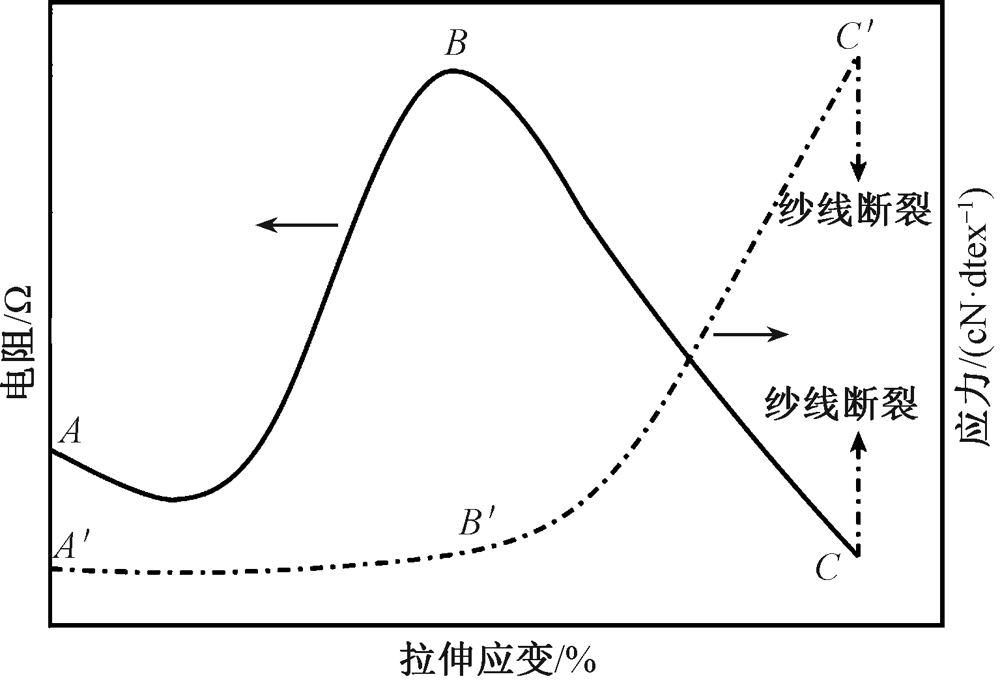

弹性纱线典型的应力-应变和应变-电阻曲线"

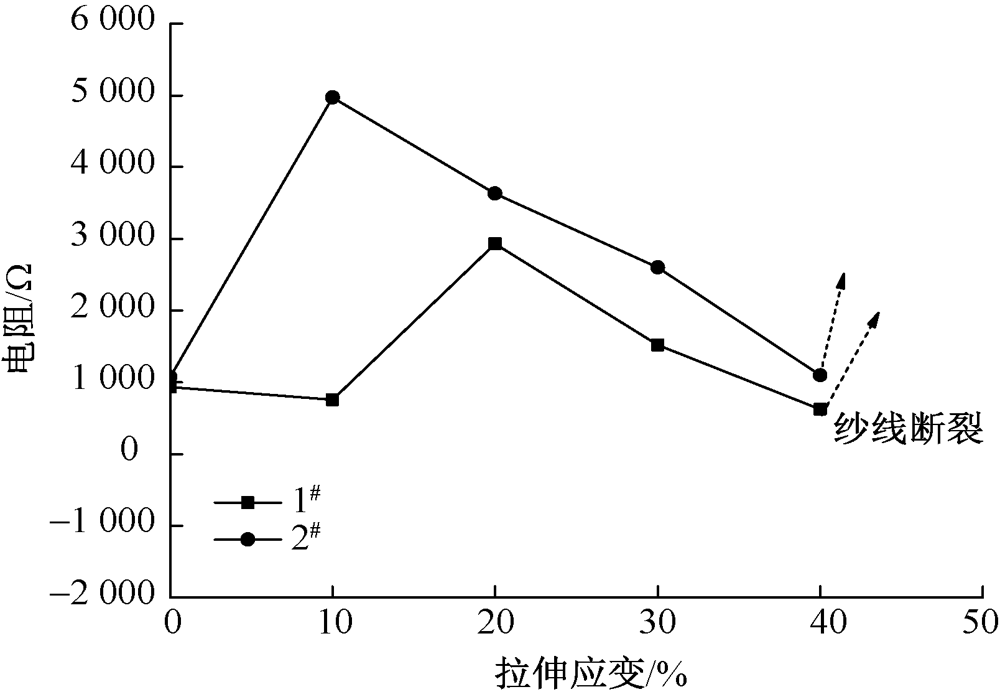

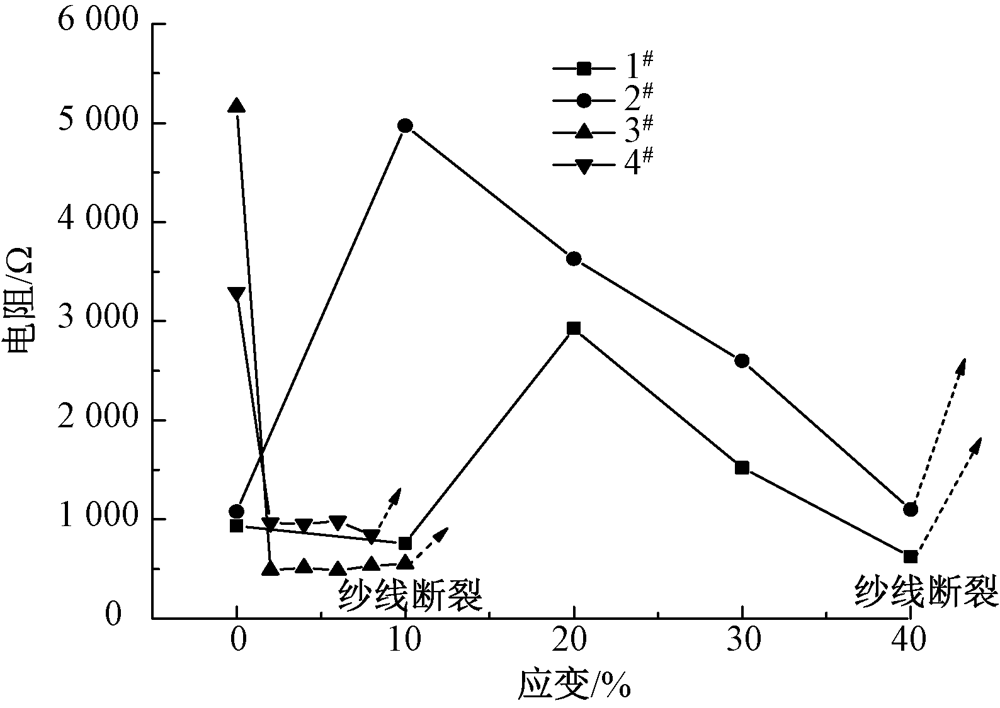

图4

不同不锈钢短纤维含量纱线的应变-电阻曲线"

图5

不同弹性纱线的应变-电阻曲线"

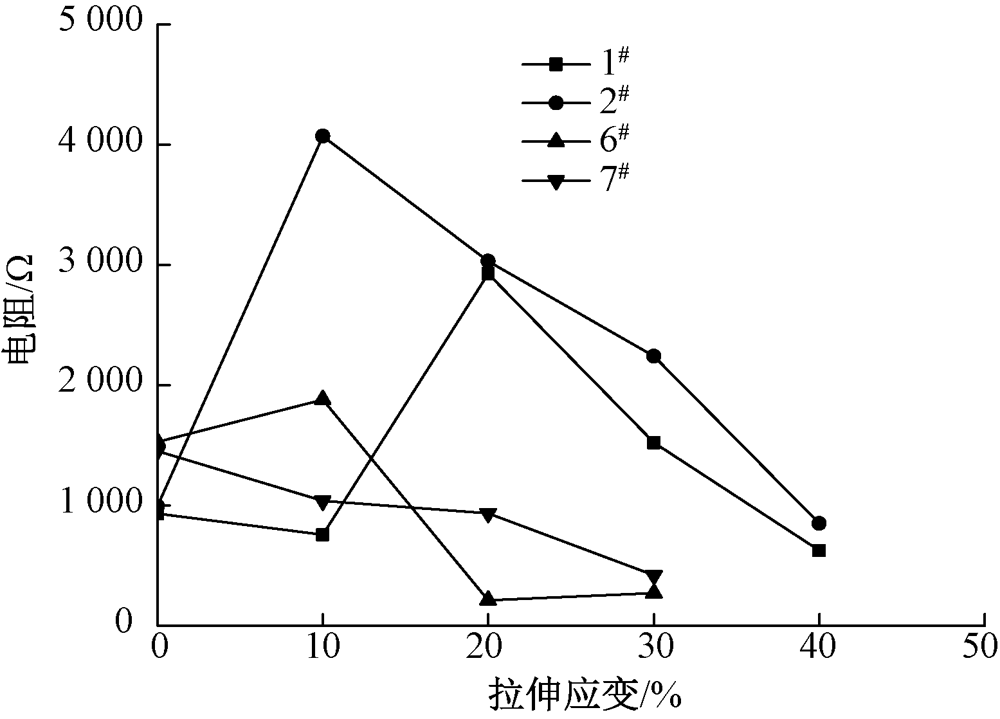

图6

纱线1#、2#、6#、7#的应变-电阻曲线"

图7

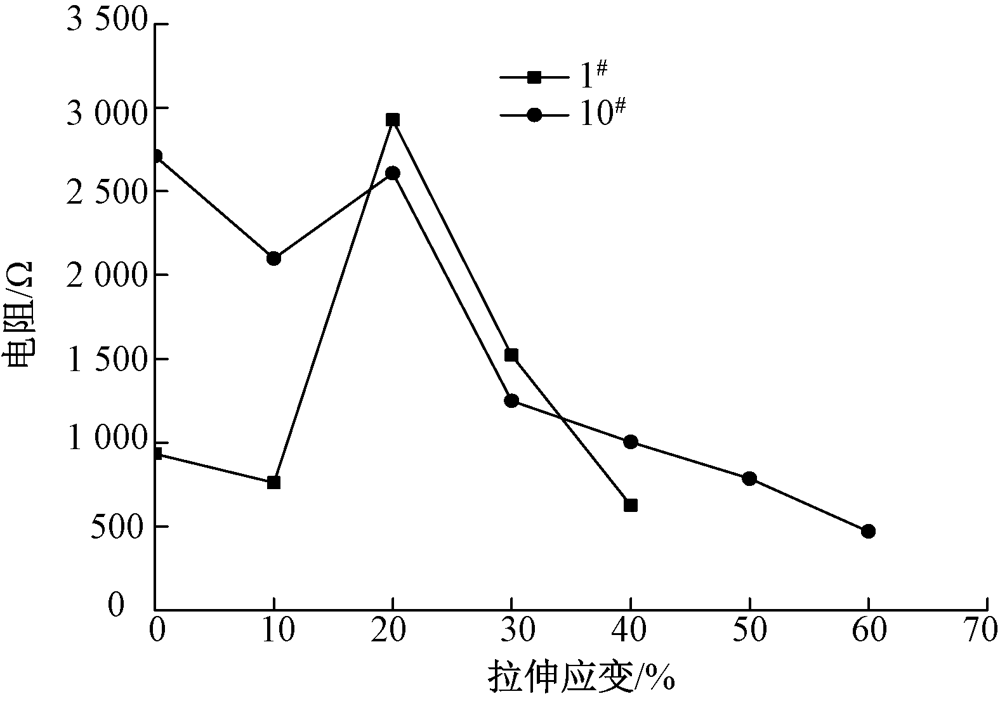

纱线1#与10#的应变-电阻曲线"

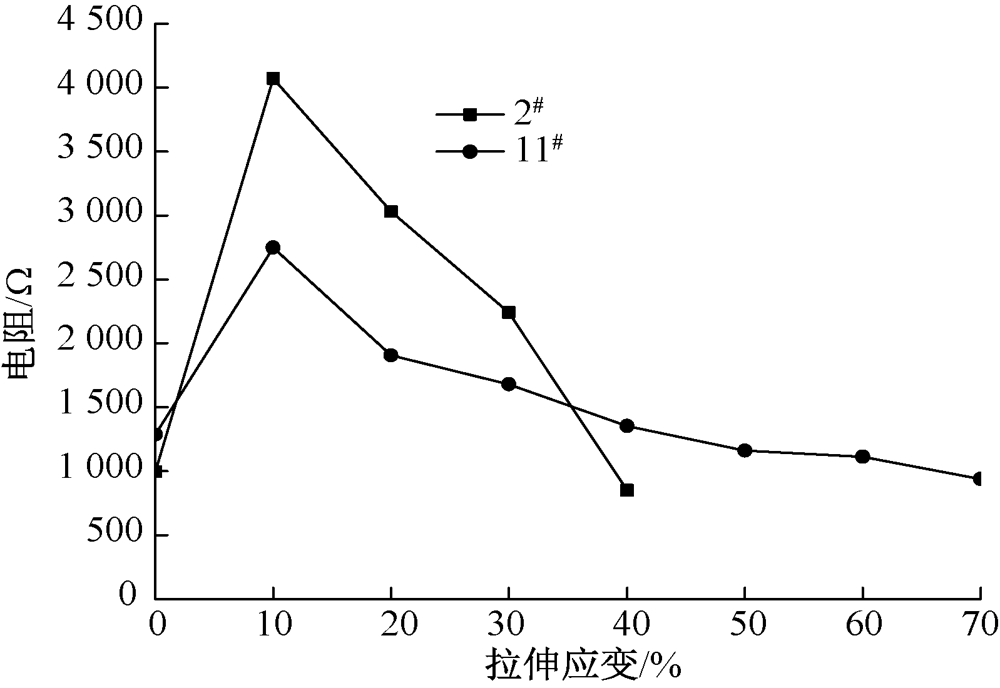

图8

纱线2#与11#的应变-电阻曲线"

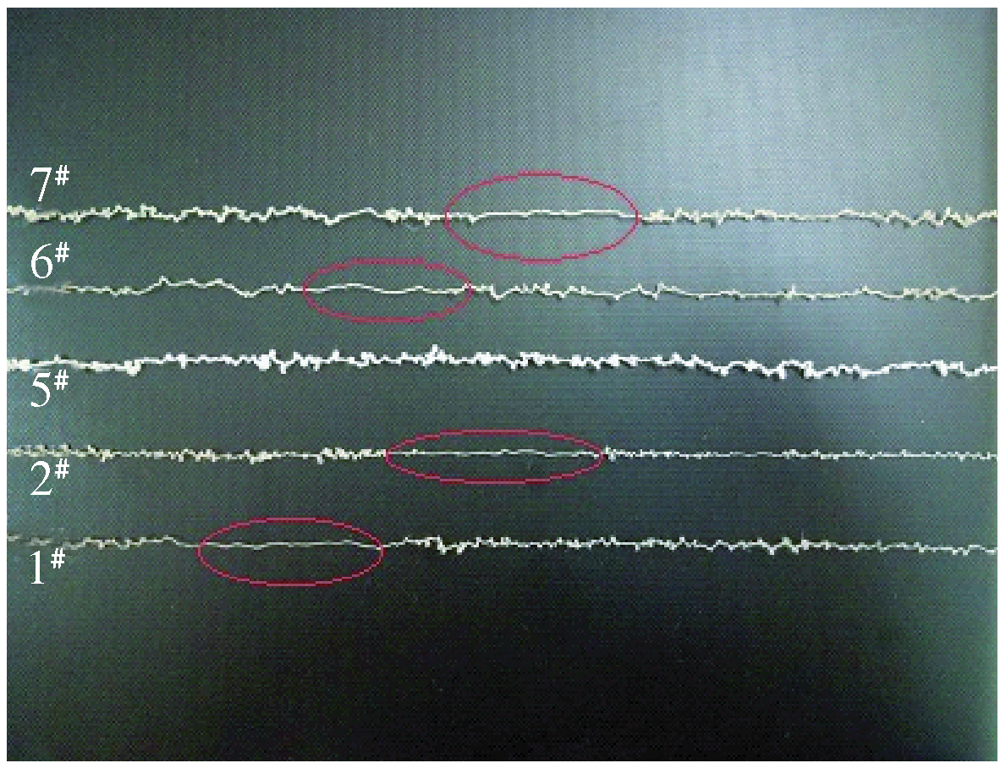

图9

纱线1#、2#、5#、6#、7#的表观形态"

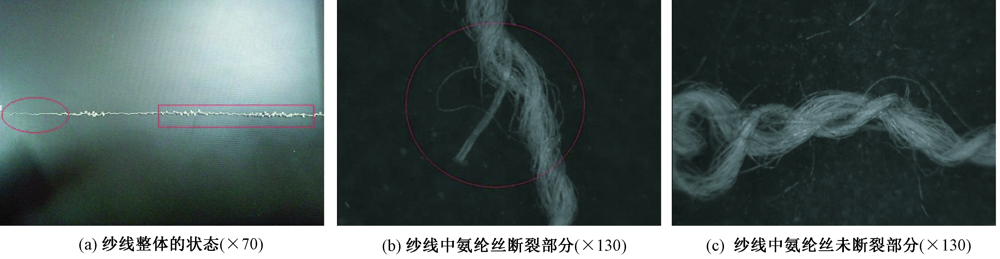

图10

纱线1#的状态"
