纺织学报 ›› 2020, Vol. 41 ›› Issue (04): 112-116.doi: 10.13475/j.fzxb.20190603505

• 染整与化学品 • 上一篇    下一篇

紫外线辐照聚吡咯/银导电涤纶织物的制备

王晓菲1, 万爱兰1,2()

  1. 1.江南大学 针织技术教育部工程研究中心, 江苏 无锡 214122
    2.生态纺织教育部重点实验室(江南大学), 江苏 无锡 214122
  • 收稿日期:2019-06-17 修回日期:2019-09-21 出版日期:2020-04-15 发布日期:2020-04-27
  • 通讯作者: 万爱兰
  • 作者简介:王晓菲(1997—),女,硕士生。主要研究方向为智能纺织品。
  • 基金资助:
    国家自然科学基金项目(61772238);无锡市针织科技服务平台项目(WX03-07D0304-021700-06)

Preparation of polypyrrole/silver conductive polyester fabric by ultraviolet exposure

WANG Xiaofei1, WAN Ailan1,2()

  1. 1. Engineering Research Center for Knitting Technology, Ministry of Education, Jiangnan University,Wuxi, Jiangsu 214122, China
    2. Key Laboratory of Eco-Textiles(Jiangnan University),Ministry of Education, Wuxi, Jiangsu 214122, China
  • Received:2019-06-17 Revised:2019-09-21 Online:2020-04-15 Published:2020-04-27
  • Contact: WAN Ailan

RichHTML

4

PDF (PC)

189

摘要：

为得到导电性能优良的涤纶织物,在紫外线辐照下通过原位聚合法制备聚吡咯/银导电涤纶织物。探讨了AgNO3浓度、十二烷基苯磺酸钠(SDBS)浓度、聚乙烯吡咯烷酮(PVP)浓度和反应时间对聚吡咯/银(PPy/Ag)导电涤纶织物导电性能的影响,并探究其最佳制备工艺。结果表明:当低温真空等离子体处理功率为220 W,处理时间为4 min,AgNO3浓度为0.4 mol/L,SDBS浓度为0.02 mol/L,PVP浓度为0.8 mol/L,反应时间为8 h时,所制得的导电涤纶织物表面方阻最小,为61.54 Ω/□,且表面具有1层连续的聚吡咯导电薄膜;导电涤纶织物表面存在纳米银颗粒,其具有良好的抗菌性,对大肠杆菌和金黄色葡萄球菌的抑菌带宽度均大于1 mm。

关键词: 紫外线辐照, 聚吡咯, 导电涤纶织物, 原位聚合, 纳米银颗粒, 抗菌性能

Abstract:

In order to obtain excellent electrical conductivity for a polyester fabric, a polypyr-role/silver (PPy/Ag) conductive polyester fabric was prepared by in-situ polymerization with ultraviolet exposure. The effects of AgNO3 concentration, sodium dodecylbenzene sulfonate(SDBS) concentration, polyvinylpyrrolidone(PVP) concentration and reaction time on the electrical conductivity of PPy/Ag conductive polyester fabric were investigated and the optimal preparation process was explored. The results show that when the low temperature vacuum plasma treatment power is set to 220 W, the treatment time is 4 min, the AgNO3 concentration is 0.4 mol/L, the SDBS concentration is 0.02 mol/L, the PVP concentration is 0.8 mol/L, the reaction time is 8 h, the composite fabric obtains the smallest sheet resistance, which is 61.54 Ω/□. There forms a continuous polypyrrole conductive film on the surface. The composite fabric demonstrats good antibacterial properties due to the presence of nano silver particles on surface and the width of the antibacterial band of escherichia coli and staphylococcus oureus is greater than 1 mm.

Key words: ultroviolet exposure, polypyrrole, conductive polyester fabric, in-situ polymerization, nano silver particle, antibacterial property

中图分类号:

  • TS195

图1

反应时间对导电涤纶织物表面方阻的影响"

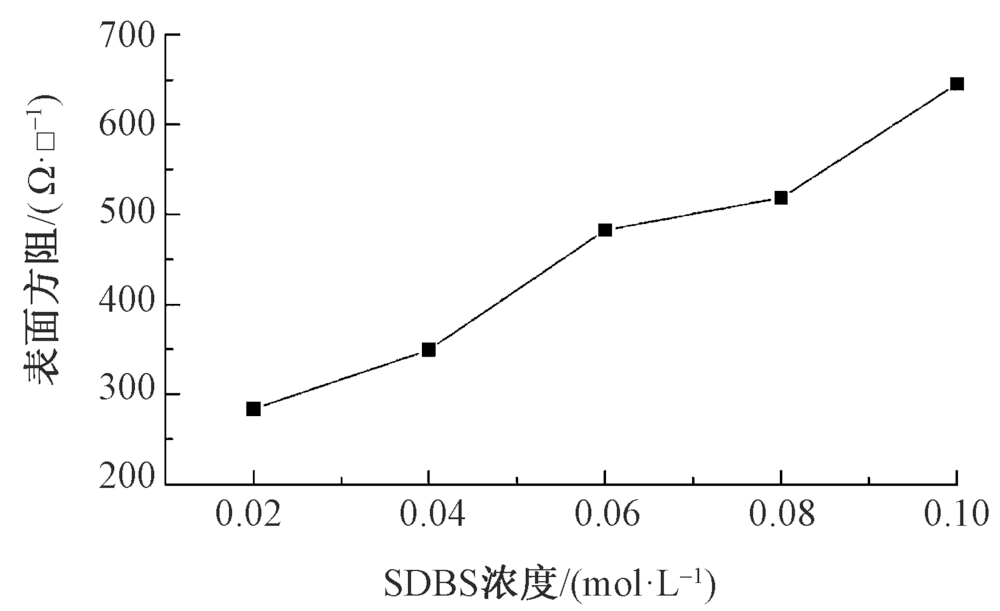

图2

SDBS浓度对导电涤纶织物表面方阻的影响"

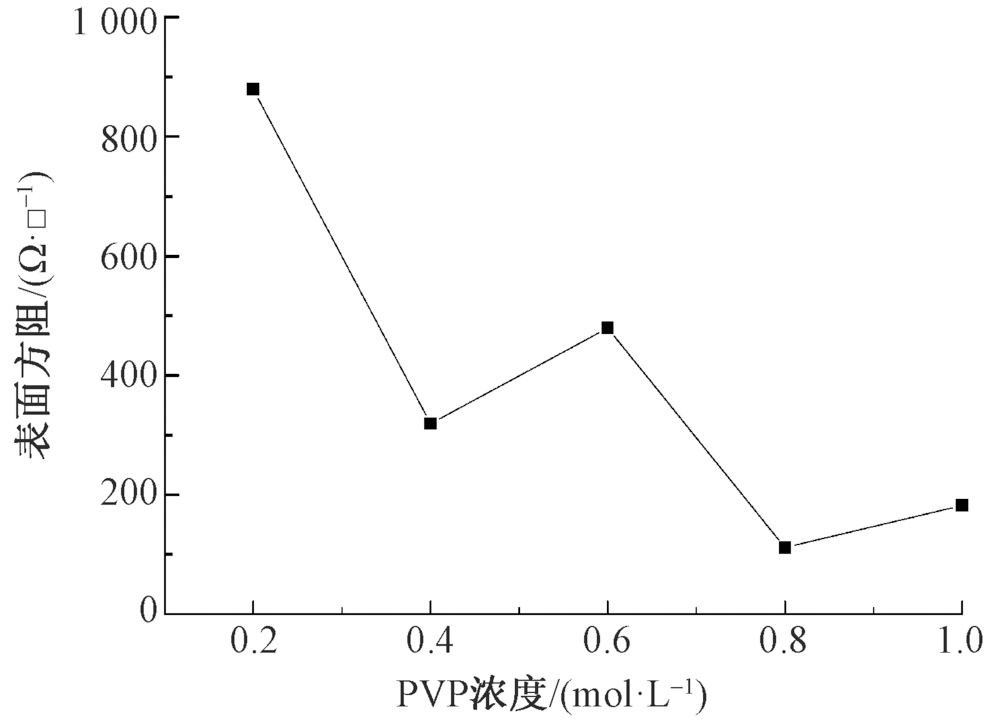

图3

PVP浓度对导电涤纶织物表面方阻的影响"

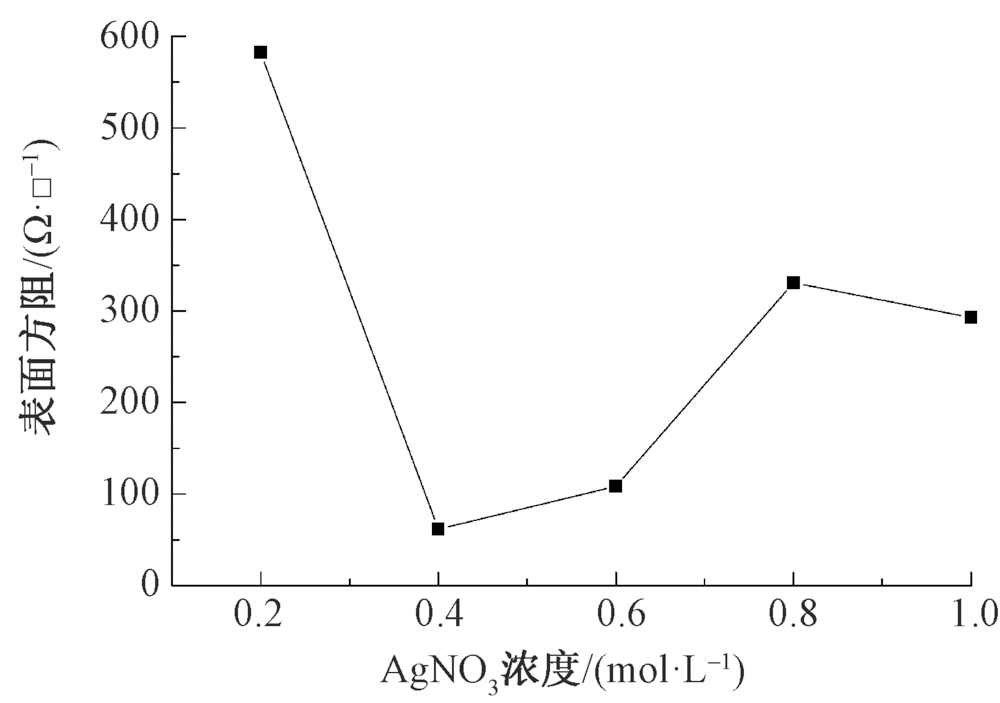

图4

AgNO3浓度对导电涤纶织物表面方阻的影响"

图5

不同反应条件下试样的扫描电镜照片(×1 500)"

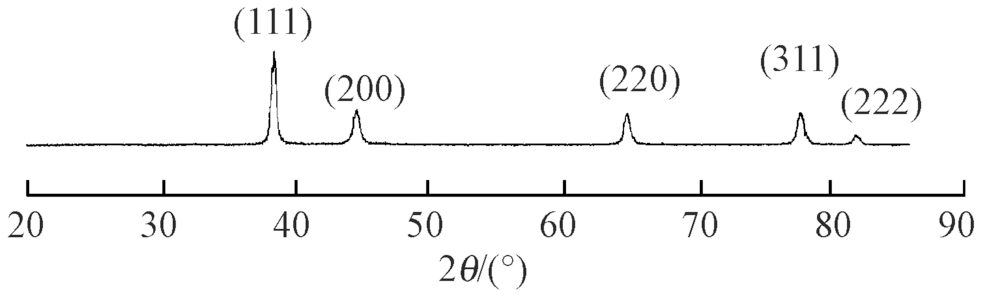

图6

导电涤纶织物的X 射线衍射光谱"

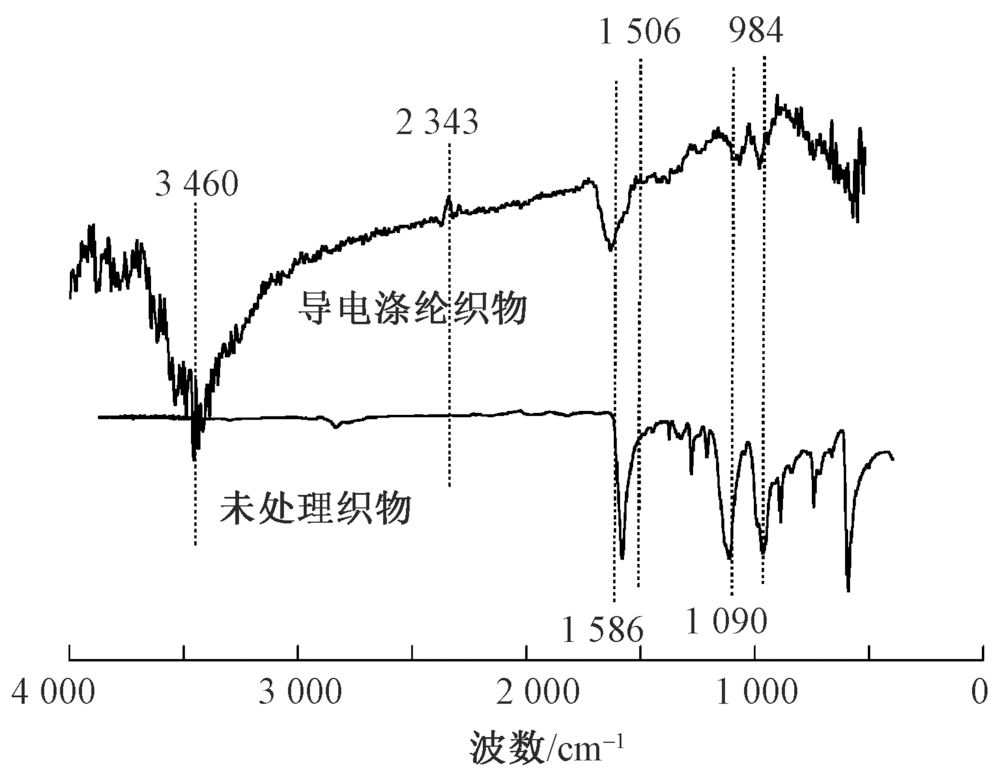

图7

未处理织物及导电涤纶织物的红外光谱图"

图8

未处理织物及导电涤纶织物的抑菌性能测试结果"

表1

未处理织物及导电涤纶织物的抑菌效果"

试样名称 抑菌带宽度/mm 效果评价
大肠杆菌 金黄色葡萄球菌
未处理织物 0 0 无效果
导电涤纶织物 >2 >1 效果较好
[1] 王秀昀, 聂浩宇, 阚丽丽, 等. 聚吡咯导电薄膜原位聚合工艺的研究[J]. 化工新型材料, 2014(11):184-185.
WANG Xiuyun, NIE Haoyu, KAN Lili, et al. Study on in-situ polymerization of polypyrrole conductive film[J]. New Chemical Materials, 2014(11):184-185.
[2] ULLAH M H, HA C S. In situ prepared polypyrrole-Ag nanocomposites: optical properties and morphology[J]. Journal of Materials Science, 2016, 51(16):7536-7544.
[3] ALEKSEEVA E, BOBER P, TRCHOVÁ M, et al. The composites of silver with globular or nanotubular polypyrrole: the control of silver content[J]. Synthetic Metals, 2015,209:105-111.
[4] BABU K F, DHANDAPANI P, MARUTHAMUTHU P S, et al. One pot synjournal of polypyrrole silver nanocomposite on cotton fabrics for multifunctional property[J]. Carbohydrate Polymers, 2012,90(4):1557-1563.
doi: 10.1016/j.carbpol.2012.07.030 pmid: 22944416
[5] GASHTI M P, GHEHI S T, AREKHLOO S V, et al. Electromagnetic shielding response of UV-induced polypyrrole/silver coated wool[J]. Fibers and Polymers, 2015,16(3):585-592.
[6] BHARTI M, SINGH A, SAMANTA S, et al. Flexo-green polypyrrole-silver nanocomposite films for thermoelectric power generation[J]. Energy Conversion and Management, 2017,144:143-152.
[7] ATTIA M F, AZIB T, SALMI Z, et al. One-step UV-induced modification of cellulose fabrics by polypyrrole/silver nanocomposite films[J]. Journal of Colloid and Interface Science, 2013,393:130-137.
[8] 李俊, 林俊雄, 汪澜. 聚吡咯/棉复合导电织物的制备[J]. 印染, 2010,36(14):5-7.
LI Jun, LIN Junxiong, WANG Lan. Preparation of polypyrrole/cotton composite conductive fabric[J]. China Dyeing & Finishing, 2010,36(14):5-7.
[9] CHEN A, KAMATA K, NAKAGAWA M, et al. Formation process of silver-polypyrrole coaxial nanocables synthesized by redox reaction between AgNO3 and pyrrole in the presence of poly(vinylpyrrolidone)[J]. Journal of Physical Chemistry B, 2005,109(39):18283-18288.
[10] 董猛, 田俊莹. 聚吡咯/银导电涤纶织物的开发[J]. 印染, 2015,41(22):1-4.
DONG Meng, TIAN Junying. Preparation of polypyrrole/Ag conductive polyester fabric[J]. China Dyeing & Finishing, 2015,41(22):1-4.
[11] SINGH A, SALMI Z, JOSHI N, et al. Photo-induced synjournal of polypyrrole-silver nanocomposite films on N-(3-trimethoxysilylpropyl) pyrrole-modified biaxially oriented polyethylene terephthalate flexible sub-strates[J]. RSC Advances, 2013,3(16):5506.
[12] UPADHYAY J, KUMAR A, GOGOI B, et al. Antibacterial and hemolysis activity of polypyrrole nanotubes decorated with silver nanoparticles by an in-situ reduction process[J]. Materials Science and Engineering: C, 2015,54:8-13.
