柔性可穿戴氨纶/聚苯胺/聚氨酯复合材料的应变传感性能

doi:10.13475/j.fzxb.20190700205

纺织学报 ›› 2020, Vol. 41 ›› Issue (04): 21-25.doi: 10.13475/j.fzxb.20190700205

柔性可穿戴氨纶/聚苯胺/聚氨酯复合材料的应变传感性能

吴颖欣¹, 胡铖烨¹, 周筱雅¹, 韩潇¹^,²(), 洪剑寒¹^,², GIL Ignacio³

1.绍兴文理学院纺织服装学院, 浙江绍兴 312000
2.绍兴文理学院浙江省清洁染整技术研究重点实验室,浙江绍兴 312000

收稿日期:2019-07-01 修回日期:2020-01-04 出版日期:2020-04-15 发布日期:2020-04-27
通讯作者: 韩潇
作者简介:吴颖欣(1997—),女。主要研究方向为纺织材料的功能整理。
基金资助:
国家级大学生创新创业训练计划项目(201910349029);浙江省公益技术研究计划项目(LGG20E030002);绍兴文理学院国际科技合作项目(2019LGGH1003);绍兴文理学院校级科研项目(2017LG1006);绍兴市公益技术应用研究项目(2018C10016)

Strain sensing property of flexible wearable spandex/polyaniline/polyurethane composites

WU Yingxin¹, HU Chengye¹, ZHOU Xiaoya¹, HAN Xiao¹^,²(), HONG Jianhan¹^,², GIL Ignacio³

1. College of Textile and Garment, Shaoxing University, Shaoxing, Zhejiang 312000, China
2. Key Laboratory of Clean Dyeing and Finishing Technology of Zhejiang Province, Shaoxing, Zhejiang 312000, China, 3. Electronic Engineering Department, Polytechnic University of Catalonia, Terrassa, Barcelona 08222, Spain

Received:2019-07-01 Revised:2020-01-04 Online:2020-04-15 Published:2020-04-27
Contact: HAN Xiao

摘要/Abstract

摘要：

为制备得到电导率高且稳定性好的应变传感器,采用原位聚合法制备了氨纶/聚苯胺复合导电纤维并分析了其结构与性能;以复合导电纤维和水溶性聚氨酯为原料,制备了氨纶/聚苯胺/聚氨酯复合材料,研究了其在不同拉伸状态下的应变传感性能。结果表明:氨纶纤维表面形成一层致密的聚苯胺导电层,其电导率达到0.626 S/cm;氨纶/聚苯胺复合导电纤维的往复拉伸可造成纤维表面聚苯胺导电层的破坏,影响其应变传感性能的重复性;聚氨酯的保护提高了氨纶/聚苯胺/聚氨酯复合材料应变传感性能的重复性,在100%应变条件下,经10次拉伸和拉伸-回复后,复合材料的电阻值与初始值的比值较氨纶/聚苯胺复合导电纤维分别下降约66.7%和50.0%。

关键词: 氨纶, 聚苯胺, 原位聚合, 聚氨酯, 应变传感性能, 循环性

Abstract:

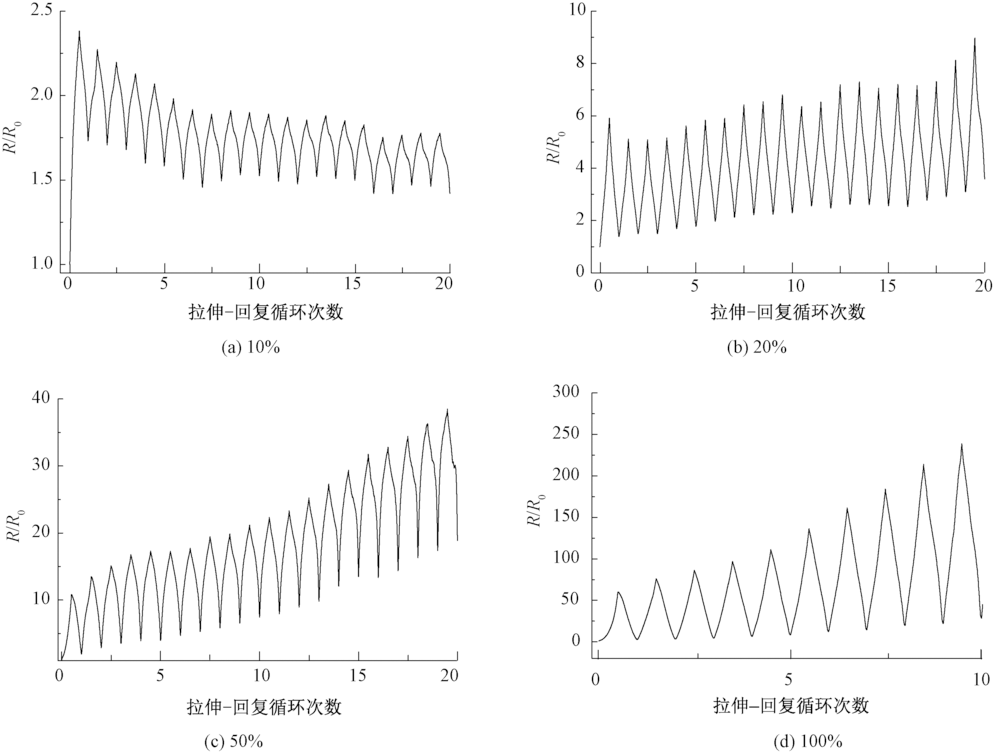

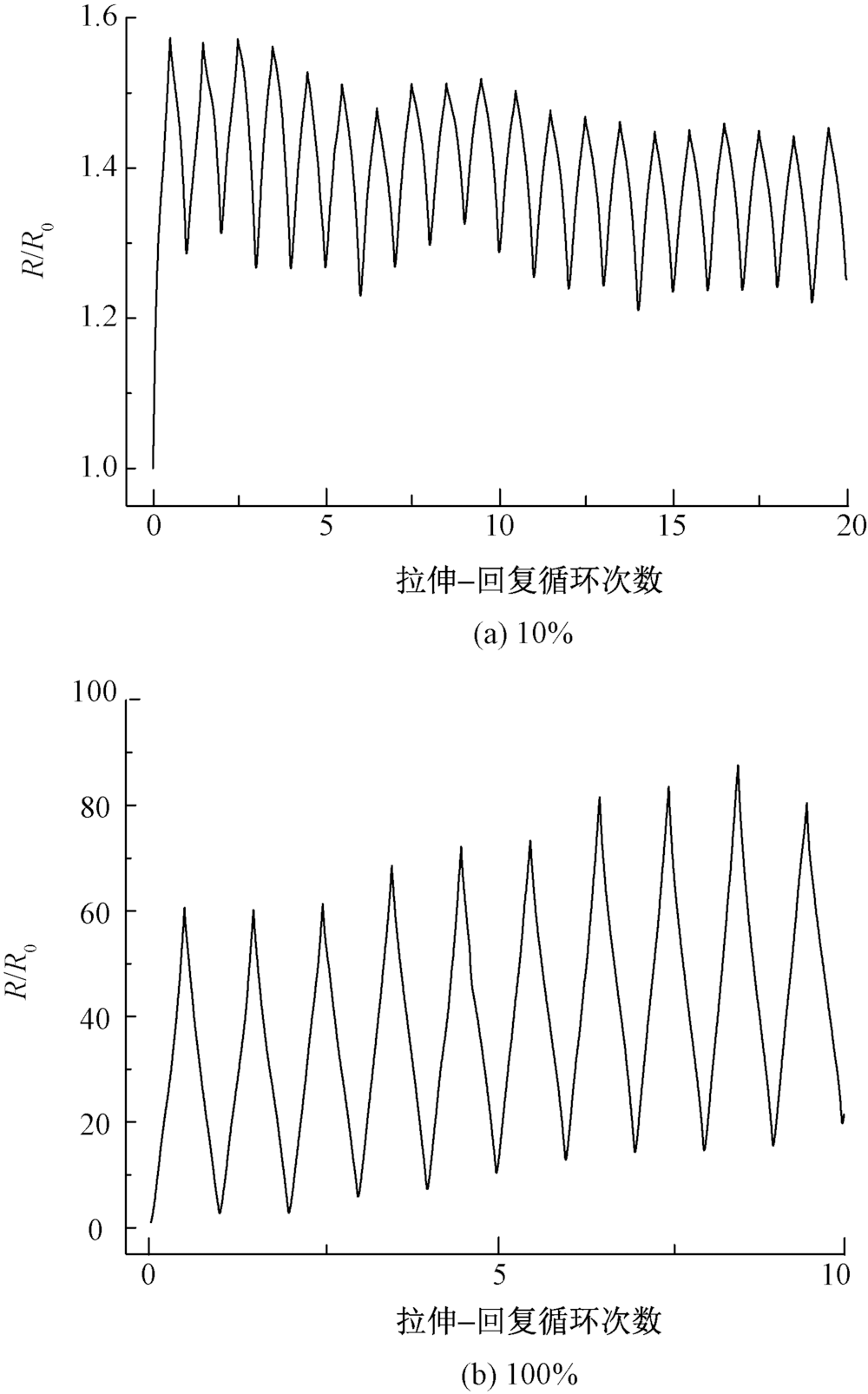

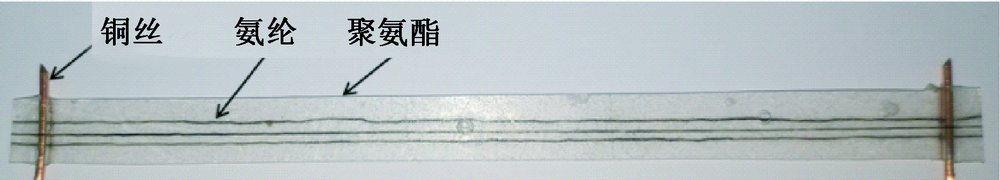

In order to obtain high conductivity and stable strain sensing performance, conductive spandex/polyaniline composite fiber was prepared via in-situ polymerization followed by structure and properties analysis of the composite fiber. The spandex/polyaniline/polyurethane composite was prepared from composite conductive fiber and water-soluble polyurethane, and its strain sensing performance under different tensile conditions was studied. The results show that a dense layer of polyaniline is formed on the surface of spandex fiber, and its conductivity reaches 0.626 S/cm. The conductive polyaniline layer on the surface of spandex/polyaniline composite fiber is damaged by the reciprocating stretching, which affect the repeatability of the strain sensing performance. The protection of polyurethane improves the repeatability of the strain sensing property of the spandex/polyaniline/polyurethane composites. For example, under the condition of 100% strain, the ratio of resistance value and initial value of the composites after 10 times of stretching and stretching recovery decreases by about 66.7% and 50.0% compared with the conductive spandex/polyaniline composite fiber.

Key words: spandex, polyaniline, in-situ polymerization, polyurethane, strain sensing performance, cyclicity

中图分类号:

TQ342.83

吴颖欣, 胡铖烨, 周筱雅, 韩潇, 洪剑寒, GIL Ignacio. 柔性可穿戴氨纶/聚苯胺/聚氨酯复合材料的应变传感性能[J]. 纺织学报, 2020, 41(04): 21-25.

WU Yingxin, HU Chengye, ZHOU Xiaoya, HAN Xiao, HONG Jianhan, GIL Ignacio. Strain sensing property of flexible wearable spandex/polyaniline/polyurethane composites[J]. Journal of Textile Research, 2020, 41(04): 21-25.

图/表 6

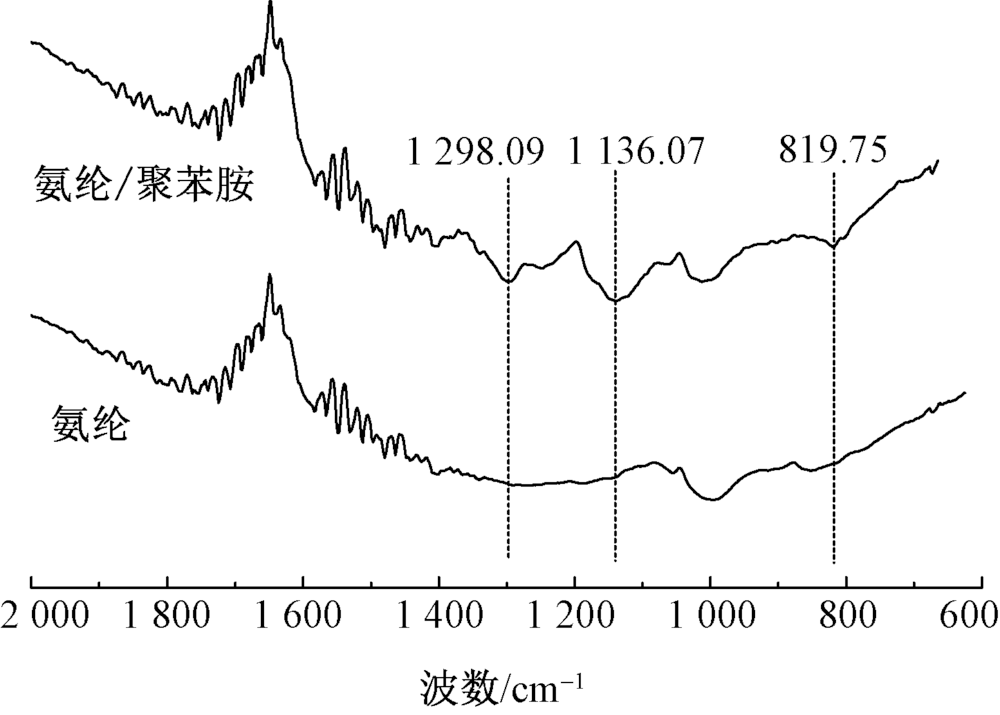

图1

图2

图3

图4

图5

图6

参考文献 12

[1]	SON W K, KIM K B, LEE S M, et al. Ecoflex-passivated graphene-yarn composite for a highly conductive and stretchable strain sensor[J]. Journal of Nanoscience and Nanotechnology, 2019,19(10):6690-6695. pmid: 31027012
[2]	JANG S Y, KIM J S, KIM D W, et al. Carbon-based, ultraelastic, hierarchically coated fiber strain sensors with crack-controllable beads[J]. ACS Applied Materials & Interfaces, 2019,11(16):15079-15087. pmid: 30920201
[3]	田明伟, 李增庆, 卢韵静, 等. 纺织基柔性力学传感器研究进展[J]. 纺织学报, 2018,39(5):170-176.
	TIAN Mingwei, LI Zengqing, LU Yunjing, et al. Rencent progress of textile-based flexible mechanical sensors[J]. Journal of Textile Research, 2018,39(5):170-176.
[4]	CHEN K, GUO M, LIU S, et al. Fiber-optic photoacoustic sensor for remote monitoring of gas micro-leakage[J]. Optics Express, 2019,27(4):4648-4659.
[5]	AHMAD S, SULTAN A, MOHAMMAD F. Electrically conductive polyaniline/silk fibroin composite for ammonia and acetaldehyde sensing[J]. Polymers & Polymer Composites, 2018,26(2):177-187.
[6]	MARTINEZ M, MORADI B, FERNANDEZ R, et al. Impact of conductive yarns on an embroidery textile moisture sensor[J]. Sensors, 2019,19(5):1004-1013.
[7]	ZHANG X, RAHMAN S U, CAO Q, et al. A novel of SWB antenna with triple band-notches based on elliptical slot and rectangular split ring resonators[J]. Electronics, 2019,8(2):202-210.
[8]	QIN H M, LI J R, HE B H, et al. Novel wearable electrodes based on conductive chitosan fabrics and their application in smart garments[J]. Materials, 2018,11(3):370-378.
[9]	李思明, 吴官正, 胡雨洁, 等. 压力分布监测袜的制备及传感性能[J]. 纺织学报, 2019,40(7):138-143.
	LI Siming, WU Guanzheng, HU Yujie, et al. Preparation of pressure distribution monitoring socks and related sensing properties[J]. Journal of Textile Research, 2019,40(7):138-143.
[10]	WU D L, LI Y Y, LIN T H, et al. Fabrication and humidity sensing property of UV/ozone treated PANI/PMMA electrospun fibers[J]. Journal of the Taiwan Institute of Chemical Engineers, 2019,99(6):250-257.
[11]	SMITH R E, TOTTI S, VELLIOU E, et al. Development of a novel highly conductive and flexible cotton yarn for werable pH sensor technology[J]. Sensors and Actuators B:Chemical, 2019,287(5):338-345.
[12]	KHANIKAR T, SINGH V K. PANI-PVA composite film ocated optical fiber probe as a stable and highly sensitive pH sensor[J]. Optical Materials, 2019,88(2):244-251.
