磷酸改性芳纶对聚氨酯硬质泡沫阻燃抑烟性能的影响

doi:10.13475/j.fzxb.20190702208

摘要/Abstract

摘要：

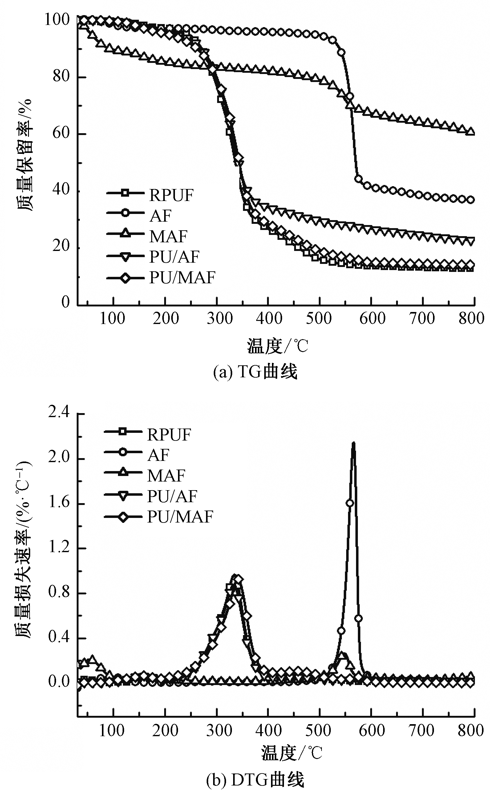

为提高聚氨酯泡沫的阻燃性能,采用磷酸改性芳纶对聚氨酯硬质泡沫进行阻燃改性,借助氧指数仪、烟密度仪、锥形量热仪、热重分析仪等对改性前后聚氨酯硬质泡沫的阻燃性能、产烟行为、燃烧行为、热稳定性和力学性能进行表征。结果表明:添加改性芳纶的聚氨酯泡沫具有更好的阻燃、抑烟和力学性能;相对于纯聚氨酯泡沫,添加质量分数为5%改性芳纶的聚氨酯泡沫的极限氧指数提高了15.8%,最大烟密度、最大燃烧热释放速率、热释放量、最大生烟速率、产烟量分别降低了25%、25.3%、10%、35.7%、47.3%;改性芳纶的添加有利于改善聚氨酯硬质泡沫的热稳定性,使其在700 ℃时的残炭率增加为14.5%。

关键词: 聚氨酯硬质泡沫, 芳纶, 磷酸改性, 阻燃性能, 抑烟性能

Abstract:

In order to improve the flame retardant properties of polyurethane foams, aramid fiber (AF) modified by phosphoric acid was added to the rigid polyurethane foams. Oxygen index, smoke density meter, cone calorimeter, and thermogravimetric analyzer were used to characterize the flame retardancy, fire behavior, thermal stability and mechanical properties of the rigid polyurethane foams and flame-retardant rigid polyurethane foams. The results show that the polyurethane foams containing modified AF (MAF) have better flame retardant, smoke suppression and mechanical properties than the polyurethane foams containing AF. Compared with the pure polyurethane foams, the LOI for the polyurethane foams containing 5% content of MAF is enhanced by 15.8%, max smoke density, peak heat release rate, total heat release, peak smoke production rate and total smoke production release values are decreased by 25%, 25.3%, 10%, 35.7%, 47.3% respectively. MAF can improve the thermal stability of the polyurethane foams, and the residual mass at 700 ℃ is 14.5%, which is more than that of pure polyurethane foam.

Key words: rigid polyurethane foam, aramid fiber, modification by phosphoric acid, flammability, smoke suppression property

中图分类号:

TQ328.3

许黛芳. 磷酸改性芳纶对聚氨酯硬质泡沫阻燃抑烟性能的影响[J]. 纺织学报, 2020, 41(05): 30-37.

XU Daifang. Modification of aramid fiber with phosphorus acid and its effect on flammability and smoke suppression for rigid polyurethane foams[J]. Journal of Textile Research, 2020, 41(05): 30-37.

图/表 11

表1

图1

图2

图3

表2

图4

表3

图5

图6

表4

表5

参考文献 30

[1]	ZATORSKI W, BRZOZOWSKI ZK, KOLBRECKI A. New developments in chemical modification of fire-safe rigid polyurethane foams[J]. Polymer Degradation Stability, 2008,93(11):2071-2076.
[2]	LEVCHIK S V, WEIL E D. Thermal decomposition, combustion and fire-retardancy of polyurethanes: a review of the recent literature[J]. Polymer International, 2010,53(12):1901-1929.
[3]	CHATTOPADHYAY D K, WEBSTER D C. Thermal stability and flame retardancy of polyurethanes[J]. Progress in Polymer Science, 2009,34(10):1068-1133.
[4]	SONNENSCHEIN M F, WENDT B L. Design and formulation of soybean oil derived flexible polyurethane foams and their underlying polymer structure/property relationships[J]. Polymer, 2013,54(10):2511-2520.
[5]	USTA N. Investigation of fire behavior of rigid polyurethane foams containing fly ash and intumescent flame retardant by using a cone calorimeter[J]. J Appl Polym Sci, 2012,124(4):3372-3382.
[6]	KULESZA K, PIELICHOWSKI K. Thermal decomposition of bisphenol a-based polyetherurethanes blown with pentane: part II: influence of the novel NaH₂PO₄/NaHSO₄ flame retardant system[J]. Journal of Analytical & Applied Pyrolysis, 2006,76(1):249-253.
[7]	KONIG A, KROKE E. Flame retardancy working mechanism of methyl-DOPO and MPPP in flexible polyurethane foam[J]. Fire & Materials, 2012,36(1):1-15.
[8]	CHEN M J, SHAO Z B, WANG X L, et al. Halogen-free flame-retardant flexible polyurethane foam with a novel nitrogen-phosphorus flame retardant[J]. Ind Eng Chem Res, 2012,51(29):9769-9776.
[9]	宋艳, 许亮, 李锦春, 等. 新型磷氮型阻燃剂的制备及其阻燃聚氨酯泡沫塑料[J]. 复合材料学报, 2016,33(11):2461-2467.
	SONG Yan, XU Liang, LI Jinchun, et al. Preparation of new phosphorus and nitrogen flame retardants and flame retardant polyurethane foam plastics[J]. Acta Materiae Compositae Sinica, 2016,33(11):2461-2467.
[10]	卢林刚, 徐晓楠, 王大为, 等. 新型无卤膨胀阻燃聚丙烯的制备及阻燃性能[J]. 复合材料学报, 2013,30(1):83-89.
	LU Lingang, XU Xiaonan, WANG Dawei, et al. Preparation and flame retardant properties of new halogen-free expanded flame retardant polypropy-lene[J]. Acta Materiae Compositae Sinica, 2013,30(1):83-89.
[11]	邓婷婷, 张光先, 代方银, 等. 对位芳纶磷酸化表面改性[J]. 纺织学报, 2015,36(11):12-19.
	DENG Tingting, ZHANG Guangxian, DAI Fangyin, et al. Surface modification of para-aramid fiber by phosphoric acid[J]. Journal of Textile Research, 2015,36(11):12-19.
[12]	CHEN X, WANG W, JIAO C. A recycled environmental friendly flame retardant by modifying para-aramid fiber with phosphorus acid for thermoplastic polyurethane elastomer[J]. J Hazard Mat, 2017,331:257-264.
[13]	CIECIERSKA E, JURCZYK-KOWALSKA M, BAZARNIK P, et al. Flammability, mechanical properties and structure of rigid polyurethane foams with different types of carbon reinforcing materials[J]. Composite Structures, 2016,140:67-76.
[14]	温中印, 曹建鹏, 卞雷雷, 等. DMMP、TCPP与EG对硬质聚氨酯泡沫阻燃协同效应及机理探讨[J]. 塑料工业, 2016,44(4):111-115.
	WEN Zhongxin, CAO Jianpeng, BIAN Leilei, et al. Synergistic effect and mechanism of DMMP, TCPP and EG on flame retardant of rigid polyurethane foam[J]. Plastics Industry, 2016,44(4):111-115.
[15]	XU W, LIU L, WANG S, et al. Synergistic effect of expandable graphite and aluminum hypophosphite on flame-retardant properties of rigid polyurethane foam[J]. Journal of Applied Polymer Science, 2015,132(47). DOI: 10.1002/APP.42842.
[16]	卢林刚, 陈英辉, 赵瑾, 等. DOPOMPC-APP-MWCNTs协同阻燃环氧树脂的制备[J]. 复合材料学报, 2015,32(1):101-107.
	LU Lingang, CHEN Yinghui, ZHAO Jin, et al. Preparation of DOPOMPC-APP-MWCNTs as a synergistic flame retardant epoxy resin[J]. Acta Materiae Compositae Sinica, 2015,32(1):101-107.
[17]	AFROUGHSABET V, BIOLZI L, OZBAKKALOGLU T. High-performance fiber-reinforced concrete: a review[J]. Journal of Materials Science, 2016,51(14):6517-6551.
[18]	ZHANG C G, WANG H L, QIANG L I, et al. Preparation of new insulation formula of aramid fiber and NBR system[J]. Journal of Solid Rocket Technology, 2008,31(6):635-641.
[19]	AKATO K, BHAT G. 10-High performance fibers from aramid polymers[J]. Structure and Properties of High-Performance Fibers, 2017,15:245-266.
[20]	许黛芳, 俞科静, 钱坤, 等. 芳纶短纤和浆粕增强聚氨酯泡沫的结构和性能研究[J]. 宇航材料工艺, 2018(2):29-34.
	XU Daifang, YU Kejing, QIAN Kun, et al. Microstructure and properties of aramid-fiber and aramid-pulp reinforced rigid polyurethane foams[J]. Aerospace Materials Technology, 2018(2):29-34.
[21]	CHEN J, ZHU Y, NI Q, et al. Surface modification and characterization of aramid fibers with hybrid coating[J]. Applied Surface Science, 2014,321:103-108.
[22]	GU R, YU J, HU C, et al. Surface treatment of para-aramid fiber by argon dielectric barrier discharge plasma at atmospheric pressure[J]. Applied Surface Science, 2012,258(24):10168-10174.
[23]	XI Min, LI Yuliang, SHANG Shuyong. Surface modification of aramid fiber by air DBD plasma at atmospheric pressure with continuous on-line process-ing[J]. Surface & Coatings Technology, 2008,202(24):6029-6033.
[24]	XU Daifang, YU Kejing, QIAN Kun. Effect of tris(1-chloro-2-propyl)phosphate and modified aramid fiber on cellular structure, thermal stability and flammability of rigid polyurethane foams[J]. Polymer Degradation & Stability, 2017,144:207-220.
[25]	HOOSHANGI Z, FEGHHI S A H, SHEIKH N. The effect of electron-beam irradiation and halogen-free flame retardants on properties of poly butylene terephthalate[J]. Radiation Physics and Chemistry, 2015,108:54-59.
[26]	BIAN X C, TANG J H, LI Z M, et al. Dependence of flame-retardant properties on density of expandable graphite filled rigid polyurethane foam[J]. J Appl Polym Sci, 2007,104(5):3347-3355.
[27]	YANG H, WANG X, SONG L, et al. Aluminum hypophosphite in combination with expandable graphite as a novel flame retardant system for rigid polyurethane foams[J]. Polymers for Advanced Technologies, 2015,25(9):1034-1043.
[28]	LEI L, ZHENGZHOU W. Synergistic effect of nano magnesium amino-tris-(methylenephosphonate) and expandable graphite on improving flame retardant, mechanical and thermal insulating properties of rigid polyurethane foam[J]. Materials Chemistry and Physics, 2018,219:318-327.
[29]	HU X, CHENG W, NIE W, et al. Flame retardant, thermal, and mechanical properties of glass fiber/nanoclay reinforced phenol-urea-formaldehyde foam[J]. Polymer Composites, 2016,37:2323-2332. doi: 10.1002/pc.23411
[30]	LI X, WANG Z, WU L. Preparation of a silica nanospheres/graphene oxide hybrid and its application in phenolic foams with improved mechanical strengths, friability and flame retardancy[J]. RSC Adv, 2015(5):99907-99913.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

样品名称	聚醚多元醇 4110 质量分数	有机硅油质量分数	辛酸亚锡质量分数	三亚乙基二胺质量分数	一氟二氯乙烷质量分数	多苯基多亚甲基多异氰酸酯质量分数	AF质量分数	MAF质量分数
RPUF	100	1.5	0.2~0.3	0.2~0.3	25	100
PU/AF	100	1.5	0.2~0.3	0.2~0.3	25	100	5
PU/MAF	100	1.5	0.2~0.3	0.2~0.3	25	100		5

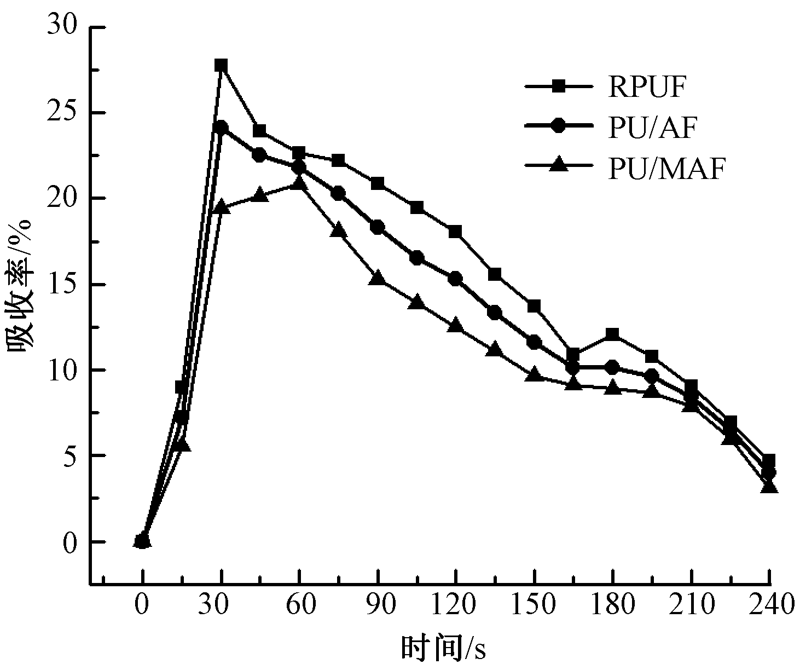

样品名称	烟密度等级	最大烟密度/%
RPUF	15.02	27.78
PU/AF	14.51	24.12
PU/MAF	12.37	20.83

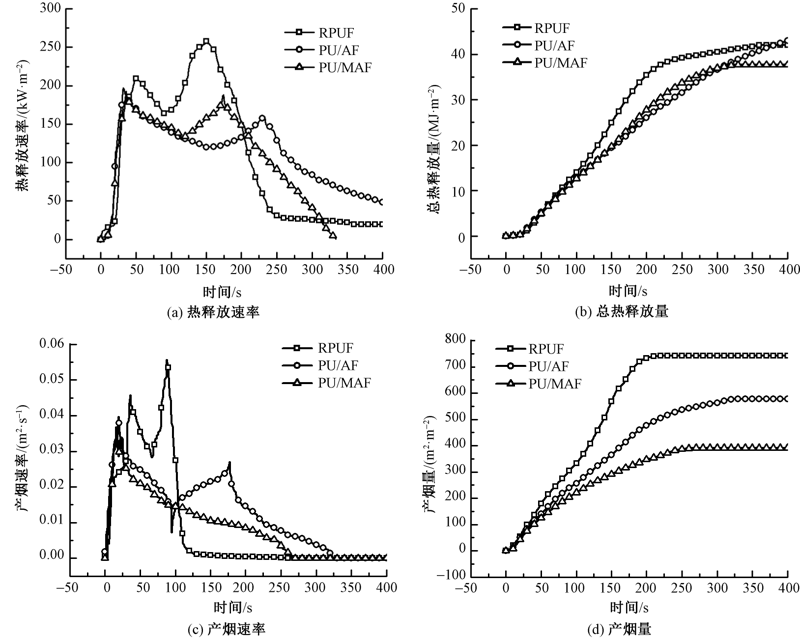

样品名称	热释放速率峰值/ (kW·m^-2)	热释放量/ (MJ·m^-2)	产烟速率峰值/ (m²·s^-1)	产烟量/ (m²·m^-2)	燃烧50 s时的残炭率/%
RPUF	258.1	41.9	0.056	742.8	61.9
PU/AF	197.0	46.8	0.039	577.1	87.8
PU/MAF	192.8	37.7	0.036	391.6	88.4

样品名称	C	N	O	P
RPUF	67.05	16.43	16.22	0.00
PU/AF	48.80	27.72	22.44	0.00
PU/MAF	50.29	37.54	11.71	0.06

样品名称	密度/ (kg·m^-3)	压缩强度/ MPa	比强度/ (MPa·g^-1·cm^-3)
RPUF	49.1	0.16	3.16
PU/AF	50.5	0.44	8.71
PU/MAF	51.3	0.54	10.53
