臭氧等离子体预处理对芳纶染色性能的影响

doi:10.13475/j.fzxb.20210206706

摘要/Abstract

摘要：

针对芳纶难以使用常规工艺进行染色和印花加工等问题,通过臭氧等离子体预处理芳纶织物后结合树脂改性以提升染色性能。研究了臭氧等离子体预处理对树脂改性芳纶表面元素和形貌的影响,探究了改性后芳纶织物的分散染料染色效果。结果表明:单独的臭氧等离子体处理对芳纶的染色效果改善并不明显,而臭氧等离子体预处理引入了丰富的活性基团并构建了粗糙的界面,显著提升了树脂的均匀分散性,使树脂和织物间的结合强度最高可提升104%,同时,大大提高了芳纶织物的分散染料上染率(98.6%)和表观染色深度(2.7),染色织物的色牢度得到有效提升,耐摩擦色牢度可达到服装面料使用要求。

关键词: 芳纶, 染色, 等离子体, 预处理, 树脂改性

Abstract:

In order to solve the problem that aramid fiber is difficult to dye and print by conventional process, the aramid fabric was pretreated by ozone plasma and then modified by resin. The influence of plasma pretreatment on the surface elements and morphology of resin modified aramid fiber was studied, and the dyeing effect of modified aramid fabric with disperse dyes was explored. It was found that ozone plasma pretreatment introduced abundant active groups and constructed rough interface, which significantly improved the uniform dispersion of resin, and the bonding strength between resin and fabric increased by 104%. At the same time, the dye uptake (98.6%) and apparent dyeing depth (2.7) of aramid fabric were greatly improved. The color fastness of the dyed fabric has been effectively improved, and the color fastness to friction can meet the requirements of clothing fabrics. The modification of aramid fiber with resin pretreated by ozone plasma has certain reference significance for improving the dyeing properties of aramid fibers.

Key words: aramid fiber, dyeing, plasma, pretreatment, resin modification

中图分类号:

TS193

郭亚飞, 梁高勇, 王美慧, 郝新敏. 臭氧等离子体预处理对芳纶染色性能的影响[J]. 纺织学报, 2022, 43(10): 83-88.

GUO Yafei, LIANG Gaoyong, WANG Meihui, HAO Xinmin. Effect of ozone plasma pretreatment on dyeing properties of aramid fibers[J]. Journal of Textile Research, 2022, 43(10): 83-88.

图/表 7

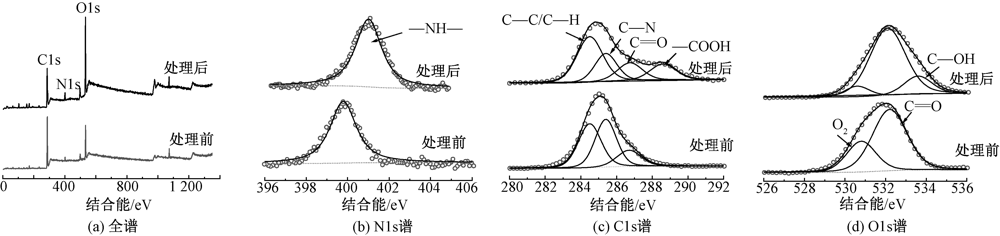

图1

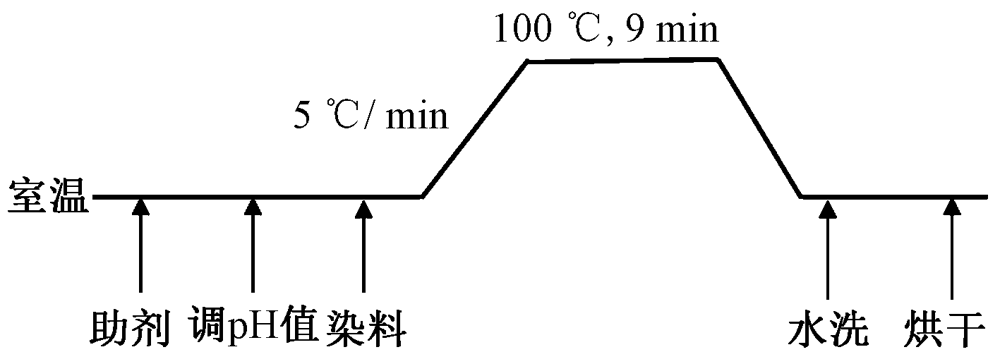

图2

表1

图3

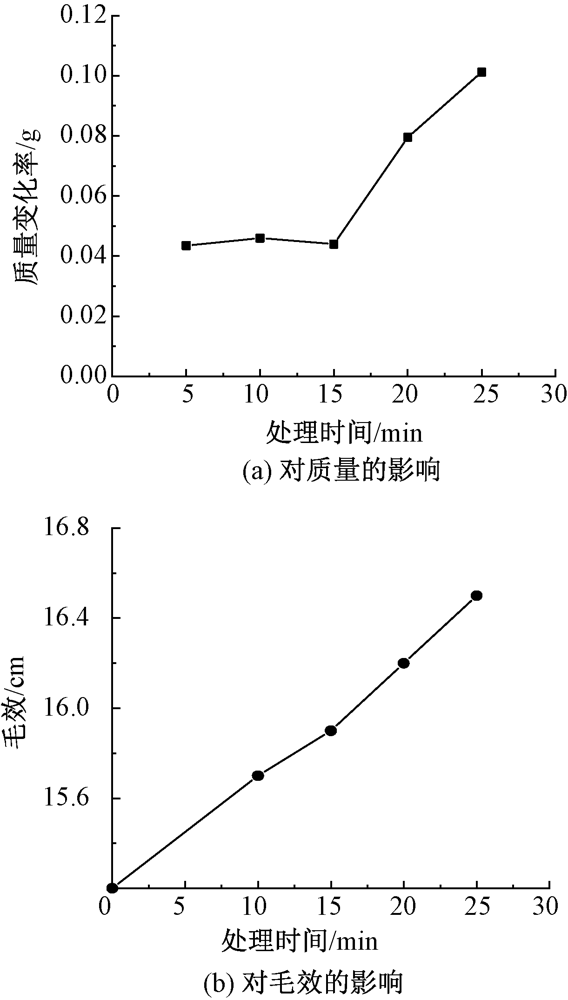

图4

图5

表2

参考文献 15

[1]	尉霞, 逯凯美, 董晓宁. 间位芳纶织物的导汗排湿整理[J]. 纺织学报, 2018, 39(5): 80-86.
	WEI Xia, LU Kaimei, DONG Xiaoning. Moisture absorption and sweat transport finishing of meta-aramid fabrics[J]. Journal of Textile Research, 2018, 39(5): 80-86.
[2]	牟浩蕾, 解江, 裴惠, 等. 芳纶织物及其包容环的弹道冲击与数值模拟[J]. 纺织学报, 2021, 42(11): 56-64.
	MOU Haolei, XIE Jiang, PEI Hui, et al. Ballistic impact tests and numerical simulation of aramid fabric and containment ring[J]. Journal of Textile Research, 2021, 42(11): 56-64.
[3]	MOHAMMAD T I, FRANCESCO A, ADA F, et al. Use of N-methylformanilide as swelling agent for meta-aramidfibers dyeing: kinetics and equilibrium adsorption of Basic Blue 41[J]. Dyes and Pigments, 2015, 113: 554-561. doi: 10.1016/j.dyepig.2014.08.029
[4]	林琳, 于俊荣, 陈蕾, 等. 未干聚对苯二甲酰对苯二胺纤维的染色工艺[J]. 纺织学报, 2015, 36(8): 84-88.
	LIN Lin, YU Junrong, CHEN Lei, et al. Dyeing process of undried poly(p-phenyleneterephthamide) fibers[J]. Journal of Textile Research, 2015, 36(8): 84-88.
[5]	王懽, 李少萍, 张建春. 芳纶1313染色性能研究[J]. 纺织学报, 2002, 23(1): 15-17.
	WANG Huan, LI Shaoping, ZHANG Jianchun. Study on dyeing property of aramid 1313[J]. Journal of Textile Research, 2002, 23(1): 15-17.
[6]	ZHANG Cong, JIANG Yaoxing, SUN Jianping, et al. Investigation of the influence of supercritical carbon dioxide treatment onmeta-aramid fiber: thermal decomposition behavior and kinetics[J]. Journal of CO₂ Utilization, 2020, 37: 85-96.
[7]	宋欢. 间位芳纶树脂合成及纺丝[D]. 长沙: 国防科学技术大学, 2016: 1-2.
	SONG Huan. Synthesis and spinning of meta-aramid resin[D]. Changsha: National University of Defense Technology, 2016: 1-2.
[8]	SHENG Dan, DENG Bo, CAO Genyang, et al. Improved dyeing of poly-m-phenyleneisophthalamide using cationic dyebased on macro-cation dyeing mechanism[J]. Dyes and Pigments, 2019, 163: 111-117. doi: 10.1016/j.dyepig.2018.11.053
[9]	梁冰. 可染间位芳纶的制备及性能研究[D]. 上海: 东华大学, 2018: 2-4.
	LIANG Bing. Study on preparation and properties of dyeable PMIA fiber[D]. Shanghai: Donghua University, 2018: 2-4.
[10]	司帅. 芳纶纤维的表面改性及其性能研究[D]. 武汉: 武汉理工大学, 2015: 18-19.
	SI Shuai. The study of surface modification of aramid fiber and its properties[D]. Wuhan: Wuhan University of Technology, 2015: 18-19.
[11]	EUNMI K, JAEHONG C. Dyeing properties and color fastness of 100% meta-aramid fiber[J]. Fibers and Polymers, 2011, 12: 484-490. doi: 10.1007/s12221-011-0484-7
[12]	LI Na, ZHANG Xingke, YU Junrong, et al. Synthesis and characterization of easily colored meta-aramid copolymer containing ether bonds[J]. Chinese Journal of Polymer Science, 2019, 37:227-234. doi: 10.1007/s10118-019-2200-9
[13]	DONG Yuanyuan, JANG Jinho. The enhanced cationic dyeability of ultraviolet/ozone-treated meta-aramid fabrics[J]. Coloration Technology, 2011, 127(3):173-178. doi: 10.1111/j.1478-4408.2011.00295.x
[14]	郭亚飞, 梁高勇, 张旭东, 等. 树脂表面改性国产间位芳纶的染色工艺和性能研究[J]. 印染, 2021(5): 27-30.
	GUO Yafei, LIANG Gaoyong, ZHANG Xudong, et al. Dyeing behaviors of domestic meta aramid fiber surface modified by resin[J]. China Dyeing & Finishing, 2021(5): 27-30.
[15]	郭亚飞, 梁高勇, 郝新敏, 等. 一种芳纶纤维布的染色性能改进方法: 202110149255.4[P]. 2021-02-01.
	GUO Yafei, LIANG Gaoyong, HAO Xinmin, et al. An improved method for dyeing properties of aramid fiber cloth: 202110149255.4[P]. 2021-02-01.

相关文章 15

[1]	陈珺娴, 李伟萍, 付琪轩, 冯新星, 张华. 芳纶/阻燃粘胶/阻燃锦纶混纺织物制备及其性能[J]. 纺织学报, 2022, 43(09): 107-114.
[2]	付政, 李敏, 何颖婷, 王春霞, 付少海. 纳米包覆分散染料的制备及其免水洗染色性能[J]. 纺织学报, 2022, 43(09): 129-136.
[3]	吴乐, 张倩, 杨万然, 徐朝月, 王维冠, 侯曦. 基于增强现实技术的筒子纱印染锁扣机器人运维巡检系统研究[J]. 纺织学报, 2022, 43(09): 34-40.
[4]	杨晓波. 基于交互式遗传算法的三维服装款式研究[J]. 纺织学报, 2022, 43(06): 145-150.
[5]	陈鹏, 廖世豪, 沈兰萍, 王瑄, 王鹏. 聚乳酸/聚酮共混纤维分散染料染色性能[J]. 纺织学报, 2022, 43(05): 12-17.
[6]	王东伟, 房宽峻, 刘秀明, 张鑫卿, 安芳芳. 胺化活性红195/聚合物微球的制备及其在棉织物染色中的应用[J]. 纺织学报, 2022, 43(04): 90-96.
[7]	王菊, 张丽平, 王晓春, 杨萌阳. 高疏水性染料的制备及其对超高分子量聚乙烯织物的染色性能[J]. 纺织学报, 2022, 43(04): 97-101.
[8]	何杨, 张瑞萍, 何勇, 范爱民. 激光改性涤纶织物的分散染料染色性能[J]. 纺织学报, 2022, 43(04): 102-109.
[9]	何颖婷, 李敏, 付少海. 靛蓝分散体的制备及其还原-氧化过程[J]. 纺织学报, 2022, 43(04): 84-89.
[10]	马莹, 刘岳岩, 赵洋, 陈翔, 禄盛, 胡瀚杰. 基于芳纶平纹织物微观几何结构的纱线抽拔力学性能分析[J]. 纺织学报, 2022, 43(04): 47-54.
[11]	周天博, 郑环达, 蔡涛, 于佐君, 王力成, 郑来久. 活性分散黄染料对涤纶/棉混纺织物的超临界CO₂同浴染色[J]. 纺织学报, 2022, 43(03): 116-122.
[12]	张梦迪, 张维, 姚继明. 天然黏土矿物在靛蓝染色废水电絮凝中的应用[J]. 纺织学报, 2022, 43(02): 196-201.
[13]	蒋高明, 周濛濛, 郑宝平, 郑培晓, 刘海桑. 绿色低碳针织技术研究进展[J]. 纺织学报, 2022, 43(01): 67-73.
[14]	裴刘军, 施文华, 张红娟, 刘今强, 王际平. 非水介质活性染料染色关键技术体系及其产业化研究进展[J]. 纺织学报, 2022, 43(01): 122-130.
[15]	韩之欣, 吴伟, 王健, 徐红, 毛志平. 分散染料在超临界二氧化碳流体中的溶解性[J]. 纺织学报, 2022, 43(01): 153-160.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

试样	C	N	O
预处理前	75.13	3.38	21.49
预处理后	59.57	5.15	35.28

试样	上染率/%	反射率/%	K/S值	耐摩擦色牢度/级		耐皂洗色牢度/级		耐光色牢度/级
试样	上染率/%	反射率/%	K/S值	干摩	湿摩	变色	棉沾	耐光色牢度/级
未处理	52.1	43.3	0.4	3	4	4	3~4	3
臭氧等离子体预处理	55.6	41.4	0.6	4	4~5	4	3~4	3
臭氧等离子体预处理+环氧树脂改性	98.3	22.0	2.7	5	4~5	4	3~4	3
臭氧等离子体预处理+聚氨酯改性	98.6	21.5	2.4	5	4~5	4	3~4	3~4
