纳米SiO2/含氟硅防水透湿整理剂的制备及其应用

doi:10.13475/j.fzxb.20210704908

摘要/Abstract

摘要：

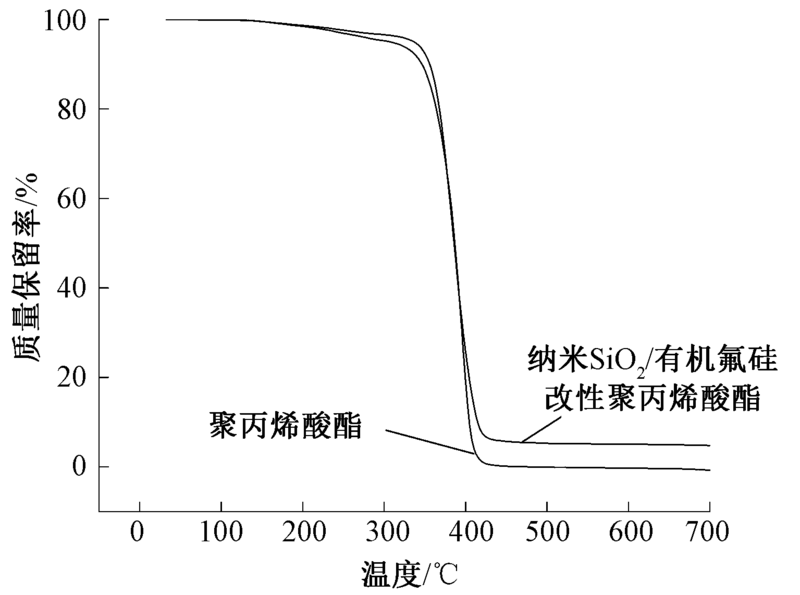

为提高涤纶织物的防水透湿性能,采用半连续种子乳液聚合法,以丙烯酸酯类单体为聚合单体,以纳米SiO₂ 、甲基丙烯酸十二氟庚酯(G04)、乙烯基三甲氧基硅烷( A-171) 为功能单体,制备出纳米SiO₂/含氟硅改性聚丙烯酸酯乳液,并将其应用于涤纶织物的整理。对改性共聚乳液的化学结构进行表征,并测试了整理后织物的应用性能。结果表明:各单体均参与乳液聚合反应,且改性共聚乳液的热稳定性大大提高,乳胶粒子平均粒径为66 nm;在整理剂中加入质量分数为2%的交联剂后,整理织物的静水压和耐水洗性能都得到显著的改善,其接触角为138°,相比未整理织物的防水性能明显提高;整理后织物的透湿率也有所提高,且经向断裂强力由315.6 N增加到493.4 N。

关键词: 纳米SiO₂, 乳液聚合, 防水透湿, 整理剂, 涤纶织物, 功能整理

Abstract:

In order to improve the waterproof and moisture-permeable properties of polyester fabrics, a semi-continuous seed emulsion polymerization method was adopted, where acrylate monomers were used as polymerized monomers, nano-SiO₂, dodecafluoroheptyl methacrylate (G04) and vinyl trimethoxy using silane (A-171) as functional monomer. As a result, nano-SiO₂/fluorine-containing silicon modified polyacrylate emulsion was prepared and applied to polyester fabric. The chemical structure of the modified copolymer emulsion was characterized and the application performance of the finished fabric was tested. The results show that all monomers participated in the emulsion polymerization reaction, and the thermal stability of the modified copolymer emulsion was greatly improved. The average particle size of the particles is 66 nm. After adding 2% of crosslinking agent to the finishing agent, the hydrostatic pressure and washing resistance of the finished fabric were significantly improved compared with the unfinished polyester fabric, with the contact angle becoming 138°. The water-repellent performance of the finished fabric was significantly improved, the moisture permeability of the finished fabric was also increased, and the warp breaking strength was increased from 315.6 N to 493.4 N.

Key words: nano-SiO₂, emulsion polymerization, waterproof and moisture permeable, finishing agent, polyester fabric, function treatment

中图分类号:

TS195.2

梅敏, 钱建华, 周榆凯, 杨晶晶. 纳米SiO₂/含氟硅防水透湿整理剂的制备及其应用[J]. 纺织学报, 2022, 43(12): 118-124.

MEI Min, QIAN Jianhua, ZHOU Yukai, YANG Jingjing. Preparation and application of nano-SiO₂/fluorine-containing silicon waterproof and moisture-permeable finishing agent[J]. Journal of Textile Research, 2022, 43(12): 118-124.

图/表 12

图1

图2

图3

图4

图5

图6

表1

图7

表2

图8

图9

图10

参考文献 20

[1]	吴冰晶. 关于功能性运动服的分析与展望[J]. 艺术与设计(理论), 2016, 2(8): 97-98.
	WU Bingjing. Analysis and prospect of functional sportswear[J]. Art and Design (Theory), 2016, 2(8): 97-98.
[2]	LI X, LIN J, QIU Y. Influence of He/O₂ atmospheric pressure plasma jet treatment on subsequent wet desizing of polyacrylate on PET fabrics[J]. Applied Surface Science, 2012, 258(7): 2332-2338. doi: 10.1016/j.apsusc.2011.10.009
[3]	SULTAN M, BHATTI H N, ZUBER M, et al. Synthesis and characterization of waterborne polyurethane acrylate copolymers[J]. Korean Journal of Chemical Engineering, 2013, 30(2): 488-493. doi: 10.1007/s11814-012-0148-3
[4]	王旭, 隋智慧, 伞景龙, 等. 纳米TiO₂/有机硅改性聚丙烯酸酯乳液的合成及其对亚麻织物的整理[J]. 毛纺科技, 2020, 48(8):60-65.
	WANG Xu, SUI Zhihui, SAN Jinglong, et al. Synthesis of nano-TiO₂/silicone modified polyacrylate emulsion and its finishing on linen fabrics[J]. Wool Textile Journal, 2020, 48(8):60-65.
[5]	伞景龙, 隋智慧, 王旭, 等. 纳米ZnO/有机氟改性丙烯酸酯乳液的合成与表征[J]. 上海纺织科技, 2020, 48(3):16-20.
	SAN Jinglong, SUI Zhihui, WANG Xu, et al. Synthesis and characterization of nano-ZnO/organic fluorine modified acrylate emulsion[J]. Shanghai Textile Science and Technology, 2020, 48(3):16-20.
[6]	王彤, 鲍艳. 功能型聚丙烯酸酯/无机纳米复合皮革涂饰剂的研究进展[J]. 材料导报, 2017, 31(1):64-71.
	WANG Tong, BAO Yan. Research progress of functional polyacrylate/inorganic nano-composite leather finishing agent[J]. Materials Reports, 2017, 31(1):64-71.
[7]	吴彬. 双组分防水柔软整理剂的合成及应用[D]. 杭州: 浙江大学, 2015:23-25.
	WU Bin. Synthesis and application of two-component waterproof soft finishing agent[D]. Hangzhou: Zhejiang University, 2015: 23-25.
[8]	隋智慧, 伞景龙, 王旭, 等. 纳米ZnO/有机氟硅改性聚丙烯酸酯乳液的合成及应用[J]. 纺织学报, 2020, 41(4):84-90.
	SUI Zhizhi, SAN Jinglong, WANG Xu, et al. Synthesis and application of nano-ZnO/organofluorosilicon modified polyacrylate emulsion[J]. Journal of Textile Research, 2020, 41(4):84-90.
[9]	王文波. 有机硅氟/环氧改性丙烯酸乳液和涂层的制备及性能研究[D]. 武汉: 武汉理工大学, 2018:7-9.
	WANG Wenbo. Preparation and properties of silicone-fluorine/epoxy modified acrylic emulsions and coat-ings[D]. Wuhan: Wuhan University of Technology, 2018:7-9.
[10]	严微, 鲁琴, 胡荣涛, 等. 有机硅改性丙烯酸酯乳液的合成和形态分析[J]. 化学与生物工程, 2011, 28(8):24-28.
	YAN Wei, LU Qin, HU Rongtao, et al. Synthesis and morphology analysis of silicone modified acrylate emulsion[J]. Chemical and Biological Engineering, 2011, 28(8):24-28.
[11]	谭乐文, 陈循军, 蚁明浩, 等. 紫外光固化有机硅树脂研究进展[J]. 化工新型料, 2020, 48(5):32-37.
	TAN Lewen, CHEN Xunjun, YI Minghao, et al. Research progress of UV-curable silicone resin[J]. New Chemical Materials, 2020, 48(5):32-37.
[12]	张莉, 陈桐, 张雪. 有机硅改性丙烯酸酯乳液的研究进展[J]. 贵州化工, 2008(2):31-33.
	ZHANG Li, CHEN Tong, ZHANG Xue. Research progress of silicone modified propionate emulsion[J]. Guizhou Chemical Industry, 2008(2):31-33.
[13]	李珺鹏, 牛松, 赵振河. 有机硅改性丙烯酸酯乳液聚合及应用研究[J]. 粘接, 2010(3):46-50.
	LI Junpeng, NIU Song, ZHAO Zhenhe. Research on emulsion polymerization and application of silicone modified acrylate[J]. Bonding, 2010(3):46-50.
[14]	胡勇杰. 纳米二氧化硅/聚醚共聚乙酰胺防水透气涂层织物的研制及其性能[J]. 纺织学报, 2018, 39(10):109-114.
	HU Yongjie. Preparation and properties of nano silica/polyether copolymer acetamide waterproof and breathable coating fabric[J]. Journal of Textile Research, 2018, 39(10):109-114.
[15]	王婉辉. 交联型纳米杂化无氟织物防水剂的制备及应用研究[D]. 西安: 陕西科技大学, 2018: 10-12.
	WANG Wanhui. Preparation and application of cross-linked nano-hybrid fluorine-free fabric waterproofing agent[D]. Xi'an: Shaanxi University of Science and Technology, 2018:10-12.
[16]	周建华, 张琳, 陈超, 等. 纳米SiO₂/有机硅改性聚丙烯酸酯无皂乳液的合成和膜性能研究[J]. 陕西科技大学学报, 2010, 28(2):35-39.
	ZHOU Jianhua, ZHANG Lin, CHEN Chao, et al. Synthesis and membrane properties of nano-SiO₂/organosilicon modified polyacrylate soap-free emulsion[J]. Journal of Shaanxi University of Science and Technology, 2010, 28(2):35-39.
[17]	姚炯平, 孟家光, 陈加敏, 等. 废旧毛涤粘混纺面料的脱色[J]. 印染, 2017, 43(22):36-39.
	YAO Jiongping, MENG Jiaguang, CHEN Jiamin, et al. Bleaching of waste wool-polyester-viscose blended fab-ric[J]. China Dyeing & Finishing, 2017, 43(22): 36-39.
[18]	葛露露, 崔沂, 张瑞云, 等. 基于吸湿发热纤维的毛型面料开发[J]. 毛纺科技, 2020, 48(7):1-7.
	GE Lulu, CUI Yi, ZHANG Ruiyun, et al. Development of wool fabric based on hygroscopic heating fibers[J]. Wool Textile Journal, 2020, 48(7):1-7.
[19]	刘志英, 于红. 影响吸湿法透湿性测试的因素分析[J]. 中国纤检, 2019 (2): 78-80.
	LIU Zhiying, YU Hong. Analysis of factors affecting the measurement of moisture permeability by hygroscopic method[J]. China Fiber Inspection, 2019(2):78-80.
[20]	王宏超. 有机氟硅改性丙烯酸酯乳液的制备及性能研究[D]. 齐齐哈尔: 齐齐哈尔大学, 2012:52-54.
	WANG Hongchao. Preparation and properties of organofluorosilicon modified acrylate emulsion[D]. Qiqihar: Qiqihar University, 2012:52-54.

相关文章 15

[1]	张楚丹, 王锐, 王文庆, 刘燕燕, 陈睿. 阳离子改性阻燃涤纶织物的制备及其性能[J]. 纺织学报, 2022, 43(12): 109-117.
[2]	张典典, 于梦楠, 李敏, 刘明明, 付少海. 基于聚合物微球接枝硅油的超滑棉织物制备及其防污性能[J]. 纺织学报, 2022, 43(10): 119-125.
[3]	杨宏林, 项伟, 董淑秀. 涤纶基纳米铜/还原氧化石墨烯复合材料的制备及其电磁屏蔽性能[J]. 纺织学报, 2022, 43(08): 107-112.
[4]	薛宝霞, 史依然, 张凤, 秦瑞红, 牛梅. 无卤氧化铁改性涤纶阻燃织物的制备及其性能[J]. 纺织学报, 2022, 43(05): 130-135.
[5]	王艳萍, 陈晓倩, 夏伟, 傅佳佳, 高卫东, 王鸿博, ARTUR Cavaco-Paulo. 角质酶在涤纶织物表面改性中的应用[J]. 纺织学报, 2022, 43(05): 136-142.
[6]	孙哲茹, 张庆乐, 郝林聪, 程璐, 夏鑫. 仿星型拓扑几何结构聚氨酯/聚二甲基硅氧烷防水透湿膜制备与性能[J]. 纺织学报, 2022, 43(04): 40-46.
[7]	何杨, 张瑞萍, 何勇, 范爱民. 激光改性涤纶织物的分散染料染色性能[J]. 纺织学报, 2022, 43(04): 102-109.
[8]	杨振声, 王炳帅. 烯丙基聚烷氧基环氧醚的制备及其性能[J]. 纺织学报, 2022, 43(03): 103-109.
[9]	何颖婷, 李敏, 王瑞丰, 王春霞, 付少海. 涤纶织物的连续式轧染工艺[J]. 纺织学报, 2022, 43(03): 110-115.
[10]	谢爱玲, 乐昱含, 艾馨, 王亚辉, 王义容, 陈新彭, 陈国强, 邢铁玲. 茶多酚改性超疏水涤纶织物制备及其在油水分离中的应用[J]. 纺织学报, 2022, 43(02): 162-170.
[11]	杨腾祥, 申国栋, 钱利江, 胡华军, 毛雪, 孙润军. 外电场极化银-钛酸钡/涤纶织物制备及其光催化性能[J]. 纺织学报, 2022, 43(02): 189-195.
[12]	朱兰芳, 白洁, 周吟澄, 侯成伟. 超声波处理对涤纶织物聚氨酯涂层中4,4'-二氨基二苯甲烷的影响[J]. 纺织学报, 2021, 42(11): 124-128.
[13]	普丹丹, 傅雅琴. 涤纶织物/聚氯乙烯-中空微珠复合材料的制备及其隔声性能[J]. 纺织学报, 2021, 42(11): 77-83.
[14]	翟丽莎, 王宗垒, 周敬伊, 高冲, 陈凤翔, 徐卫林. 纺织用抗菌材料及其应用研究进展[J]. 纺织学报, 2021, 42(09): 170-179.
[15]	杨露, 薛涛, 孟家光, 杨豆豆. 3D打印柔性服装面料的负离子功能整理及其性能[J]. 纺织学报, 2021, 42(08): 102-108.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

交联剂质量分数/%	静水压/kPa
交联剂质量分数/%	未水洗	水洗5次	水洗10次	水洗15次
1	2.146	1.839	1.249	1.088
2	2.251	2.009	1.566	1.238
3	2.326	2.158	1.740	1.380

项目	C1s	O1s	F1s	Si2p
理论值	63.54	18.84	14.33	3.29
实验值	63.03	17.23	15.39	4.35
