纺织学报 ›› 2019, Vol. 40 ›› Issue (05): 24-29.doi: 10.13475/j.fzxb.20180501506

• 纤维材料 • 上一篇    下一篇

多级拉伸与热定型对聚乙烯/聚丙烯双组分纤维结构和性能的影响

刘金鑫1, 张海峰1, 张星1, 黄晨1, 郑晓冰2, 靳向煜1()

  1. 1.东华大学 产业用纺织品教育部工程研究中心, 上海 201620
    2.浙江新维狮合纤股份有限公司, 浙江 嘉兴 314005
  • 收稿日期:2018-05-04 修回日期:2019-01-03 出版日期:2019-05-15 发布日期:2019-05-21
  • 通讯作者: 靳向煜
  • 作者简介:刘金鑫(1990—),男,博士生。主要研究方向为双组分纤维过滤材料。
  • 基金资助:
    国家科技支撑计划(2015BAE01B01);中国纺织工业联合会应用基础研究项目(J201703)

Influence of multistage drawing and heat setting on structure and properties of polyethylene/polypropylene bicomponent fibers

LIU Jinxin1, ZHANG Haifeng1, ZHANG Xing1, HUANG Chen1, ZHENG Xiaobing2, JIN Xiangyu1()

  1. 1. Engineering Research Center of Technical Textiles, Ministry of Education, Donghua University,Shanghai 201620, China
    2. Zhejiang Sunwish Chemical Fiber Co., Ltd., Jiaxing, Zhejiang 314005, China
  • Received:2018-05-04 Revised:2019-01-03 Online:2019-05-15 Published:2019-05-21
  • Contact: JIN Xiangyu

摘要:

为研究聚乙烯/聚丙烯(PE/PP)双组分纤维在非织造熔融纺丝成网工艺中的尺寸及力学稳定性,在双组分纤维制备过程中关键工艺位置进行取样,借助X射线多晶衍射仪、电子单纤维强力仪、扫描电子显微镜、BEION纤维细度测试系统等对纤维的结构和性能进行测试与表征。结果表明:多级拉伸过程中纤维的取向度和结晶度逐渐增加,其中二级拉伸对纤维体系的取向结晶起主要作用;纤维未经热定型时尺寸稳定性差,干热收缩率高;经多级拉伸和热定型后纤维力学性能明显提高,其断裂强度最大可达3.38 cN/dtex;升高热定型温度有利于提高纤维的尺寸稳定性,制备过程中热定型温度不应低于110 ℃。

关键词: 熔融纺丝成网, 聚乙烯/聚丙烯双组分纤维, 多级拉伸, 热定型, 力学性能

Abstract:

In order to study the dimension and mechanical stability of polyethylene/polypropylene (PE/PP) bicomponent fibers prepared by the nonwoven spunlaid process, PE/PP bicomponent fiber samples were taken at different key process positions. The structure and properties of the fibers were measured by X-ray diffractometer, electronic single fiber strength tester, scanning electron microscope, and BEION fiber fineness test system. The results show that the degree of orientation and crystallinity of fiber gradually increase in the multistage drawing process, and the second stage drawing in the post-spinning process plays a major role in the orientation and crystallinity of fiber. The dimensional stability of fiber is not determined without heat setting, and the dry heat shrinkage is high. The mechanical properties of fiber after multistage drawing and heat setting are significantly improved, and the maximum breaking strength can reach 3.38 cN/dtex. The increase of heat setting temperature improves the dimensional stability of the fiber, and the heat setting temperature during preparation should not lower than 110 ℃.

Key words: spunlaid, polyethylene/polypropylene bicomponent fiber, multistage drawing, heat setting, mechanical property

中图分类号:

  • TS174.8

图1

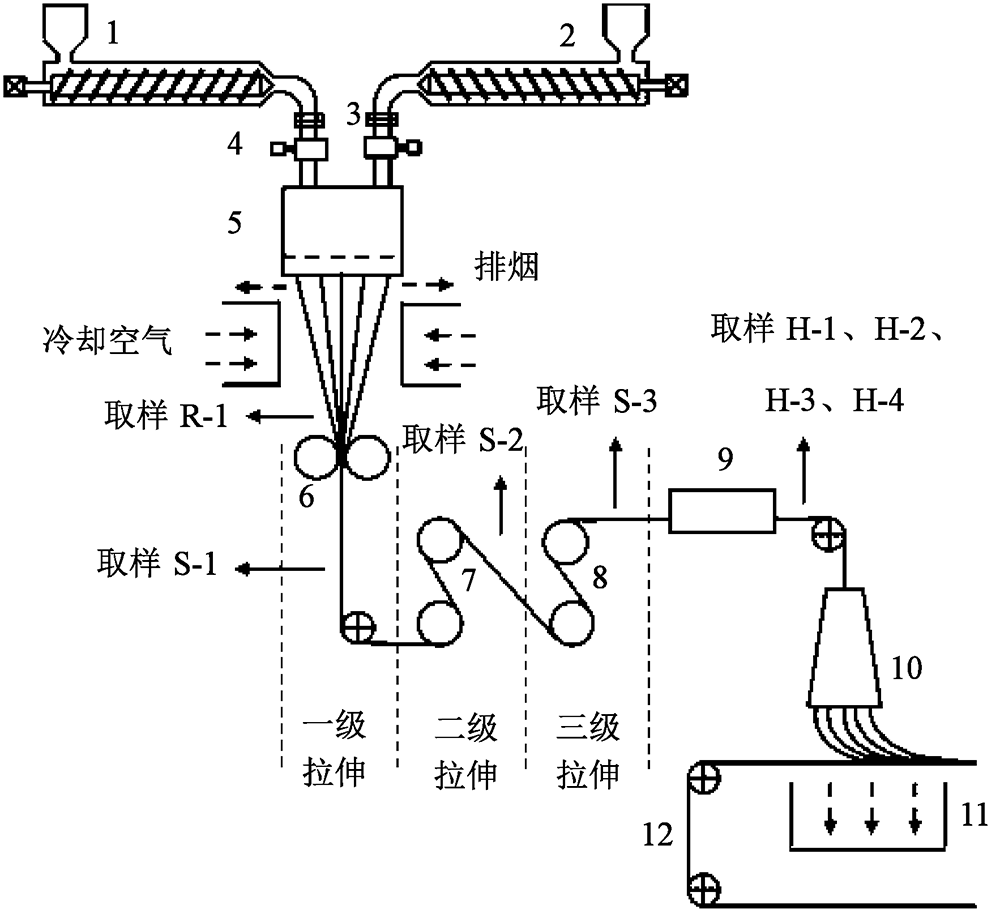

PE/PP双组分纤维纺丝成网工艺流程图 1—PE组分螺杆挤出机;2—PP组分螺杆挤出机;3—过滤器;4—计量泵;5—纺丝组件;6—一级拉伸装置;7—二级拉伸装置;8—三级拉伸装置;9—热定型装置;10—分丝器;11—抽吸风装置;12—成网帘。"

图2

不同拉伸级数下PE/PP双组分纤维样品的SEM照片"

图3

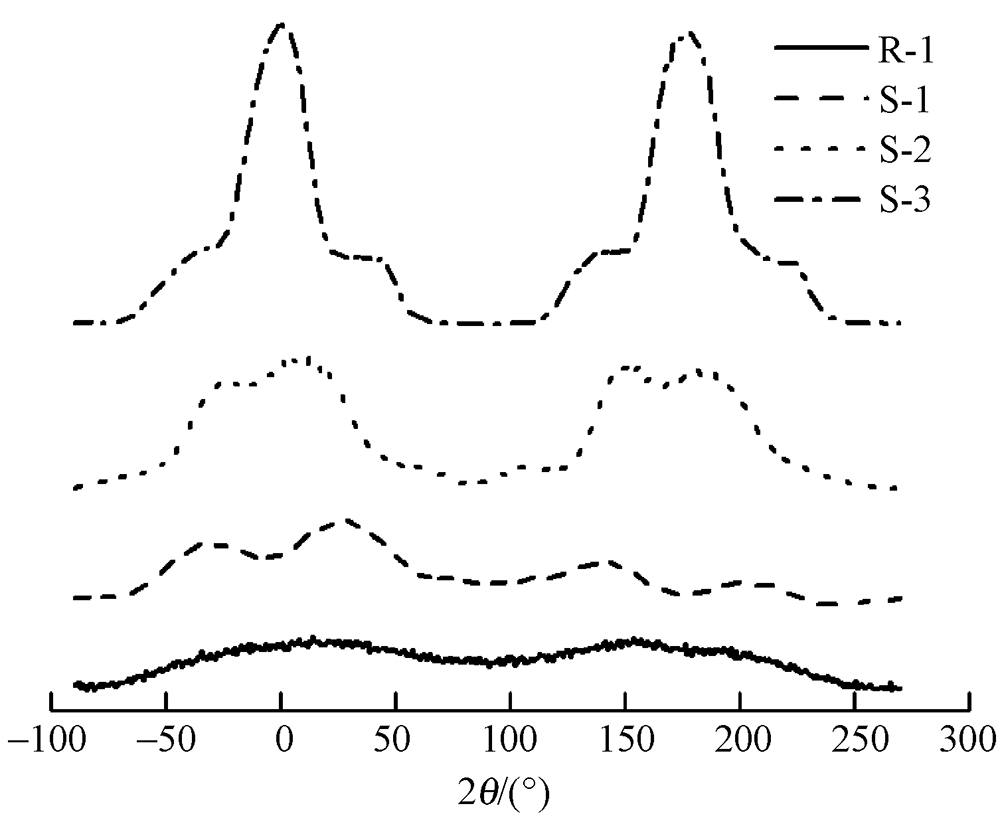

不同拉伸级数下PE/PP双组分纤维的2D-WAXD光谱"

图4

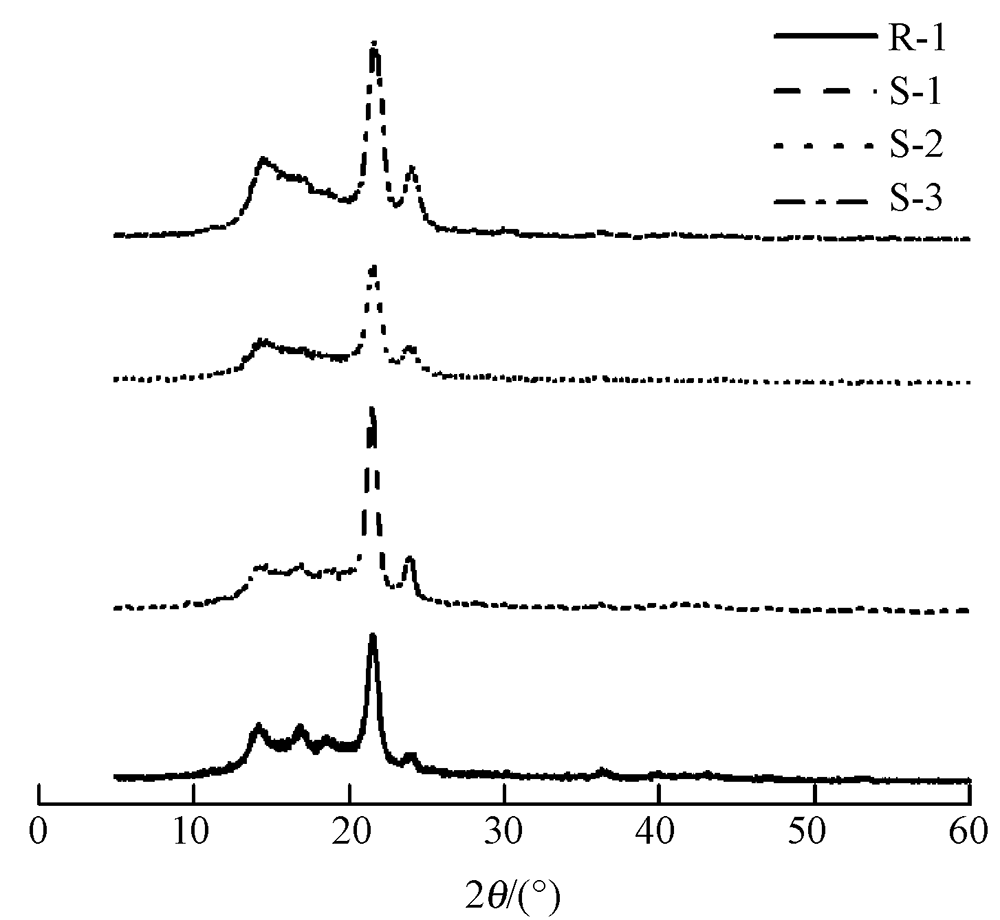

不同拉伸级数下PE/PP双组分纤维的XRD光谱"

表1

拉伸级数对PE/PP双组分纤维取向度和结晶度的影响"

试样编号 取向度 结晶度
R-1
S-1
S-2
S-3
36.60
48.60
67.90
74.80
37.67
45.31
59.65
65.64

表2

拉伸级数对PE/PP双组分纤维力学性能的影响"

试样编号 线密度/dtex 强度/(cN·dtex-1) 伸长率/%
R-1 10.01 1.40 985.57
S-1 8.06 1.69 949.36
S-2 2.61 2.90 175.84
S-3 2.18 3.07 167.24

图5

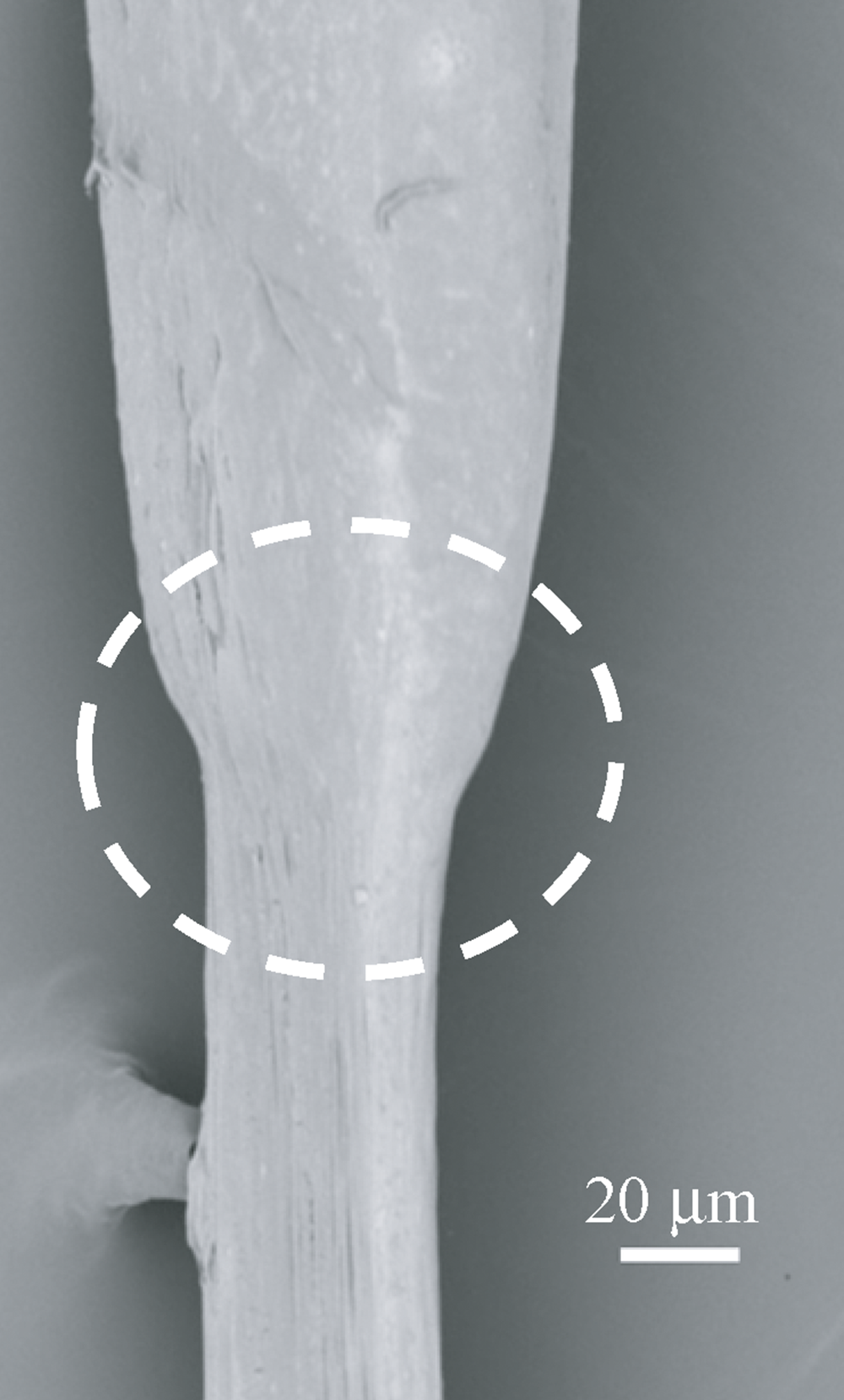

PE/PP双组分纤维拉伸后的SEM照片"

图6

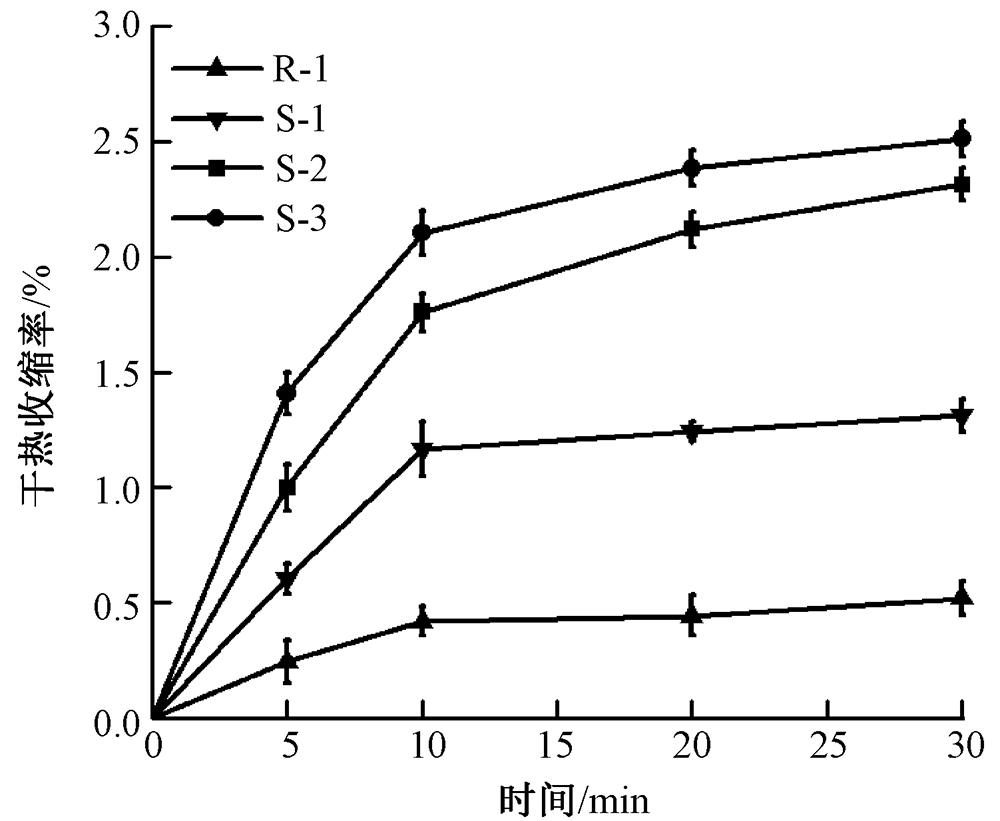

不同拉伸级数纤维的收缩率随时间的变化"

表3

不同热定型温度下PE/PP双组分纤维的力学性能"

试样
编号
线密度/
dtex
断裂强度/
(cN·dtex-1)
伸长率/
%
干热
收缩率/%
H-1 2.18 3.09 163.49 2.58
H-2 2.18 3.11 161.57 2.25
H-3 2.18 3.30 152.70 1.47
H-4 2.18 3.38 145.68 1.24
