丝胶温敏凝胶对棉织物性能的影响

doi:10.13475/j.fzxb.20180902605

纺织学报 ›› 2019, Vol. 40 ›› Issue (12): 74-78.doi: 10.13475/j.fzxb.20180902605

丝胶温敏凝胶对棉织物性能的影响

崔一帆¹, 侯巍¹, 周千熙¹, 闫俊¹(), 路艳华², 何婷婷³

1.大连工业大学纺织与材料工程学院, 辽宁大连 116034
2.辽东学院辽宁省功能纺织材料重点实验室, 辽宁丹东 118003
3.国家知识产权局专利局专利审查协作北京中心, 北京 100160

收稿日期:2018-09-12 修回日期:2019-09-22 出版日期:2019-12-15 发布日期:2019-12-18
通讯作者: 闫俊
作者简介:崔一帆(1994—),男,硕士生。主要研究方向为智能纺织品开发与利用。
基金资助:
辽宁省博士科研启动基金项目(201601270);大连市青年科技之星项目(2018RQ26)

Influence of silk sericin temperature sensitive hydrogel on properties of cotton fabrics

CUI Yifan¹, HOU Wei¹, ZHOU Qianxi¹, YAN Jun¹(), LU Yanhua², HE Tingting³

1. School of Textile and Material Engineering, Dalian Polytechnic University, Dalian, Liaoning 116034, China
2. Key Laboratory of Functional Textile Materials, Liaoning Province, Eastern Liaoning University, Dandong, Liaoning 118003, China
3. Patent Examination Cooperation (Beijing) Center of the Patent Office, Beijing 100160, China

Received:2018-09-12 Revised:2019-09-22 Online:2019-12-15 Published:2019-12-18
Contact: YAN Jun

摘要/Abstract

摘要：

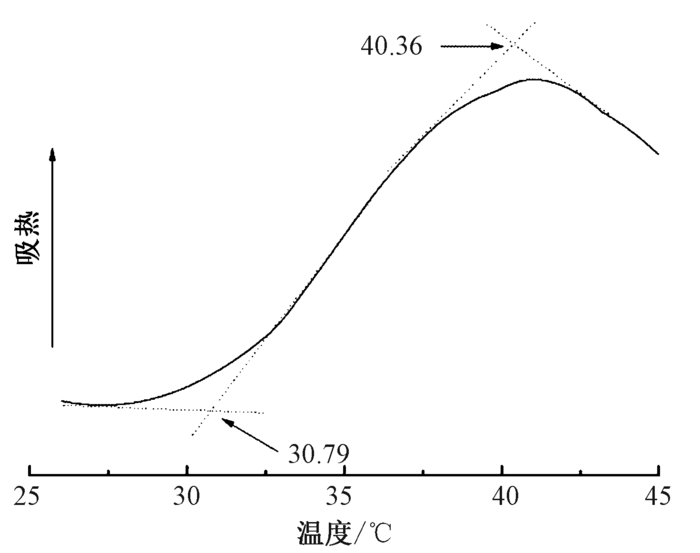

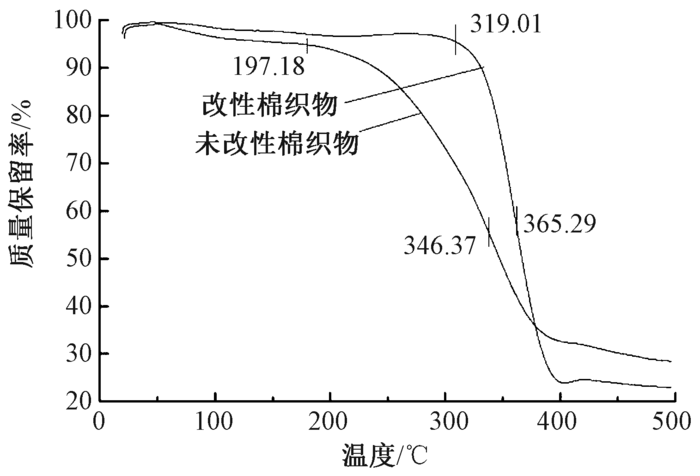

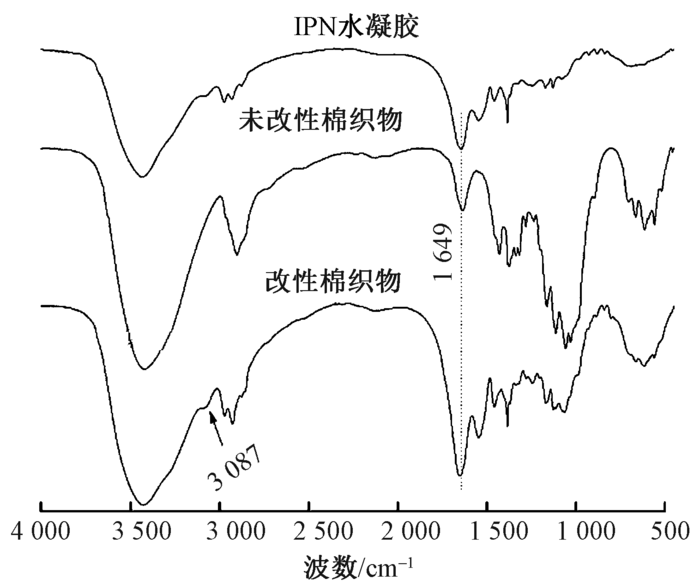

为提高棉织物的力学性能和热稳定性,采用互穿聚合物网络(IPN)技术,制备了聚N-异丙基丙烯酰胺/丝胶IPN水凝胶;并以戊二醛(GA)为交联剂,通过浸渍法将IPN水凝胶用于棉织物的改性整理。采用傅里叶变换红外光谱仪、扫描电子显微镜、差示扫描量热仪、X射线衍射仪、热失重分析仪和万能材料拉力机对改性棉织物进行测试和表征。结果表明:IPN水凝胶的最低临界溶液温度为30.79 ℃;改性棉织物表面和纤维之间形成一层改性凝胶膜,但其结晶2θ角没有偏移;改性棉织物的断裂强度、断裂伸长率和弹性模量分别提高了29.39%、35.24%和17.58%,分解温度提高了61.79%。

关键词: 丝胶蛋白, 水凝胶, 力学性能, 热稳定性, 棉织物, 互穿聚合物网络技术

Abstract:

In order to improve the mechanical properties and the thermostability of cotton fabrics, the N-isopropyl acrylamide/silk sericin IPN hydrogel was prepared by the interpenetrating polymer network (IPN) technology. The glutaraldehyde (GA) was used as crosslinking agent, and the IPN hydrogel was adopted to modify the cotton fabrics by the impregnation method. The IPN hydrogel and modified cotton fabrics were characterized by Fourier transform infrared spectroscopy, scanning electron microscopy, differential scanning calorimetry, X-ray diffraction, thermogravimetric analysis and universal material tension machine. The results show that the lowest critical solution temperature is 30.79 ℃ for the hydrogel. A layer of modified hydrogen film is formed between the surface of modified cotton fabrics and the fibers, which crystal 2θ angle has no shift. The breaking strength, elongation at break and elasticity modulus are improved by 29.39%, 35.24% and 17.58%, respectively. The decomposition temperature of modified cotton fabrics is raised by 61.79%.

Key words: silk sericin, hydrogel, mechanical property, thermostability, cotton fabric, interpenetrating polymer network

中图分类号:

TS195.5

崔一帆, 侯巍, 周千熙, 闫俊, 路艳华, 何婷婷. 丝胶温敏凝胶对棉织物性能的影响[J]. 纺织学报, 2019, 40(12): 74-78.

CUI Yifan, HOU Wei, ZHOU Qianxi, YAN Jun, LU Yanhua, HE Tingting. Influence of silk sericin temperature sensitive hydrogel on properties of cotton fabrics[J]. Journal of Textile Research, 2019, 40(12): 74-78.

图/表 8

图1

图2

图3

图4

图5

表1

图6

表2

参考文献 10

[1]	XING Tieling, LIU Jie, CHEN Guoqiang, et al. Study on finishing of cotton fabric by sericin and its prope-rties[J]. Advanced Materials Research, 2011, 175-176:624-628.
[2]	WANG Haiyan, WANG Yuanjing, ZHOU Lixia, et al. Isolation and bioactivities of a non-sericin component from cocoon shell silk sericin of the silkworm bombyx mori[J]. Food & Function, 2012,3(2):150-158. doi: 10.1039/c1fo10148j pmid: 22101964
[3]	LI Wenhua, CAI Yurong, ZHONG Qiwei, et al. Silk sericin microcapsules with hydroxyapatite shells: protection and modification of organic microcapsules by biomimetic mineralization[J]. Journal of Materials Chemistry B, 2015,4(2):340-347. doi: 10.1039/c5tb02328a pmid: 32263376
[4]	WANG Boxiang, WU Xiaolin, LI Jia, et al. Thermosensitive behavior and antibacterial activity of cotton fabric modified with a chitosan-poly(Nisopropylacrylamide) interpenetrating polymer network hydrogel[J]. Polymers, pmid: 33171827
[5]	YU Yueqin, XU Yang, NING Hansheng, et al. Swelling behaviors of thermoresponsive hydrogels cross-linked with acryloyloxyethylaminopolysuccinimide[J]. Colloid & Polymer Science, 2008,286(10):1165-1171.
[6]	TIAN Ruiqiong, LIANG Yuanyuan, ZHANG Xiaoyun, et al. Synjournal and performance of pH-sensitive hydrogel microspheres and in vitro evaluation as potential drug carriers[J]. Advanced Materials Research, 2015,21(11):2287-2296.
[7]	王勃翔, 刘丽, 路艳华, 等. 互穿聚合物网络温敏凝胶对棉织物液态水分传递的影响[J]. 纺织学报, 2018,39(11):84-89.
	WANG Boxiang, LIU Li, LU Yanhua, et al. Influence of interpenetrating polymer networks thermosensitive gel on liquid moisture transfer of cotton fabric[J]. Journal of Textile Research, 2018,39(11):84-89.
[8]	CUI Yuifan, XING Zhijing, YAN Jun, et al. Thermosensitive behavior and super-antibacterial properties of cotton fabrics modified with a sercin-NIPAAm-agNPs interpenetrating polymer network hydrogel[J]. Polymers, 2018,10:818.
[9]	YANG Hengrui, ESTEVES A, CATARINA C, et al. In-situ, study of the structure and dynamics of thermo-responsive PNIPAAm grafted on a cotton fabric[J]. Polymer, 2012,53(16):3577-3586.
[10]	SVETLICHNYI Valery, SHABALINA Anastasiia, LAPIN Ivan, et al. ZnO nanoparticles obtained by pulsed laser ablation and their composite with cotton fabric: preparation and study of antibacterial acti-vity[J]. Applied Surface Science, 2016,372:20-29.

相关文章 15

[1]	王博, 凡力华, 原韵, 殷允杰, 王潮霞. 可拉伸聚吡咯/ 棉针织物的制备及其储电性能[J]. 纺织学报, 2020, 41(10): 101-106.
[2]	庞雅莉, 孟佳意, 李昕, 张群, 陈彦锟. 石墨烯纤维的湿法纺丝制备及其性能[J]. 纺织学报, 2020, 41(09): 1-7.
[3]	展晓晴, 李凤艳, 赵健, 李海琼. 超高分子量聚乙烯纤维的热力学稳定性能[J]. 纺织学报, 2020, 41(08): 9-14.
[4]	张祝辉, 张典堂, 钱坤, 徐阳, 陆健. 广角机织物的织造工艺及其偏轴拉伸力学性能[J]. 纺织学报, 2020, 41(08): 27-31.
[5]	刘稀, 王冬, 张丽平, 李敏, 付少海. 低折射率树脂对原液着色粘胶纤维结构和性能的影响[J]. 纺织学报, 2020, 41(07): 9-14.
[6]	刘国金, 石峰, 陈新祥, 张国庆, 周岚. 聚氨酯/ 相变蜡蓄热调温功能整理剂的制备及其在棉织物上的应用[J]. 纺织学报, 2020, 41(07): 129-134.
[7]	成世杰, 王晨洋, 张宏伟, 左丹英. 硼氮掺杂碳点对棉织物防紫外线性能的影响[J]. 纺织学报, 2020, 41(06): 93-98.
[8]	李莉萍, 吴道义, 战奕凯, 何敏. 电泳沉积碳纳米管和氧化石墨烯修饰碳纤维表面的研究进展[J]. 纺织学报, 2020, 41(06): 168-173.
[9]	周青青, 陈嘉毅, 祁珍明, 陈为健, 邵建中. 阻燃抗菌棉织物的制备及其性能表征[J]. 纺织学报, 2020, 41(05): 112-120.
[10]	王宗乾, 杨海伟, 周剑, 李长龙. 尿素脱胶对丝素蛋白气凝胶力学性能的影响[J]. 纺织学报, 2020, 41(04): 9-14.
[11]	孙广东, 黄益, 邵建中, FAN Qinguo. 光交联丝素蛋白水凝胶的蓝光引发体系[J]. 纺织学报, 2020, 41(04): 64-71.
[12]	谭淋, 施亦东, 周文雅. 棉织物的硅溶胶疏水整理[J]. 纺织学报, 2020, 41(04): 106-111.
[13]	赵兵, 黄小萃, 祁宁, 钟洲, 车明国, 葛亮亮. 基于共价结合的纳米银抗菌棉织物研究进展[J]. 纺织学报, 2020, 41(03): 188-196.
[14]	朱维维, 蔡冲, 张聪, 龙家杰, 施楣梧. 超临界CO₂ 处理温度对二醋酸纤维结构与性能的影响[J]. 纺织学报, 2020, 41(03): 8-14.
[15]	岳程飞, 丁长坤, 李璐, 程博闻 . 碳化二亚胺/ 羟基丁二酰亚胺交联改性胶原蛋白纤维制备及其性能[J]. 纺织学报, 2020, 41(03): 1-7.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

试样名称	碳	氧	氮	银
未改性棉织物	54.33	45.67	0.00	0.00
改性棉织物	48.28	42.16	9.32	0.24

试样名称	断裂强力/N	断裂伸长率/%	弹性模量/MPa
未改性棉织物	179.756	5.393	81.926
改性棉织物	243.107	6.978	96.326
