纺织学报 ›› 2020, Vol. 41 ›› Issue (06): 21-26.doi: 10.13475/j.fzxb.20190800406

• 纤维材料 • 上一篇    下一篇

聚甲基丙烯酸酯/聚丙烯酸酯共混纤维膜制备及其油水分离性能

郝志奋1, 徐乃库2(), 封严1, 段梦馨1, 肖长发2

  1. 1.天津工业大学 纺织科学与工程学院, 天津 300387
    2.天津工业大学 材料科学与工程学院, 天津 300387
  • 收稿日期:2019-08-01 修回日期:2020-03-12 出版日期:2020-06-15 发布日期:2020-06-28
  • 通讯作者: 徐乃库
  • 作者简介:郝志奋(1993—),女,硕士生。主要研究方向为纺织纤维材料。
  • 基金资助:
    国家自然科学基金项目(51103099);教育部高等学校博士学科点专项科研基金项目(20111201120002);中国博士后基金项目(2014M550143);中国博士后基金项目(2015T80221);天津市应用基础及前沿技术研究计划项目(12JCQNJC01600);中国工程院“先进基础材料强国战略研究课题”子项目(2018-ZD-03)

Preparation of fibrous membrane by blending polymethacrylate with polyacrylate and its oil/water separation property

HAO Zhifen1, XU Naiku2(), FENG Yan1, DUAN Mengxin1, XIAO Changfa2

  1. 1. School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China
    2. School of Material Science and Engineering, Tiangong University, Tianjin 300387, China
  • Received:2019-08-01 Revised:2020-03-12 Online:2020-06-15 Published:2020-06-28
  • Contact: XU Naiku

RichHTML

4

PDF (PC)

103

摘要：

为实现水污染体系中油水的高效分离,采用溶液聚合法合成丙烯酸丁酯-甲基丙烯酸羟乙酯共聚物、甲基丙烯酸丁酯-甲基丙烯酸羟乙酯共聚物,以共混溶液为纺丝液,采用静电纺丝技术制备得到可用于分离不同油水混合物的微结构可调的纤维膜材料,并研究其对不同油水混合物的分离能力。结果表明:2种共聚物溶液以体积比为3∶7共混后制得的纤维膜对柴油/水、葵花籽油/水混合物的分离效果显著;针对上述2种油水混合物,重复使用共混纤维膜5和7次时,共混纤维膜对2种油水混合物的分离时间分别低于390、110 s;将四氢呋喃引入上述共混溶液继续调节静电纺纤维膜的微结构,所得纤维膜可快速将高黏度乳化油从水中分离出来。

关键词: 甲基丙烯酸丁酯-甲基丙烯酸羟乙酯共聚物, 丙烯酸丁酯-甲基丙烯酸羟乙酯共聚物, 溶液聚合, 静电纺丝, 油水分离

Abstract:

In order to realize the efficient separation of oil and water in water pollution system, poly (butyl acrylate-co-hydroxyethyl methacrylate) and poly (butyl methacrylate-co-hydroxyethyl methacrylate) were synthesized by solution polymerization. The blended solution with the two polymers was used for electrospinning to prepare micro-structurally adjustable fibrous membrane material to separate different oil/water mixtures, and its separation capacity for different oil/water mixtures was explored. The results demonstrate that the fibrous membrane obtained from blending the two copolymer solutions in the volume ratio of 3∶7 shows significant separation capability for diesel/water mixture and sunflower oil/water mixture. When it is repeatedly used for 5 times and 7 times to separate the two oil/water mixtures, the separation time are lower than 390 s and 110 s, respectively. Tetrahydrofuran (THF) was introduced into the above-mentioned blended solution to adjust continually the microstructure of the electrospun fibrous membrane, and the obtained fibrous membrane is proven to separate highly viscous emulsified oil from water quickly.

Key words: poly (butyl methacrylate-co-hydroxyethyl methacrylate), poly (butyl acrylate-co-hydroxyethyl methacrylate), solution polymerization, electrospinning, oil/water separation

中图分类号:

  • TQ316

图1

油水分离装置示意图 1—油;2—水;3—纤维膜。"

图2

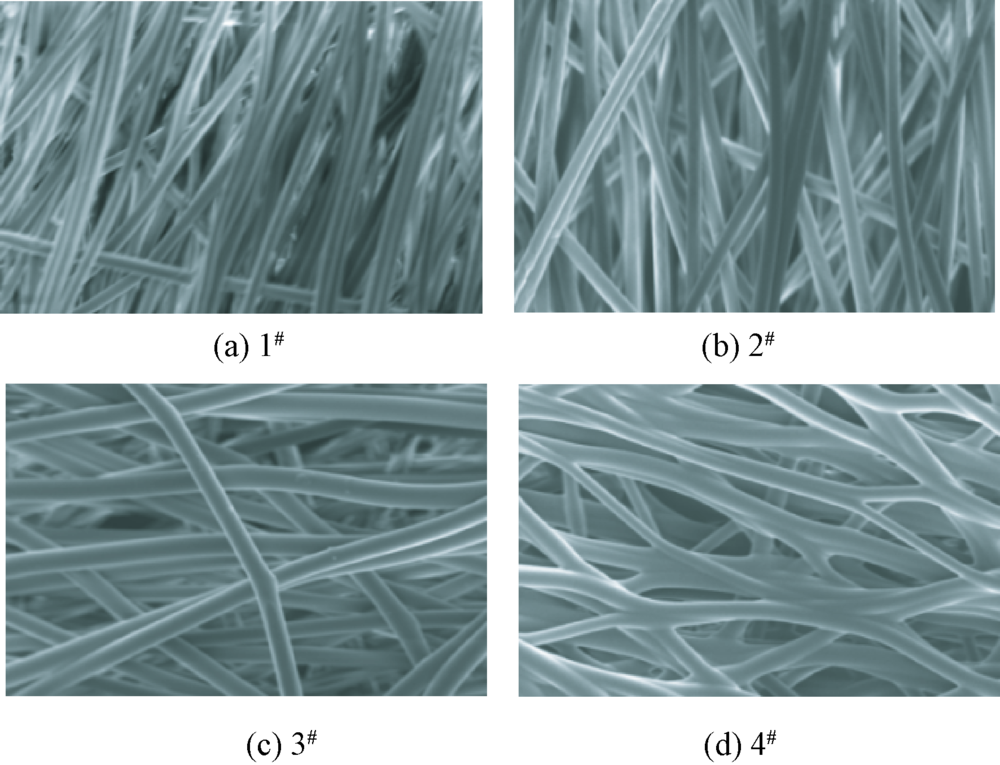

不同体积比共混溶液静电纺纤维膜扫描电镜照片(×1 000)"

表1

不同体积比共混溶液静电纺纤维膜的物理性能"

样品
编号		 接触角/
(°)		 孔隙
率/%		 纤维平均
直径/μm		 纤维直径
标准偏差
1# 138.5 54.82 3.13 0.32
2# 124.5 47.95 3.68 0.31
3# 122.5 39.26 4.29 0.72
4# 126.0 37.14 5.03 0.56

图3

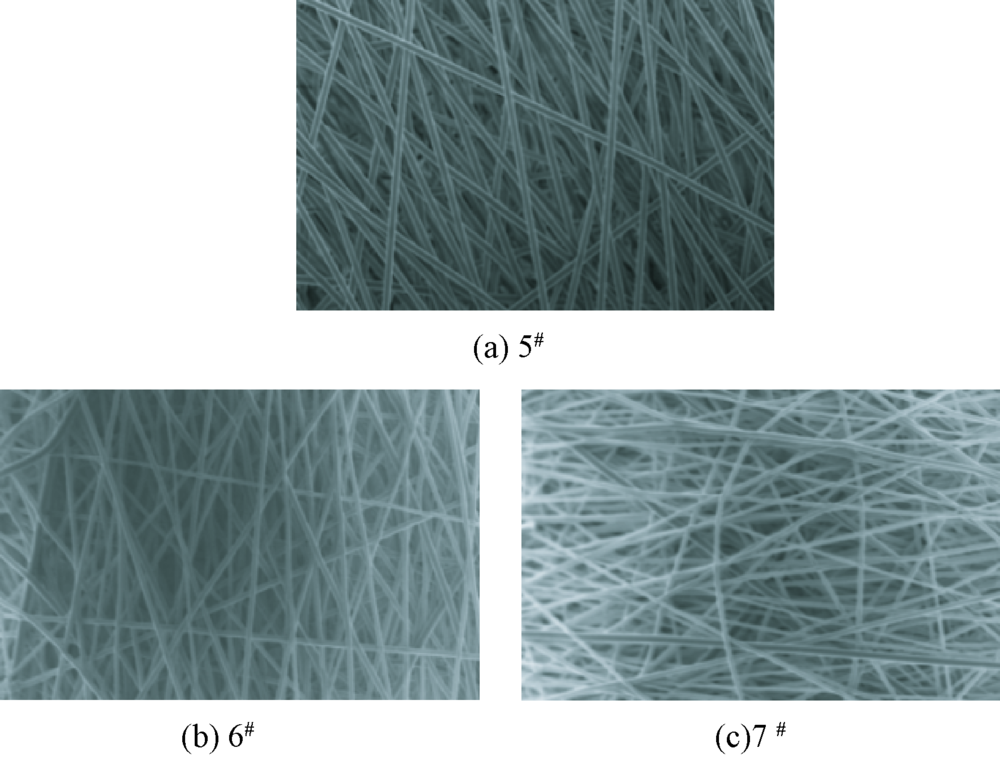

不同THF体积分数下静电纺纤维膜扫描电镜照片(×1 000)"

表2

不同THF体积分数下静电纺纤维膜的物理性能"

样品
编号		 接触角/
(°)		 孔隙
率/%		 纤维平均
直径/μm		 纤维直径
标准偏差
5# 126.0 37.16 2.03 0.23
6# 129.5 58.30 1.56 0.19
7# 126.5 72.03 1.24 0.24

图4

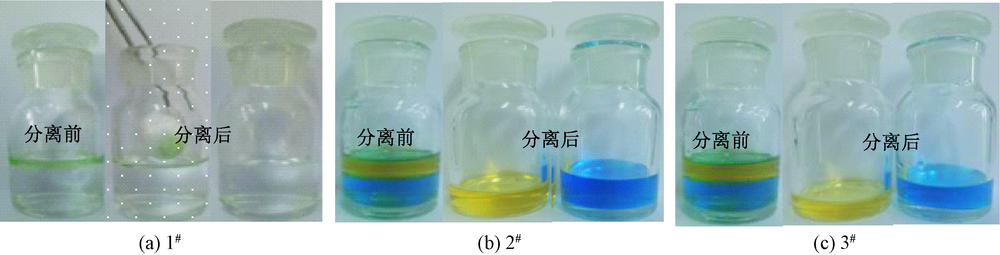

1#~3#纤维膜对柴油/水的分离结果"

图5

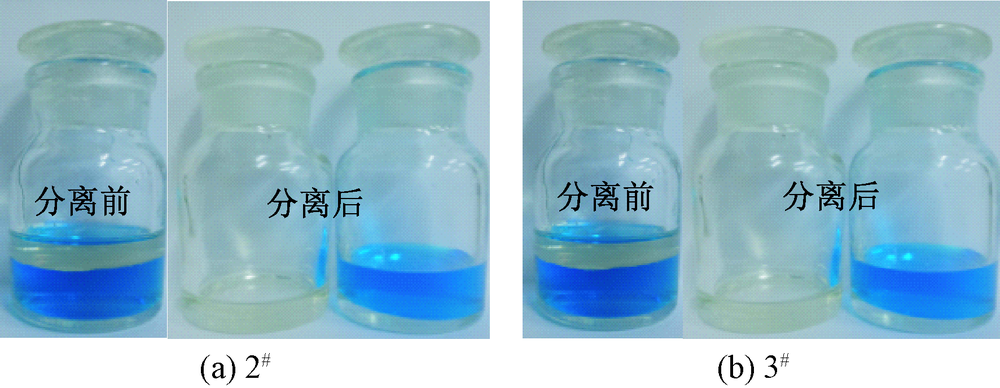

2#和3#纤维膜对葵花籽油/水的分离结果"

图6

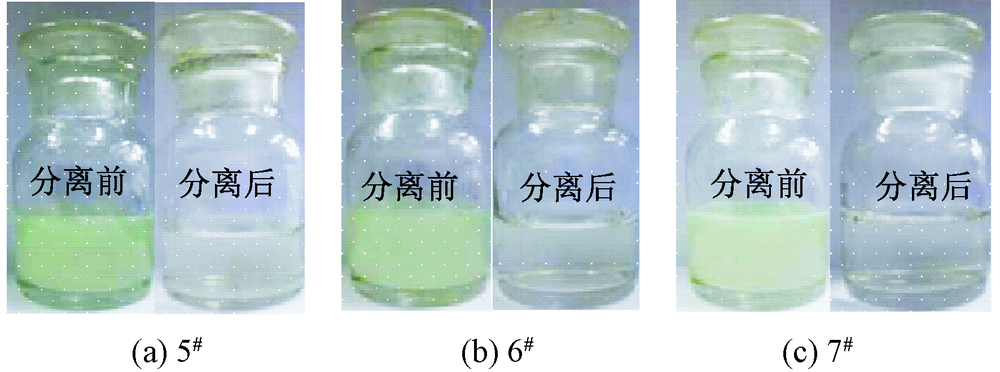

5#~7#纤维膜对乳化油/水的分离结果"

图7

2#和3#纤维膜重复分离油水混合物能力"

[1] 申洪臣, 王健行, 成宇涛, 等. 海上石油泄漏事故危害及应急处理[J]. 环境工程, 2011,29(6):110-114.
SHEN Hongchen, WANG Jianxing, CHENG Yutao, et al. The harm of oil spill accident on the sea and emergency treatment[J]. Environmental Engineering, 2011,29(6):110-114.
[2] 李国强, 洪振田, 郑秀钦. 论石油泄漏对环境与水产养植的影响[J]. 中国农资, 2013(28):162.
LI Guoqiang, HONG Zhentian, ZHENG Xiuqin. The impact of oil leakage on environment and aquacul-ture[J]. Chinese Agricultural Resources, 2013(28):162.
[3] ZEINSTRA-HELFRICH M, KOOPS W, MURK A J. Predicting the consequence of natural and chemical dispersion for oil slick size over time[J]. Journal of Geophysical Research, 2017,122(9):7312-7324.
[4] ZHANG L, ZHONG Y, CHA D, et al. A self-cleaning underwater superoleophobic mesh for oil-water separation[J]. Scientific Reports, 2013,3(7). DOI: 10.1038/srep02326.
[5] SUN F, LIU W, DONG Z, et al. Underwater superoleophobicity cellulose nanofibril aerogel through regioselective sulfonation for oil/water separation[J]. Chemical Engineering Journal, 2017,330:774-782.
[6] WANG J C, LOU H H, CUI Z H, et al. Fabrication of porous polyacrylamide/polystyrene fibrous membranes for efficient oil-water separation[J]. Separation and Purification Technology, 2019,222:278-283.
[7] LU Y, LI Z, HAILU G, et al. Study on the oil/water separation performance of a super-hydrophobic copper mesh under downhole conditions[J]. Journal of Industrial and Engineering Chemistry, 2019(72):310-318.
[8] JIANG C, LIU W, YANG M, et al. Robust fabrication of superhydrophobic and photocatalytic self-cleaning cotton textiles for oil-water separation via thiolene click reaction[J]. Journal of Materials Science, 2019,54(9):7369-7382.
[9] ZHAO J X, WANG W, YE C C, et al. Gravity-driven ultrafast separation of water-in-oil emulsion by hierarchically porous electrospun poly(L-lactide) fabrics[J]. Journal of Membrane Science, 2018,536:762-767.
[10] LIN Y M, GREGORY C R. Separation of oil-in-water emulsions stabilized by different types of surfactants using electrospun fiber membranes[J]. Journal of Membrane Science, 2018,563:247-258.
[11] MA W J, ZHAO J T, ODERINDE O, et al. Durable superhydrophobic and superoleophilic electrospun nanofibrous membrane for oil-water emulsion sepa-ration[J]. Journal of Colloid and Interface Science, 2018,532:12-23.
pmid: 30077062
[12] MA W J, SAMAL S K, LIU Z C, et al. Dual pH- and ammonia-vapor-responsive electrospun nanofibrous membranes for oil-water separations[J]. Journal of Membrane Science, 2017,537:128-139.
doi: 10.1016/j.memsci.2017.04.063
[13] 张娇娇, 左晓飞, 覃小红, 等. 聚多巴胺涂覆改性聚丙烯腈纳米纤维膜及其油水分离性能[J]. 东华大学学报(自然科学版), 2018,44(1):10-17,32.
ZHANG Jiaojiao, ZUO Xiaofei, QIN Xiaohong, et al. Polydopamine coated modified polyacrylonitrile nanofiber membrane and its oil-water separation performance[J]. Journal of Donghua University (Natural Science), 2018,44(1):10-17,32.
[14] CAO S J, QIU F, XIONG C, et al. Superhydrophobic PES/PDA/ODTS fibrous mat prepared by electrospinning and silanization modification for oil/water separation[J]. Journal of Applied Polymer Science, 2018,135(12). DOI: 10.1002/app.45923.
[15] FATMA Y, SIEKIEKA A, BRYJAK M, et al. Preparation of various nanofibrous composite membranes using wire electrospinning for oil-water separation[J]. IOP Conference Series: Materials Science and Engineering, 2017,254(10):102011.
doi: 10.1088/1757-899X/254/10/102011
[16] REN L F, XIA F, SHAO J H, et al. Experimental investigation of the effect of electrospinning parameters on properties of superhydrophobic PDMS/PMMA membrane and its application in membrane distill-ation[J]. Desalination, 2017,404:155-166.
doi: 10.1016/j.desal.2016.11.023
[17] ALAZAB-ALNAQBI M, GREISH Y E, MOHSIN M A, et al. Morphological variations of micro-nanofibrous sorbents prepared by electrospinning and their effects on the sorption of crude oil[J]. Journal of Environmental Chemical Engineering, 2016,4(2):1850-1861.
doi: 10.1016/j.jece.2016.02.030
[1] 陈云博, 朱翔宇, 李祥, 余弘, 李卫东, 徐红, 隋晓锋. 相变调温纺织品制备方法的研究进展[J]. 纺织学报, 2021, 42(01): 167-174.
[2] 王赫, 王洪杰, 阮芳涛, 凤权. 静电纺聚丙烯腈/线性酚醛树脂碳纳米纤维电极的制备及其性能[J]. 纺织学报, 2021, 42(01): 22-29.
[3] 杨刚, 李海迪, 乔燕莎, 李彦, 王璐, 何红兵. 聚乳酸-己内酯/纤维蛋白原纳米纤维基补片的制备与表征[J]. 纺织学报, 2021, 42(01): 40-45.
[4] 杨宇晨, 覃小红, 俞建勇. 静电纺纳米纤维功能性纱线的研究进展[J]. 纺织学报, 2021, 42(01): 1-9.
[5] 汪希铭, 程凤, 高晶, 王璐. 交联改性对敷料用壳聚糖/ 聚氧化乙烯纳米纤维膜性能的影响[J]. 纺织学报, 2020, 41(12): 31-36.
[6] 张亦可, 贾凡, 桂澄, 晋蕊, 李戎. 聚偏氟乙烯/ FeCl3 复合纤维膜柔性传感器的制备及其性能[J]. 纺织学报, 2020, 41(12): 13-20.
[7] 余钰骢, 史晓龙, 刘琳, 姚菊明. 用于油水分离的超润湿性纺织品研究进展[J]. 纺织学报, 2020, 41(11): 189-196.
[8] 王利媛, 康卫民, 庄旭品, 鞠敬鸽, 程博闻. 磺化聚醚砜纳米纤维复合质子交换膜的制备及其性能[J]. 纺织学报, 2020, 41(11): 19-26.
[9] 李好义, 许浩, 陈明军, 杨涛, 陈晓青, 阎华, 杨卫民. 纳米纤维吸声降噪研究进展[J]. 纺织学报, 2020, 41(11): 168-173.
[10] 王子希, 胡毅. 基于ZnCo2O4的多孔碳纳米纤维制备及其储能性能[J]. 纺织学报, 2020, 41(11): 10-18.
[11] 潘璐, 程亭亭, 徐岚. 聚己内酯/聚乙二醇大孔径纳米纤维膜的制备及其在组织工程支架中的应用[J]. 纺织学报, 2020, 41(09): 167-173.
[12] 杨凯, 张啸梅, 焦明立, 贾万顺, 刁泉, 李咏, 张彩云, 曹健. 高邻位酚醛基纳米活性碳纤维制备及其吸附性能[J]. 纺织学报, 2020, 41(08): 1-8.
[13] 吴红, 刘呈坤, 毛雪, 阳智, 陈美玉. 柔性ZrO2纳米纤维膜的制备及其应用研究现状[J]. 纺织学报, 2020, 41(07): 167-173.
[14] 王树博, 秦湘普, 石磊, 庄旭品, 李振环. 氧化石墨烯量子点/聚丙烯腈纳米纤维复合质子交换膜的制备及其性能[J]. 纺织学报, 2020, 41(06): 8-13.
[15] 贾琳, 王西贤, 陶文娟, 张海霞, 覃小红. 聚丙烯腈抗菌复合纳米纤维膜的制备及其抗菌性能[J]. 纺织学报, 2020, 41(06): 14-20.
Viewed
Full text


Abstract

Cited
  Shared
  Discussed
No Suggested Reading articles found!
京ICP备14006648号　 京公网安备11010502044800号
版权所有 © 2021 《纺织学报》编辑部
地址： 北京市朝阳区延静里中街3号主楼6层《纺织学报》杂志社　邮政编码：100025　
电话：010-65017711,65917740　传真：010-65016539　Email:fangzhixuebao@vip.126.com
本系统由北京玛格泰克科技发展有限公司设计开发
