F-12芳纶织物输送带的制备及其性能

doi:10.13475/j.fzxb.20200300808

纺织学报 ›› 2020, Vol. 41 ›› Issue (12): 87-93.doi: 10.13475/j.fzxb.20200300808

F-12芳纶织物输送带的制备及其性能

李美真¹(), 赵士毅¹, 冯艳丽², 郭晓卿¹, 于晓庆¹

1.内蒙古工业大学轻工与纺织学院, 内蒙古呼和浩特 010051
2.中国航天科工集团第六研究院, 内蒙古呼和浩特 010010

收稿日期:2020-03-03 修回日期:2020-09-09 出版日期:2020-12-15 发布日期:2020-12-23
作者简介:李美真(1963—),女,教授。主要研究方向为纺织化学与染整工程。E-mail: lmz2909@126.com。
基金资助:
呼和浩特市科技计划项目(产学研-2015-9)

Preparation and properties of conveyor belt reinforced by F-12 aramid fabric

LI Meizhen¹(), ZHAO Shiyi¹, FENG Yanli², GUO Xiaoqing¹, YU Xiaoqing¹

1. College of Textile and Light Industry, Inner Mongolia University of Technology, Hohhot, Inner Mongolia 010051, China
2. The Sixth Academy of China Aerospace Science and Industry Corporation Limited, Hohhot, Inner Mongolia 010010, China

Received:2020-03-03 Revised:2020-09-09 Online:2020-12-15 Published:2020-12-23

摘要/Abstract

摘要：

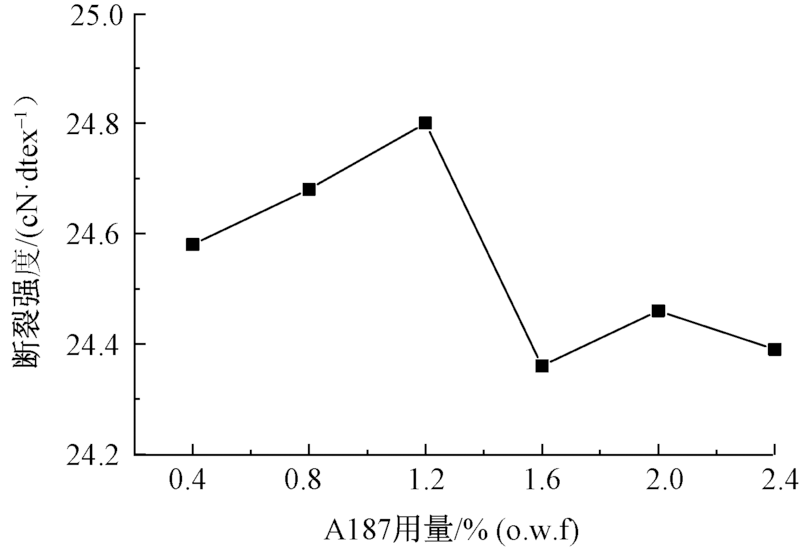

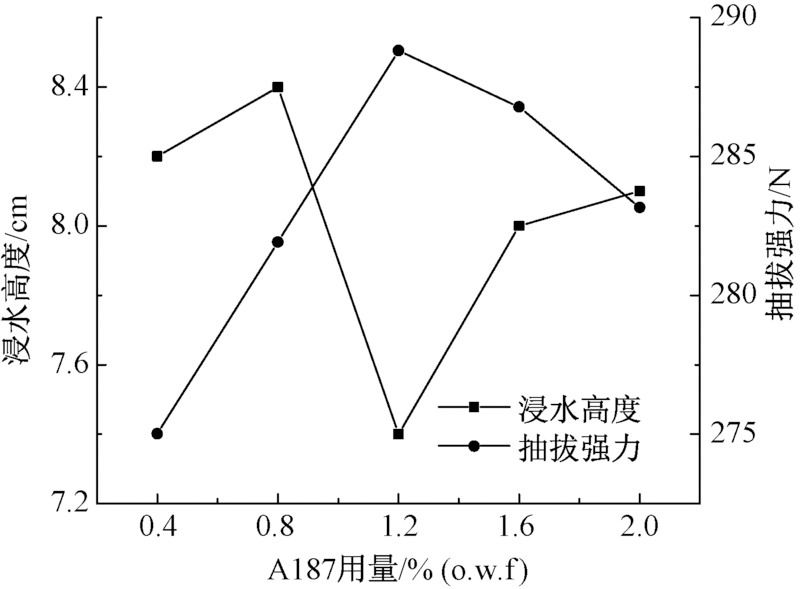

为提高F-12芳纶织物与橡胶之间的粘结性能,采用环氧树脂和偶联剂A187对F-12芳纶织物进行改性。通过成膜分析确定出环氧树脂的最佳用量;通过改性后F-12芳纶织物的浸水高度以及浸渍间苯二酚-甲醛树脂乳液后的拉伸强度和断裂强度测试,确定出偶联剂A187的最佳用量。在此基础上,对改性后的F-12芳纶织物进行硫化成型,测试织物与橡胶的剥离强度确定出最佳改性工艺。结果表明:环氧树脂用量为25%(o.w.f),偶联剂A187用量为1.2%(o.w.f)时,制备的F-12芳纶织物轻薄输送带的综合性能最佳;改性后浸水高度值最低的F-12芳纶织物制备的轻薄输送带的剥离强力达到最高,为12.1 N/mm,其剥离强度高于行业标准;制备的单层铺层输送带的扯断强力为6 495.25 N,断裂伸长率为13%,双层铺层输送带的扯断强力为14 493.25 N,断裂伸长率为14%。

关键词: F-12芳纶织物, 环氧树脂, 偶联剂A187, 输送带, 剥离强度

Abstract:

In order to improve the adhesion between F-12 aramid fabric and rubber in conveyor belt, epoxy resin and coupling agent A187 were used to modify the fabric. The optimum dosage of epoxy was determined by film forming analysis. The optimum dosage of coupling agent A187 was determined by measuring the hydrophilic height of the modified fabric and the tensile strength of the modified fabric after immersion in resorcinol formaldehyde resin emulsion. Based on the above, the modification of the fabric was vulcanized, and the optimal modification process was determined by testing the peel strength between the fabric and rubber. The results show that when the content of epoxy resin is 25% (o.w.f) and the content of coupling agent A187 is 1.2% (o.w.f), the comprehensive performance of the F-12 aramid fabric conveyor belt is the best. It is found that the fabric with the lowest hydrophilic value turns to have the highest peel strength of 12.1 N/mm, which is higher than what is required in the industry standard. The tensile strength and elongation at break of the single layer conveyor belt are 6 495.25 N and 13% respectively, and 14 493.25 N and 14% for the double layer belt.

Key words: F-12 aramid fabric, epoxy resin, coupling agent A187, conveyor belt, peel strength

中图分类号:

TS193.5

李美真, 赵士毅, 冯艳丽, 郭晓卿, 于晓庆. F-12芳纶织物输送带的制备及其性能[J]. 纺织学报, 2020, 41(12): 87-93.

LI Meizhen, ZHAO Shiyi, FENG Yanli, GUO Xiaoqing, YU Xiaoqing. Preparation and properties of conveyor belt reinforced by F-12 aramid fabric[J]. Journal of Textile Research, 2020, 41(12): 87-93.

图/表 16

图1

表1

表2

表3

表4

图2

图3

图4

表5

图5

图6

图7

图8

图9

表6

图10

参考文献 10

[1]	王亮. 新型轻型输送带的研究与开发[D]. 上海:东华大学, 2011: 4-6.
	WANG Liang. Research and development of new lightweight conveyor belt[D]. Shanghai:Donghua University, 2011: 4-6.
[2]	刘克杰, 杨文良, 彭涛, 等. 芳纶表面改性技术进展(一):物理改性方法[J]. 合成纤维, 2011,40(6):25-30.
	LIU Kejie, YANG Wenliang, PENG Tao, et al. Progress in surface modification of aramid fiber(Ⅰ): physical modification[J]. Synthetic Fiber in China, 2011,40(6):25-30.
[3]	刘克杰, 杨文良, 彭涛, 等. 芳纶表面改性技术进展(二):化学改性方法[J]. 合成纤维, 2011,40(7):26-31.
	LIU Kejie, YANG Wenliang, PENG Tao, et al. Progress in surface modification of aramid fiber (Ⅱ): chemical modification[J]. Synthetic Fiber in China, 2011,40(7):26-31.
[4]	李沙沙. 对位芳纶化学改性及其性能研究[D]. 烟台:鲁东大学, 2015: 3.
	LI Shasha. Chemical modification and research on properties of PPTA[D]. Yantai:Ludong University, 2015: 3.
[5]	刘广生, 周煜华, 杨静, 等. 硅烷偶联剂应用研究进展[J]. 江西化工, 2019(6):75-77.
	LIU Guangsheng, ZHOU Yuhua, YANG Jing, et al. Advances in application research of silane coupling agent[J]. Jiangxi Chemical Industry, 2019(6):75-77.
[6]	申明霞, 李红香, 杨开宇, 等. 芳纶纤维表面处理与浸渍工艺研究[J]. 材料开发与应用, 2008(1):41-44,50.
	SHEN Mingxia, LI Hongxiang, YANG Kaiyu, et al. Surface treatment and dipping process of kevlar fiber[J]. Development and Application of Materials, 2008(1):41-44,50.
[7]	李红宇, 李志华, 郑雪岩, 等. 胶粘剂剥离强度试验数据处理分析[J]. 哈尔滨理工大学学报, 1999(1):60-62.
	LI Hongyu, LI Zhihua, ZHENG Xueyan, et al. Processing and analysis of adhesive peel strength test data[J]. Journal of Harbin University of Science and Technology, 1999(1):60-62.
[8]	VALANTIN Chloé, LACROIX Florian, DEFFARGES Marie-pierre, et al. Interfacial damage on fatigue-loaded textile-rubber composites[J]. Journal of Applied Polymer Science, 2015,132(4):13.
[9]	刘维. 浸胶体系和交联体系对EPDM型耐热输送带的粘合性能影响研究[D]. 北京:北京化工大学, 2015: 42-44.
	LIU Wei. The research of dipping solution and vulcanization on the adhesion properties of EPDM resistant conveyor belt[D]. Beijing:Beijing University of Chemical Technology, 2015: 42-44.
[10]	LI Zhuo, WAN Jijun, ZHANG Lu, et al. Effects of heat and moisture on characteristics, tensile properties of RFL-coated rayon cords, and their adhesion with NR/SBR matrix[J]. Journal of Applied Polymer Science, 2017,134(48):45559. doi: 10.1002/app.45559

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

纤维名称	线密度/ dtex	断裂强度/ (cN·dtex^-1)	断裂伸长率/%	初始模量/GPa
F-12芳纶	1 100	24.43	2.87	134.52
芳纶Ⅱ	1 100	18.61	2.14	123.00
涤纶	1 100	6.91	12.35	12.09
锦纶66	1 400	7.71	15.58	11.36

样品类型	纤维名称	断裂强力	“H”抽出强力
单束丝	Kevlar	213.2	—
	芳纶Ⅱ	252.9	—
	F-12芳纶	294.9	—
帘子线	Kevlar	524.7	—
	芳纶Ⅱ	532.8	—
	F-12芳纶	577.1	—
二浴改性帘子线	Kevlar	373.3	125.4±3.31
	芳纶Ⅱ	370.1	139.5±3.45
	F-12芳纶	515.3	167.6±3.58

捻度/ (捻·10 cm^-1)	断裂强力/N	断裂伸长率/%	初始模量/GPa	“H”抽出力/N
0	222.50	2.85	134.52	120.5
4	227.66	2.67	137.58	122.5
6	263.60	2.87	137.06	125.8
8	270.65	2.98	137.24	121.7
10	260.82	2.94	133.53	121.3

改性方式	断裂强度/(cN·dtex^-1)	断裂伸长率/%
未处理样品	22.91±1.04	1.50±0.37
一浴改性处理样品	18.98±2.21	3.14±0.80
二浴改性处理样品	24.58±2.66	2.85±0.19

处理方法	试样厚度/mm	断裂强度/MPa	断裂伸长率/%
未改性织物	0.58±0.03	441.91±7.61	11.0±0.93
一浴改性织物	0.59±0.03	658.98±8.54	9.10±1.21
二浴改性织物	0.53±0.03	586.86±9.16	7.10±1.17

F-12芳纶织物输送带的制备及其性能

Preparation and properties of conveyor belt reinforced by F-12 aramid fabric

RichHTML

PDF (PC)

摘要/Abstract

引用本文

使用本文

图/表 16

参考文献 10

相关文章 8

Metrics

本文评价

推荐阅读 0

[1]	曹海建, 陈红霞, 黄晓梅. 玻璃纤维/环氧树脂基夹芯材料侧压性能数值模拟[J]. 纺织学报, 2019, 40(05): 59-63.
[2]	孙雷, 蔡莹莹, 叶伟, 季涛, 孙启龙. 介质阻挡放电对水龙带增强层黏结性能的影响[J]. 纺织学报, 2019, 40(03): 96-101.
[3]	赵玉芬李嘉禄宋磊磊姜茜焦亚男. 上浆剂对国产碳化硅纤维表面及其织造性能的影响[J]. 纺织学报, 2017, 38(03): 78-84.
[4]	俞捷余天石张北战葛明桥. 基于废弃聚酯的环氧树脂固化剂制备工艺[J]. 纺织学报, 2013, 34(1): 12-15.
[5]	殷英贤;王懽;张建春;郭玉海. 聚四氟乙烯-聚氨酯复合膜的工艺探讨[J]. 纺织学报, 2004, 25(04): 36-37.
[6]	马会英;王建坤;胡方田. 空气变形丝对涂层织物剥离强度的影响[J]. 纺织学报, 2002, 23(01): 66-67.
[7]	卢神州;李明忠;王洪杰;吴徵宇;张可达. 聚多元醇环氧树脂交联丝素膜的研究[J]. 纺织学报, 2001, 22(06): 58-59.
[8]	钱程;储才元;张玉林. 粘合复合土工布的开发和性能[J]. 纺织学报, 2001, 22(01): 20-22.

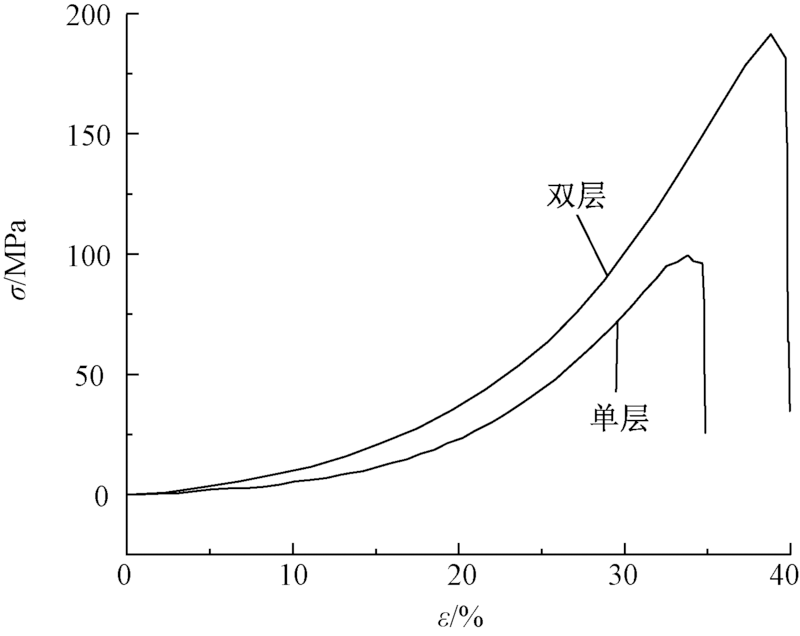

铺层方式	厚度/ mm	断裂强力/N	断裂强度/MPa	断裂伸长率/%
