纺织学报 ›› 2021, Vol. 42 ›› Issue (03): 89-94.doi: 10.13475/j.fzxb.20200707906

• 纺织工程 • 上一篇    下一篇

基于图像处理的织物保形性检测

唐千惠, 王蕾(), 高卫东

  1. 生态纺织教育部重点实验室(江南大学), 江苏 无锡 214122
  • 收稿日期:2020-07-30 修回日期:2020-12-07 出版日期:2021-03-15 发布日期:2021-03-17
  • 通讯作者: 王蕾
  • 作者简介:唐千惠(1997—),女,硕士生。主要研究方向为数字化纺织技术。
  • 基金资助:
    国家重点研发计划项目(2017YFB0309200)

Detection of fabric shape retention based on image processing

TANG Qianhui, WANG Lei(), GAO Weidong

  1. Key Laboratory of Eco-Textiles (Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China
  • Received:2020-07-30 Revised:2020-12-07 Online:2021-03-15 Published:2021-03-17
  • Contact: WANG Lei

摘要:

为更加全面、准确地评价织物保形性,开发了能够模拟织物在日常使用中被压皱后展平的恢复过程动态检测系统。通过检测系统获取织物折痕回复的视频序列,利用程序提取出各时刻的单帧视频图像,然后依次对图像进行预处理、二值化处理与细化处理,最后提取出反映织物保形性的指标,包括顶角、顶高、保形面积。实验结果表明:在折痕回复阶段,随时间延长各指标变化速率逐渐降低,在压力为10 N,加压时间为10 s的条件下,试样在60 s后趋于平稳;60 s时的顶角与现有标准方法测得的折皱回复角存在线性函数关系,顶高、保形面积与标准方法测得的悬垂系数之间存在线性函数关系。该系统可以通过顶角、顶高、保形面积3项指标预测织物折皱回复角与悬垂系数,并能够精确描述织物保形性动态变化过程,可实现对织物保形性精确、全面的评价。

关键词: 织物保形性, 折皱回复性, 悬垂性, 图像处理, 动态测量, 视频序列

Abstract:

In order to evaluate the shape retention of a fabric comprehensively and accurately, a dynamic detection system was developed to simulate the recovery process of fabric flattening after being creased in daily uses. The video sequence of fabric crease recovery is obtained by the detection system, and the single frame video image at each time is extracted by the program, and then the image is preprocessed, binarized and refined in turn. The indexes reflecting the fabric shape retention, including angle, height and shape preserving area, are extracted. The experimental results show that in the crease recovery stage, the change rate of each index gradually decreases with time. Under the condition of pressure 10 N and pressure time 10 s, the sample tends to become stable after 60 s in recovery stage. A linear relationship exists between the angle at 60 s and the wrinkle recovery angle measured by the existing standard method, and relationships between the height, shape retention area and the drape coefficient are linear too. The results show that the system can predict the wrinkle recovery angle and drape coefficient of fabric through the three indexes of angle, height and shape retention area, and it can accurately describe the dynamic change process of fabric shape, and can be used to evaluate the fabric shapes accurately and comprehensively.

Key words: fabric shape retention, wrinkle recovery, drape, image processing, dynamic measurement, video sequence

中图分类号:

  • TS101.9

图1

织物保形性检测装置 1—操控系统界面; 2—相机; 3—抬起装置;4— 加压装置; 5—试样台; 6—上罩盖。"

图2

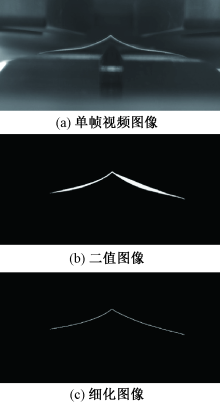

单帧视频图像及二值化与细化后图像"

表1

试样规格参数"

编号 原料 组织 纱线线
密度/tex
经纬密/
(根·(10 cm)-1)
整理方式
经纱 纬纱 经向 纬向
1# 平纹 14.6 14.6 120 70 丝光潮交联
2# 涤纶 二上二下
左斜纹
7.4 19.7 780 420
3# 亚麻 凸条 14.8 19.7 660 322
4# 平纹 9.7 9.7 787 394
5# 平纹 9.7 9.7 669 354

图3

经向试样图像"

图4

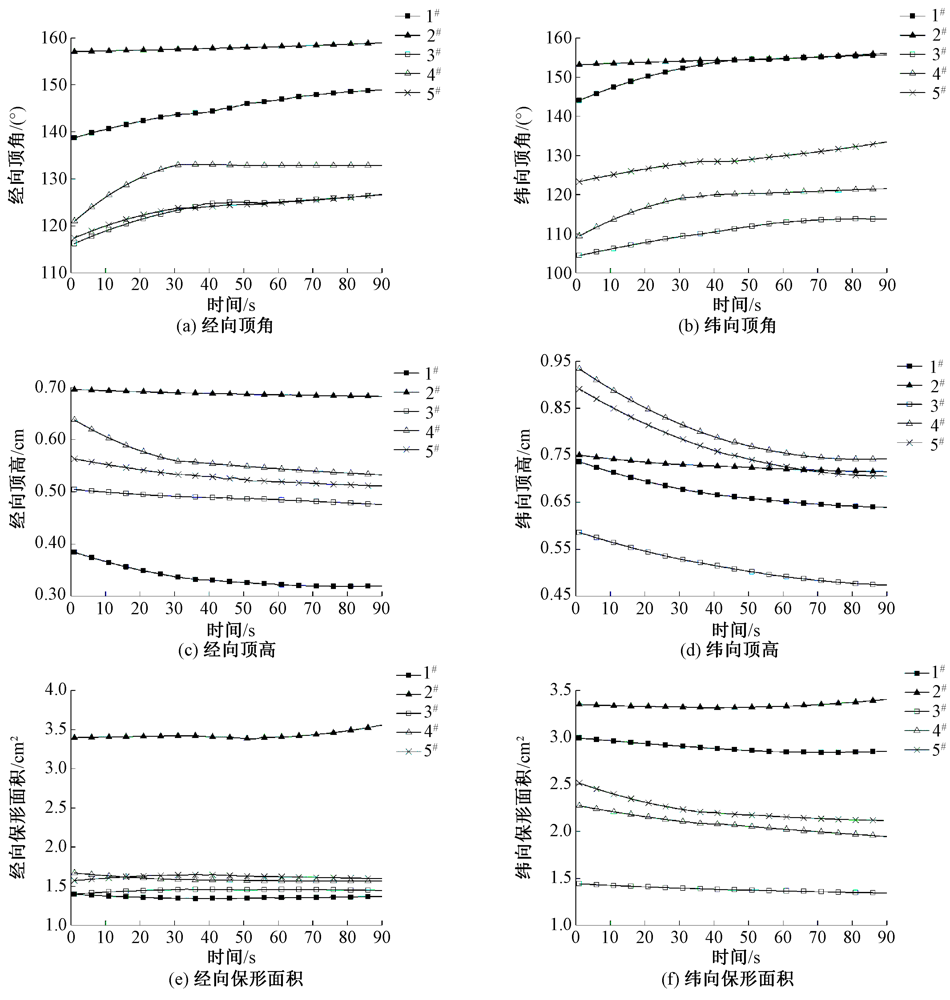

保形性指标动态变化"

表2

折痕回复阶段第60 s时织物保形性测试结果"

编号 顶角/(°) 顶高/cm 保形面积/cm2
经向 纬向 经向 纬向 经向 纬向
1# 154.8 149.8 0.35 0.60 1.44 2.22
2# 157.8 155.0 0.68 0.79 2.50 3.47
3# 122.4 113.9 0.49 0.63 1.44 1.50
4# 125.4 120.8 0.54 0.75 1.57 2.24
5# 132.8 129.2 0.49 0.68 1.55 2.32

表3

参照AATCC 66—2014手动方法测量的织物折皱回复角平均值"

编号 折皱回复角/(°)
经向 纬向
1# 147.4 142.8
2# 143.1 144.7
3# 111.6 98.6
4# 92.8 71.9
5# 95.0 83.4

表4

参照GB/T 23329—2009手动方法测量的织物悬垂系数的平均值"

编号 悬垂系数/%
静态 动态
1# 48.62 58.30
2# 72.26 76.87
3# 50.17 53.54
4# 59.55 62.23
5# 53.54 58.98
