纺织学报 ›› 2021, Vol. 42 ›› Issue (03): 82-88.doi: 10.13475/j.fzxb.20200700407

• 纺织工程 • 上一篇    下一篇

基于改进图像阈值分割算法的纱线疵点检测

李东洁1,2(), 郭帅1, 杨柳1

  1. 1.哈尔滨理工大学 自动化学院, 黑龙江 哈尔滨 150080
    2.哈尔滨理工大学 切削加工及制造智能化技术教育部重点实验室, 黑龙江 哈尔滨 150080
  • 收稿日期:2020-07-01 修回日期:2020-10-21 出版日期:2021-03-15 发布日期:2021-03-17
  • 作者简介:李东洁(1981—),女,教授,博士。主要研究方向为微纳机器人技术及基于图像的缺陷检测。E-mail: dongjieli2013@163.com
  • 基金资助:
    国家自然科学基金面上项目(51975170);黑龙江省普通高校基本科研业务费专项资金项目(LGYC2018JQ017)

Yarn defect detection based on improved image threshold segmentation algorithm

LI Dongjie1,2(), GUO Shuai1, YANG Liu1

  1. 1. College of Automation, Harbin University of Science and Technology, Harbin, Heilongjiang 150080, China
    2. Key Laboratory of Intelligent Technology for Cutting and Manufacturing, Ministry of Education,Harbin University of Science and Technology, Harbin, Heilongjiang 150080, China
  • Received:2020-07-01 Revised:2020-10-21 Online:2021-03-15 Published:2021-03-17

摘要:

针对纺织行业纱线疵点检测方法可靠性差、灵敏度低、检测速度低的问题,提出一种基于数字图像处理的纱线疵点判定方法。首先,搭建纱线图像采集系统,完成纱线图像采集;其次,针对纱线边缘信息难处理以及传统双边滤波对椒盐噪声处理效果差的问题,对双边滤波进行改进,改进后的双边滤波可有效保存纱线边缘信息;再者,针对传统阈值分割计算量大、最佳阈值难以寻找的问题,对传统阈值分割算法进行改进,改进的阈值分割算法在保证处理效果的同时提高了整体算法的处理速度;最后,采用亚像素对纱线边缘进行计算,提高了纱线疵点检测的精确度。实验结果验证了算法的有效性及可靠性,该算法在提高精确度的同时将检测速度提高了20%以上,对提高纱线质量检测的准确性具有重要意义。

关键词: 疵点检测, 纱线疵点, 阈值分割, 亚像素点判断, 图像处理

Abstract:

Aiming at the problems of poor reliability, low sensitivity and low speed of yarn defect detection in the textile industry, a new yarn defect detection method based on digital image processing was proposed. A yarn image acquisition system is built to obtain yarn image. In view of the difficulty of yarn edge information processing and the poor effect of traditional bilateral filtering on pepper-and-salt noise processing, the bilateral filtering was worked on for improvement, and the improved bilateral filtering was shown to be effective for preserving the yarn edge data. Furthermore, aiming at the problem of large amount of calculation and difficulty in finding the optimal threshold, the optimal threshold calculation method of traditional threshold segmentation algorithm is improved. The improved threshold segmentation algorithm not only ensures the processing effect, but also improves the processing speed of the whole algorithm. Sub-pixel is used to calculate the yarn edge and improve the accuracy of yarn defect detection. The experimental results verified the effectiveness and reliability of the algorithm, and increased the detection speed by more than 20% while improving the accuracy, which is of great significance for improving the accuracy of yarn quality detection.

Key words: defect detecting, yarn defect, threshold segmentation, sub-pixel point judgment, image processing

中图分类号:

  • TH74

表1

CCD相机内部参数"

参数 数值 参数 数值
ax/mm 520.547 9 k1 -0.803 4
ay/mm 805.510 6 k2 2.613 0
u0/mm 370 k3 0.000 0
v0/mm 325 p1 -0.005 3
μ 0.00 p2 -0.001 5

图1

采集到的纱线图像"

图2

纱线灰度图像处理图"

图3

范围核逼近曲线"

图4

纱线滤波后图像"

图5

纱线二值图像处理图"

图6

纱线数学形态学处理图"

图7

亚像素边缘检测"

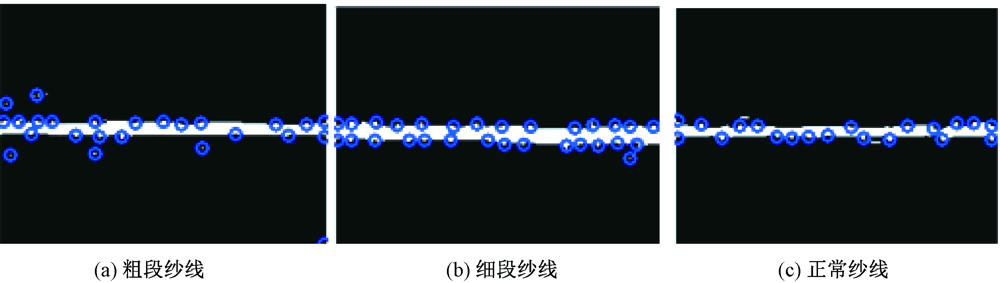

图8

纱线检测结果"

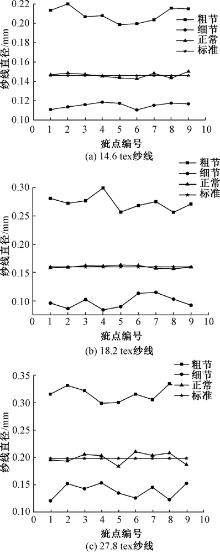

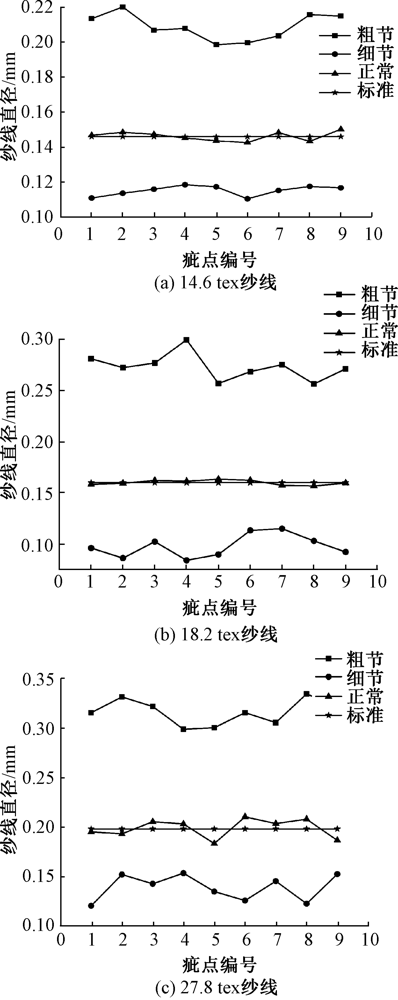

图9
