Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (04): 74-83.doi: 10.13475/j.fzxb.20210502710

• Textile Engineering • Previous Articles     Next Articles

Multi-objective large-scale dynamic scheduling for weaving workshops based on improved NSGAII

SHEN Chunya1,2, LEI Junjie1,2, RU Xin1,2, PENG Laihu1,2, HU Xudong1,2()

  1. 1. School of Mechanical Engineering and Automation, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Key Laboratory of Modern Textile Machinery & Technology of Zhejiang Province,Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2021-05-12 Revised:2021-11-26 Online:2022-04-15 Published:2022-04-20
  • Contact: HU Xudong E-mail:xdhu@zstu.edu.cn

RichHTML

8

PDF (PC)

49

Abstract:

As the number of looms exceeds 300 with more than 1 000 weaver's beams in the weaving workshop, the genetic algorithm is easy to fall into local optimal solution when solving such large-scale scheduling problems, and the traditional dynamic scheduling mechanism is not adaptable enough for complex production scenarios such as order insertion and proofing. An improved NSGAII algorithm was proposed in the paper. Considering the facts that the scheduling of a large-scale weaving workshop involves large numbers of looms, weaver's beams and products, and the unique inverse process scheduling relationship between weaving and drawing-in, a multi-objective large-scale scheduling model for weaving was constructed, aiming at the minimization of overdue loss, makespan, and idle time of loom. The encoding of heuristic rules was improved to reduce the solution space, and a greedy evolution operator was used in local and global correlation optimization to avoid falling into local optimization. A dynamic scheduling mechanism based on dominance relationship evaluation was adopted to improve the poor dynamic response mechanism and low ability against disturbance during production. Experiments show that the scheduling ability of the algorithm remains superior over other algorithms in a situation where there are 500 looms with 4 000 weaver's beams in a weaving workshop.

Key words: intelligent scheduling of weaving workshop, NSGAII, multi-objective optimization, large-scale scheduling, dynamic scheduling, heuristic rule

CLC Number:

  • TS111.8

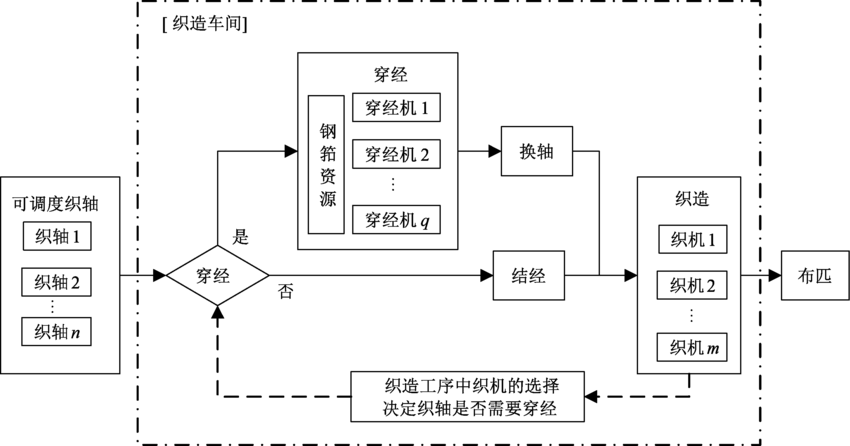

Fig.1

Process flow of weaving workshop"

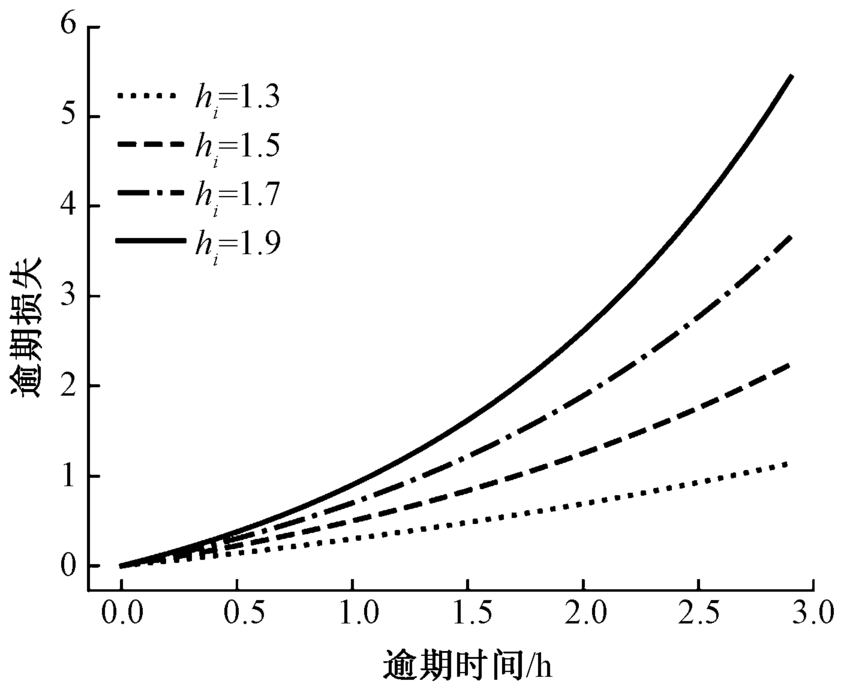

Fig.2

Relationship between overdue time and loss"

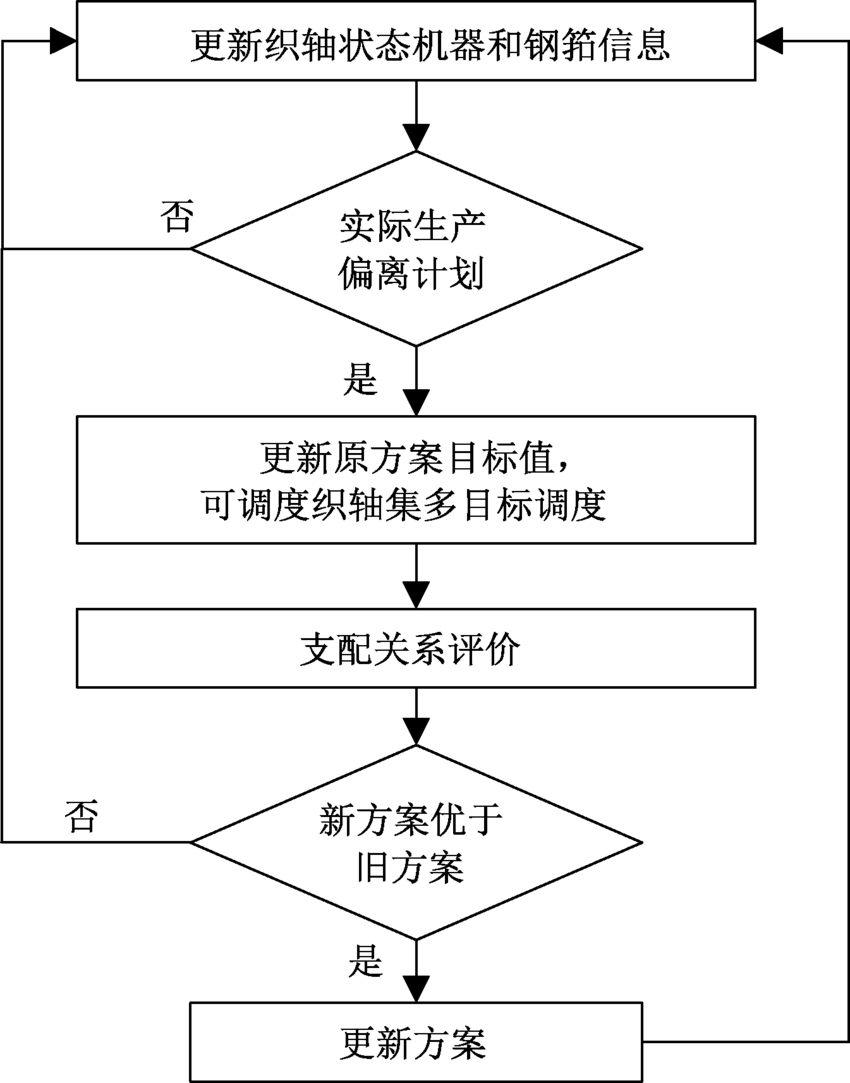

Fig.3

Dynamic scheduling flow chart"

Fig.4

Frontier solution set distribution. (a)Case a; (b)Case b; (c)Case c;(d)Case d"

Tab.1

Comparison of C index results"

案例 C(NSGAII,NSGAII_G) C(NSGAII_G,NSGAII)
a 0.159 090 909 0.698 630 137
b 0 0.805 194 805
c 0 0.957 446 809
d 0 0.861 111 111

Tab.2

Three algorithms of experimental results statistics"

组别 m n 算法目标值/h 算法计算耗时/s
近视算法 H-NSGAII_G NSGAII_3 近视
算法		 H-NSGAII_G NSGAII_3
f1 f2 f3 f1 f2 f3 f1 f2 f3
6 14 0 467 52 0 466 46 0 455 37 0.12 51.93 75.42
6 28 0 826 90 0 763 66 0 747 61 0.35 164.00 159.11
a1 6 42 0 1 120 128 0 1 040 94 0 1 072 80 0.54 173.98 177.48
6 56 0 1 467 164 0 1 427 112 0 1 461 106 0.98 270.36 343.97
6 70 0 1 784 200 0 1 757 142 0 1 795 142 1.38 667.45 565.75
100 245 0 487 3 271 0 495 2 739 0 770 2 907 3.22 753.62 723.12
100 490 0 839 3 992 0 828 3 430 1 222 1 586 5 068 4.43 2 218.81 2 358.66
b1 100 735 0 1 202 4 697 0 1 176 3 823 9 624 2 799 5 398 4.69 3 765.43 3 566.62
100 980 0 1 625 5 394 0 1 571 4 202 34 064 4 721 8 755 5.12 4 518.52 4 587.94
100 1 225 0 1 951 6 121 0 1 921 4 695 55 462 5 510 9 521 5.76 6 024.72 6 125.72
c1 500 4 000 0 2 163 390 486 0 1 537 70 403 98 764 7 655 460 485 22.24 23 154.20 28 743.60

Tab.3

Drawing-in process scheduling"

织轴
编号		 初始调度 再调度
穿经机
编号		 开始时
间/h		 结束时
间/h		 穿经机
编号		 开始时
间/h		 结束时
间/h
1 1 0 1.1 — — —
2 2 0 1.1 — — —
… … … … — — —
14 2 3.30 4.45 — — —
15 2 4.45 5.56 — — —
16 2 123.15 124.26 — — —
17 1 137.52 138.63 — — —
23 1 138.63 139.75 — — —
26 2 138.62 139.74 — — —
71 — — — 1 238.00 239.13
20 — — — 2 242.13 243.24
21 — — — 1 314.00 315.11
22 — — — 2 389.22 390.33
24 — — — 1 435.60 436.72
28 — — — 2 436.60 437.72
29 2 226.07 227.19 1 545.78 546.90

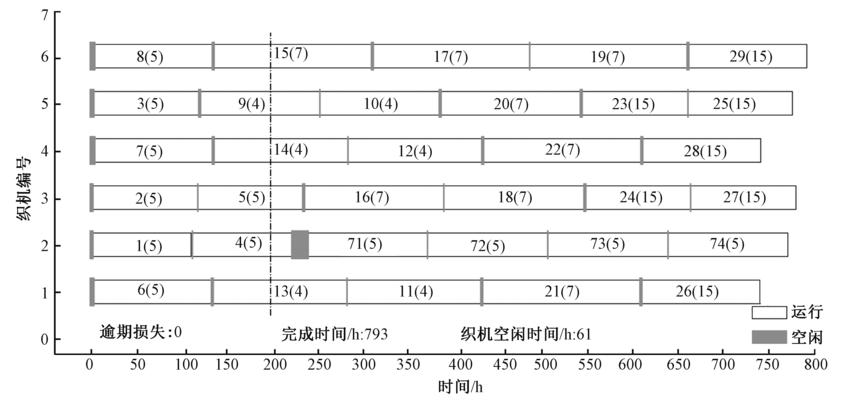

Fig.5

Weaving process is rescheduled Gantt chart"
