Preparation and antifouling properties of super-slip cotton fabric based on polymer microspheres grafted with silicone oil

ZHANG Diandian1,2, YU Mengnan1,2, LI Min1,2, LIU Mingming1,2, FU Shaohai1,2,3()

  1. 1. Jiangsu Engineering Research Center for Digital Textile Inkjet Printing, Wuxi, Jiangsu 214122, China
    2. Key Laboratory of Eco-Textiles (Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China
    3. National Manufacturing Innovation Center of Advanced Dyeing and Finishing Technology, Taian, Shandong 271000, China
  • Received:2021-07-29 Revised:2022-07-14 Online:2022-10-15 Published:2022-10-28
  • Contact: FU Shaohai E-mail:shaohaifu@hotmail.com

RichHTML

10

PDF (PC)

46

Abstract:

In order to improve the physical and chemical stability of super-slip(SLIPS) fabrics, the self-adhesive core-shell polymer microspheres were prepared by emulsion polymerization using vinyl-modified silica nanoparticles (V-SiO2) as the raw material. After the dipping and baking process, it was bonded to the surface of cotton fabric to obtain a rough substrate. The amino silicone oil was then grafted onto rough substrate surface by amino-epoxy graft reaction and amino-hydroxyl hydrogen bond to obtain a SLIPS-cotton fabric(SLIPS-Cotton). The properties of liquid repellent, antifouling, physical and chemical stability of SLIPS-Cotton were studied. The results shown that the rough structure of the SLIPS in SLIPS-Cotton is composed of microspheres with a particle size of 321.3 nm, and the contact angle of water droplets on the surface is 138°. The sliding angles of water and dimethyl sulfoxide on the surface of the SLIPS-Cotton are 7° and 15° respectively. After contacting with tomato sauce and coffee contaminants, the amount of adhesion on the surface of SLIPS-Cotton is significantly reduced. After water splash washing within 200 mL, the sliding angles of water and dimethyl sulfoxide on SLIPS-Cotton surface are less than 12° and 26°, respectively. The contact angles of droplets on the surface of the SLIPS-Cotton are stable between 42° and 49° at pH 3-9.

Key words: super-slip cotton fabric, emulsion polymerization, polymer microsphere, core-shell structure, liquid repellent and antifouling, antifouling performance

CLC Number:

  • TS195.9

Tab.1

Preparation formula of polymer microspheres"

聚合物
微球名称		 质量/g
St DVB HEMA GMA
Poly-V-SiO2-O-1 1.00 0.40 0.30 0.30
Poly-V-SiO2-T-1 1.00 0.40 0.30 0.30
Poly-V-SiO2-O-2 1.00 0.40 0.15 0.30
Poly-V-SiO2-T-2 1.00 0.40 0.15 0.30
Poly-V-SiO2-O-3 1.00 0.40 0.10 0.30
Poly-V-SiO2-T-3 1.00 0.40 0.10 0.30

Fig.1

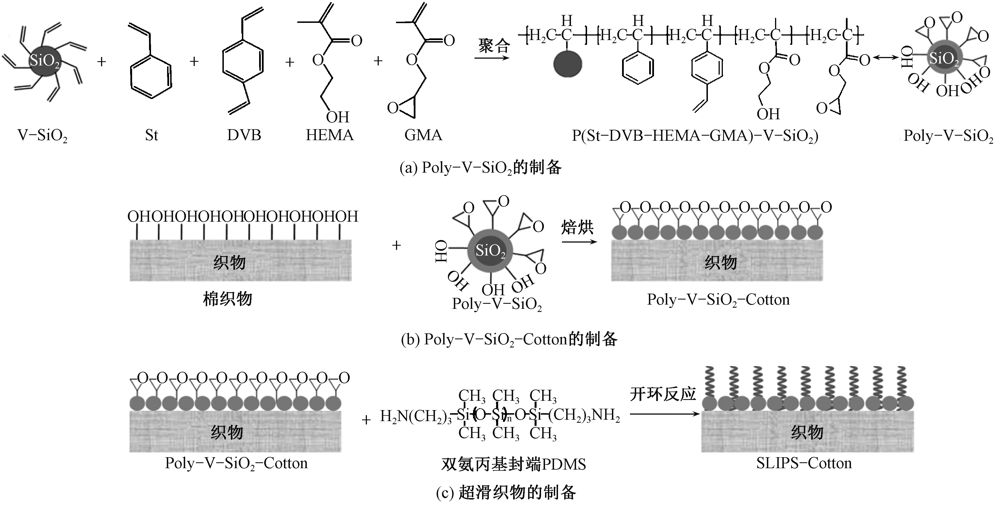

Preparation process of SLIPS-Cotton by polymer microspheres grafted with silicone oil. (a) Preparation of Poly-V-SiO2; (b) Preparation of Poly-V-SiO2-Cotton; (c)Preparation of SLIPS -Cotton"

Fig.2

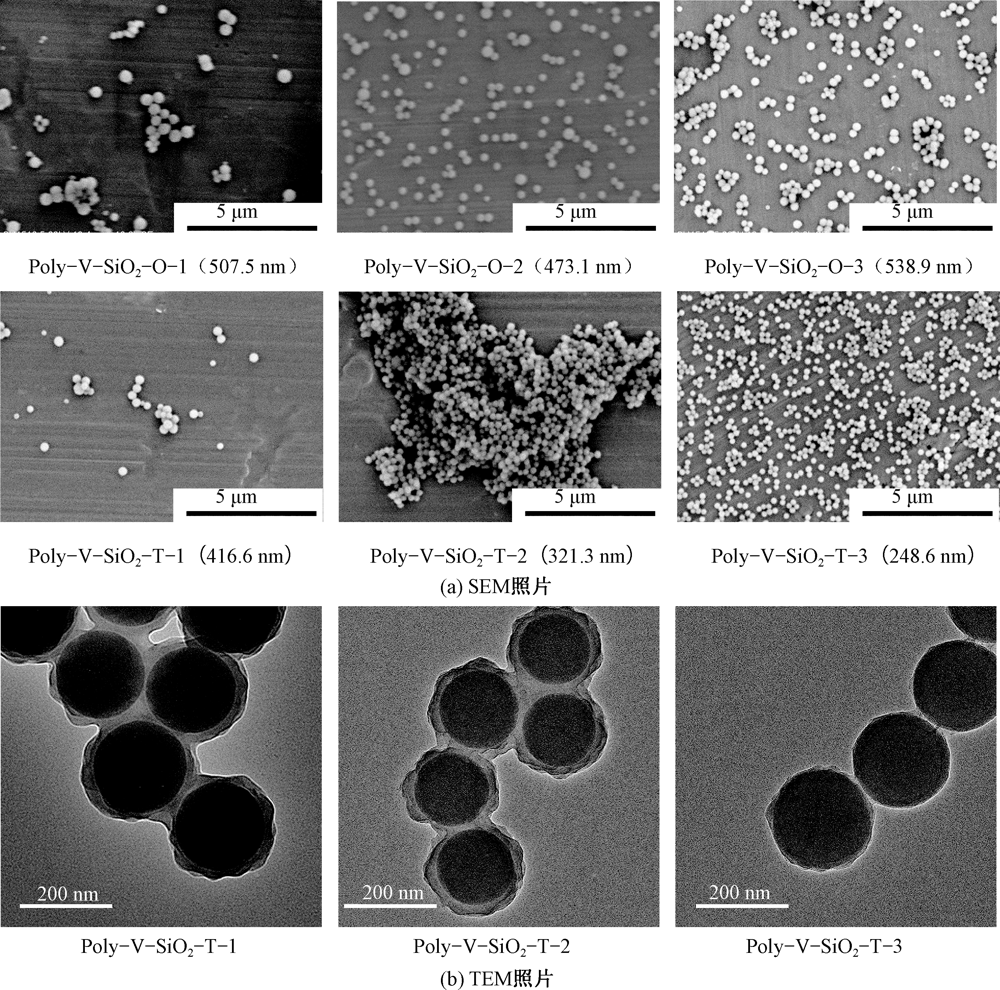

Morphology of Poly-V-SiO2 microspheres. (a) SEM images; (b) TEM images"

Tab.2

EDS element content of polymer microspheres%"

聚合物微球名称 C O Si
V-SiO2 15.42 58.26 26.32
Poly-V-SiO2-T-2 32.06 48.65 19.29

Fig.3

XPS spectra (a) and TG and DTG (b) curves of different microspheres"

Fig.4

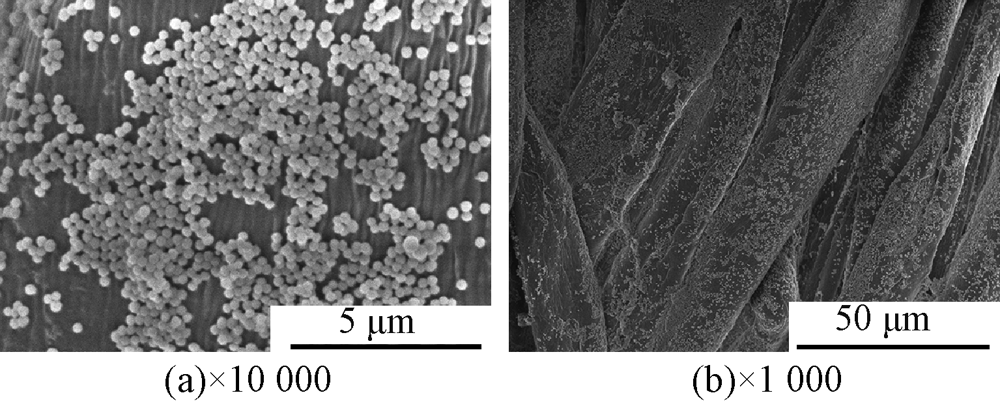

SEM images of Poly-V-SiO2-Cotton"

Fig.5

Wettability of cotton fabric (a), Poly-V-SiO2-Cotton before (b) and after (c) baking"

Fig.6

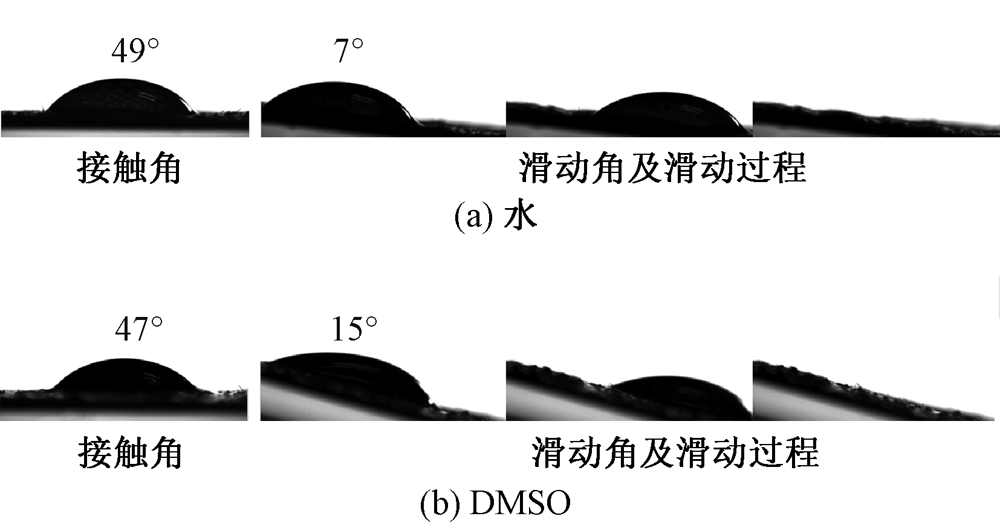

Contact angle, sliding angle and sliding process of droplet on surface of SLIPS-Cotton. (a) Water; (b) DMSO"

Fig.7

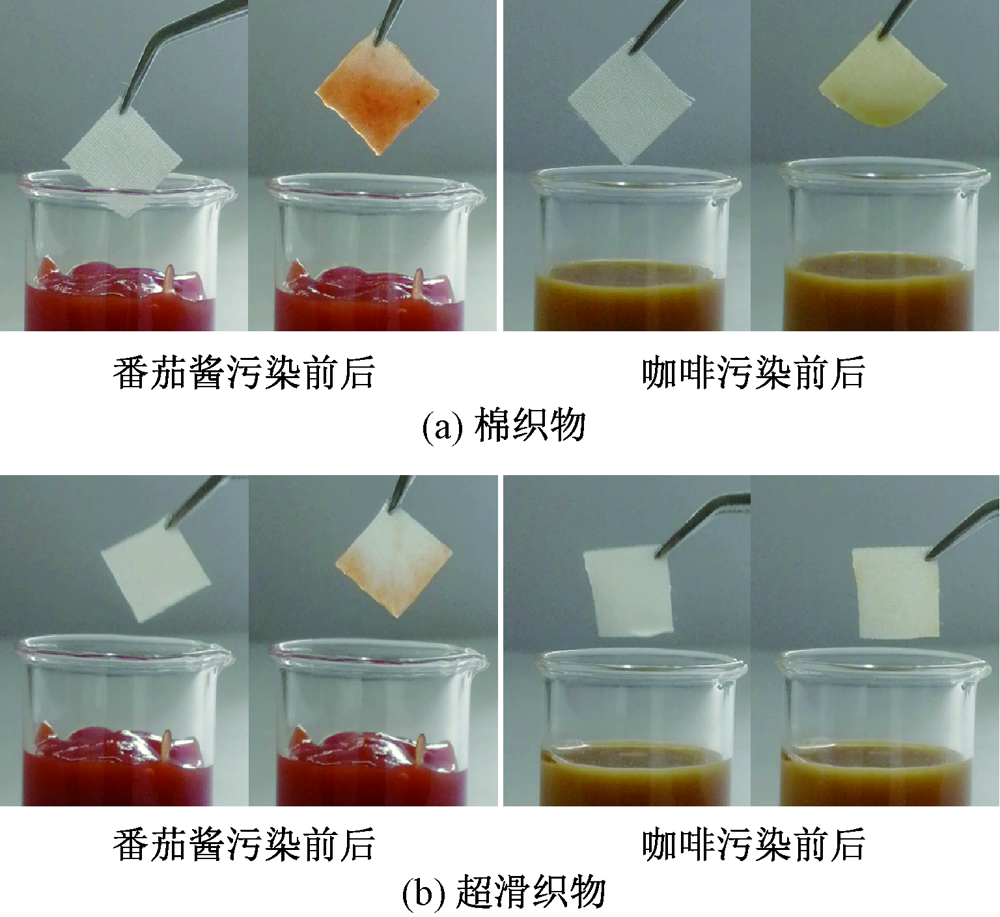

Ketchup, coffee adhesion on surface of cotton fabric (a) and SLIPS-Cotton (b)"

Fig.8

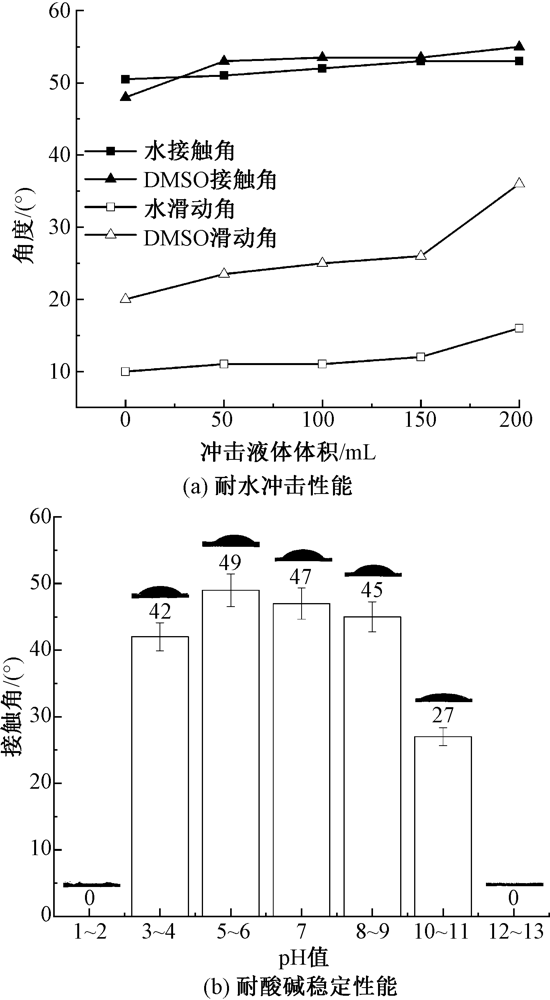

Water impact resistance performance(a) and acid and alkali resistance performance(b) of SLIPS-Cotton"

[1] SHILLINGFORD C, MACCALLUM N, WONG T S, et al. Fabrics coated with lubricated nanostructures display robust omniphobicity[J]. Nanotechnology, 2014, 25(1): 1-28.
[2] 佟威, 熊党生. 仿生超疏水表面的发展及其应用研究进展[J]. 无机材料学报, 2019, 11(34):1133-1144.
TONG Wei, XIONG Dangsheng. Development and application research progress of biomimetic superhydrophobic surfaces[J]. Journal of Inorganic Materials, 2019, 11(34): 1133-1144.
[3] 郭永刚, 张鑫, 耿铁, 等. 超疏水表面耐久性能的研究进展[J]. 中国表面工程, 2018, 31(5):63-72.
GUO Yonggang, ZHANG Xin, GENG Tie, et al. Research progress on the durability of superhydrophobic surfaces[J]. China Surface Engineering, 2018, 31(5): 63-72.
[4] 王玉娟, 宋小闯, 陈云飞. 猪笼草捕虫笼超滑表面黏附特性测量和抗黏稳定性分析[J]. 东南大学学报, 2017, 47(2):259-264.
WANG Yujuan, SONG Xiaochuang, CHEN Yunfei. Super-slip surface adhesion characteristics and anti-adhesive stability analysis of pitcher plant pitchers[J]. Journal of Southeast University, 2017, 47(2): 259-264.
[5] HUANG Y F, DING X H, LU C, et al. A facile approach to fabricate dynamically omniphobic coating on diverse substrates for self-cleaning[J]. Progress in Organic Coatings, 2019, 132: 475-480.
doi: 10.1016/j.porgcoat.2019.04.019
[6] KIM P, KREDER J M, ALVARENGA J, et al. Hierarchical or not? effect of the length scale and hierarchy of the surface roughness on omniphobicity of lubricant-infused substrates[J]. Nano Letters, 2013, 13(4): 1793-1799.
doi: 10.1021/nl4003969 pmid: 23464578
[7] SUNNY S, VOGEL N, HOWELL C, et al. Lubricant-infused nanoparticulate coatings assembled by layer-by-layer deposition[J]. Advanced Functional Materials, 2014, 24(42): 6658-6667.
doi: 10.1002/adfm.201401289
[8] KELLER N, BRUCHMANN J, SOLLICH T, et al. Study of biofilm growth on slippery liquid-infused porous surfaces made from fluoropor[J]. ACS Applied Materials & Interfaces, 2019, 11(4): 4480-4487.
[9] 孙士美, 王鹏, 张盾. 仿生超滑表面对Al基体微生物腐蚀防护性能与机制研究[J]. 腐蚀科学与防护技术, 2016, 28(1):1-8.
SUN Shimei, WANG Peng, ZHANG Dun. Research on the protective performance and mechanism of bionic super-slip surface against microbial corrosion of Al matrix[J]. Corrosion Science and Protection Technology, 2016, 28(1): 1-8.
[10] LI J S, KLEINTSCHEKS T, RIEDER A, et al. Hydrophobic liquid-infused porous polymer surfaces for antibacterial applications[J]. ACS Applied Materials & Interfaces, 2013, 5(14): 6704-6711.
[11] YIN X Y, ZHANG Y, WANG D A, et al. Integration of self-lubrication and near-infrared photothermogenesis for excellent anti-icing/deicing performance[J]. Advanced Functional Materials, 2015, 25(27): 4237-4245.
doi: 10.1002/adfm.201501101
[12] CHARPENTIER V J T, NEVILLE A, BAUDIN S, et al. Liquid infused porous surfaces for mineral fouling mitigation[J]. Journal of Colloid and Interface Science, 2015, 444: 81-86.
doi: 10.1016/j.jcis.2014.12.043 pmid: 25585291
[13] LESLIE C D, WATERHOUSE A, BERTHET B J. A bioinspired omniphobic surface coating on medical devices prevents thrombosis and biofouling[J]. Nature Biotechnology, 2014, 32(11): 1134-1140.
doi: 10.1038/nbt.3020 pmid: 25306244
[14] DAMLE G V, TUMMALA A, CHANDRASHEKAR S, et al. "Insensitive" to touch: fabric-supported lubricant-swollen polymeric films for omniphobic personal protective gear[J]. ACS Applied Materials & Interfaces, 2015, 7:4224-4232.
[15] YU M N, LIU M M, ZHANG D D, et al. Lubricant-grafted omniphobic surfaces with anti-biofouling and drag-reduction performances constructed by reactive organic-inorganic hybrid microspheres[J]. Chemical Engineering Journal, 2021, 422: 1-12.
