Journal of Textile Research ›› 2023, Vol. 44 ›› Issue (11): 151-159.doi: 10.13475/j.fzxb.20220906301

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Preparation and properties of high temperature self-crosslinked anti-dripping and flame-retardant polyester fabric

XIAO Yunchao1,2, YANG Yaru1(), GUO Jianxin1, WANG Tongyao1, TIAN Qiang3

  1. 1. College of Materials and Textile Engineering, Jiaxing University, Jiaxing, Zhejiang 314001, China
    2. Nanotechnology Research Institute, Jiaxing University, Jiaxing, Zhejiang 314001, China
    3. Zibo Dayang Flame Retardant Products Co., Ltd., Zibo, Shandong 255300, China
  • Received:2022-09-26 Revised:2023-08-06 Online:2023-11-15 Published:2023-12-25

RichHTML

9

PDF (PC)

43

Abstract:

Objective Fire hazard has caused great losses to human life and property, and textile fire is one of the main causes of fire disaster. As the mostly used chemical fiber in the world, polyester fiber is widely used in clothing, home textiles, transportation and other fields. However, it is a flammable material, and its burning is accompanied with serious dripping of droplets, which is prone to cause secondary injuries and fire spread. Therefore, it is of great significance to modify the polyester fabrics for flame-retardant and anti-dripping performance.

Method Alkali washing and plasma treatment were employed to pretreat polyester(PET) fabric, which activated and etched the PET fiber, so as to improve the infiltration and adhesion of flame-retardant as well as the flame-retardant durability. After that, methyl phosphonic acid (5-ethyl-2-methyl-2-oxo-1,3,2-dioxo-5-yl) methyl methyl ester (EMD) and N-phenylmaleimide (N-PMI) were compounded to form a phosphorus-nitrogen synergistic system for the leaching treatment of polyester fabric. By combining the flame-retardant of EMD with the crosslinking and char formation promotion property of N-PMI, the flame-retardant and anti-dripping performance of polyester fabric could be simultaneously improved.

Results Scanning electronic microscopy(SEM) and Fourier transform infrared spectroscopy (FT-IR) results showed that the impurities on the surface of the polyester fabric were significantly reduced after alkali washing, and the grooves generated by plasma etching were obviously visible in the fiber surface (Fig. 1 and Fig. 2). After leaching and finishing, EMD and N-PMI were uniformly adhered to the surface of PET fiber. The limiting oxygen index (LOI) and vertical burning test results showed that the LOI value of PET-EMD (PET treated with EMD only) was significantly increased, but the droplet phenomenon was not improved (Tab. 2). The LOI value of PET-N-PMI (PET treated with N-PMI only) was not increased much, but the droplet dripping is obviously reduced. In contrast, the flame-retardant and anti-dripping performance of polyester fabric treated by both EMD and N-PMI (PET-E+N) were enhanced with different features. The LOI value of PET-E+N reached 35.1% (83.8% higher than that of pure polyester fabric), which was higher than that of PET-EMD and PET-N-PMI, indicating the synergistic flame-retardant performance of EMD and N-PMI. In addition, PET-E+N extinguished immediately after leaving the fire source, and no dripping occurred during the combustion process, reaching flame-retardant grade B1. The introduction of N-PMI can promote the char formation of PET, and the char residues of PET-N-PMI at high temperature were 1.2 times higher than that of pure PET (Fig. 3). Furthermore, cone calorimeter test suggested that the peak heat release rate and total heat release of PET-E+N were 48.6% and 20.8% lower than that of pure PET, respectively (Fig. 4 and Tab. 4). The results also demonstrated that EMD would provide flame suppression effect, and N-PMI could promote the char formation, therefore, PET-E+N displayed outstanding barrier effect. PET-E+N burned to form a dense, continuous and porous char layer (Fig. 5 and Fig. 6), playing a critical role in blocking and protecting during combustion and implying that PET-E+N exhibits a typical condensed phase flame-retardant mechanism. Moreover, PET-N-PMI and PET-E+N both displayed an apparent exothermic peak (around 265 ℃) after the melting peak(Fig. 7), indicating that the existence of N-PMI promoted the crosslinking of PET during melting and played a role of "high temperature self-crosslinking". This is believed the deep reason for anti-dripping effect induced by N-PMI.

Conclusion On the basis of alkali washing and plasma pretreatment, EMD and N-PMI were selected to construct a new phosphorus-nitrogen synergistic flame-retardant system with the characteristics of "intelligent self-crosslinking” and employed to improve the flame-retardant and anti-dripping performane of polyester fabrics. The flame-retardant mechanism was deeply studied. Results show that the constructed flame-retardant system could effectively improve the flame-retardant and anti-dripping performane of polyester fabrics. Meanwhile, the mechanical properties and air permeability of the fabric are not obviously affected. This study provides a theoretical basis for flame-retardant and anti-dripping modification of polyester fabric.

Key words: polyester, flame-retardant, anti-dripping, fabric finishing, phosphorus-nitrogen synergistic flame-retardant, flame-retardant mechanism, plasma pretreatment

CLC Number:

  • TS195.59

Tab. 1

Formula of flame-retardant finishing liquid"

样品名称 EMD质量浓度/
(g·L-1)		 N-PMI质量浓度/
(g·L-1)		 浴比
PET — — —
PET-EMD 150 0 1∶30
PET-N-PMI — 120 1∶30
PET-E+N-1 90 120 1∶30
PET-E+N-2 90 150 1∶30
PET-E+N-3 90 180 1∶30
PET-E+N-4 120 120 1∶30
PET-E+N-5 120 150 1∶30
PET-E+N-6 120 180 1∶30
PET-E+N-7 150 120 1∶30
PET-E+N-8 150 150 1∶30
PET-E+N-9 150 180 1∶30

Tab. 2

Flame-retardant and anti-dripping performance of polyester fabrics"

样品名称 LOI值/% 续燃时间/s 阴燃时间/s 熔滴数 损毁长度/mm 是否引燃脱脂棉 等级
PET 19.1 — — 15 燃尽 是 —
PET-EMD 29.0 0.9 1.5 6 65 是 B1
PET-N-PMI 23.8 3.5 2.0 0 179 否 B2
PET-E+N-1 26.0 0.5 1.2 0 137 否 B1
PET-E+N-2 26.6 0.3 1.0 0 120 否 B1
PET-E+N-3 27.3 0.3 0.7 0 111 否 B1
PET-E+N-4 28.4 0.4 0.7 0 95 否 B1
PET-E+N-5 29.8 0.3 0.6 0 81 否 B1
PET-E+N-6 31.9 0 0.4 0 59 否 B1
PET-E+N-7 35.1 0 0.3 0 19 否 B1
PET-E+N-8 35.0 0.3 0.5 0 23 否 B1
PET-E+N-9 33.2 0 0 0 27 否 B1

Fig. 1

SEM images of polyester fabrics. (a) Untreated; (b) After plasma treatment; (c) After flame-retardant finishing"

Fig. 2

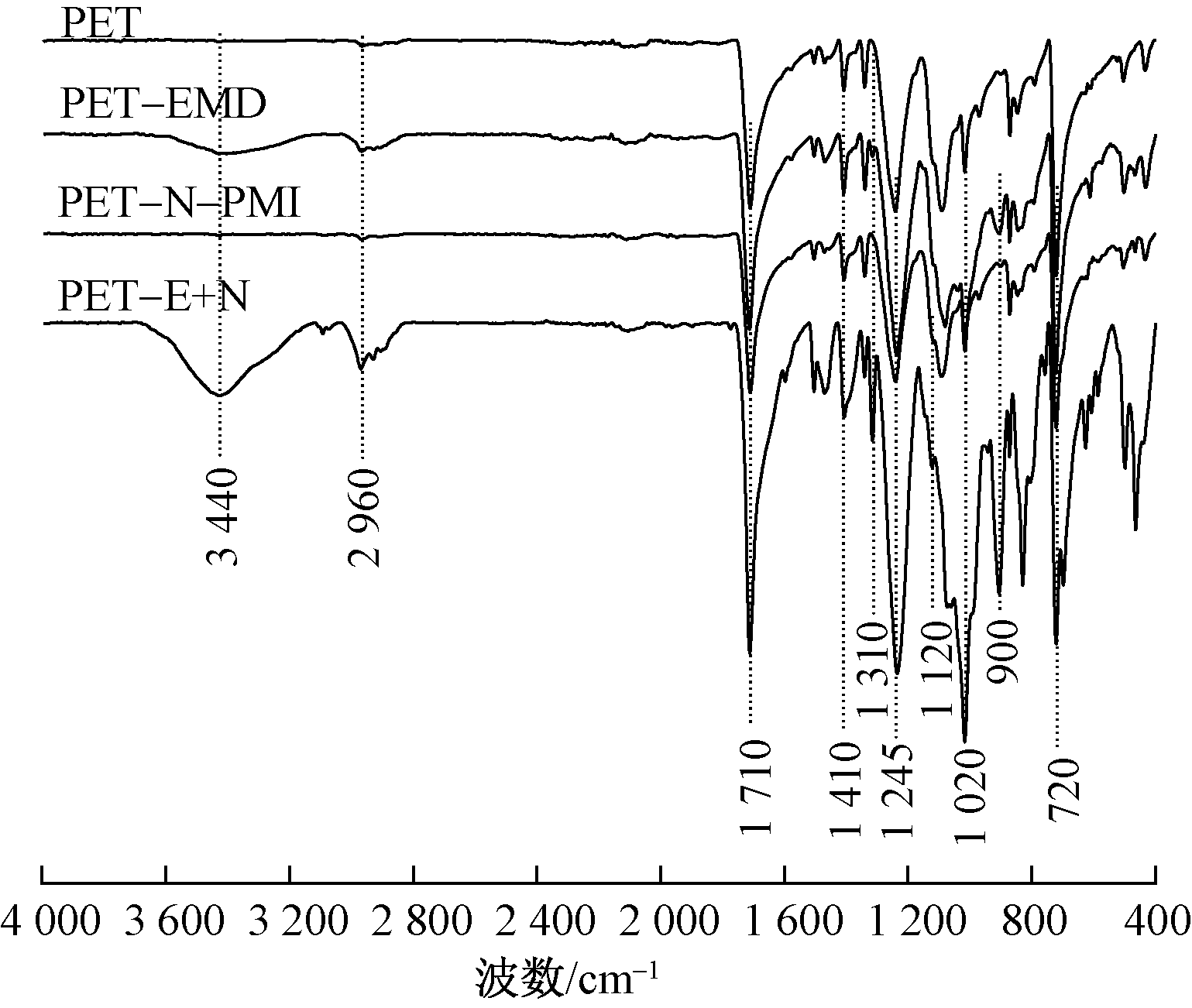

Infrared spectra of polyester fabrics"

Fig. 3

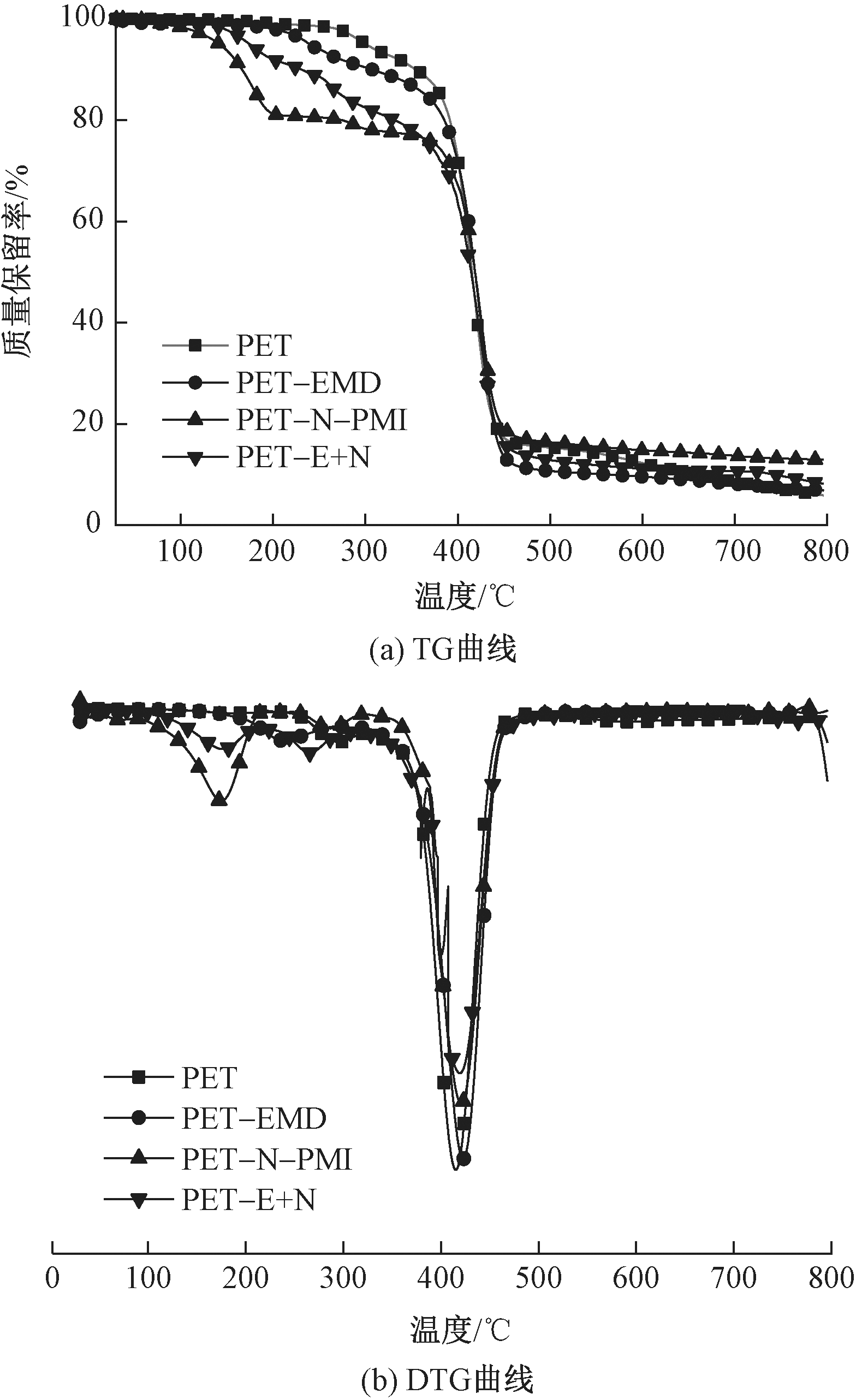

TG (a) and DTG (b) curves of polyester fabrics"

Tab. 3

TG and DTG data of polyester fabrics"

样品名称 质量损失
平台		 T-5%/
℃		 T-max/
℃		 800 ℃时的
残炭量/%
PET Ⅰ(235~325 ℃)
Ⅱ(325~485 ℃)		 300.8 415.3 5.8
PET-EMD Ⅰ(175~325 ℃)
Ⅱ(325~485 ℃)		 239.8 422.8 6.8
PET-N-PMI Ⅰ(100~215 ℃)
Ⅱ(235~325 ℃)
Ⅲ(325~485 ℃)		 142.3 420.7 12.9
PET-E+N Ⅰ(100~215 ℃)
Ⅱ(215~325 ℃)
Ⅲ(325~485 ℃)		 175.0 419.5 8.2

Fig. 4

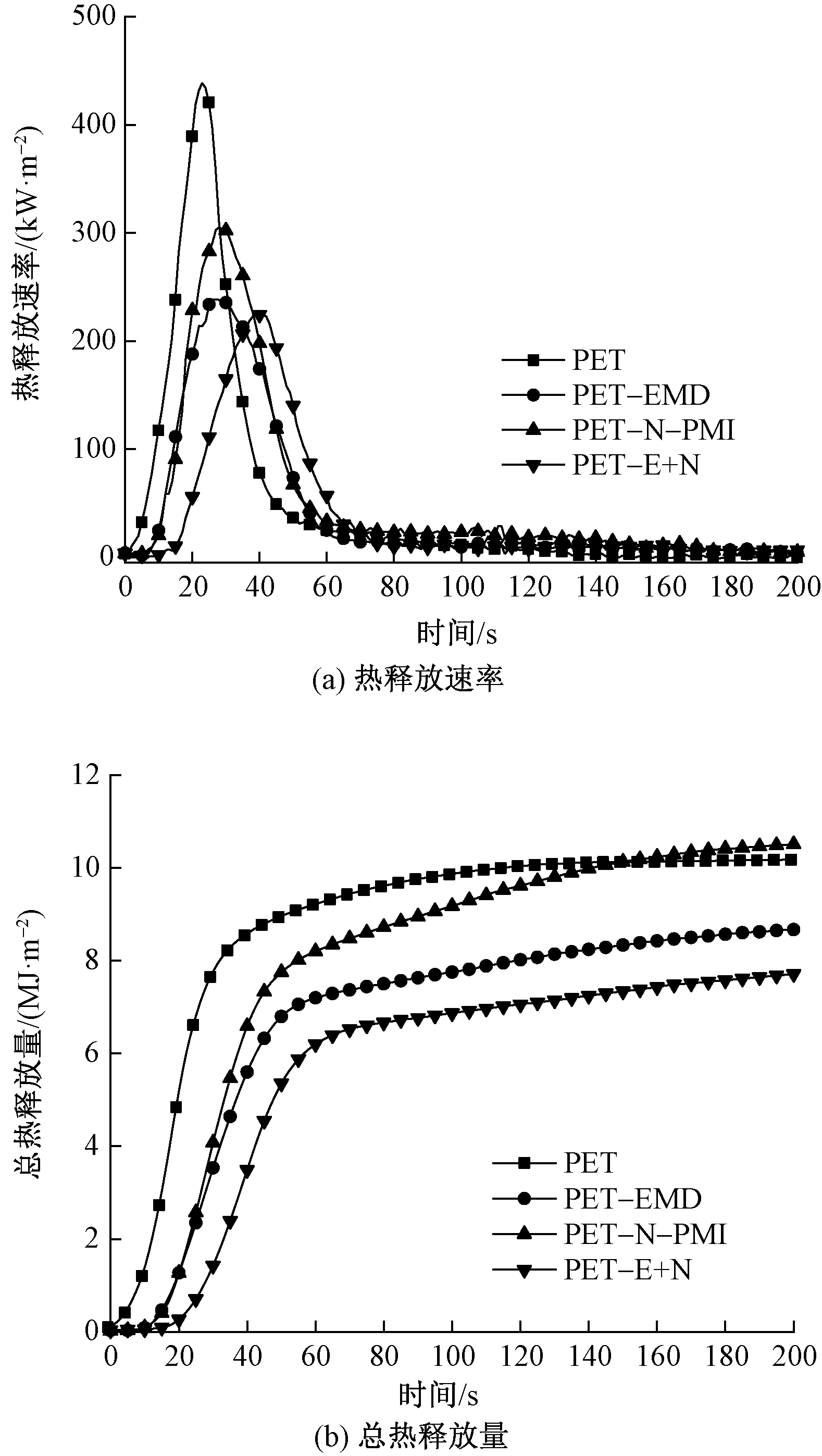

Curves of heat release rate (a) and total heat release (b) of polyester fabrics"

Tab. 4

Cone calorimeter test data"

样品
名称		 pk-HRR/
(kW·m-2)		 THR/
(MJ·m-2)		 MEHC/
(MJ·kg-1)		 TML/
%		 EB/
%		 Ef /
%		 Ec/
%
PET 439.07 10.78 23.17 95.2 - - -
PET-EMD 238.52 8.95 15.40 92.6 34.6 33.5 2.7
PET-N-PMI 304.96 11.06 22.11 91.8 32.2 4.6 3.6
PET-E+N 225.63 8.54 20.93 93.8 35.1 9.7 1.5

Fig. 5

SEM images of char residues"

Fig. 6

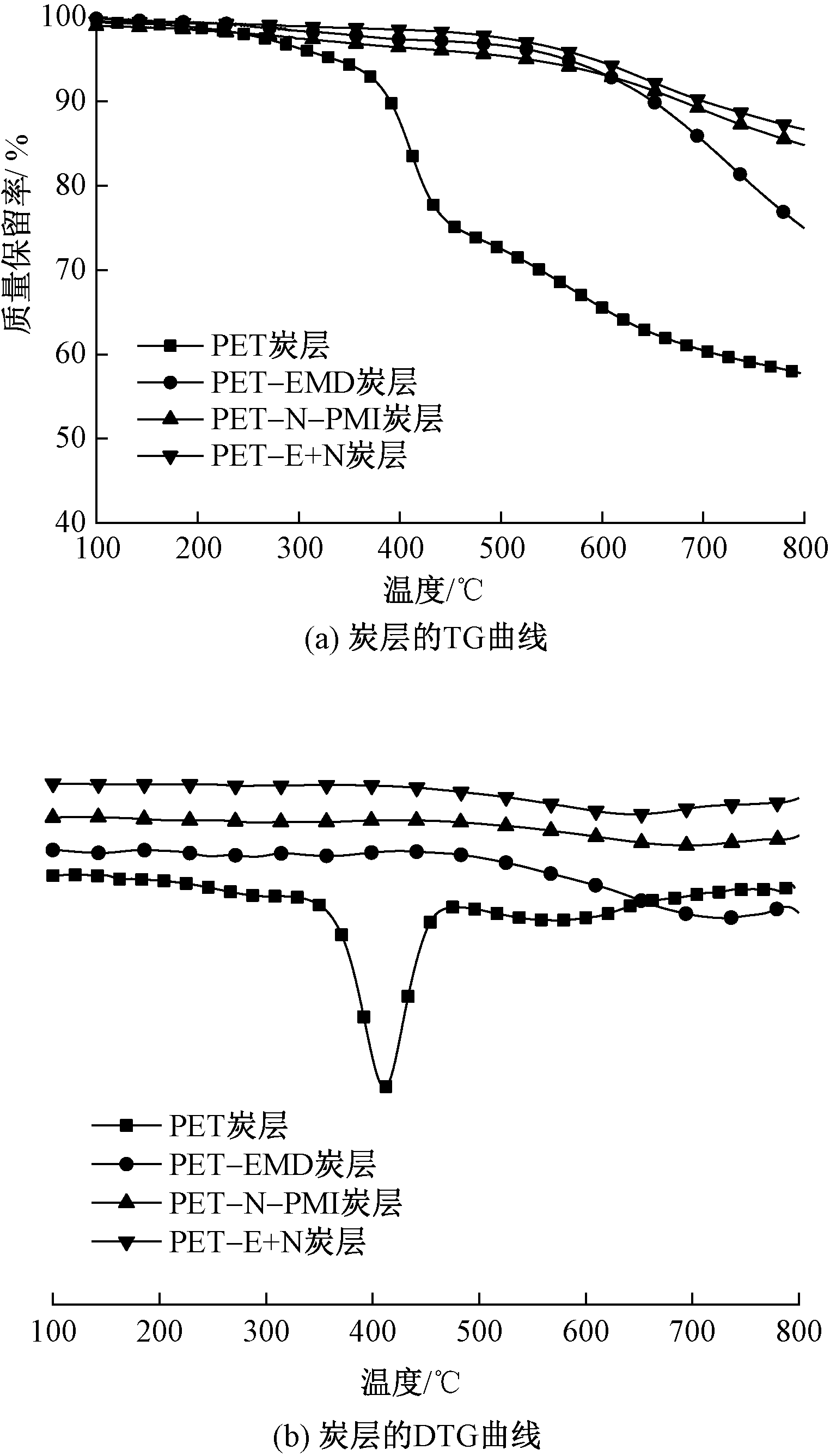

TG (a) and DTG (b) curves of char residues"

Tab. 5

TG and DTG data of char residues"

炭层样品名称 质量损失
平台		 T-5%/℃ T-max/℃ 800 ℃时的
残炭量/%
PET Ⅰ(336~451 ℃)
Ⅱ(451 ℃~)		 335.7 411.1 57.8
PET-EMD Ⅰ(565 ℃~) 564.8 728.4 75.0
PET-N-PMI Ⅰ(527 ℃~) 527.3 694.3 84.8
PET-E+N Ⅰ(592 ℃~) 591.9 643.4 86.7

Fig. 7

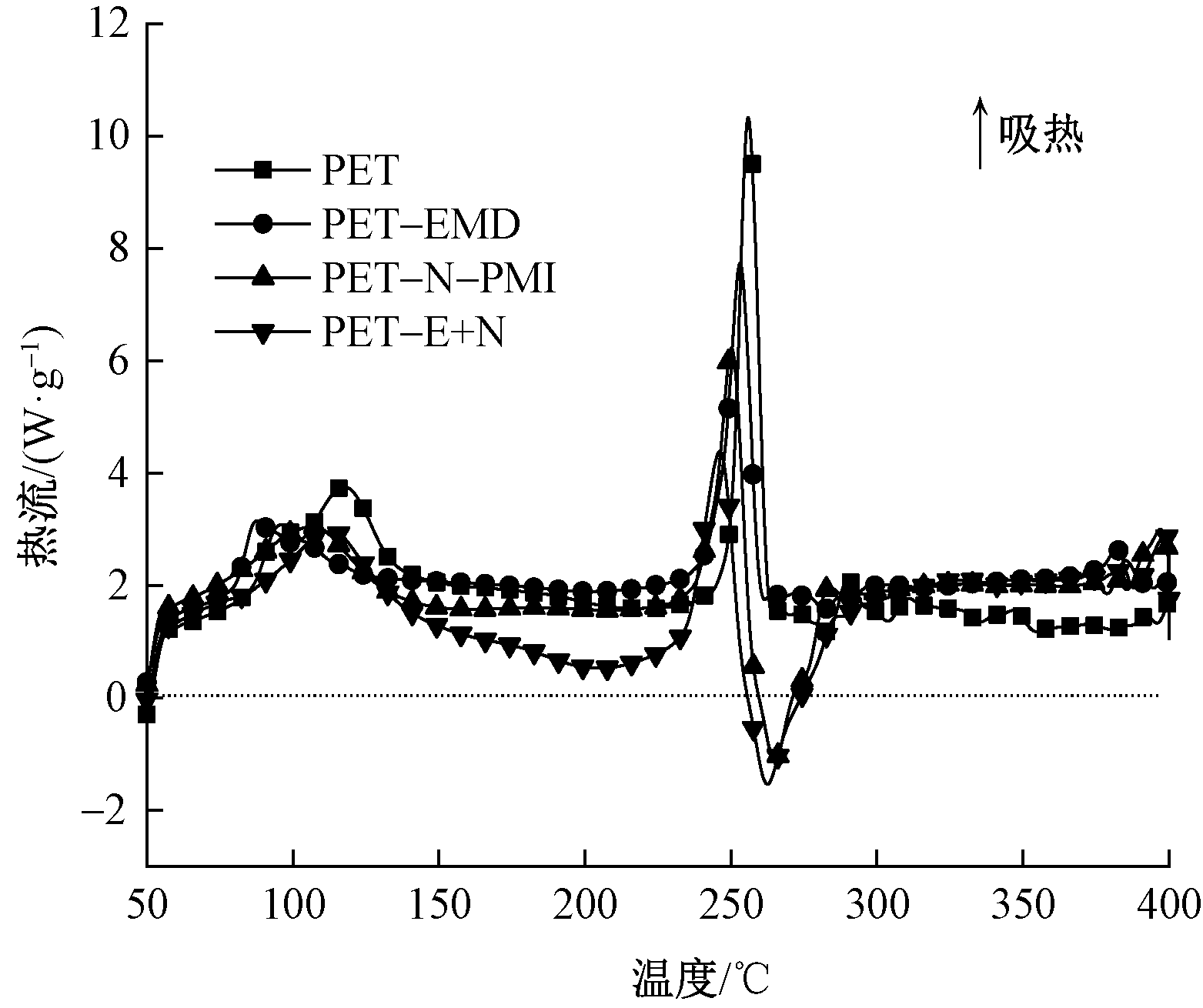

DSC curves of polyester fabrics"

Tab. 6

Comparison of polyester fabric properties before and after finishing"

样品
名称		 面密
度/(g·
m-2)		 经(纬)
向断裂
强力/N		 经(纬)
向撕破
强力/N		 透气率/
(mm·
s-1)		 LOI值/
%		 阻燃
等级
PET 61.0 756.5
(262.6)		 19.8
(17.2)		 147.3 19.1 —
PET-E+
N(洗涤前)		 72.8 826.7
(381.7)		 18.2
(15.4)		 121.8 35.1 B1
PET-E+
N(洗涤后)		 65.7 792.2
(301.3)		 17.8
(15.2)		 139.5 27.0 B2
[1] KUNDU C K, LI Z, SONG L, et al. An overview of fire retardant treatments for synthetic textiles: from traditional approaches to recent applications[J]. European Polymer Journal, 2020. DOI:10.1016/j.eurpolymj.2020.109911.
[2] BALBAS D Q, CIRRINCIONE C, CIMÒ M, et al. Evaluation of an eco-friendly flame retardant treatment applied to cellulosic textiles used for the conservation of historical tapestries[J]. Polymer Degradation and Stability, 2022.DOI:10.1016/j.polymdegradstab.2022.109907.
[3] 陈龙, 周哲, 张军, 等. 废旧棉与涤纶纺织品化学法循环再生利用的研究进展[J]. 纺织学报, 2022, 43(5): 43-48.
CHEN Long, ZHOU Zhe, ZHANG Jun, et al. Research progress in chemical recycling of waste cotton and polyester textiles[J]. Journal of Textile Research, 2022, 43(5): 43-48.
[4] TAO Y, LIU C, LI P, et al. A flame-retardant PET fabric coating: flammability, anti-dripping properties, and flame-retardant mechanism[J]. Progress In Organic Coatings, 2021. DOI:10.1016/j.porgcoat.2020.105971.
[5] 薛宝霞, 史依然, 张凤, 等. 无卤氧化铁改性涤纶阻燃织物的制备及其性能[J]. 纺织学报, 2022, 43(5): 130-135.
XUE Baoxia, SHI Yiran, ZHANG Feng, et al. Preparation flame retardant polyester fabric modified with halogen-free ferric oxide and its property[J]. Journal of Textile Research, 2022, 43(5): 130-135.
[6] ZHANG C, ZHANG C, HU J, et al. Flame-retardant and anti-dripping coating for PET fabric with hydroxyl-containing cyclic phosphoramide[J]. Polymer Degradation and Stability, 2021. DOI:10.1016/j.polymdegradstab.2021.109699.
[7] KIM T, HONG K, THI N V, et al. The effect of DBD plasma activation time on the dyeability of woven polyester fabric with disperse dye[J]. Polymers, 2021. DOI:10.3390/polym13091434.
[8] NI Y P, WU W S, CHEN L, et al. How hydrogen bond interactions affect the flame retardancy and anti-dripping performances of PET[J]. Macromolecular Materials and Engineering, 2019. DOI:10.1002/mame.201900661.
[9] SALMEIA K A, GOONEIE A, SIMONETTI P, et al. Comprehensive study on flame retardant polyesters from phosphorus additives[J]. Polymer Degradation and Stability, 2018, 155: 22-34.
doi: 10.1016/j.polymdegradstab.2018.07.006
[10] 黄益婷, 程献伟, 关晋平, 等. 磷/氮阻燃剂对涤纶/棉混纺织物的阻燃整理[J]. 纺织学报, 2022, 43(6): 94-99.
HUANG Yiting, CHENG Xianwei, GUAN Jinping, et al. Phosphorus/nitrogen-containing flame retardant for flame retardant finishing of polyester/cotton blended fabric[J]. Journal of Textile Research, 2022, 43(6): 94-99.
[11] DING F, ZHANG S, REN X, et al. Synthesis of phosphorus-containing flame retardant monomer and grafting of PET fabrics via electron beam irradiation[J]. AATCC Journal of Research, 2020, 7(4): 15-21.
[12] ZHAO H B, WANG Y Z. Design and synthesis of PET-based copolyesters with flame-retardant and antidripping performance[J]. Macromolecular Rapid Communications, 2017. DOI:10.1002/marc.201700451.
[13] WANG C, WU L, DAI Y, et al. Application of self-templated PHMA sub-microtubes in enhancing flame-retardance and anti-dripping of PET[J]. Polymer Degradation and Stability, 2018, 154: 239-247.
doi: 10.1016/j.polymdegradstab.2018.06.005
[14] WANG L S, WANG X L, YAN G L. Synthesis, characterization and flame retardance behaviour of poly(ethylene terephthalate) copolymer containing triaryl phosphine oxide[J]. Polymer Degradation and Stability, 2000, 69(1): 127-130.
doi: 10.1016/S0141-3910(00)00050-1
[15] CHEN L, ZHAO H, NI Y, et al. 3D printable robust shape memory PET copolyesters with fire safety via π-stacking and synergistic crosslinking[J]. Journal of Materials Chemistry A, 2019, 7: 17037-17045.
doi: 10.1039/C9TA04187G
[16] PIZARRO G, MARAMBIO O G, JERIA-ORELL M, et al. Nanocomposites based on self-assembly poly(hydroxypropyl methacrylate)-block-poly(N-phen-ylmaleimide) and Fe3O4-NPs thermal stability, morphological characterization and optical properties[J]. Chemical Physics Letters, 2018, 693: 183-187.
doi: 10.1016/j.cplett.2018.01.030
[17] DONG L P, DENG C, LI R, et al. Poly(piperazinyl phosphamide): a novel highly-efficient charring agent for an EVA/APP intumescent flame retardant system[J]. RSC Advances, 2016, 6(36): 30436-30444.
doi: 10.1039/C6RA00164E
[18] 翁诗甫. 傅里叶变换红外光谱分析[M]. 2版. 北京: 化学工业出版社, 2010: 291-292.
WENG Shifu. Fourier transform infrared spectro-scopy[M]. 2nd ed. Beijing: Chemical Industry Press, 2010: 291-292.
[19] WANG J, ZHAO X, YU Q, et al. Inverse modeling of thermal decomposition of flame-retardant PET fiber with model-free coupled with particle swarm optimization algorithm[J]. ACS Omega, 2021, 6(21): 13626-13636.
doi: 10.1021/acsomega.1c00599 pmid: 34250328
[20] 罗渝然. 化学键能数据手册[M]. 北京: 科学出版社, 2005:223-225.
LUO Yuran. Chemical bond energy data manual[M]. Beijing: Science Press, 2005:223-225.
[21] DONG X, CHEN L, DUAN R T, et al. Phenylmaleimide-containing PET-based copolyester: cross-linking from 2π+π cycloaddition toward flame retardance and anti-dripping[J]. Polymer Chemistry, 2016, 7(15): 2698-2708.
doi: 10.1039/C6PY00183A
[22] SONG W, HE Y, WU Y, et al. Characterization of burning behaviors and particulate matter emissions of crop straws based on a cone calorimeter[J]. Materials, 2021. DOI:10.3390/ma14123407.
[23] CHEN Y, WEI W, YONG Q, et al. Terminal group effects of phosphazene-triazine bi-group flame retardant additives in flame retardant polylactic acid compo-sites[J]. Polymer Degradation and Stability, 2017, 140: 166-175.
doi: 10.1016/j.polymdegradstab.2017.04.024
[24] 郭超, 辛菲, 钱立军, 等. 无卤阻燃热塑性聚酯的研究进展[J]. 中国塑料, 2017, 31(10): 12-19.
GUO Chao, XIN Fei, QIAN Lijun, et al. Research progress on halogen-free flame retardant thermoplastic polyester[J]. China Plastics, 2017, 31(10): 12-19.
[25] YONG Q, QIAN L, WANG X. Flame-retardant effect of a novel phosphaphenanthrene/triazine-trione bi-group compound on an epoxy thermoset and its pyrolysis behaviour[J]. RSC Advances, 2016, 6(61): 56018-56027.
doi: 10.1039/C6RA10752D
[26] DU Y Y, JIANG X G, LU G J, et al. TG-DSC and FTIR study on pyrolysis of irradiation cross-linked polyethylene[J]. Journal of Material Cycles and Waste Management, 2017, 19:1400-1404.
doi: 10.1007/s10163-016-0530-z
[1] GE Huaifu, WU Wei, WANG Jian, XU Hong, MAO Zhiping. Application of methyl 5-(dimethylamino)-2-methyl-5-oxopentanoate in supercritical carbon dioxide fluid dyeing with disperse dyes [J]. Journal of Textile Research, 2024, 45(01): 120-127.
[2] FAN Aoyun, SHEN Junyan, YANG Lei, LI Jianhao, ZHANG Zhijian. Preparetion and application of silicones Pickering emulsion synergistically stabilized with surfactant and nanoparticles [J]. Journal of Textile Research, 2024, 45(01): 136-145.
[3] FAN Shuo, YANG Peng, ZENG Jinhao, SONG Xiaodi, GONG Yudan, XIAO Yao. Preparation of multi-component organic polysiloxane for flame retardancy of polyamide 6 fabrics with anti-dripping behavior [J]. Journal of Textile Research, 2024, 45(01): 152-160.
[4] AI Jingwen, LU Dongxing, LIAO Shiqin, WANG Qingqing. Preparation and strain sensing properties of yarn sensor prepared by in-situ freezing interfacial polymerization [J]. Journal of Textile Research, 2024, 45(01): 74-82.
[5] MIAO Lulu, DONG Zhengmei, ZHU Fanqiang, RONG Hui, HE Linwei, ZHENG Guoquan, ZOU Zhuanyong. Influence of core filament type and delivery speed on performance of air-jet vortex spun core-spun yarns [J]. Journal of Textile Research, 2023, 44(12): 50-57.
[6] QI Xiaojie, SUN Li'na, LIAO Haiyang, MA Bomou, YU Jianyong, WANG Xueli, LIU Xiucai. Preparation and properties of modified polyester fiber for super softness and high hygroscopy [J]. Journal of Textile Research, 2023, 44(09): 27-34.
[7] NIE Wenqi, XU Shuai, GAO Junshuai, FANG Bing, SUN Jiangdong. Degradation properties of poly(3-hydroxybutyrate-co-3-hydroxyvalerate) modified polyester composite filament [J]. Journal of Textile Research, 2023, 44(09): 35-42.
[8] ZHANG Ying, SONG Minggen, JI Hong, CHEN Kang, ZHANG Xianming. Influence of heat-setting process on structure and properties of high-tenacity polyester industrial yarns [J]. Journal of Textile Research, 2023, 44(09): 43-51.
[9] SHANG Xiaoyu, ZHU Jian, WANG Ying, ZHANG Xianming, CHEN Wenxing. Synthesis and solid-state polymerization of flame retardant copolyester containing phosphorus side groups [J]. Journal of Textile Research, 2023, 44(07): 1-9.
[10] LIU Dunlei, LU Jiaying, XUE Tiantian, FAN Wei, LIU Tianxi. Preparation and properties of superhydrophobic thermal insulating polyester nanofiber/silica aerogel composite membranes [J]. Journal of Textile Research, 2023, 44(07): 18-25.
[11] JIANG Zhiming, ZHANG Chao, ZHANG Chenxi, ZHU Ping. Preparation and properties of flame-retardant viscose fabrics modified with phosphated polyethyleneimine [J]. Journal of Textile Research, 2023, 44(06): 161-167.
[12] YANG Haifu, LUO Lijuan, SHI Jianjun, MA Xiaoguang, ZHENG Zhenrong. Preparation of flame-retardant and waterproof multifunctional polyester tarpaulin [J]. Journal of Textile Research, 2023, 44(06): 168-174.
[13] ZHOU Xinru, FAN Mengjing, HU Chengye, HONG Jianhan, LIU Yongkun, HAN Xiao, ZHAO Xiaoman. Effect of spinneret rate on structure and properties of nanofiber core-spun yarns prepared by continuous water bath electrospinning [J]. Journal of Textile Research, 2023, 44(06): 50-56.
[14] SU Xuzhong, LIANG Qiaomin, WANG Huifeng, ZHANG Di, CUI Yihuai. Wearability of knitted fabrics produced from cotton/bio-based elastic polyester fiber [J]. Journal of Textile Research, 2023, 44(05): 119-124.
[15] HU Anzhong, WANG Chengcheng, ZHONG Ziheng, ZHANG Liping, FU Shaohai. Preparation and properties of fast response thermochromic textiles doped with boron nitride nanosheets [J]. Journal of Textile Research, 2023, 44(05): 164-170.
Viewed
Full text


Abstract

Cited
  Shared
  Discussed
No Suggested Reading articles found!
京ICP备14006648号
Copyright 2021 © Editorial office of Journal of Textile Research
Supported by Beijing Magtech Co.Ltd
