Journal of Textile Research ›› 2024, Vol. 45 ›› Issue (12): 109-117.doi: 10.13475/j.fzxb.20231200801

• Textile Engineering • Previous Articles     Next Articles

Effect of shear deformation on principal permeability and infiltration characteristics of anisotropic fabrics

WANG Jue1, YAN Shilin1, LI Yongjing1(), HE Longfei2, XIE Xiangyu1, MENG Xiaoxu1

  1. 1. Key Laboratory of Theory and Application of Advanced Materials Mechanics, Wuhan University of Technology, Wuhan, Hubei 430070, China
    2. College of Environment Studies, Tohoku University, Sendai 980-8579, Japan
  • Received:2023-12-07 Revised:2024-05-02 Online:2024-12-15 Published:2024-12-31
  • Contact: LI Yongjing E-mail:whutliyongjing@163.com

RichHTML

6

PDF (PC)

22

Abstract:

Objective Based on the resin transfer molding process, Shear deformation will change the fabric structure, which directly reduced the fiber bundle spacing and porosity and affected the permeability and main permeability direction of the fabric. In order to ascertain the governing principles. the effect of shear deformation on the principal permeability component of anisotropic fiber fabrics, permeability anisotropy, principal permeability direction, inlet pressure, and the time required for filling and infiltration is investigated to lay the foun-dation for practical applications and verified with numerical simulations.

Method An experimental measurement system for the radial flow of a low-viscosity liquid (corn oil) under constant flow conditions was designed and set up using a plain glass woven fabric (fabric face density of 0.482 kg/m2 and glass fibric density of 2 500 kg/m3. The warp and weft yarn density was 1 105 tex,while the warp density was 30 pieces/(10 cm) and the weft density was 22 pieces/(10 cm)) with rectangular pores. The principal permeability component was obtained using the permeability formula for anisotropic fabrics and the inlet pressure change was recorded by the pressure transducer in the process of filling and infiltration.

Result As the shear angle was increased from 0° to 30°, the internal porosity of the fabric was decreased and the fiber volume fraction was increased. At shear angles between 10°-20°, the fiber volume fractions obtained from the theoretical equations were basically the same as the experimental values; while at the shear angle of 30°, the theoretically predicted fiber volume fraction was about 0.8% higher than the experimentally tested value. With the increase of the shear angle, the magnitude of the principal permeability K1 and K2 showed a significant decreasing trend, in which K1 decreased from 20.20 × 10-10 m2 to 11.44 × 10-10 m2 and K2 from 16.1 × 10-10 m2 to 6.31 × 10-10 m2, the degree of anisotropy of the fiber fabric increased by 1.6% and 12.0%, and the anisotropy of the fabric was increased by 1.6%, 12.0%, and 44.8%. The direction angle of the principal permeability was decreased by about 29°, 39°, and 46°. At shear angles of 0°, 10°, 20°, and 30°, the time required for the elliptical flow front to fill and infiltrate along the long axis is 39.0, 37.0, 36.0, and 32.0 s, respectively, and the time required for the fabric to be completely filled and infiltrated is 45.0, 48.0, 49.0, and 54.0 s, with the maximum values of the inlet pressures being 23.2, 30.0, 33.0, and 38.9 kPa, respectively. Comparing the different inlet pressure curves, the length of the long and short axes of the flow front, and the contour of the flow front obtained from the experimental and numerical simulations were in excellent agreement, and the time error of long axis full infiltration was 4.0%. the total wetting time error was 2.4%, the maximum inlet pressure error was 7.9%. The numerical simulation could accurately predict the change of inlet pressure during the filling and wetting process, and this method could be used to study the wetting characteristics of different fabrics after shear deformation.

Conclusion In radial flow experiments, an increased fiber volume fraction leads to a reduction in the principal permeability (K1, K2) of the fabric and alters both the anisotropy degree (K1/K2) and the orientation of the primary permeability. The fitting formula obtained from the experiments effectively predicts the direction of the principal permeability of the fabric after shear deformation, providing a solid foundation for subsequent investigations into changes in the directional principal permeability of the fabric. The augmentation of fiber volume fraction results in an elevation of inlet pressure and an increase in the time required for complete filling and infiltration of the fiber fabric during the liquid filling process, making the filling process more challenging. Numerical simulations offer a more economi-cally and conveniently prediction of the liquid filling and infiltration process in fiber fabrics. Subsequently, numerical simulations can serve as a basis for studying the wetting characteristics of different fiber fabrics.

Key words: resin transfer molding process (RTM), shear deformation, principal permeability, anisotropy of permeability, numerical simulation, glass fiber fabric

CLC Number:

  • TB332

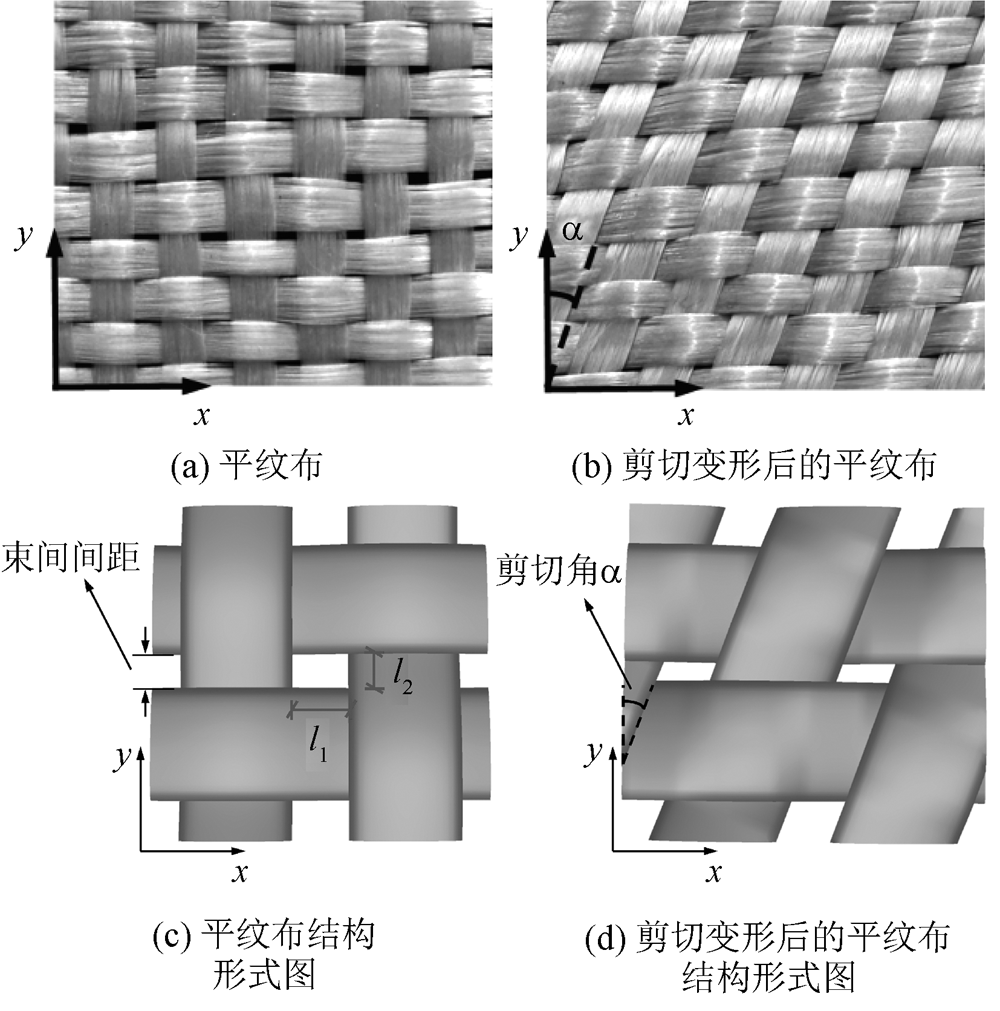

Fig.1

Plain fabric and structural form diagrams. (a) Plain fabric; (b) Plain fabric after shear deformation; (c) Structural form of plain fabric; (d) Structural form of plain fabric after shear deformation"

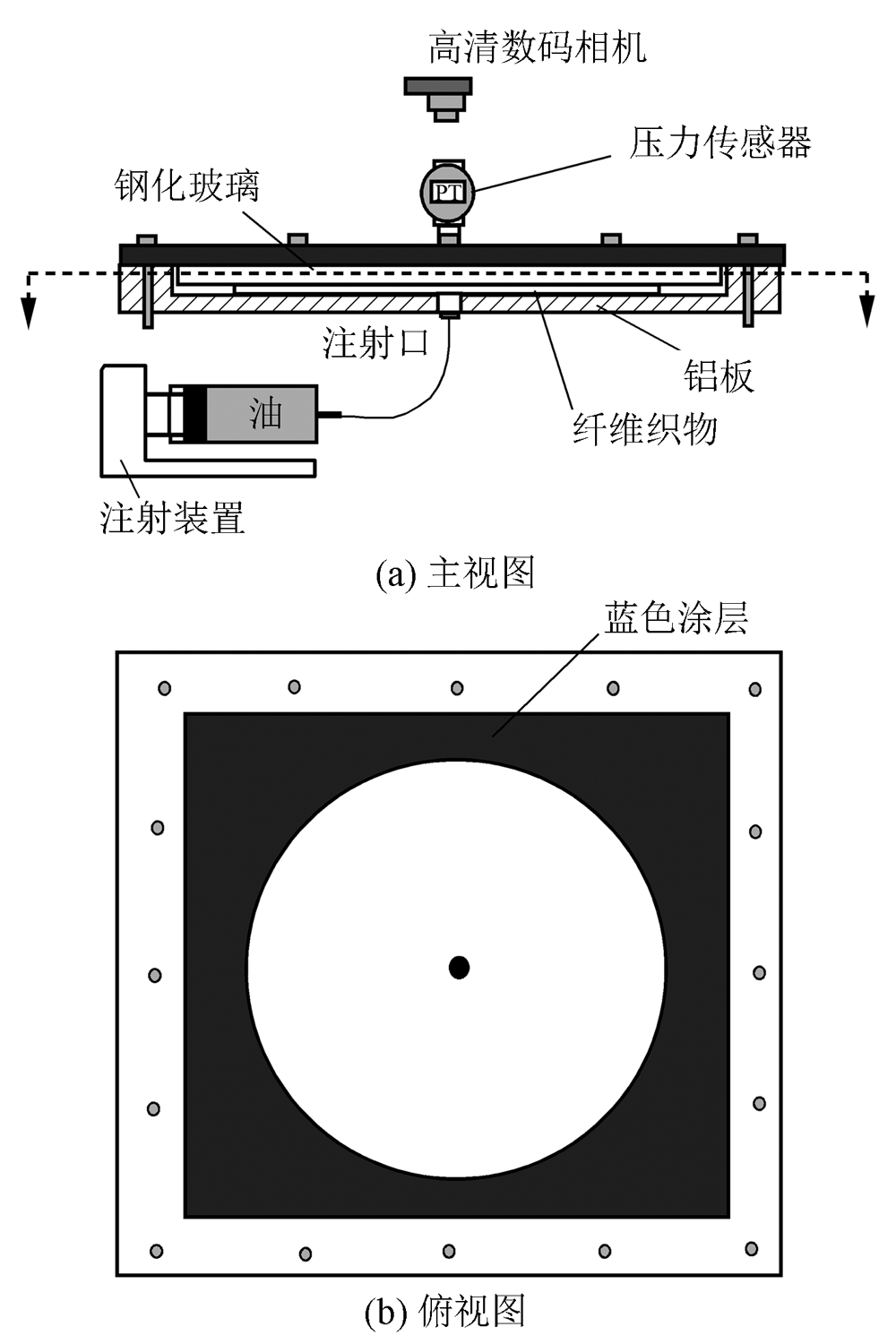

Fig.2

Schematic diagram of radial flow experiment. (a) Main view; (b) Vertical view"

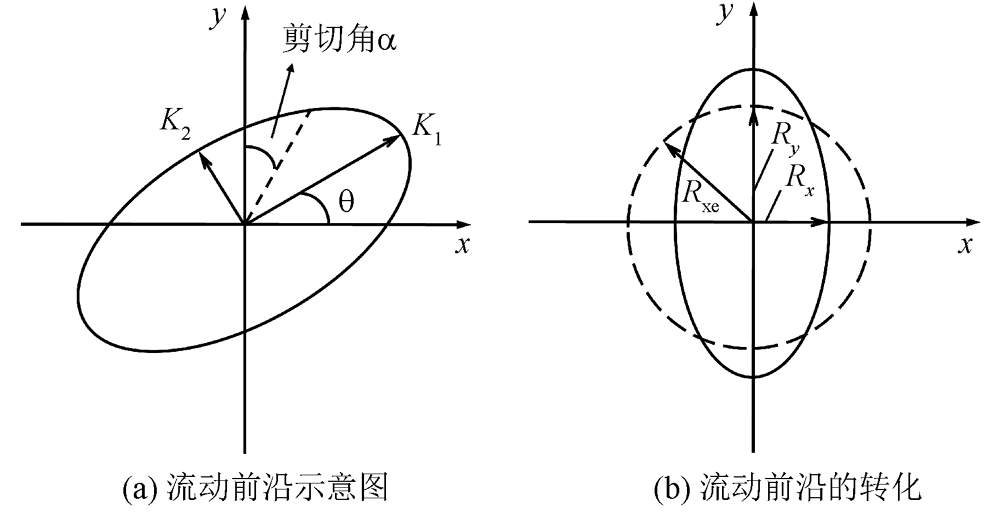

Fig.3

Schematic diagram of flow front(a) and transformation(b)"

Tab.1

Experimental and theoretical values of fiber volume fraction after fabric shear deformation"

剪切角度α/(°) 纤维体积分数实验值 纤维体积分数理论值
0 0.430 0.430
10 0.438 0.437
20 0.460 0.458
30 0.492 0.496

Fig.4

Snap shots of infiltration at same moment for fabric with different shear angles"

Tab.2

Principal permeability K1, K2 and K1/K2 after fabric shear deformation"

剪切角度
α/(°)		 主渗透率
K1/m2		 主渗透率
K2/m2		 各向异性度
K1/K2
0 20.20×10-10 16.11×10-10 1.25
10 15.69×10-10 12.33×10-10 1.27
20 13.73×10-10 9.79×10-10 1.40
30 11.44×10-10 6.31×10-10 1.81

Fig.5

Comparison of principle permeability directions at different shear angles"

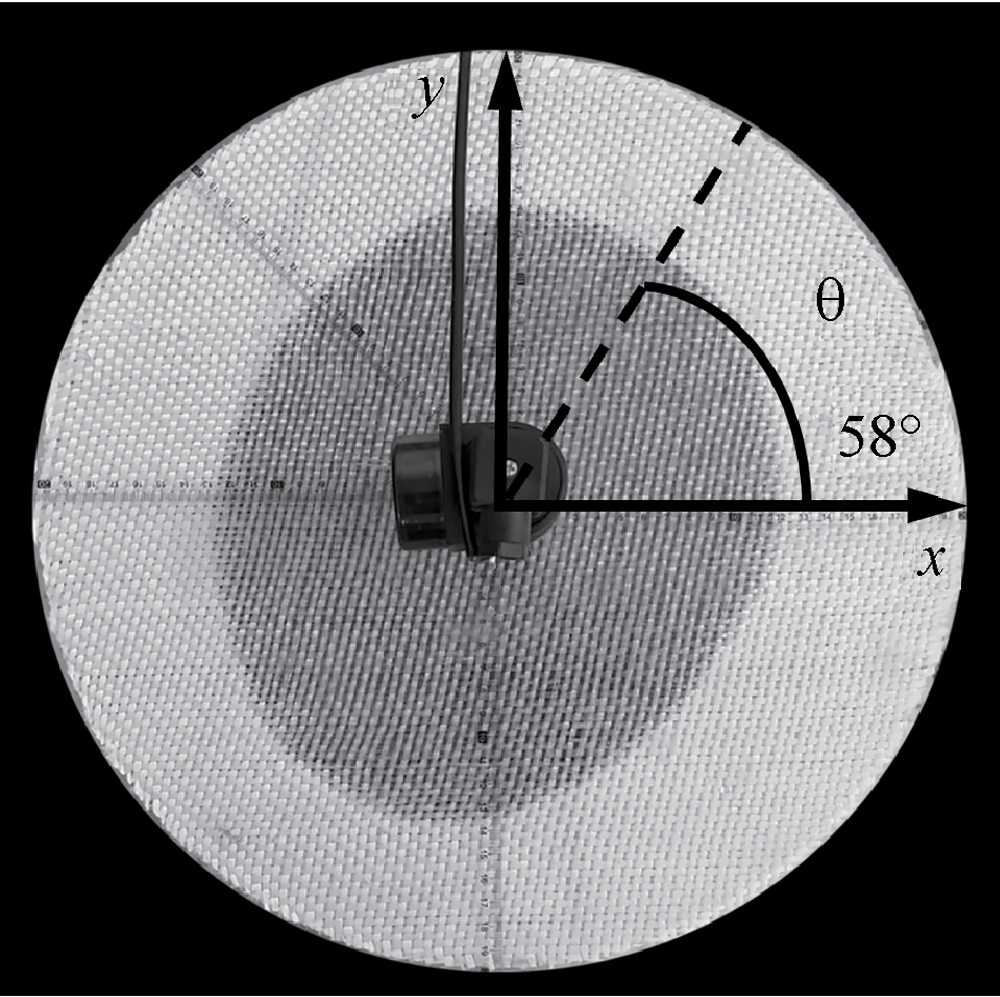

Fig.6

Direction of principal permeability at a shear angle of 15°"

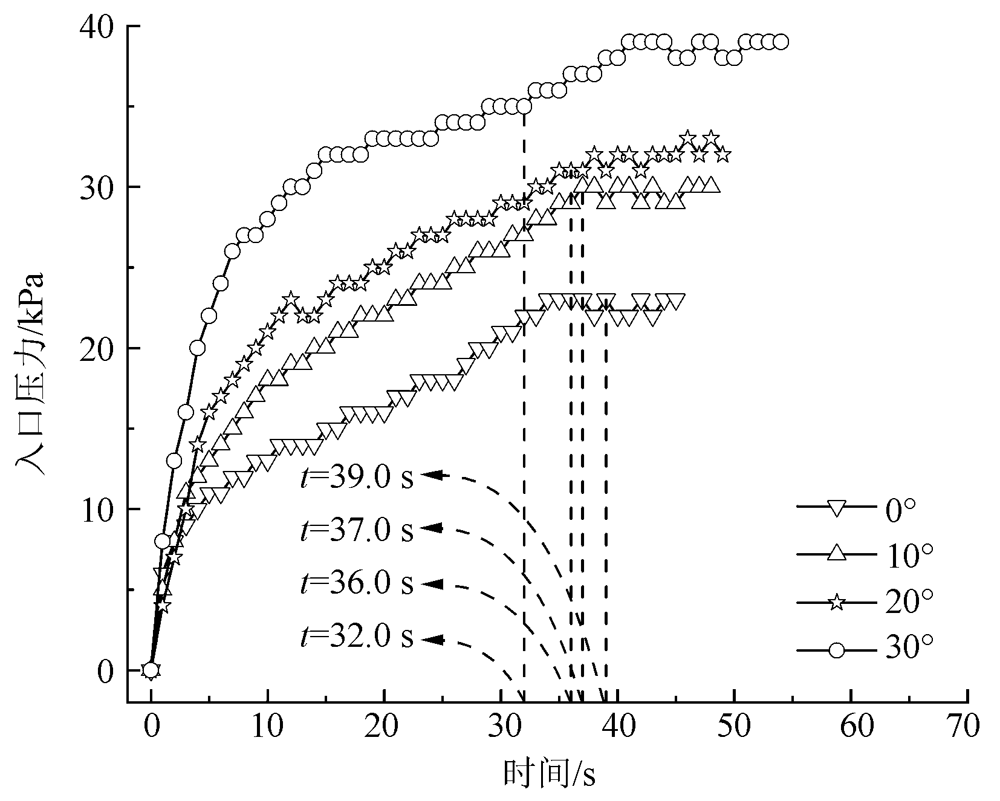

Fig.7

Inlet pressure curves at different shear angles and filling time of long axis"

Fig.8

Schematic diagram of computational model"

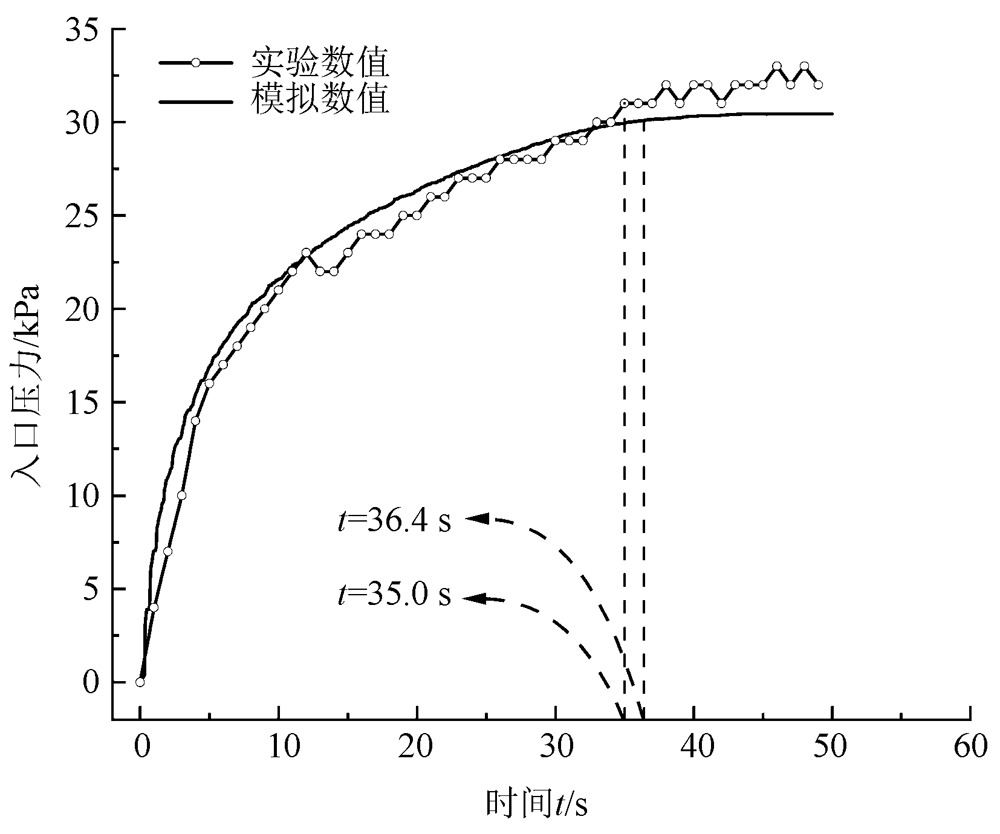

Fig.9

Comparison of experimental and numerical simulated inlet pressure profiles"

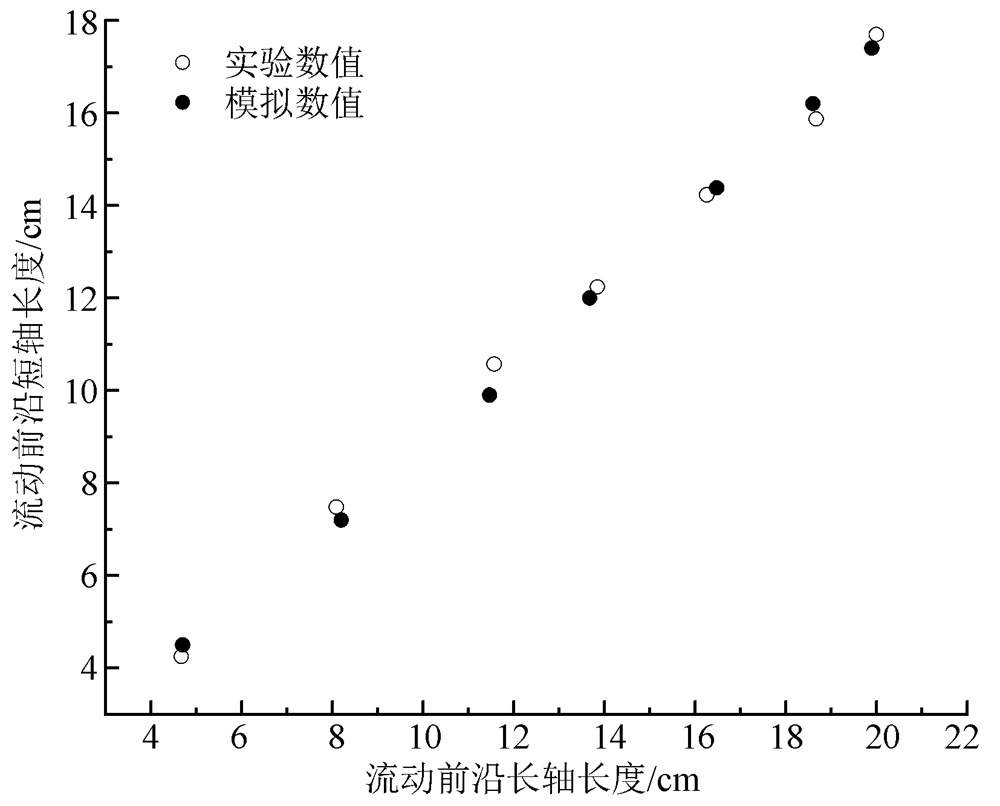

Fig.10

Experimental and simulation comparison of long axis length and short axis length at different time"

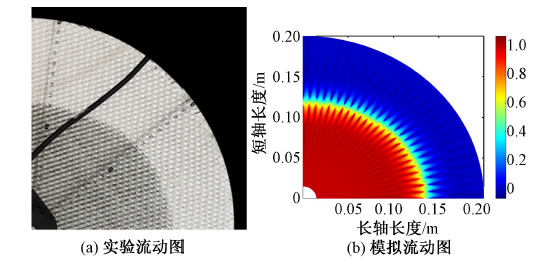

Fig.11

Comparison of experimental and simulated flow fronts at different moments of time. (a) Experimental flow diagram; (b) Simulated flow diagram"

[1] 赵安安, 杨文凯, 于飞, 等. 大型高性能复合材料构件RTM工艺进展[J]. 南京航空航天大学学报, 2020, 52(1): 39-47.
ZHAO An'an, YANG Wenkai, YU Fei, et al. RTM Process for large-scale and high-performance composite components[J]. Journal of Nanjing University of Aeronautics & Astronautics, 2020, 52(1): 39-47.
[2] MENDIKUTE J, BASKARAN M, ARETXABALETA L, et al. Effect of voids on the impact properties of non-crimp fabric carbon/epoxy laminates manufactured by liquid composite Moulding[J]. Composite Structures, 2022, 297.
[3] 张国利, 张策, 史晓平, 等. 复合材料树脂传递模塑注胶工艺调控方法与技术[J]. 纺织学报, 2019, 40(12): 178-184.
ZHANG Guoli, ZHANG Ce, SHI Xiaoping, et al. Control method and technology of resin injection for resin transfer molding in manufacturing of composite mate-rials[J]. Journal of Textile Research, 2019, 40(12): 178-184.
[4] SHEN H, WANG P, LEGRAND X. In-plane shear characteristics during the forming of tufted carbon woven fabrics[J]. Composites Part A: Applied Science and Manufacturing, 2021.DOI:10.1016/j.compositesa.2020.106196.
[5] BARBURSKI M, STRAUMIT I, ZHANG X, et al. Micro-CT analysis of internal structure of sheared textile composite reinforcement[J]. Composites Part A: Applied Science and Manufacturing, 2015, 73: 45-54.
[6] PIERCE R S, FALZON B G, THOMPSON M C. Permeability characterization of sheared carbon fiber textile preform[J]. Polymer Composites, 2018, 39(7): 2287-2298.
[7] WU C H, JAMES W T, JAMES L L. Trans-plane fluid permeability measurement and its applications in liquid composite molding[J]. Polymer Composites, 1994, 15(4): 289-298.
[8] OKONKWO K, SIMACEK P, ADVANI S G, et al. Characterization of 3D fiber preform permeability tensor in radial flow using an inverse algorithm based on sensors and simulation[J]. Composites Part A: Applied Science and Manufacturing, 2011, 42(10): 1283-1292.
[9] CHAN A W, HWANG S T. Anisotropic in-plane permeability of fabric media[J]. Polymer Engineering & Science, 1991, 31(16): 1233-1239.
[10] 杨文权, 蒋金华, 陈南梁. 玻璃纤维织物在剪切变形作用下的渗透率[J]. 纺织学报, 2018, 39(8): 58-70.
YANG Wenquan, JIANG Jinhua, CHEN Nanliang. Permeability of glass fiber fabrics under shear deformation[J]. Journal of Textile Research, 2018, 39(8): 58-70.
[11] ADAMS K L, RUSSEL W B, REBENFELD L. Radial penetration of a viscous liquid into a planar anisotropic porous medium[J]. International Journal of Multiphase Flow, 1988, 14(2): 203-215.
[12] CARTER E J, FELL A W, SUMMERSCALES J. A simplified model to calculate the permeability tensor of an anisotropic fibre bed[J]. Composites Manufacturing, 1995, 6(3/4): 228-235.
[13] ENDRUWEIT A, ERMANNI P. The in-plane permeability of sheared textiles. Experimental observations and a predictive conversion model[J]. Composites Part A: Applied Science and Manufacturing, 2004, 35(4): 439-451.
[14] WONG C C, LONG A C, SHERBURN M, et al. Comparisons of novel and efficient approaches for permeability prediction based on the fabric architec-ture[J]. Composites Part A: Applied Science and Manufacturing, 2006, 37(6): 847-857.
[15] 陆航. 双尺度孔隙纤维织物渗透率的模拟预测[D]. 武汉: 武汉理工大学, 2010: 22-42.
LU Hang. Simulation and prediction of permeability for dual-scale porous fiber fabrics[D]. Wuhan: Wuhan University of Technology, 2010: 22-42.
[16] 李永静. LCM成型工艺非饱和流动机理的数值模拟研究[D]. 武汉: 武汉理工大学,2016: 55-72.
LI Yongjing. Numerical Simulation of Unsaturated Flow Mechanism[D]. Wuhan: Wuhan University of Technology, 2016: 55-72.
[17] ARANDA S, BERG D C, DICKERT M, et al. Influence of shear on the permeability tensor and compaction behaviour of a non-crimp fabric[J]. Composites Part B: Engineering, 2014, 65: 158-163.
[18] GRUJICIC M, CHITTAJALLU K M, WALSH S. Effect of shear, compaction and nesting on permeability of the orthogonal plain-weave fabric preforms[J]. Materials Chemistry and Physics, 2004, 86(2/3): 358-369.
[19] LOIX F, BADEL P, ORGEAS L, et al. Woven fabric permeability: From textile deformation to fluid flow mesoscale simulations[J]. Composites Science and Technology, 2008, 68(7/8): 1624-1630.
[20] BADEL P, VIDAL-SALLE E, MAIRE E, et al. Simulation and tomography analysis of textile composite reinforce-ment deformation at the mesoscopic scale[J]. Compo-sites Science and Technology, 2008, 68(12): 2433-2440.
[21] WALTHER J, SIMACEK P, ADVANI S G. The effect of fabric and fiber tow shear on dual scale flow and fiber bundle saturation during liquid molding of textile composites[J]. International Journal of Material Forming, 2012, 5: 83-97.
[22] BINETRUY C, HILAIRE B, PABIOT J. Tow impregnation model and void formation mechanisms during RTM[J]. Journal of Composite Materials, 1998, 32(3): 223-245.
[23] TAN H, PILLAI K M. Fast liquid composite molding simulation of unsaturated flow in dual-scale fiber mats using the imbibition characteristics of a fabric-based unit cell[J]. Polymer Composites, 2010, 31(10): 1790-1807.
[24] 李永静, 晏石林, 严飞, 等. 注射条件对LCM工艺非饱和流动特性影响[J]. 复合材料学报, 2016, 33(11): 2688-2697.
LI Yongjing, YAN Shilin, YAN Fei, et al. Influence of injection conditions on unsaturated flow characteristics of LCM processes[J]. Acta Materiae Compositae Sinica, 2016, 33(11): 2688-2697.
[25] 谢翔宇, 李永静, 晏石林. 流体模塑成型工艺二维径向非饱和流动数值模拟[J]. 复合材料学报, 2018, 35(12): 3386-3392.
XIE Xiangyu, LI Yongjing, YAN Shilin. Numerical simulation of 2-dimensional radial unsaturated flow in liquid composite molding processes[J]. Acta Materiae Compositae Sinica, 2018, 35(12): 3386-3392.
[26] 何龙飞, 晏石林, 李永静, 等. 双尺度纤维织物二维非饱和流动的数值模拟与实验[J]. 复合材料学报, 2020, 37(4): 869-876.
HE Longfei, YAN Shilin, LI Yongjing, et al. Numerical simulation and experiment of 2D unsaturated flow of dual-scale fiber mat[J]. Acta Materiae Compositae Sinica, 2020, 37(4): 869-876.
[27] 刘文超, 晏石林, 李永静, 等. 树脂传递模塑成型工艺中嵌套效应引起渗透率变异的实验与数值模拟[J]. 复合材料学报, 2021, 38(11): 3620-3628.
LIU Wenchao, YAN Shilin, LI Yongjing, et al. Experimental and numerical simulation of permeability variation induced by nesting effect in resin transfer molding[J]. Acta Materiae Compositae Sinica, 2021, 38(11): 3620-3628.
[28] CALADO V M A, ADVANI S G. Effective average permeability of multi-layer preforms in resin transfer molding[J]. Composites Science and Technology, 1996, 56(5): 519-531.
