Preparation and properties of thermal bonded fibrous artificial blood vessels

GUO Fengyun1,2(), GUO Ziyi1,2, GAO Lei1,2, ZHENG Linjing1,2

  1. 1. College of Textile Science and Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Key Laboratory of Advanced Textile Materials and Manufacturing Technology, Hangzhou, Zhejiang 310018, China
  • Received:2020-07-22 Revised:2021-01-29 Online:2021-06-15 Published:2021-06-25

RichHTML

13

PDF (PC)

108

Abstract:

In order to prepare small-diameter artificial blood vessels with excellent properties, polycaprolactone/polyurethane (PCL/PU) small-diameter artificial blood vessels were prepared by electrospinning technology combined with soaking and tubing-off method, aiming to achieve non-cytotoxicity, puncture resistance, certain porosity and excellent mechanical properties. By means of scanning electron microscope and universal mechanical tensile testing machine, the morphology and mechanical properties of the materials were characterized, and the porosity, cytotoxicity and puncture resistance of artificial blood vessels were studied. The results showed that by changing the size of the receiving roller and then dissolving the inner polyvinyl pyrrolidone, the small diameter artificial blood vessel with the inner diameters of 2, 3, and 5 mm can be obtained. By adjusting the composition ratio and thermal bonding microstructure, the mechanical strength of artificial blood vessels was improved to be 7 times higher compared to the pure PU, with excellent mechanical properties of transverse and longitudinal stretching. The cell viability and porosity of the artificial blood vessel were 94% and 72%, respectively, and the comparison with the commercial expanded polyterafluoroethylene scaffold showed non fluid leakage after puncture.

Key words: electrospinning, artificial blood vessel, thermal bonding point, mechanical enhancement, puncture resistance

CLC Number:

  • TQ342.87

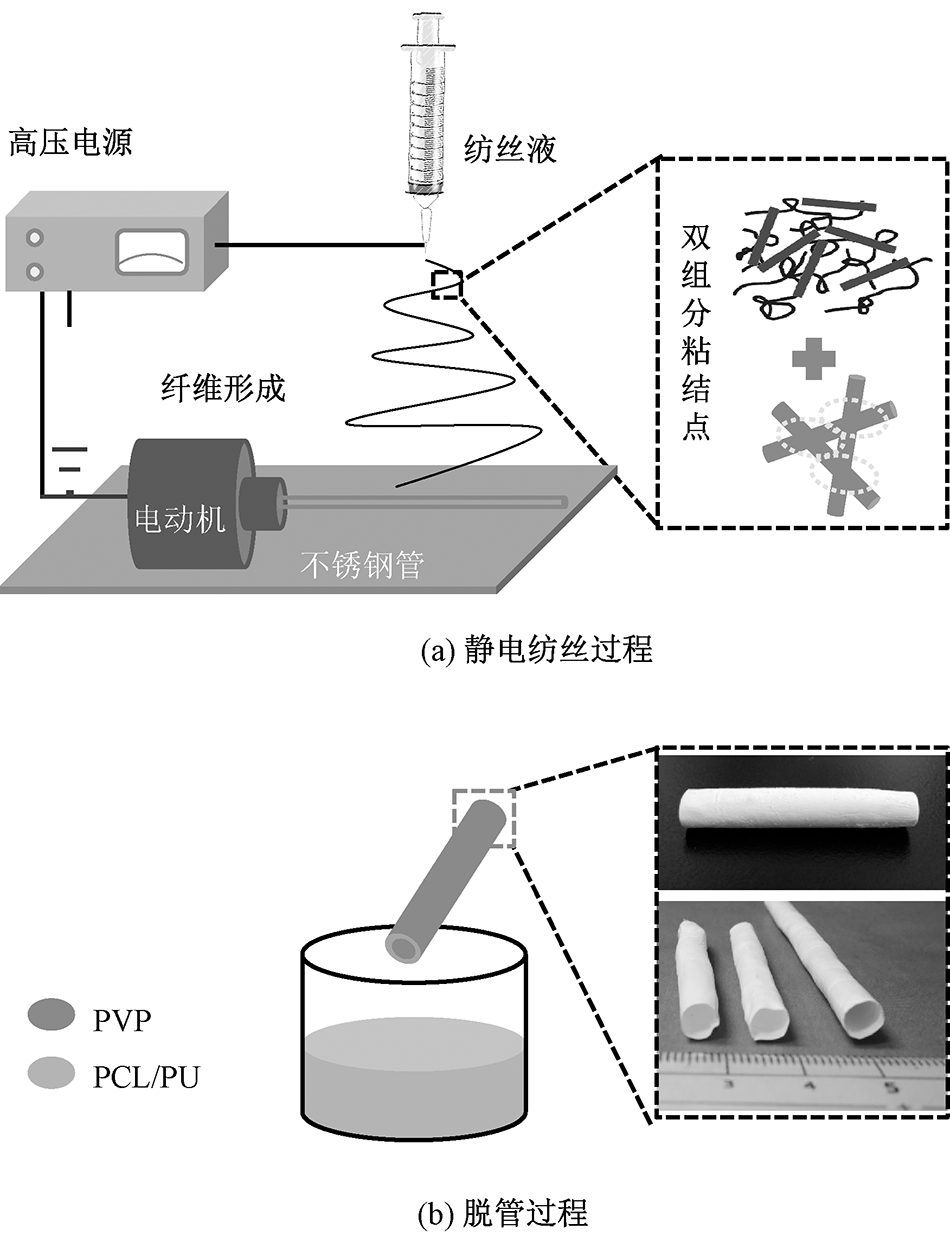

Fig.1

Preparation schematic of artificial blood vessel. (a) Electrospinning process; (b) Tubing-off process"

Fig.2

SEM images of fibrous film and artificial blood vessel. (a) PU fibrous film(×10 000); (b) PCL/PU fibrous film(×10 000); (c) PCL fibrous film(×10 000); (d) Inner layer of artificial blood vessel(×4 000); (e) Outer layer of artificial blood vessel(×4 000); (f) Cross-sectional of artificial blood vessel(×10 000)"

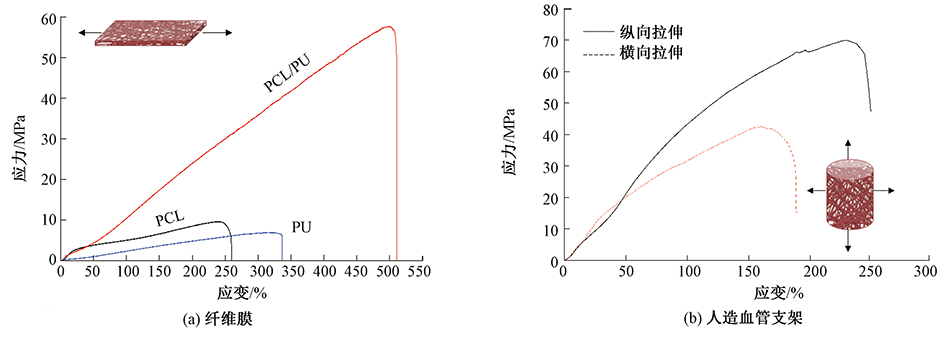

Fig.3

Mechanical properties of fibrous film(a) and artificial blood vessel(b)"

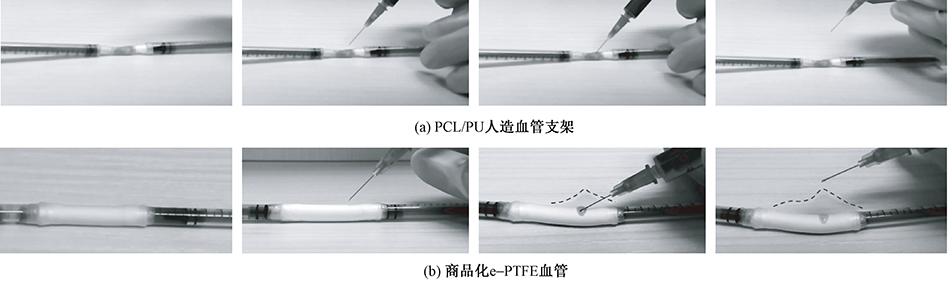

Fig.4

Vascular puncture experiment. (a) PCL/PU fibrous artificial blood vessel; (b) Commercial e-PTFE"

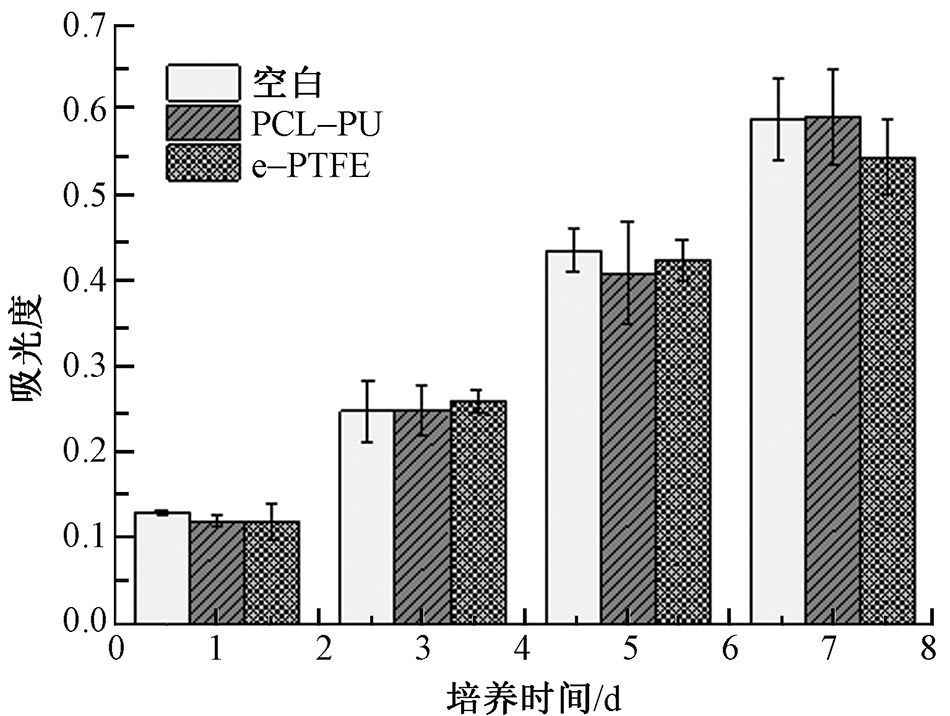

Fig.5

Cell viability according to a MTT assay"

[1] HASAN A, MEMIC A, ANNABI N, et al. Electrospun scaffolds for tissue engineering of vascular grafts[J]. Acta Biomaterialia, 2014, 10(1):11-25.
doi: 10.1016/j.actbio.2013.08.022
[2] DEVILLE S, SAIZ E, NALLA R K, et al. Freezing as a path to build complex composites[J]. Science, 2006, 311:515-518.
doi: 10.1126/science.1120937
[3] WANG J, LIN L, CHENG Q, et al. A strong bio-inspired layered PNIPAM-clay nanocomposite hydr-ogel[J]. Angewandte Chemie International Edition, 2012, 51:4676-80.
doi: 10.1002/anie.201200267
[4] VAZ C M, VAN T S, BOUTEN C V, et al. Design of scaffolds for blood vessel tissue engineering using a multi-layering electrospinning technique[J]. Acta Biomaterialia, 2005, 1:575-82.
doi: 10.1016/j.actbio.2005.06.006
[5] SENEL A H G, PERETS A, AYAZ H, et al. Textile-templated electrospun anisotropic scaffolds for regenerative cardiac tissue engineering[J]. Biomaterials, 2014, 35:8540-52.
doi: 10.1016/j.biomaterials.2014.06.029
[6] GREINER A, WENDORFF J H. Electrospinning: a fascinating method for the preparation of ultrathin fibers[J]. Angewandte Chemie International Edition, 2007, 46:5670-703.
doi: 10.1002/(ISSN)1521-3773
[7] 刘泽堃, 李刚, 李毓陵, 等. 生物医用纺织人造血管的研究进展[J]. 纺织学报, 2017, 38 (7):155-163.
LIU Zekun, LI Gang, LI Yuling, et al. Research progress of biomedical textile artificial blood ves-sel[J]. Journal of Textile Research, 2017, 38 (7):155-163.
[8] AHMED F, DUTTA N K, ZANNETTINO A, et al. Engineering interaction between bone marrow derived endothelial cells and electrospun surfaces for artificial vascular graft applications[J]. Biomacromolecules, 2014, 15:1276-87.
doi: 10.1021/bm401825c
[9] SILL T J, VON R H A. Electrospinning: applications in drug delivery and tissue engineering[J]. Biomaterials, 2008, 29:1989-2006.
doi: 10.1016/j.biomaterials.2008.01.011
[10] MASOUMI N, LARSON B L, ANNABI N, et al. Electrospun PGS:PCL microfibers align human valvular interstitial cells and provide tunable scaffold aniso-tropy[J]. Advanced Healthcare Materials, 2014, 3:929-39.
doi: 10.1002/adhm.201300505
[11] YAO Y, WANG J, CUI Y, et al. Effect of sustained heparin release from PCL/chitosan hybrid small-diameter vascular grafts on anti-thrombogenic property and endothelialization[J]. Acta Biomaterialia, 2014, 10:2739-2749.
doi: 10.1016/j.actbio.2014.02.042
[12] PICCIANI P H S, MEDEIROS E S, PAN Z, et al. Structural, electrical, mechanical, and thermal properties of electrospun poly(lactic acid)/polyaniline blend fibers[J]. Macromolecular Materials and Engineering, 2010, 295:618-27.
doi: 10.1002/mame.v295:7
[13] AJALLOUEIAN F, LIM M L, LEMON G, et al. Biomechanical and biocompatibility characteristics of electrospun polymeric tracheal scaffolds[J]. Biomaterials, 2014, 35:5307-5315.
doi: 10.1016/j.biomaterials.2014.03.015
[14] GUO F, WANG N, HOU L, et al. Mechanical enhancement of bi-phasic electrospun nanofibrous films by optimizing composition and configuration[J]. Materials Chemistry & Physics, 2017, 193:220-226.
[15] LI Y, GUO F, HAO Y, et al. Helical nanofiber yarn enabling highly stretchable engineered microtissue[J]. Proceedings of the National Academy of Sciences, 2019, 116:9245-9250.
doi: 10.1073/pnas.1821617116
[16] MA L, YANG G, WANG N, et al. Trap effect of three-dimensional fibers network for high efficient cancer-cell capture[J]. Advanced Healthcare Materials, 2015, 4:838-843.
doi: 10.1002/adhm.201400650
