纺织学报, 2025, 46(12): 1-10 doi: 10.13475/j.fzxb.20250401001

纺织科技新见解学术沙龙专栏：纤维基功能过滤材料

多孔磺化氢化苯乙烯-丁二烯嵌段共聚物纤维膜制备及其吸附性能

刘轲1,2, 王雨曦1,2, 程盼1,2, 朱丽萍3, 夏明1,2, 梅涛4, 向阳5, 周丰1,2,5, 高飞5, 王栋,1,2

1.武汉纺织大学 纺织纤维及制品教育部重点实验室, 湖北 武汉 430200

2.武汉纺织大学 纺织行业非织造过滤与分离材料重点实验室, 湖北 武汉 430200

3.东华大学 先进纤维材料全国重点实验室, 上海 201620

4.武汉维晨科技有限公司, 湖北 武汉 430106

5.安海斯布希企业管理(上海)有限公司武汉分公司, 湖北 武汉 430051

Preparation of porous sulfonated hydrogenated styrene-butadiene block copolymer fiber membrane and its adsorption performance for lysozyme

LIU Ke1,2, WANG Yuxi1,2, CHENG Pan1,2, ZHU Liping3, XIA Ming1,2, MEI Tao4, XIANG Yang5, ZHOU Feng1,2,5, GAO Fei5, WANG Dong,1,2

1. Key Laboratory of Textile Fibers and Products, Ministry of Education, Wuhan Textile University, Wuhan, Hubei 430200, China

2. Key Laboratory of Nonwoven Filtration and Separation Materials for Textile Industry, Wuhan Textile University, Wuhan, Hubei 430200, China

3. State Key Laboratory of Advanced Fiber Materials, Donghua University, Shanghai 201620, China

4. Wuhan We-Change Technology Co., Ltd., Wuhan, Hubei 430106, China

5. Wuhan Branch of Anheisi-Busch Enterprise Management (Shanghai) Co., Ltd., Wuhan, Hubei 430051, China

通讯作者: 王栋(1979—),男,教授,博士。主要研究方向为聚合物及功能纤维材料。E-mail:wangdon08@126.com。

收稿日期: 2025-04-7   修回日期: 2025-09-10

基金资助: 国家自然科学基金项目(U23A20585)
国家自然科学基金项目(52273061)
国家自然科学基金项目(52373098)
湖北省自然科学基金杰出青年项目(2023AFA086)
湖北省技术创新计划项目(2024BAB119)
武汉市科技计划项目(2023030103010633)

Received: 2025-04-7   Revised: 2025-09-10

作者简介 About authors

刘轲(1984—),男,教授,博士。主要研究方向为纤维基过滤分离材料。

摘要

为解决生物分离介质开发中功能化材料传质动力学与吸附容量不足的问题,采用静电纺丝技术结合化学改性策略,构建了具有介-微孔分级结构和阳离子交换特性的多孔磺化氢化苯乙烯-丁二烯嵌段共聚物纤维膜材料。基于Friedel-Crafts烷基化反应,在苯环上定向修饰氯乙基及羰基极性基团,通过调控反应动力学实现孔结构的可控构筑;进一步通过磺化处理在纤维表面引入高密度磺酸基团,赋予材料表面负电荷特性并增强其亲水性。结果表明:磺化反应在分子层面精准接枝功能基团,未显著改变纤维形貌,且材料生物相容性良好(细胞存活率大于80%);磺化多孔纤维膜的吸附效果优于磺化平板膜和磺化纤维膜,其静态吸附容量可达226 mg/g。上述结果证实,多级孔道结构协同表面电荷分布特性可显著提升传质动力学与吸附容量,为开发高效生物分离介质提供了新型功能化材料设计思路。

关键词： 功能高分子材料; 嵌段共聚物; 多孔纤维; 静电纺丝; 磺酸基; 吸附洗脱; 生物分离; 溶菌酶

Abstract

Objective To address the issues of insufficient mass transfer kinetics and adsorption capacity of functional materials in the development of bioseparation media, this study employed electrospinning technology combined with a chemical modification strategy to construct porous sulfonated hydrogenated styrene-butadiene block copolymer fiber membrane materials with a hierarchical meso-microporous structure and cation exchange properties.

Method Pristine Hydrogenated Styrene-Butadiene Block Copolymer (SEBS) fiber membrane materials were prepared using electrospinning technology. On this basis, sulfonated porous SEBS cation exchange fiber mem-branes (designated as S2-PFM-1) were successfully synthesized via two sequential chemical modifications. The first was the employment of Friedel-Crafts alkylation reaction to directionally modify chloroethyl and carbonyl polar groups on the benzene rings of SEBS, and the reaction kinetics was regulated to achieve controllable construction of the membrane’s pore structure. The second modification sulfonation treatment to introduce high-density sulfonic acid groups on the fiber surface, endowing the material with surface negative charge characteristics and enhanced hydrophilicity.

Results The porous SEBS block copolymer cation exchange fiber membrane was prepared successfully, and its performance as a protein adsorptive separation material was systematically studied. By scanning electron microscopy analysis, it was found that sulfonation had no significant effect on the morphology of SEBS fiber membrane, indicating that sulfonation mainly occurred at the molecular level and did not significantly change the macroscopic structure of the fiber. FT-IR analysis confirmed that sulfonic acid base group was successfully grafted to the surface of the fiber membrane. The hydrophilicity of the sulfonated porous SEBS fiber membrane was significantly superior to that of the sulfonated SEBS fiber membrane, attributing to the enhanced surface polarity of the material by the introduction of sulfonic acid groups. The cell activity of the porous SEBS fiber membrane remained above 80% after sulfonation using cck-8 method, indicating that sulfonic acid groups introduced into the SEBS molecular chain had good biocompatibility and no toxic byproducts were introduced. Due to the negative charge of sulfonic acid group, the fiber membrane exhibited strong electrostatic adsorption to the positively charged lysozyme. The experimental results showed that the adsorption equilibrium of S2-PFM-1 was reached within 120 min under the condition of lysozyme concentration of 2 g/L, and the maximum adsorption capacity was 226 mg/g, which was significantly higher than that of the sulfonated flat membrane.

Conclusion Based on electrospinning and multistage chemical modification strategy, sulfonic acid-based functional porous SEBS fiber membrane material was successfully constructed. Friedel-Crafts alkylation reaction accurately regulated the meso-microporous structure of the fiber network. Combined with surface sulfonation modification, high-density sulfonic acid group was introduced into the molecular chain, endowing the material with strong cation exchange ability and significantly enhanced hydrophilicity. The experimental results showed that the sulfonation modification did not change the macroscopic morphology of the fibers, but effectively regulated the surface charge distribution. The separation mechanism led by electrostatic adsorption showed excellent selectivity to lysozyme. At the optimal pH of 5, the material exhibited rapid adsorption kinetics, and the adsorption capacity was significantly better than that of traditional sulfonated membrane systems, which was attributed to the synergistic effect of multi-stage pore path reduction and high surface density of active sites. In addition, the sulfonation process did not affect the biocompatibility of the material, and the cell activity viability retention rate was more than 80%, indicating the sulfonated porous SEBS fiber membrane having excellent hydrophilicity, lysozyme adsorption performance, and cycling stability, which make it suitable for efficient protein separation and endowing it with potential application prospects in the biomedical field. This study also reveals the structure-activity relationship and action mechanism of the membrane as a protein adsorption material, providing valuable reference for the design and development of high-performance bioseparation media.

Keywords： functional polymer material; block copolymer; porous fiber; electrospinning; sulfonic acid group; adsorption-elution; bioseparation; lysozyme

PDF (10681KB) 元数据 多维度评价 相关文章 导出 EndNote| Ris| Bibtex  收藏本文

本文引用格式

刘轲, 王雨曦, 程盼, 朱丽萍, 夏明, 梅涛, 向阳, 周丰, 高飞, 王栋. 多孔磺化氢化苯乙烯-丁二烯嵌段共聚物纤维膜制备及其吸附性能[J]. 纺织学报, 2025, 46(12): 1-10 doi:10.13475/j.fzxb.20250401001

LIU Ke, WANG Yuxi, CHENG Pan, ZHU Liping, XIA Ming, MEI Tao, XIANG Yang, ZHOU Feng, GAO Fei, WANG Dong. Preparation of porous sulfonated hydrogenated styrene-butadiene block copolymer fiber membrane and its adsorption performance for lysozyme[J]. Journal of Textile Research, 2025, 46(12): 1-10 doi:10.13475/j.fzxb.20250401001

生物医药产业是保障人类生命健康的战略性新兴产业。我国“十四五”规划明确提出构建共性基础技术供给体系,重点突破生命健康领域的关键技术瓶颈,其中生物分离技术作为获取高纯度生物活性物质的核心手段,直接关系着生物制品的质量和产业化效率[1]。

分离材料/介质是生物分离技术的核心,其性能直接影响分离效率[2]、生物组分的活性及纯度[3]。传统分离技术如离心、尺寸排阻、层析及萃取等,虽在一定程度上满足了分离需求,但其单一筛选功能限制了分离效率和选择性[4]。多孔聚合物整体材料则凭借其功能化的互联通孔结构,能够快速、选择性地富集细胞和生物分子,成为分离科学的重要突破[2,5]。这些技术的共同特点是将拦截与特异性吸附等多种分离机制集成于孔状载体中,而孔道作为分离过程的核心,不仅实现了尺寸拦截,还承担了特异性吸附和高速传质的功能;因此,构筑具有传质增强功能的多级孔道结构成为生物分离材料设计的重点方向。

在众多多孔材料中,聚合物纤维集合体因其高孔隙率、可调控的纤维网络结构以及易于功能化修饰的特点,成为构建高性能分离介质的理想选择[6]。通过调控纤维的组装方式(如静电纺丝、相分离等),已成功制备出具有分级孔道结构的纤维基分离材料,并在蛋白质、核酸等生物大分子的分离中表现出优异的动力学吸附性能[7]和选择性[8]。然而,这类材料仍面临一些关键挑战:首先,聚合物纤维在有机溶剂中易溶胀,导致孔道结构坍塌[9];其次,纤维本身的柔性和较低的比表面积限制了其在高压或复杂体系中的应用;此外,高孔隙率材料的机械稳定性不足,难以满足工业化分离的需求[10]。

针对上述问题,本文提出通过静电纺丝技术和化学改性制备多孔氢化苯乙烯-丁二烯嵌段共聚物(SEBS)阳离子交换纤维膜。SEBS因其优异的力学性能、化学稳定性和可加工性,成为一种潜在的离子交换材料。采用溶胀-超交联处理,优化了其孔隙结构和表面化学性质,再通过磺化改性,在SEBS分子链中引入磺酸基团(—SO3H),赋予其阳离子交换能力,从而提升了蛋白质的吸附容量和传质效率。

1 实验部分

1.1 主要原料

氢化苯乙烯-丁二烯嵌段共聚物(SEBS),503T型,巴陵石油化工有限责任公司;甲苯、甲醇、三氯甲烷、1,2-二氯乙烷(DCE)、冰醋酸、三氯化铁(FeCl3)、磷酸二氢钠、磷酸氢二钠,国药集团化学试剂有限公司;去离子水,实验室自制;甲醛二甲缩醛(FDA),纯度≥99%,阿拉丁试剂(上海)有限公司;溶菌酶,生物试剂级,合肥博美生物科技有限责任公司;EX-CELL®EBxTM GRO-I无血清培养基,西格玛奥德里奇(上海)贸易有限公司;细胞计数试剂盒-8(Cell Counting Kit-8,CCK-8,XK6005S),上海晅科生物科技有限公司;SDS-PAGE电泳试剂盒(G2037-50T),塞维尔生物科技有限公司;5×SDS-PAGE蛋白上样缓冲液(G2075-1mL),塞维尔生物科技有限公司;预染蛋白Marker(G2086-205UL), 塞维尔生物科技有限公司。

1.2 SEBS纤维膜的制备

首先,将甲苯与三氯甲烷以3∶7的体积比混合制备混合溶剂,随后加入质量分数为8%的SEBS母粒,通过充分搅拌使其完全溶解,形成均一纺丝溶液。采用静电纺丝技术,在10 kV工作电压和15 cm接收距离下制备SEBS纤维膜。之后,将纤维膜浸入75%乙醇溶液中清洗,干燥后,获得洁净的SEBS纤维膜(标记为FM)。

1.3 多孔SEBS纤维膜的制备

预交联反应:将0.5 g SEBS纤维膜浸入由40 mL冰醋酸、5.6 mL甲醛二甲缩醛和10 g FeCl3组成的反应介质中,在80 ℃油浴条件下分别反应1、3、5 h。反应完成后,依次采用甲醇、1 mol/L HCl和去离子水在索氏提取器中回流清洗30 min,去除残留试剂,随后于40 ℃真空干燥24 h,得到预交联纤维膜(标记为FM-1、FM-3、FM-5)。

超交联反应:取0.5 g预交联纤维膜FM-1,在40 mL 1,2-二氯乙烷和5.6 mL甲醛二甲缩醛中溶胀12 h,随后加入10 g FeCl3,在80 ℃下分别反应1、3、5、9 h。反应结束后,经索氏提取器依次用甲醇、1 mol/L HCl和去离子水清洗,40 ℃干燥24 h,得到超交联纤维膜(标记为PFM-1、PFM-3、PFM-5、PFM-9)。

1.4 磺化多孔SEBS纤维膜的制备

将FM、PFM-1、PFM-3、PFM-5和PFM-9纤维膜裁剪成合适尺寸,完全浸入硫酸溶液中,在98 ℃油浴条件下反应2 h,同时施加磁力搅拌以保证反应均匀性。反应完成后,取出纤维膜并用大量去离子水反复浸泡1 h,期间多次换水以彻底去除残留硫酸。随后采用乙醇清洗15 min,去除有机杂质,最后用去离子水冲洗至中性。经60 ℃烘箱干燥24 h后,得到磺化纤维膜(见图1),分别命名为S2-FM、S2-PFM-1、S2-PFM-3、S2-PFM-5和S2-PFM-9,并密封储存于干燥器中备用。

图1

新窗口打开| 下载原图ZIP| 生成PPT

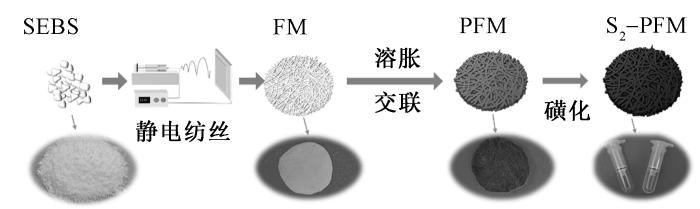

图1   多孔磺化SEBS纤维膜制备流程

Fig.1   Preparation process of porous sulfonated SEBS fiber membrane


1.5 平板膜制备过程

以SEBS纤维膜纺丝溶液为铸膜液,采用50 μm厚度的刮刀刮涂,60 ℃下干燥4 h,制备得到SEBS平板膜(标记为M);采用S2-PFM-1的磺化改性工艺对该平板膜处理,获得磺化平板膜(S2-M),采用PFM-1的交联工艺和S2-PFM-1的磺化改性工艺对该平板膜处理,获得磺化多孔平板膜(S2-PM-1)。

1.6 结构及性能测试与表征

1.6.1 形貌观察

使用 JSM-65410LV 型扫描电子显微镜(SEM,日本电子JEOL公司)对SEBS纤维膜微观形貌进行观察,加速电压为 20 kV。在测试之前,对样品表面进行镀金处理 2 min。

1.6.2 比表面积测试

使用BELSORP MaxII型比表面积及孔径分析仪(日本麦奇克拜尔公司)对反应前后SEBS纤维膜比表面积进行测试。以N2为吸附质、液氮环境测试;纤维膜于120 ℃脱气4 h预处理,参照 GB/T 19587—2004《气体吸附BET法测定固态物质比表面积》,采用 BET 法计算比表面积。

1.6.3 孔隙率测试

使用AccuPycⅡ1340型全自动真密度分析仪(美国麦克仪器公司)通过气体置换法对反应前后SEBS纤维膜孔隙的率进行测试。使用氦气置换,15~35 ℃,360 s平衡,参照ASTM UOP 821—1981《使用微量分析仪通过氮气吸附和/或解吸对多孔物质进行自动微孔径分布的标准方法》进行测试。

1.6.4 化学官能团表征

使用Tensor27型傅里叶红外光谱仪(FT-IR,布鲁克(北京)科技有限公司)表征磺化前后纤维膜的化学键和官能团。测量范围为4 000~400 cm-1,分辨率为4 cm-1。

1.6.5 接触角测试

使用DSA300S型接触角测量仪器(德国克吕士公司)测量液滴在固体表面形成的接触角,评估材料的表面能及其润湿性。

1.6.6 力学性能测试

使用INSTRON 5967型拉伸测试仪(美国英斯特朗公司)测试交联前后SEBS纤维膜的拉伸性能,实时记录应力-应变曲线。观察样品的变形过程,直至样品断裂或达到测试终止条件。

1.6.7 细胞活性测试

采用 CCK-8 法检测内皮细胞活性,评估 FM、PFM-1、S2-FM、S2-PFM-1这4种纤维材料的细胞相容性。首先,在无血清培养基中对4种材料样品进行浸提,得到初始浸提液(记为100%浸提液);再对其进行不同比例的稀释,得到初始浸提液的体积分数分别为12.5%、25%、50%、100%的浸提液(记为 “材料名称-初始浸提液的体积分数”,如 FM-100%);其次,将内皮细胞接种于装填有上述浸提液的 96 孔板,在适宜条件下预培养 24 h;再向各孔中加入 CCK-8溶液,培养箱内避光培养 4 h 后获得液体产物,通过酶标仪检测各孔中液体产物在450 nm 波长处的吸光度值,通过下式计算细胞存活率细胞存活率C,以评估细胞活性。

C=Ae-AbAn-Ab×100%

式中:Ae为实验组液体产物的吸光度值(含细胞、材料浸提液与 CCK-8 溶液);An为阴性对照组吸光度值(含细胞、无材料浸提液的培养基与 CCK-8 溶液);Ab为空白对照组吸光度值(仅含培养基与 CCK-8 溶液)。

1.6.8 纤维膜静态吸附性能测试

本研究利用磺化纤维膜表面带负电的磺酸根与溶菌酶(pI为10~11)带正电氨基间的静电相互作用,考察纤维膜的蛋白质吸附特性。首先采用1 mol/L NaOH/NaCl溶液预处理纤维膜以活化表面基团,经去离子水充分洗涤后干燥备用。配制pH=5的磷酸盐缓冲溶液(0.2 mol/L NaH2PO4/Na2HPO4)作为模拟生理环境,并溶解溶菌酶至2 mg/mL,获得吸附前原始溶液。取50 mg预处理纤维膜浸入15 mL吸附前原始溶液,于室温下以100 r/min振荡2 h至吸附平衡。最后通过MD-2000C型紫外-可见分光光度计(北京凯奥科技发展有限公司)在280 nm处测定上清液吸光度变化,定量分析吸附性能。纤维膜对溶菌酶的吸附容量q*计算公式为

q*=(C0-C1)V/m0

式中:C0为配制溶菌酶的初始质量浓度, g/L;C1为吸附后溶菌酶的质量浓度, g/L;V为用以吸附溶菌酶溶液的体积, L;m0为用以吸附溶菌酶的纤维膜的质量, g。

将完成吸附的纤维膜,置于5 mL 含 1 mol/L NaCl 缓冲液中,随后置于恒温摇床内,设定温度为 25 ℃、振荡转速为 150 r/min,持续洗脱 120 min,得到洗脱液。随后将洗脱液与5×SDS-PAGE蛋白上样缓冲液按4∶1体积比混合,95 ℃加热5 min使蛋白变性,获得洗脱液样品。使用电泳试剂盒配制质量分数为12.5%的聚丙烯酰胺凝胶[11],每孔上样10 μL的洗脱液样品、吸附前原始溶液样品(C0)及预染蛋白Marker作为参照,在120 V恒压电泳90 min,经考马斯亮蓝染色后获得目标条带[12]。

2 结果与讨论

2.1 多孔磺化SEBS纤维膜化学反应过程

SEBS由聚苯乙烯(PS)硬段和乙烯/丁烯共聚物(EB)软段组成,其独特的微相分离结构为Friedel-Crafts烷基化反应提供了理想的基础。PS硬段中的苯环作为反应位点,能够高效地进行Friedel-Crafts烷基化反应,而EB软段则提供了柔性和可加工性[13]。其化学反应过程如图2所示。

图2

新窗口打开| 下载原图ZIP| 生成PPT

图2   多孔磺化SEBS纤维膜的化学反应过程示意图

Fig.2   Schematic diagram of chemical reaction process of porous sulfonated SEBS fiber membrane. (a) Hydrolyzation of FDA to form a methylene carbocation; (b) Formation of a methylene bridge bond by aromatic ring with carbocation via Friedel-Crafts alkylation; (c) Chloroethyl cation reacts with benzene rings of SFBS to introduce chloroethyl group;(d) Introduction of sulfonic acid group via an electrophilic substitution reaction


预交联过程:甲醛二甲缩醛与SEBS的反应过程主要基于酸催化缩合机制,如图 2(a)在酸性条件下,FDA的缩醛结构(—OCH2O—)可发生水解,形成亲电性中间体(亚甲基碳正离子),SEBS 分子中的苯乙烯嵌段含富电子芳环结构,在 FeCl3催化下,芳环通过Friedel-Crafts烷基化反应与碳正离子结合形成亚甲基桥键(—CH2—)或醚键(—O—),从而实现SEBS的交联或接枝改性[14],如图2(b)所示。

超交联过程主要涉及以下步骤。1)反应引发。在路易斯酸催化剂(FeCl3)的作用下,1,2-二氯乙烷被活化,生成氯乙基阳离子,作为烷基化试剂。2)烷基化反应。如图 2(c)所示,氯乙基阳离子与SEBS分子链中的苯环发生Friedel-Crafts烷基化反应,在苯环上引入氯乙基(—CH2—CH2Cl)基团。由于空间位阻效应,部分DCE分子仅与1个苯环反应,而未反应的CH2Cl在后续处理中发生水解,生成羟乙基(—CH2—CH2OH)基团。甲醛二甲缩醛本身含有醚键(—OCH3),在FeCl3的催化下,可能与其它分子链中的羟基(—OH)反应,形成新的醚键(C—O—C)。3)氧化反应。在水解过程中,残留的Fe3+离子作为氧化剂,将羟乙基(—CH2—CH2OH)基团进一步氧化为羰基—CH2—C══O基团[15]。磺化过程。SEBS的磺化反应主要发生在PS嵌段的苯环上,通过亲电取代反应引入磺酸基团(—SO3H)。此过程与Friedel-Crafts烷基化交联反应形成动力学竞争,如图 2(d)所示。

2.2 预交联时间对纤维膜形貌的影响

由高倍率SEM照片可见,SEBS纤维表面平整光滑,直径分布均匀且无明显结构缺陷(见图 3(a))。由于该材料独特的微相分离结构和非晶态特性[16],其在静电纺丝过程中表现出较低的可纺性,导致纤维直径偏大(见图3(c))并形成具有大尺寸、非均匀分布的孔隙体系,但整体仍维持较高的孔隙连通性,展现出在分离过滤领域的应用潜力。为增强纤维膜的结构稳定性,采用预交联技术引入化学交联点以防止形变[14]。图3结果表明,预交联处理未显著改变纤维表面形貌特征,其光滑度、纤维堆叠模式、孔隙分布特征及微观形态在交联前后未产生明显差异。

图3

新窗口打开| 下载原图ZIP| 生成PPT

图3   SEBS纤维膜预交联不同时间的形貌照片

Fig.3   Morphology images of SEBS fiber membranes with pre-crosslinking at different time

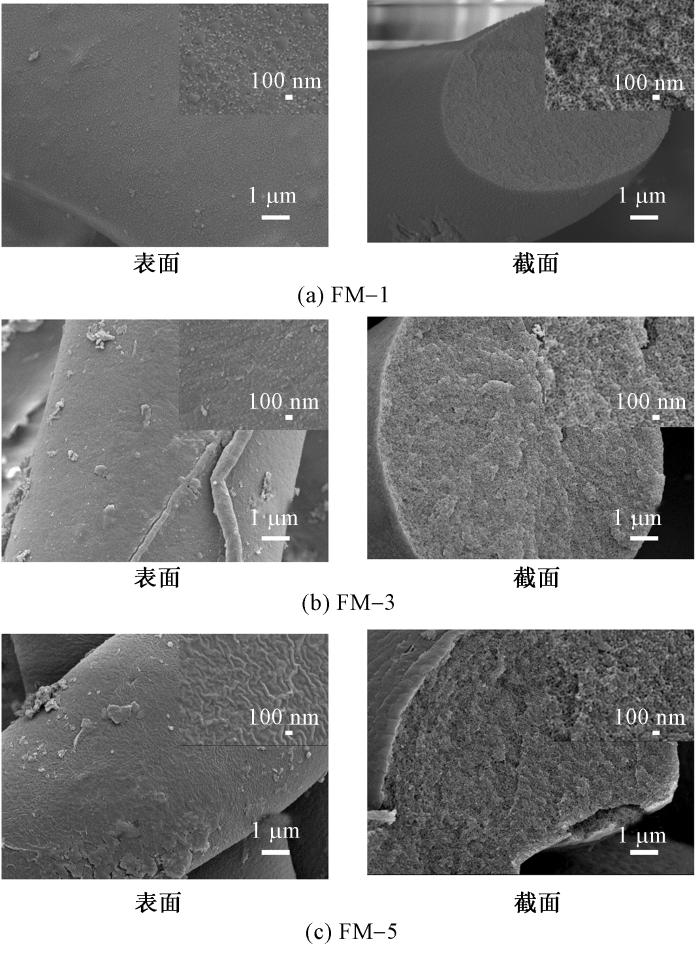

通过对比不同预交联时间样品(FM-1、FM-3、FM-5)经溶胀-超交联1 h后形貌(见图4)发现,预交联时间延长显著提高纤维表面交联点密度,致使其形成致密皮层结构,抑制溶胀剂向纤维内部渗透,导致孔隙生成效率降低。短时预交联(如FM-1)因皮层结构疏松,利于溶胀剂扩散并形成均匀孔隙网络;而长时处理(如FM-5)因过度交联使孔隙数量锐减。基于此,将预交联时间优化至1 h(FM-1)可平衡纤维膜形貌稳定性与孔隙结构的保留,故选定FM-1作为后续研究体系。

图4

新窗口打开| 下载原图ZIP| 生成PPT

图4   FM-1、FM-3、FM-5超交联1 h的形貌照片

Fig.4   Morphology images of FM-1, FM-3,and FM-5 after hypercrosslinking for 1 h


2.3 超交联时间对纤维膜形貌的影响

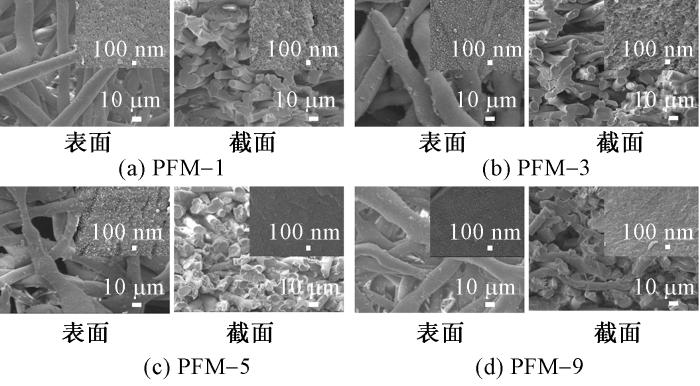

SEM分析表明,经溶胀-超交联处理后,SEBS纤维表面形成均匀分布的纳米级孔隙结构(见图5)。为解析其内部结构演变,通过液氮淬断截面观察发现,溶胀过程促使溶剂分子渗透至纤维内部,随后超交联反应通过化学交联固定形成贯穿纤维内外的一致的孔隙结构。研究证实,溶胀-超交联技术能够协同调控纤维表面与内部的孔隙分布特征。随着超交联时间的延长,纤维内部的孔隙结构也呈现出逐渐变小且分布更加密集的趋势。这一结果与Zhang等[17]的研究结论相符,超交联时间的延长能够显著提高纤维的交联密度,从而优化其孔隙结构。

图5

新窗口打开| 下载原图ZIP| 生成PPT

图5   FM-1超交联不同时间的形貌照片

Fig.5   Morphology images of FM-1 at different hypercrosslinking times


2.4 磺化对纤维膜形貌的影响

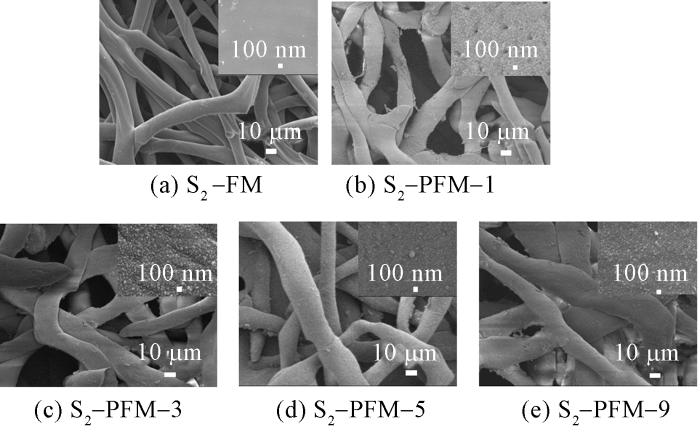

图6示出磺化SEBS纤维膜表面SEM照片。可见,磺化处理后SEBS多孔纤维膜表面形貌与原始样品相比未发生显著改变,这归因于磺化反应主要通过对分子链中苯环的化学接枝引入磺酸基团,而纤维的宏观形貌仍由静电纺丝工艺主导。交联-磺化协同处理后的纤维同样维持原有表面特征,进一步证实该过程未对物理结构造成明显影响。

图6

新窗口打开| 下载原图ZIP| 生成PPT

图6   PFM系列纤维膜磺化后的表面形貌照片

Fig.6   Surface morphology of PFM-series fibrous membranes after sulfonation


2.5 SEBS纤维膜的比表面积及孔隙率

表1示出经过不同时间的预交联与超交联后SEBS纤维膜的比表面积和孔隙率数据。实验数据显示,仅经过预交联处理的膜材料(FM系列)的比表面积(1.978 2~4.092 5 m2/g)较低。经过超交联后的膜材料(PFM系列)的比表面积(5.171 2~19.649 8 m2/g)显著提升,其中PFM-5的比表面积(19.649 8 m2/g)最高,较FM膜材料提升近10倍,同时孔隙率也同步上升至(78.76±1.27)%。然而,继续延长超交联时间至9 h,PFM-9膜材料的比表面积下降至18.663 0 m2/g,证明过高的交联密度会导致孔结构塌缩。此外,S2-PFM-1膜材料的比表面积(6.1710 m2/g)和孔隙率((65.18±2.16)%)相较于PFM-1小幅度提升,表明磺化改性并未显著改变纤维表面的孔结构,而主要改变了纤维膜表面的化学结构(见图 6)。

表1   不同试样的比表面积和孔隙率

Tab.1  Specific surface area and porosity of various specimens

试样编号比表面积/(m2·g-1)孔隙率/%
FM1.987 249.27 ± 0.85
FM-13.542 351.23 ± 1.54
FM-33.997 851.98 ± 0.98
FM-54.092 550.25 ± 1.65
PFM-15.171 257.32 ± 2.72
PFM-38.225 260.74 ± 1.65
PFM-519.649 878.76 ± 1.27
PFM-918.663 073.64 ± 1.89
S2-PFM-16.171 065.18 ± 2.16

新窗口打开| 下载CSV


2.6 SEBS纤维膜的化学结构

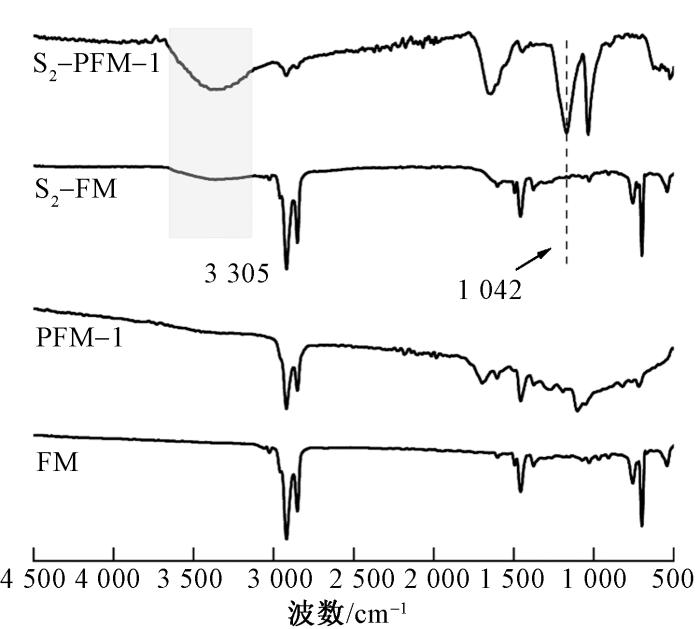

图7示出磺化前后纤维膜的红外光谱。由图可见,磺化后SEBS纤维膜在3 600~3 200 cm-1范围内出现的宽峰对应磺酸基团中的O—H键伸缩振动,而在1 042 cm-1范围内出现的强吸收峰则归因于S══O键[16]的伸缩振动。此外,700~600 cm-1范围内的吸收峰反映了C—S键的振动特征。O—H和S══O特征峰的出现表明磺酸基团成功引入到SEBS分子链中。同时,交联后引入的S══O峰在磺化后可能发生轻微位移或强度变化,表明磺化反应可能改变了S══O基团的化学环境。综上所述,红外光谱分析证实了磺酸基团的成功引入,为SEBS纤维膜的化学改性提供了重要依据。

图7

新窗口打开| 下载原图ZIP| 生成PPT

图7   磺化前后纤维膜的FT-IR谱图

Fig.7   FT-IR spectra of fiber membranes before and after sulfonation


2.7 SEBS纤维膜的表面亲水性

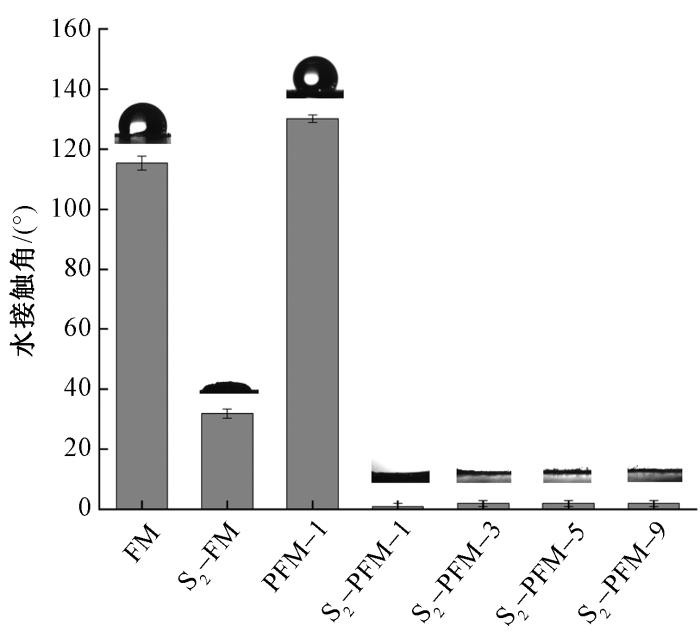

通过接触角测试,可观察到磺化处理对SEBS纤维膜表面亲水性的显著影响(见图8)。未交联的SEBS纤维膜(S2-FM)磺化后,接触角从115°显著降低至31°,表明磺酸基团的引入大幅提高了材料的表面亲水性。然而,由于S2-FM未经过交联处理,磺化后的纤维膜在接触角测试中易被水溶胀,导致液滴形状不规则,这反映了材料在未交联状态下的结构不稳定性。相比之下,多孔SEBS纤维膜磺化后,接触角降低至接近0°。这归因于多孔结构的高比表面积和磺酸基团的协同作用,使得水能够迅速铺展并渗透到纤维膜内部。

图8

新窗口打开| 下载原图ZIP| 生成PPT

图8   磺化前后纤维膜水接触角

Fig.8   Water contact angle of fiber membranes before and after sulfonation


2.8 磺化多孔SEBS纤维膜的力学性能

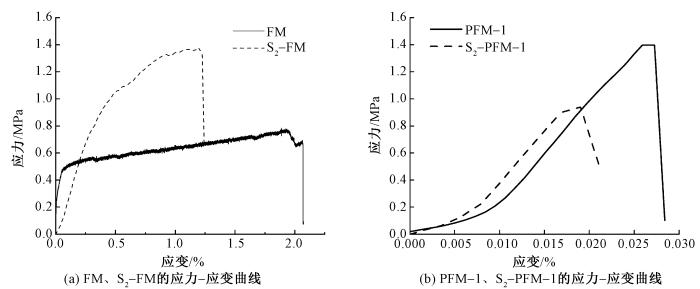

力学性能测试表明,磺化SEBS纤维膜的拉伸应力提升源于磺酸基团引入形成的极性相互作用及氢键网络增强效应,但分子链运动受限导致材料延展性显著降低(见图9)。值得注意的是,尽管磺化后拉伸应力和应变都进一步降低,但其拉伸应力仍能达到1 MPa。其拉伸性能降低可归结于多孔基体有效承载截面积缩减与磺酸基团对分子链物理缠结的部分破坏协同作用。

图9

新窗口打开| 下载原图ZIP| 生成PPT

图9   磺化改性对 FM与 PFM-1力学性能的影响

Fig.9   Effects of sulfonation modification on mechanical properties of FM and PFM-1.(a)Stress-strain curves of FM and S2-FM; (b) Stress-strain curves of PFM-1 and S2-PFM-1


2.9 磺化多孔SEBS纤维膜的细胞相容性

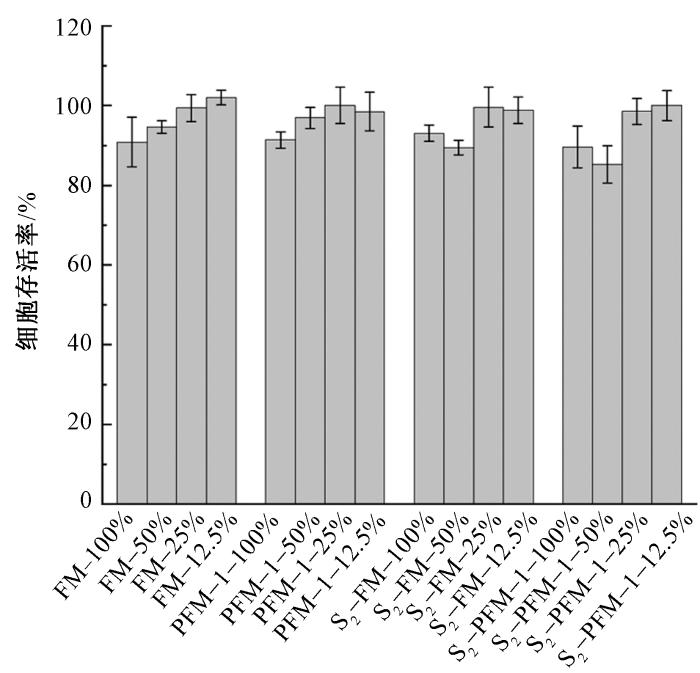

经磺化后,SEBS纤维膜和多孔SEBS纤维膜的细胞存活率仍保持在80%以上(见图10),表明磺化处理未显著影响其细胞相容性。

图10

新窗口打开| 下载原图ZIP| 生成PPT

图10   不同体积分数浸取液试样的细胞存活率

Fig.10   Cell viability rate of samples with different extract concentrations


2.10 SEBS纤维膜对溶菌酶的吸附性能

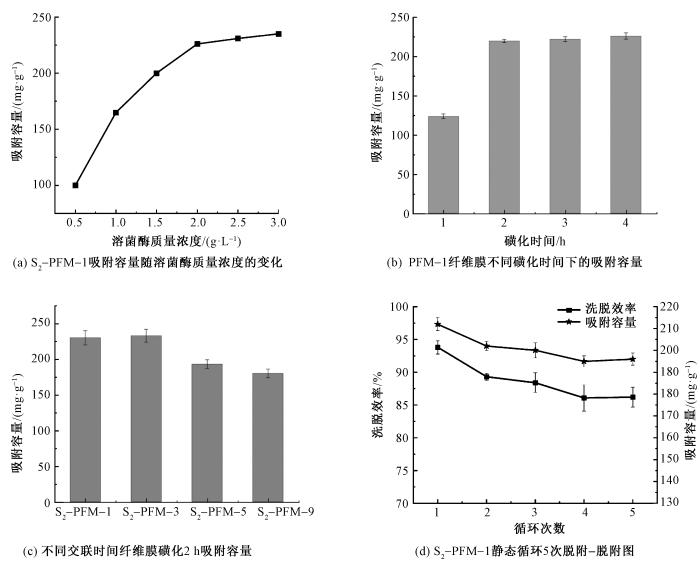

为探究影响PFM系列纤维膜吸附溶菌酶能力的关键因素,实验围绕溶菌酶初始质量浓度、磺化时间、纤维膜类型及循环性能展开分析。在溶菌酶初始质量浓度影响方面,随浓度升高,纤维膜吸附容量显著提升,当质量浓度达 2 g/L 时,吸附容量达 226 mg/g;继续增加质量浓度,吸附容量无明显变化,表明纤维膜吸附位点接近饱和(见图11(a)),故后续实验选用 2 g/L 溶菌酶质量浓度。磺化时间影响实验结果(见图11(b))显示,超 2 h 后的吸附容量不再显著增加,因苯环上磺酸根接枝位点已完全接枝,因此确定 2 h 为最佳磺化时间。对比 S2-PFM-1 与 S2-PFM-3的吸附性能(见图11(c)),后者吸附容量虽略有提升,但差异不显著,故选择S2-PFM-1 进行后续研究。此外,交联时间过长会导致吸附容量降低,原因是过度交联占用苯环活性位点,减少磺酸根基团接枝密度(见图2)。循环性能测试(见图 11(d))中,S2-PFM-1 纤维膜经 5 次吸附-脱附循环后,吸附容量仍保持初始值的 86.2%,具备良好稳定性,满足实际应用需求。

图11

新窗口打开| 下载原图ZIP| 生成PPT

图11   SEBS纤维膜对溶菌酶吸附容量影响因素及静态循环性能

Fig.11   Factors influencing adsorption capacity of SEBS-based fiber membrane materials for lysozyme and their static cyclic adsorption-desorption performance. (a) Variation of adsorption capacity of S2-PFM-1 with lysozyme concentration; (b) Adsorption capacity of PFM-1 fiber membranes at different sulfonation time; (c) Adsorption capacity of fiber membranes with different crosslinking time after 2-hour sulfonation; (d) Static adsorption-desorption diagram of S2-PFM-1 over 5 cycles


2.11 不同膜材料溶菌酶吸附性能对比

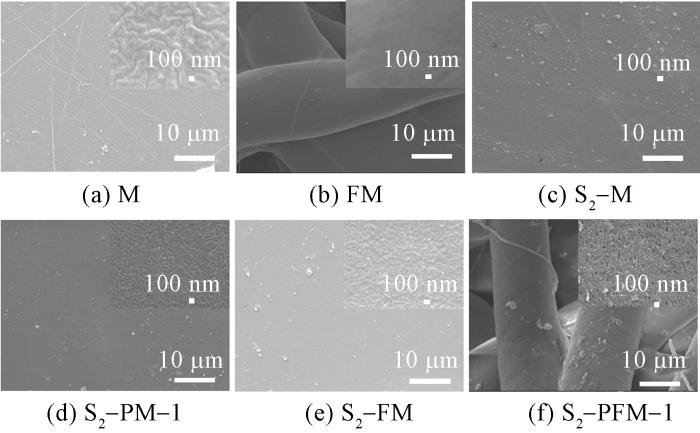

由平板膜SEM照片可以看出,平板膜交联后和磺化后的孔隙结构并不明显(见图12)。通过对比可发现,磺化多孔纤维膜对溶菌酶的吸附量显著高于磺化平板膜。

图12

新窗口打开| 下载原图ZIP| 生成PPT

图12   M、FM、S2-M、S2-PM-1、S2-FM、S2-PFM-1表面形貌对比图

Fig.12   Comparison of surface morphologies of M,FM, S2-M, S2-PM-1, S2-FM, and S2-PFM-1


磺化多孔纤维膜的高吸附量主要源于2方面:

一是其经静电纺丝形成的三维纤维网络结构,比表面积高且孔隙丰富,可让磺化剂充分接触纤维表面,引入更多磺酸基团,从而增强对溶菌酶的静电吸附能力;二是交联处理进一步优化了多孔结构,扩大了与溶菌酶的接触面积,提升了吸附位点的利用率。与之相比,磺化平板膜因厚度较大、孔隙密度低,限制了磺化剂渗透与溶菌酶扩散,吸附容量显著降低,如图13所示。从图13(b)可看出,随着时间的延长,纤维膜在前100 min快速吸附,在120 min时达到吸附平衡。图13(c)中,吸附后洗脱的电泳图出现溶菌酶特征条带,证实 SEBS 纤维膜可有效吸附并洗脱溶菌酶。

图13

新窗口打开| 下载原图ZIP| 生成PPT

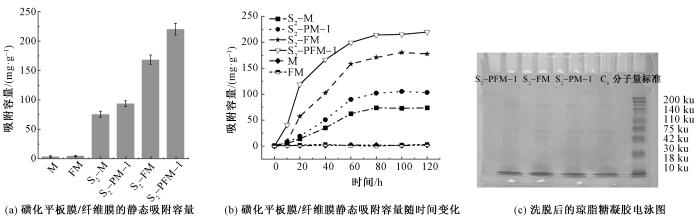

图13   平板膜与纤维膜材料溶菌酶吸附性能对比

Fig.13   Comparison of lysozyme adsorption performance between flat membrane and fiber membrane materials. (a) Static adsorption capacity of sulfonated flat film/fiber film; (b) Static adsorption capacity of sulfonated flat film/fiber film over time; (c) Eluted agarose gel electrophoresis electropherogram


3 结论

本研究制备了氢化苯乙烯-丁二烯嵌段共聚物(SEBS)纤维膜材料,并基于Friedel-Crafts烷基化反应和磺化反应,成功制备了磺化多孔SEBS阳离子交换纤维膜(S2-PFM-1)。形貌及孔结构分析结果显示,磺化后的膜材料仍保持6.171 0 m2/g的比表面积及(65.18 ± 2.16)%的孔隙率,表明磺酸基团通过分子链修饰实现接枝而未破坏三维网络结构。红外光谱分析结果显示,膜材料表面成功接枝了磺酸基团,水接触角由未磺化样品的118°显著降低至0°左右,表现出优异的亲水性能。同时,磺化后膜材料表现出较高的细胞存活率,为(89.61±5.25)%。膜材料在pH=5条件下120 min对溶菌酶的吸附达到饱和容量226 mg/g,且5次吸附-脱附循环后容量保持率仍达86.2%。交联时间通过影响苯环活性位点分布及磺酸基接枝密度,成为调控吸附性能的关键参数。综上所述,磺化多孔SEBS纤维膜表现出优异的亲水性和蛋白质吸附性能,可用于蛋白质的高效分离,在生物医药领域具有潜在的应用前景。
