油剂去除对针刺非织造过滤材料驻极性能的影响

doi:10.13475/j.fzxb.20180704406

摘要/Abstract

摘要：

为研究纤维表面油剂对针刺非织造材料驻极性能的影响,提高针刺非织造过滤材料的电晕驻极效果,以涤纶为原料,制备了不同面密度的涤纶针刺非织造材料,采用洗涤剂、碳酸钠以及乙醇试剂依次对非织造材料进行洗涤以去除纤维表面的油剂,分析试样在洗涤前后的介电常数、体积比电阻的变化,以及电晕驻极效果和效率衰减性能。结果表明:油剂的去除对涤纶针刺非织造材料的驻极效果有积极影响,去除油剂后其驻极性能大大提高;随着面密度增加,涤纶针刺非织造材料的驻极过滤性能差异更加明显,当面密度为250 g/m²,经-15 kV电压驻极处理1 min后,其过滤效率由洗涤前的42.6% 增加至洗涤后的57.8%;油剂的去除使非织造材料的静电衰减周期延长。

关键词: 涤纶, 油剂, 驻极, 非织造材料, 静电衰减性能, 过滤效率

Abstract:

In order to study the effect of the fiber surface oil on the charging performance of the needle-punched nonwoven materials, and improve the corona charging effect of the needle-punched nonwoven filter materials, polyester fiber was selected as raw material to prepare needle-punched nonwoven materials with different weights. The nonwoven materials were washed by detergent, sodium carbonate reagent and ethanol reagent to remove the oil on the fiber surface. The change of dielectric constant and volume specific resistance, as well as the corona charging effect and efficiency decay performance of the polyester nonwoven materials before and after washing was analyzed. The results show that the removal of the oil agent has a positive effect on the corona charging effect of the polyester needle-punched nonwoven material, and the charging performance of the nonwoven materials with oil removed has greatly improved. The difference of the charging filtration performance is more obvious when the weight is higher. After charging at -15 kV voltage for 1 min, the filtration efficiency of the needle-punched polyester nonwoven with the weight of 250 g/m² increases from 42.6% to 57.8% after washing. The removal of the oil agent lengthens the period of electrostatic decay of the polyester needle-punched nonwoven material.

Key words: polyester, oil agent, charging, nonwoven material, electric decay property, filtration efficiency

中图分类号:

TS176.4

邹志伟, 钱晓明, 钱幺, 赵宝宝, 朵永超. 油剂去除对针刺非织造过滤材料驻极性能的影响[J]. 纺织学报, 2019, 40(06): 79-84.

ZOU Zhiwei, QIAN Xiaoming, QIAN Yao, ZHAO Baobao, DUO Yongchao. Effect of oil removal on charging performance of needle-punched nonwoven filters[J]. Journal of Textile Research, 2019, 40(06): 79-84.

图/表 8

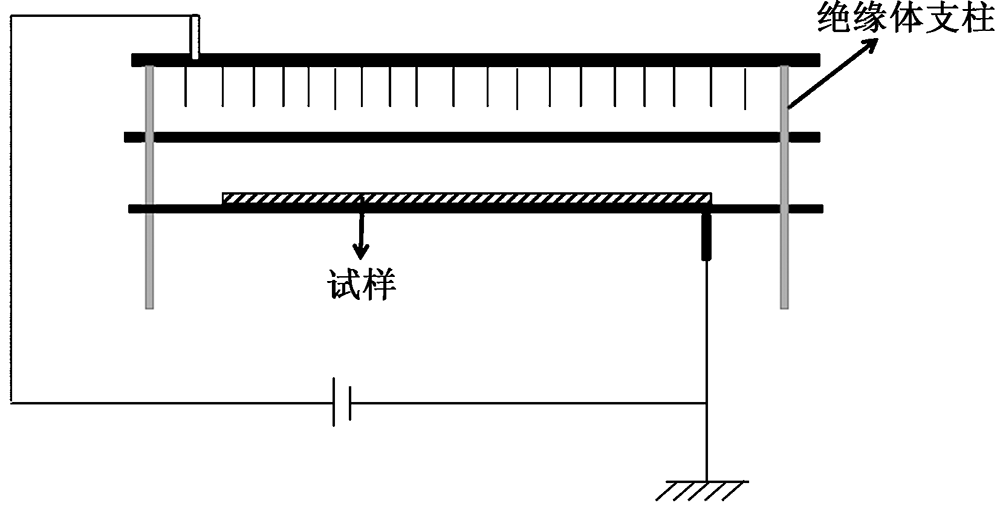

图1

表1

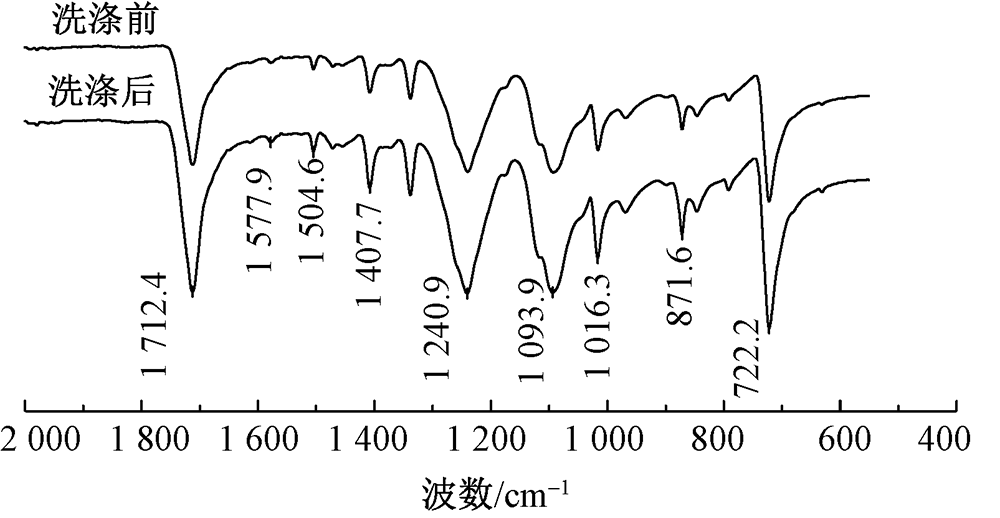

图2

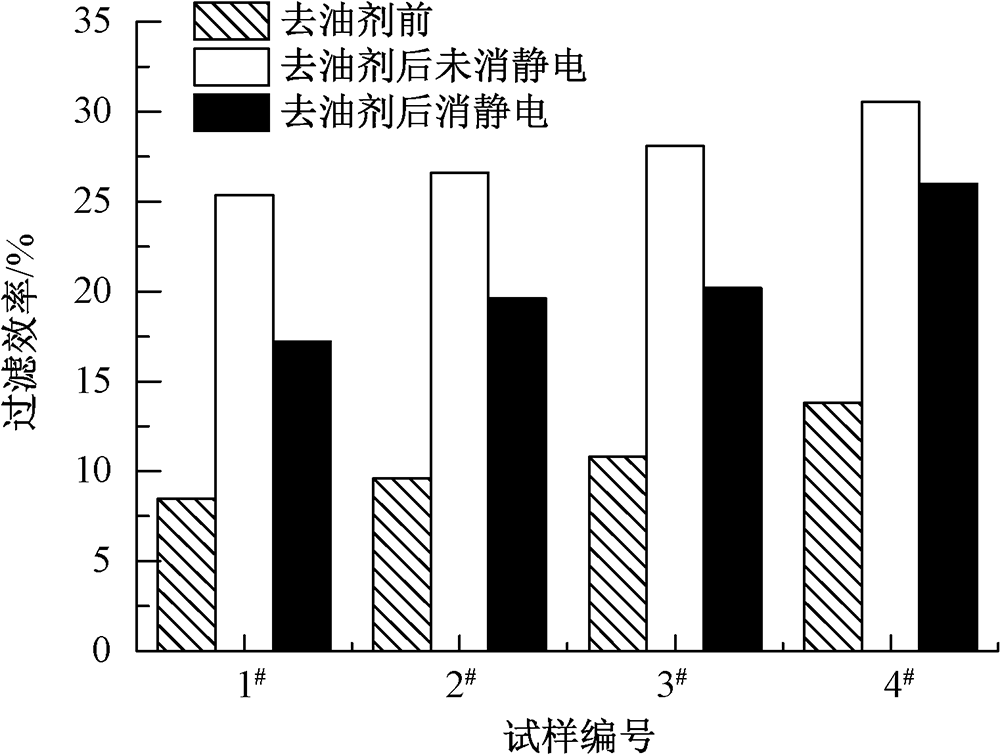

图3

图4

图5

图6

图7

参考文献 22

[1]	孙立华, 赵永霞, 董奎勇, 等. 纺织科技新进展回顾与展望[J]. 纺织导报, 2011(1):33-46.
	SUN Lihua, ZHAO Yongxia, DONG Kuiyong, et al. Progress of textile technology review and outlook[J]. China Textile Leader, 2011(1):33-46.
[2]	PAYEN J, VROMAN P, LEWANDOWSKI M, et al. Influence of fiber diameter, fiber combinations and solid volume fraction on air filtration properties in non-wovens[J]. Textile Research Journal, 2012,82(19):1948-1959.
[3]	YU B, HAN J, HE X B, et al. Effects of tourmaline particles on structure and properties of polypropylene filtration melt-blown nonwoven electrets[J]. Journal of Macromolecular Science, 2012,51(4):619-629.
[4]	RASHMI T, DIPAYAN D, APURBA D. Electret air filters[J]. Separation and Purification Reviews, 2013,42(2):87-129.
[5]	TANG M, THOMPSON D, CHANG D Q, et al. Filtration efficiency and loading characteristics of PM_2.5 through commercial electret filter media[J]. Separation and Purification Technology, 2018,195:101-109.
[6]	RASHMI T, DIPAYAN D, APURBA D. Optimization study to improve filtration behaviour of electret filter media[J]. Journal of the Textile Institute, 2016,107(11):1456-1462.
[7]	田涛, 吴金辉, 郝丽梅, 等. 聚丙烯纤维驻极体滤材的储电性能[J]. 纺织学报, 2010,31(6):25-28.
	TIAN Tao, WU Jinhui, HAO Limei, et al. Research on charge storage properties of polypropylene fiber electret filter[J]. Journal of Textile Research, 2010,31(6):25-28.
[8]	周晨, 徐熊耀, 靳向煜. ES纤维热风非织造布驻极性能初探[J]. 纺织学报. 2012,33(9):66-70.
	ZHOU Chen, XU Xiongyao, JIN Xiangyu. Exploration of electrets property of area bonded ES-fiber fabric[J]. Journal of Textile Research, 2012,33(9):66-70.
[9]	钱幺, 王雨, 钱晓明. ES纤维针刺非织造布的摩擦驻极性能[J]. 天津工业大学学报, 2016,35(3):28-32.
	QIAN Yao, WANG Yu, QIAN Xiaoming. Tribo-electrically charged electret performance of acupuncture ES-fiber fabric[J]. Journal of Tianjin Polytechnic University, 2016,35(3):28-32.
[10]	钱幺, 赵宝宝, 邓辉, 等. 摩擦驻极对聚四氟乙烯纤维非织造布过滤性能的影响[J]. 纺织学报, 2017,38(11):22-26.
	QIAN Yao, ZHAO Baobao, DENG Hui, et al. Filtration performance of polytetrafluoroethylene fiber electret fabric charged by tribo-electricity[J]. Journal of Textile Research, 2017,38(11):22-26.
[11]	HUANG Z X, LIU X X, ZHANG X, et al. Electrospun polyvinylidene fluoride containing nanoscale graphite platelets as electret membrane and its application in air filtration under extreme environment[J]. Polymer, 2017,131:143-150.
[12]	李晓波, 陈嵘, 张冶文, 等. 一种自制聚酰亚胺膜与商品Kapton H膜的驻极体性能比较[J]. 功能材料, 2001(6):617-619.
	LI Xiaobo, CHEN Rong, ZHANG Yewen, et al. Comparison of homemade polyimide films and Kapton H films on the electrets properties[J]. Journal of Functional Materials, 2001(6):617-619.
[13]	德田省二, 今川真之 . 摩擦带电过滤材料:200480018529.0[P]. 2006-08-09.
	MASYUKI Toknda SHOJI Imagawa. Friction charged filter material: 200480018529[P]. 2006-08-09.
[14]	SONG X Y, ZHOU S, WANG Y, et al. Mechanical and electret properties of polypropylene nonwoven fabrics reinforced with POSS for electret filter materials[J]. Journal of Polymer Research, 2012,19:1-8.
[15]	ALI K, EUNKYOUNG S, BEHNAM P. Electrostatic capture efficiency enhancement of polypropylene electret filters with barium titanate[J]. Aerosol Science and Technology, 2015,49(8):666-673.
[16]	王洪, 刘明奇, 吴海波. 带电针刺过滤材料的研究[J]. 产业用纺织品, 2014(9):17-21.
	WANG Hong, LIU Mingqi, WU Haibo. Study on the triboelectric charged needle-punched nonwoven filtration materials[J]. Technical Textiles, 2014 (9):17-21.
[17]	云高杰. 一种针刺静电滤棉及其制备方法:201310541285.5[P]. 2014-01-29.
	YUN Gaojie. Needling static filter cotton and preparation method thereof: 201310541285.5[P]. 2014-01-29.
[18]	BROWN C R. Blended-fiber filter material: 4798850[P]. 1989-01-17.
[19]	周骏, 裴蓓, 杨建林, 等. 油剂对涤纶短纤维性能的影响[J]. 聚酯工业, 2005(6):32-34.
	ZHOU Jun, PEI Pei, YANG Jianlin, et al. Effect of finish oil on polyester staple properties[J]. Polyester Industry, 2005(6):32-34.
[20]	彼得P·蔡, 张良宇 . 摩擦带电的空气过滤材料:02146224.0[P]. 2004-04-21.
	CAI P P, ZHANG Liangyu. Air filtering material with triboelectrification: 02146224.0[P]. 2004-04-21.
[21]	田伟, 雷新, 从明芳, 等. 纺粘非织造布制备工艺与性能的关系[J]. 纺织学报, 2015,36(11):68-71.
	TIAN Wei, LEI Xin, CONG Mingfang, et al. Relationship between manufacture process and performance for spunbond nonwoven[J]. Journal of Textile Research, 2015,36(11):68-71.
[22]	王宁, 薛春玲, 朱朋飞, 等. 基于红外光谱法的三组分混合纤维混纺比的测定[J]. 中国测试, 2017,43(8):50-54.
	WANG Ning, XUE Chunling, ZHU Pengfei, et al. Testing of three-component mixed fiber blending ratio based on infrared spectroscopy[J]. China Measure-ment & Text, 2017,43(8):50-54.

相关文章 15

[1]	王秋萍, 张瑞萍, 李成红, 张葛成. 导电涤纶非织造布的制备及其性能[J]. 纺织学报, 2020, 41(10): 116-121.
[2]	孙焕惟, 张恒, 甄琪, 朱斐超, 钱晓明, 崔景强, 张一风. 丙烯基纳微米弹性过滤材料的熔喷成型及其过滤性能[J]. 纺织学报, 2020, 41(10): 20-28.
[3]	李亮, 刘静芳, 胡泽栋, 耿长军, 刘让同. 涤纶织物的氧化石墨烯负载及其抗静电性能[J]. 纺织学报, 2020, 41(09): 102-107.
[4]	张凌云, 钱晓明, 邹驰, 邹志伟. SiO₂气凝胶/ 聚酯-聚乙烯双组分纤维复合保暖材料的制备及其性能[J]. 纺织学报, 2020, 41(08): 22-26.
[5]	杨小兵, 程钧, 张守鑫, 姚红, 陆林, 丁松涛. 口罩过滤效率检测用颗粒物粒径的换算和标准比对[J]. 纺织学报, 2020, 41(08): 152-157.
[6]	陈诗萍, 陈旻, 魏岑, 王富军, 王璐. 医用防护服的构效特点及其研发趋势[J]. 纺织学报, 2020, 41(08): 179-187.
[7]	安琪, 付译鋆, 张瑜, 张伟, 王璐, 李大伟. 医用防护服用非织造材料的研究进展[J]. 纺织学报, 2020, 41(08): 188-196.
[8]	刘国金, 韩朋帅, 柴丽琴, 吴钰, 李慧, 高雅芳, 周岚. 涤纶织物上自交联型P( St-NMA) 光子晶体的构筑及其结构稳固性[J]. 纺织学报, 2020, 41(05): 99-104.
[9]	王晓菲, 万爱兰. 紫外线辐照聚吡咯/ 银导电涤纶织物的制备[J]. 纺织学报, 2020, 41(04): 112-116.
[10]	谭淋, 施亦东, 周文雅. 棉织物的硅溶胶疏水整理[J]. 纺织学报, 2020, 41(04): 106-111.
[11]	张星, 刘金鑫, 张海峰, 王玉晓, 靳向煜. 防护口罩用非织造滤料的制备技术与研究现状[J]. 纺织学报, 2020, 41(03): 168-174.
[12]	林佳濛, 万爱兰, 缪旭红. 聚吡咯/ 银导电涤纶织物的制备及其性能[J]. 纺织学报, 2020, 41(03): 113-117.
[13]	丁放, 任学宏. 磷氮阻燃剂对涤纶织物的阻燃整理[J]. 纺织学报, 2020, 41(03): 100-105.
[14]	甄琪, 张恒, 朱斐超, 史建宏, 刘雍, 张一风. 聚丙烯/ 聚酯双组分微纳米纤维熔喷非织造材料制备及其性能[J]. 纺织学报, 2020, 41(02): 26-32.
[15]	伏立松, 张淑洁, 王瑞, 杨兆薇, 荆梦轲. 管道修复用涤纶/ 苎麻非织造复合材料拉伸强度[J]. 纺织学报, 2020, 41(02): 52-57.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

试样编号	面密度/ (g·m^-2)	厚度/mm	透气性/ (mm·s^-1)	孔隙率/ %	过滤阻力/Pa		体积电阻率/(Ω·m)
试样编号	面密度/ (g·m^-2)	厚度/mm	透气性/ (mm·s^-1)	孔隙率/ %	洗涤前	洗涤后	洗涤前	洗涤后
1^#	150	1.52	1 517.4	92.95	7.2	7.5	1.75×10¹²	6.14×10¹⁴
2^#	170	1.63	1 348.2	92.55	7.8	8.3	1.82×10¹²	6.25×10¹⁴
3^#	190	1.78	1 137.6	92.38	9.2	9.8	1.88×10¹²	6.36×10¹⁴
4^#	250	2.01	668.6	91.12	15.9	16.5	1.95×10¹²	6.45×10¹⁴
